ONE FORD ONE TEAM ONE PLAN ONE GOAL Ford/NHTSA FMVSS 225 NPRM Meeting May 6, 2015 12: 30 – 1: 30 pm Eric Eiswerth Ford Automotive Safety Vehicle Homologation & Compliance
ONE FORD ONE TEAM ONE PLAN ONE GOAL Agenda • • • Lower Anchor Ease of Use • Depth Gauge • Angle Gauge • Force Gauge • Ford Test Data Upper Anchor Zone Changes • Package Tray Wrap-Around • Under Seat Ford Generic Product Cycle
ONE FORD ONE TEAM ONE PLAN ONE GOAL Lower Anchor Depth & Angle Gauges Design Factors: Lower Anchor Accessibility: • Softer foam or gaps between cushion and back improves lower anchor access Appearance/Seat Comfort/Craftsmanship Attributes: Consistent lower edge of the seat back with an interference or line-to-line fit to the seat cushion • Stiff seat foam with tight trim cover and concealed anchors improves appearance and seat comfort Manufacturing Factors: Process Variations: Seat foam is geometrically consistent, but the density can vary due to manufacturing process • Trim process is manual and variable • 20 mm regulatory criteria will require a manufacturer to determine a statistical based design margin which we expect to be extremely difficult to incorporate to the manual process Product Factors: Product Changes: Most Ford vehicles will require design changes to seat foam & trim and/or lower anchorages
ONE FORD ONE TEAM ONE PLAN ONE GOAL Seat Cushion and Back Design Changes Seat cushion foam tools • Any voids are included in the foam tool – secondary processes to trim out local areas are not used • Each foam tool can produce approximately 30, 000 seats per year • Typical seat cushion tool cost is [ ] for the first cavity, [ ] for additional cavities • Seat trim development is a manual, iterative process that takes 15 – 20 weeks to achieve appearance targets For example, a vehicle with 300 k production volume may require 3 unique foam tools for: - Seat Cushion - RH Seat Back - LH Seat Back At least ten cavities of each tool are required to support volume, resulting in approximately [ ] foam tooling cost. [Confidential Information Removed]
ONE FORD ONE TEAM ONE PLAN ONE GOAL Lower Anchor Force Gauge Ford procedure and gauge is similar to the NPRM proposal • Ford does not limit or record the application force angle • 5 trials are conducted, highest/lowest values are deleted, then the remaining 3 values are averaged • Our data shows that with 5 trials, the range between minimum and maximum can be greater than 50% of the average (poor Gauge R&R), but the 40 lb criteria is reasonable based on our test data
Confidential Business Information Lower Anchor Force Gauge ONE FORD ONE TEAM ONE PLAN ONE GOAL [Confidential Information Removed]
ONE FORD ONE TEAM ONE PLAN ONE GOAL Upper Anchor Zone Changes Package Tray Wrap-Around • Package tray is a component of body structure and is typically not changed except for NEW vehicle development • MAJOR and MINOR freshening programs typically involve front/rear fascia, body exterior sheet metal and interior – not underbody or body structure • Changes to existing sedan vehicles to meet the proposed 165 mm zone would require significant out-of-cadence design changes
Mustang Package Tray 8 ONE FORD ONE TEAM ONE PLAN ONE GOAL Dashed red line is 165 mm rear of seat back
ONE FORD ONE TEAM ONE PLAN ONE GOAL Mustang Package Tray Dashed red line is 165 mm rear of seat back
ONE FORD ONE TEAM ONE PLAN ONE GOAL Fusion Package Tray 10 Dashed red line is 165 mm rear of seat back
ONE FORD ONE TEAM ONE PLAN ONE GOAL Taurus Package Tray Dashed red line is 165 mm rear of seat back
Confidential Business Information ONE FORD ONE TEAM ONE PLAN ONE GOAL In Development Vehicle Package Tray [Confidential Information Removed]
ONE FORD ONE TEAM ONE PLAN ONE GOAL Upper Anchor Zone Changes Under Seat Location SUV/CUV Tether Anchors are often located at the base of the seat, very close to the plane through the rearmost point of the bottom of the seat as defined in the NPRM 5/6/2015 13
ONE FORD ONE TEAM ONE PLAN ONE GOAL Upper Anchor Zone Changes Under Seat Location Full size Transit van (all new model for the US in 2015) uses a modular seat concept with tether anchors die-cut into the seat stanchion, resulting in a practical and an effective design in providing several seating positions with top tether anchors 8 pass wagon; 7 TA’s 12 pass wagon; 10 TA’s 15 pass wagon; 10 TA’s 10 pass wagon; 8 TA’s

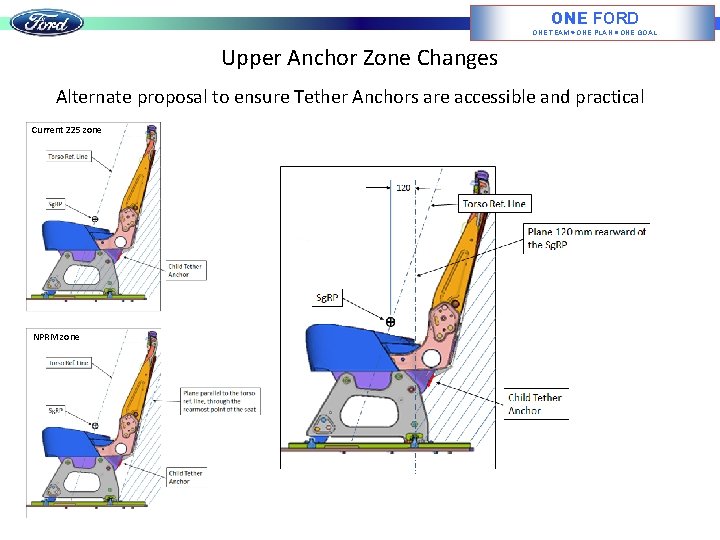

ONE FORD ONE TEAM ONE PLAN ONE GOAL Upper Anchor Zone Changes Alternate proposal to ensure Tether Anchors are accessible and practical Current 225 zone NPRM zone
ONE FORD ONE TEAM ONE PLAN ONE GOAL Ford Product Development Processes Ford’s standardized product development process defines an integrated set of disciplined, engineering activities that delivers high quality products. [Confidential Information Removed]
ONE FORD ONE TEAM ONE PLAN ONE GOAL Lead Time and Phase-In Discussion Classifications & Frequency of Change Types [Confidential Information Removed] 17
