On your paper write the name of the

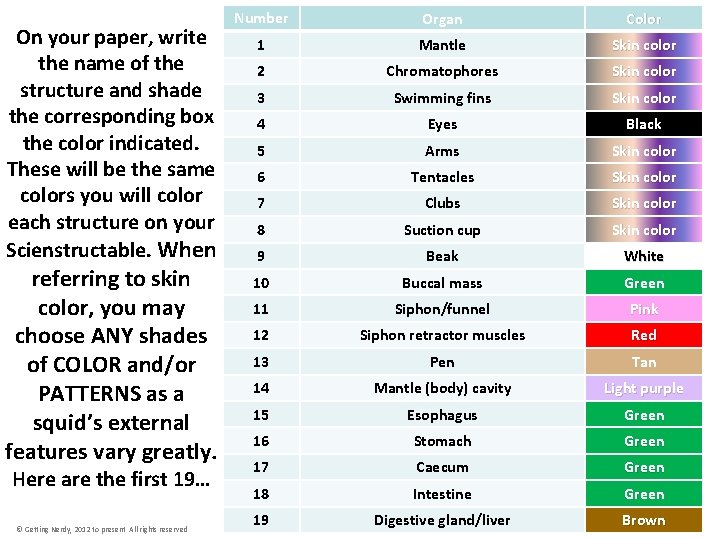

On your paper, write the name of the structure and shade the corresponding box the color indicated. These will be the same colors you will color each structure on your Scienstructable. When referring to skin color, you may choose ANY shades of COLOR and/or PATTERNS as a squid’s external features vary greatly. Here are the first 19… © Getting Nerdy, 2012 to present All rights reserved Number Organ Color 1 Mantle Skin color 2 Chromatophores Skin color 3 Swimming fins Skin color 4 Eyes Black 5 Arms Skin color 6 Tentacles Skin color 7 Clubs Skin color 8 Suction cup Skin color 9 Beak White 10 Buccal mass Green 11 Siphon/funnel Pink 12 Siphon retractor muscles Red 13 Pen Tan 14 Mantle (body) cavity Light purple 15 Esophagus Green 16 Stomach Green 17 Caecum Green 18 Intestine Green 19 Digestive gland/liver Brown

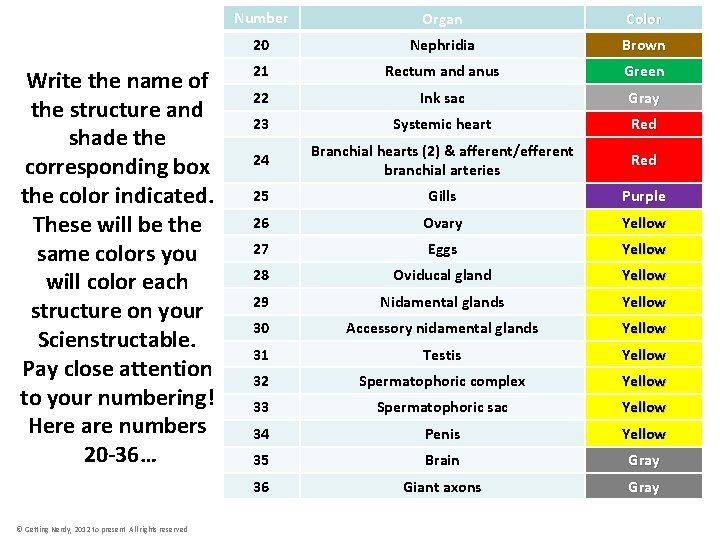

Write the name of the structure and shade the corresponding box the color indicated. These will be the same colors you will color each structure on your Scienstructable. Pay close attention to your numbering! Here are numbers 20 -36… © Getting Nerdy, 2012 to present All rights reserved Number Organ Color 20 Nephridia Brown 21 Rectum and anus Green 22 Ink sac Gray 23 Systemic heart Red 24 Branchial hearts (2) & afferent/efferent branchial arteries Red 25 Gills Purple 26 Ovary Yellow 27 Eggs Yellow 28 Oviducal gland Yellow 29 Nidamental glands Yellow 30 Accessory nidamental glands Yellow 31 Testis Yellow 32 Spermatophoric complex Yellow 33 Spermatophoric sac Yellow 34 Penis Yellow 35 Brain Gray 36 Giant axons Gray

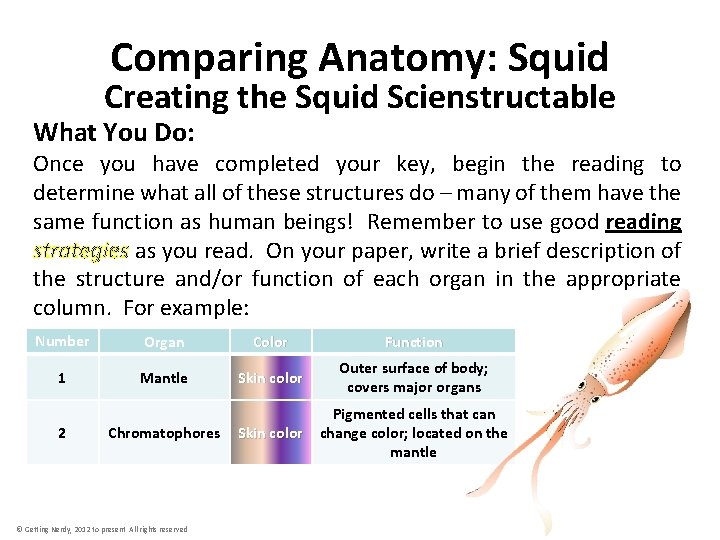

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: Once you have completed your key, begin the reading to determine what all of these structures do – many of them have the same function as human beings! Remember to use good reading strategies as you read. On your paper, write a brief description of the structure and/or function of each organ in the appropriate column. For example: Number Organ Color Function 1 Mantle Skin color Outer surface of body; covers major organs Skin color Pigmented cells that can change color; located on the mantle 2 Chromatophores © Getting Nerdy, 2012 to present All rights reserved

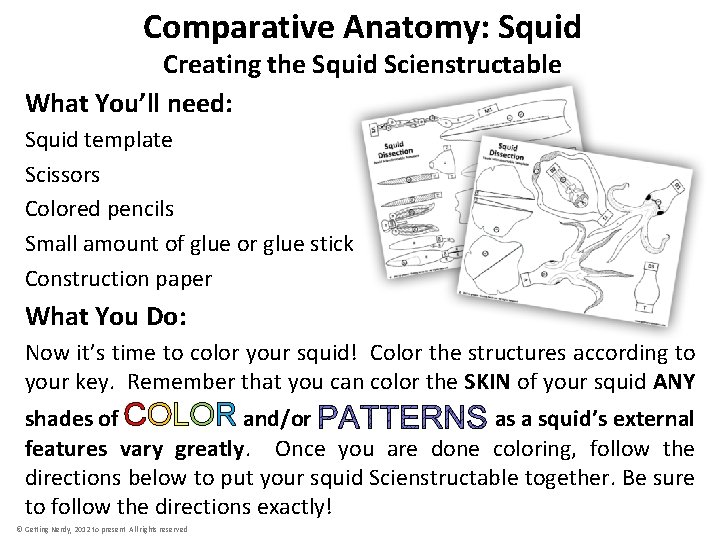

Comparative Anatomy: Squid Creating the Squid Scienstructable What You’ll need: Squid template Scissors Colored pencils Small amount of glue or glue stick Construction paper What You Do: Now it’s time to color your squid! Color the structures according to your key. Remember that you can color the SKIN of your squid ANY shades of COLOR and/or as a squid’s external features vary greatly. Once you are done coloring, follow the directions below to put your squid Scienstructable together. Be sure to follow the directions exactly! © Getting Nerdy, 2012 to present All rights reserved

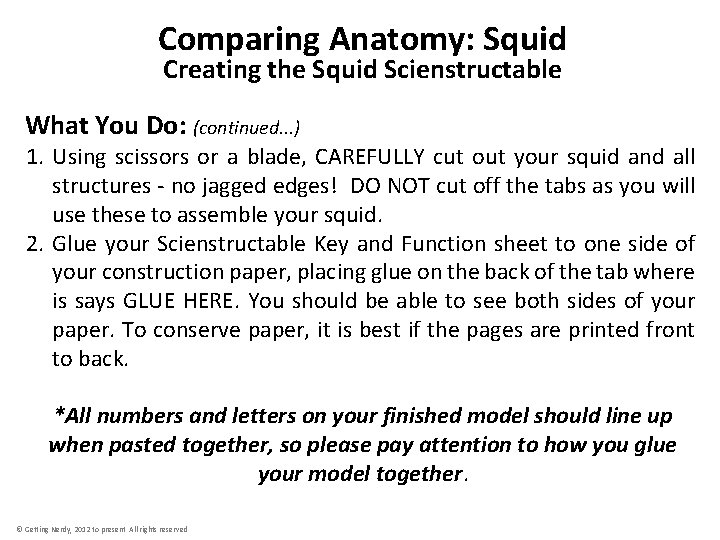

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 1. Using scissors or a blade, CAREFULLY cut out your squid and all structures - no jagged edges! DO NOT cut off the tabs as you will use these to assemble your squid. 2. Glue your Scienstructable Key and Function sheet to one side of your construction paper, placing glue on the back of the tab where is says GLUE HERE. You should be able to see both sides of your paper. To conserve paper, it is best if the pages are printed front to back. *All numbers and letters on your finished model should line up when pasted together, so please pay attention to how you glue your model together. © Getting Nerdy, 2012 to present All rights reserved

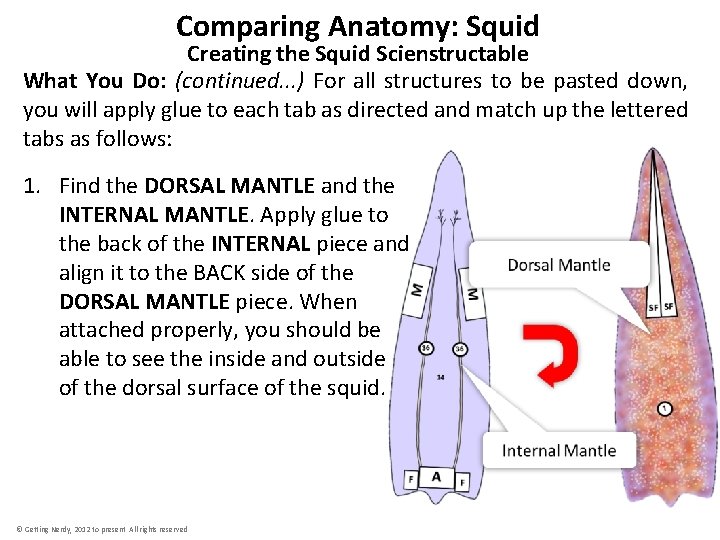

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) For all structures to be pasted down, you will apply glue to each tab as directed and match up the lettered tabs as follows: 1. Find the DORSAL MANTLE and the INTERNAL MANTLE. Apply glue to the back of the INTERNAL piece and align it to the BACK side of the DORSAL MANTLE piece. When attached properly, you should be able to see the inside and outside of the dorsal surface of the squid. © Getting Nerdy, 2012 to present All rights reserved

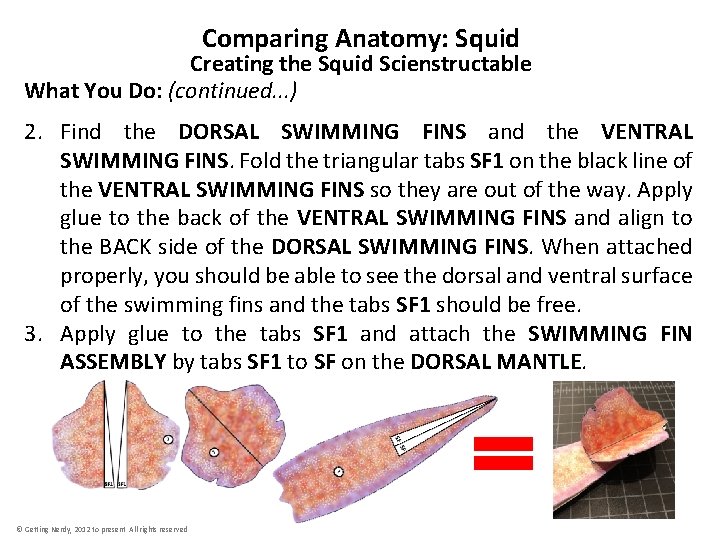

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 2. Find the DORSAL SWIMMING FINS and the VENTRAL SWIMMING FINS. Fold the triangular tabs SF 1 on the black line of the VENTRAL SWIMMING FINS so they are out of the way. Apply glue to the back of the VENTRAL SWIMMING FINS and align to the BACK side of the DORSAL SWIMMING FINS. When attached properly, you should be able to see the dorsal and ventral surface of the swimming fins and the tabs SF 1 should be free. 3. Apply glue to the tabs SF 1 and attach the SWIMMING FIN ASSEMBLY by tabs SF 1 to SF on the DORSAL MANTLE. © Getting Nerdy, 2012 to present All rights reserved

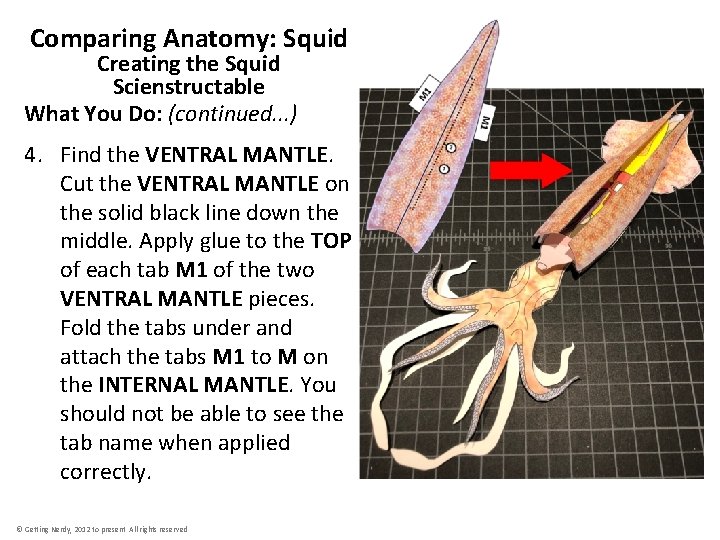

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 4. Find the VENTRAL MANTLE. Cut the VENTRAL MANTLE on the solid black line down the middle. Apply glue to the TOP of each tab M 1 of the two VENTRAL MANTLE pieces. Fold the tabs under and attach the tabs M 1 to M on the INTERNAL MANTLE. You should not be able to see the tab name when applied correctly. © Getting Nerdy, 2012 to present All rights reserved

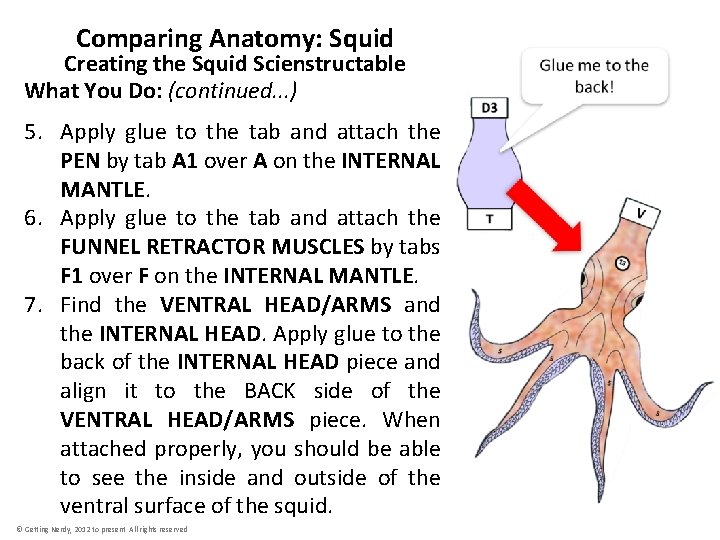

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 5. Apply glue to the tab and attach the PEN by tab A 1 over A on the INTERNAL MANTLE. 6. Apply glue to the tab and attach the FUNNEL RETRACTOR MUSCLES by tabs F 1 over F on the INTERNAL MANTLE. 7. Find the VENTRAL HEAD/ARMS and the INTERNAL HEAD. Apply glue to the back of the INTERNAL HEAD piece and align it to the BACK side of the VENTRAL HEAD/ARMS piece. When attached properly, you should be able to see the inside and outside of the ventral surface of the squid. © Getting Nerdy, 2012 to present All rights reserved

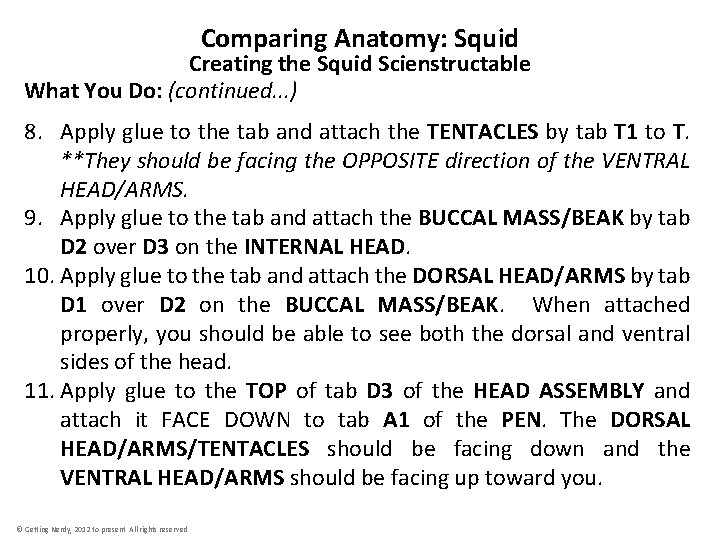

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 8. Apply glue to the tab and attach the TENTACLES by tab T 1 to T. **They should be facing the OPPOSITE direction of the VENTRAL HEAD/ARMS. 9. Apply glue to the tab and attach the BUCCAL MASS/BEAK by tab D 2 over D 3 on the INTERNAL HEAD. 10. Apply glue to the tab and attach the DORSAL HEAD/ARMS by tab D 1 over D 2 on the BUCCAL MASS/BEAK. When attached properly, you should be able to see both the dorsal and ventral sides of the head. 11. Apply glue to the TOP of tab D 3 of the HEAD ASSEMBLY and attach it FACE DOWN to tab A 1 of the PEN. The DORSAL HEAD/ARMS/TENTACLES should be facing down and the VENTRAL HEAD/ARMS should be facing up toward you. © Getting Nerdy, 2012 to present All rights reserved

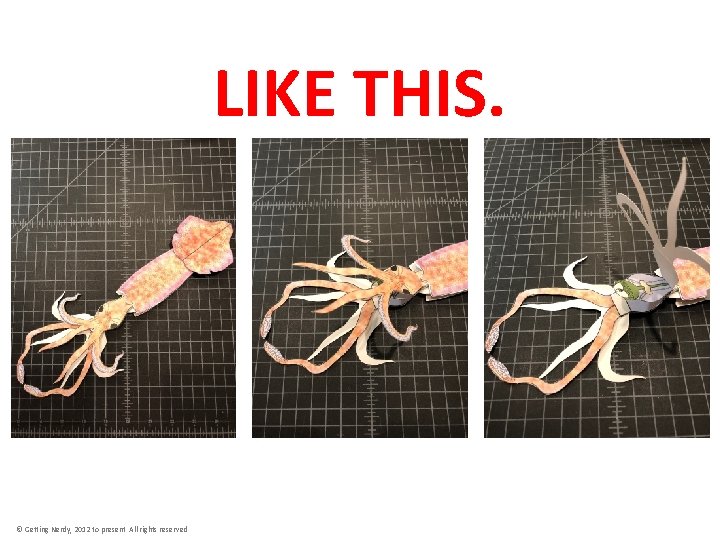

LIKE THIS. © Getting Nerdy, 2012 to present All rights reserved

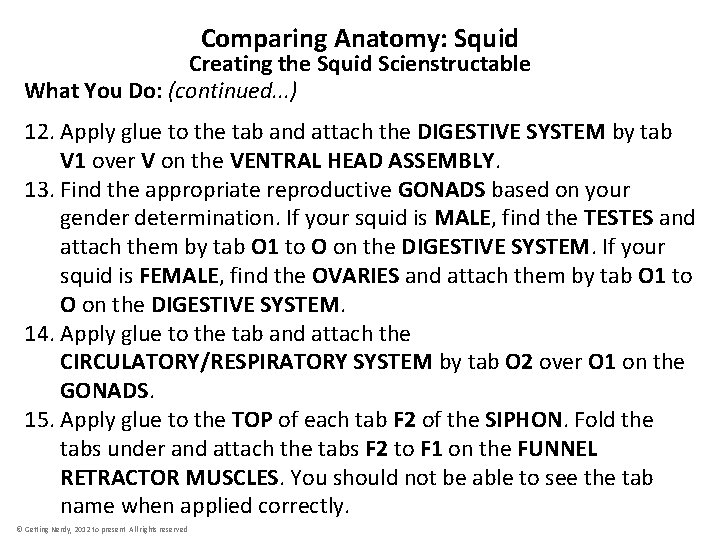

Comparing Anatomy: Squid Creating the Squid Scienstructable What You Do: (continued. . . ) 12. Apply glue to the tab and attach the DIGESTIVE SYSTEM by tab V 1 over V on the VENTRAL HEAD ASSEMBLY. 13. Find the appropriate reproductive GONADS based on your gender determination. If your squid is MALE, find the TESTES and attach them by tab O 1 to O on the DIGESTIVE SYSTEM. If your squid is FEMALE, find the OVARIES and attach them by tab O 1 to O on the DIGESTIVE SYSTEM. 14. Apply glue to the tab and attach the CIRCULATORY/RESPIRATORY SYSTEM by tab O 2 over O 1 on the GONADS. 15. Apply glue to the TOP of each tab F 2 of the SIPHON. Fold the tabs under and attach the tabs F 2 to F 1 on the FUNNEL RETRACTOR MUSCLES. You should not be able to see the tab name when applied correctly. © Getting Nerdy, 2012 to present All rights reserved

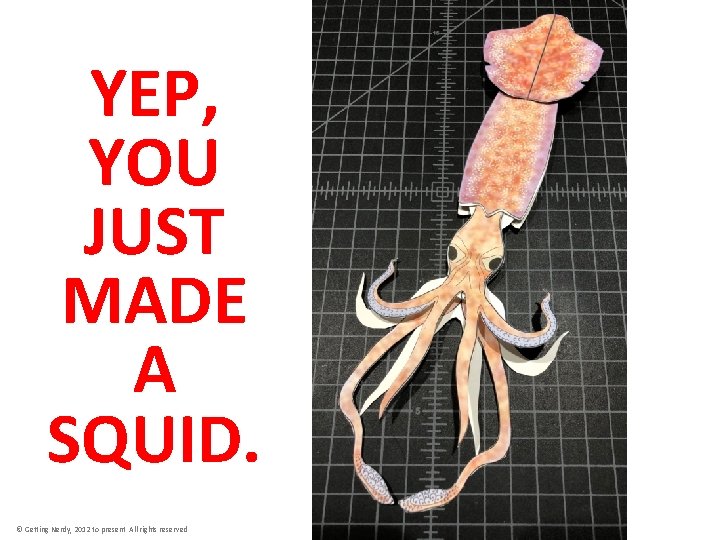

YEP, YOU JUST MADE A SQUID. © Getting Nerdy, 2012 to present All rights reserved

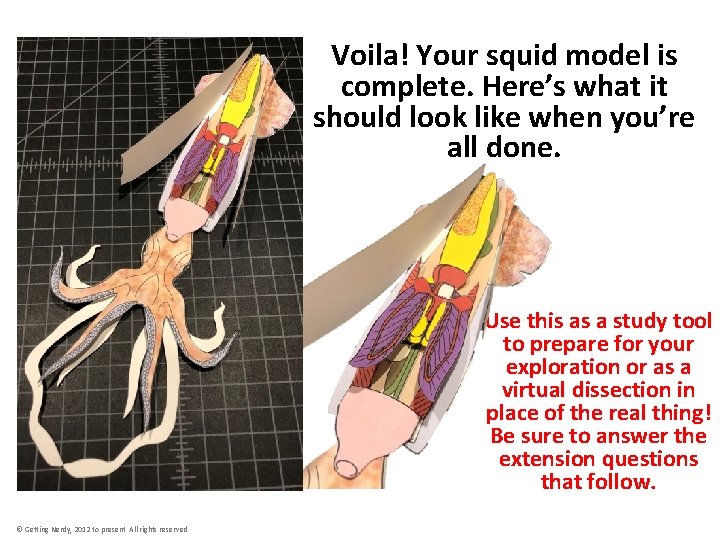

Voila! Your squid model is complete. Here’s what it should look like when you’re all done. Use this as a study tool to prepare for your exploration or as a virtual dissection in place of the real thing! Be sure to answer the extension questions that follow. © Getting Nerdy, 2012 to present All rights reserved
