On the Automatic Evolution of an OS Kernel

On the Automatic Evolution of an OS Kernel using Temporal Logic and AOP Julia L. Lawall DIKU, University of Copenhagen Joint work with: Rickard A. Åberg, Mario Südholt, Gilles Muller Obasco Group, Ecole des Mines de Nantes/INRIA Anne-Françoise Le Meur Compose Group, INRIA/LABRI, ENSEIRB 1

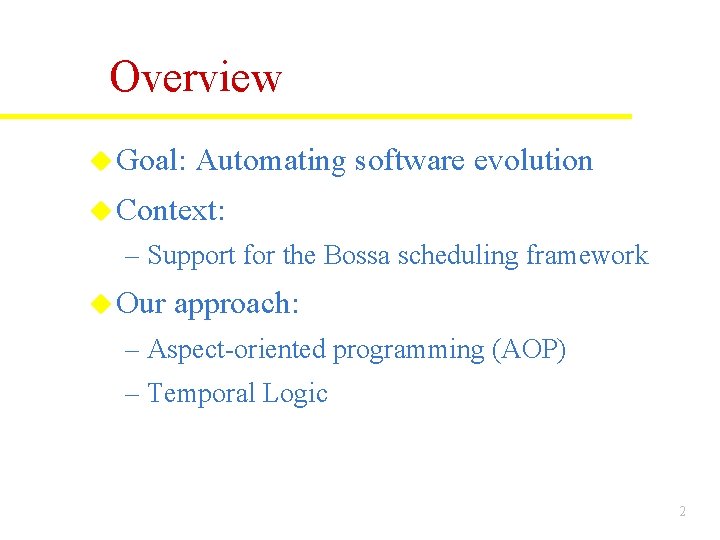

Overview u Goal: Automating software evolution u Context: – Support for the Bossa scheduling framework u Our approach: – Aspect-oriented programming (AOP) – Temporal Logic 2

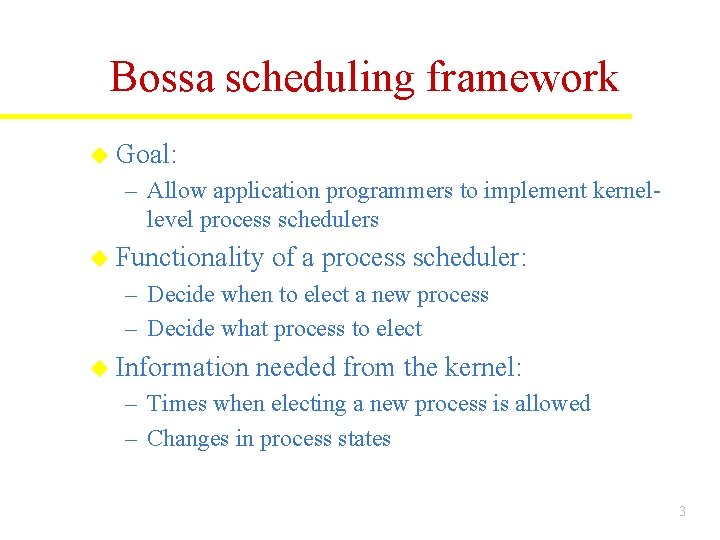

Bossa scheduling framework u Goal: – Allow application programmers to implement kernellevel process schedulers u Functionality of a process scheduler: – Decide when to elect a new process – Decide what process to elect u Information needed from the kernel: – Times when electing a new process is allowed – Changes in process states 3

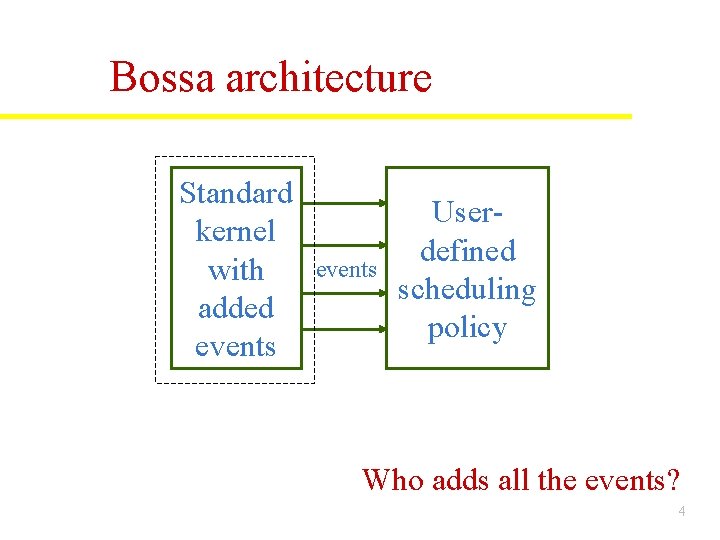

Bossa architecture Standard kernel with added events Standardxx Userkernel defined with scheduling added policy events Who adds all the events? 4

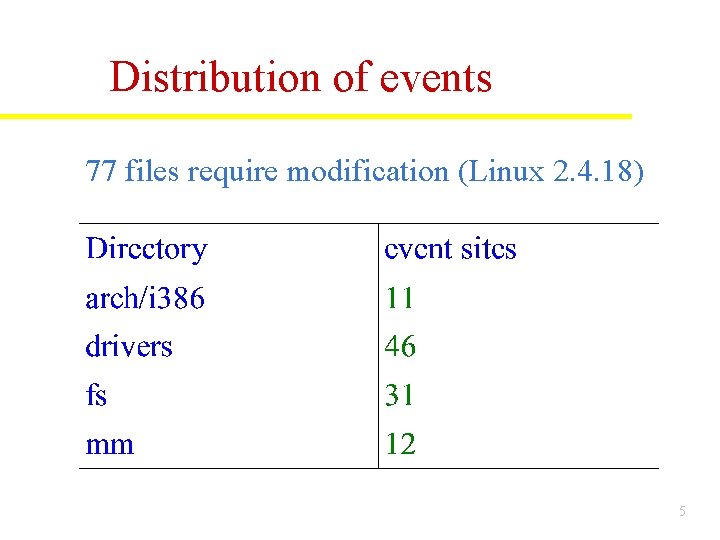

Distribution of events 77 files require modification (Linux 2. 4. 18) 5

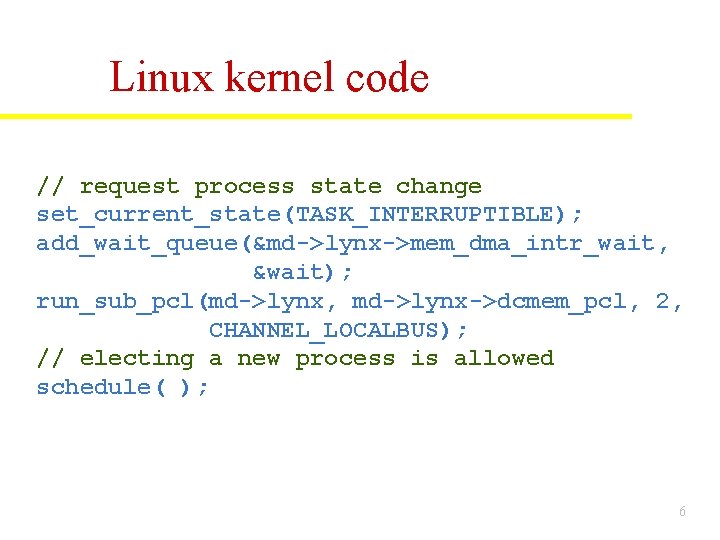

Linux kernel code // request process state change set_current_state(TASK_INTERRUPTIBLE); add_wait_queue(&md->lynx->mem_dma_intr_wait, &wait); run_sub_pcl(md->lynx, md->lynx->dcmem_pcl, 2, CHANNEL_LOCALBUS); // electing a new process is allowed schedule( ); Problem: Bossa process election 6 function depends on process state.

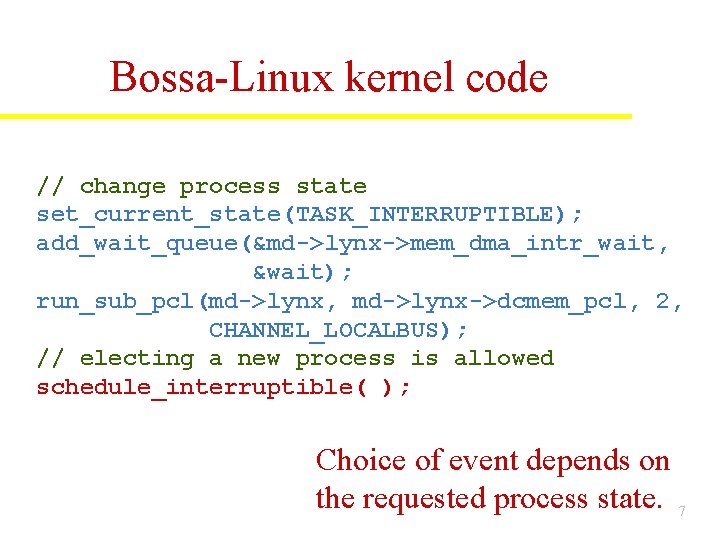

Bossa-Linux kernel code // change process state set_current_state(TASK_INTERRUPTIBLE); add_wait_queue(&md->lynx->mem_dma_intr_wait, &wait); run_sub_pcl(md->lynx, md->lynx->dcmem_pcl, 2, CHANNEL_LOCALBUS); // electing a new process is allowed schedule_interruptible( ); Choice of event depends on Problem: Bossa process election the requested process state. 7 function depends on process state.

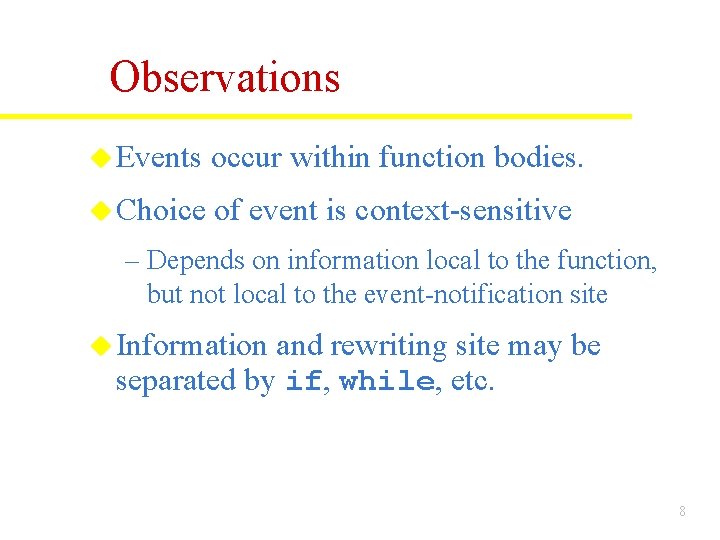

Observations u Events occur within function bodies. u Choice of event is context-sensitive – Depends on information local to the function, but not local to the event-notification site u Information and rewriting site may be separated by if, while, etc. 8

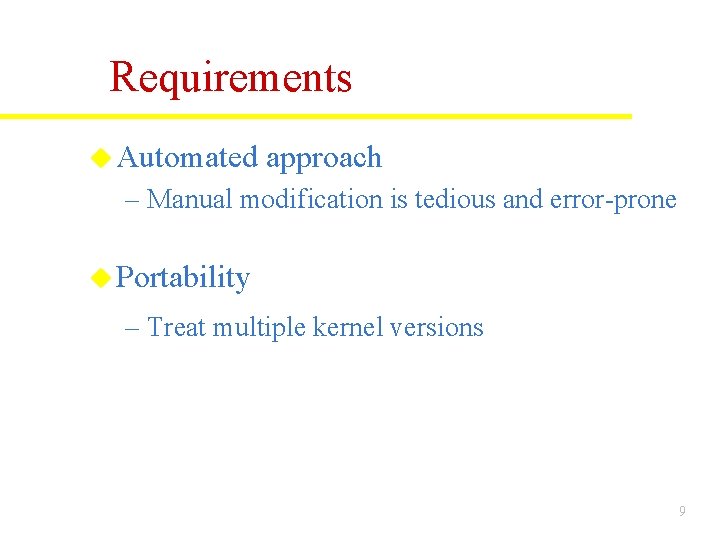

Requirements u Automated approach – Manual modification is tedious and error-prone u Portability – Treat multiple kernel versions 9

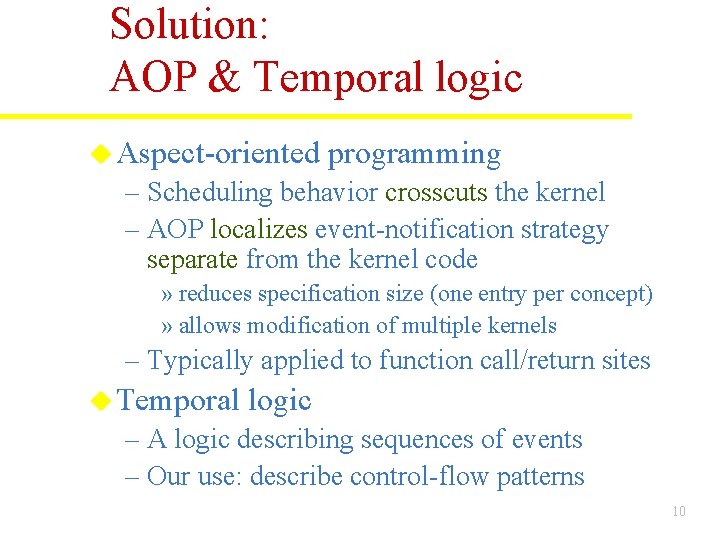

Solution: AOP & Temporal logic u Aspect-oriented programming – Scheduling behavior crosscuts the kernel – AOP localizes event-notification strategy separate from the kernel code » reduces specification size (one entry per concept) » allows modification of multiple kernels – Typically applied to function call/return sites u Temporal logic – A logic describing sequences of events – Our use: describe control-flow patterns 10

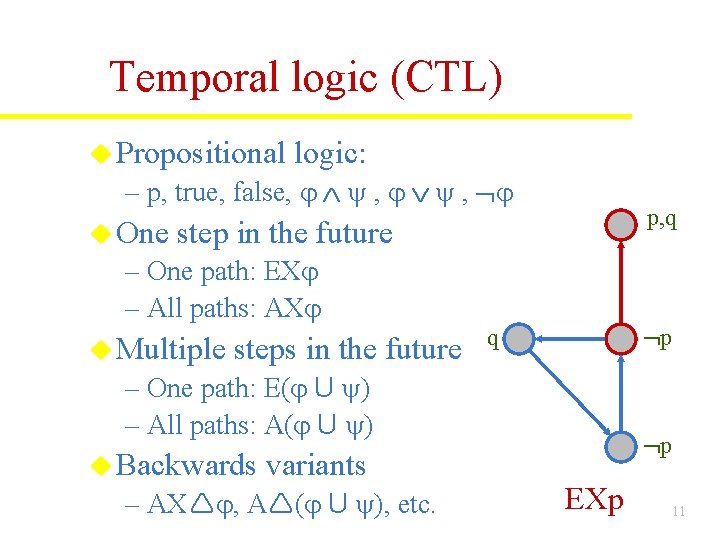

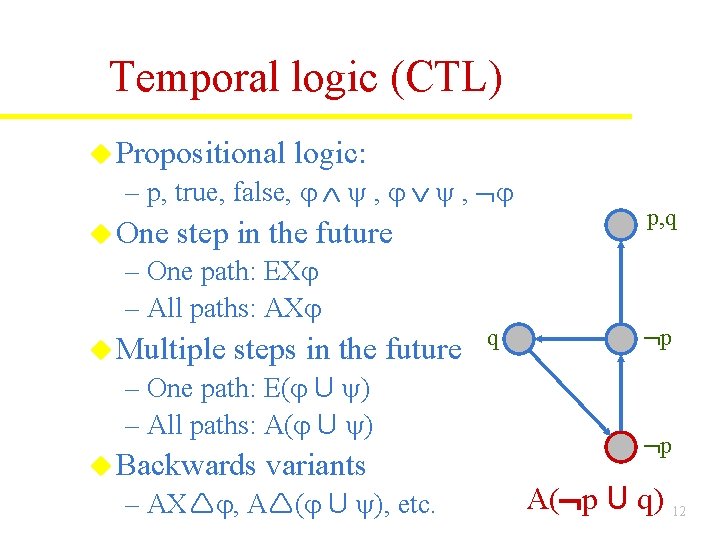

Temporal logic (CTL) u Propositional logic: – p, true, false, , , u One p, q step in the future – One path: EX – All paths: AX u Multiple steps in the future p q – One path: E( U ) – All paths: A( U ) u Backwards variants – AX , A ( U ), etc. p EXp 11

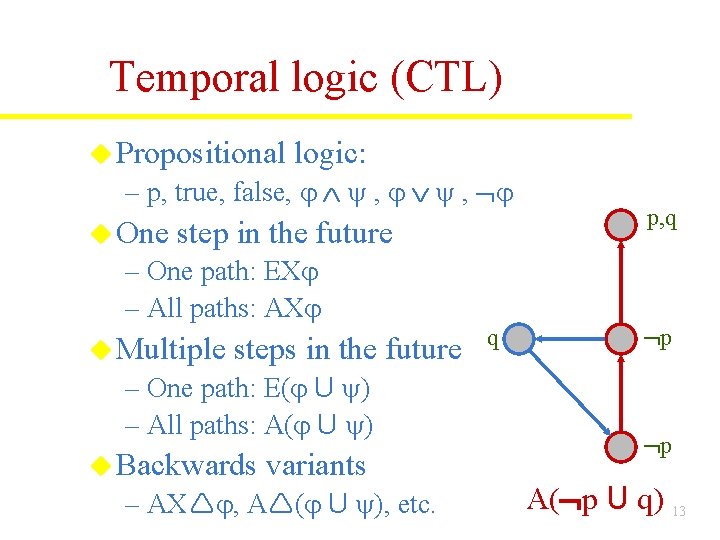

Temporal logic (CTL) u Propositional logic: – p, true, false, , , u One step in the future – One path: EX – All paths: AX u Multiple steps in the future – One path: E( U ) – All paths: A( U ) u Backwards variants – AX , A ( U ), etc. q p, q p p A( p U q) 12

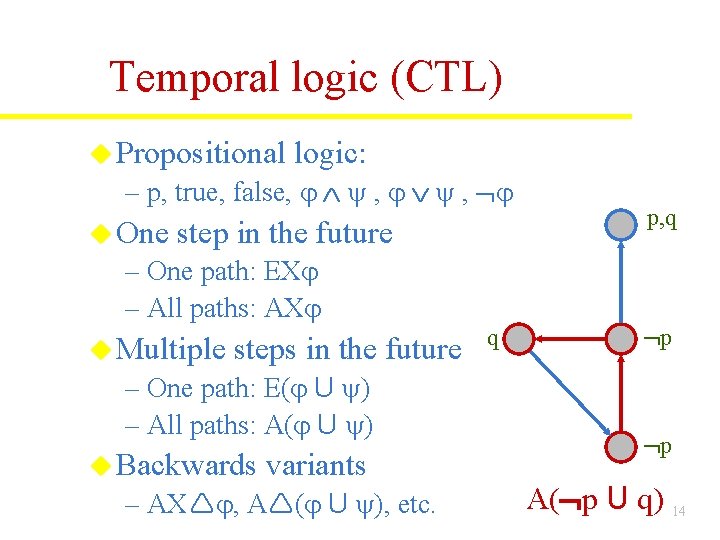

Temporal logic (CTL) u Propositional logic: – p, true, false, , , u One step in the future – One path: EX – All paths: AX u Multiple steps in the future – One path: E( U ) – All paths: A( U ) u Backwards variants – AX , A ( U ), etc. q p, q p p A( p U q) 13

Temporal logic (CTL) u Propositional logic: – p, true, false, , , u One step in the future – One path: EX – All paths: AX u Multiple steps in the future – One path: E( U ) – All paths: A( U ) u Backwards variants – AX , A ( U ), etc. q p, q p p A( p U q) 14

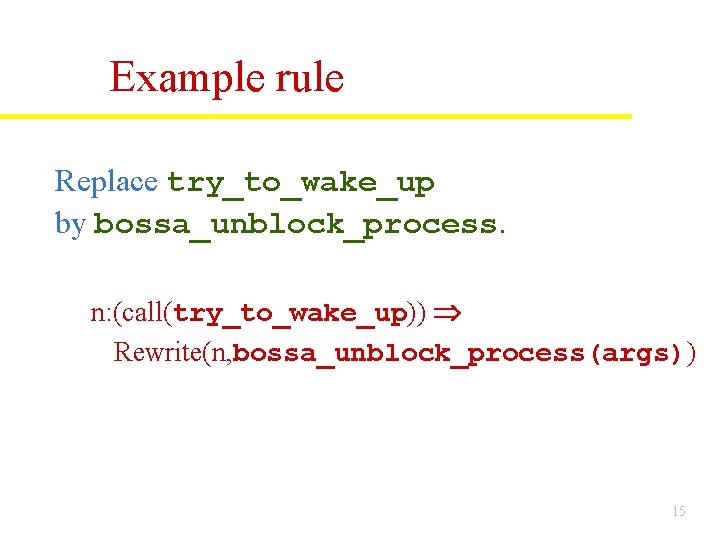

Example rule Replace try_to_wake_up by bossa_unblock_process. n: (call(try_to_wake_up)) Rewrite(n, bossa_unblock_process(args)) 15

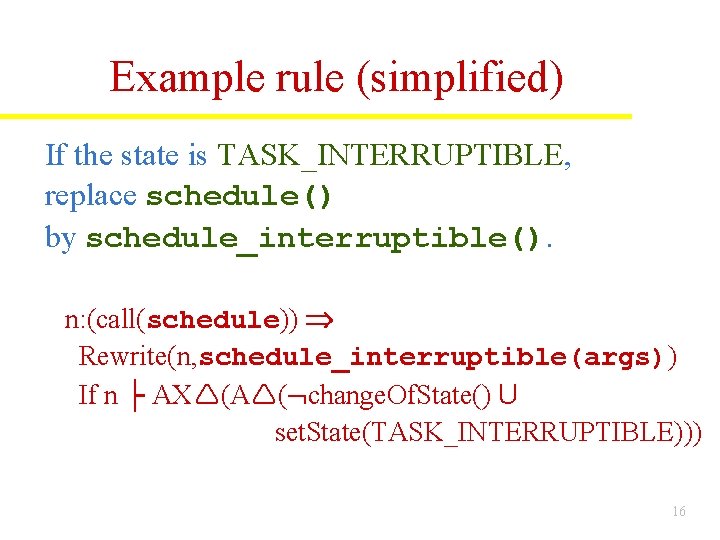

Example rule (simplified) If the state is TASK_INTERRUPTIBLE, replace schedule() by schedule_interruptible(). n: (call(schedule)) Rewrite(n, schedule_interruptible(args)) If n ├ AX (A ( change. Of. State() U set. State(TASK_INTERRUPTIBLE))) 16

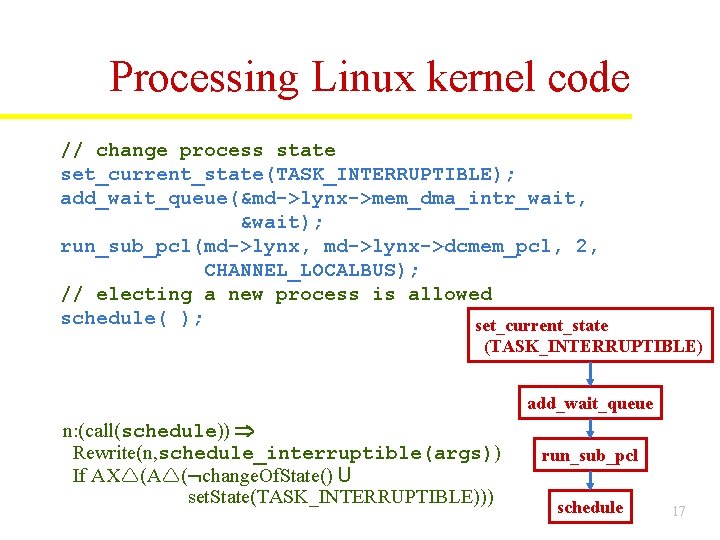

Processing Linux kernel code // change process state set_current_state(TASK_INTERRUPTIBLE); add_wait_queue(&md->lynx->mem_dma_intr_wait, &wait); run_sub_pcl(md->lynx, md->lynx->dcmem_pcl, 2, CHANNEL_LOCALBUS); // electing a new process is allowed schedule( ); set_current_state (TASK_INTERRUPTIBLE) add_wait_queue n: (call(schedule)) Rewrite(n, schedule_interruptible(args)) If AX (A ( change. Of. State() U set. State(TASK_INTERRUPTIBLE))) run_sub_pcl schedule 17

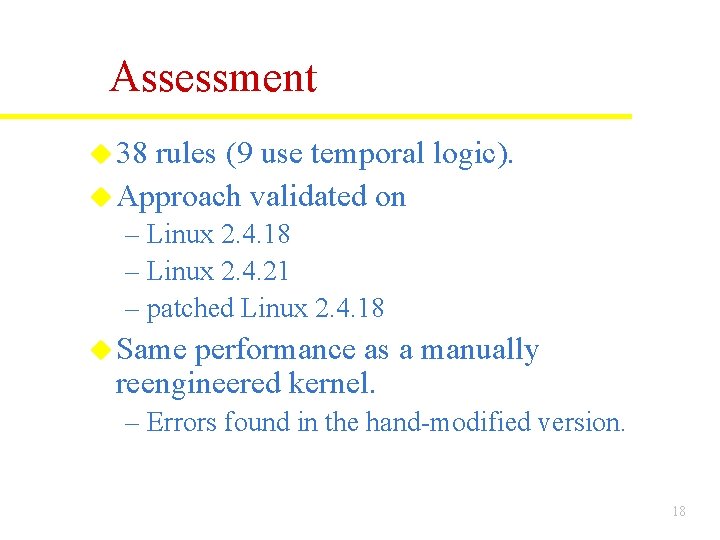

Assessment u 38 rules (9 use temporal logic). u Approach validated on – Linux 2. 4. 18 – Linux 2. 4. 21 – patched Linux 2. 4. 18 u Same performance as a manually reengineered kernel. – Errors found in the hand-modified version. 18

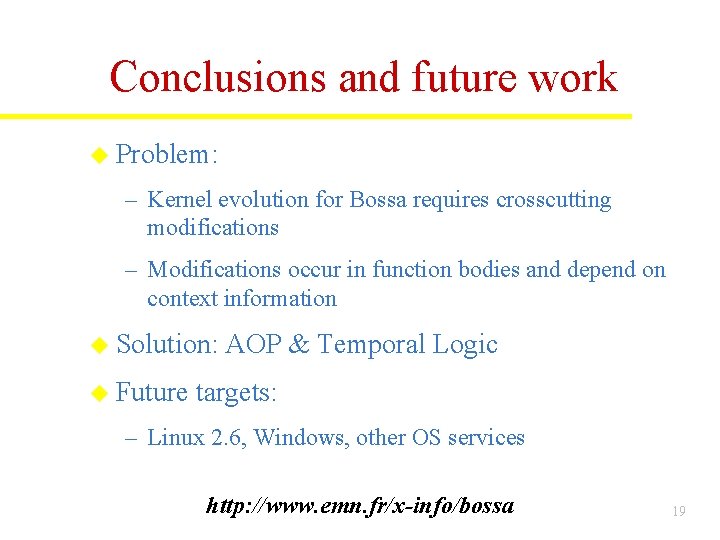

Conclusions and future work u Problem: – Kernel evolution for Bossa requires crosscutting modifications – Modifications occur in function bodies and depend on context information u Solution: u Future AOP & Temporal Logic targets: – Linux 2. 6, Windows, other OS services http: //www. emn. fr/x-info/bossa 19
