On Node Classification in Dynamic Content-based Networks Charu Aggarwal Nan Li IBM T. J. Watson Research Center charu@us. ibm. com University of California, Santa Barbara nanli@cs. ucsb. edu Presented by Nan Li

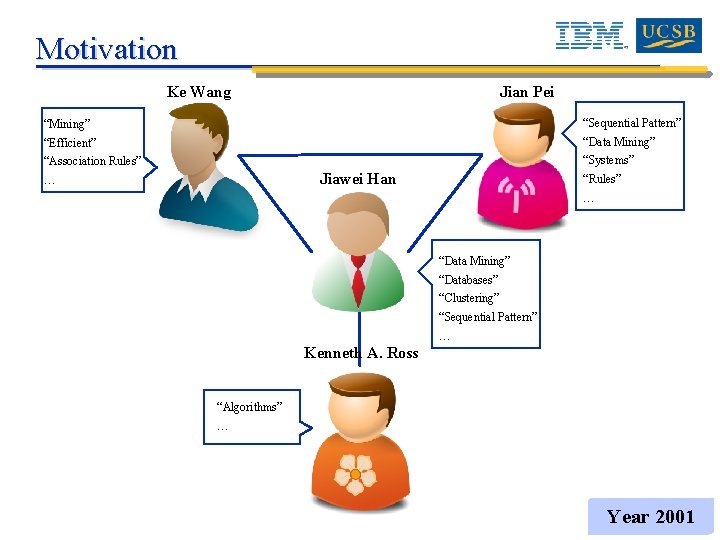

Motivation Ke Wang Jian Pei “Mining” “Sequential Pattern” “Efficient” “Data Mining” “Association Rules” “Systems” Jiawei Han … “Rules” … “Data Mining” “Databases” “Clustering” “Sequential Pattern” … Kenneth A. Ross “Algorithms” … Year 22001

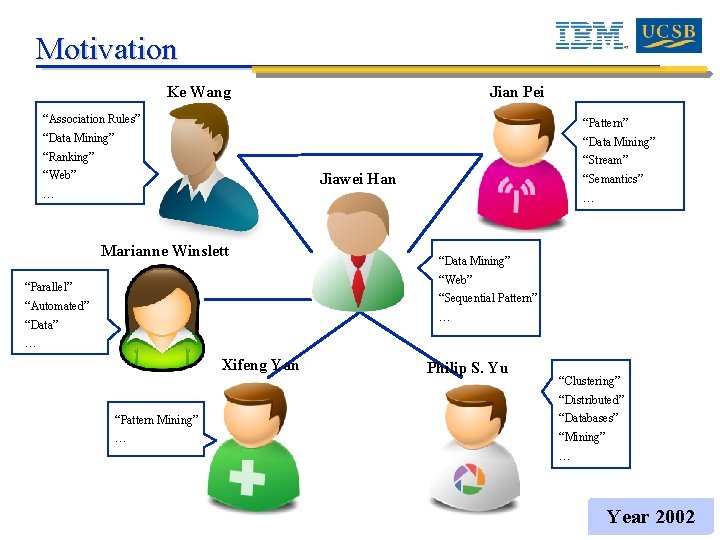

Motivation Ke Wang Jian Pei “Association Rules” “Pattern” “Data Mining” “Ranking” “Stream” “Web” Jiawei Han … “Semantics” … Marianne Winslett “Data Mining” “Web” “Parallel” “Sequential Pattern” “Automated” … “Data” … Xifeng Yan Philip S. Yu “Clustering” “Distributed” “Pattern Mining” “Databases” … “Mining” … Year 32002

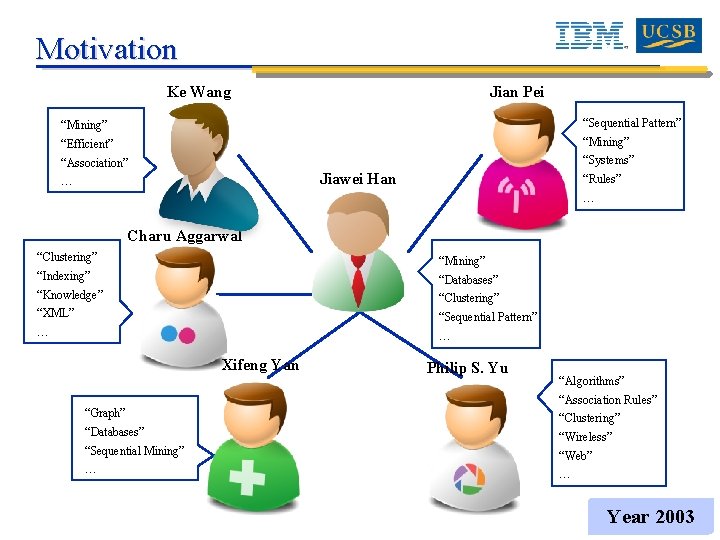

Motivation Ke Wang Jian Pei “Mining” “Sequential Pattern” “Efficient” “Mining” “Association” “Systems” Jiawei Han … “Rules” … Charu Aggarwal “Clustering” “Mining” “Indexing” “Databases” “Knowledge” “Clustering” “XML” “Sequential Pattern” … … Xifeng Yan Philip S. Yu “Algorithms” “Association Rules” “Graph” “Clustering” “Databases” “Wireless” “Sequential Mining” “Web” … … Year 42003

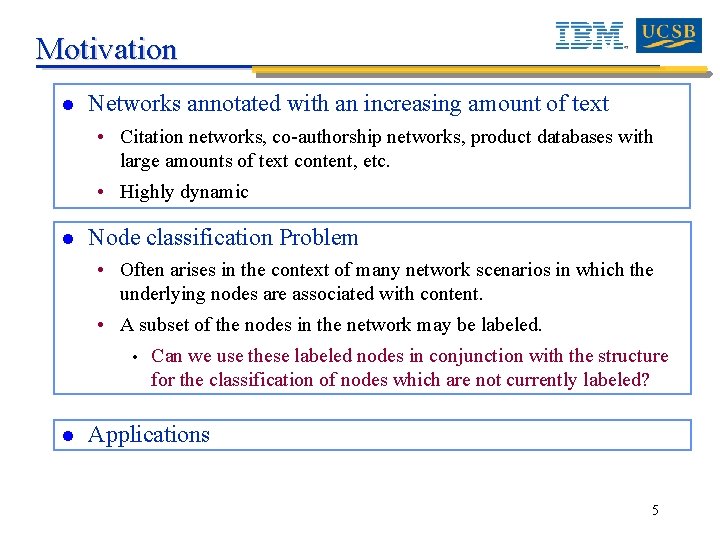

Motivation l Networks annotated with an increasing amount of text • Citation networks, co-authorship networks, product databases with large amounts of text content, etc. • Highly dynamic l Node classification Problem • Often arises in the context of many network scenarios in which the underlying nodes are associated with content. • A subset of the nodes in the network may be labeled. • l Can we use these labeled nodes in conjunction with the structure for the classification of nodes which are not currently labeled? Applications 5

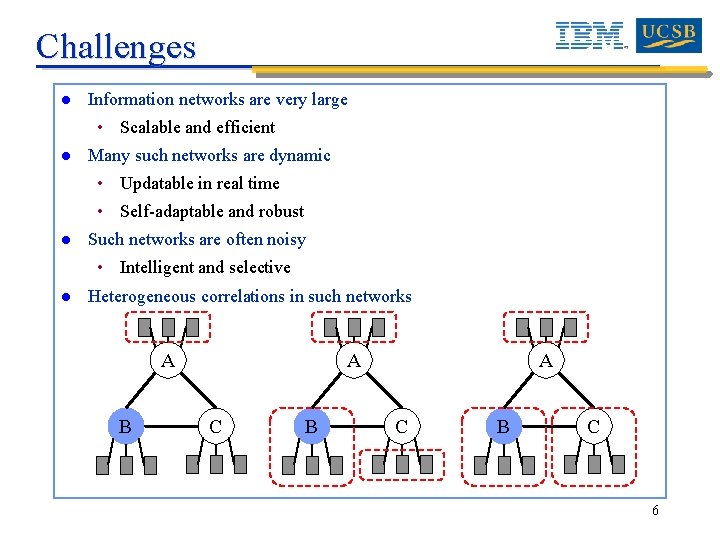

Challenges l Information networks are very large • Scalable and efficient l Many such networks are dynamic • Updatable in real time • Self-adaptable and robust l Such networks are often noisy • Intelligent and selective l Heterogeneous correlations in such networks A B A C B C 6

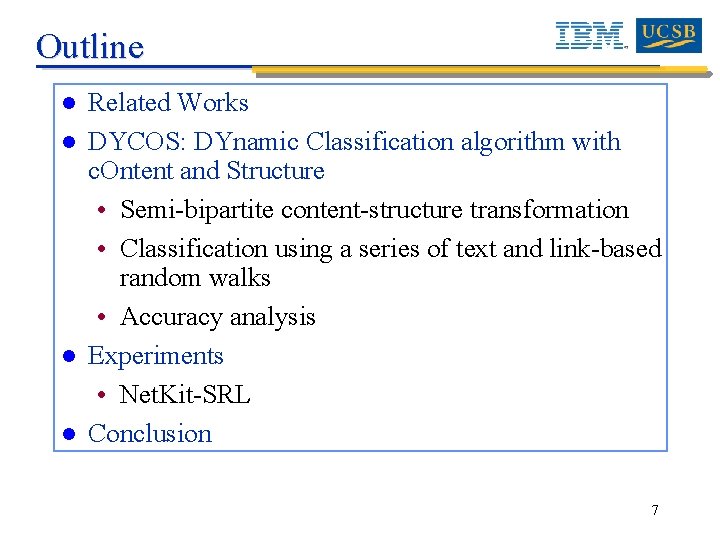

Outline l l Related Works DYCOS: DYnamic Classification algorithm with c. Ontent and Structure • Semi-bipartite content-structure transformation • Classification using a series of text and link-based random walks • Accuracy analysis Experiments • Net. Kit-SRL Conclusion 7

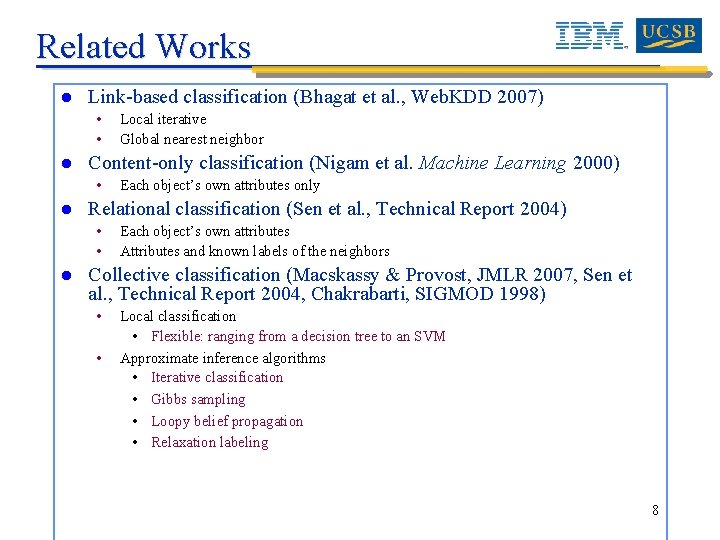

Related Works l Link-based classification (Bhagat et al. , Web. KDD 2007) • • l Content-only classification (Nigam et al. Machine Learning 2000) • l Each object’s own attributes only Relational classification (Sen et al. , Technical Report 2004) • • l Local iterative Global nearest neighbor Each object’s own attributes Attributes and known labels of the neighbors Collective classification (Macskassy & Provost, JMLR 2007, Sen et al. , Technical Report 2004, Chakrabarti, SIGMOD 1998) • • Local classification • Flexible: ranging from a decision tree to an SVM Approximate inference algorithms • Iterative classification • Gibbs sampling • Loopy belief propagation • Relaxation labeling 8

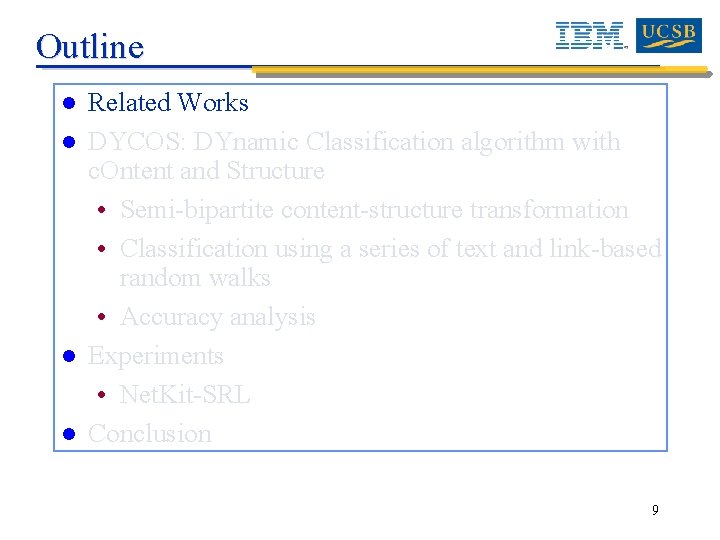

Outline l l Related Works DYCOS: DYnamic Classification algorithm with c. Ontent and Structure • Semi-bipartite content-structure transformation • Classification using a series of text and link-based random walks • Accuracy analysis Experiments • Net. Kit-SRL Conclusion 9

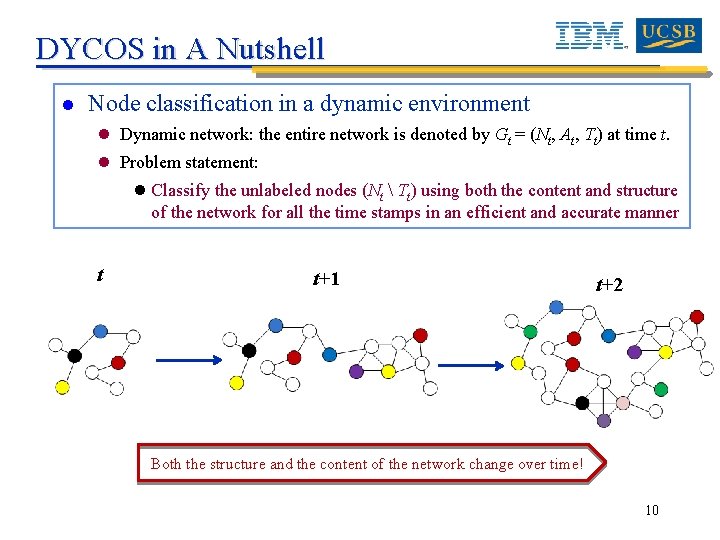

DYCOS in A Nutshell l Node classification in a dynamic environment l Dynamic network: the entire network is denoted by Gt = (Nt, At, Tt) at time t. l Problem statement: l Classify the unlabeled nodes (Nt Tt) using both the content and structure of the network for all the time stamps in an efficient and accurate manner t t+1 t+2 Both the structure and the content of the network change over time! 10

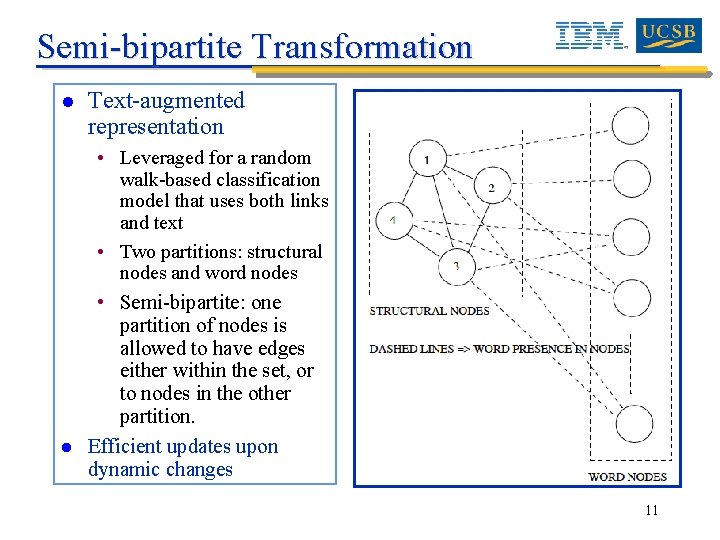

Semi-bipartite Transformation l l Text-augmented representation • Leveraged for a random walk-based classification model that uses both links and text • Two partitions: structural nodes and word nodes • Semi-bipartite: one partition of nodes is allowed to have edges either within the set, or to nodes in the other partition. Efficient updates upon dynamic changes 11

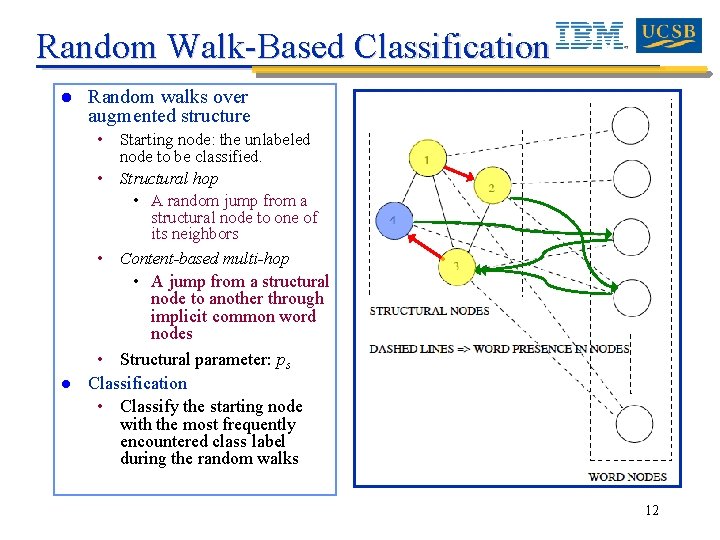

Random Walk-Based Classification l l Random walks over augmented structure • Starting node: the unlabeled node to be classified. • Structural hop • A random jump from a structural node to one of its neighbors • Content-based multi-hop • A jump from a structural node to another through implicit common word nodes • Structural parameter: ps Classification • Classify the starting node with the most frequently encountered class label during the random walks 12

Gini-Index & Inverted Lists l Discriminative keywords • A set Mt of the top m words with the highest discriminative power are used to construct the word node partition. • Gini-index • The value of G(w) lies in the range (0, 1). • Words with a higher value of gini-index are more discriminative for classification purposes. l Inverted lists • Inverted list of keywords for each node • Inverted list of nodes for each keyword 13

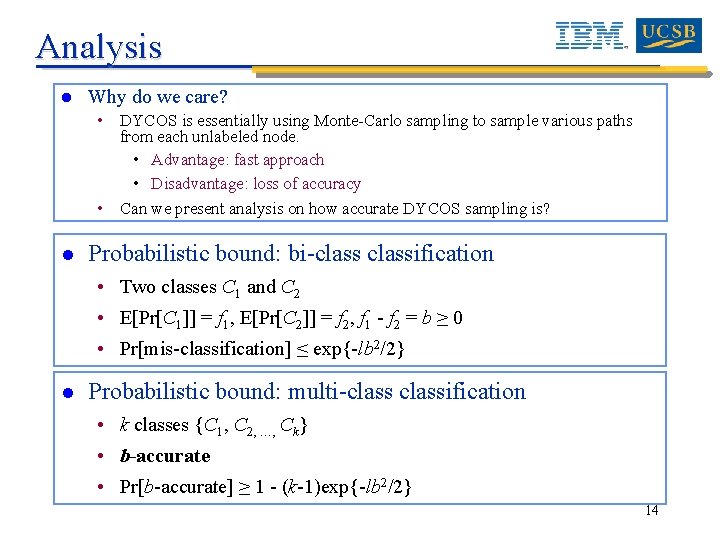

Analysis l Why do we care? • DYCOS is essentially using Monte-Carlo sampling to sample various paths from each unlabeled node. • Advantage: fast approach • Disadvantage: loss of accuracy • Can we present analysis on how accurate DYCOS sampling is? l Probabilistic bound: bi-classification • Two classes C 1 and C 2 • E[Pr[C 1]] = f 1, E[Pr[C 2]] = f 2, f 1 - f 2 = b ≥ 0 • Pr[mis-classification] ≤ exp{-lb 2/2} l Probabilistic bound: multi-classification • k classes {C 1, C 2, …, Ck} • b-accurate • Pr[b-accurate] ≥ 1 - (k-1)exp{-lb 2/2} 14

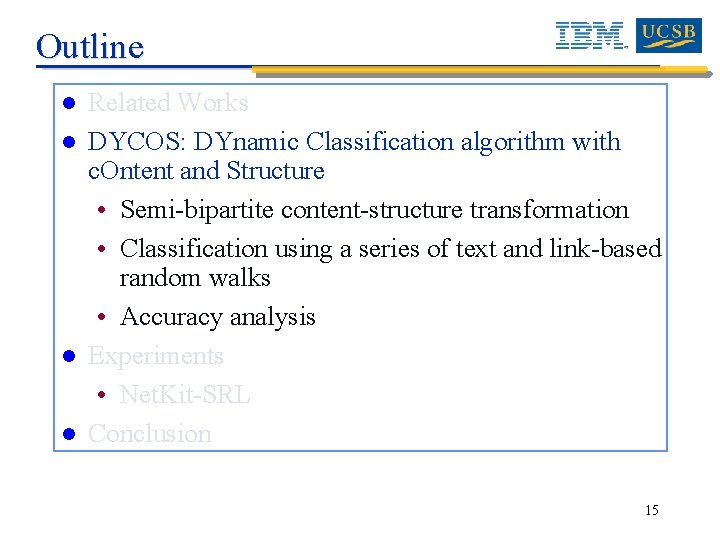

Outline l l Related Works DYCOS: DYnamic Classification algorithm with c. Ontent and Structure • Semi-bipartite content-structure transformation • Classification using a series of text and link-based random walks • Accuracy analysis Experiments • Net. Kit-SRL Conclusion 15

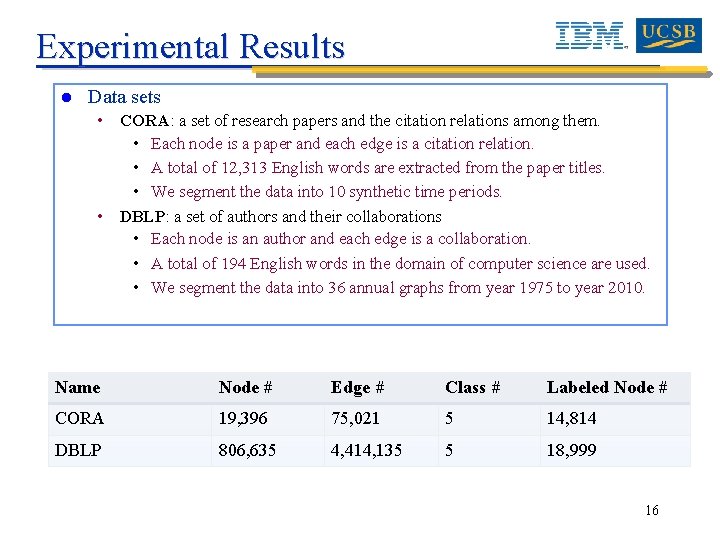

Experimental Results l Data sets • CORA: a set of research papers and the citation relations among them. • Each node is a paper and each edge is a citation relation. • A total of 12, 313 English words are extracted from the paper titles. • We segment the data into 10 synthetic time periods. • DBLP: a set of authors and their collaborations • Each node is an author and each edge is a collaboration. • A total of 194 English words in the domain of computer science are used. • We segment the data into 36 annual graphs from year 1975 to year 2010. Name Node # Edge # Class # Labeled Node # CORA 19, 396 75, 021 5 14, 814 DBLP 806, 635 4, 414, 135 5 18, 999 16

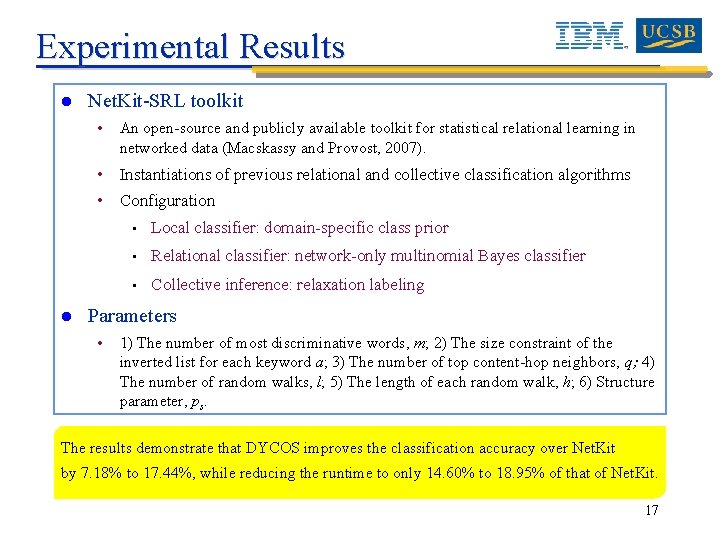

Experimental Results l Net. Kit-SRL toolkit • An open-source and publicly available toolkit for statistical relational learning in networked data (Macskassy and Provost, 2007). • Instantiations of previous relational and collective classification algorithms • Configuration l • Local classifier: domain-specific class prior • Relational classifier: network-only multinomial Bayes classifier • Collective inference: relaxation labeling Parameters • 1) The number of most discriminative words, m; 2) The size constraint of the inverted list for each keyword a; 3) The number of top content-hop neighbors, q; 4) The number of random walks, l; 5) The length of each random walk, h; 6) Structure parameter, ps. The results demonstrate that DYCOS improves the classification accuracy over Net. Kit by 7. 18% to 17. 44%, while reducing the runtime to only 14. 60% to 18. 95% of that of Net. Kit. 17

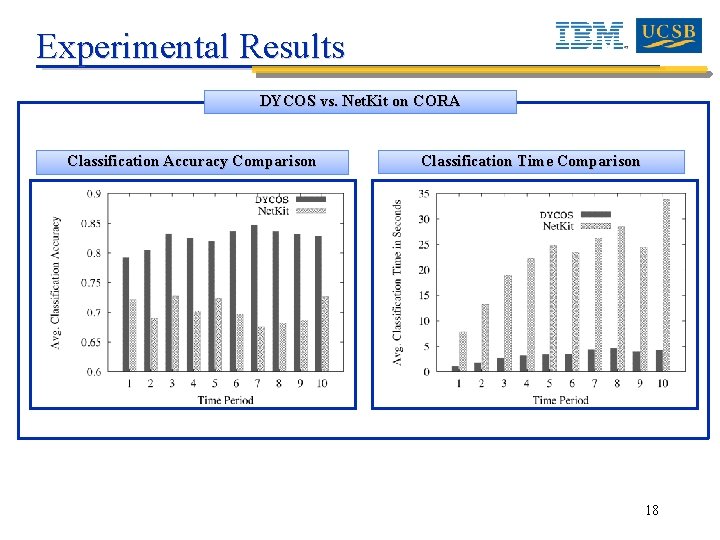

Experimental Results DYCOS vs. Net. Kit on CORA Classification Accuracy Comparison Classification Time Comparison 18

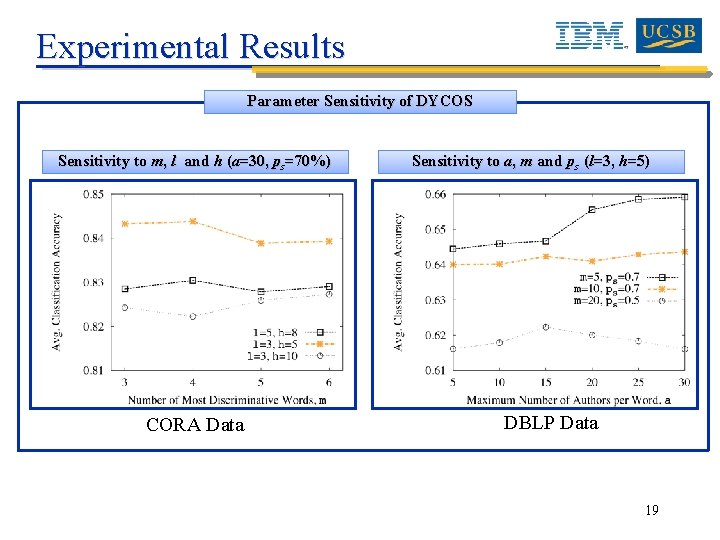

Experimental Results Parameter Sensitivity of DYCOS Sensitivity to m, l and h (a=30, ps=70%) CORA Data Sensitivity to a, m and ps (l=3, h=5) DBLP Data 19

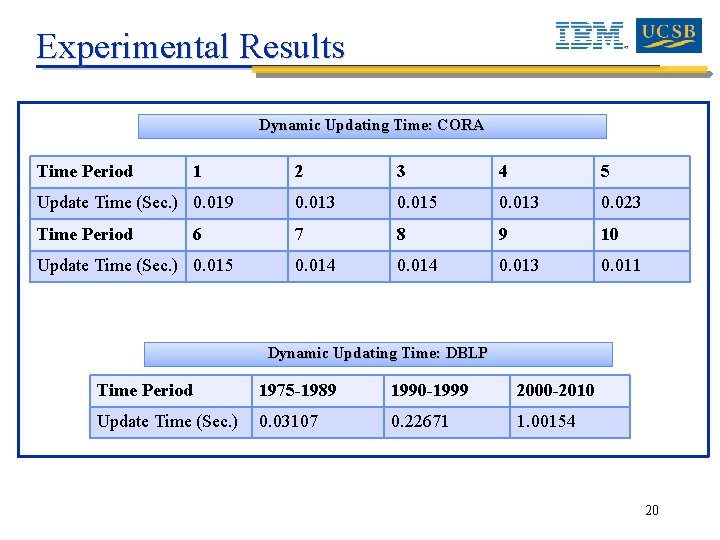

Experimental Results Dynamic Updating Time: CORA Time Period 1 2 3 4 5 Update Time (Sec. ) 0. 019 0. 013 0. 015 0. 013 0. 023 Time Period 7 8 9 10 0. 014 0. 013 0. 011 6 Update Time (Sec. ) 0. 015 Dynamic Updating Time: DBLP Time Period 1975 -1989 1990 -1999 2000 -2010 Update Time (Sec. ) 0. 03107 0. 22671 1. 00154 20

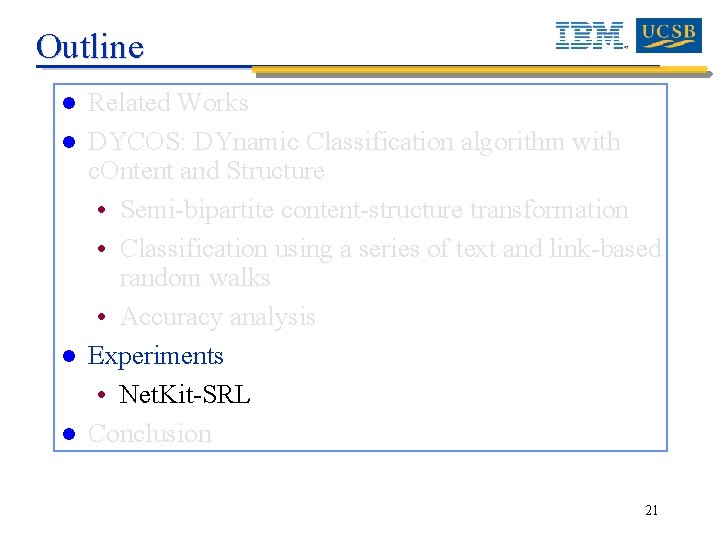

Outline l l Related Works DYCOS: DYnamic Classification algorithm with c. Ontent and Structure • Semi-bipartite content-structure transformation • Classification using a series of text and link-based random walks • Accuracy analysis Experiments • Net. Kit-SRL Conclusion 21

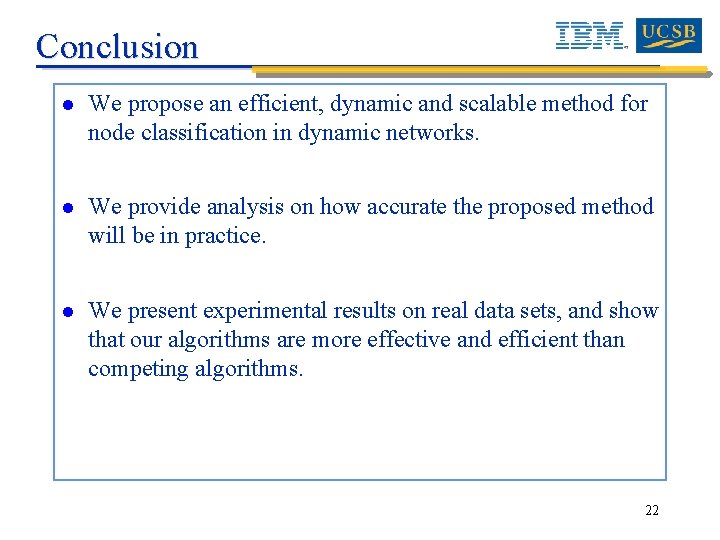

Conclusion l We propose an efficient, dynamic and scalable method for node classification in dynamic networks. l We provide analysis on how accurate the proposed method will be in practice. l We present experimental results on real data sets, and show that our algorithms are more effective and efficient than competing algorithms. 22

23

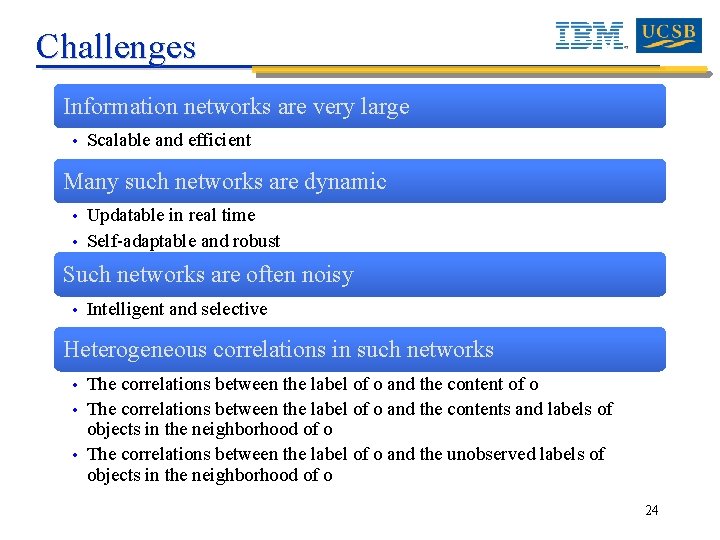

Challenges Information networks are very large • Scalable and efficient Many such networks are dynamic • • Updatable in real time Self-adaptable and robust Such networks are often noisy • Intelligent and selective Heterogeneous correlations in such networks • • • The correlations between the label of o and the content of o The correlations between the label of o and the contents and labels of objects in the neighborhood of o The correlations between the label of o and the unobserved labels of objects in the neighborhood of o 24

Analysis Lemma Consider two classes with expected visit probabilities of f 1 and f 2 respectively, such that b = f 1−f 2 > 0. Then, the probability that the class which is visited the most during the sampled random walk process is reversed to class 2, is given by at most Definition Consider the node classification problem with a total of k classes. We define the sampling process to be b-accurate, if none of the classes whose expected visit probability is less than b of the class with the largest expected visit probability turns out have the largest sampled visit probability. Theorem The probability that the sampling process results in a b-accurate reported majority class is given by at least 25
