On Mathematical Expression Analysis in Arabic Handwriting Elena Smirnova and Stephen Watt ORCCA, UWO, Feb 2007

Categories of Math Notations • Writing direction – Math flows against text – Math is written in the same direction as text (right to left) • Use of alphanumerics and math symbols – Variables • Use of Latin and Greek alphabet • Use of Arabic alphabet – Numerals • Use of Western Arabic notation for numbers • Use of Arabic - Indic or Eastern Arabic-Indic numbers – Math operators and function names • Western notation • Mirrored glyphs • Special Arabic glyphs

Directions in Arabic Math • Dual direction (Persian and Moroccan Styles) <text 2> math <text 1> • Single direction (Maghreb and Machrek Styles) <text 2> math <text 1> ٢ ٠ < ۱+ ( ﺏ – )ﺍ ﺏ ، ﺍ

Numerals in Arabic Notations • Western Arabic (Europe) 0 1 2 3 4 5 6 7 8 9 • Arabic – Indic (Most of Arabic counties) ٠ ۱ ٢ ٣ ٤ ٥ ٦ ٧ ٨ ٩ • Eastern Arabic-Indic (Iran, Urdu) ٠ ۱ ٢ ٣ ۴ ۵ ۶ ٧ ٨ ٩

Math Variables • Latin and Greek alphabets • Arabic alphabet

Math Operators and Functions • European Notation – Persian Style • Mirrored glyphs – Maghreb “Western” style • Arabic glyphs – Machrek “Eastern” style

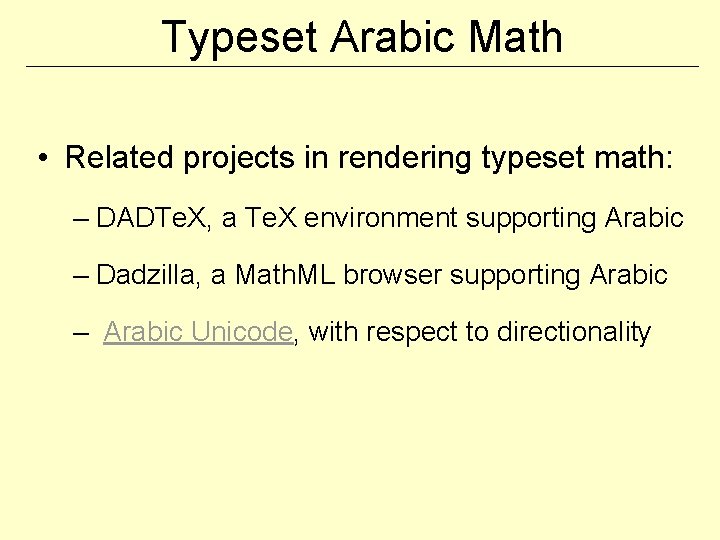

Typeset Arabic Math • Related projects in rendering typeset math: – DADTe. X, a Te. X environment supporting Arabic – Dadzilla, a Math. ML browser supporting Arabic – Arabic Unicode, with respect to directionality

New Challenges in HWR • Stroke segmentation in text fragments • If Moroccan or Persian notations are used, structure recognizers has to handle bidirectional input. • In Maghreb notation recognizer has to handle mirrored glyphs. • In Machrek notation a special recognition technique is needed for handling ligatures.

Influence on Expression Analysis • Arabic notation affects methods not only for analyzing the structure, but also for interpreting the results of recognition • Special attention to be paid to – Implicit directionality – Mirrored expressions – Special container glyphs – Stretched ligatures

Implicit Directionality Statement “A 2>0 if A>0” written in Farsi • Recognizer determined the glyphs as { A, >, �, ﺍگﺮ , A, ٢, >, ٠ }. • Persian notation mathematical content flows from left to right • Naïve structure analyzer may translate this to A > 0 if A 2 > 0 WRONG!!! (A >� ﺍگﺮ A٢ > ٠)

Careful Mirroring • Every asymmetric operator is assigned its mirrored glyph: “(“ “)”, “>” “<“, etc. ٢ ٠< ۱+ ( ﺏ – )ﺍ ﺏ ، ﺍ 2 a, b (a – b) + 1> 0 • Some mirrored glyphs have not only opposite, but very different mathematical meaning – For ex. pair “”, “/” is direction sensitive: • “A / B” means division in Left to Right notation • “B / A” means set subtraction in Right to Left notation

New Container Glyphs notation for “ 5!” • The notation for factorial introduces one more case of a container symbol, in addition to the symbols for radical and long division. • New set of rules to the structural analyzer must be added, i. e. the layout of the expression “n!” will be detected as nested rather than linear.

Advantages • Stretched large operators allow to avoid ambiguities in structure recognition Examples Maghreb N-ary Summation vs. N-ary Product vs. Machrek Farsi Limit vs.

Context Assistance • Extra challenge: lots of ambiguous math characters – ﺍ ("ALEF") and ١ ("1"); – ٠("0") and a dot; – ٥("5") and "(ﻩ HEH") or the symbol for degree " ". • Ex: • Suggested strategy for character disambiguation: use of Math Context Database for Arabic notations

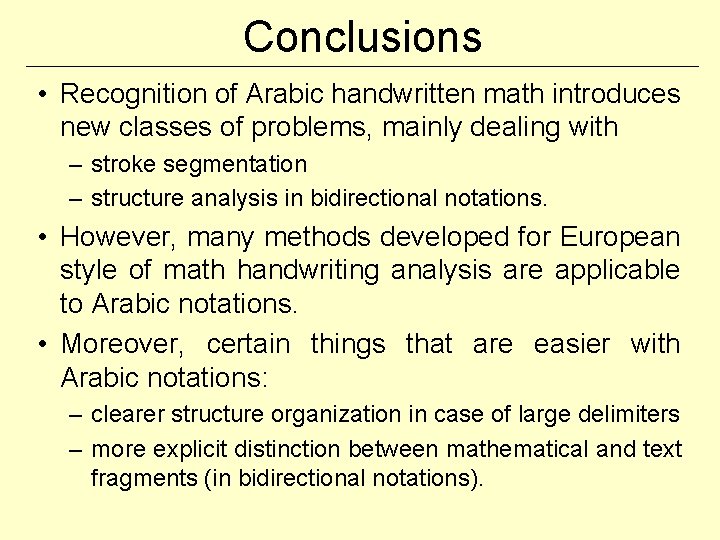

Conclusions • Recognition of Arabic handwritten math introduces new classes of problems, mainly dealing with – stroke segmentation – structure analysis in bidirectional notations. • However, many methods developed for European style of math handwriting analysis are applicable to Arabic notations. • Moreover, certain things that are easier with Arabic notations: – clearer structure organization in case of large delimiters – more explicit distinction between mathematical and text fragments (in bidirectional notations).

Future Work • Identifying suitable source of Arabic training material for building Context DB and for training the structure analyzer • Merging our Mathink framework with existing recognizers for Arabic script (for text fragments) • Enhancing char recognizers to handle very stretched glyphs • Adding direction awareness to the structure analyzer • Developing tools for automated notational profile detection

References [1] Azzeddine Lazrek, Mustapha Eddahibi, Khalid Sami, Cadi Ayyad, Bruce R. Miller. Arabic mathematical notation. W 3 C Interest Group Note, January 2006. http: //www. w 3. org/TR/arabic-math/ [2] T. Sari and M. Sellami, Cursive Arabic Script Segmentation and Recognition System. International Journal of Computers and Applications, Vol. 27, 2005. [3] Al-Emami, S. and Usher, M. , On-Line Recognition of Handwritten Arabic Characters. Pattern Analysis and Machine Intelligence, IEEE Transactions (PAMI) Vol. 12, No. 7, 1990, pp. 704 -710.
