Omron Industrial PC IPC Industrial PC based IIo

Omron Industrial PC (IPC) Industrial PC based IIo. T and Machine Control in One. Clark Kromenaker Product Manager

7 th Generation i 5 / Celeron and New Compact IPC Smaller, lower cost La version for data and IIo. T. New for July 2018

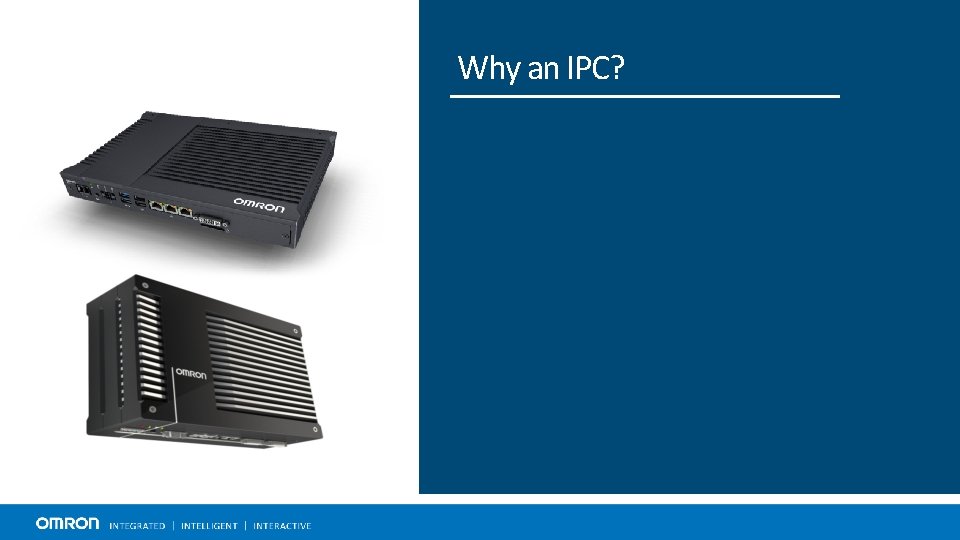

Why an IPC?

The IPC is an Important Part of an Automation Solution • “Overall the rapid growth of data generated by manufacturing processes is turning the focus to PC based architectures” • “The industrial PC market will mirror these trends in the global value chain by enabling technologies and ways of production through technological developments in hardware, connection to the ERP/MES layer, data collection, M 2 M communication, and data analytics. ” • Omron’s IPC has embedded control “Overall, ARC sees the trend to more IPC based control architectures in machinery. ” • (Industrial PCs Worldwide Outlook Through 2018; ARC)

The IPC is a Critical Solution for Big Data and IIo. T • Pharma and Food are required to collect and maintain process data. • Pharmaceutical Current Good Manufacturing Process (c. GMP), Title 21 Subpart J requires certain data be collected and maintained. • US Food Safety Modernization Act (FSMA) Section 103, Hazard Analysis and Critical Control Points (HACCP) via Laboratory Information Management System (LIM) software. • Recall management. • Collect, date stamp and store process variables, raw material sources, quality metrics, equipment condition.

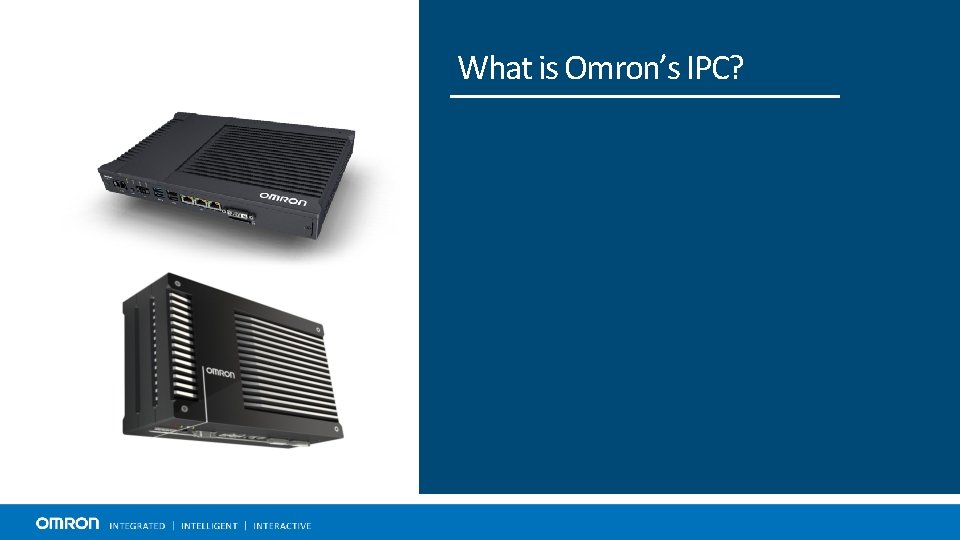

What is Omron’s IPC?

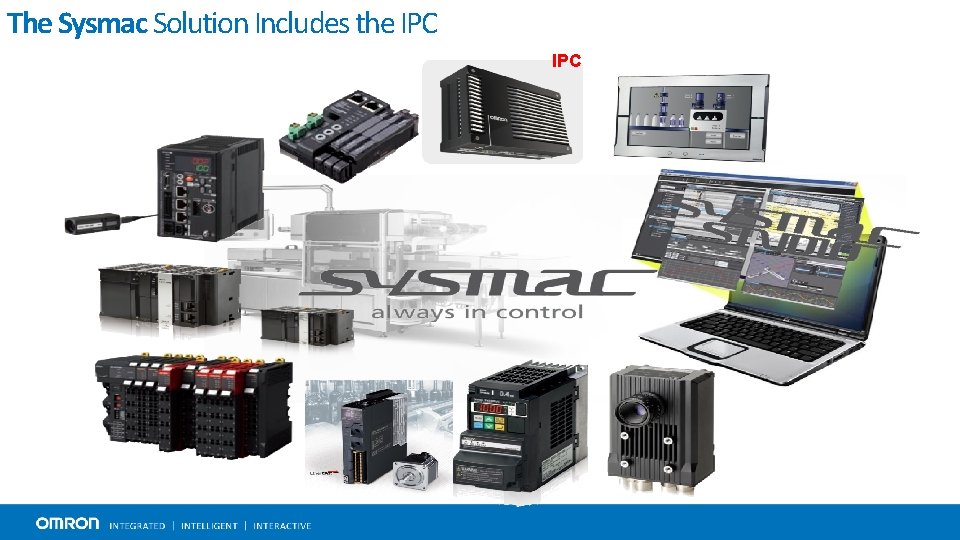

The Sysmac Solution Includes the IPC

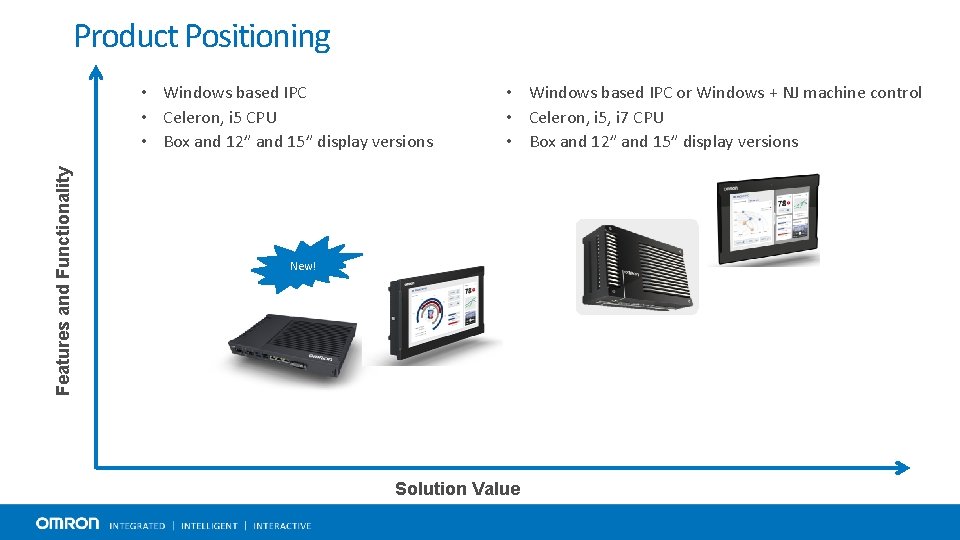

Product Positioning Features and Functionality • Windows based IPC • Celeron, i 5 CPU • Box and 12” and 15” display versions • Windows based IPC or Windows + NJ machine control • Celeron, i 5, i 7 CPU • Box and 12” and 15” display versions New! Solution Value

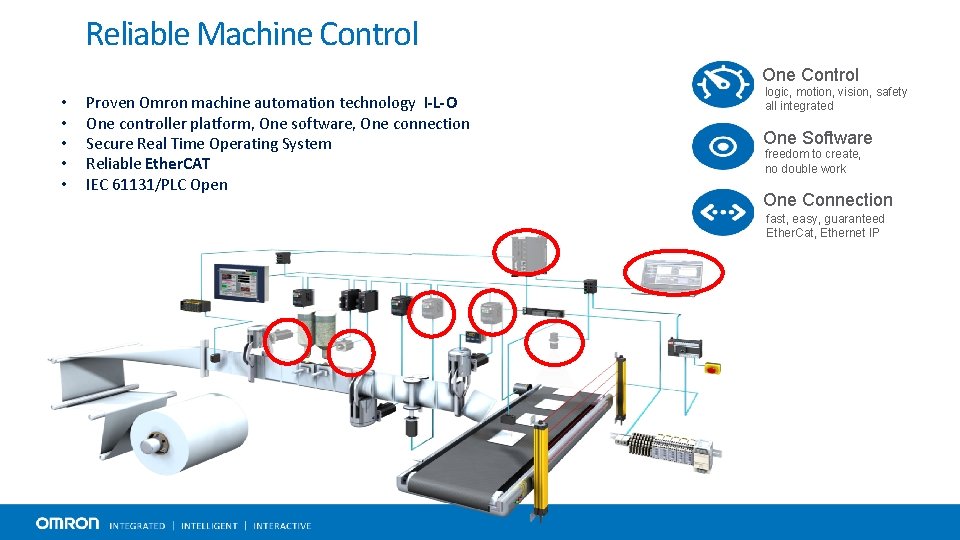

Reliable Machine Control One Control • • • Proven Omron machine automation technology I-L-O One controller platform, One software, One connection Secure Real Time Operating System Reliable Ether. CAT IEC 61131/PLC Open logic, motion, vision, safety all integrated One Software freedom to create, no double work One Connection fast, easy, guaranteed Ether. Cat, Ethernet IP

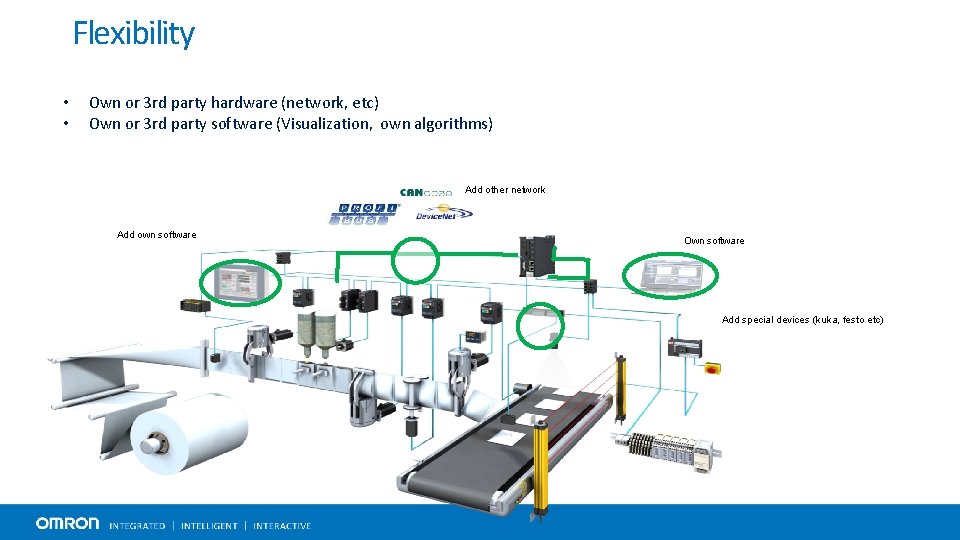

Flexibility • • Own or 3 rd party hardware (network, etc) Own or 3 rd party software (Visualization, own algorithms) Add other network Add own software Own software Add special devices (kuka, festo etc)

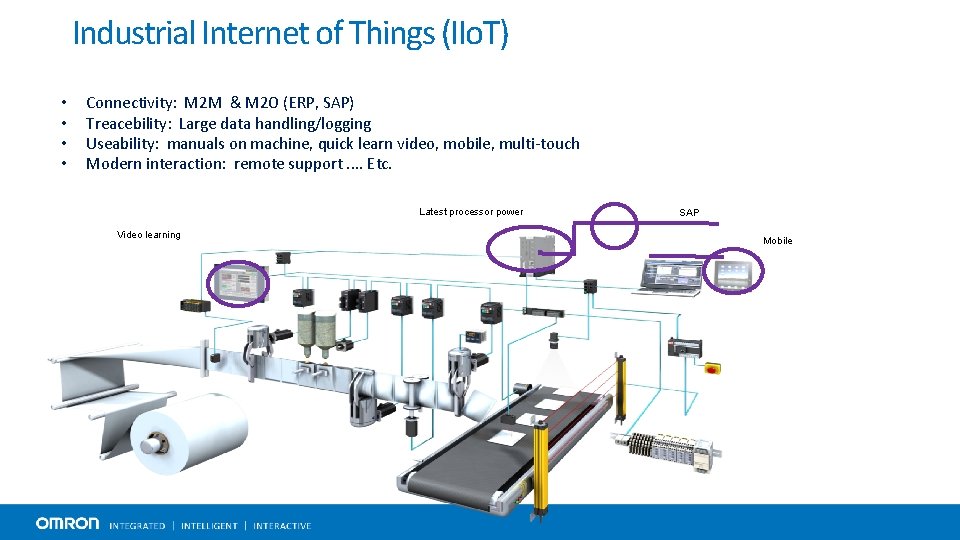

Industrial Internet of Things (IIo. T) • • Connectivity: M 2 M & M 2 O (ERP, SAP) Treacebility: Large data handling/logging Useability: manuals on machine, quick learn video, mobile, multi-touch Modern interaction: remote support. . Etc. Latest processor power Video learning SAP Mobile

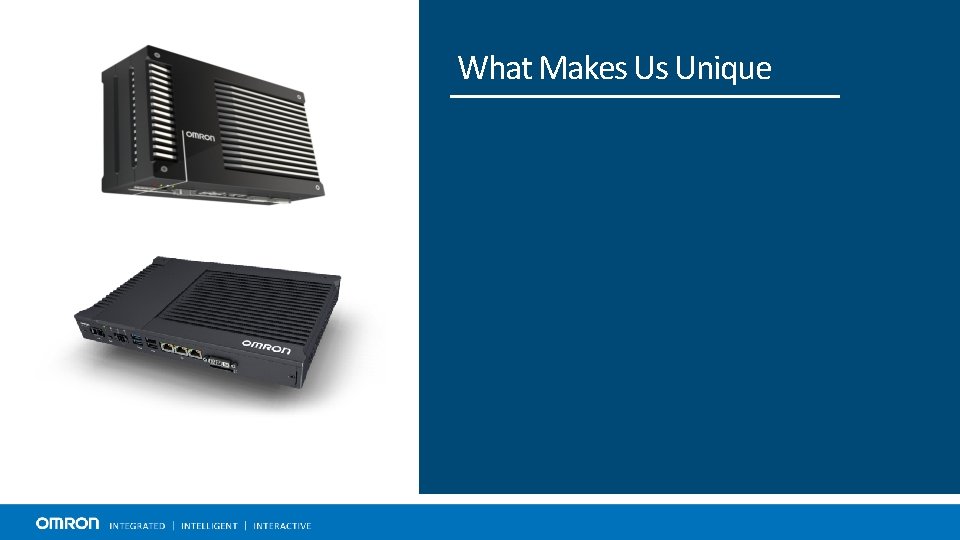

What Makes Us Unique

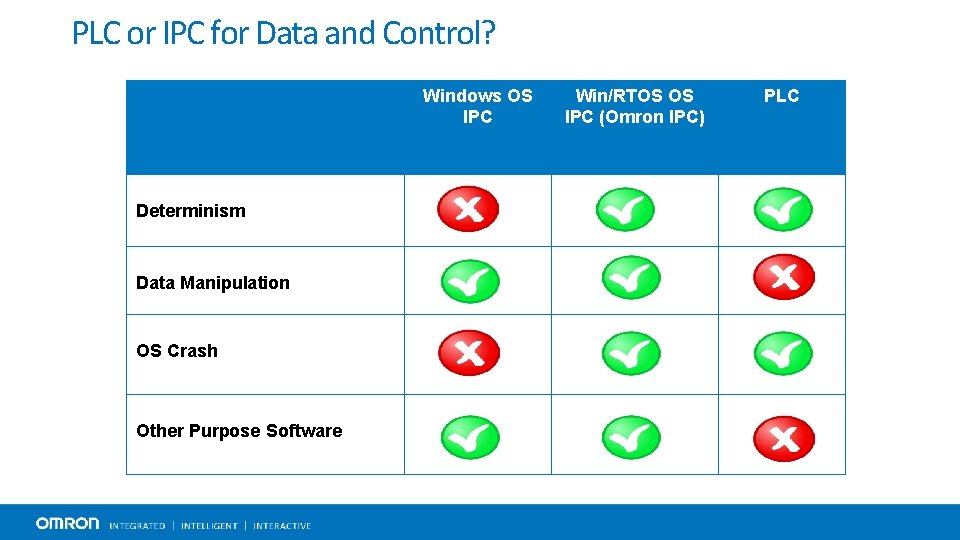

PLC or IPC for Data and Control? Windows OS IPC Determinism Data Manipulation OS Crash Other Purpose Software Win/RTOS OS IPC (Omron IPC) PLC

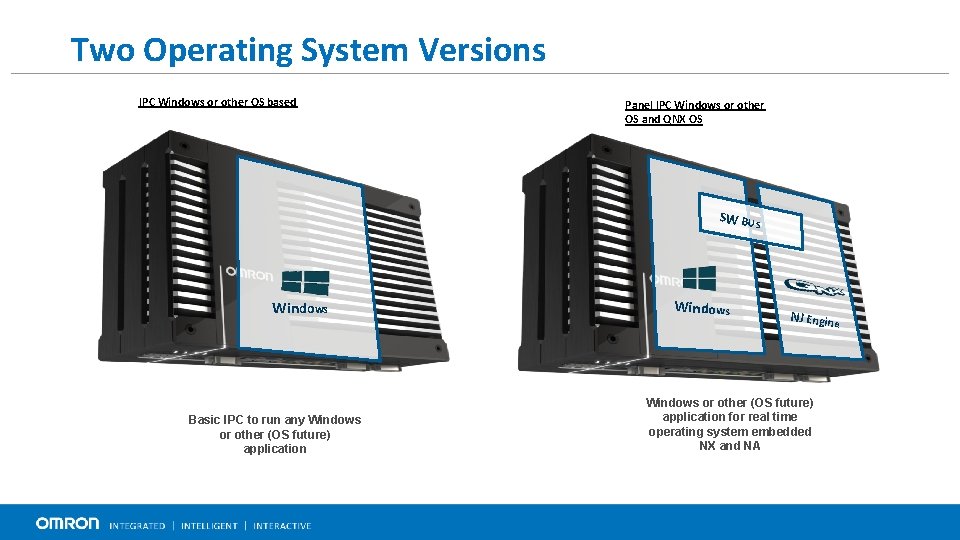

Two Operating System Versions IPC Windows or other OS based Panel IPC Windows or other OS and QNX OS . SW BUS Windows Basic IPC to run any Windows or other (OS future) application Windows NJ Engine Windows or other (OS future) application for real time operating system embedded NX and NA

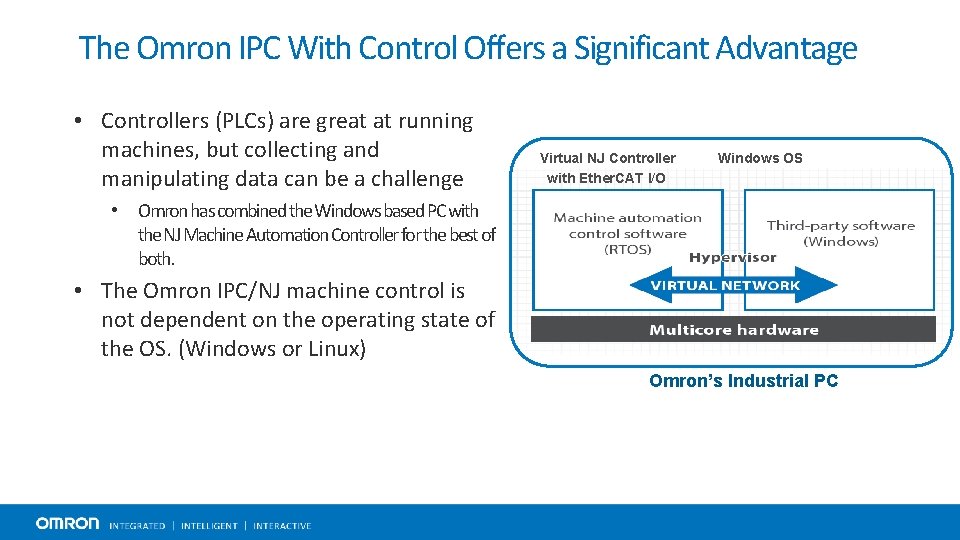

The Omron IPC With Control Offers a Significant Advantage • Controllers (PLCs) are great at running machines, but collecting and manipulating data can be a challenge Virtual NJ Controller with Ether. CAT I/O Windows OS • Omron has combined the Windows based PC with the NJ Machine Automation Controller for the best of both. • The Omron IPC/NJ machine control is not dependent on the operating state of the OS. (Windows or Linux) Omron’s Industrial PC

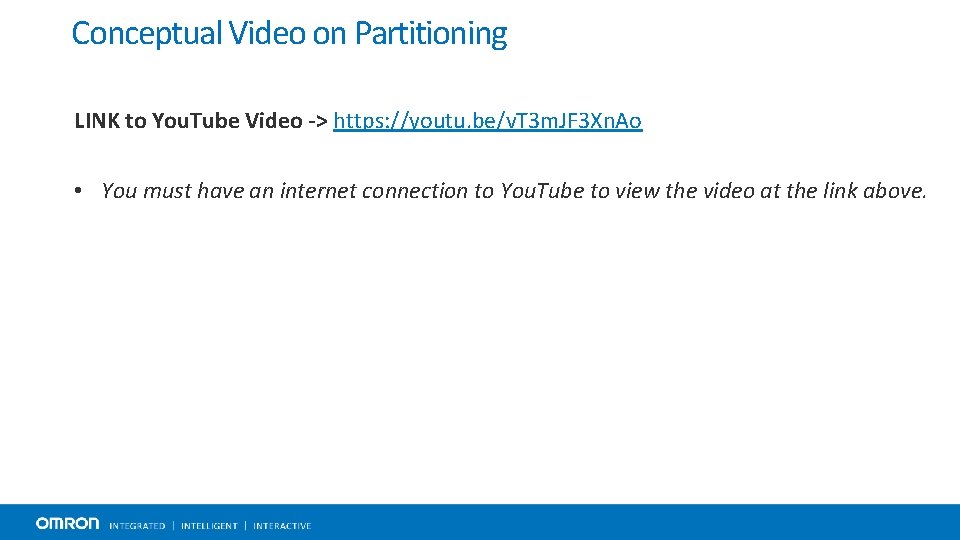

Conceptual Video on Partitioning LINK to You. Tube Video -> https: //youtu. be/v. T 3 m. JF 3 Xn. Ao • You must have an internet connection to You. Tube to view the video at the link above.

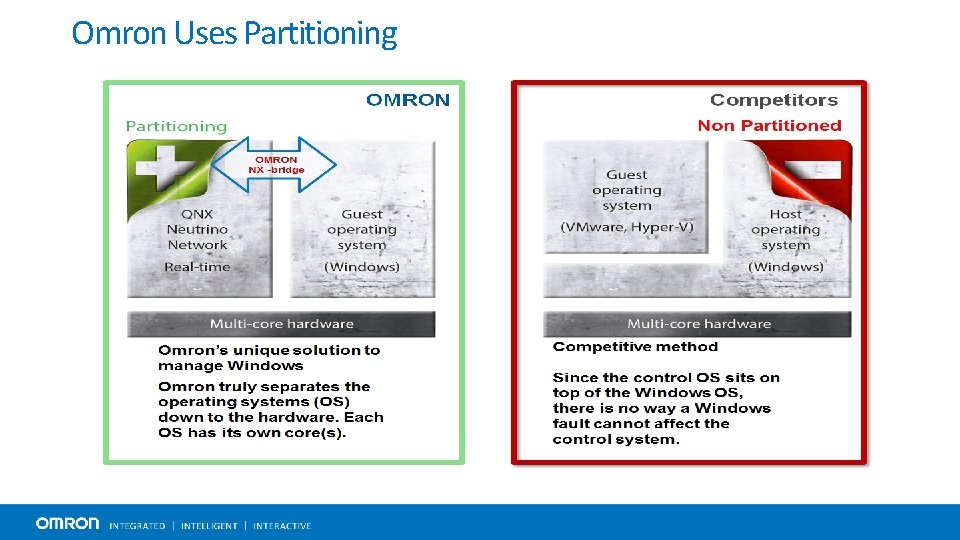

Omron Uses Partitioning

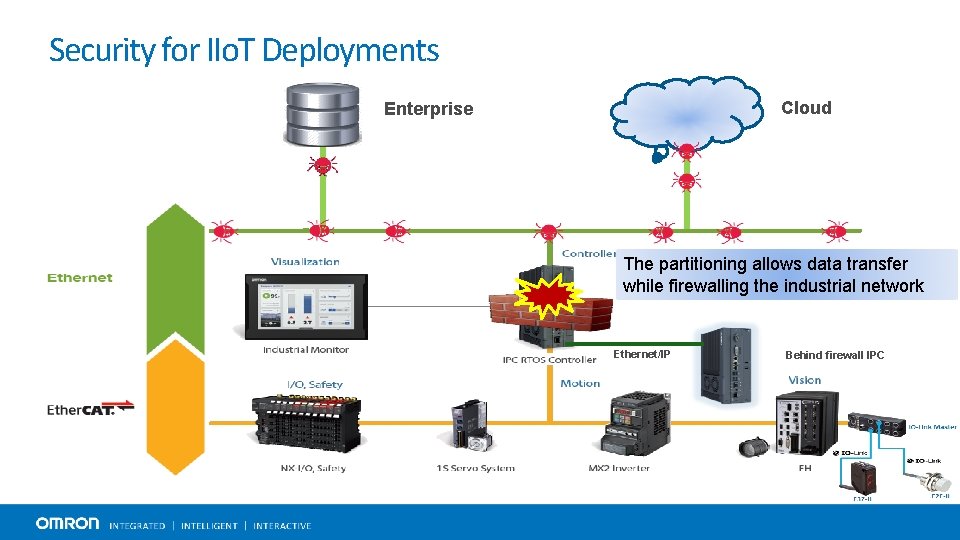

Security for IIo. T Deployments Cloud Enterprise The partitioning allows data transfer while firewalling the industrial network Ethernet/IP Behind firewall IPC

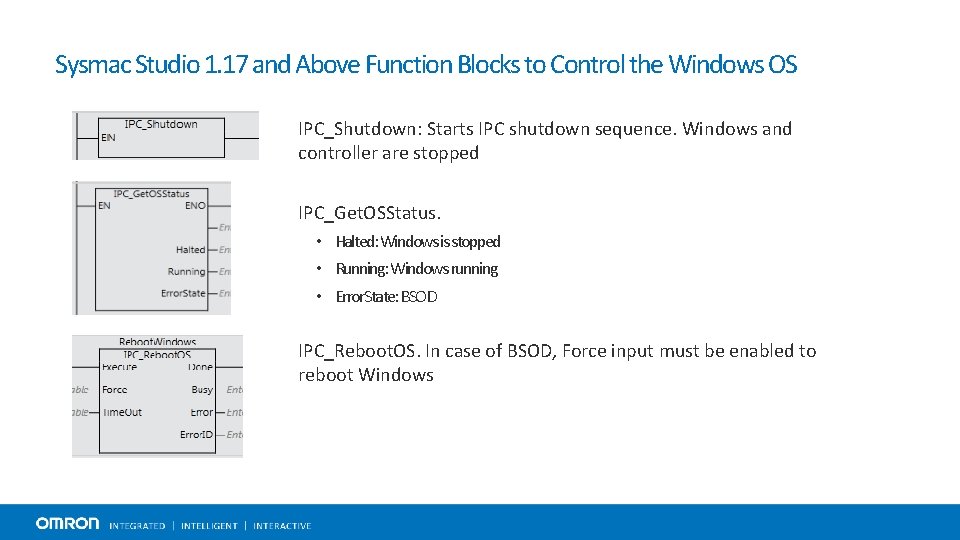

Sysmac Studio 1. 17 and Above Function Blocks to Control the Windows OS IPC_Shutdown: Starts IPC shutdown sequence. Windows and controller are stopped IPC_Get. OSStatus. • Halted: Windows is stopped • Running: Windows running • Error. State: BSOD IPC_Reboot. OS. In case of BSOD, Force input must be enabled to reboot Windows

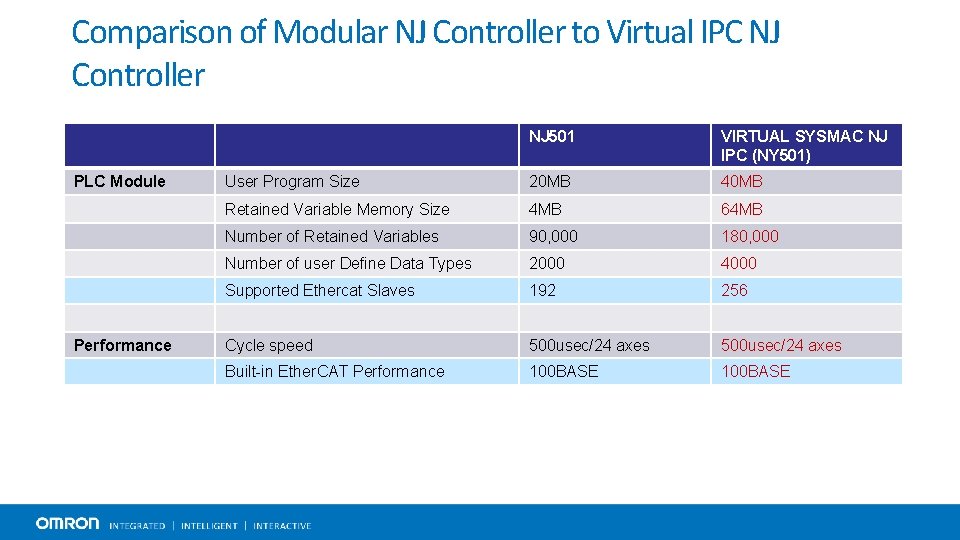

Comparison of Modular NJ Controller to Virtual IPC NJ Controller PLC Module Performance NJ 501 VIRTUAL SYSMAC NJ IPC (NY 501) User Program Size 20 MB 40 MB Retained Variable Memory Size 4 MB 64 MB Number of Retained Variables 90, 000 180, 000 Number of user Define Data Types 2000 4000 Supported Ethercat Slaves 192 256 Cycle speed 500 usec/24 axes Built-in Ether. CAT Performance 100 BASE

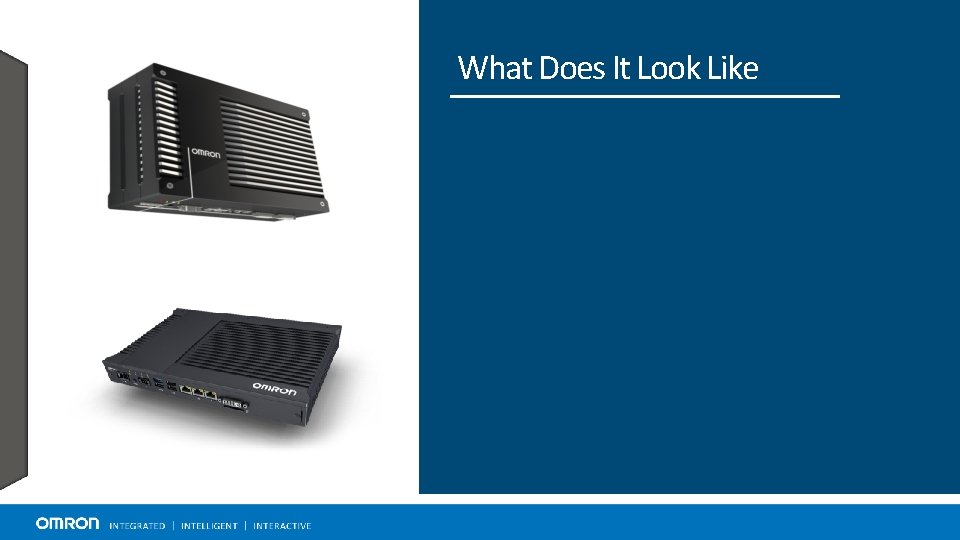

What Does It Look Like

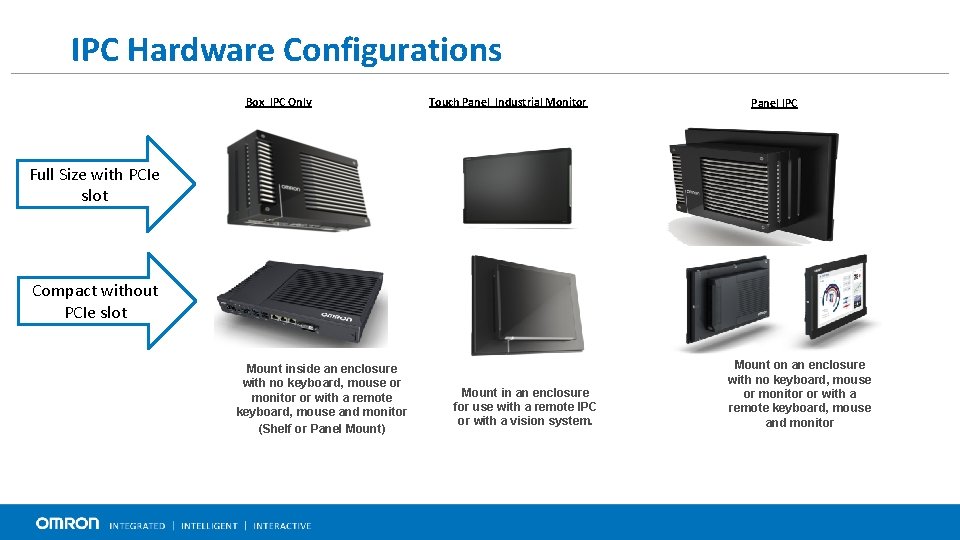

IPC Hardware Configurations Box IPC Only Touch Panel Industrial Monitor Panel IPC Full Size with PCIe slot Compact without PCIe slot Mount inside an enclosure with no keyboard, mouse or monitor or with a remote keyboard, mouse and monitor (Shelf or Panel Mount) Mount in an enclosure for use with a remote IPC or with a vision system. Mount on an enclosure with no keyboard, mouse or monitor or with a remote keyboard, mouse and monitor

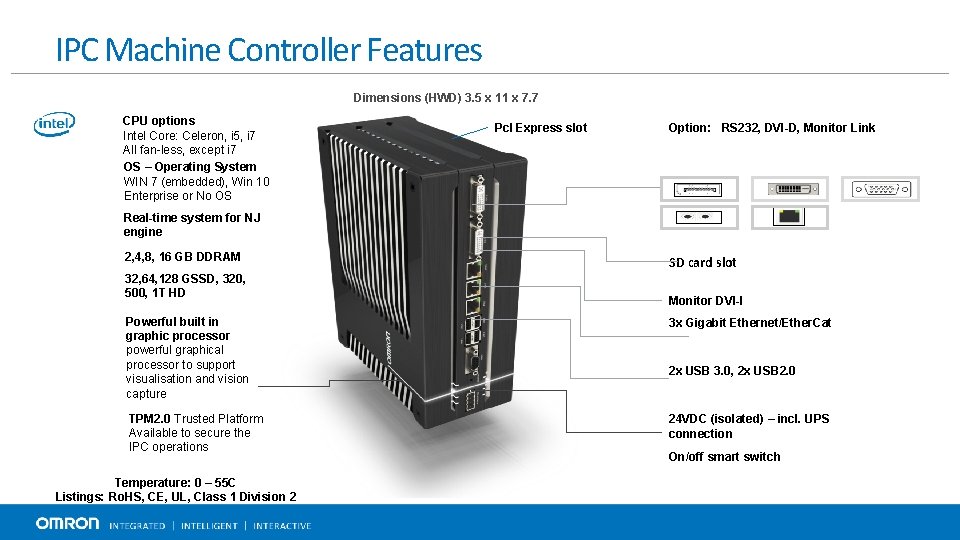

IPC Machine Controller Features Dimensions (HWD) 3. 5 x 11 x 7. 7 CPU options Intel Core: Celeron, i 5, i 7 All fan-less, except i 7 OS – Operating System WIN 7 (embedded), Win 10 Enterprise or No OS Pc. I Express slot Option: RS 232, DVI-D, Monitor Link Real-time system for NJ engine 2, 4, 8, 16 GB DDRAM 32, 64, 128 GSSD, 320, 500, 1 T HD SD card slot Monitor DVI-I Powerful built in graphic processor powerful graphical processor to support visualisation and vision capture 3 x Gigabit Ethernet/Ether. Cat TPM 2. 0 Trusted Platform Available to secure the IPC operations 24 VDC (isolated) – incl. UPS connection Temperature: 0 – 55 C Listings: Ro. HS, CE, UL, Class 1 Division 2 2 x USB 3. 0, 2 x USB 2. 0 On/off smart switch

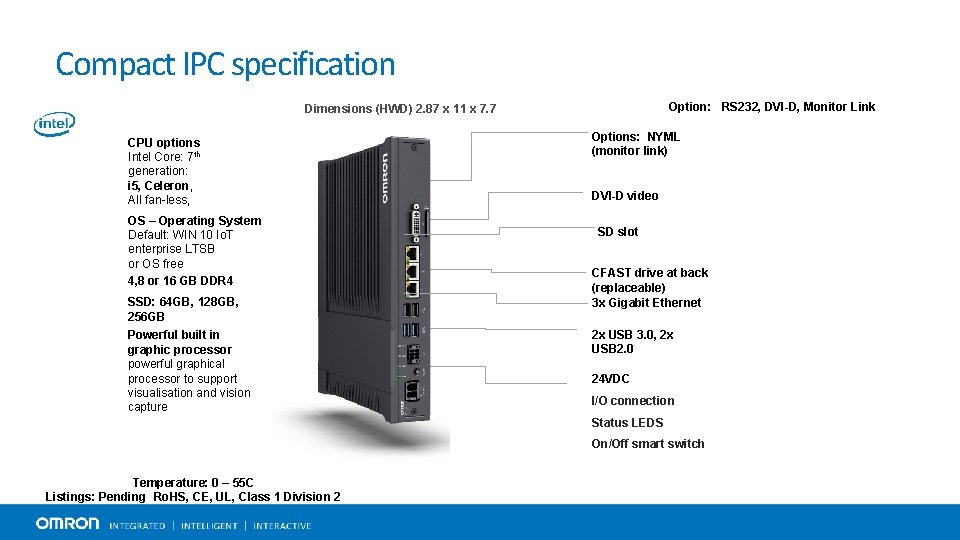

Compact IPC specification Option: RS 232, DVI-D, Monitor Link Dimensions (HWD) 2. 87 x 11 x 7. 7 CPU options Intel Core: 7 th generation: i 5, Celeron, All fan-less, OS – Operating System Default: WIN 10 Io. T enterprise LTSB or OS free 4, 8 or 16 GB DDR 4 SSD: 64 GB, 128 GB, 256 GB Powerful built in graphic processor powerful graphical processor to support visualisation and vision capture Options: NYML (monitor link) DVI-D video SD slot CFAST drive at back (replaceable) 3 x Gigabit Ethernet 2 x USB 3. 0, 2 x USB 2. 0 24 VDC I/O connection Status LEDS On/Off smart switch Temperature: 0 – 55 C Listings: Pending Ro. HS, CE, UL, Class 1 Division 2

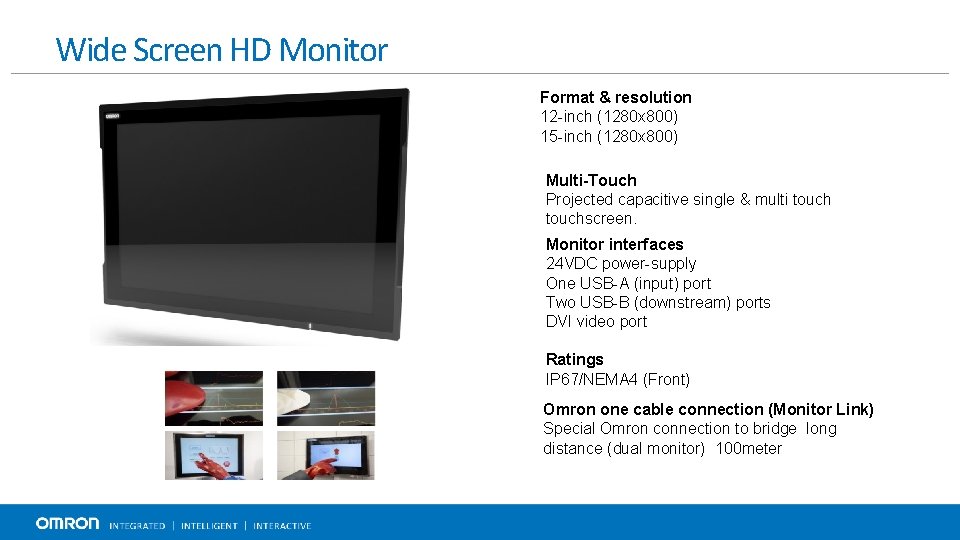

Wide Screen HD Monitor Format & resolution 12 -inch (1280 x 800) 15 -inch (1280 x 800) Multi-Touch Projected capacitive single & multi touchscreen. Monitor interfaces 24 VDC power-supply One USB-A (input) port Two USB-B (downstream) ports DVI video port Ratings IP 67/NEMA 4 (Front) Omron one cable connection (Monitor Link) Special Omron connection to bridge long distance (dual monitor) 100 meter

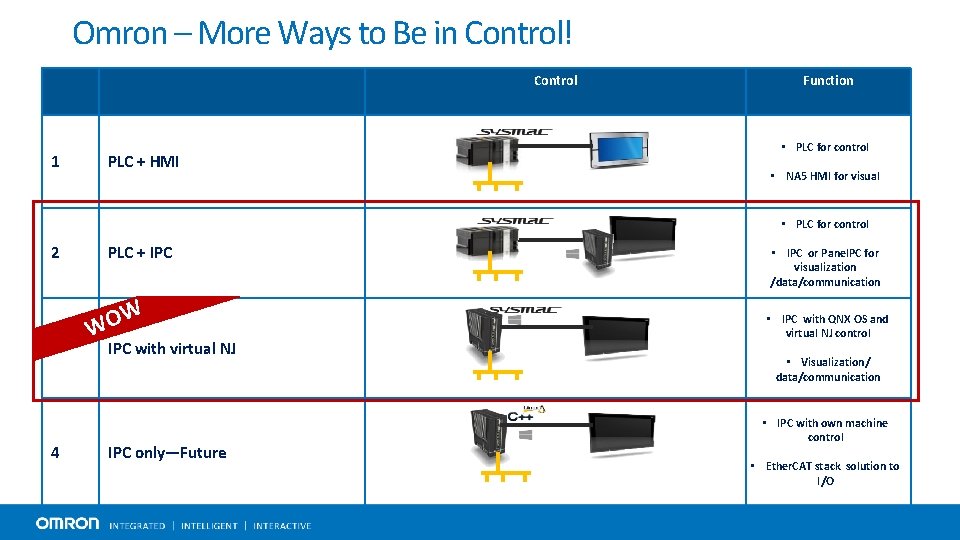

Omron – More Ways to Be in Control! Control 1 PLC + HMI Function • PLC for control • NA 5 HMI for visual • PLC for control 2 3 4 PLC + IPC W O W IPC with virtual NJ IPC only—Future • IPC or Panel. PC for visualization /data/communication • IPC with QNX OS and virtual NJ control • Visualization/ data/communication • IPC with own machine control • Ether. CAT stack solution to I/O

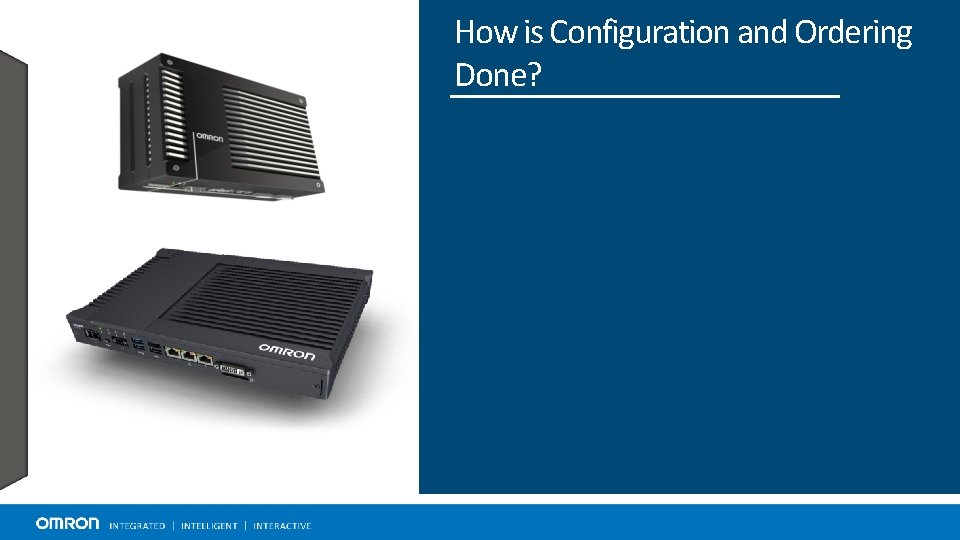

How is Configuration and Ordering Done?

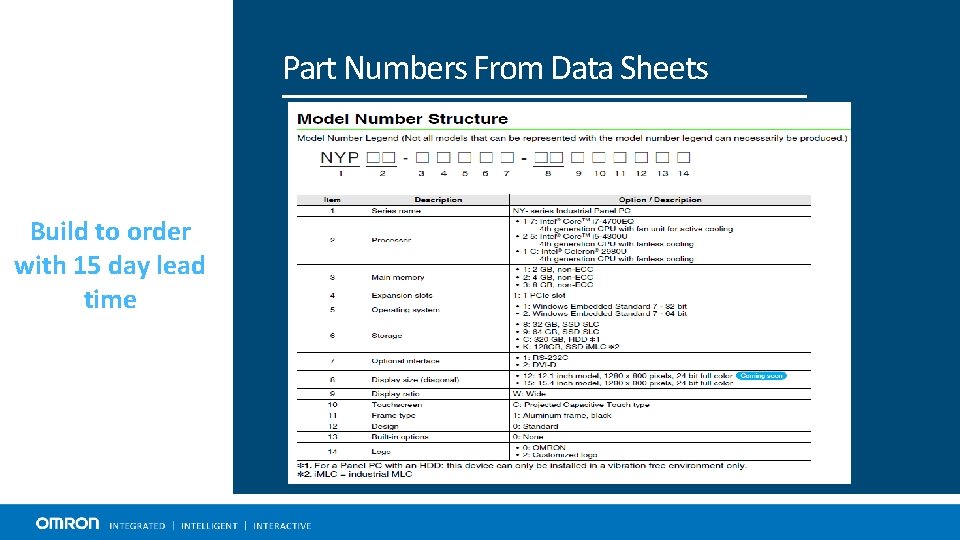

Part Numbers From Data Sheets Build to order with 15 day lead time

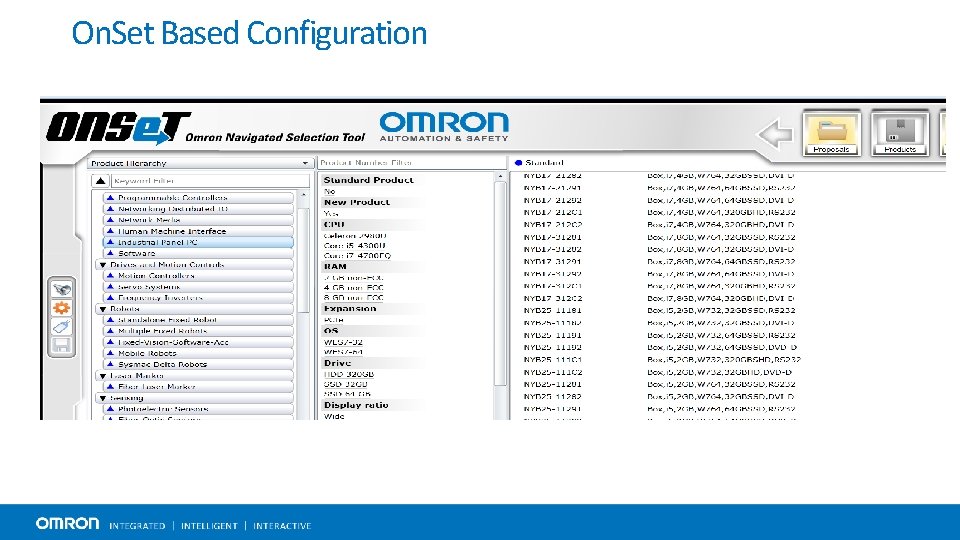

On. Set Based Configuration

Custom Logo Option- Contact your Omron sales person Get a custom 2 page PDF flyer of an IPC with your logo Backlighted laser etched

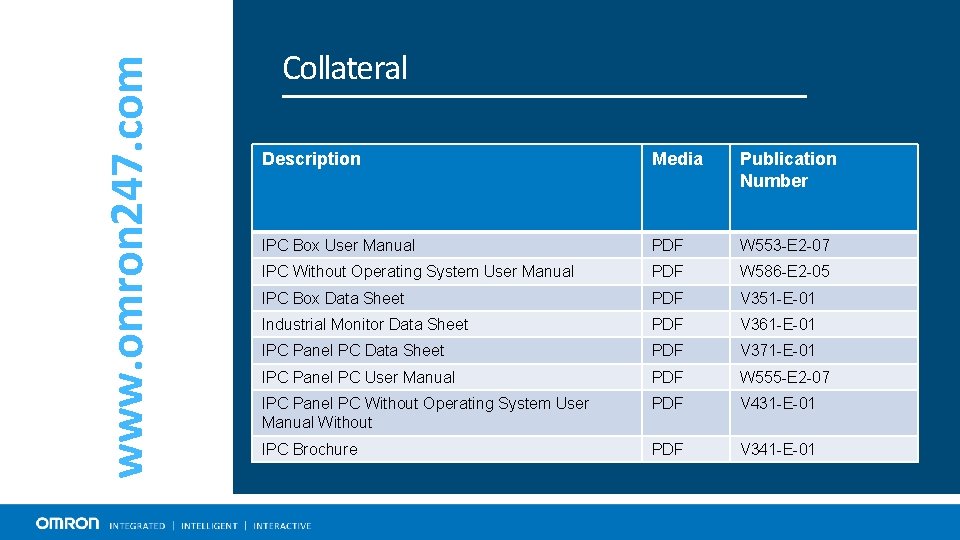

www. omron 247. com Collateral Description Media Publication Number IPC Box User Manual PDF W 553 -E 2 -07 IPC Without Operating System User Manual PDF W 586 -E 2 -05 IPC Box Data Sheet PDF V 351 -E-01 Industrial Monitor Data Sheet PDF V 361 -E-01 IPC Panel PC Data Sheet PDF V 371 -E-01 IPC Panel PC User Manual PDF W 555 -E 2 -07 IPC Panel PC Without Operating System User Manual Without PDF V 431 -E-01 IPC Brochure PDF V 341 -E-01

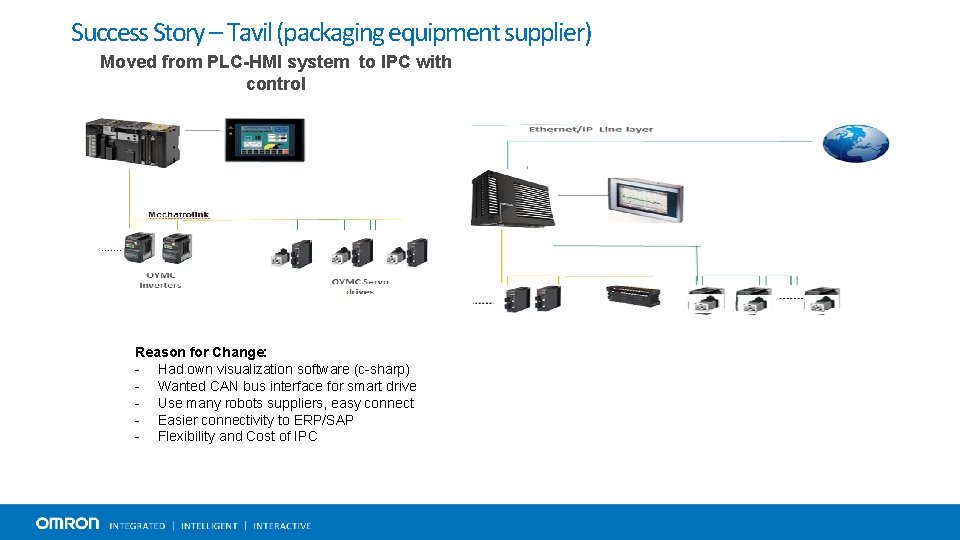

Success Story – Tavil (packaging equipment supplier) Moved from PLC-HMI system to IPC with control Reason for Change: - Had own visualization software (c-sharp) - Wanted CAN bus interface for smart drive - Use many robots suppliers, easy connect - Easier connectivity to ERP/SAP - Flexibility and Cost of IPC

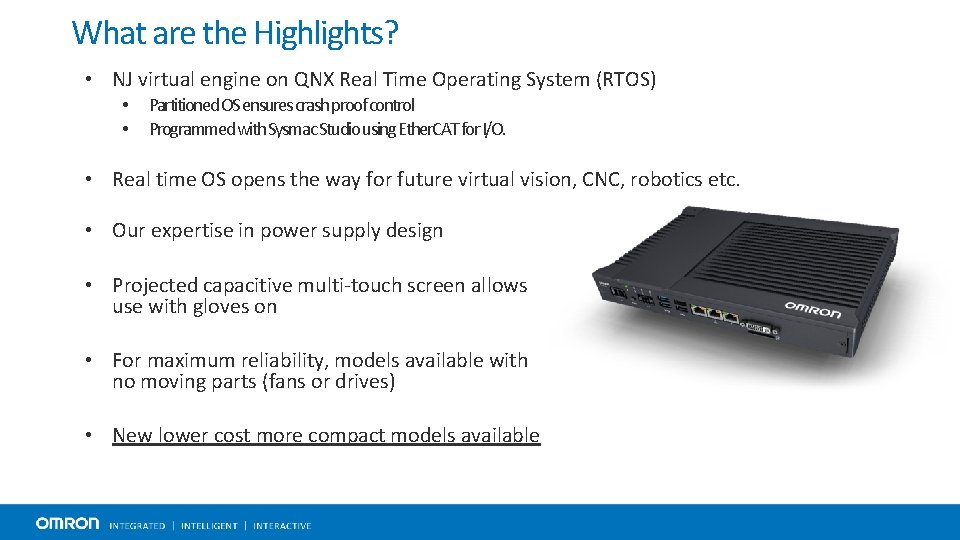

What are the Highlights? • NJ virtual engine on QNX Real Time Operating System (RTOS) • • Partitioned OS ensures crash proof control Programmed with Sysmac Studio using Ether. CAT for I/O. • Real time OS opens the way for future virtual vision, CNC, robotics etc. • Our expertise in power supply design • Projected capacitive multi-touch screen allows use with gloves on • For maximum reliability, models available with no moving parts (fans or drives) • New lower cost more compact models available

Questions
