Enabling Technicians with Accurate Data Frank Hallam - Omega. PS Suite Solution Manager Cheltenham | Manchester | Fareham | Ottawa | Melbourne | Aberdeen

Problem Statement Logistics Product Data (LPD) exists to enable the identification of an accurate support baseline. After acquisition, this baseline in transferred to in-service managers who are tasked to ensuring that the support baseline is maintained. The update and release of technical data to deployed technicians must be done in a change managed process to ensure that the fielded information matches the approved support baseline.

Agenda Ø Overview Ø Data Transfer Ø Technical Document Management Ø S 1000 D Ø Digital Integration

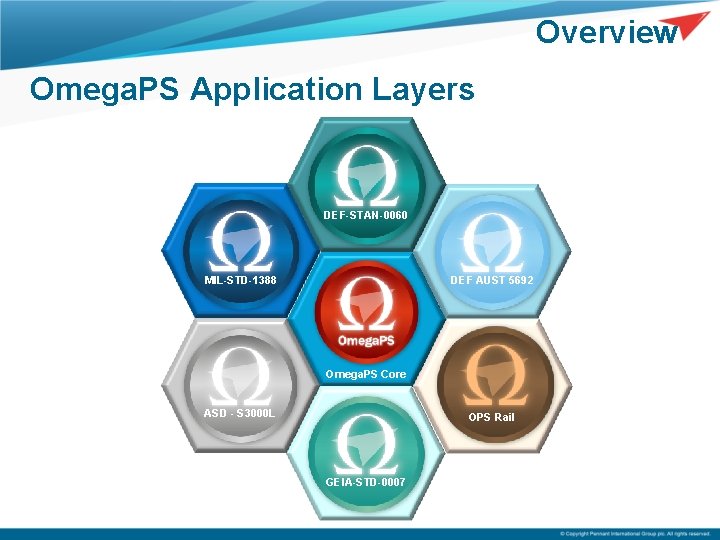

Overview Omega. PS Application Layers DEF-STAN-0060 DEF AUST 5692 MIL-STD-1388 Omega. PS Core ASD - S 3000 L OPS Rail GEIA-STD-0007

Omega. PS Core Functions Overview CI/MSI Structure What Is It? Functional Physical RAM How does it fail? FMEA Material RCM Configurations Each of the application layers have variations on the data requirements for each of these core functions. Omega. PS Core Provisioning Maintenance How is it repaired? Procedures Tasks Subtasks Resources Material required? Cataloguing Lists Illustrations Quantities Characteristics

Overview Canadian DND Configuration Since 2000, a number of new modules have been added to the Omega. PS DND configuration. RCMe CP FD CM CS POM C&D CFTO RCMf OSAM 1388 & 0007 Data Q Sec PM IPBS

Data Transition File Type Definitions XML Files (per LSAR) 0007 + CPCOM Core GEIA 0007 Functional/Physical LCN structure Embedded Pubs and documents (Entity XT) CPCOM XML Files (per LSAR) 0007 + CFTO Core GEIA 0007 Functional/Physical LCN structure Embedded Pubs and documents (Entity XT) CFTO CP Material data (NSN and management data) N/M Series NDID data (NY, NW, NK, NQ, MY) ERN definition Initial Provisioning Data as per CFP 214 CPCOM Initial Provisioning Data as per CFP 214 XML Files (per LSAR) 0007 + Fit Def - CASS Core GEIA 0007 APEX Reports SQL Files Equipment Support List/Scale Maintenance FMEA RAM RCM Embedded Pubs and documents (Entity XT) Fit Def - CASS Ship fit configurations ERN Locations Frame/Compartment ID location FLOC IDs Equip Category/Object Type User Statuses CFTO data CPCOM Initial Provisioning Data as per CFP 214

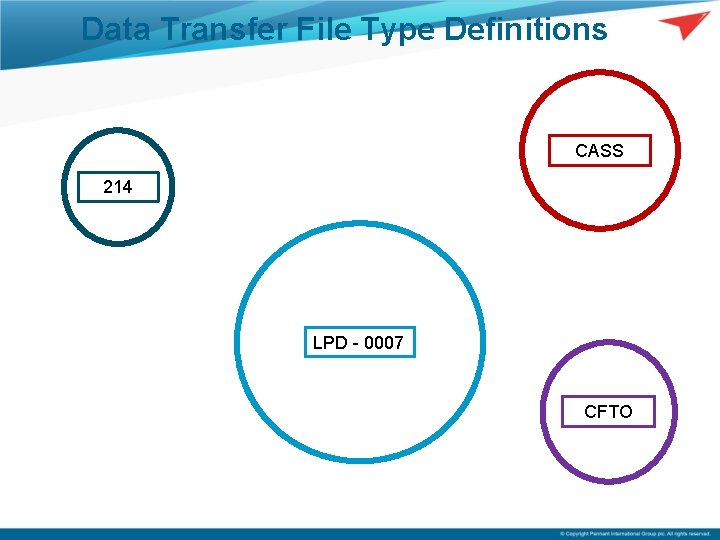

Data Transfer File Type Definitions CASS 214 LPD - 0007 CFTO

Data Transfer File Type Definitions Ad Hoc Reporting CASS 214 CFTO LPD - 0007

Data Transfer Demonstration

Digital Integration To ensure operation capability, safety and configuration management it is imperative that the correct information managed by the System Authorities is provided to all those who require access in a timely manner. Changes made to the baseline due to obsolescence or engineering change need to be accurately reflected in the baseline for all fielded configurations. Two modules in Omega. PS support this process Ø Ø CFTO module - Enables the maintenance, production and change management of CFTOs Point of Maintenance (POM) module - Enables an asset level view of the complete family tree and physical structure as well as all ‘active’ TDP elements

Technical Data Management All elements of the In-Service Technical Data Package must reflect the approved configuration as controlled by the System Authorities. Change Management of the CFTOs enforces rigour to ensure that all agencies can be assured that they are working from documentation that is applicable to the fielded configurations, reflecting both changes in support and changes in physical configurations. The CFTO module provides an integrated baselining and change management approach which will update and released publications in accordance with a controlled process.

Technical Data Management TDP Management Requirements Ø Accessible Ø Both DND and contracted support agencies need access to the TDP. Ø Platform Specific Ø Since each asset has inherent differences the TDP should be able to be parsed by applicability. Ø Configuration Managed Ø A single approach to configuration management is required to be applied to all TDP items. Ø Consolidated Ø All TDP items should be accessible from one location.

Technical Data Management Technical Publications Module Ø The CFTO module is capable of producing NY, NW, NK, NQ, MY, NT and NG CFTO types Ø All these document types include a change management method which enables Ø Ø Ø Version Control Change tables Side bar and hi-lighting for all changes since the last revision Ø All these documents can be produced in bilingual format iaw the applicable D Spec or Unilingual format (as defined by Victoria Class) Ø All documents once produced can be held in the database and retrieved as required.

Technical Data Management CFTO Module Demonstration

S 1000 D DND is embarking on a new approach to managing technical publications, S 10000 D. While a number of Army and Air Force fleets have deployed IETMs using S 1000 D, DGMEPM has only begun the process of assessing how this will be done. DMPP and DSCO have begun the process of creating the necessary policy, Business Rules and templates that will provide DND with common S 1000 D architecture

S 1000 D Integration Ø Omega. PS GEIA-STD-0007 has been built with specific links to S 1000 D definitions. Ø The CFTO module can integrate with a S 1000 D CSDB if required Ø Ø Ø ICN attributes are used to store all illustrations in the XT table DMCs can be defined and stored The following S 1000 D attributes are integral to GEIA-STD-0007 Ø Ø Ø Ø Data Module Codes Circuit Breaker Type indicator Zone and Access attributes Digital File linkage to Structure, Material, Provisioning, Design Change, Maintenance, Facilities and Transportability Scheduled Maintenance Event attribution Event trigger definition Scheduled Maintenance Event Sampling attribution

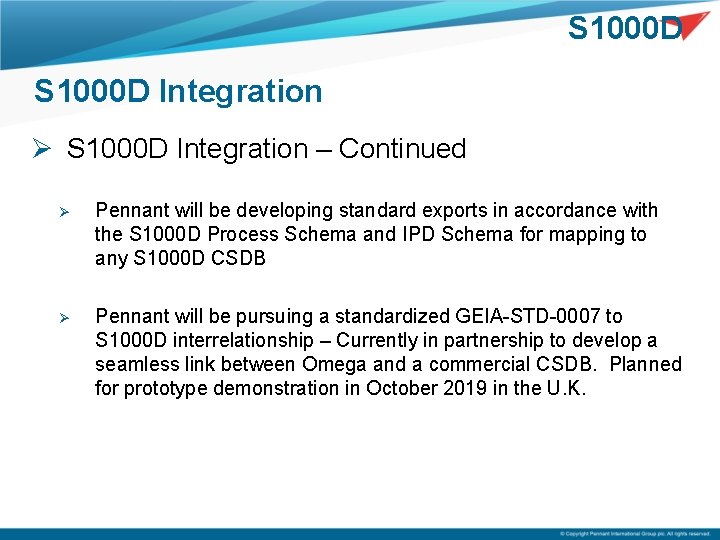

S 1000 D Integration Ø S 1000 D Integration – Continued Ø Pennant will be developing standard exports in accordance with the S 1000 D Process Schema and IPD Schema for mapping to any S 1000 D CSDB Ø Pennant will be pursuing a standardized GEIA-STD-0007 to S 1000 D interrelationship – Currently in partnership to develop a seamless link between Omega and a commercial CSDB. Planned for prototype demonstration in October 2019 in the U. K.

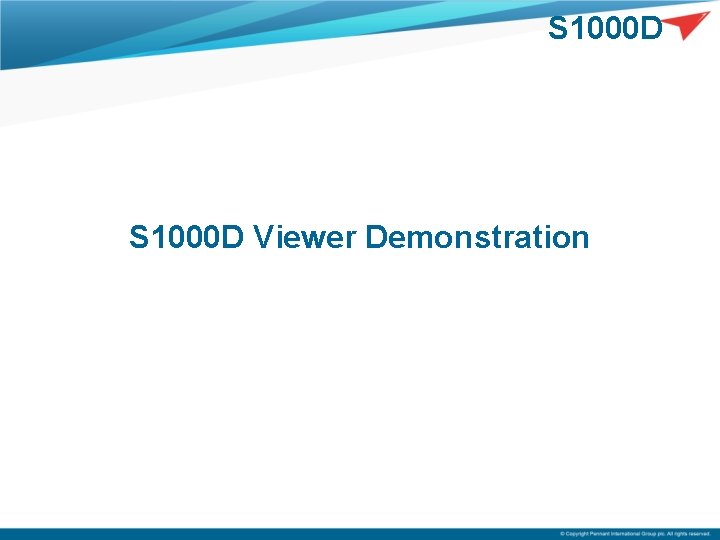

S 1000 D Viewer Demonstration

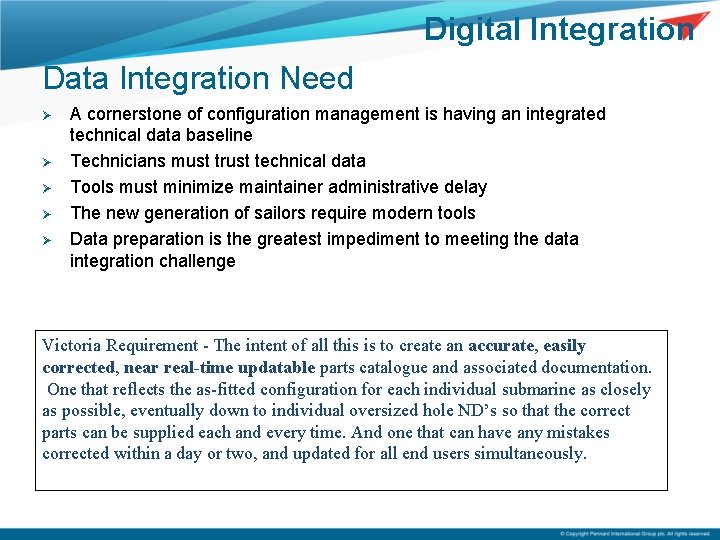

Digital Integration Data Integration Need Ø Ø Ø A cornerstone of configuration management is having an integrated technical data baseline Technicians must trust technical data Tools must minimize maintainer administrative delay The new generation of sailors require modern tools Data preparation is the greatest impediment to meeting the data integration challenge Victoria Requirement - The intent of all this is to create an accurate, easily corrected, near real-time updatable parts catalogue and associated documentation. One that reflects the as-fitted configuration for each individual submarine as closely as possible, eventually down to individual oversized hole ND’s so that the correct parts can be supplied each and every time. And one that can have any mistakes corrected within a day or two, and updated for all end users simultaneously.

Digital Integration Point Of Maintenance – Digital Integration Ø POM: Designed to meet the needs of the System Manager and the Technician Ø Ø Ø POM: Omega. PS module allows for enterprise data integration Ø Ø focus on what both require: trustworthy information interactive medium: Illustrated Parts Catalogue / Pubs / Drawings SAP / CGCS / Omega. PS are always aligned for catalogued material POM: flexibility and opportunity to manage configurations Ø Ø POM-C: LCMM focus on equipment management, not chasing parts POM-D: agile and adaptable to meet end-user needs

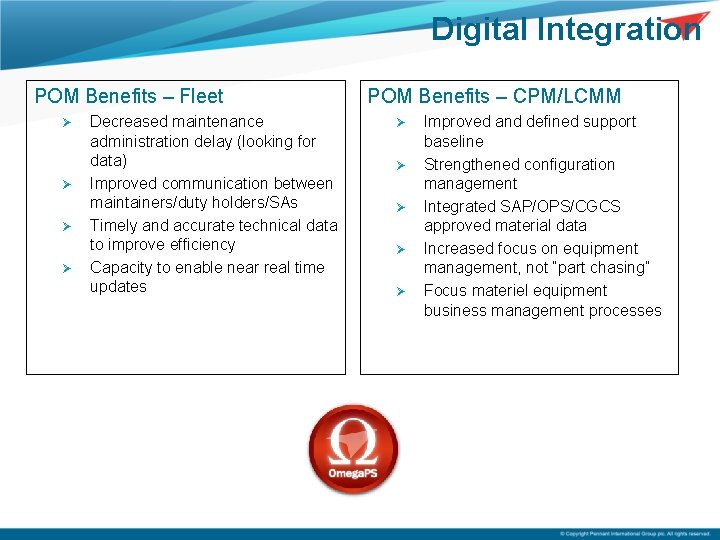

Digital Integration POM Benefits – Fleet Ø Ø Decreased maintenance administration delay (looking for data) Improved communication between maintainers/duty holders/SAs Timely and accurate technical data to improve efficiency Capacity to enable near real time updates POM Benefits – CPM/LCMM Ø Ø Ø Improved and defined support baseline Strengthened configuration management Integrated SAP/OPS/CGCS approved material data Increased focus on equipment management, not “part chasing” Focus materiel equipment business management processes

Technical Data Management POM Module Demonstration
