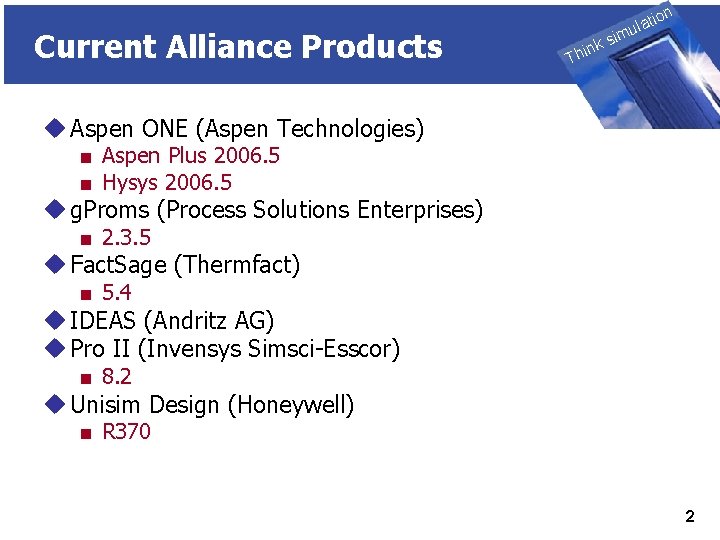

Current Alliance Products THINK on ti SIMULATION ula nk i h T sim u Aspen ONE (Aspen Technologies) ■ Aspen Plus 2006. 5 ■ Hysys 2006. 5 u g. Proms (Process Solutions Enterprises) ■ 2. 3. 5 u Fact. Sage (Thermfact) ■ 5. 4 u IDEAS (Andritz AG) u Pro II (Invensys Simsci-Esscor) ■ 8. 2 u Unisim Design (Honeywell) ■ R 370 2

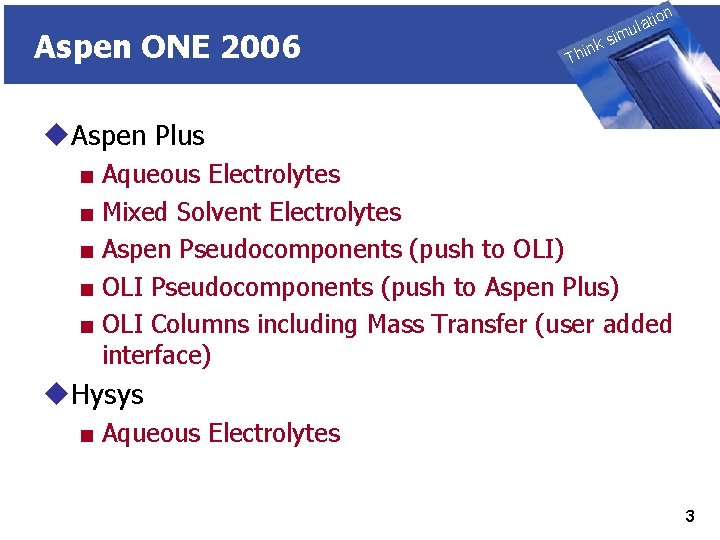

Aspen ONE 2006 THINK on ti SIMULATION ula nk i h T sim u. Aspen Plus ■ Aqueous Electrolytes ■ Mixed Solvent Electrolytes ■ Aspen Pseudocomponents (push to OLI) ■ OLI Pseudocomponents (push to Aspen Plus) ■ OLI Columns including Mass Transfer (user added interface) u. Hysys ■ Aqueous Electrolytes 3

Unisim Design R 370 THINK on ti SIMULATION ula nk i h T sim u. Chemistry ■ Aqueous Electrolytes ■ Mixed Solvent Electrolytes ■ OLI Pseudocomponents u. Incorporates the OLI Column calculations ■ Mass-transfer to be included in later versions u. OLI Corrosion Analyzer can be linked and run within Unisim Design ■ Can be used in controllers to provide information such as corrosion rates 4

Pro. II THINK on ti SIMULATION ula nk i h T sim u. Chemistry ■ Aqueous Electrolytes ■ MSE available in future releases of Pro. II ■ Pro. II Pseudocomponents (push to OLI) 5

Fact. Sage THINK on ti SIMULATION ula nk i h T sim u. Chemistry ■ Aqueous Electrolytes ■ Uses OLI properties in phase diagrams for aqueous systems 6

g. Proms THINK on ti SIMULATION ula nk i h T sim u. Chemistry ■ Aqueous Electrolytes 7

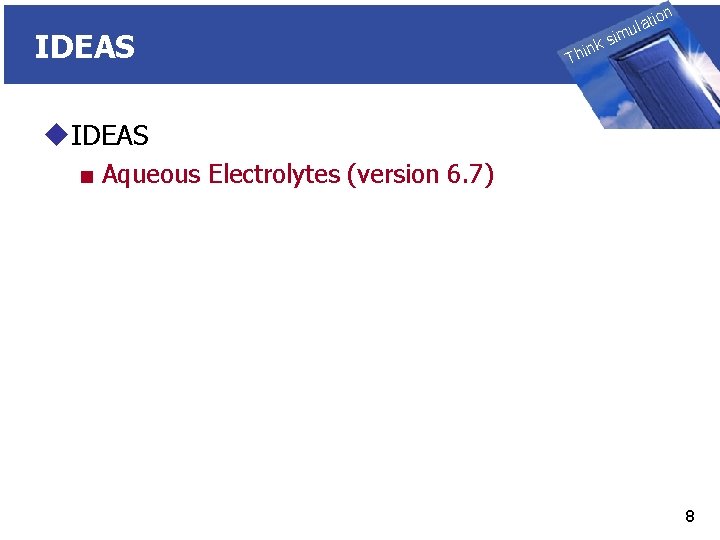

IDEAS THINK on ti SIMULATION ula nk i h T sim u. IDEAS ■ Aqueous Electrolytes (version 6. 7) 8

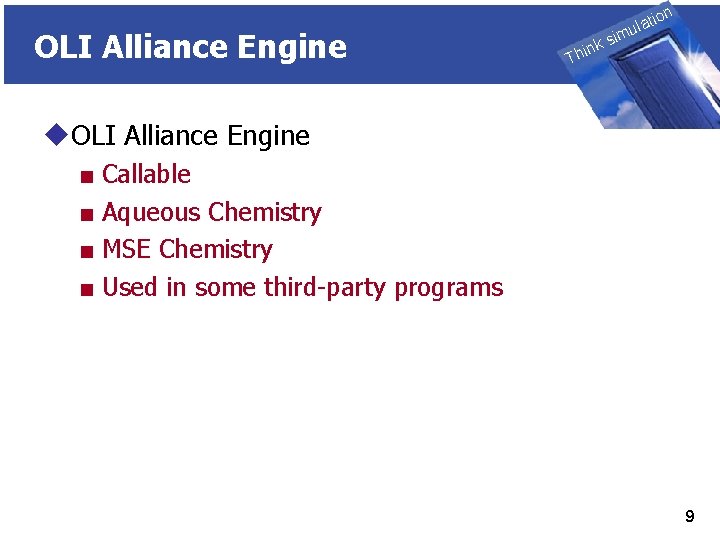

OLI Alliance Engine THINK on ti SIMULATION ula nk i h T sim u. OLI Alliance Engine ■ Callable ■ Aqueous Chemistry ■ MSE Chemistry ■ Used in some third-party programs 9

Introducing OLI Pro THINK on ti SIMULATION ula nk i h T sim u. OLI’s first windows based process simulator u. Based on Honeywell’s Unisim Design u. Only uses the OLI fluid package u. OLI Corrosion Analyzer can be linked u. Distributed by OLI u. Some Unisim Features are not available in OLI Pro ■ OLE ■ Different fluid packages (e. g. , Peng-Robinson) 10

OLI Pro Features THINK on ti SIMULATION ula nk i h T sim u. Graphical user interface u. Full range of OLI thermodynamics and databases ■ Aqueous Electrolytes ■ Mixed Solvent Electrolyte u. Process solved as you build the process u. Spreadsheet calculator u. Wide range of feedback and feed forward controllers u. Multiple chemistry bases in same flowsheet 11

OLI Pro Security THINK on ti SIMULATION ula nk i h T sim u Individual ■ No hardware security key ◊ Uses license file on local computer ◊ Locked to a single computer ◊ Can be “Commuted” and moved to a new computer temporarily u Network ■ No hardware security key ■ Uses Unisim License Manager ■ Licenses can be “Commuted” and used off-network u OLI Corrosion Analyzer security handled by OLI Pro ■ No separate serial number required 12

Comparing OLI Pro to ESP Feature OLI Pro THINK on ti SIMULATION ula nk i h T sim ESP Graphical Conventional Unit Operations Specialized Unit Operations Advanced Calculations Unique OLI Phenomena (e. g. , sorption) OLI Speciation Reports 13

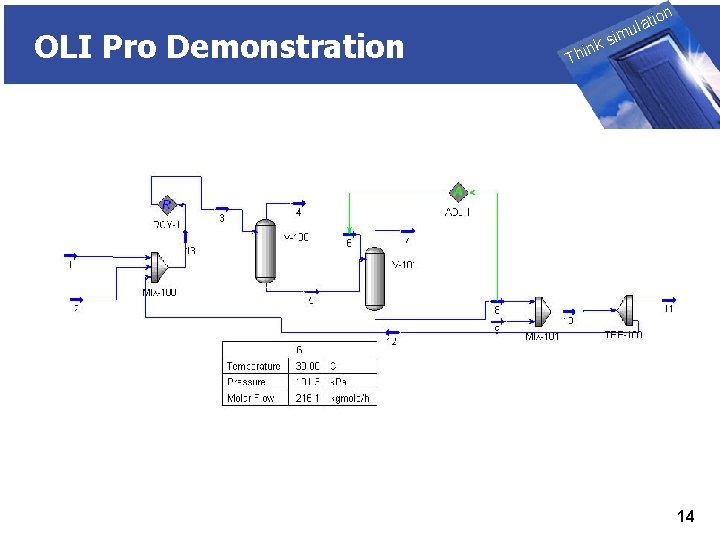

OLI Pro Demonstration THINK on ti SIMULATION ula nk i h T sim 14
