ACID MINE Acidity: 1. Oxidation of pyrite 2. Dissolution of humic and fulvic acids

Humic Substances are traditionally fractionated according to their solubilities ØFulvic acids: are those organic materials that are soluble in water at all p. H values ØHumic acids: are those materials that are insoluble at acidic p. H values (p. H < 2) but are soluble at higher p. H values ØHumin: is the fraction that is insoluble in water at all p. H values

Negative Effect of Acid Mine Attach and erode soil and minerals to result the dissolution of metals, like Fe, Cd, Mn, and Zn Environmental pollution

Utilization of Hydrotalcite to remediate acid mine Study on the ability of Mg/Al hydrotalcite in neutralize the acidity through exchanging its interlayer hydroxide (OH-), carbonate (CO 32 -), and bicarbonate (HCO 3 -) anions with polluting anions of SO 42 -, humic acid (HA), and fulvic acid (FA) in aqueous solution

Hydrotalcite (layered double hydroxide anionic clay) 1) General formula: [M 2+1 -x. M 3+x(OH)2]x+(An-)x/n. y. H 2 O where: M 2+ is divalent cation M 3+ is trivalent cation An- is interlayer anion (1 -x/x) varies from 1 to 5 2) Structure:

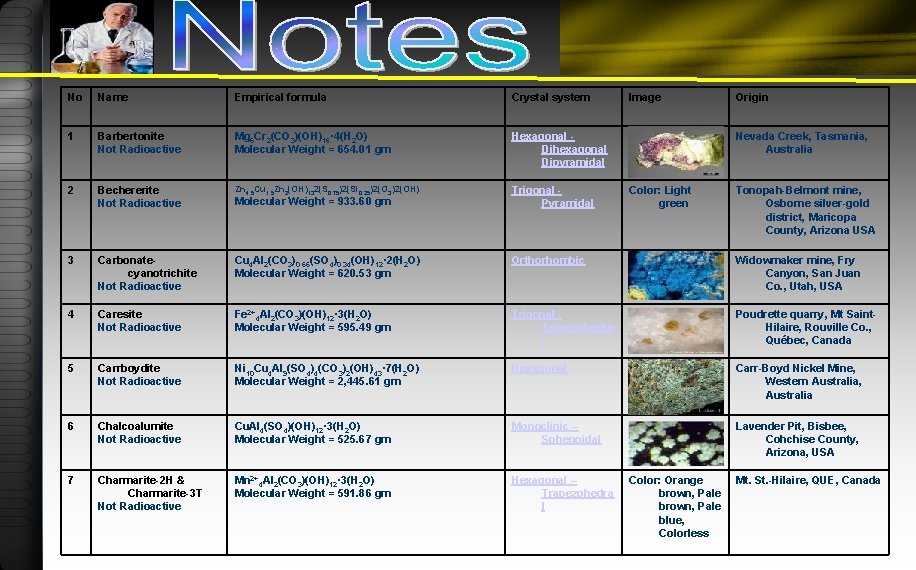

No Name Empirical formula Crystal system 1 Barbertonite Not Radioactive Mg 6 Cr 2(CO 3)(OH)16· 4(H 2 O) Molecular Weight = 654. 01 gm Hexagonal Dihexagonal Dipyramidal 2 Bechererite Not Radioactive Zn 4. 5 Cu 1. 5 Zn 2(OH)132(S 0. 75)2(Si 0. 25)2(O 3)2(OH) Trigonal Pyramidal 3 Carbonatecyanotrichite Not Radioactive Cu 4 Al 2(CO 3)0. 66(SO 4)0. 34(OH)12· 2(H 2 O) Molecular Weight = 620. 53 gm Orthorhombic Widowmaker mine, Fry Canyon, San Juan Co. , Utah, USA 4 Caresite Not Radioactive Fe 2+4 Al 2(CO 3)(OH)12· 3(H 2 O) Molecular Weight = 595. 49 gm Trigonal Trapezohedra l Poudrette quarry, Mt Saint. Hilaire, Rouville Co. , Québec, Canada 5 Carrboydite Not Radioactive Ni 10 Cu 4 Al 9(SO 4)4(CO 3)2(OH)43· 7(H 2 O) Molecular Weight = 2, 445. 61 gm Hexagonal Carr-Boyd Nickel Mine, Western Australia, Australia 6 Chalcoalumite Not Radioactive Cu. Al 4(SO 4)(OH)12· 3(H 2 O) Molecular Weight = 525. 67 gm Monoclinic – Sphenoidal Lavender Pit, Bisbee, Cohchise County, Arizona, USA 7 Charmarite-2 H & Charmarite-3 T Not Radioactive Mn 2+4 Al 2(CO 3)(OH)12· 3(H 2 O) Molecular Weight = 591. 86 gm Hexagonal – Trapezohedra l Molecular Weight = 933. 60 gm Image Origin Nevada Creek, Tasmania, Australia Color: Light green Color: Orange brown, Pale blue, Colorless Tonopah-Belmont mine, Osborne silver-gold district, Maricopa County, Arizona USA Mt. St. -Hilaire, QUE, Canada

8 Chlormagaluminite Not Radioactive Mg 3. 5 Fe 2+0. 5 Al 2(OH)12 Cl(CO 3)0. 5· 2(H 2 O) Molecular Weight = 472. 53 gm Hexagonal Color: Colorless, Yellow brown 9 Cyanotrichite Not Radioactive Cu 4 Al 2(SO 4)(OH)12· 2(H 2 O) Molecular Weight = 644. 33 gm Orthorhombic Grandview mine, Grand Canyon, Coconino County, Arizona, USA 10 Glaucocerinite Not Radioactive Zn 3 Cu 2 Al 3(SO 4)1. 5(OH)16· 9(H 2 O) Molecular Weight = 982. 56 gm Trigonal Mina Serpieri, Laurium, Attiki, Greece 11 Hydrombobomkulite Not Radioactive Ni 0. 75 Cu 0. 25 Al 4(NO 3)1. 5(SO 4)0. 5(OH)12· 14(H 2 O) Molecular Weight = 765. 17 gm Monoclinic 12 Hydrowoodwardite Not Radioactive Cu 0. 5 Al 0. 5(OH)2(SO 4)0. 25· 0. 75(H 2 O) Molecular Weight = 116. 81 gm Trigonal – Hexagonal Scalenohedral St Christoph Mine, Bärenhecke, Glashütte, Erzgebirge, Saxony, Germany 13 Manasseite Not Radioactive Mg 6 Al 2(CO 3)(OH)16· 4(H 2 O) Molecular Weight = 603. 98 gm Hexagonal – Dihexagonal Dipyramidal Jacupiranga mine, Jacupiranga, Sao Paolo, Brazil 14 Mbobomkulite Not Radioactive Ni 0. 75 Cu 0. 25 Al 4(NO 3)1. 5(SO 4)0. 5(OH)12· 3(H 2 O) Molecular Weight = 567. 00 gm Monoclinic – Sphenoidal. H Jomac Uranium mine, White Canyon, San Juan Co. , Utah, USA Color: Sky blue Kapaev explosion pipe, Angara River, southern Siberian Platform, Russia Mbobo Mkulu cave, Nelspruit district, South Africa

15 Nickelalumite Not Radioactive Ni 0. 7 Cu 0. 3 Al 4(SO 4)1. 5(NO 3)(OH)12· 3(H 2 O) Molecular Weight = 632. 31 gm Monoclinic – Sphenoidal Color: Sky blue Mbobo Mkulu cave, eastern Transvaal, South Africa 16 Quintinite-2 H Not Radioactive Mg 4 Al 2(OH)12(CO 3)· 4(H 2 O) Molecular Weight = 487. 34 gm Hexagonal – Trapezohedral Jacupiranga Mine, São Paulo, Southeast Region, Brazil 17 Quintinite-3 T Not Radioactive Mg 4 Al 2(OH)12(CO 3)· 4(H 2 O) Molecular Weight = 487. 34 gm Trigonal – Trapezohedral Jacupiranga Mine, São Paulo, Southeast Region, Brazil 18 Spangolite Not Radioactive Cu 6 Al(SO 4)(OH)12 Cl· 3(H 2 O) Molecular Weight = 797. 91 gm Trigonal – Ditrigonal Pyramidal Blanchard mine, Bingham, Socorro County, New Mexico, USA 19 Woodwardite Not Radioactive Cu 4 Al 2(SO 4)(OH)12· 3(H 2 O) Molecular Weight = 662. 34 gm Hexagonal Green River Formation, Uintah Co. , Utah, USA 20 Zaccagnaite Not Radioactive Zn 3. 9 Al 2. 1(OH)12(CO 3)· 3(H 2 O) Molecular Weight = 629. 83 gm Hexagonal – Dihexagonal Dipyramidal Hilarion Mine, Agios Konstantinos, Lavrion District, Attikí Prefecture, Greece 21 Zincaluminite Not Radioactive Zn 6 Al 6(SO 4)2(OH)26· 5(H 2 O) Molecular Weight = 1, 278. 62 gm Hexagonal Kamariza Mine, Laurium, Attiki, Greece

22 Zincowoodwardite Not Radioactive Zn 0. 47 Al 0. 38(OH)2(SO 4)0. 18(H 2 O)0. 6 Molecular Weight = 103. 10 gm Trigonal Rhombohedr al Hilarion Mine, Agios Konstantinos, Lavrion District, Attikí Prefecture, Greece 23 Zincowoodwardite-1 T Not Radioactive Zn 0. 66 B 0. 3 Al 0. 33(OH)2(SO 4)0. 155· 0. 96(H 2 O) Molecular Weight = 121. 50 gm Trigonal Rhombohedr al Color: Pale blue, Bluish white Laurion (Lavrion, Laurium), Greece 24 Zincowoodwardite-3 R Not Radioactive Zn 0. 5 B 0. 33 Al 0. 33(OH)2(SO 4)0. 2· 0. 59(H 2 O) Molecular Weight = 109. 02 gm Trigonal Hexagonal Scalenohedra l Color: Pale bluish white, Bluish white Laurion (Lavrion, Laurium), Greece

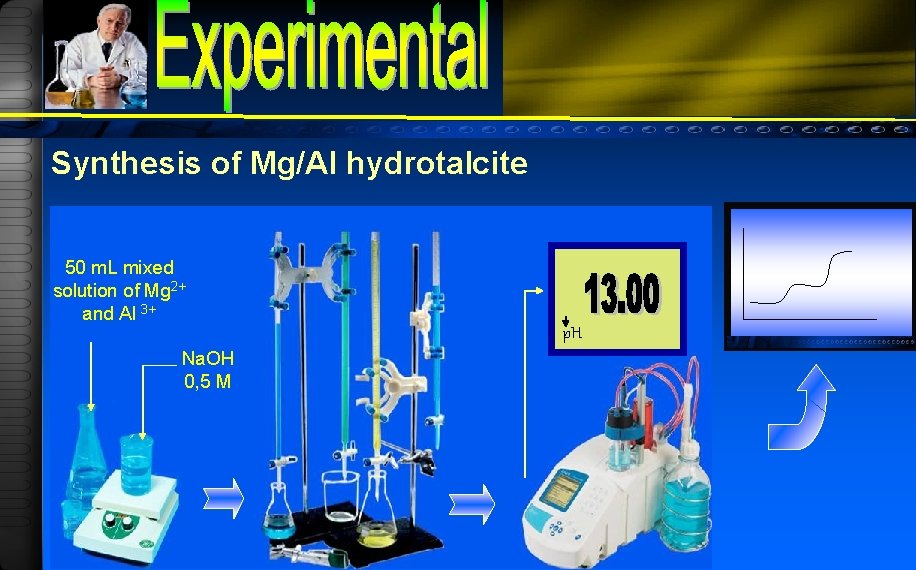

Synthesis of Mg/Al hydrotalcite 50 m. L mixed solution of Mg 2+ and Al 3+ p. H Na. OH 0, 5 M

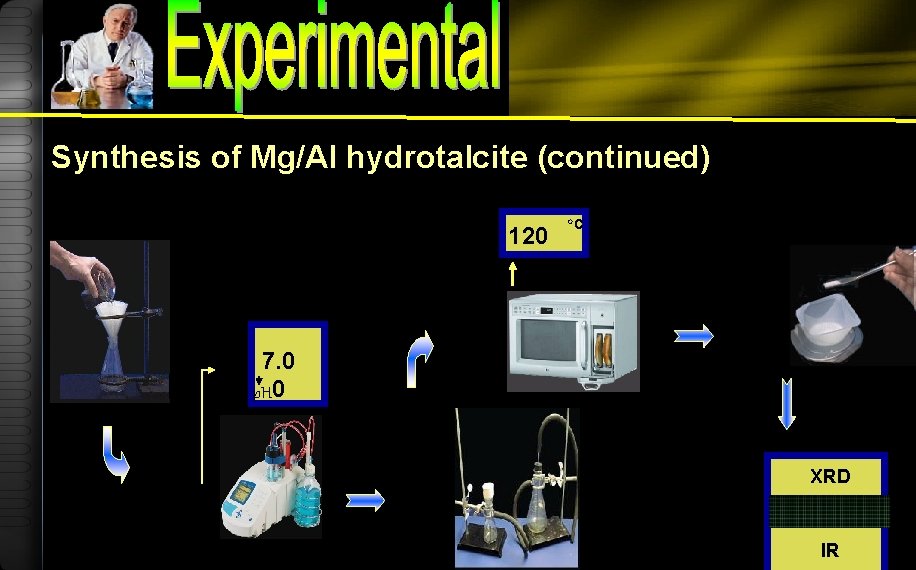

Synthesis of Mg/Al hydrotalcite (continued) 120 o. C 7. 0 p. H 0 XRD IR

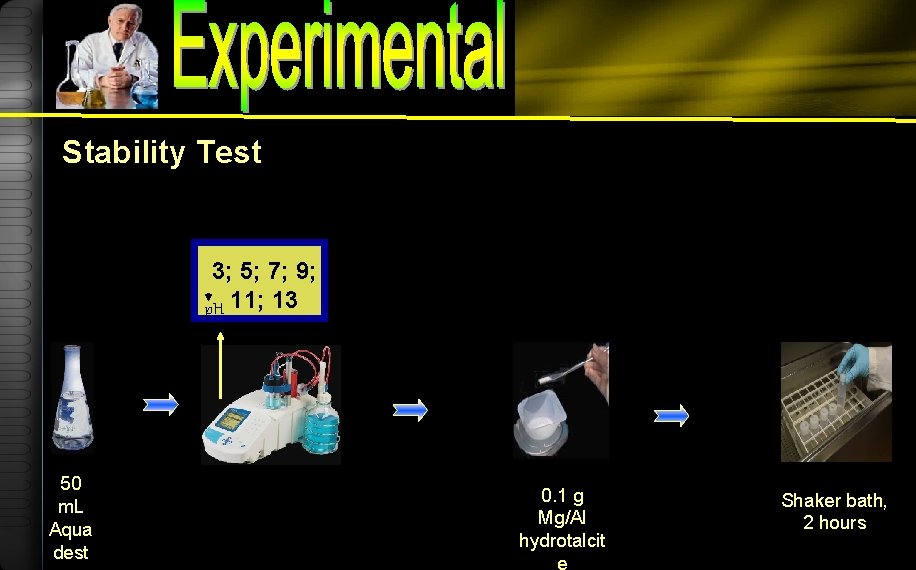

Stability Test 3; 5; 7; 9; p. H 11; 13 50 m. L Aqua dest 0. 1 g Mg/Al hydrotalcit e Shaker bath, 2 hours

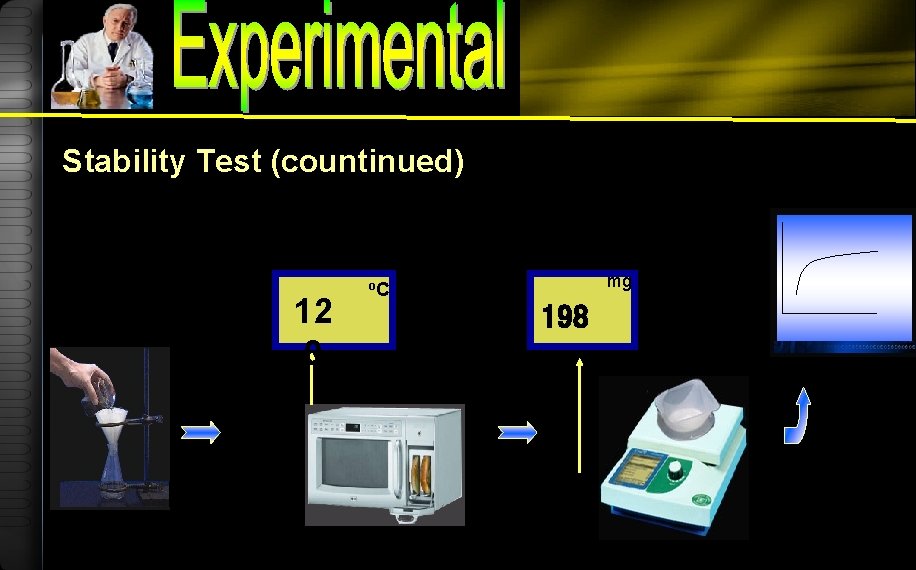

Stability Test (countinued) 12 0 mg o. C 198

Isolation of Humic and Fulvic Acids Peat Soil or Humus Purification Shaking in Na. OH Purified Peat Soil or Humus Humic Substances Humin (Insoluble fraction) (Soluble fraction) Fulvic Acid (Soluble) Purification Alkaline Extraction Ad. HCl Solvent extraction with MIBK Humic Acid & Humin (MIBK phase) Humic Acid (Aqueous phase) Humic Acid (Precipitation) Humic Acid (MIBK phase) Purified Humic Acid Pure Humic Acid (Solid) Fulvic Acid (Aqueous phase) Humin (MIBK phase) Back extraction into Na. OH Solvent extraction with MIBK Washing & Evap. MIBK Solvent Extraction

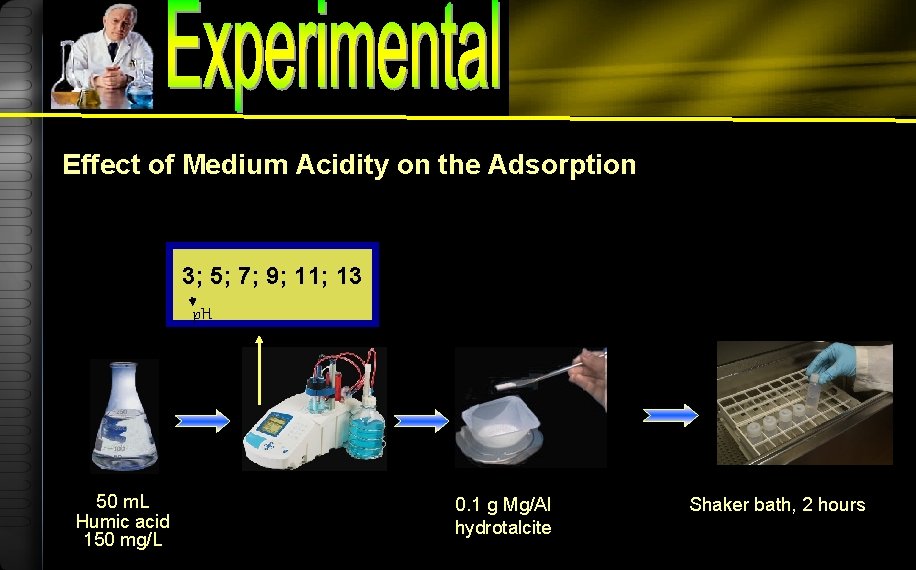

Effect of Medium Acidity on the Adsorption 3; 5; 7; 9; 11; 13 p. H 50 m. L Humic acid 150 mg/L 0. 1 g Mg/Al hydrotalcite Shaker bath, 2 hours

Effect of Medium Acidity on the Adsorption (continued) separati on filtrate UV-Vis 400 nm Aads Vs p. H

Rate of Adsorption 9. 00 10, 20, 40, 60, 180, 300 minut e 50 m. L Humic acid 150 mg/L 0. 1 g Mg/Al hydrotalcite Shaker bath

Rate of Adsorption (continued) filtrate UV-Vis 400 nm Aads Vs t

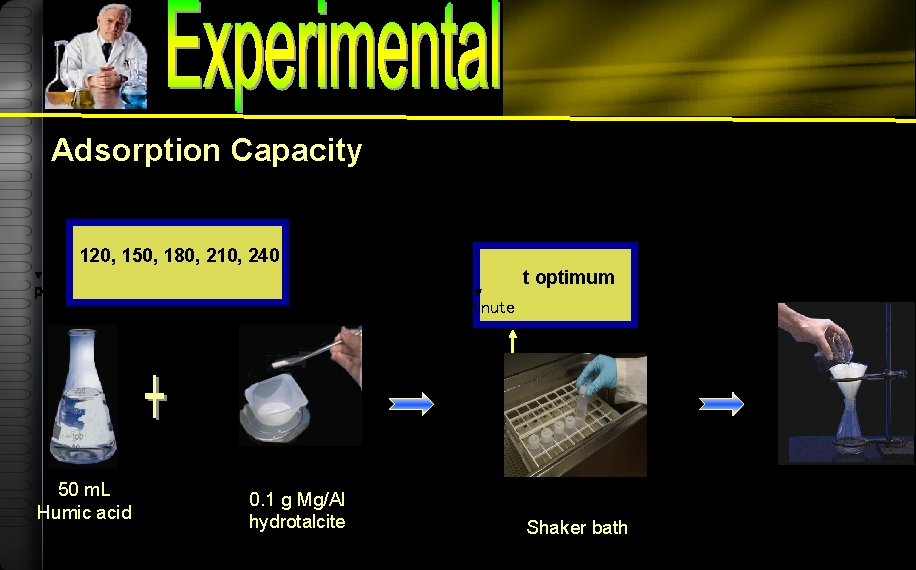

Adsorption Capacity 120, 150, 180, 210, 240 t optimum ppm 50 m. L Humic acid minute 0. 1 g Mg/Al hydrotalcite Shaker bath

Adsorption Capacity (continued) filtrate UV-Vis 400 nm Aads Vs A 0 Ceq/m Vs Ceq

Desorption 5, 15, 30, 60, 120 minute 0. 01 g humic acid + Mg/Al hydrotalcite 25 m. L Na. OH 0. 5 M Shaker bath separation

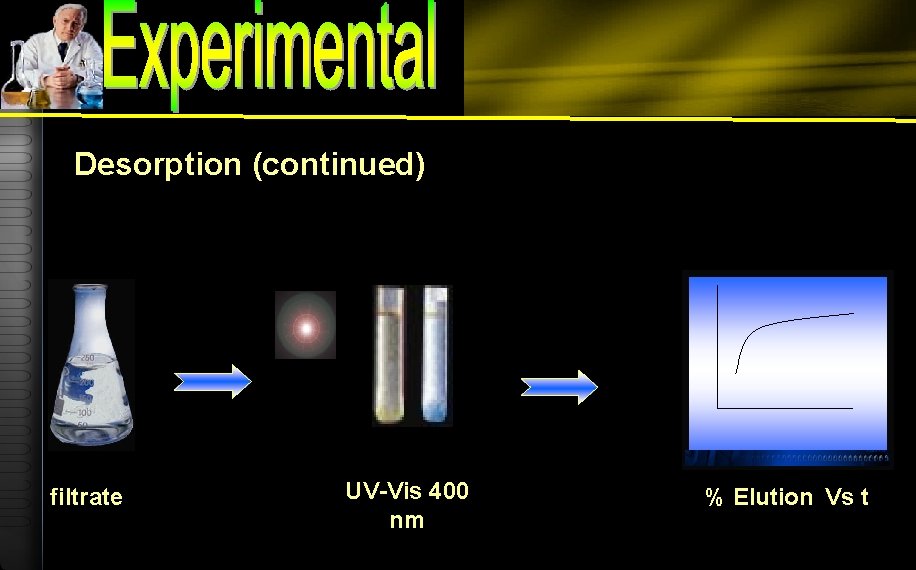

Desorption (continued) filtrate UV-Vis 400 nm % Elution Vs t

Characterization of Functional Group of Humic Acid Table Distribution of oxygen containing functional groups (meq/100 g) in humic acids isolated from widely different climatic zones

Stability of Mg/Al hydotalcite (%) 100 80 60 40 20 0 3 6 9 12 14 p. H

Effect of Medium Acidity on the Adsorption of Anions on Mg/Al Hydrotalcite

The Change of Medium Acidity after the Adsorption of Anions

Interpretation of the Adsorption Process

Effect of Interaction Time on the Adsorption of Anions

Adsorption Capacity of Mg/Al Hydrotalcite for Humic Acid

Regeneration of Mg/Al Hydrotalcite from Humic Acid

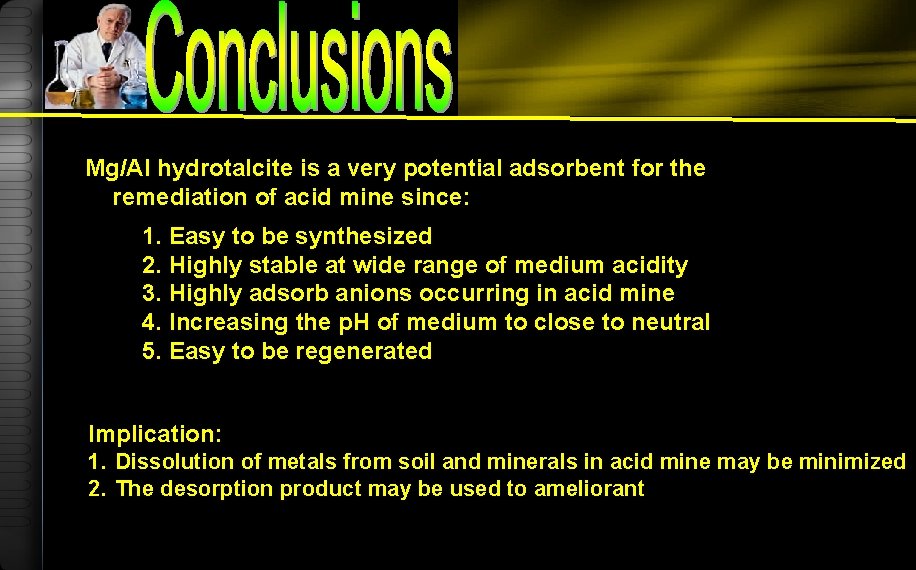

Mg/Al hydrotalcite is a very potential adsorbent for the remediation of acid mine since: 1. Easy to be synthesized 2. Highly stable at wide range of medium acidity 3. Highly adsorb anions occurring in acid mine 4. Increasing the p. H of medium to close to neutral 5. Easy to be regenerated Implication: 1. Dissolution of metals from soil and minerals in acid mine may be minimized 2. The desorption product may be used to ameliorant
