OLEDs Theory Fabrication Teddy Dowling 41717 Organic Light

OLEDs Theory & Fabrication Teddy Dowling 4/17/17 Organic Light Emitting Diodes are becoming the standard in modern displays. This presentation will go over the structure of OLEDs, theory behind them, and various fabrication techniques. Different types as well as advantages and disadvantages will also be covered.

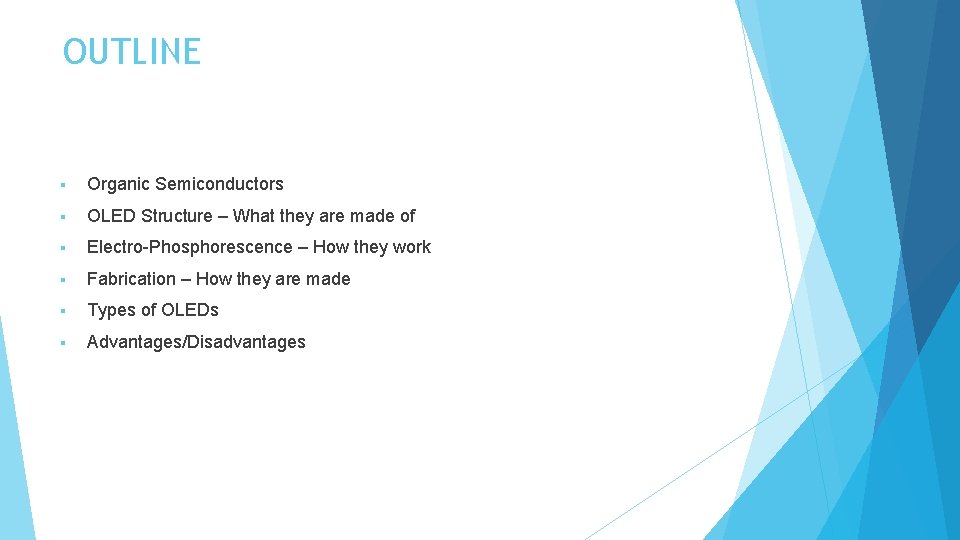

OUTLINE § Organic Semiconductors § OLED Structure – What they are made of § Electro-Phosphorescence – How they work § Fabrication – How they are made § Types of OLEDs § Advantages/Disadvantages

Organic Semiconductors Made Emit from carbon based polymers Light when electricity is applied through them Development of the technology began in the early 2000’s Most organic materials are intrinsically p- type Higher www. physik. hu-berlin. de/sfb 951/projects/topicareab/b 3/pics/LUMO_HOMO. jpg hole mobility than electron mobility Opposite of non-organic semiconductors

OLED Structure OLEDs are solid state semiconductors 100 -500 nm thick OLEDs produce holes and electrons using organic molecules Instead of using layers of n-type and ptype semiconductors OLEDs have at least six layers Modern OLEDs use many more layers for efficiency, with basic functionality remaining the same http: //www. newhavendisplay. com/includes/modules/pages/oled_page/color. OLED-diagram. png

OLED Structure Substrate (clear material) Anode Conducting layer (P-type material) Removes electrons Organic plastic molecules that transport "holes" from the anode Emissive layer (N-type material) Organic plastic molecules (different than the conducting layer) transport electrons from the cathode This layer emits photons Cathode Injects electrons http: //s. hswstatic. com/gif/oled-cell. gif

Electro-phosphorescence Electron-hole recombination Voltage is applied across OLED Current flows from cathode to anode through at least two organic layers Electrons flow from the cathode to the emissive layer Anode generates holes in the conductive layer by removing electrons Electron-Hole pairs are formed at the boundary between the emissive and the conductive layers The electron emits energy in the form of a photon https: //www. allaboutcircuits. com/uploads/thumbnails/OLED_Early. Product. JPG

Electro-phosphorescence Recombination of charges leads to the emission of a photon Different materials and dopants can be used to generate different colors Frequency is given by the energy gap (E = hν) Combinations can be used to create a white light source Variable currents can increase or decrease light intensity http: //lcp. elis. ugent. be/sites/lcp. elis. ugent. be/files/oledmolecules. jpg

Fabrication Three Types: 1. Vacuum Deposition/Vacuum Thermal Evaporation(VTE) 2. Organic Vapor Phase Deposition 3. Inkjet Printing

Vacuum Thermal Evaporation Done in a vacuum chamber with very low pressure Organic molecules are heated until they evaporate A cooled substrate condenses them into films Disadvantages Difficult to prevent contamination Difficult to ensure uniformity and doping concentration over large substrates Expensive http: //www. clker. com/cliparts/A/Y/P/a/D/Y/vacuum-thermal-evaporation. svg

Organic Vapor Phase Deposition Also done under low-pressure in a reactor chamber with heated walls Materials are condensed into thin films on a cooled substrate. Carrier gas transports evaporated organic molecules Improves control over doping using temperature and carrier gas flow rate Advantages Increased efficiency for large-area substrates Reduced cost https: //upload. wikimedia. org/wikipedia/commons/3/31/Fig. 6_%28 b%29_Organic_vapor_phase_deposition. JPG

Inkjet Printing Organic materials are diluted into a liquid and sprayed onto substrate Similar to other modern ink printers Prints Using vaporized organic materials instead of liquid Advantages Cheaper to manufacture using this method Allows OLEDs to be printed onto very large films (TV’s, Billboards, etc. ) http: //ar 2015. merckgroup. com/sites/default/files/images/en/13%402 x. png

Types of OLEDs Transparent OLED Passive-matrix Active-matrix Foldable White OLED (AMOLED) OLED (PMOLED)

Transparent OLED Transparent components (substrate, cathode and anode) Up to 85 percent as transparent as their substrate when turned off Allow light to pass in both directions when turned on A transparent OLED display can be either active or passive matrix http: //s. hswstatic. com/gif/oled-transparent. gif

Passive-matrix OLED (PMOLED) Strips of cathode, organic layers, and strips of anode Anode strips are arranged perpendicular to cathode strips Intersections of cathode and anode make up the pixels where light is emitted External circuitry applies current to selected strips of cathode and anode Easy to make but consume more power than other types (still less than LCDs) http: //s. hswstatic. com/gif/oled-passive. gif

Active-matrix OLED (AMOLED) Full layers of cathode, organic molecules, and anode Anode layer overlays a thin film transistor (TFT) array that forms a matrix Consume less power than PMOLEDs and are very efficient for large displays Faster refresh rates http: //s. hswstatic. com/gif/oled-active. gif

Foldable OLED Substrates made of very flexible metallic foils or plastics Very lightweight and durable Potentially could be attached to fabrics to create "smart" clothing https: //www. oled-info. com/files/LG-Display-5 -inch-flexible-OLED-prototype-sid-2013 -img_assist-289 x 195. jpg

White OLED Emit white light that is very bright More energy efficient than fluorescent lights Reduces energy costs for lighting https: //www. digikey. it/en/articles/techzone/2013/jul/~/media/Images/Article%20 Library/Tech. Zone%20 Articles/2013/July/OL EDs%20 Move%20 Closer%20 to%20 Mainstream%20 Lighting/article-2013 july-oleds-move-closer-to-fig 2. jpg

Advantages/Disadvantages Advantages Ø Flexible, foldable, and transparent Ø Brighter than other displays Ø Fast Ø Relatively easy to produce Ø Low power consumption Disadvantages Ø Expensive to manufacture Ø Prone to water damage Ø Blue organics have shorter life (14, 000 hours)

References https: //www. allaboutcircuits. com/news/organic-light-emitting-diode-oledtechnology/ http: //www. explainthatstuff. com/how-oleds-and-leps-work. html https: //lcp. elis. ugent. be/tutorials/tut_oled http: //www. oled-info. com/ http: //electronics. howstuffworks. com/ https: //en. wikipedia. org/wiki/OLED

5 Key Concepts OLEDs are made of organic semiconductors Layers of OLEDs – Cathode, Emissive, Conductive, Anode Electro-phosphorescence produces the emission of photons Three Fabrication Techniques (Advantages/Disadvantages) OLEDs reduce power consumption
