Contents I. 제안 배경 II. UPS의 필요성 III. UPS의 개요 IV. 제안사 소개 Uninterruptible Power Supply OK UPS
I 제안배경 1. (1) 전원문제의 유형 대표적인 5가지 유형의 전원 문제 Surge, Sag, Spike, Blackout, Line Noise 258 Vac 220 Vac 198 Vac Uninterruptible Power Supply OK UPS
I. 제안배경 (2) 정상적인 전원 Uninterruptible Power Supply OK UPS

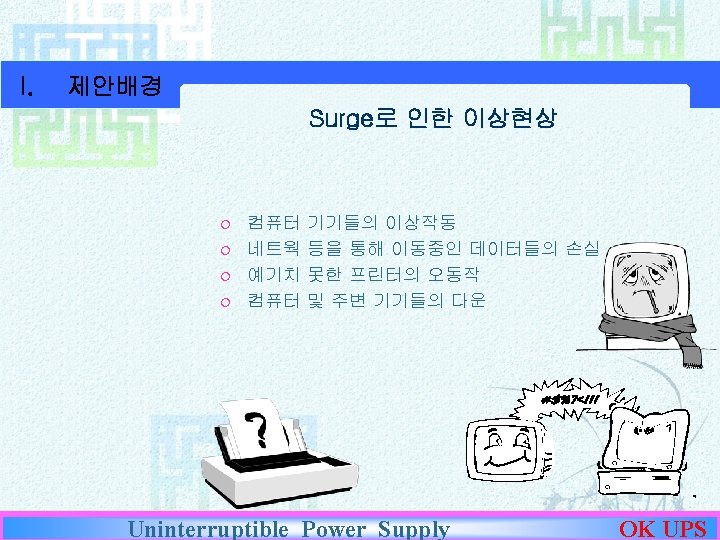

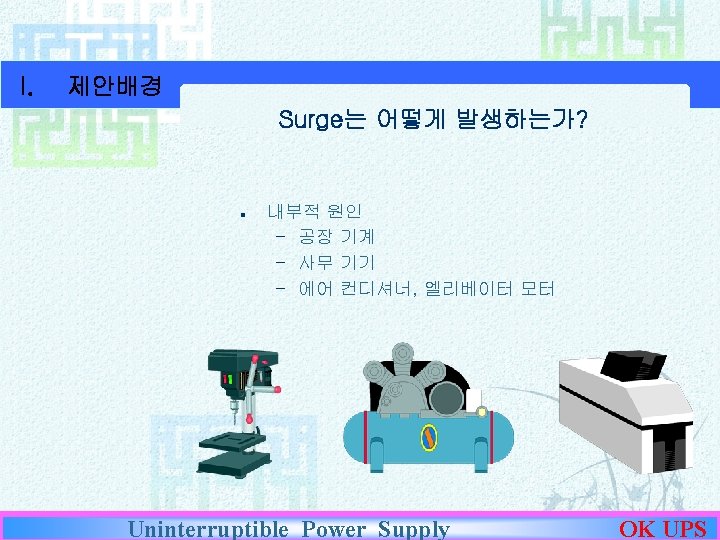

I. 제안배경 (5) Surge swell, notch, overvoltage n Surge 는 정상적인 전기 공급에 비해 일시적(1/120)으로 전력이 과도(0. 7%)하게 공급되는 경우를 말한다 Voltage 0 20 ms Time 0 Surges Uninterruptible Power Supply 50 us Time 8/20 us surge (enlarged in time) OK UPS
I. 제안배경 전원 문제의 발생 빈도 Uninterruptible Power Supply OK UPS

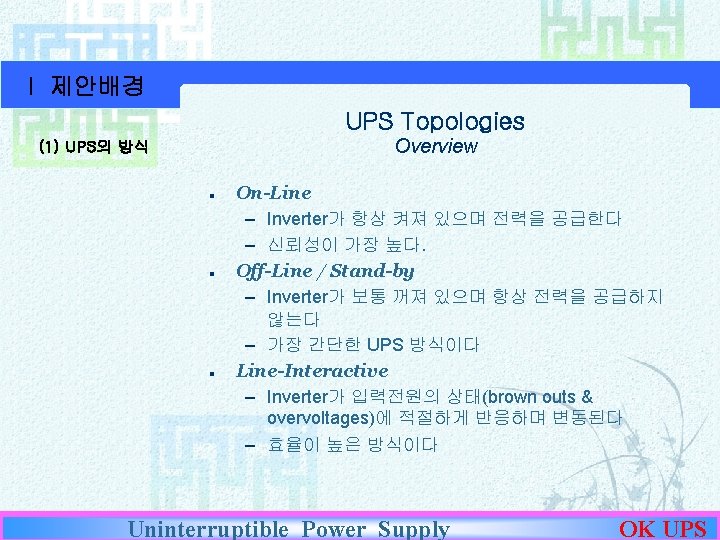

I 제안배경 UPS의 구성 요소 • 다른 요소들은 ? – Intelligence module (Control electronics, logic circuitry) – Cooling Fan Uninterruptible Power Supply OK UPS
I 제안배경 UPS의 작동원리 n UPS 설계 및 작동 방식 비교 Uninterruptible Power Supply OK UPS

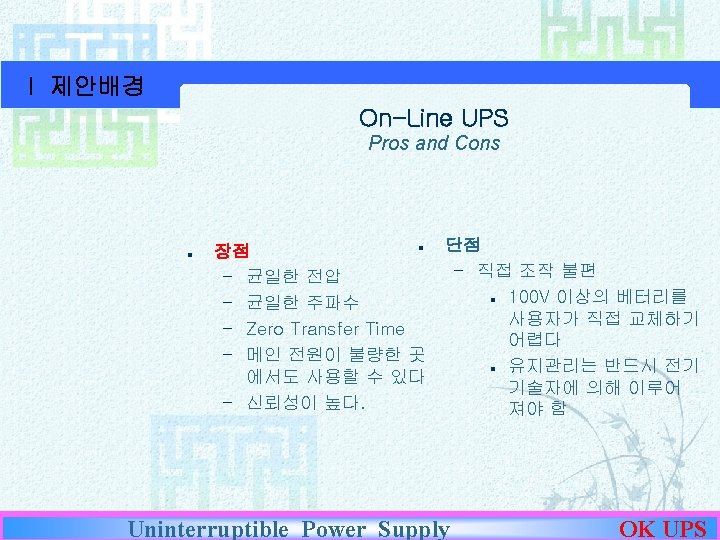

I 제안배경 On-Line UPS On-Line Operation Input Filter DC AC AC DC rectifier Output Charger Battery Uninterruptible Power Supply OK UPS
I 제안배경 On-Line On-Battery Operation Input Filter DC AC AC DC rectifier Output Charger Battery Uninterruptible Power Supply OK UPS

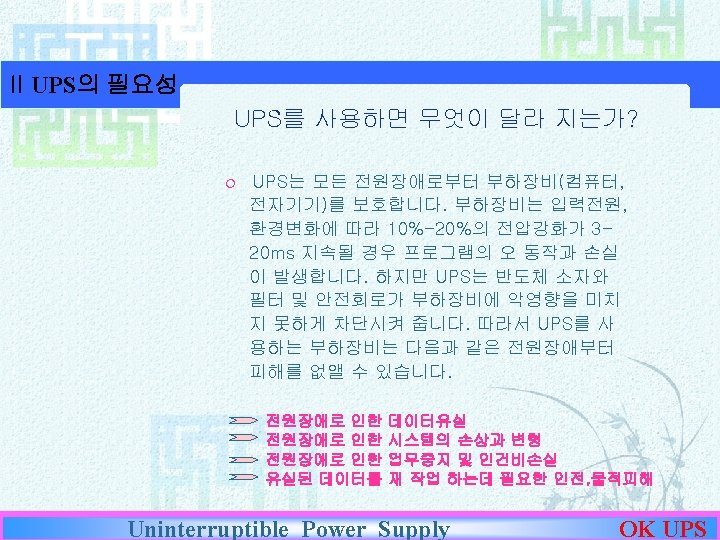

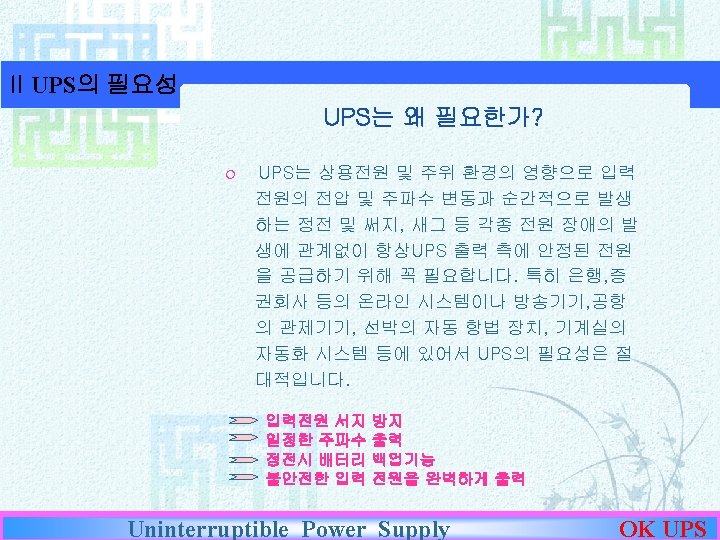

II. UPS의 필요성 1. UPS는 왜 필요한가? 2. UPS를 사용하면 무엇이 달라지는가? Uninterruptible Power Supply OK UPS

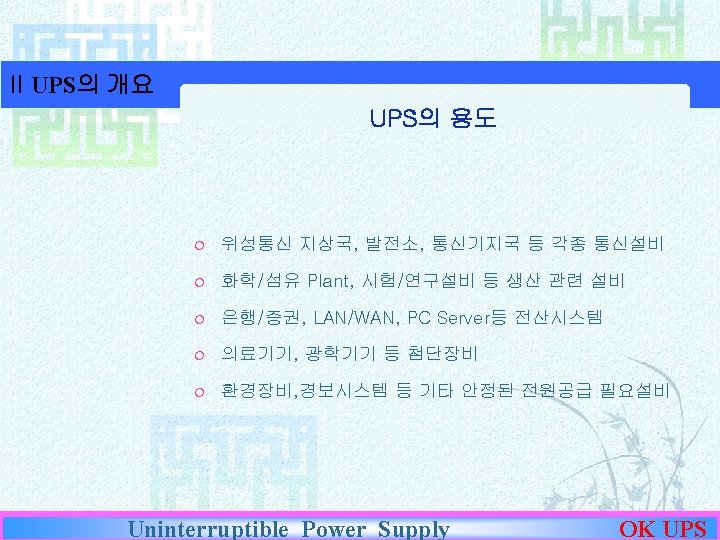

III UPS의 개요 1. UPS의 정의 2. UPS의 용도 Uninterruptible Power Supply OK UPS

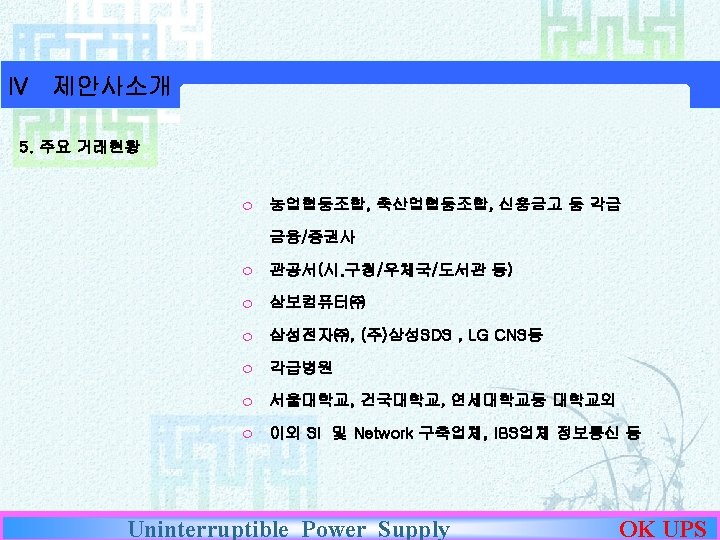

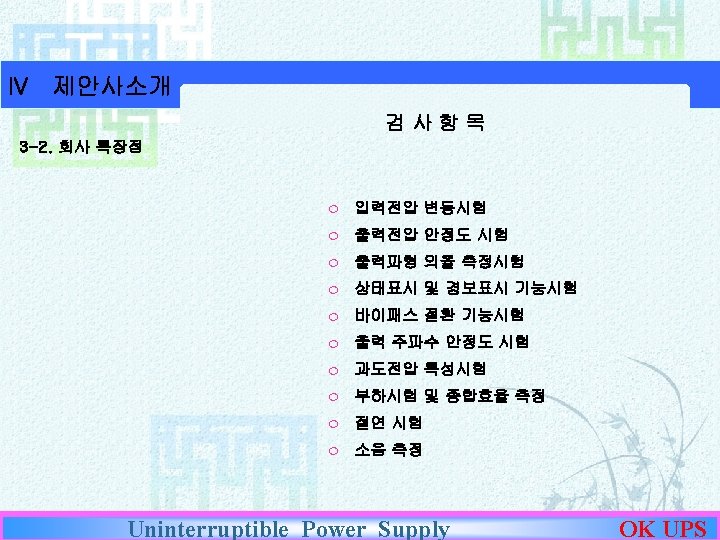

IV 제안사소개 적용 및 인증규격 3 -1. 회사 특장점 ¦ KSC 4310 ( Korea Industrial Standards ) ¦ ANSI/NEMA PE 1 (American National Standards Institute ) ¦ IEEE 519/944 (Institute of Electrical and Electronic Engineers ) ¦ IEC 146 -1/4/5 (International Electrotechnical Commission) ¦ KEMC 114(Korea Electrical Manfacturers’ Cooperative) ¦ 전 05(한국전기용품 안전관리협회) ¦ KETI (Korea Electric Testing Institute) ¦ DAELIM Manufacture's Standard ¦ ISO 9001 Uninterruptible Power Supply OK UPS
IV 제안사소개 6. 생산품목 ¦ 무정전 전원장치( UPS ) ¦ ¦ WORLD POWER Series (ON Line, PWM 방식) 자동전압 조정기( AVR ) ¦ KAOS Series (TCR 제어방식) ¦ 전자교환기용 직류전원장치( ESS P/S ) ¦ 자동부동 충전장치( FLOATING BATTERY CHARGER ) ¦ 정류기( RECTIFIER ) ¦ 주파수 변환기( FREQUENCY CONVERTER ) ¦ AC/DA, DC/AC CONVERTER( SMPS ) Uninterruptible Power Supply OK UPS
