OIL LINK UNITHIGH FUSE UNIT Oleh RAIS BIN

OIL LINK UNIT/HIGH FUSE UNIT Oleh RAIS BIN MAAT Ketua Program Kejuruteraan Elektrik

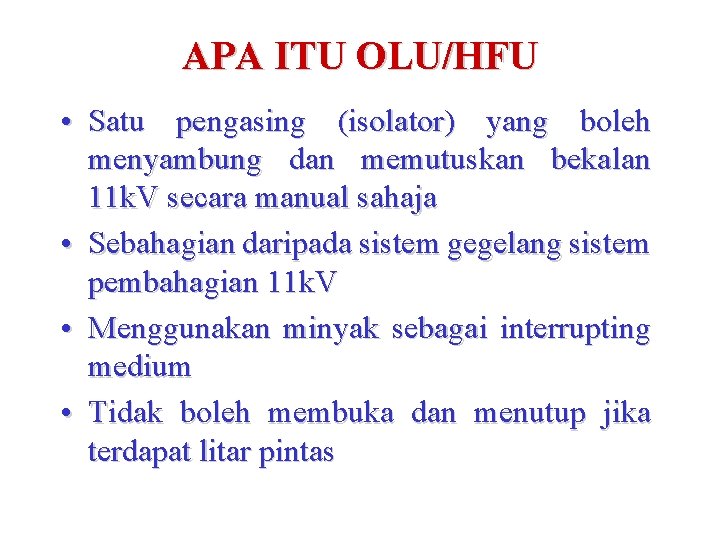

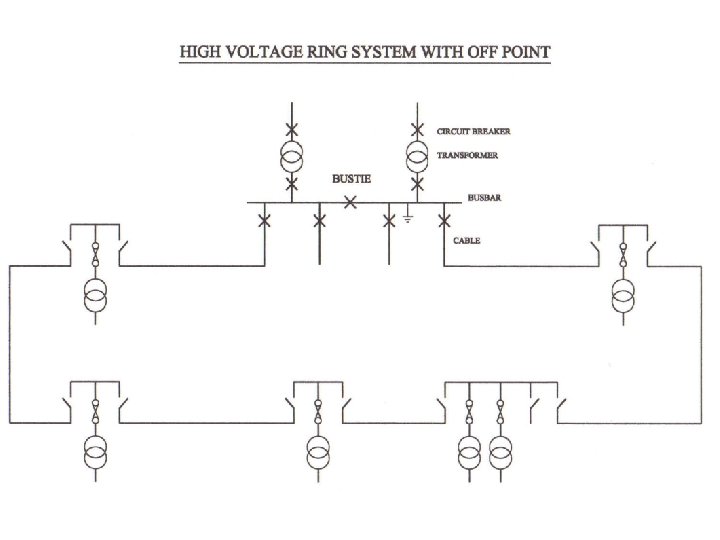

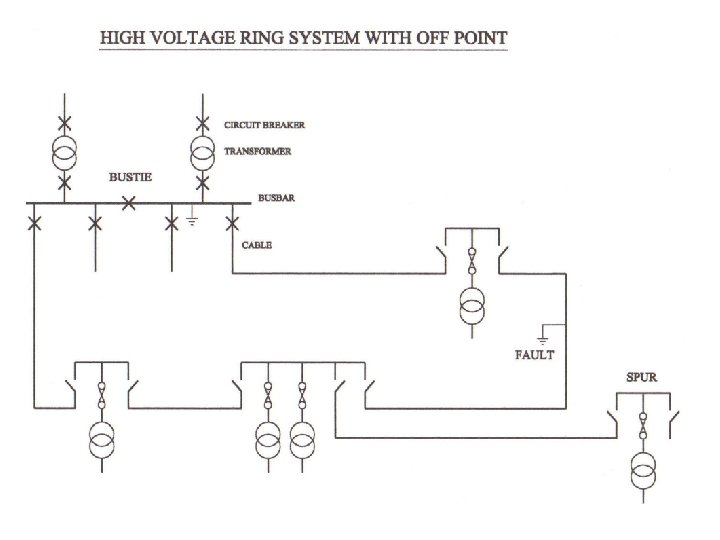

APA ITU OLU/HFU • Satu pengasing (isolator) yang boleh menyambung dan memutuskan bekalan 11 k. V secara manual sahaja • Sebahagian daripada sistem gegelang sistem pembahagian 11 k. V • Menggunakan minyak sebagai interrupting medium • Tidak boleh membuka dan menutup jika terdapat litar pintas

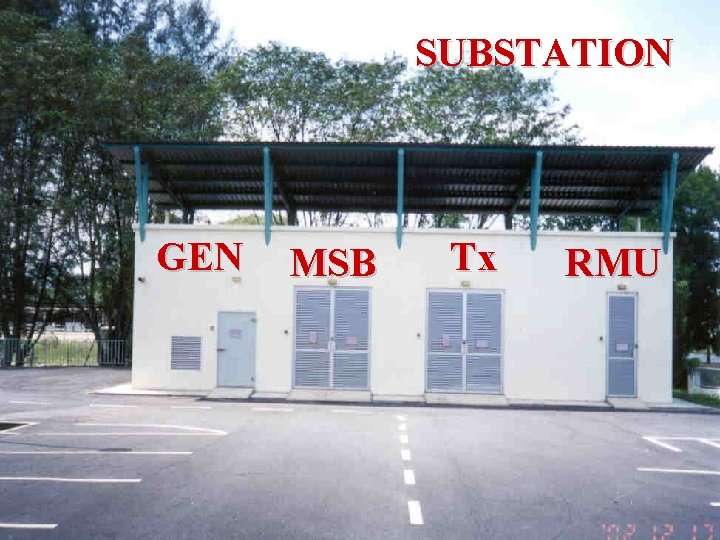

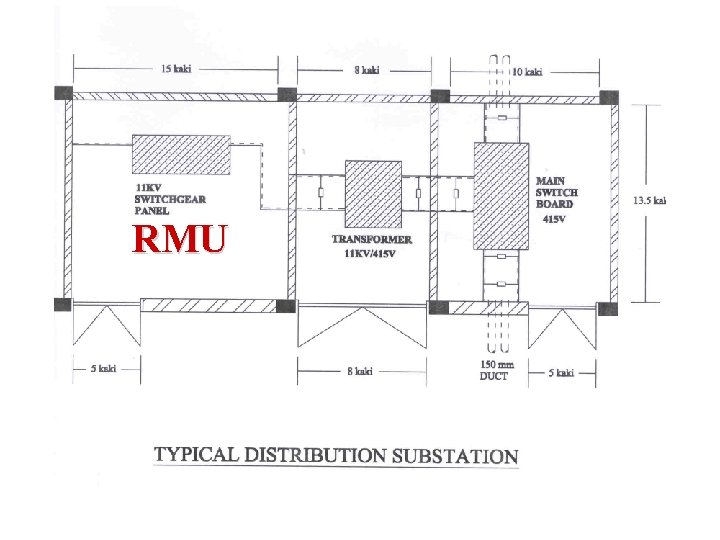

SUBSTATION GEN MSB Tx RMU

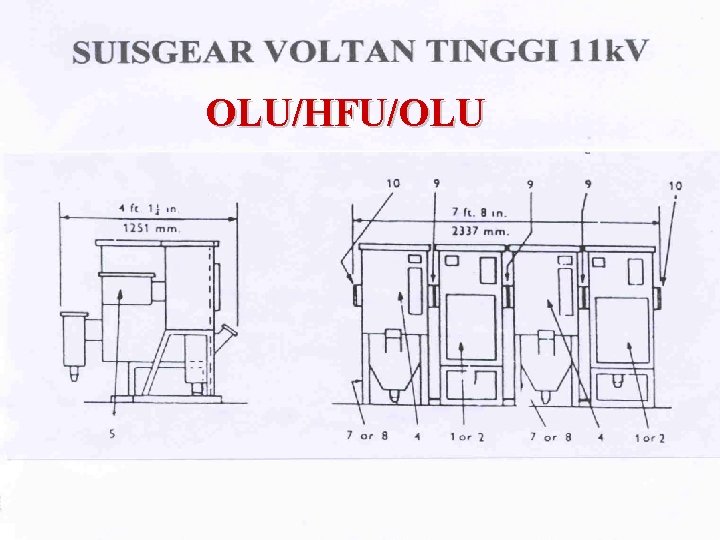

OLU/HFU/OLU

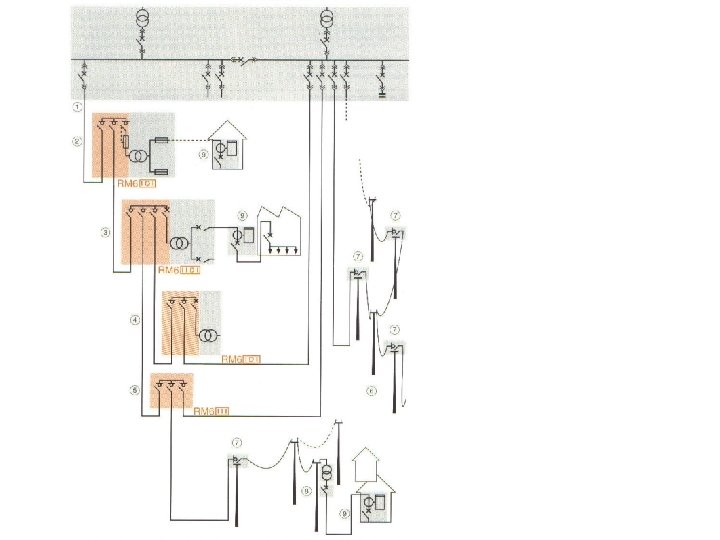

RMU

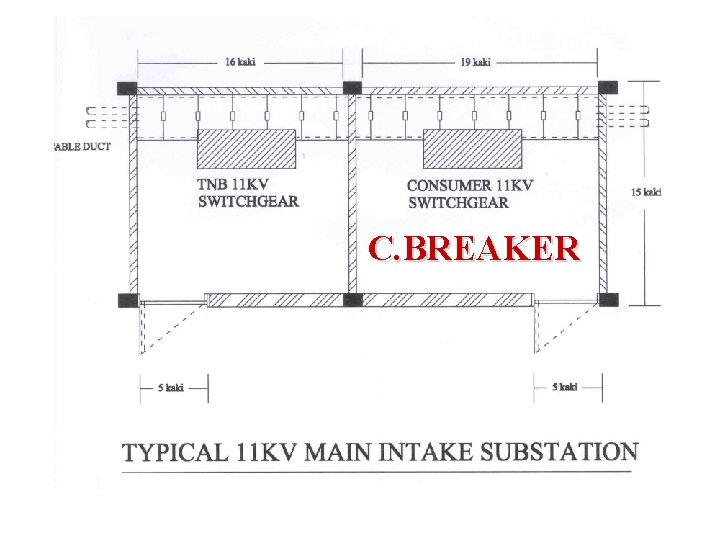

C. BREAKER

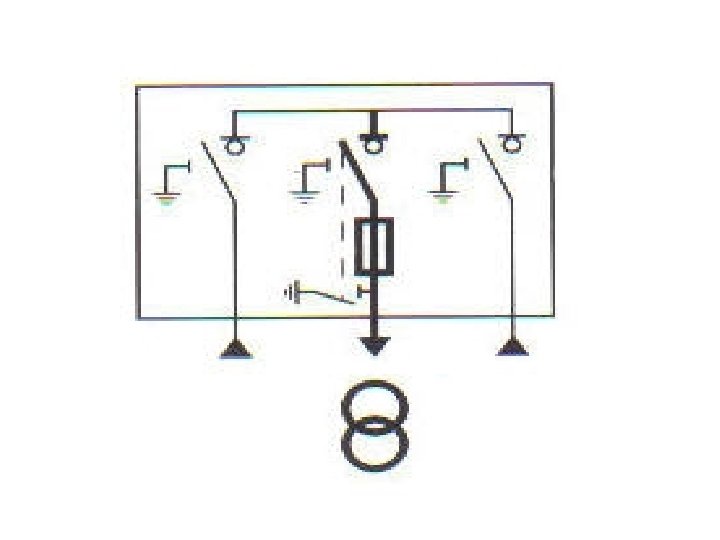

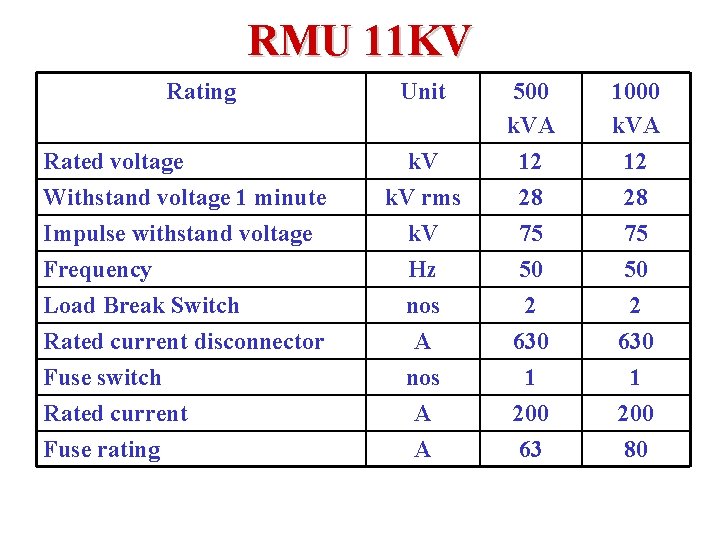

RMU 11 KV Rating k. V 500 k. VA 12 1000 k. VA 12 Withstand voltage 1 minute Impulse withstand voltage Frequency k. V rms k. V Hz 28 75 50 Load Break Switch Rated current disconnector Fuse switch Rated current Fuse rating nos A A 2 630 1 200 63 2 630 1 200 80 Rated voltage Unit

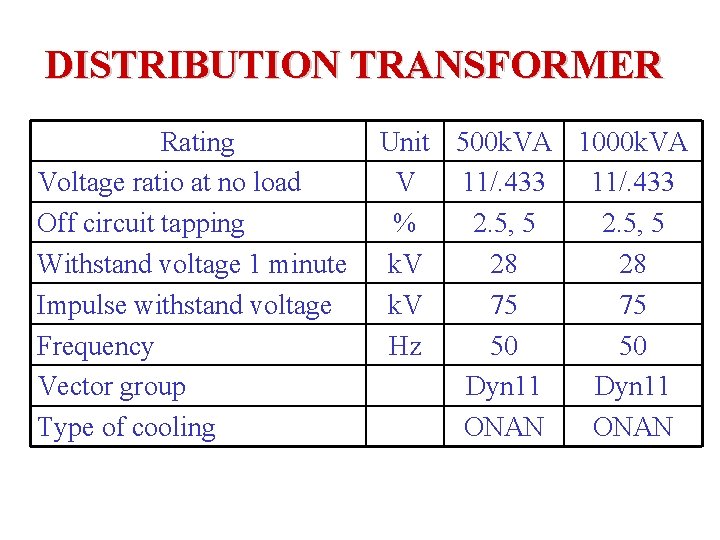

DISTRIBUTION TRANSFORMER Rating Voltage ratio at no load Off circuit tapping Withstand voltage 1 minute Impulse withstand voltage Frequency Vector group Type of cooling Unit 500 k. VA 1000 k. VA V 11/. 433 % 2. 5, 5 k. V 28 28 k. V 75 75 Hz 50 50 Dyn 11 ONAN

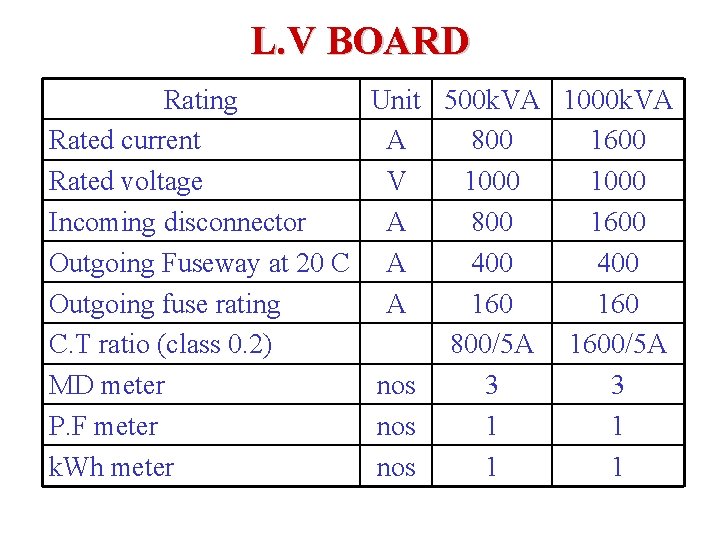

L. V BOARD Rating Rated current Rated voltage Incoming disconnector Outgoing Fuseway at 20 C Outgoing fuse rating C. T ratio (class 0. 2) MD meter P. F meter k. Wh meter Unit 500 k. VA 1000 k. VA A 800 1600 V 1000 A 800 1600 A 400 A 160 800/5 A 1600/5 A nos 3 3 nos 1 1

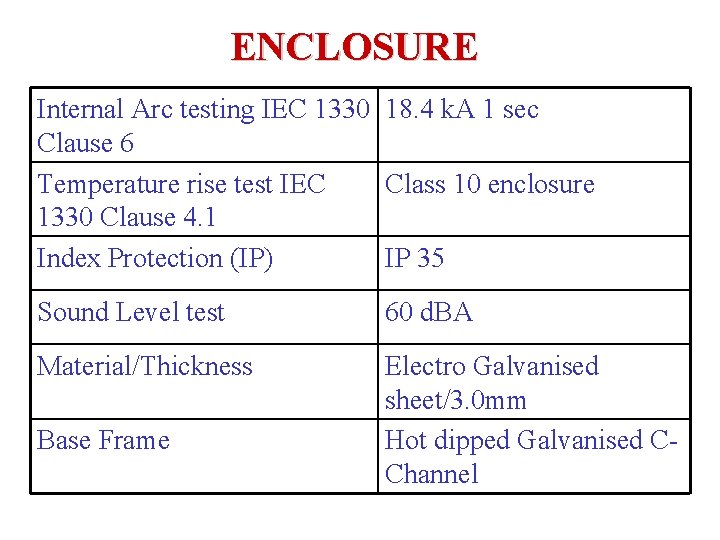

ENCLOSURE Internal Arc testing IEC 1330 18. 4 k. A 1 sec Clause 6 Temperature rise test IEC Class 10 enclosure 1330 Clause 4. 1 Index Protection (IP) IP 35 Sound Level test 60 d. BA Material/Thickness Electro Galvanised sheet/3. 0 mm Hot dipped Galvanised CChannel Base Frame

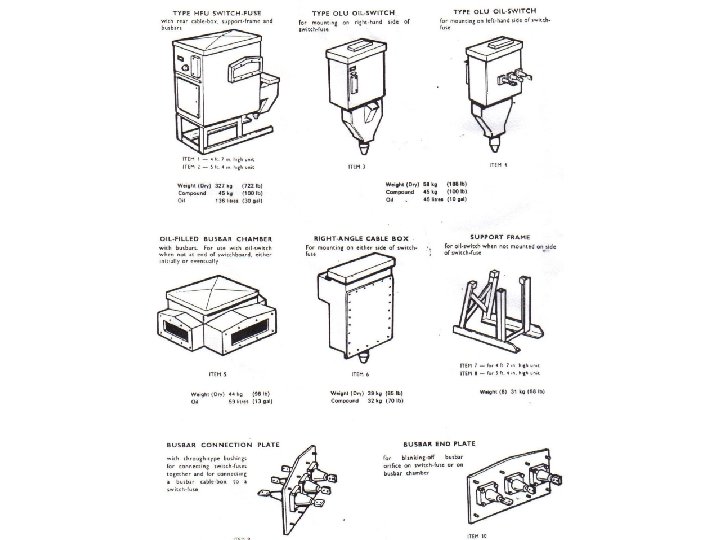

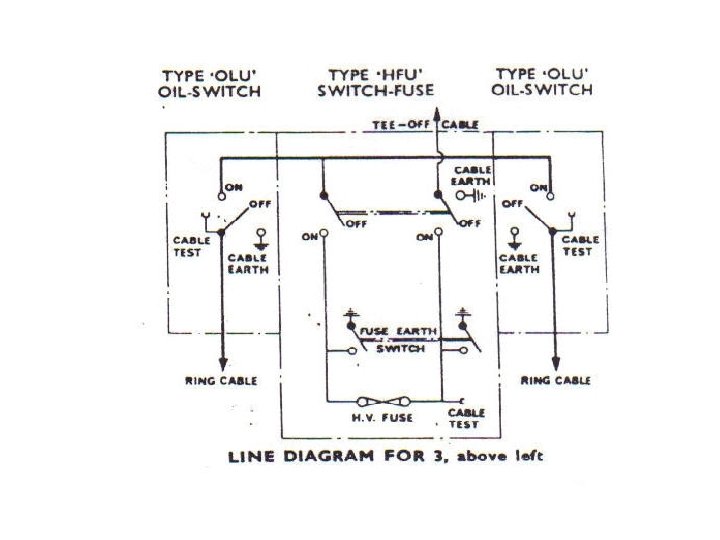

OLU/HFU Oil Link Unit High Fuse Unit

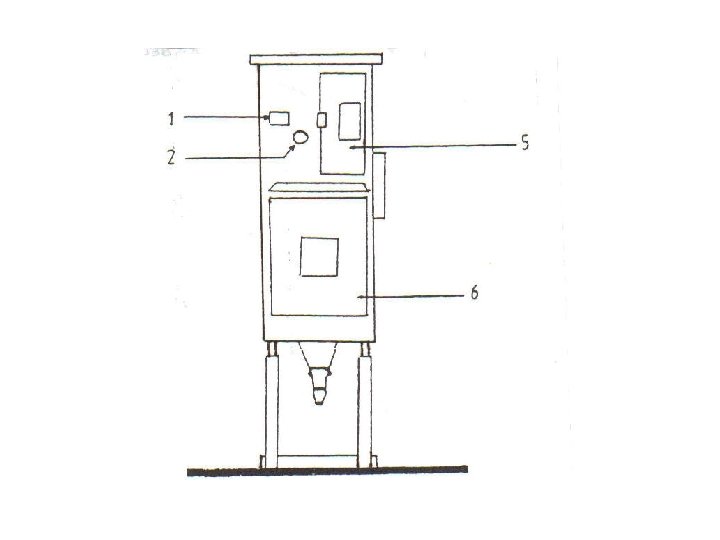

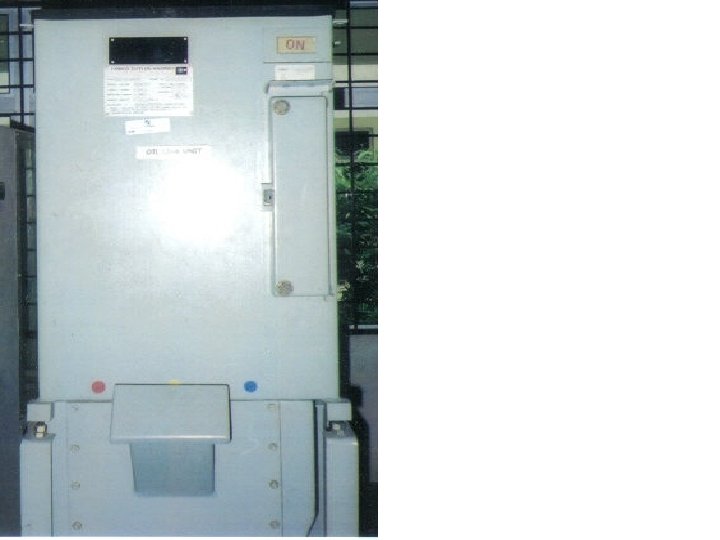

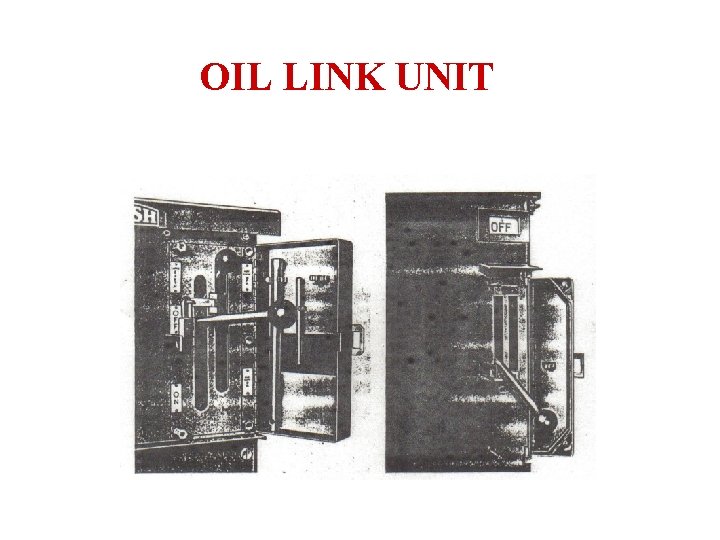

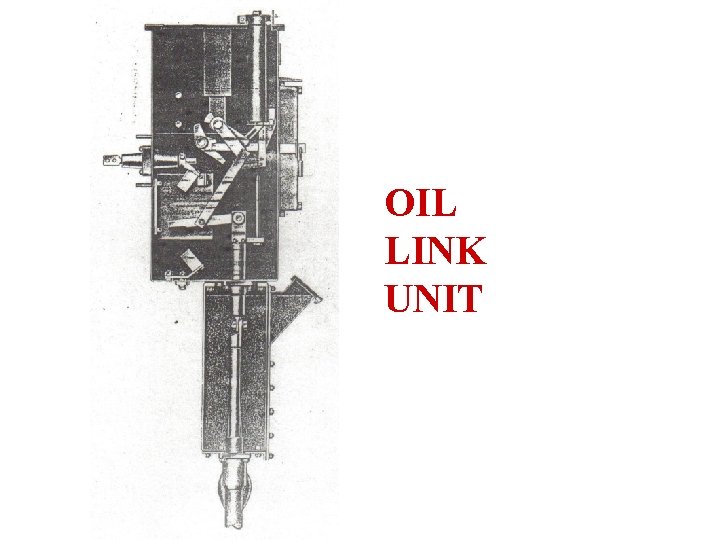

OIL LINK UNIT

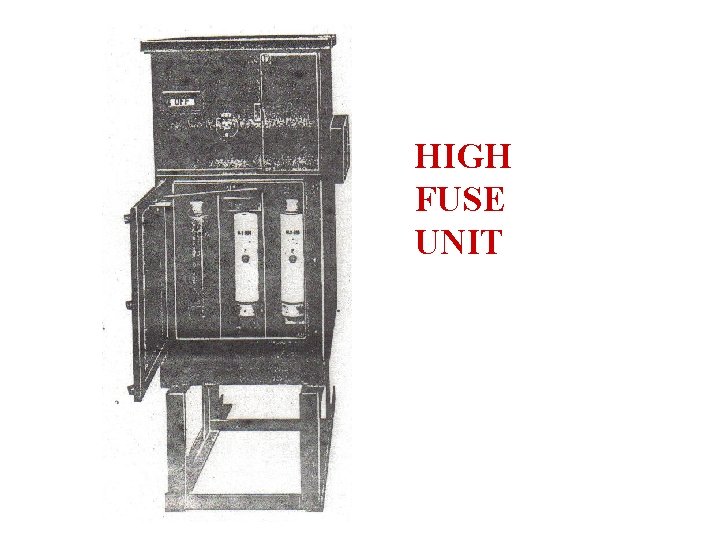

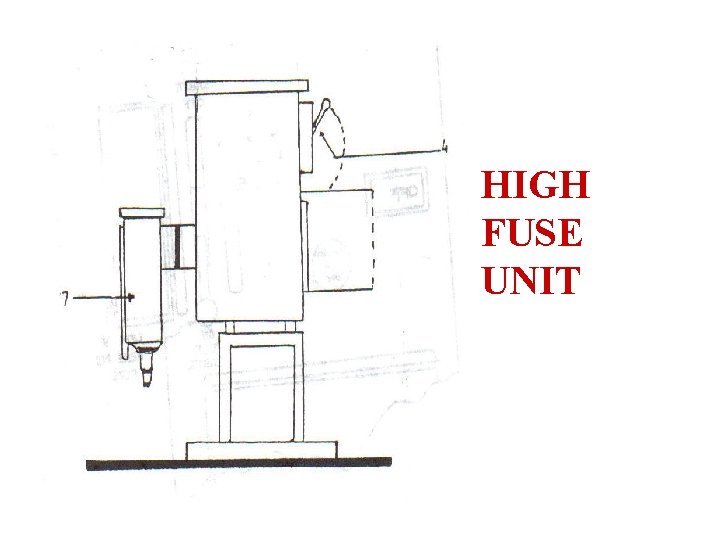

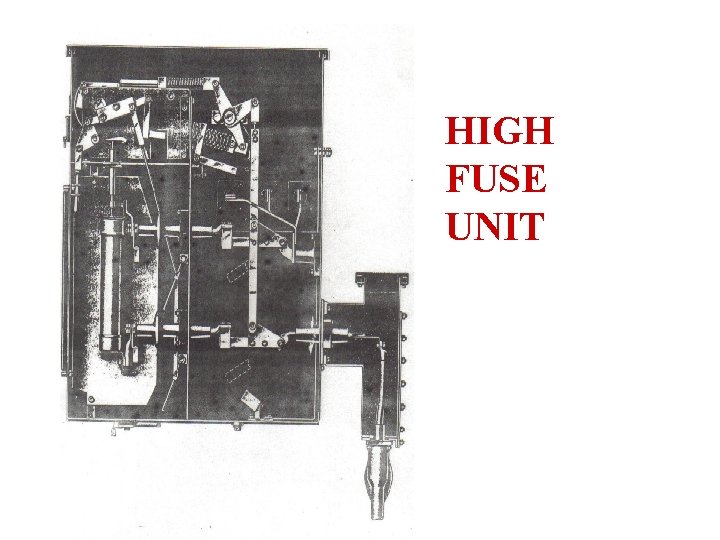

HIGH FUSE UNIT

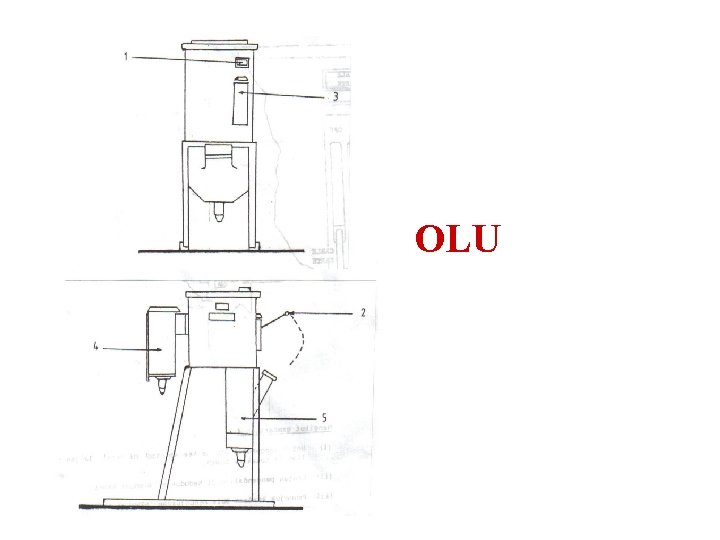

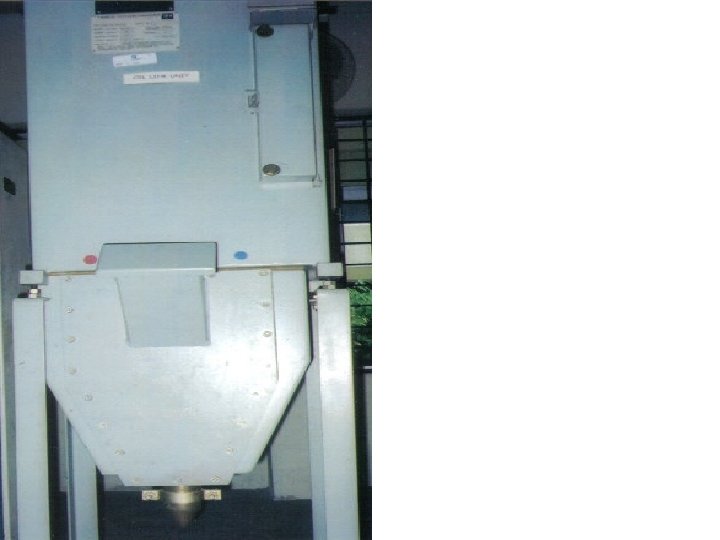

OLU

KEDUDUKAN OLU • • OFF ON BUSBAR EARTHED CABLE EARTH and LOCKED

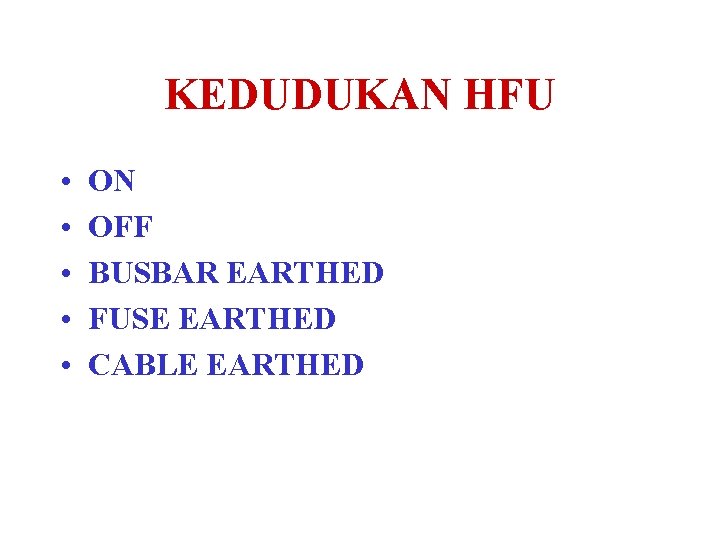

KEDUDUKAN HFU • • • ON OFF BUSBAR EARTHED FUSE EARTHED CABLE EARTHED

KEDUDUKAN KABEL • ON • OFF • EARTHED

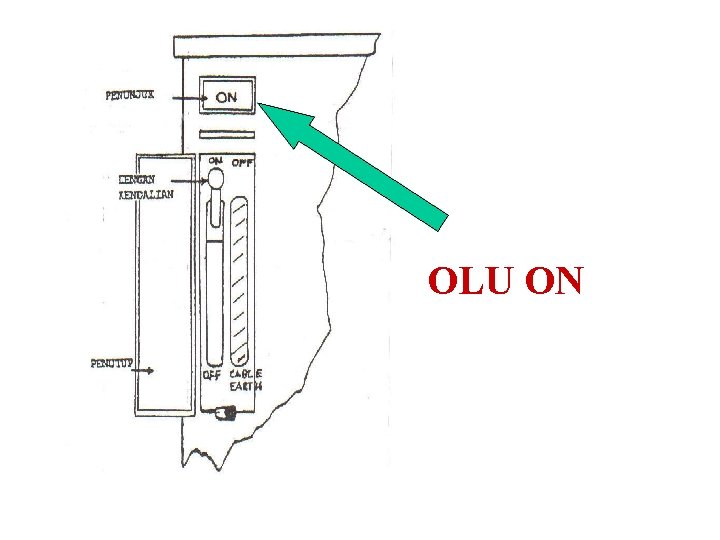

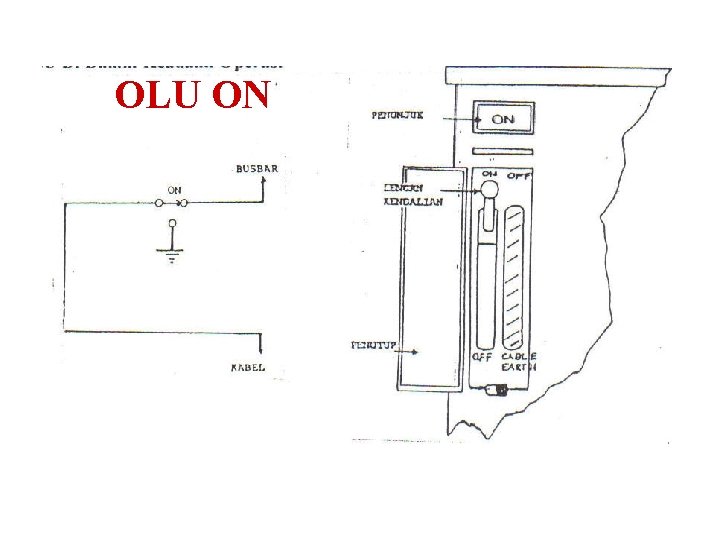

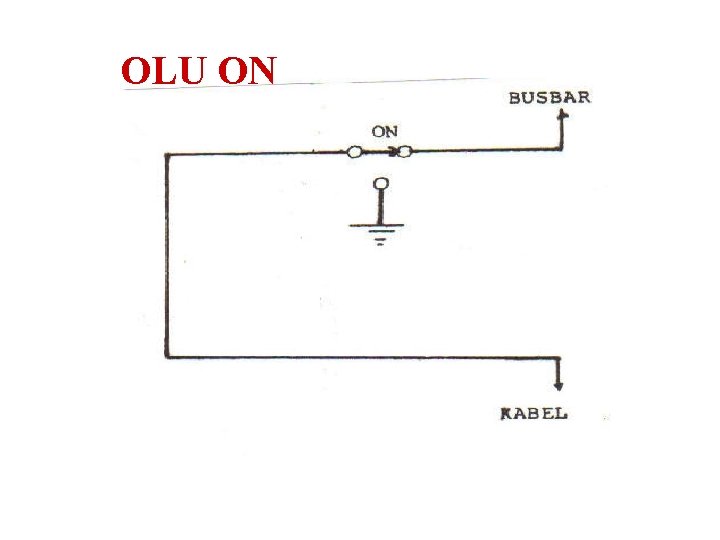

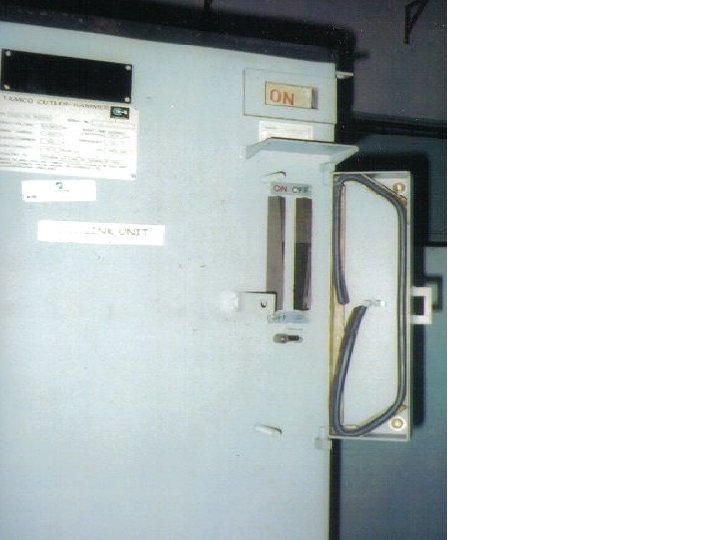

OLU ON

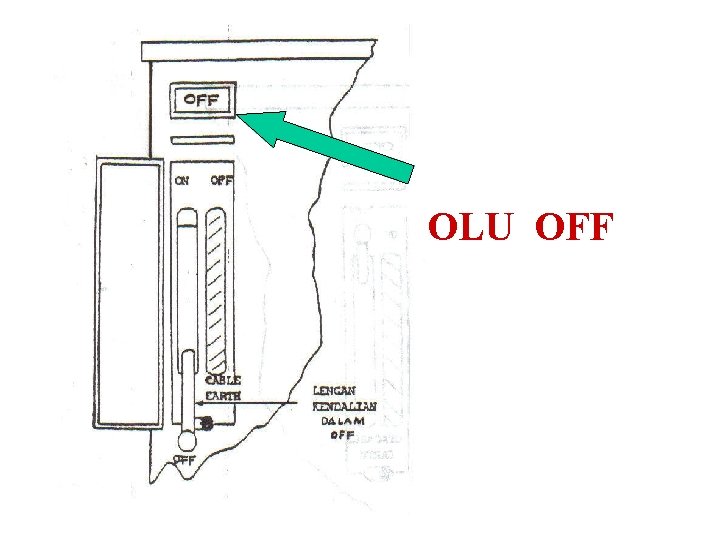

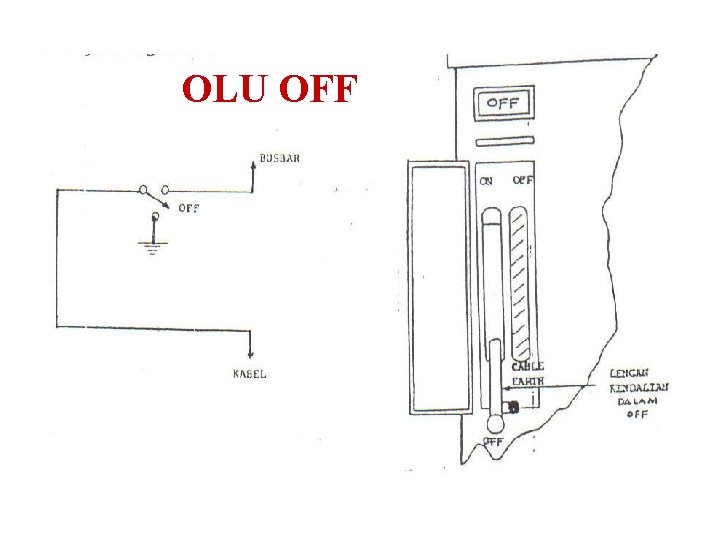

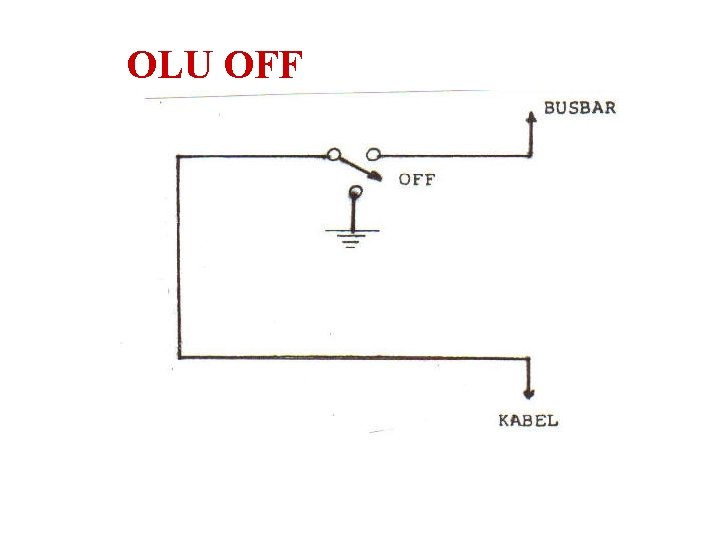

OLU OFF

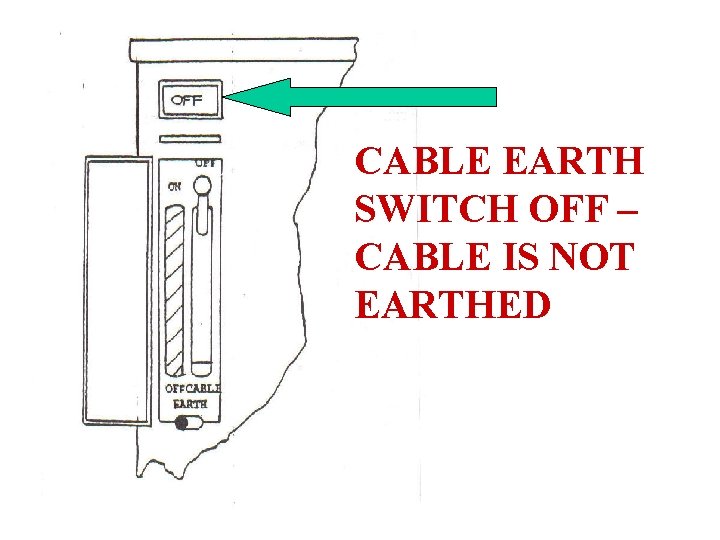

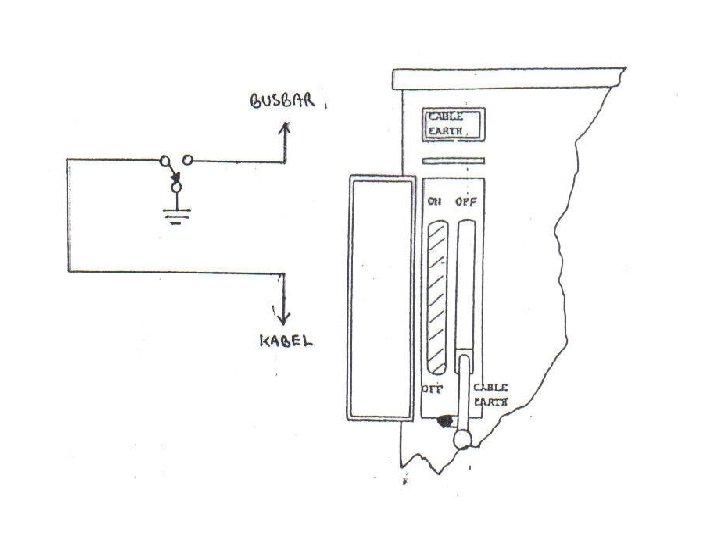

CABLE EARTH SWITCH OFF – CABLE IS NOT EARTHED

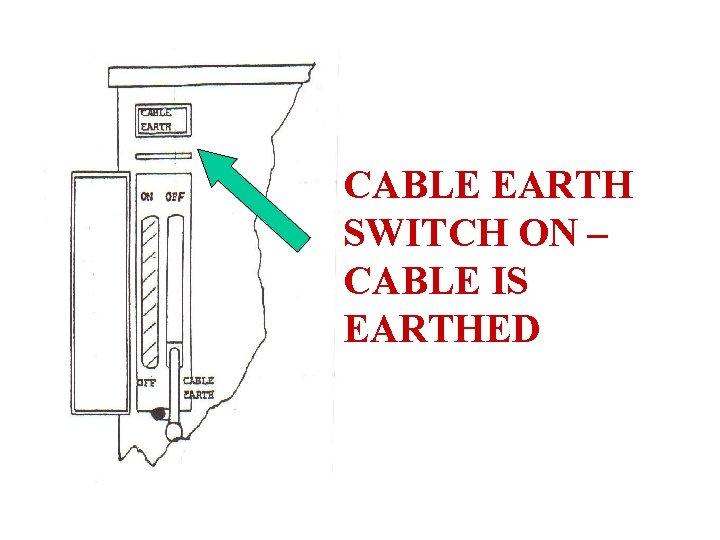

CABLE EARTH SWITCH ON – CABLE IS EARTHED

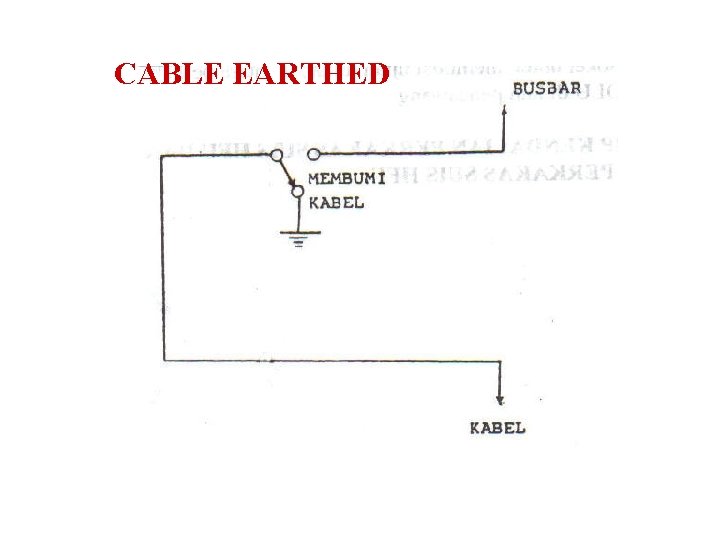

CABLE EARTHED

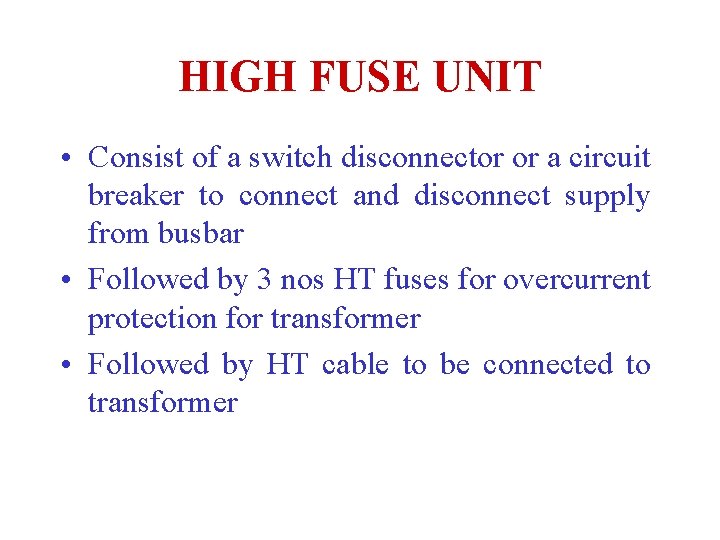

HIGH FUSE UNIT • Consist of a switch disconnector or a circuit breaker to connect and disconnect supply from busbar • Followed by 3 nos HT fuses for overcurrent protection for transformer • Followed by HT cable to be connected to transformer

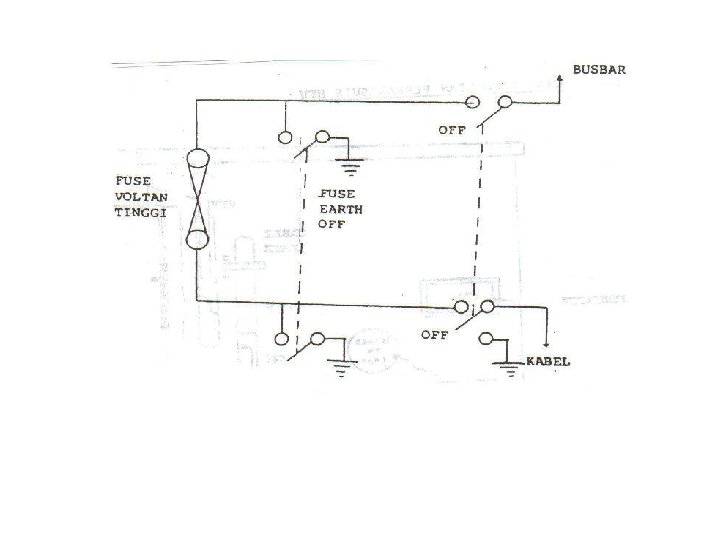

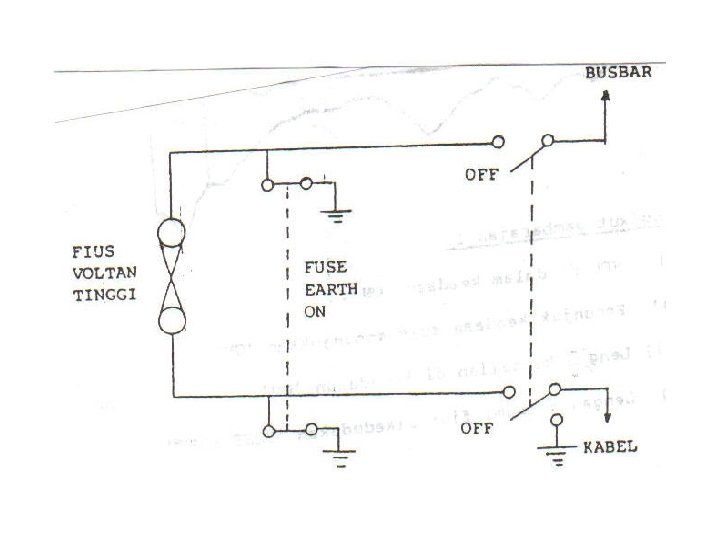

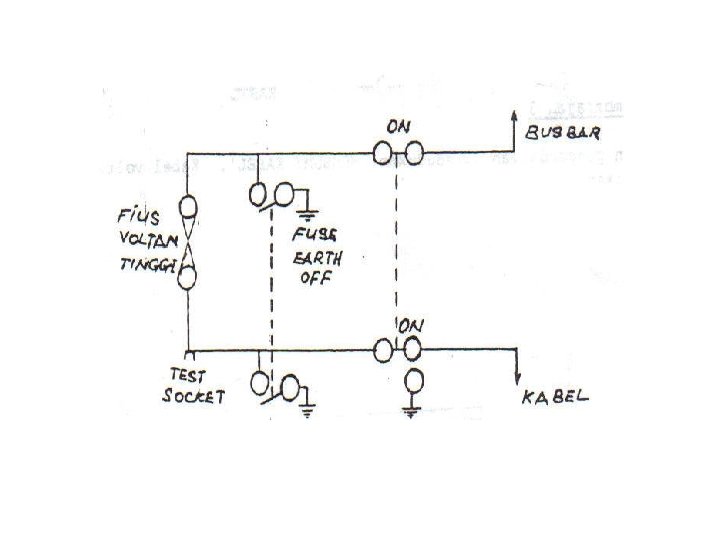

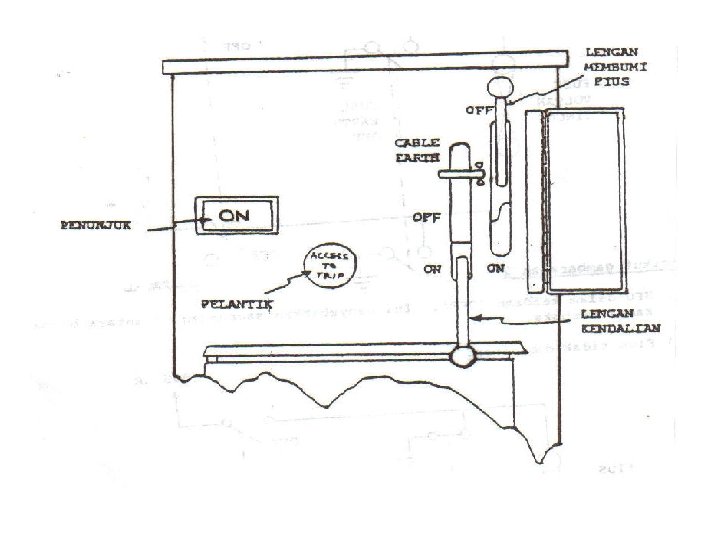

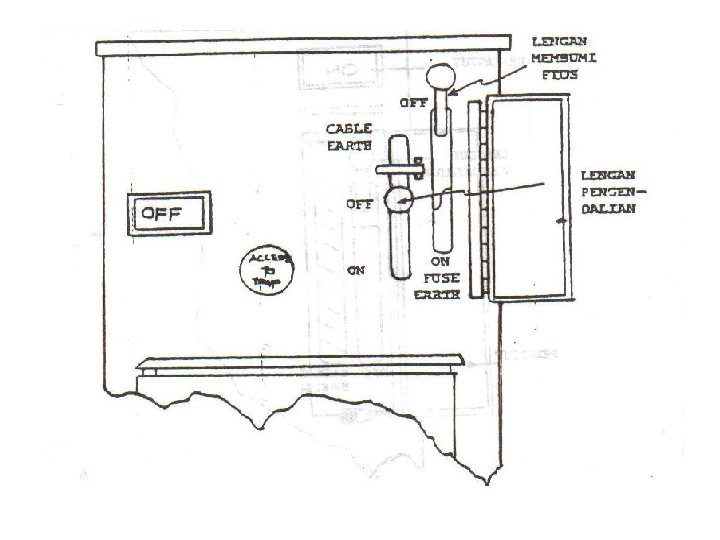

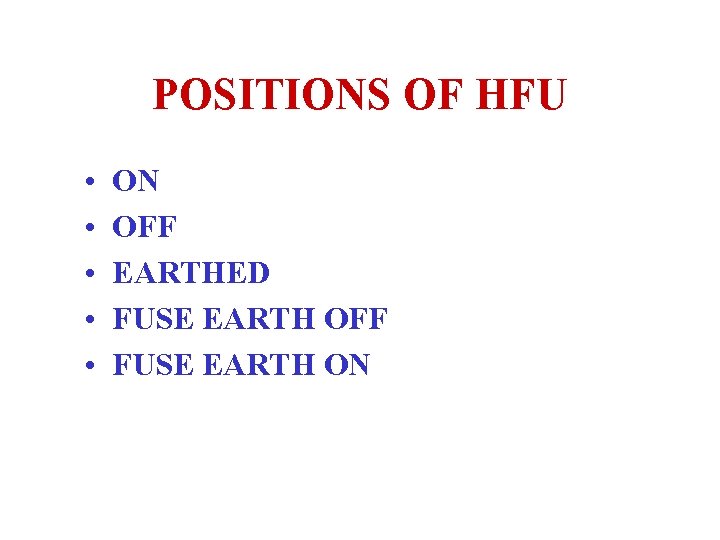

POSITIONS OF HFU • • • ON OFF EARTHED FUSE EARTH OFF FUSE EARTH ON

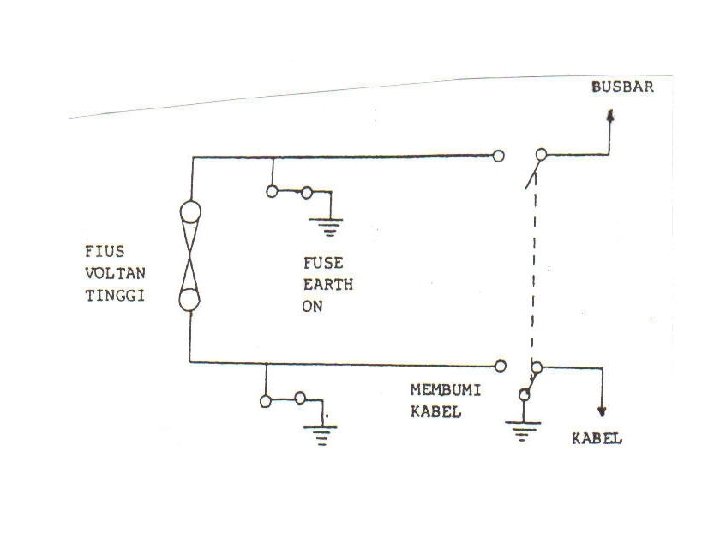

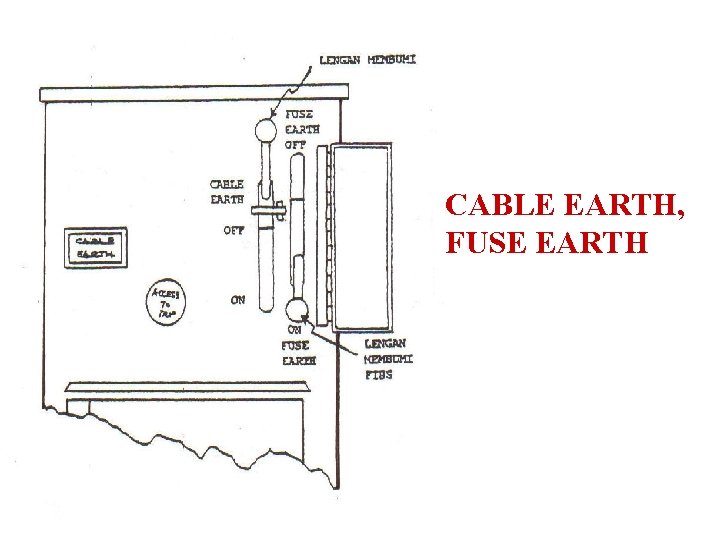

CABLE EARTH, FUSE EARTH

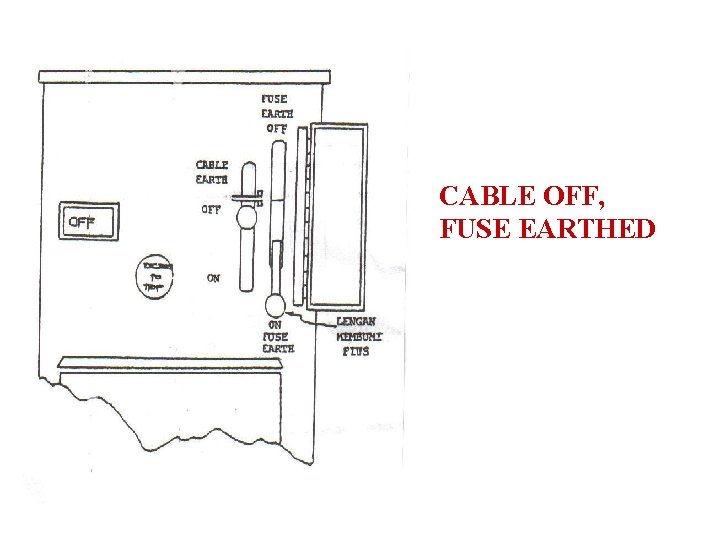

CABLE OFF, FUSE EARTHED

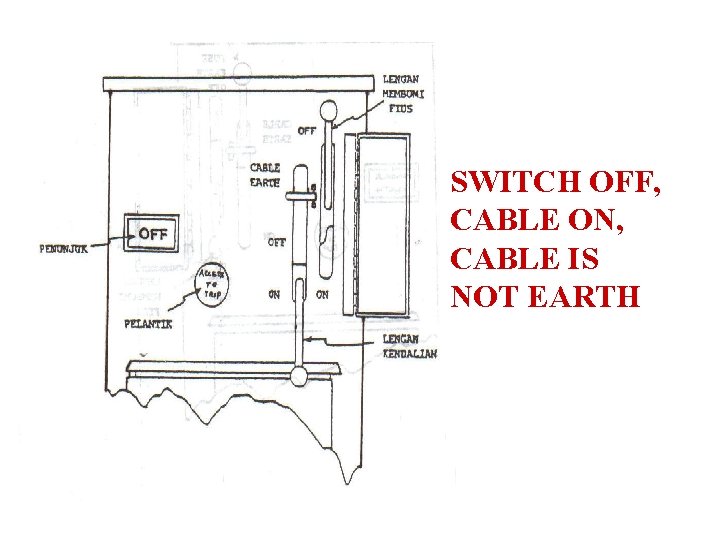

SWITCH OFF, CABLE ON, CABLE IS NOT EARTH
