OHC inhibition and excitation OHCs model OHC models

  • Slides: 35
Download presentation

OHC inhibition and excitation

OHC inhibition and excitation

OHC’s model

OHC’s model

(OHC model’s equation (1 }

(OHC model’s equation (1 }

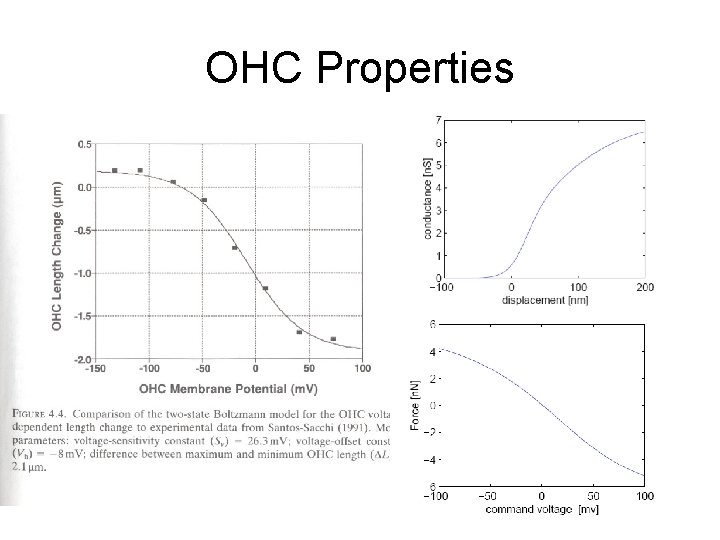

OHC Properties

OHC Properties

Linear Approximation

Linear Approximation

(OHC model’s equation (2 When:

(OHC model’s equation (2 When:

The embedded model

The embedded model

Frequency Domain Model

Frequency Domain Model

Parameters Estimation For and

Parameters Estimation For and

Model’s Simulation Relative • basilar membrane velocity

Model’s Simulation Relative • basilar membrane velocity

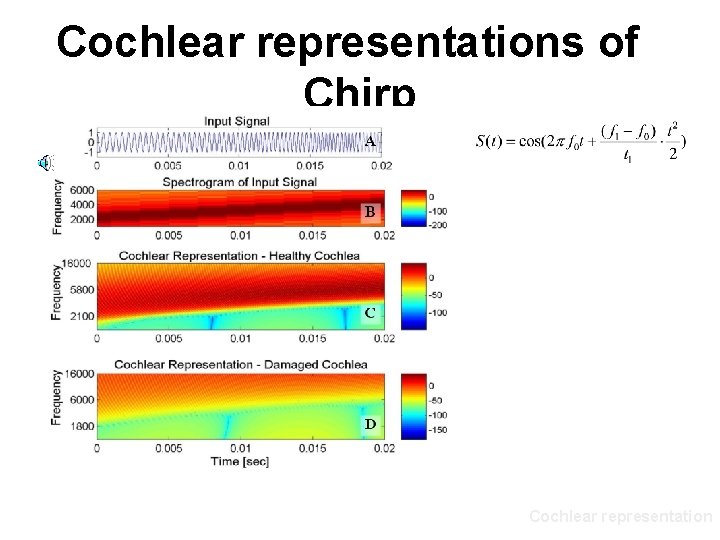

Cochlear representations of Chirp Cochlear representation

Cochlear representations of Chirp Cochlear representation

Cochlear representations of “SHEN” Cochlear representation

Cochlear representations of “SHEN” Cochlear representation

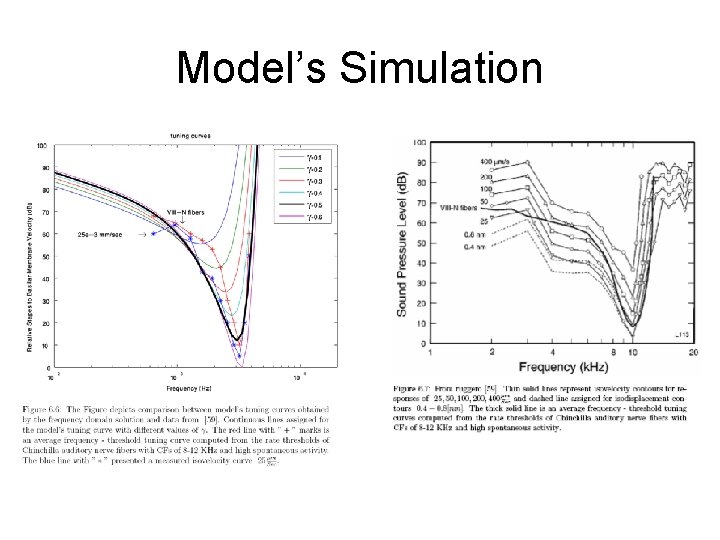

Model’s Simulation

Model’s Simulation

Impaired Hearing

Impaired Hearing

Simulated Audiograms Normal OHC activity Partial damaged OHC No OHC activity

Simulated Audiograms Normal OHC activity Partial damaged OHC No OHC activity

Non Linear Properties 3/4/2021 10: 41 AM

Non Linear Properties 3/4/2021 10: 41 AM

Non Linearity

Non Linearity

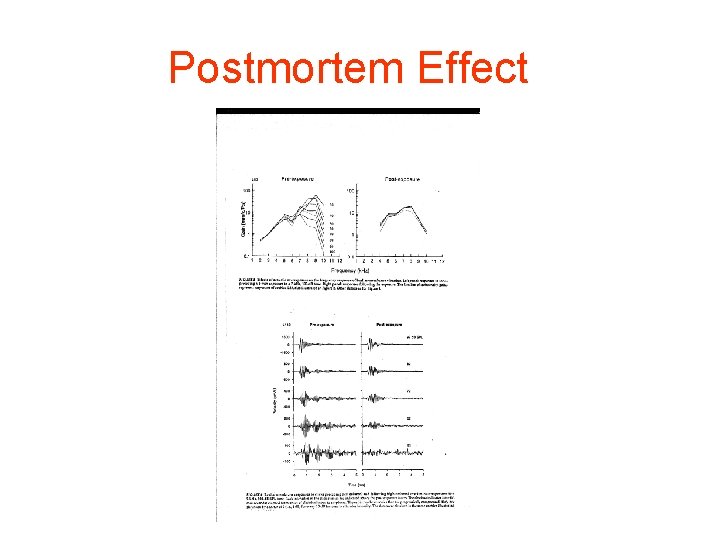

Postmortem Effect

Postmortem Effect

Non Linear Properties

Non Linear Properties

Non linearity and Cubic Combination Tones Compression – Output ‘Cochlear amplifier’ – many non-linear

Non linearity and Cubic Combination Tones Compression – Output ‘Cochlear amplifier’ – many non-linear • effects Combination Tones – Input 2 f 1 -f 2 f 1 f 2 Frequency

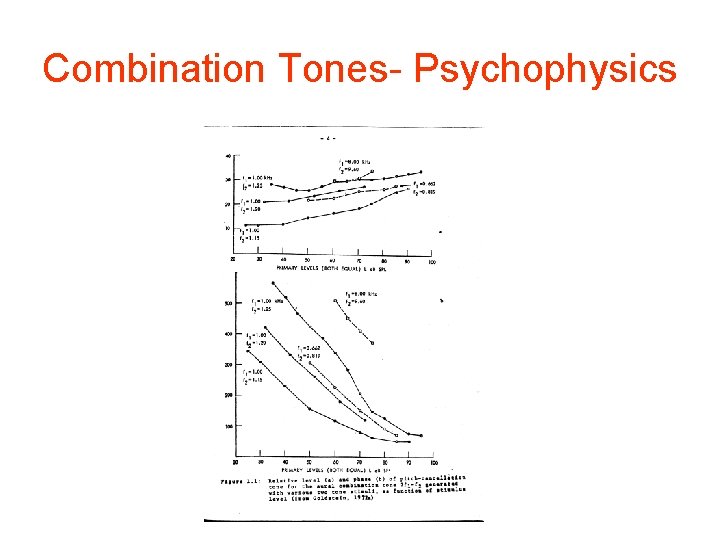

Combination Tones- Psychophysics

Combination Tones- Psychophysics

Combination Tones – Basilar Membrane

Combination Tones – Basilar Membrane

CT with non linear functions All non linear functions types in all model •

CT with non linear functions All non linear functions types in all model • components can cause CT Time Frequency Input = 2 k. Hz + 2. 44 k. Hz; Equal level

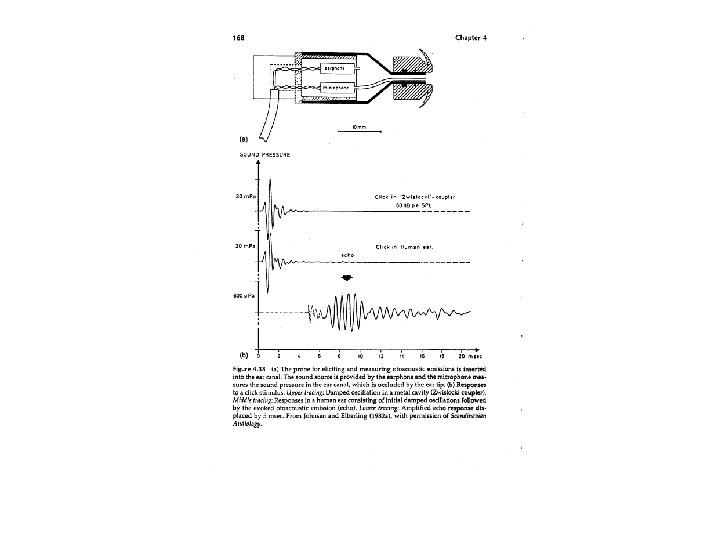

Otoacoustic Emissions

Otoacoustic Emissions

The Human Ear Model Outer ear Middle ear TM Incudostapedial joint Oval window microphone

The Human Ear Model Outer ear Middle ear TM Incudostapedial joint Oval window microphone Piston based model •

Middle ear model equations

Middle ear model equations

Cochlear response to a click 100 us Stapes Stimulus Apex

Cochlear response to a click 100 us Stapes Stimulus Apex

Introducing cochlear “roughness”

Introducing cochlear “roughness”

Model Representation – click

Model Representation – click

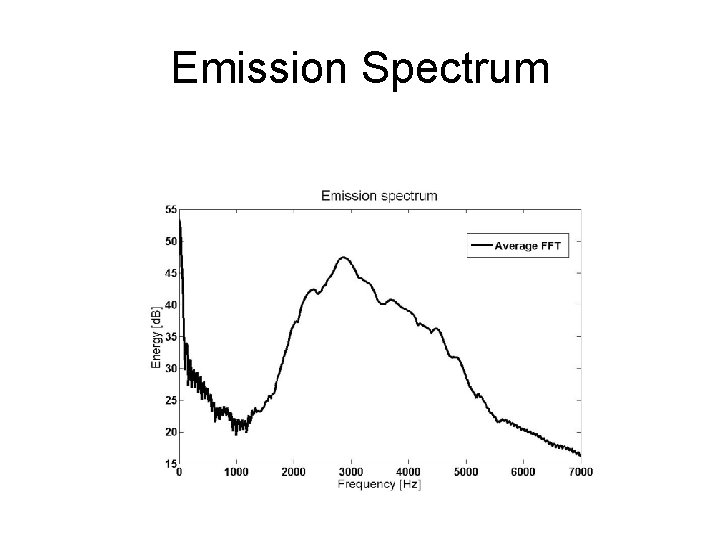

Emission Spectrum

Emission Spectrum

Simulated Audiograms Normal OHC activity with “roughness” Partial OHC activity with “roughness”

Simulated Audiograms Normal OHC activity with “roughness” Partial OHC activity with “roughness”

Damaged cochlear response

Damaged cochlear response
