Luminar HD – Outline Main Features: • • • Unique HD video resolution Highest UV sensitivity in the market Outstanding continuous (UV & Vis. ) zoom Internal GPS, LED flashlight Bluetooth, Wi-Fi and network communications Control, Handling and Operation: • • Ergonomics & user friendly GUI Large keypad Interface connectors Accessories Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 2

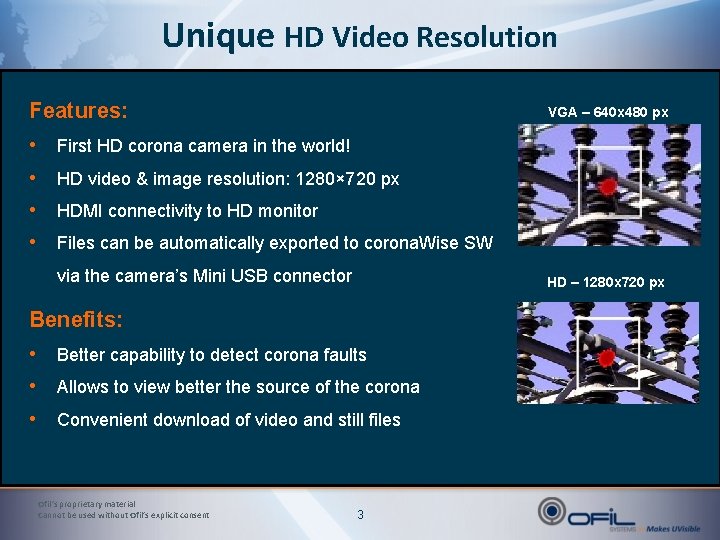

Unique HD Video Resolution Features: • • VGA – 640 x 480 px First HD corona camera in the world! HD video & image resolution: 1280× 720 px HDMI connectivity to HD monitor Files can be automatically exported to corona. Wise SW via the camera’s Mini USB connector HD – 1280 x 720 px Benefits: • Better capability to detect corona faults • Allows to view better the source of the corona • Convenient download of video and still files Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 3
Highest UV Sensitivity in the Market Features: • • 1 p. C @ 15 m tested & certified by RWE Lab. Germany Min. RIV: 3. 6 d. BµV @ 1 MHz @ 10 m Spectral Range: 240 -280 nm Full solar blind Benefits: • Better capability to detect corona faults • The best corona identification capabilities in the world Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 4
Outstanding Continuous (UV & Vis. ) Zoom Features: • Continuous simultaneous zoom of both UV & Visible channels • FOV: 10° x 5. 6° (H x V) to 1. 6° x 0. 9° (H x V) u • Zoom: 12 x optical, 12 x digital (total 144 x) • Focus range: 3 m to infinity, 0. 6 -3 m with close up lenses Benefits: • Much more information and details • Better capability to identify faults • Increase the max. working distance Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 5

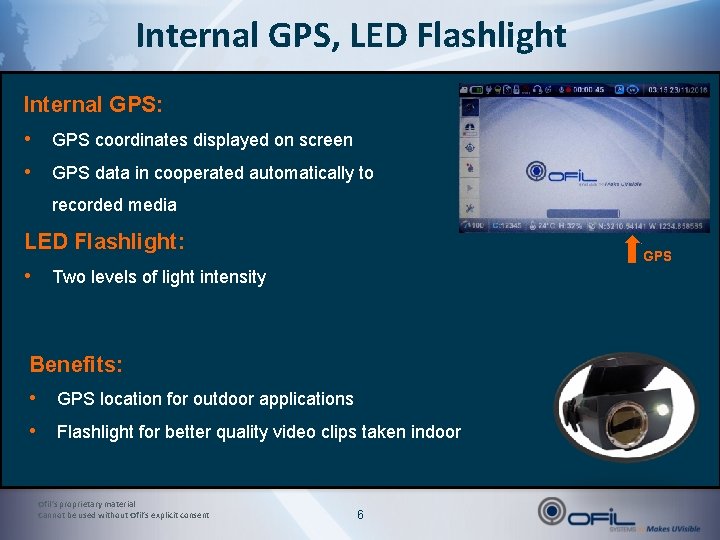

Internal GPS, LED Flashlight Internal GPS: • GPS coordinates displayed on screen • GPS data in cooperated automatically to recorded media LED Flashlight: GPS • Two levels of light intensity Benefits: • GPS location for outdoor applications • Flashlight for better quality video clips taken indoor Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 6
Communications Bluetooth: • Internal Bluetooth transmitter u • Connectivity to wireless earphone and mic. Wi-Fi: • Internal Wi-Fi transmitter u • Enables wireless remote control operation • Connector to an external antenna Network connection: • Enables wired control via a PC Benefits: proprietary material • Ofil’s Advantages for consent High Voltage Lab. and 7 other remote applications Cannot be used without Ofil’s explicit
User Friendly GUI Benefits: • Only 6 main icons: Gain, Zoom, Focus, Color, Playback, Setting • • • Very clear display Temp. & Humidity information GPS coordinates data Battery and memory indications Fast and easy operation Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 8
Large Keypad Benefits: • • • Large buttons Can be operated with gloves Illuminated buttons option Only two fingers full operation Built-in speaker & microphone Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 9
Interface Connectors Micro SD Card Wi-Fi Antenna Mic. + Headphone Mini USB TRH Sensor Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 10
Interface Connectors HDMI Output AC/DC Adapter Ethernet Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 11
Accessories TRH Sensor Remote Control Close-up Lenses Corona. Wise Software Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 12 Wi-Fi Antenna
Summary • • The most advanced corona camera in the market Highest UV sensitivity 1 p. C @ 15 m The best video & still images resolution Bluetooth, Wi-Fi and network communications Long range working distance Ergonomics & user friendly operation Outdoor and indoor applications Luminar. HD - Simply the best! Ofil’s proprietary material Cannot be used without Ofil’s explicit consent 13
