Offsite Emergency Management Planning Dr Rakesh Dubey Director
Off-site Emergency Management Planning Dr Rakesh Dubey Director Disaster Management Institute Bhopal rakeshddubey@hotmail. com www. hrdp-idrm. in For “Capacity Development of Officers of Directorate of Factories, Boilers, Industrial Safety and Health” Govt of Karnataka
An effort to address the n n Why to do? What to do? How to do? What will the application? Who will be benefitted?
n Manufacture, Storage and Import of Hazardous Chemicals Rule ( MSIHC ) – 1989. Preparation of “On – Site Emergency Plan” by the occupier. Details to be furnished as per Schedule – 11 Preparation of “Off– Site Emergency Plan” by the authorities as specified in Schedule 5 Details to be furnished as per Schedule – 12
n Disaster Management Planning both onsite and off-site should be with following components: A. Risk Assessment & Management B. Emergency Preparedness C. Community Dialogue
Priority for the state of Karnataka State n n LPG , Propane (under pressure in liquid phase) Ammonia (under pressure/refrigeration in liquid phase) n n Chlorine (under pressure in liquid phase) Hydrogen (under pressure in gases) CS 2 C 0 + H 20 + CH 4 ( Blast furnaces, LD gases, etc)

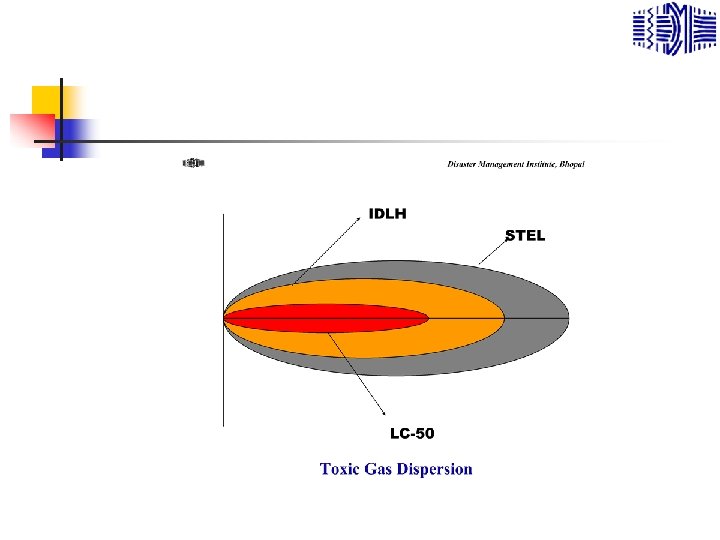

Causality chain Emission MODELLING or MONITORING Environmental distribution Exposure Effects

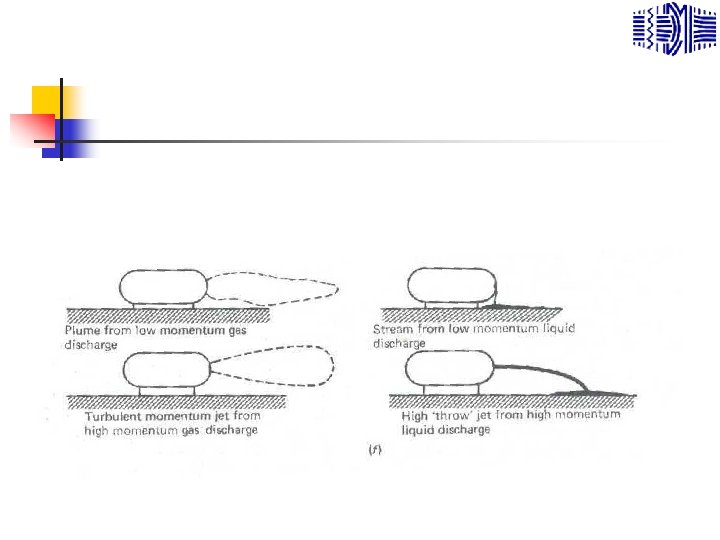

Types of Emissions Continuous emissions Peak emissions Intermittent emissions Block emissions
Spatial scales n Local scale n n n Area around one point source Average environmental characteristics “Reasonable worst case” scenario n Regional scale n n Area of 200 x 200 km 20 million inhabitants 100 or 10% of production Average environmental characteristics

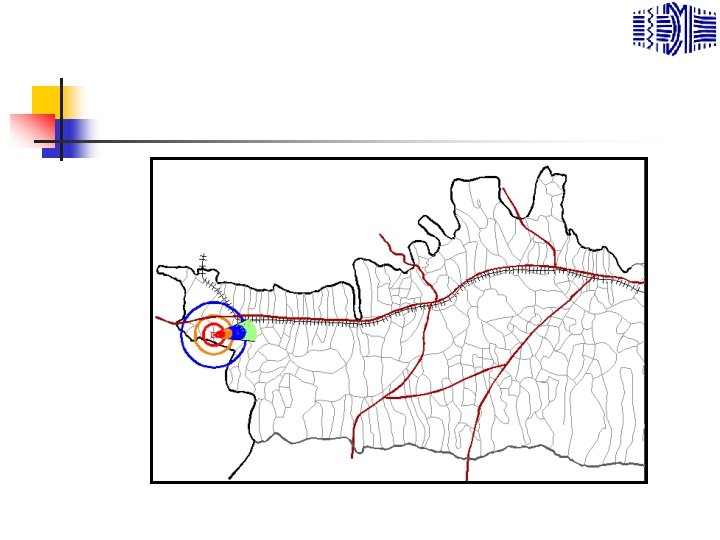

Single source

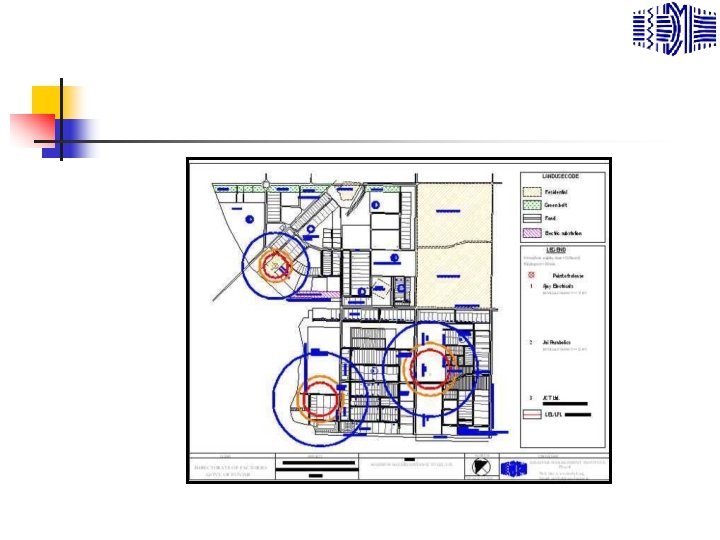

Multiple sources

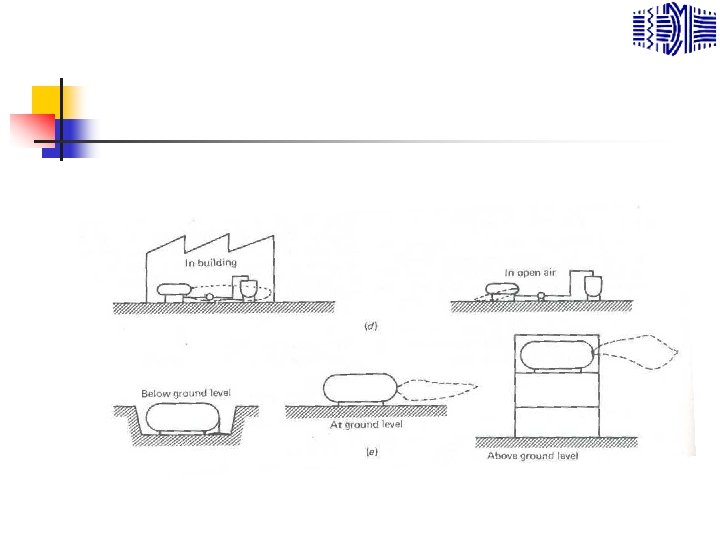

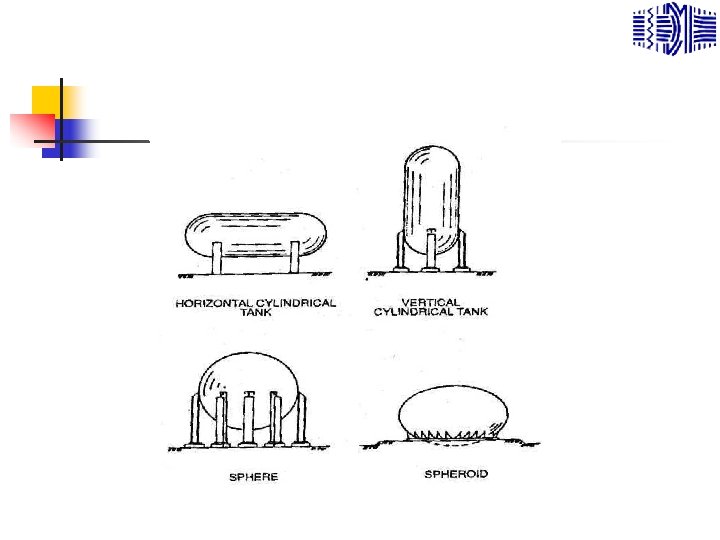

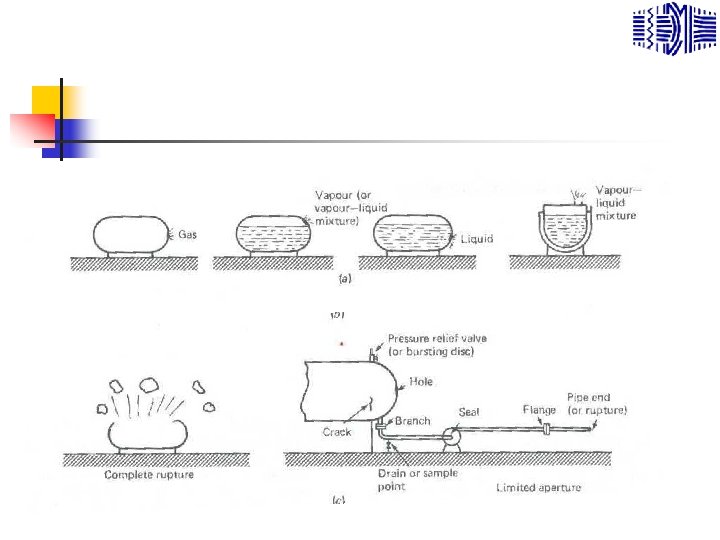

Storage Conditions Atmospheric Storage n Pressure Storage n Fully Refrigerated Storage n Semi-Refrigerated Storage n Gas Under Pressure n Which condition is leading to significant impacts
What would be the impacts? What may go wrong? Start How it may go wrong? How likely its occurrence? Hazard identification Probabilistic hazard assessment Quantitative hazard assessment Accident scenario development Fault tree for the envisaged scenario Consequences analysis What maintenance schedule would reduce its likelihood of occurrence? Fault tree development Fault tree analysis Risk estimation Whether risk is in acceptance? Yes End Apply maintenance measures and reevaluate risk No Suggest maintenance measures to control risk
Risk Assessment & Management 1. evaluate range of potential incidents (without considering possible causes) 2. put mitigation in place foreseeable ones 3. evaluate community consequences for range of incidents,
a) credible worst case - largest tank or worst failure consequence - reasonable duration of release - passive mitigation in effect - credible worst weather b) worst imaginable case - largest tank or worst failure consequence - worst possible duration or release - no mitigation - worst possible weather
n n On-site Risk Off-site Risk
n n n Hazards identification : Materials, process, regulatory, Consequence of hazards Likelyhood of consequences Frequency of occurrence Calculation of Risk Decision for weighing alternatives
Industrial Disaster Management Cycle: OECD
Reliability Risk Assessment n Risk Based Maintenance Planning n Risk estimation n n Risk evaluation n Hazard identification Quantitative Hazard Assessment Probabilistic Hazard Assessment Risk Quantification Setting up risk acceptance criteria Risk comparison Maintenance planning

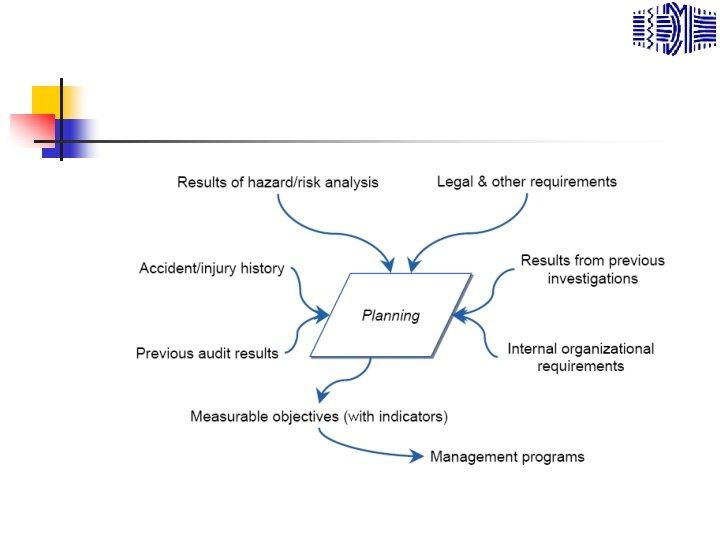

Part two n Preparedness, Planning, Response
n
• • Risk related information can be delivered in a meaningful, cost effective and secure manner Key stakeholders should not be left out of the Risk communication network • Dialogue & • Follow up
Key Points: RAIN! Recognize n Avoid n Isolate n Notify n What can I do?
Recognize n n n Unusual Activity / Behavior Hazardous weather conditions Things out of place n n Unexplained liquids Strange smells Abnormal fogs or mists Suspicious Packages ?
Avoid What Do I Stay Away From? Don’t become a victim Don’t rush in The 4 Don’ts Don’t TEST (Taste, Eat, Smell, Touch) Don’t assume anything
Isolate Keep others away from hazard area
Notify n n Immediate Supervisor Hospital Emergency Phone Number Remember RAIN! Recognize, Avoid, Isolate, Notify
RAIN! Example #1 n n Recognize: Suspicious Package Avoid: Do not touch object Isolate: Contain the area & keep others away from hazard area Notify: Call for help
RAIN! Example #2 n n Recognize: Chemical Spill Avoid: Do not touch, taste, or smell Isolate: Contain the scene & keep others away from hazard area Notify: Call for help
Incident
ALARP
ALARP means ‘As Low As Reasonable Practicable’ ALARP demonstration means: To demonstrate that the project & associated systems and HSEMS will enable the facility to be operated & maintained safely such that residual risks to HSE are tolerable
n n n By putting prevention techniques Through planning By response plans Through mitigation Education and awareness Best practices
Good practices n Technical approaches

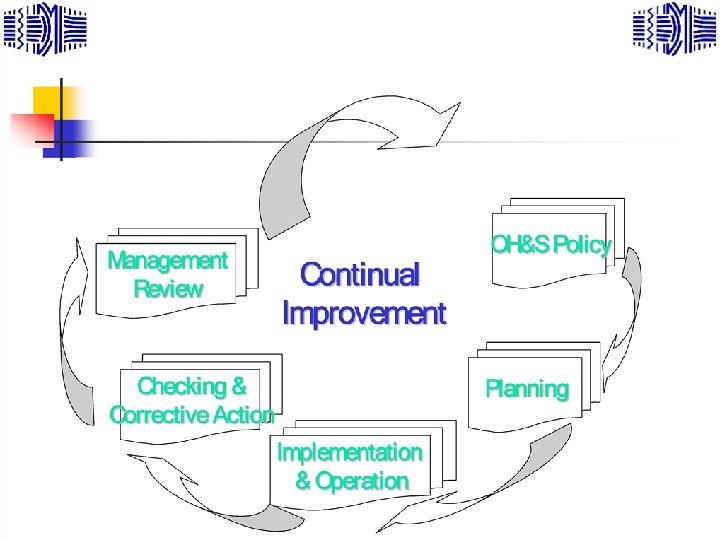

Management review

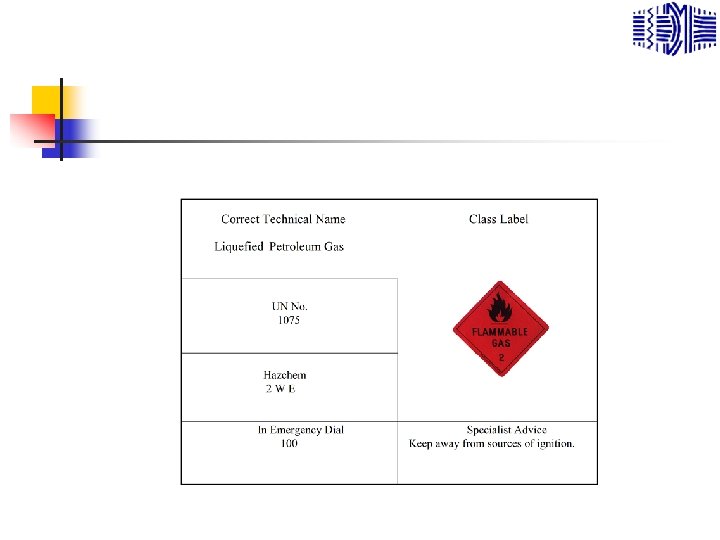

Transport Sector

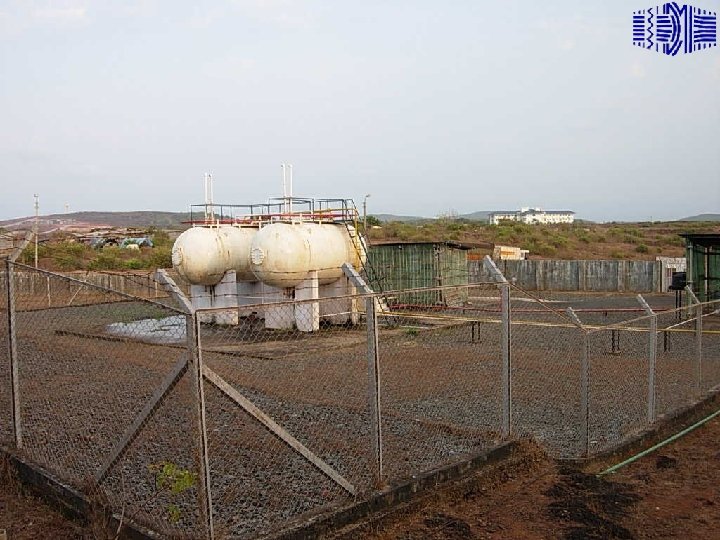

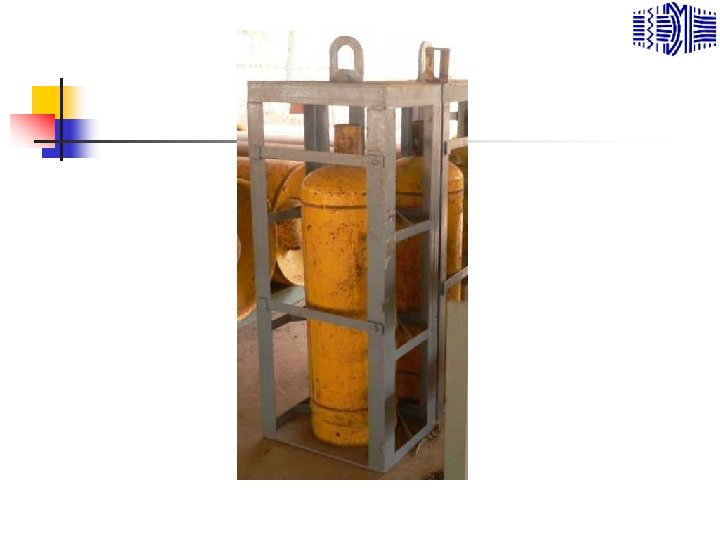

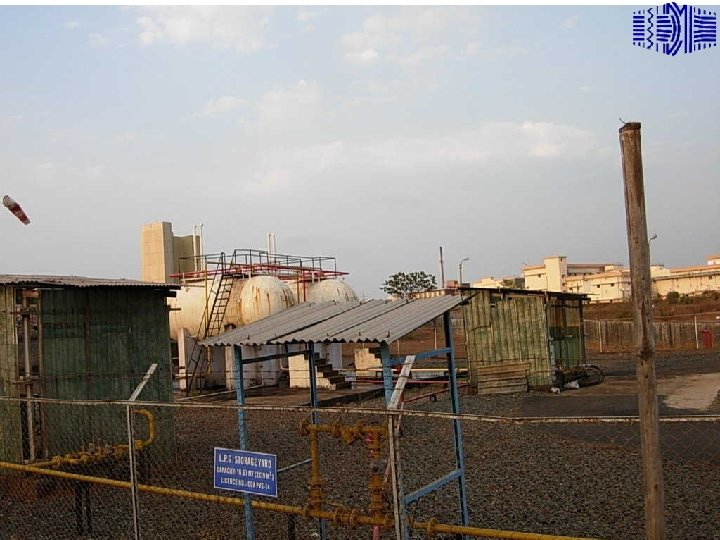

Administrative and technical control Worst example of regulatory compliance October 21, 2010 at Hyderabad, AP Best example for regulatory compliance rakeshddubey@hotmail. com 54

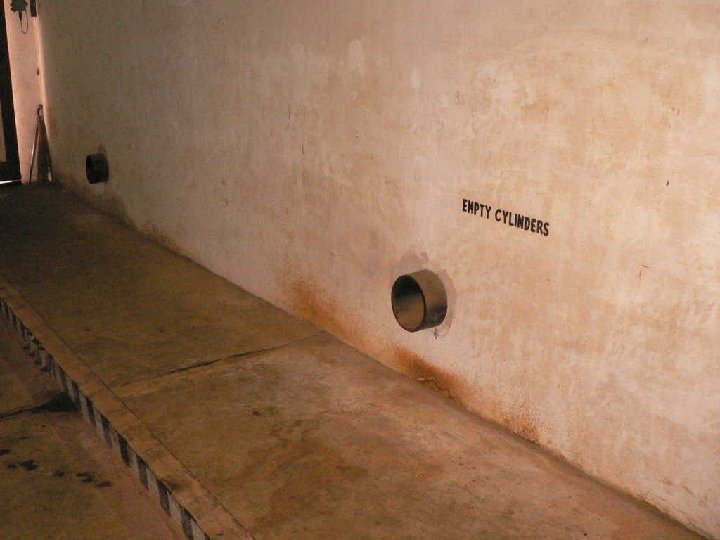

Administrative and engineering Engineering way October 21, 2010 at Hyderabad, AP No engineering arrangements for storing rakeshddubey@hotmail. com 62

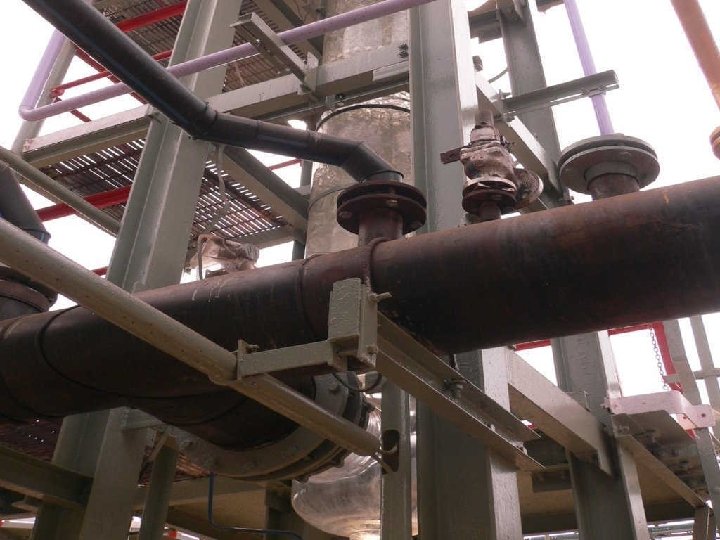

Administrative /Engineering failure October 21, 2010 at Hyderabad, AP rakeshddubey@hotmail. com 66
Excercise October 21, 2010 at Hyderabad, AP rakeshddubey@hotmail. com 67
n Don’t forget to visit www. hrdp-idrm. in
