Offshore Developments Topside Weight vs Capacity and Total

Offshore Developments Topside Weight vs. Capacity and Total Installed Power Rev 06 23 April 2015

Rev Date Description DRL Engineering Prepared 1 6 April 2015 Topside Weight vs. BOE JS 2 7 April 2015 Update after Fact Check JS 3 13 April 2015 Simplify and combine BOE and MW JS 4 19 April 2015 Additional Data JS 5 21 April 2015 Schedule added JS 6 23 April 2015 Project Weight Update JS Document Number : Checked DRL Approved Review Date Approve Date

PROCESS : OIL and GAS

HULL FORM

TOPSIDE WEIGHT vs. BOE by HULL FORM • Topside Weight is noticeably impacted by Hull Form Type • It is recommended that Data Analysis is carried out by Hull Form

TOPSIDE WEIGHT vs. BOE by HULL FORM • Topside Weight (excl. Rig) vs. BOE Comparison by Hull Form. Based on a Daily Design Throughput of 150, 000 BOE the “Benchmark” Topside Dry Weight for each concept is : • • • Multiple Deck FPSO Fixed Structure Conventional TLP Semi Submersible FPSO Conversion Single Lift SPAR 19, 700 tonnes (131 kg/BOE) 14, 500 tonnes (97 kg/BOE) 12, 500 tonnes (83 kg/BOE) 10, 500 tonnes (70 kg/BOE) 9, 600 tonnes (64 kg/BOE)

TENSION LEG PLATFORM

TENSION LEG PLATFORM

SPAR

SEMI SUBMERSIBLE

NEW BUILD FPSO

FPSO CONVERSIONS

FPSO Conversions and Single Deck New Build FPSO’s

FIXED STRUCTURES

BEST IN CLASS WEIGHT PERFORMANCE • • • Tension Leg Platforms • Marco Polo • Shenzi • Prince • Mars A SPAR • Horn Mountain • Neptune • Nansen • Boomvang • Gulfstar • Gunnision • Perdido Semi Submersible • Independence Hub • Who Dat • Delta House • Na Kika • Visund • Njord • Atlantis • Thunder Horse • Thunder Hawk • • New Build FPSO • Skarv • Bonga • Angola 18 • Girassol • Dalia • • Schiehallion • Balder • Terra Nova • Captain • Norne FPSO Conversion • Vincent • Fife • Espadarte • Peregrino • Curlew • Bijipira & Salema • Cidade de Anchieta • Alvheim • Conkauati • Leadon • Ettrick • Abo Fixed Structures • Guntong A • North Cormorant • Nelson • Kepodang (Indonesia) • Lay Tay (Vietnam) • Erawan (Thailand) • North Rankin B • Draugen • Troll C • Petronious • Eider • Solan • KBB • Alen

Offshore Developments Topside Weight vs. Total Installed Power in MW (PGTs + Process GTs)

PROCESS : OIL and GAS

HULL FORM

TENSION LEG PLATFORM

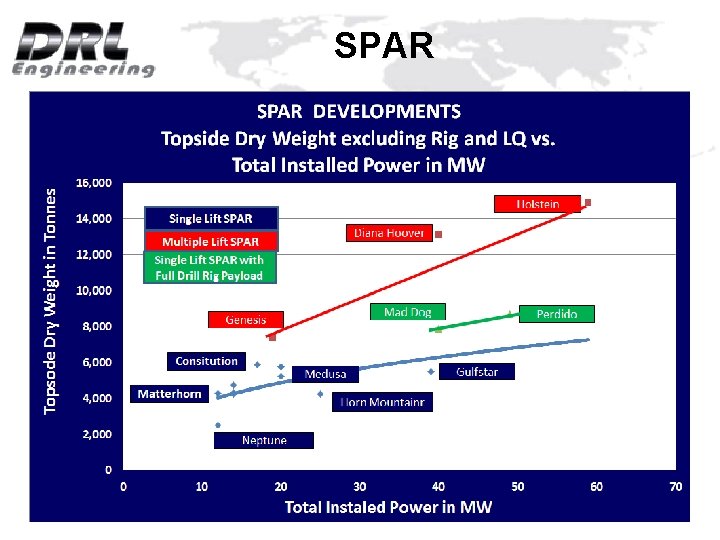

SPAR

SPAR

SEMI SUBMERSIBLE

NEW BUILD FPSO

FPSO CONVERSIONS

FIXED STRUCTURES : OIL

FIXED STRUCTURES : GAS

BEST IN CLASS WEIGHT PERFORMANCE • • • Tension Leg Platforms • Mars A • Brutus • Magnolia • Prince • Marco Polo • Shenzi SPAR • Gulfstar • Horn Mountain • Neptune • Medusa • Perdido • Mad Dog Semi Submersible • Independence Hub • Atlantis • New Build FPSO • Bonga • Knarr • Angola 18 • Schiehallion • Anasuria • Triton • Balder • FPSO Conversion • Abo • Peregrino • BC 10 • Bijupira & Salema • • Fixed Structures Oil • Guntong • Kittiwake • Eider • Gas • Bunga Raya A • Jerneh • Laggan

Some of the TOP Weight Performers HORN MOUNTAIN SPAR INDEPENDENCE HUB SEMI SUBMERSIBLE MARCO POLO MINI TLP NEPTUNE SPAR MARS A CONVENTIONAL TLP SHENZI MINI TLP

Some of the NON Gulf of Mexico TOP Weight Performers GUNTONG A (MALAYSIA) FIXED STRUCTURE BUNGA RAYA A (MALAYSIA) FIXED STRUCTURE – INTEGRATED DECK NORTH CORMORANT (NORTH SEA) FIXED STRUCTURE MODULAR NELSON (NORTH SEA) FIXED STRUCTURE INTEGRATED DECK

Some of the NON Gulf of Mexico TOP Weight Performers BONGA (NIGERIA) MULTIPLE DECK FPSO ANASURIA (NORTH SEA) SINGLE DECK FPSO PEREGRINO (BRAZIL) FPSO CONVERSION SCHIEHALLION (West of Shetland) SINGLE DECK FPSO

Execution Duration vs. Topside Weight
