Ocular Instrumentation Lynn E Konkel M S CPOT
- Slides: 35
Ocular Instrumentation Lynn E. Konkel, M. S. , CPOT Heart of America – February 2013
Overview Identify most commonly used equipment Identify the reason for use Note: there are many different brands of the same type of equipment, all the brands are not depicted in this presentation Recommend maintaining the manuals for all equipment in a central location. The manuals are very helpful for use, calibration, care and servicing of equipment
Pretesting Equipment
Transilluminator • Handle that contains a rechargeable battery • Preferred over a penlight • Dial control for the brightness of the light • Recommended for assessing pupil reflexes • Also may be used to provide additional light source when needed • Maintain back up light bulb
Pinhole Disk • Instrument that looks like an occluder but has multiple holes 0. 5 to 2 mm in diameter. • Used to assess whether the reduced visual acuity is due to refractive error or some other condition. • If the visual acuity improves with the pinhole then usually expect a refractive error.
Maddox Rod • A group of either red or colorless parallel glass rods • Used to dissociate the eyes, prevent fusion • Used to detect or measure amount of heterotropia or heterophoria. • • Rods held vertically Rods held horizontally
• Stereopsis plates • Color vision plates • • Ishihara Pseudoisochromatic
Keratometer • Kera is the root word for cornea; meter is the suffix for measure therefore this is a instrument that measure the corneal curvature. • Obtains the curvature in diopters along the area of least and most curvature. • Ex: 44. 50@175; 45. 25@ 85 • Available in manual or automated versions • Maintain a stock of replacement bulbs
Tonometer • Tono = pressure, meter again is to measure. This instrument measures the intraocular pressure. • Many styles of tonometers, manual and automated versions. • Pictured here is the noncontact tonometer = automated, “air puff”. • Readings are stated in millimeters of mercury (mm. Hg) • Record time of day • Diurnal variation
Tonometer cont. • Tonopen • • Maintain supply of tip covers and batteries Use with corneal anesthetic • Goldmann • Needs no electricity or special supplies to maintain however, needs an operating slit lamp unless using the hand-held model • Use with combo drug of corneal anesthetic and fluorescein, brand name = Fluress
Visual Field Testing • Eye maintains steady fixation and • • tests the retina for areas of decreased (or absent) vision. Typically used to test area outside the macula (central vision) Compare/contrast visual field testing to visual acuity testing Typically need to use trial lenses when testing the central visual field (lenses removed for area outside the central 30°) Equipment is complicated, keep manual handy.
Visual Field Testing - cont. • Amsler grid • Used when you want to assess the macular area of the retina. • Can detect • Central scotomas • Paracentral scotomas • Distortion = metamorphopsia
Auto-refractor • Instrument used to estimate a refractive error. Automated version of a retinoscope • Can be in combination with an auto -keratometer.
Examination Room
Projector & Slides • Projector – used to project letters, characters, shapes on a silver screen • Slides • • • Snellen letters Landoldt rings Numbers Tumbling E’s Worth 4 -dot • Means to isolate lines/letters • Filters – red/green
Retinoscope • Obtains an estimate of the patient’s refractive error without any input needed from the patient (objective measurement) • Projects light onto the retina, moving the light back and forth gives the doctor input as to whether the patient has myopia/hyperopia/astigmatism. • Use lenses in the phoropter to neutralize the movement of the light.
Ophthalmoscope • Instrument used to exam the retina. • Eyes are typically dilated for wider view. • Direct (pictured on left) • • Uses internal lenses to assist in focus Can magnify 15 x • Indirect • Monocular – greater magnification then direct, not used much today. • Binocular – allows for stereoscopic and wider view of the retina, worn on head and used with handheld condensing lens. Image is inverted (upside down and reversed left/right). Very commonly used today especially for patient’s with disease.
Ophthalmoscope • Binocular indirect
Phoropter • Used to obtain patient’s correction for refractive error • • Distant Rx Near Rx • Used to measure phoria’s, accommodation, etc. • Contains concave, convex, cylindrical lenses along with prisms and various other lenses (Maddox rod for example)
Trial Lenses • Tray of lenses and accessories • • • Lenses – sphere & cylinder Prisms Occluders Pinhole disk Maddox Rod/red lens Frame • Uses: • • Test refractive error of an eye • Used with other instruments such as visual field bowl analyzers Let the patient test how a potential Rx will be
Slit Lamp – Biomicroscope • Instrument used to examine the external and anterior structures of the eye under magnification. • Can have attachments such as: • • Goldmann tonometer Camera Observation tube Handheld lenses used in conjunction with slit lamp can be used to examine the retina.
Slit Lamp “Accessories” • Hruby lens – 55 D lens • Goniolens – consists of a contact lens and a mirror. Use a corneal anesthetic and a gel (goniogel). • Goldmann tonometer
Ancillary Testing Instruments
Pachymeter • Measures the corneal thickness • Used to assist in the diagnosis of glaucoma • Do thinner corneas mean increase risk of developing glaucoma? • Do thinner corneas mean we are underestimating the IOP? • Do thicker corneas mean we are overestimating the IOP? • Evaluated prior to refractive surgery • Need a corneal anesthetic
A-scan Ultrasound Biometry • Measure the length of the eyeball • Used to calculate the power of the lens implant needed for cataract surgery • Requires corneal anesthetic • Test being replaced by automated instruments such as the IOL Master • Noncontact = no anesthetic
Fundus Camera • Instrument that takes a picture of the patient’s retina. • Documents what is seen on ophthalmoscopy. • Can center picture on various parts of the retina – disk, macula, periphery • Nonmydriatic versus mydriatic
Automated optic nerve/retina instruments • Heidelberg Retina Tomograph (HRT). • Used to assist in the diagnosis and management of glaucoma • GDx Nerve Fiber Analyzer • Used to assist in diagnosis and management of glaucoma. • Ocular Coherence Tomography (OCT). • Used to assist in diagnosis of retinal pathology
Corneal Topography • Advanced analysis of the corneal curvature • Measures the cornea’s shape fro apex to the periphery • Used to: • Treat and monitor patient’s with corneal disease • Prior to refractive surgery
Lasers • Tunable dye lasers • Used in the anterior segment • Trabeculoplasty • Iridoplasty • Photodisruptive lasers • YAG laser (pictured), used for secondary cataract, iridotomy. • Thermal photocoagulation • Argon blue-green/argon monochromatic green/krypton red • Extensively used to treat diabetic retinopathy, CRVO, retinal holes, retinal detachments • Excimer laser • Used in phtorefractive keratotomy • Ablates a small amount of the corneal stroma to flatten the corneal
Optical Dispensary
Lensometer

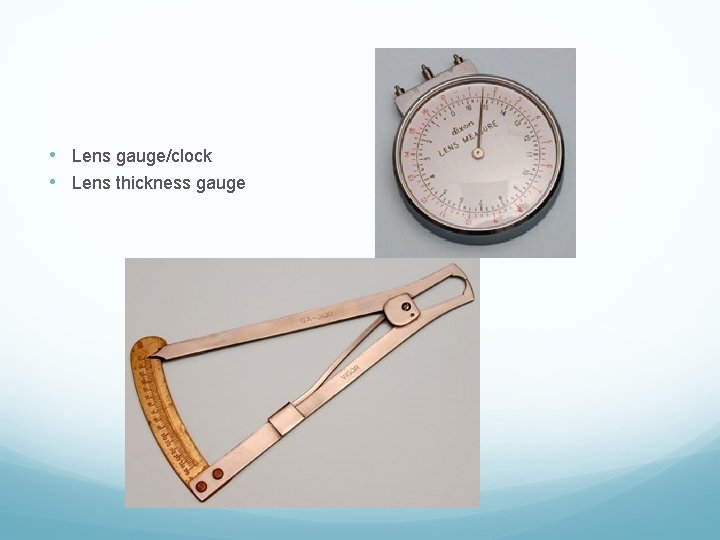

• Lens gauge/clock • Lens thickness gauge
• Corneal reflex pupilometer • PD stick
Where to obtain more information on this subject: AOA Paraoptometric Section, Self-Study Course for Paraoptometric Assistants and Technicians, Revised 3 rd Edition Butterworth-Heinemann 1997 Stein, Freeman, The ophthalmic assistant (8 th edition) Mosby 2006 Cassin, Rubin, Dictionary of eye terminology (6 th edition) Traid 2011
Questions?
