OCULAR ANATOMY GLOBE EYE BALL CONJUNCTIVA EYELIDS LACRIMAL

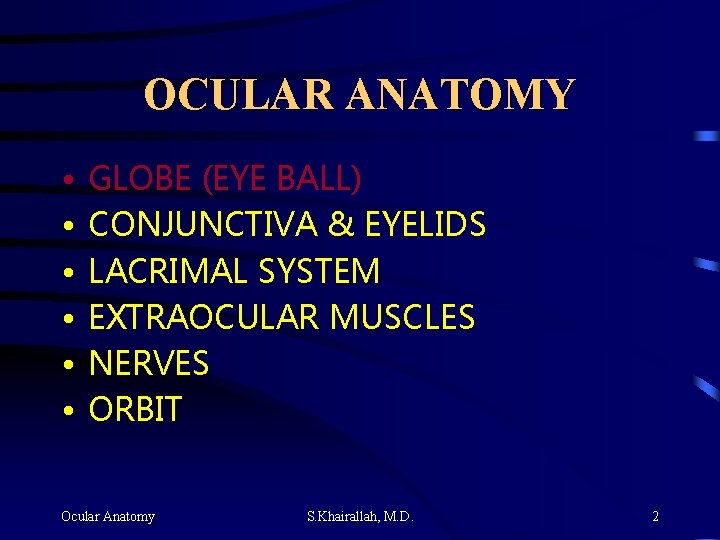

OCULAR ANATOMY • • • GLOBE (EYE BALL) CONJUNCTIVA & EYELIDS LACRIMAL SYSTEM EXTRAOCULAR MUSCLES NERVES ORBIT Ocular Anatomy S. Khairallah, M. D. 2

Ocular Anatomy S. Khairallah, M. D. 3

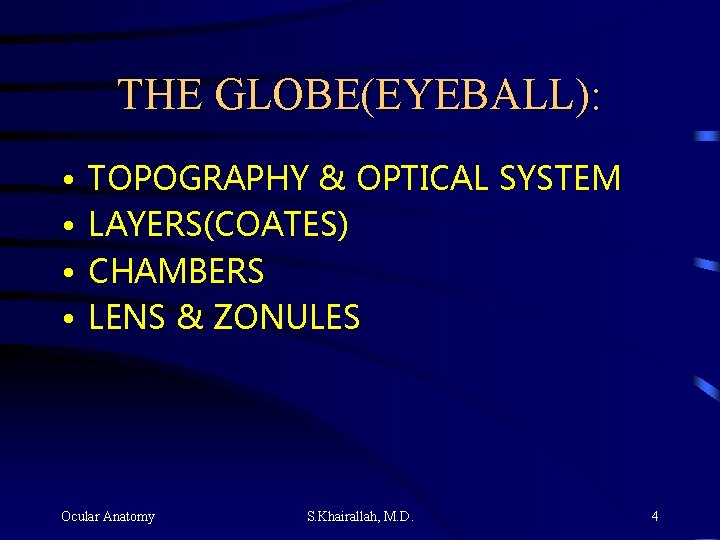

THE GLOBE(EYEBALL): • • TOPOGRAPHY & OPTICAL SYSTEM LAYERS(COATES) CHAMBERS LENS & ZONULES Ocular Anatomy S. Khairallah, M. D. 4

THE EYEBALL, cont’d: • TOPOGRAPHY & OPTICAL SYSTEM: Axial length. . 24 mm. Equator. . 16 mm. posterior to limbus Diopteric power: cornea … 40 D lens … 20 D Ocular Anatomy S. Khairallah, M. D. 5

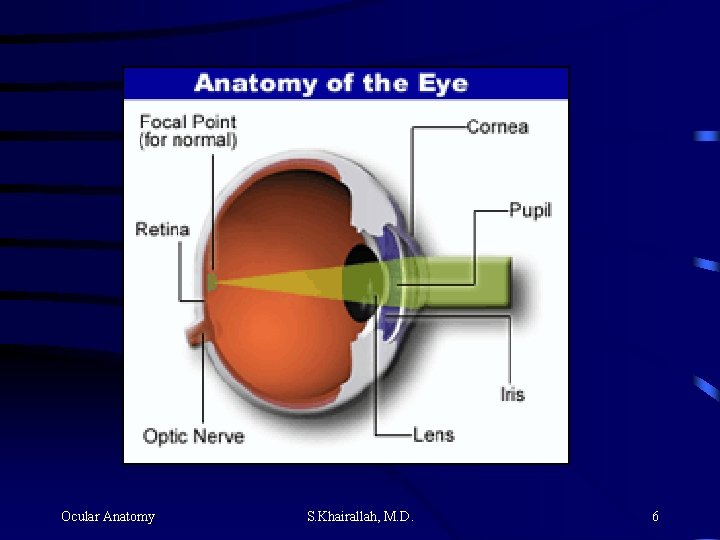

Ocular Anatomy S. Khairallah, M. D. 6

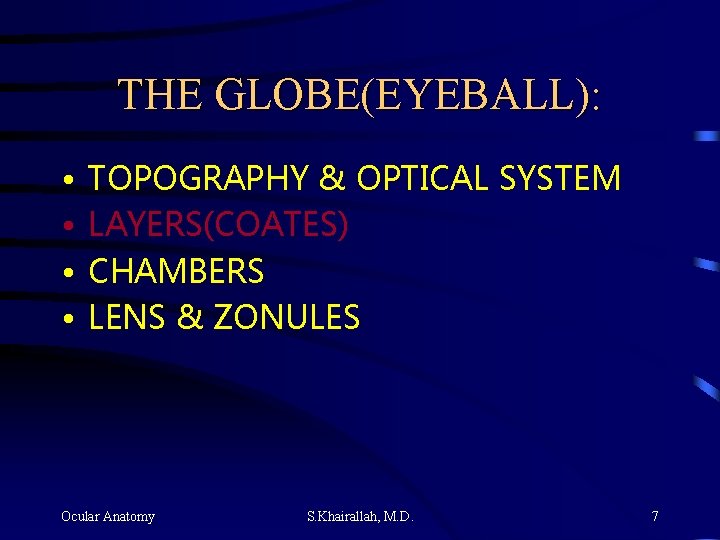

THE GLOBE(EYEBALL): • • TOPOGRAPHY & OPTICAL SYSTEM LAYERS(COATES) CHAMBERS LENS & ZONULES Ocular Anatomy S. Khairallah, M. D. 7

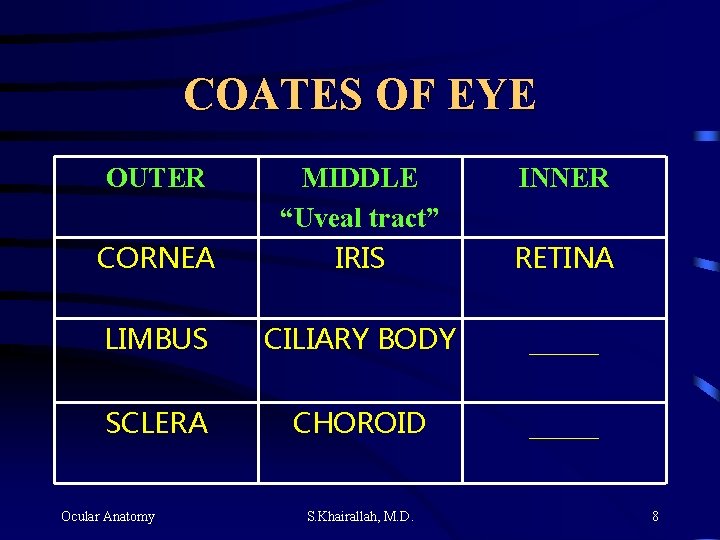

COATES OF EYE OUTER CORNEA MIDDLE “Uveal tract” IRIS RETINA LIMBUS CILIARY BODY _____ SCLERA CHOROID _____ Ocular Anatomy S. Khairallah, M. D. INNER 8

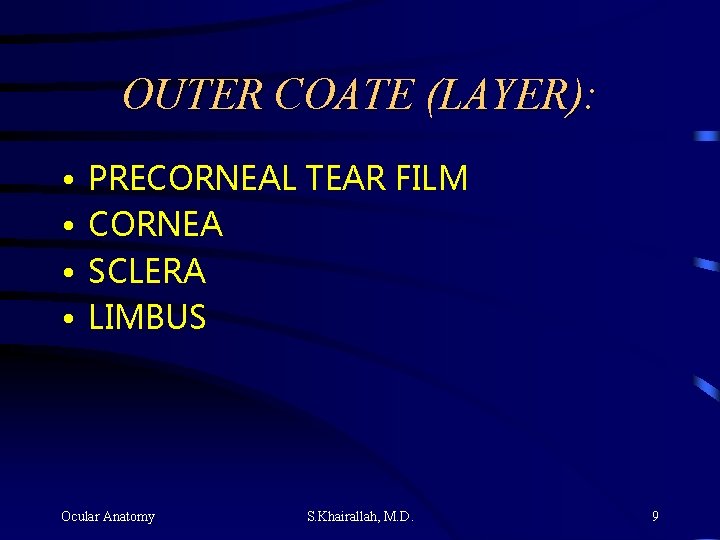

OUTER COATE (LAYER): • • PRECORNEAL TEAR FILM CORNEA SCLERA LIMBUS Ocular Anatomy S. Khairallah, M. D. 9

PRECORNEAL TEAR FILM: • THREE LAYERS: – Outer most : lipids …Meibomian , Zeiss and Moll glands – Middle : aqueous(watery) …Lacrimal and accessory lacrimal glands – Inner most : mucinous(mucoid) …Goblet cells Ocular Anatomy S. Khairallah, M. D. 10

PRECORNEAL TEAR FILM: • FUNCTIONS: – Optical clarity – Nutrition – Defense mechanism Ocular Anatomy S. Khairallah, M. D. 11

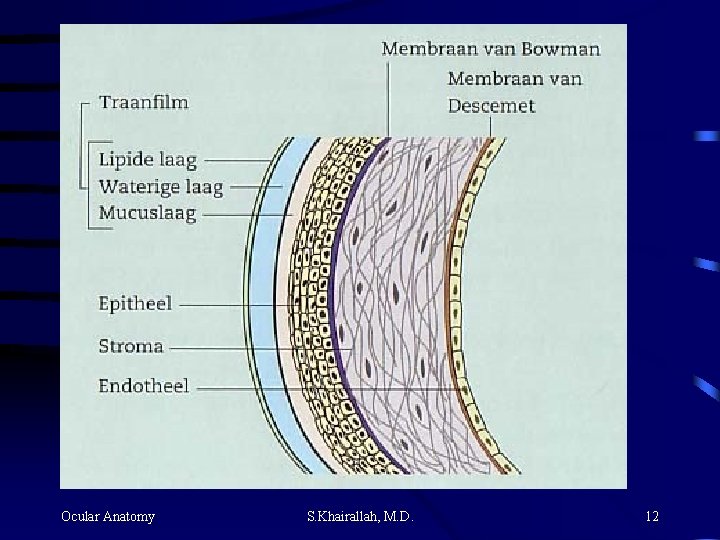

Ocular Anatomy S. Khairallah, M. D. 12

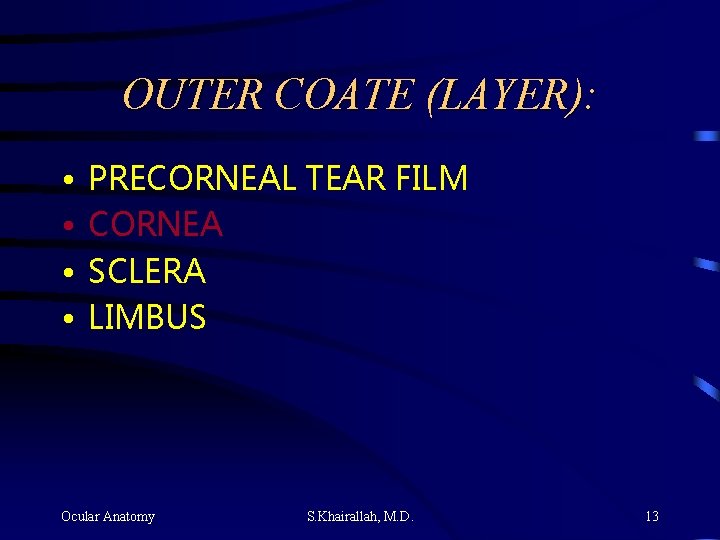

OUTER COATE (LAYER): • • PRECORNEAL TEAR FILM CORNEA SCLERA LIMBUS Ocular Anatomy S. Khairallah, M. D. 13

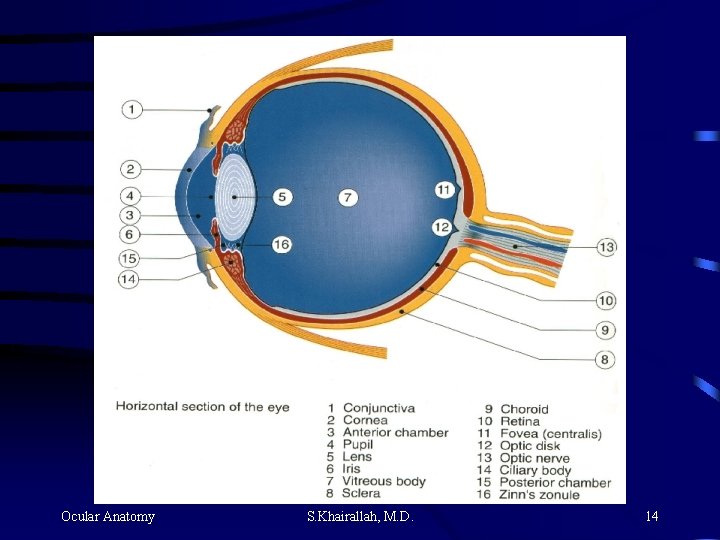

Ocular Anatomy S. Khairallah, M. D. 14

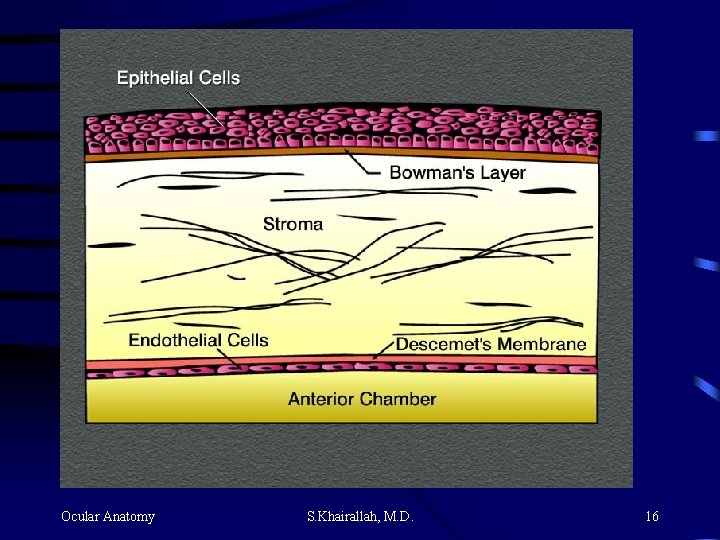

CORNEA : • THREE LAYERS: – Epithelium / Bowman’s membrane – Stroma – Endothelium / Descemete’s membrane • DIAMETER : 12 mm. Horiz. / 11 mm. Vertic. • NERVE : Trigeminal, nonmylinated • BLOOD SUPPLY: NONE “AVASCULAR” Ocular Anatomy S. Khairallah, M. D. 15

Ocular Anatomy S. Khairallah, M. D. 16

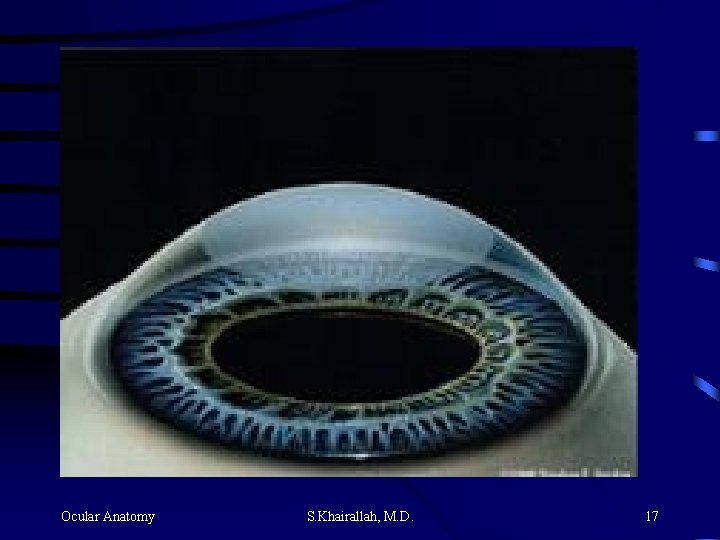

Ocular Anatomy S. Khairallah, M. D. 17

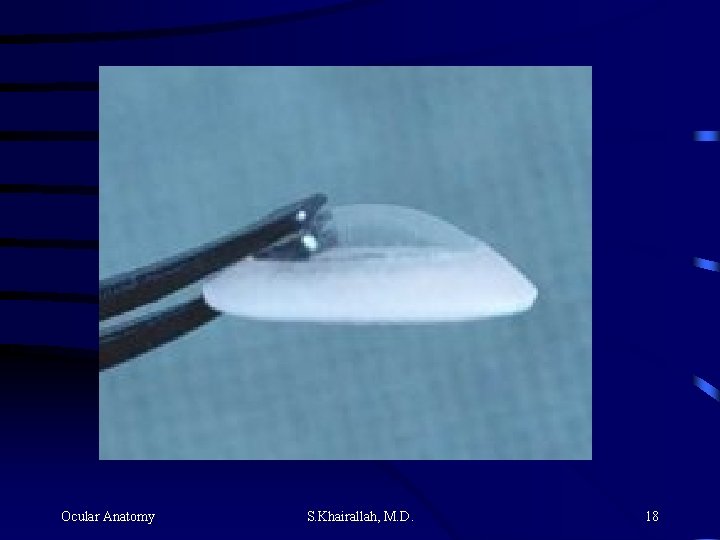

Ocular Anatomy S. Khairallah, M. D. 18

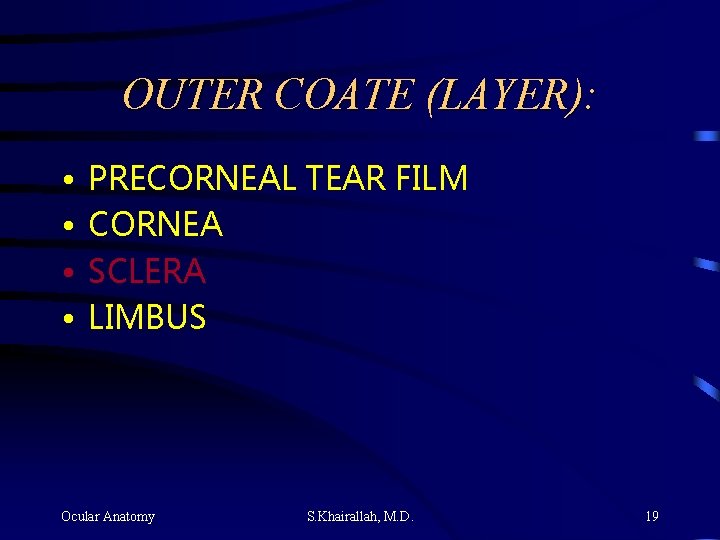

OUTER COATE (LAYER): • • PRECORNEAL TEAR FILM CORNEA SCLERA LIMBUS Ocular Anatomy S. Khairallah, M. D. 19

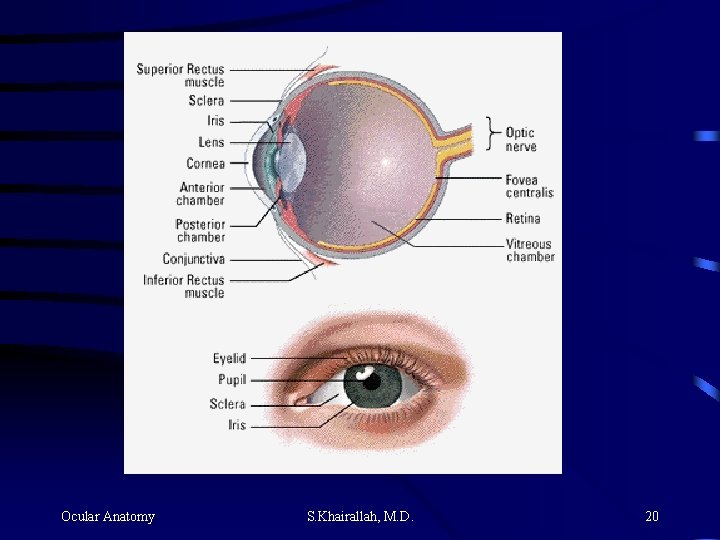

Ocular Anatomy S. Khairallah, M. D. 20

Ocular Anatomy S. Khairallah, M. D. 21

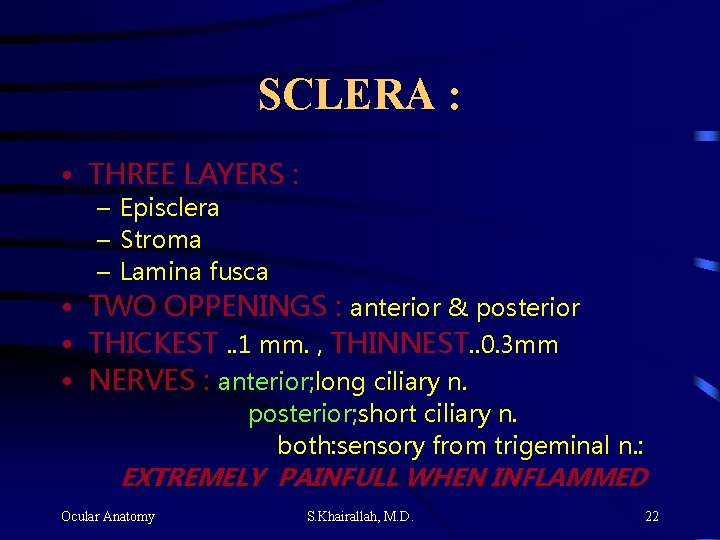

SCLERA : • THREE LAYERS : – Episclera – Stroma – Lamina fusca • TWO OPPENINGS : anterior & posterior • THICKEST. . 1 mm. , THINNEST. . 0. 3 mm • NERVES : anterior; long ciliary n. posterior; short ciliary n. both: sensory from trigeminal n. : EXTREMELY PAINFULL WHEN INFLAMMED Ocular Anatomy S. Khairallah, M. D. 22

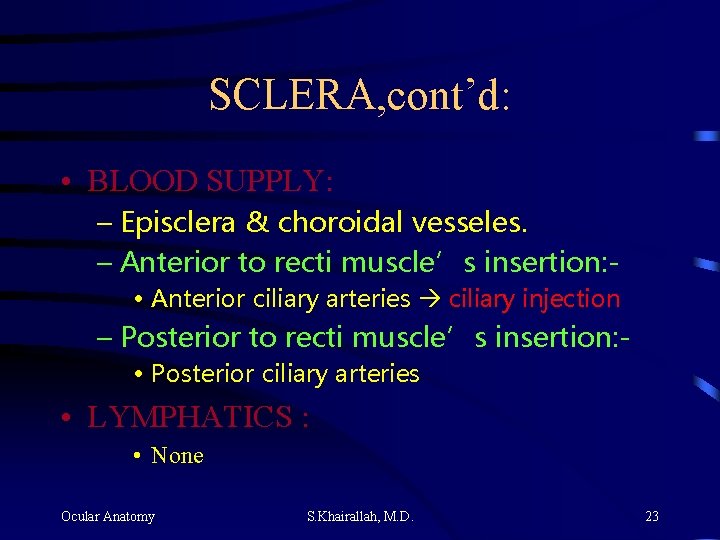

SCLERA, cont’d: • BLOOD SUPPLY: – Episclera & choroidal vesseles. – Anterior to recti muscle’s insertion: • Anterior ciliary arteries ciliary injection – Posterior to recti muscle’s insertion: • Posterior ciliary arteries • LYMPHATICS : • None Ocular Anatomy S. Khairallah, M. D. 23

OUTER COATE (LAYER): • • PRECORNEAL TEAR FILM CORNEA SCLERA LIMBUS Ocular Anatomy S. Khairallah, M. D. 24

Ocular Anatomy S. Khairallah, M. D. 25

Ocular Anatomy S. Khairallah, M. D. 26

LIMBUS: • It is corneo-scleral junction • Covered by conj. /Tenon’s capsule • Aqueous humor drainage system • Nerves: autonomic n. & sensory from trigeminal n. • Blood: ant. ciliary arteries&episcleral vesseles Ocular Anatomy S. Khairallah, M. D. 27

COATES OF EYE OUTER CORNEA MIDDLE “Uveal tract” IRIS RETINA LIMBUS CILIARY BODY _____ SCLERA CHOROID _____ Ocular Anatomy S. Khairallah, M. D. INNER 28

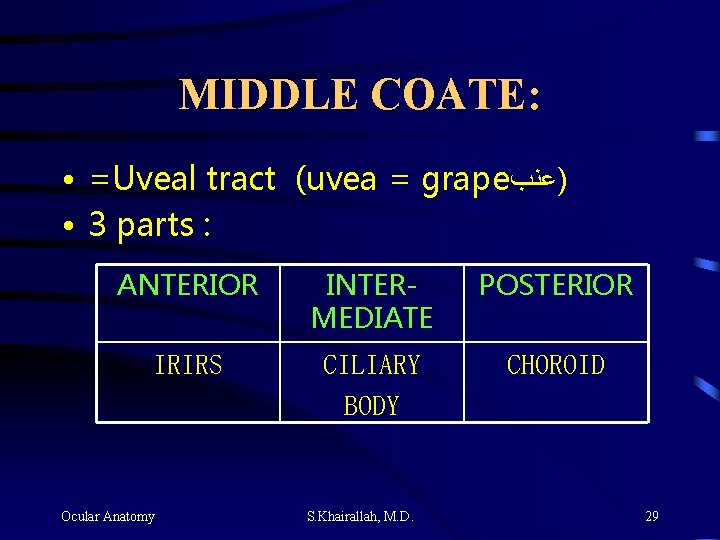

MIDDLE COATE: • =Uveal tract (uvea = grape )ﻋﻨﺐ • 3 parts : ANTERIOR INTERMEDIATE POSTERIOR IRIRS CILIARY BODY CHOROID Ocular Anatomy S. Khairallah, M. D. 29

Ocular Anatomy S. Khairallah, M. D. 30

Ocular Anatomy S. Khairallah, M. D. 31

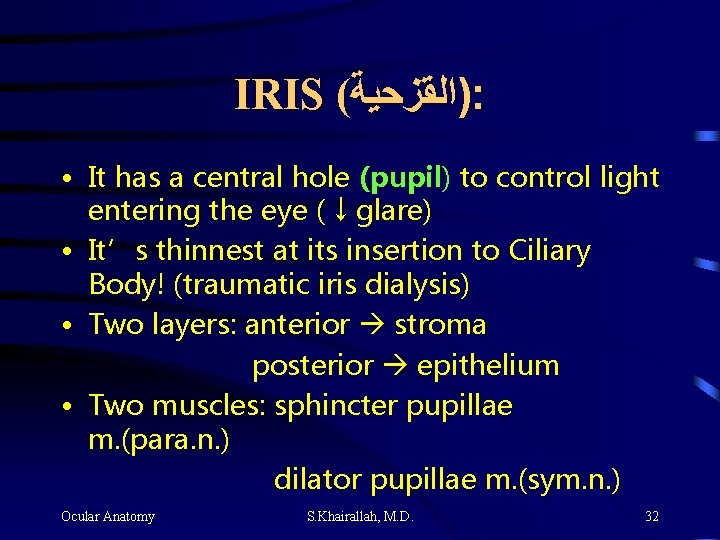

IRIS ( )ﺍﻟﻘﺰﺣﻴﺔ : • It has a central hole (pupil) to control light entering the eye ( ↓ glare) • It’s thinnest at its insertion to Ciliary Body! (traumatic iris dialysis) • Two layers: anterior stroma posterior epithelium • Two muscles: sphincter pupillae m. (para. n. ) dilator pupillae m. (sym. n. ) Ocular Anatomy S. Khairallah, M. D. 32

IRIS, cont’d: IRIS, • Blood : major arterial circle of iris • Nerve : sensory, nasociliary n. (5 th C. N. ) Ocular Anatomy S. Khairallah, M. D. 33

CILIARY BODY: • It’s a triangular organ, base forward • Two portions: uveal & epithelial – Uveal portion: 3 muscles; longitudinal, radial and circular – Epithelial portion: pars plicata & pars plana • Blood: majot arterial circle of iris • Nerve: short ciliary nerves Ocular Anatomy S. Khairallah, M. D. 34

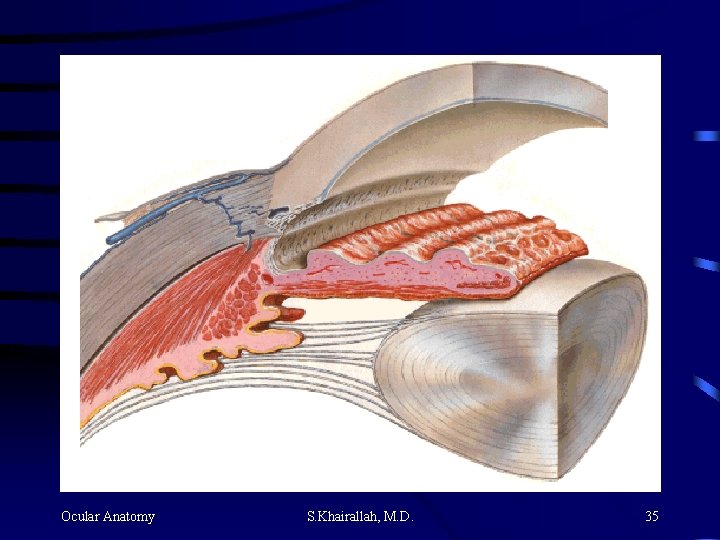

Ocular Anatomy S. Khairallah, M. D. 35

Ocular Anatomy S. Khairallah, M. D. 36

CHOROID: • It’s posterior part of uveal tract • It’s 3 vascular layers , inner most : choriocapillaris • Blood: anterior & post. Ciliary arteries , drainage via vortex veins • Nerve : short ciliary nerves Ocular Anatomy S. Khairallah, M. D. 37

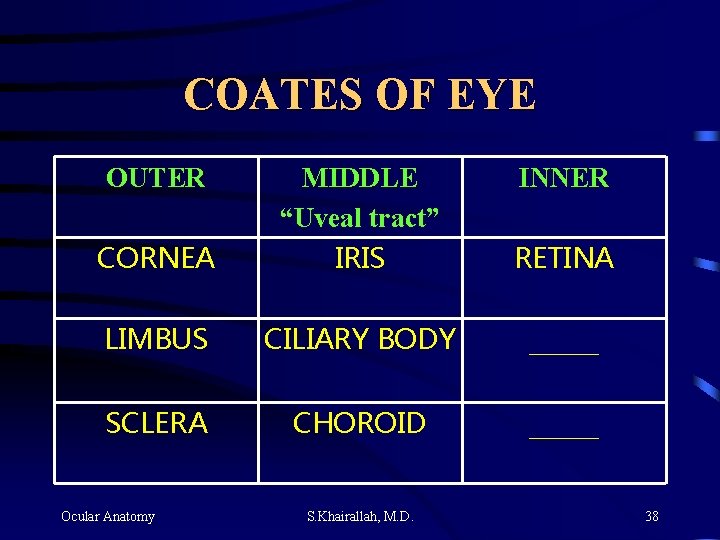

COATES OF EYE OUTER CORNEA MIDDLE “Uveal tract” IRIS RETINA LIMBUS CILIARY BODY _____ SCLERA CHOROID _____ Ocular Anatomy S. Khairallah, M. D. INNER 38

Ocular Anatomy S. Khairallah, M. D. 39

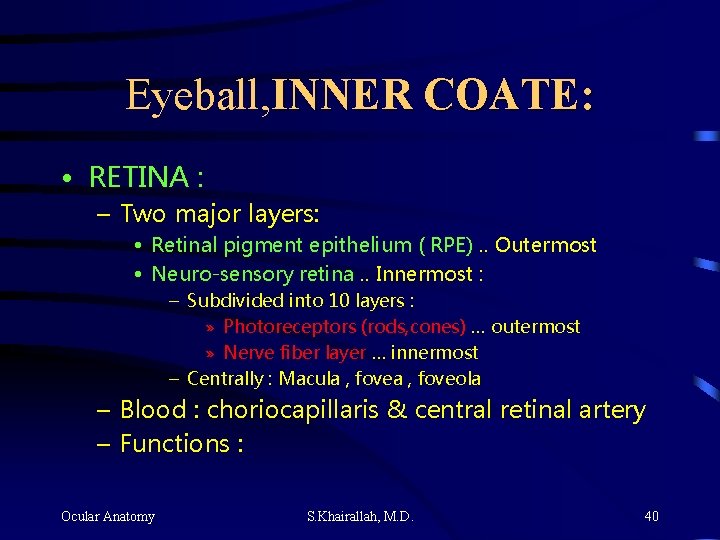

Eyeball, INNER COATE: • RETINA : – Two major layers: • Retinal pigment epithelium ( RPE). . Outermost • Neuro-sensory retina. . Innermost : – Subdivided into 10 layers : » Photoreceptors (rods, cones) … outermost » Nerve fiber layer … innermost – Centrally : Macula , foveola – Blood : choriocapillaris & central retinal artery – Functions : Ocular Anatomy S. Khairallah, M. D. 40

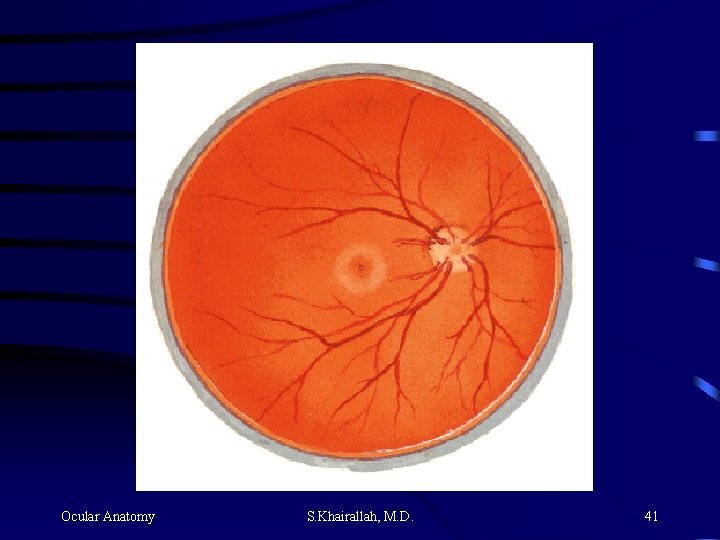

Ocular Anatomy S. Khairallah, M. D. 41

Ocular Anatomy S. Khairallah, M. D. 42

Ocular Anatomy S. Khairallah, M. D. 43

THE GLOBE(EYEBALL): • • TOPOGRAPHY & OPTICAL SYSTEM LAYERS(COATES) CHAMBERS LENS & ZONULES Ocular Anatomy S. Khairallah, M. D. 44

Eye, CHAMBERS: ANT. CH M. Anteriorly Cornea posteriorl Iris, lens y Laterally A/c angle --medially 0. 20 ml volume Aqueous h. Filled by Ocular Anatomy POS. CHM VIT. CAVI T Iris L. , zon. , CB Ant vit face Ret. , opt. n. Cil process Retina Lens equato --- 0. 06 ml 4. 50 ml Aqueous h. Vitreous h. S. Khairallah, M. D. 45

Ocular Anatomy S. Khairallah, M. D. 46

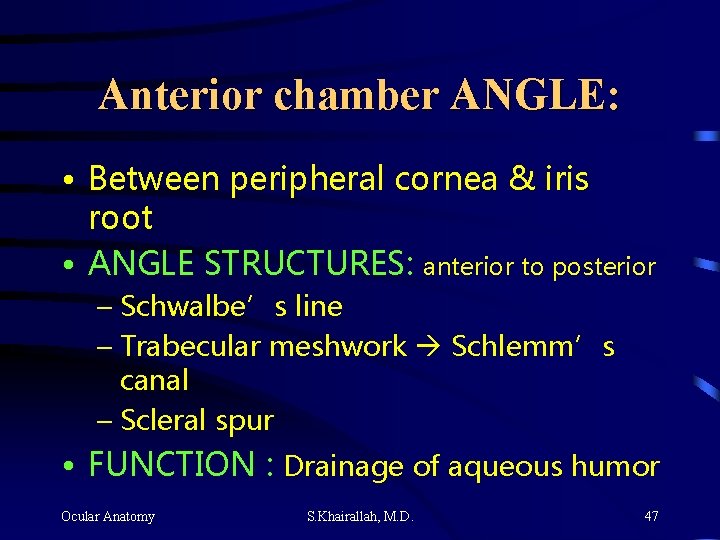

Anterior chamber ANGLE: • Between peripheral cornea & iris root • ANGLE STRUCTURES: anterior to posterior – Schwalbe’s line – Trabecular meshwork Schlemm’s canal – Scleral spur • FUNCTION : Drainage of aqueous humor Ocular Anatomy S. Khairallah, M. D. 47

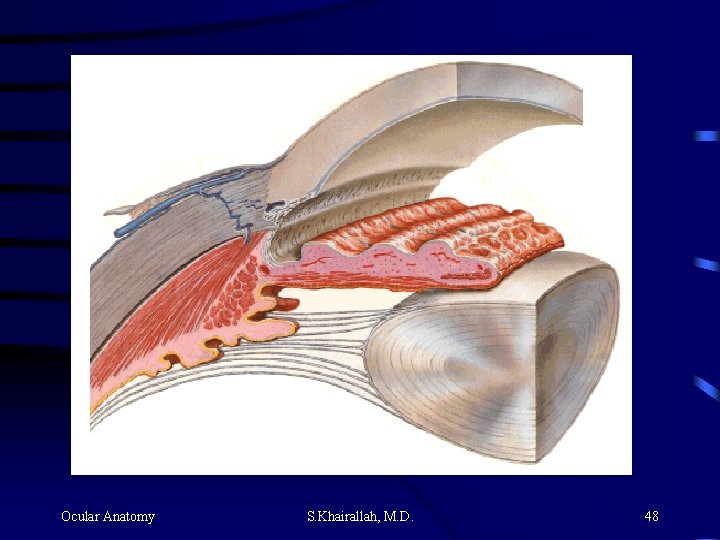

Ocular Anatomy S. Khairallah, M. D. 48

Ocular Anatomy S. Khairallah, M. D. 49

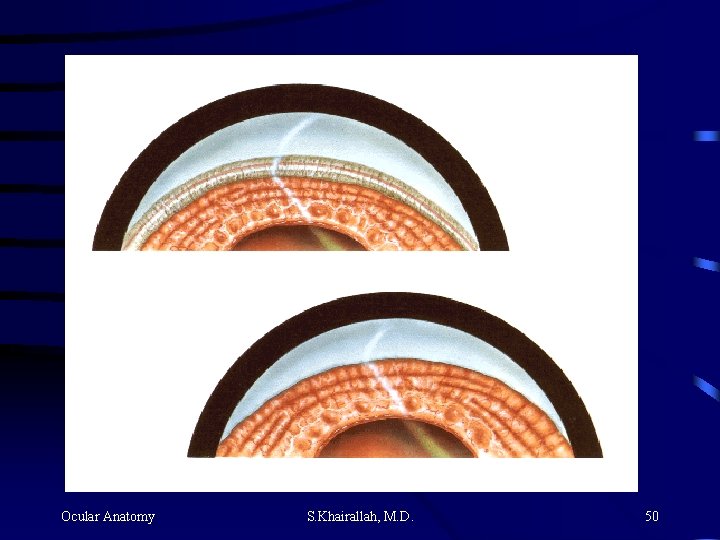

Ocular Anatomy S. Khairallah, M. D. 50

Ocular Anatomy S. Khairallah, M. D. 51

Ocular Anatomy S. Khairallah, M. D. 52

THE GLOBE(EYEBALL): • • TOPOGRAPHY & OPTICAL SYSTEM LAYERS(COATES) CHAMBERS LENS & ZONULES Ocular Anatomy S. Khairallah, M. D. 53

Ocular Anatomy S. Khairallah, M. D. 54

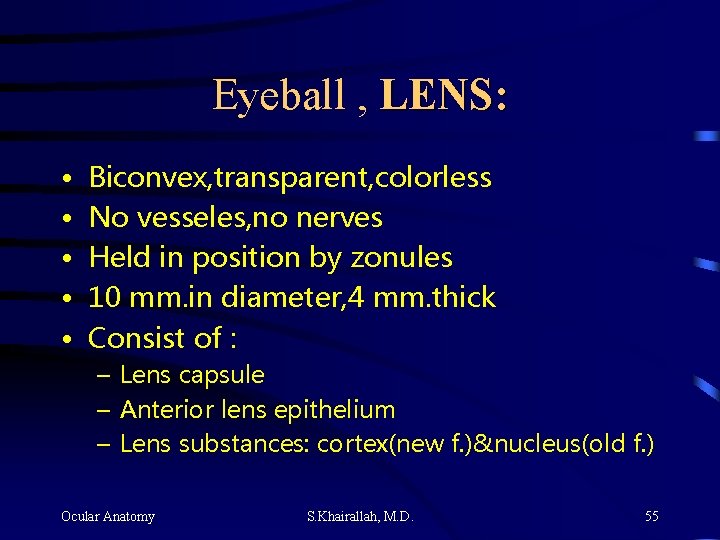

Eyeball , LENS: • • • Biconvex, transparent, colorless No vesseles, no nerves Held in position by zonules 10 mm. in diameter, 4 mm. thick Consist of : – Lens capsule – Anterior lens epithelium – Lens substances: cortex(new f. )&nucleus(old f. ) Ocular Anatomy S. Khairallah, M. D. 55

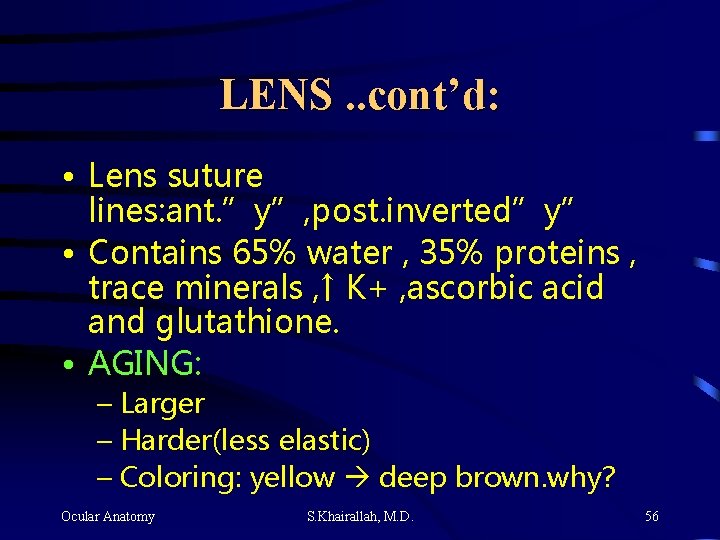

LENS. . cont’d: • Lens suture lines: ant. ”y”, post. inverted”y” • Contains 65% water , 35% proteins , trace minerals , ↑ K+ , ascorbic acid and glutathione. • AGING: – Larger – Harder(less elastic) – Coloring: yellow deep brown. why? Ocular Anatomy S. Khairallah, M. D. 56

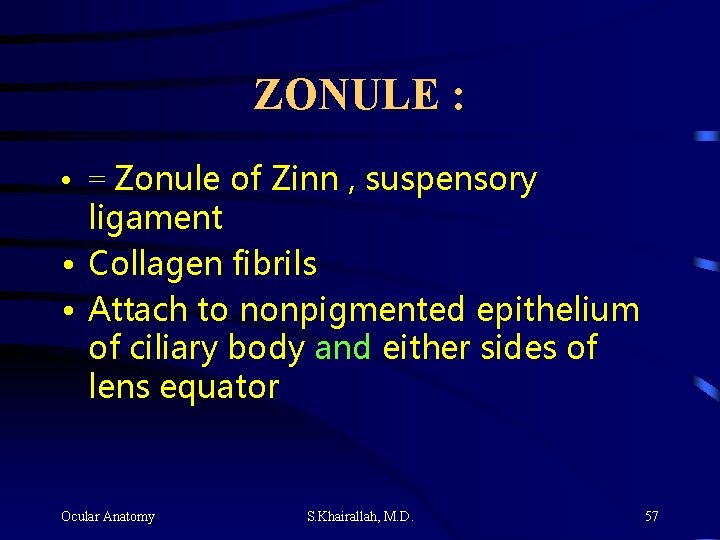

ZONULE : • = Zonule of Zinn , suspensory ligament • Collagen fibrils • Attach to nonpigmented epithelium of ciliary body and either sides of lens equator Ocular Anatomy S. Khairallah, M. D. 57
