Octopus Deploy Customization and Automation with NET and

Octopus Deploy Customization and Automation with. NET and Power. Shell There and back again

Who am I? Ian Paullin Architect/Dev. Ops/. NET Programmer 5 years with Avanade, 10 years in. NET New Dad Seahawks Fan

What are we talking about? Our story with Octopus Intro to Octopus REST API How to get started Demos Octo. exe Power. Shell Demo Post message to Slack

Why are we talking about this? Octopus is awesome Automation is awesome Octopus is extremely extensible Octopus extensibility + automation = more awesome

I thought it would be like. .

In retrospect. .

Our Story Take Octopus Deploy to the masses. Ensure 24/7 uptime. Limit specific users to deploy to production. February 2014 – May 2014 (Pilot approx. 10 teams) June 2014 – February 2015 Goal - 120 projects on board by Feb/Mar 2015 February 2015 upgrade: from 2. 5. 4 to 2. 5. 12 (eventually to 2. 5. 13) Problems emerged with upgrade March 2015 – October 2015 Stabilization + growth November 2015 – January 2016 More stabilization and automation More users/projects/servers Testing Octopus 3. 1. x – 3. 2. x

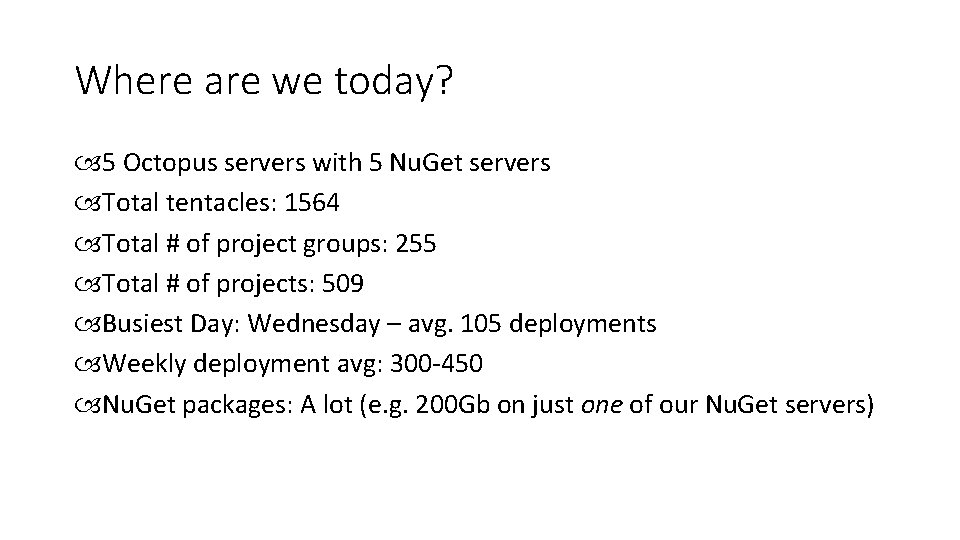

Where are we today? 5 Octopus servers with 5 Nu. Get servers Total tentacles: 1564 Total # of project groups: 255 Total # of projects: 509 Busiest Day: Wednesday – avg. 105 deployments Weekly deployment avg: 300 -450 Nu. Get packages: A lot (e. g. 200 Gb on just one of our Nu. Get servers)

Scaling Octopus can do it, but we didn’t realize all contributing factors Nu. Get issues – with free Nu. Get. Server Was recommended to use Nu. Get. Lucene or Nu. Get Gallery My. Get. org/Pro. Get No feed maintenance means large feeds over time (3 -10 gb and thousands of packages) Solution Reduce packages in feeds (manually )) IIS Fileshares circumvent issue with Nu. Get client DLL Octopus Server File Handles Max capacity of listening tentacles (listening uses 1 thread per machine!) Nu. Get communication issues Solution Determine upper limit Balance team tentacle size across number of servers Switch to polling mode for tentacles (no thread per each polling tentacle like listening mode) Deleting old/stale projects

Lessons Learned Research was difficult (at the time) No real documentation on Octopus on massive scaling (everything is relative) My failure to reach out before hand to determine how to best scale Our use case maybe outside of scope of Octopus? Not quite – but 3. x changes everything about Octopus Deploy Estimation Pilot proved it could work but estimating scaling or load was very obfuscated by numerous aspects (Nu. Get, tentacle communications, server configuration, etc. ) Initial estimate of teams moving to Octopus way too low. Monitoring Sumo. Logic – we had for IIS for Nu. Get. Server but didn’t use it correctly at beginning App. Dynamics – added late to really foresee issues but invaluable today Not constantly watching environments – too many machines added

Lessons Learned (con’t) Raven. DB limitations of scale Primarily licensing issue limiting to 3 CPU cores and 6 GB (embedded/ISV) Nancy. FX is nice but. . Shielded information about user sessions from us Now Octopus 3. x has logging feature for sessions Understand Limits/Tolerance If you don’t know them, find them out (break your stuff if you can) If you can’t find them, constantly watch out for multiple factors (monitoring) Monitoring especially at enterprise scale is not optional

What really worked well Provisioning Automate process to create a team within Octopus. By hand, could take 25 to 30 minutes – sometimes a lot longer. Automating process meant 30 to 45 seconds of filling out fields and executing a deployment Automatically create Nu. Get feed on Nu. Get server for each project (isolation) Integration with Active Directory Groups and TFS AD Groups makes life much easier Can build a customize new Octopus Deploy server with one provisioning script Permissions model is complicated, but extremely effective for our needs. This is 100% automated from the provisioning process Reporting Reports on how many deployments; how frequent; to which environments, etc. Error reports and frequency tracking

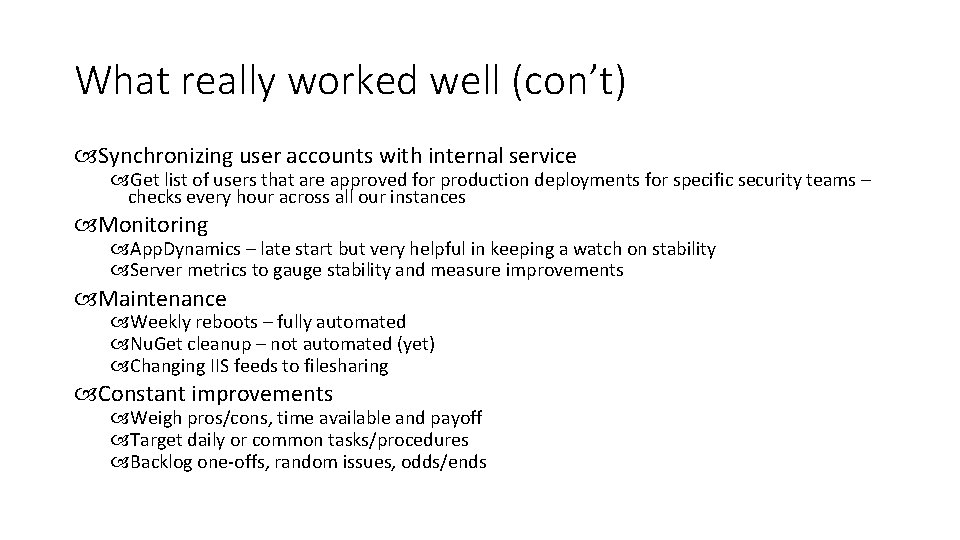

What really worked well (con’t) Synchronizing user accounts with internal service Get list of users that are approved for production deployments for specific security teams – checks every hour across all our instances Monitoring App. Dynamics – late start but very helpful in keeping a watch on stability Server metrics to gauge stability and measure improvements Maintenance Weekly reboots – fully automated Nu. Get cleanup – not automated (yet) Changing IIS feeds to filesharing Constant improvements Weigh pros/cons, time available and payoff Target daily or common tasks/procedures Backlog one-offs, random issues, odds/ends

Odds and ends User Education Some of our users still don’t use optimize Octopus. They can cause lots of problems with an entire instance and can make server unstable at least for 2. 5. 13 (backups, canceling/starting deployments, long running processes, etc. ) Documentation + videos + guidance sessions still not enough for some Good users are always willing to learn and improve but it takes time to see benefits Excellent users are fewer in number, but really good in maximizing octopus Teams change therefore users change; re-education is cyclical and therefore problematic over time

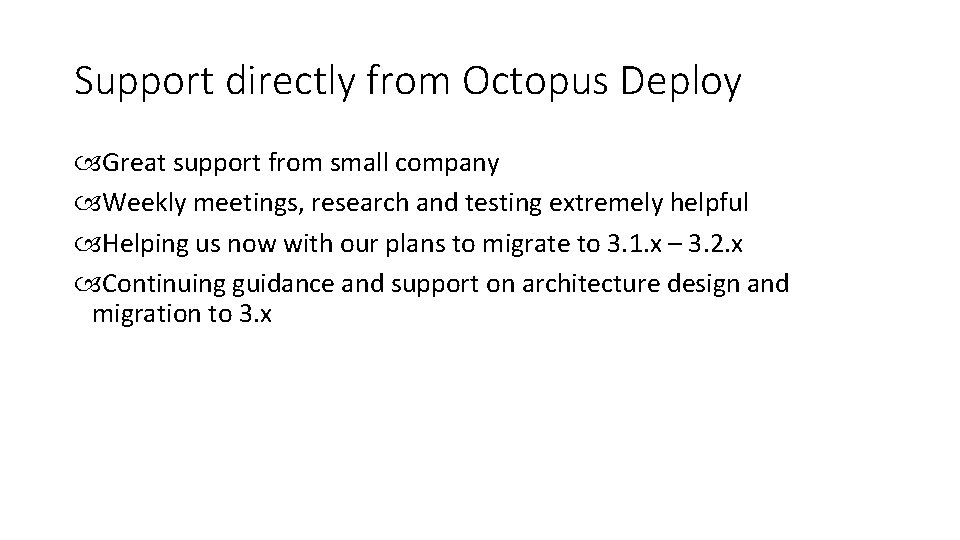

Support directly from Octopus Deploy Great support from small company Weekly meetings, research and testing extremely helpful Helping us now with our plans to migrate to 3. 1. x – 3. 2. x Continuing guidance and support on architecture design and migration to 3. x

Keys to winning Perseverance Keep at it Watch closely and at high-level Monitoring + reports help make sense of what’s going on and what may happen Continually improve aspects in and around Octopus Deploy Improvements or tweaks, no matter how small, add value over time Automate With Octopus REST API, we can script repeatable tasks for everything Customize With Octopus REST API, we can extend Octopus in almost any way we want

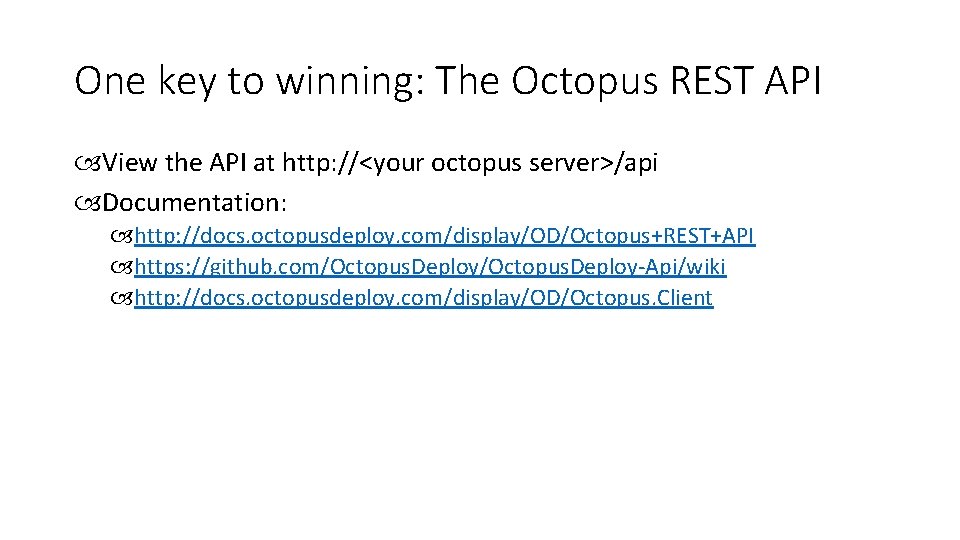

One key to winning: The Octopus REST API View the API at http: //<your octopus server>/api Documentation: http: //docs. octopusdeploy. com/display/OD/Octopus+REST+API https: //github. com/Octopus. Deploy-Api/wiki http: //docs. octopusdeploy. com/display/OD/Octopus. Client

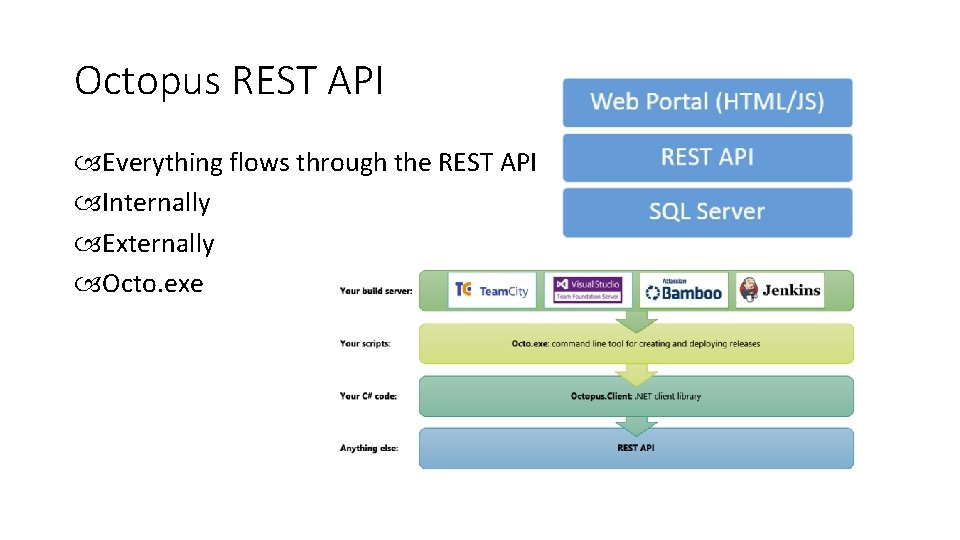

Octopus REST API Everything flows through the REST API Internally Externally Octo. exe

Octopus REST API - Demos Look at the octo. exe Query Octopus Deploy server directly via Power. Shell Simple test message to Slack during deployment

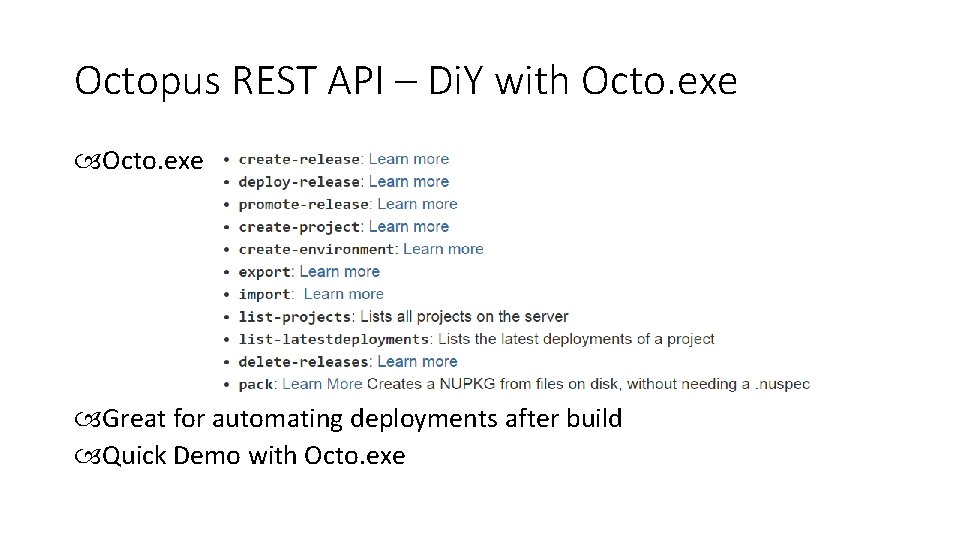

Octopus REST API – Di. Y with Octo. exe Great for automating deployments after build Quick Demo with Octo. exe

Octopus REST API – Di. Y with Power. Shell/C# You need 3 DLLs (found in tentacle/server installation folder) Newtonsoft. Json. dll Octopus. Client. dll Octopus. Platform. dll REST API URL exposes what’s available APIKey and appropriate permissions for the user account (or service account) dictate what’s allowed for interaction; no username/password! Quick Demo for Power. Shell Report example

Octopus REST API – Sample Report

Automation/Customization Ideas Examples Any task done more than two or three times Windows Tasks that can be scheduled indefinitely Write to log or database for auditing history Integration with 3 rd party tools/platforms Synchronization of users – if a small subset of users is allowed Scheduled reboots – if necessary Security checks – especially for AD groups Integration with Slack for messages of deployments

Integration with Slack is a 3 rd party collaboration/messaging platform that allows users to chat as well as programmable bots or external parties Idea: for every deployment in Octopus, send message to Slack Demo

Octopus REST API conclusion Not enough to just automate deployments. There’s lots of things around deployments that need automation as well. Without the REST API, it’s much harder if not impossible to customize and automate as we did. Many creative solutions possible – imagination and time are only barriers.

Thanks to. . Octopus Deploy team Damian Brady Vanessa Love Paul Stovell Thadd Parker (@tptechgeek) For stats and sample report and sample C# code Gandalf the Pug https: //www. reddit. com/r/pics/comments/3 pgtyr/gandalf_the_pug/
