Octane Number for Alkylate by ZX101 XL Portable

Octane Number for Alkylate by ZX-101 XL Portable Analyzer Are a Unit Operating Procedure # 3 Lab OPS-LB-PS-020 Job Hazards Yes Job Hazards Access and Egress Moving Parts Activities of Others Noise Adverse Weather Rail Movement Chemical Exposure Sharp Edges Electricity Slips, Trips, and Falls Fatigue Static Electricity Fire and Explosion Trip Injuries Ground Contamination Trapped Pressure Manual Handling Working at Height Revision # Certified by Scope / Objective Yes Date Page 10. 11. 201 1 1 of 2 PPE This procedure describes the operation of the Zeltex ZX-101 XL portable octane analyzer. The instrument employs nearinfrared spectroscopy for the analysis of refinery alkylate samples. Standard (SSP-0011) Use Y Full Face Shield / Goggles Hood Clothing—Chemical Protection Gloves—Chemical Personal Fall Protection References / Documents Respirator / Filter Mask q MSDS on gasoline. q Unit Safe Upper & Lower Limits Spreadsheet Supplied Air Other: Equipment Materials and Reagents q Zeltex ZX-101 XL Portable Octane q Sample Holders Analyzer Special Instructions Environmental Octane Number for Alkylate by ZX-101 XL Portable Analyzer 1 Switch power on; instrument will display “Clear Chamber and Press Measure”. 2 Ensure sample chamber is empty and cover chamber with the light shield. 3 Press MEASURE key to zero instrument. 4 Fill supplied sample cup to mark with sample. 5 Once zeroing completed, “Put in sample” will display. NOTE: Instrument only allows 30 seconds for screen instructions to be performed. If this limit is exceeded screen will display “TIMEOUT” and analysis must be repeated. 6 Remove light shield from sample chamber. 7 Place filled sample cup in chamber being careful to align the alignment stripe on sample holder with the left alignment stripe on the instrument. 8 Replace light shield over sample holder. 9 Press MEASURE – once measurement is completed “Remove and Replace” will be displayed. 10 Remove sample holder and rotate to align the alignment stripe with the right alignment stripe on instrument. 11 Replace light shield. Completed Date: Note: Prepared By: Approved By: This procedure is only valid at the time of printing. The control version can be found on the Meraux Refinery intranet.

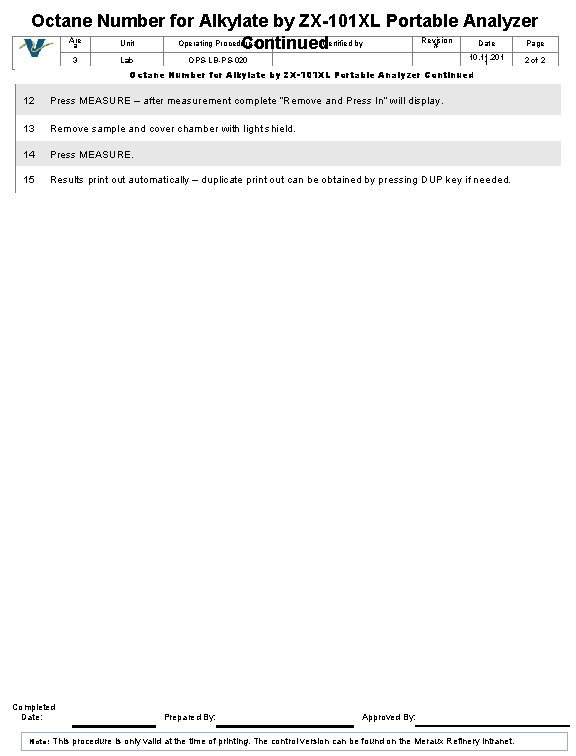

Octane Number for Alkylate by ZX-101 XL Portable Analyzer Are Revision Unit Operating Procedure # Certified by Date Page a # Continued 3 Lab 10. 11. 201 1 OPS-LB-PS-020 Octane Number for Alkylate by ZX-101 XL Portable Analyzer Continued 12 Press MEASURE – after measurement complete “Remove and Press In” will display. 13 Remove sample and cover chamber with light shield. 14 Press MEASURE. 15 Results print out automatically – duplicate print out can be obtained by pressing DUP key if needed. Completed Date: Note: Prepared By: Approved By: This procedure is only valid at the time of printing. The control version can be found on the Meraux Refinery intranet. 2 of 2
