OCEANWELL Separate Electronic Bidet E 552 OCEANWELL Separate

OCEANWELL Separate Electronic Bidet E 552

OCEANWELL Ø Separate Electronic Bidet Features： 1. Round shape and semi wrap-over design with a simple and intuitive interface; 2. Adjustable water temperature and water flow rate. Model E 552 3. Adjustable position of the washing nozzle with pulsating and oscillating massage; 4. Soft closing seat and cover with quick release function; 5. Universal shape design, and suitable for most European standard ceramic toilets. Washing Quick release Nightlight 6. CE certification. Page 1

Ø Separate Electronic Bidet OCEANWELL l Remote Control: All smart functions are controlled through a simple remote control. l Buttons: buttons at the side of bidet seat for easy operation of washing. Page 2

Ø Separate Electronic Bidet OCEANWELL Drawing (Unit: mm) Page 3

OCEANWELL Ø Separate Electronic Bidet Technical Specification Water supply connector Adaptable rated voltage Power cord length Applicable water supply pressure range Applicable water supply temperature Ambient temperature Waterproof rate Water flow rate Water temperature Washing cycle Water heating mode Maximum heater power Safety device of the washing Back flow Prevention Other safety device G 1/2 AC 220 -240 V，50/60 HZ 950 W 1. 8 m 0. 07～ 0. 75 MPa(0. 7～ 7. 5 Bar) 4～ 35℃ 4～ 40℃ IPX 4 350～ 650 m. L/min 31～ 39℃ 3 Minutes Storage Tank 1200 W Thermal Cutoff FusesLiquid Level SwitchThermostat Air Gap Residual Current Devices Page 4

OCEANWELL Ø Separate Electronic Bidet Function List Rear Wash ● Lady Wash ● Oscillating massage ● Pulsating massage ● Oscillating and Pulsating Spray ● Adjustable Water Temperature (5 steps) ● Adjustable Water Flow Rate (5 steps) ● Adjustable Spray Position (5 steps) ● Nozzle Self-Cleaning ● Nozzle Manually-Cleaning ● Night Light ● Soft Closing Seat and Cover ● Remote Control ● Quick release toilet seat ● Page 5

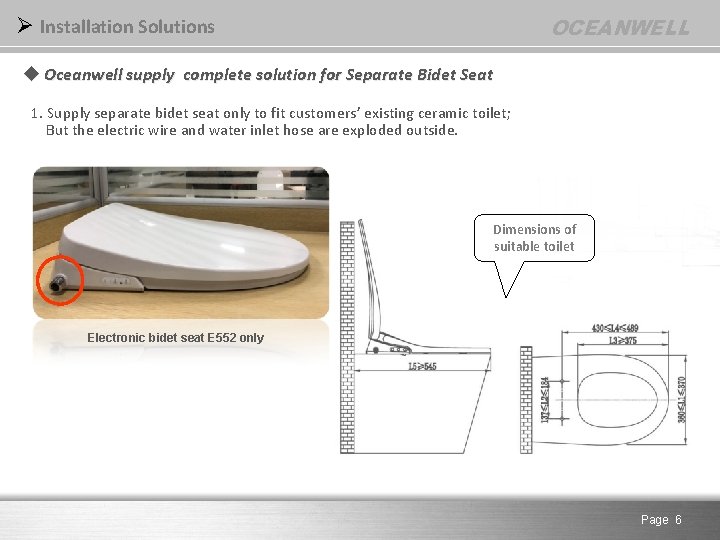

OCEANWELL Ø Installation Solutions u Oceanwell supply complete solution for Separate Bidet Seat 1. Supply separate bidet seat only to fit customers’ existing ceramic toilet; But the electric wire and water inlet hose are exploded outside. Dimensions of suitable toilet Electronic bidet seat E 552 only Page 6

OCEANWELL Ø Installation Solutions u Oceanwell supply complete solution for Separate Bidet Seat 2. Supply separate bidet seat with ceramic toilet as a unit, with electric wire and water inlet hose hidden. Electronic bidet seat E 552 + Ceramic toilet with extra pre-drilled holes in the ceramic toilet to hide the electric wire and water inlet hose Page 7

Ø Installation Solutions OCEANWELL u Oceanwell supply complete solution for Separate Bidet Seat 3. Supply separate bidet seat with normal one-piece or two-piece ceramic toilet. Page 7

OCEANWELL If you have more inquires, welcome to contact us. Email: cindy. liu@oceanwellxm. cn Tel: 0086 -592 -5714993 Mob: 0086 -13400782089
