Oceanic ITP Airborne Traffic Situational Awareness InTrail Procedure

Oceanic ITP · Airborne Traffic Situational Awareness · – In-Trail Procedure (ATSA-ITP) · Presented to the ASAS Thematic Network 2 · Malmo, Sweden · September 27, 2005 · · · Stephane Marche Ken Jones Tom Graff

Outline ATSA - ITP · Background – Oceanic Challenges – TCAS In-Trail Climb/Descent · Airborne Traffic Situational Awareness – In-Trail Procedure – Overview – Chronology of RFG activities · Summary 2

North Atlantic Organized Track System Overview and Technical Challenges ATSA - ITP · Extended periods out of radar coverage · Large longitudinal and lateral separation minima required for safe procedural separation · Most airlines want the same tracks and altitudes results in altitude “congestion” · Safe, efficient (from a traffic flow perspective) operations but many times not fuel efficient operations Solution Optimal Compromise · Aircraft “stuck” at a non-optimal altitude due to traffic “congestion” – For efficient operations, aircraft need to climb as they burn fuel – Due to traffic congestion at higher altitudes, aircraft often restricted from climbing · Use airborne surveillance and onboard tools to facilitate altitude changes for greater fuel efficiency 3

South Pacific Oceanic Region Overview and Technical Challenges ATSA - ITP · “Virtual tracks” – Two types of routes – Fixed and User Preferred Routes (UPR) – Fixed routes do not account for wind or weather (or airline efficiency considerations) – UPR’s – optimized routes generated by individual customers (preferred solution) – Most UPR’s are generated by similar programs based on same wind data so most end up on similar routes · Pairwise congestion – Aircraft leave the west coast of the United States about the same time – Aircraft generally end up causing altitude restrictions to each other a portion of the way into the flight – Aircraft not able to operate as efficiently due to traffic conflicts 4

Oceanic Non-Radar Airspace Summary of Problems ATSA - ITP · Extended periods out of radar coverage · Large longitudinal and lateral separation minima required for safe procedural separation at reporting points · Difficult for crew to get climb approval or predict when approval may be granted – Cleared for one altitude on entire track route (eg NATOTS) – Pair-wise congestion preventing climbs when needed (eg SOPAC) · Must carry (and possibly burn) contingency fuel · Potential diversion if aircraft operates at significantly other than optimal altitudes due to traffic constraints · Difficult to escape a turbulent altitude due to pair-wise “congestion” 5

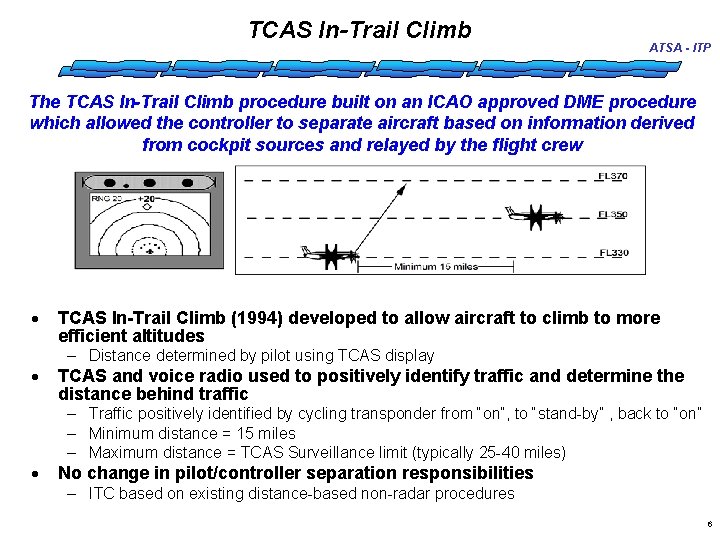

TCAS In-Trail Climb ATSA - ITP The TCAS In-Trail Climb procedure built on an ICAO approved DME procedure which allowed the controller to separate aircraft based on information derived from cockpit sources and relayed by the flight crew · · · TCAS In-Trail Climb (1994) developed to allow aircraft to climb to more efficient altitudes – Distance determined by pilot using TCAS display TCAS and voice radio used to positively identify traffic and determine the distance behind traffic – Traffic positively identified by cycling transponder from “on”, to “stand-by” , back to “on” – Minimum distance = 15 miles – Maximum distance = TCAS Surveillance limit (typically 25 -40 miles) No change in pilot/controller separation responsibilities – ITC based on existing distance-based non-radar procedures 6

Airborne Traffic Situational Awareness - In-Trail Climb ATSA - ITP FL 360 FL 350 FL 340 Current Separation Requirement blue = ADS-B transceiver and onboard decision support system red = ADS-B out minimum required · · As with TCAS in-trail climb, if traffic conflict geometry and dynamics are appropriate, controller can approve climb based on information derived in the cockpit – No delegation of separation responsibility – Controller approves climb with knowledge of all aircraft (including non-equipped aircraft) On-board system is used to provide required information and addresses TCAS ITC deficiencies – Use ADS-B “in” and on-board automation to provide target a/c flight ID, ground speed and range information · Eliminates need for communication with target a/c · Addresses ALPA concerns with TCAS ITC (cumbersome procedures, safety system cycled on and off, lack of flight ID) · Eliminates TCAS dropped targets 7

Airborne Traffic Situational Awareness - In-Trail Procedures ATSA - ITP · Oceanic in-trail climb safety case can be developed based on an update to the previously accepted TCAS ITC safety case · For increased utilization of the procedures, other maneuvers can be considered that utilize same equipment and similar procedures · Further safety analyses need to be performed for these additional maneuvers · In-Trail Procedure broken up into six maneuvers – In-trail climb – In-trail descent – Leading climb – Leading descent – Combination of in-trail and leading climb – Combination of in-trail and leading descent 8

Airborne Traffic Situational Awareness - In-Trail Procedures Increased Opportunities for Flight Level Changes ATSA - ITP QRestrictions based on today’s procedures and standards Ø Co-speed @ Mach. 80 10 minute separation, ~80 nm required Ø No climbs allowed if other traffic are in the red hatched area FL 360 FL 350 -80 nm FL 340 QOpportunities for climbs using ATSA - ITP Ø Maximum closure rate = 20 kts, minimum initiation range = 15 nm, minimum climb rate = 300 fpm Ø No climbs allowed if other traffic are in the red hatched area FL 360 FL 350 -15 nm FL 340 9

Airborne Traffic Situational Awareness - In-Trail Procedures Operator Benefits/Interest ATSA - ITP · Airline return on investment and resulting incentive to equip is key to any operational implementation · Airlines have been studying oceanic operations looking for potential improvements – “Small” changes to operations can result in significant fuel savings (long “leg” lengths) – Oceanic operations compromise 30% of a domestic airline’s total annual fuel consumption! Aviation fuel cost per gallon – Fuel costs increasing · "On average, fuel accounts for 16 percent of airline operating costs. Fuel prices are 55 percent higher than one year ago. This could add between $8 and $12 billion to our annual fuel bill and threatens to strangle our modest projected return to profitability. Instead of flying high, we could be left swimming in red ink. “ · Giovanni Bisignani, Head, International Air Transport Association, 27 May 2004 Source: Bureau of Transportation Statistics – Flexible operations can also prevent flights from experiencing costly diversions · Potential fuel savings of ~$160, 000 per airplane per year 10

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed concept of operations · ATSA - ITP Detailed concept of operations for improved oceanic operations – Establish a single, globally accepted, Concept of Operations – Results in a globally accepted set of standards for the procedure · Requirements Focus Group (RFG) – Established to develop co-ordinated requirements across multiple ADS-B applications to harmonize avionics standards · Oceanic ADS-B ITP Application Description (Operational and Service Environment Description or OSED) – ADS-B ITP Application Description development led by NASA and Airbus · Co-Editors: Ken Jones (NASA), Stephane Marche (Airbus) – Approximately 40 international participants contributed to the development of the document – Three versions of the document produced and released internationally for comment – Two international workshops held to address substantive issues 11

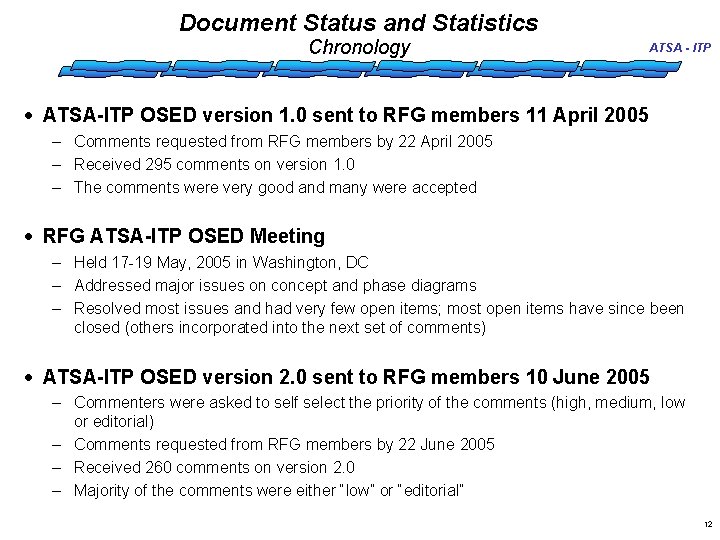

Document Status and Statistics Chronology ATSA - ITP · ATSA-ITP OSED version 1. 0 sent to RFG members 11 April 2005 – Comments requested from RFG members by 22 April 2005 – Received 295 comments on version 1. 0 – The comments were very good and many were accepted · RFG ATSA-ITP OSED Meeting – Held 17 -19 May, 2005 in Washington, DC – Addressed major issues on concept and phase diagrams – Resolved most issues and had very few open items; most open items have since been closed (others incorporated into the next set of comments) · ATSA-ITP OSED version 2. 0 sent to RFG members 10 June 2005 – Commenters were asked to self select the priority of the comments (high, medium, low or editorial) – Comments requested from RFG members by 22 June 2005 – Received 260 comments on version 2. 0 – Majority of the comments were either “low” or “editorial” 12

Document Status and Statistics Chronology (continued) ATSA - ITP · ATSA-ITP OSED meeting held at RFG/6 – Held July, 2005 in Malmo, Sweden – Addressed issues on concept and phase diagrams – Resolved all the major issues · ATSA-ITP OSED version 3. 0 sent to RFG members 5 August 2005 – Commenters were asked to self select the priority of the comments (high, medium, low or editorial) – Comments requested from RFG members by 9 September 2005 – Received 313 comments on version 3. 0 – Majority of the comments were either “low” or “editorial” – Next version to be released within the next couple of weeks · ATSA-ITP Operational Hazard Assessment (OHA) workshop to be held at RFG/7 – Held October 2005 in Brussels, Belgium 13

Airborne Traffic Situational Awareness - In-Trail Procedures Procedure Development and Approval ATSA - ITP · Desire global acceptance and approval of new oceanic procedures – Operators desire approved procedures that will be applicable in all oceanic domains – Implies ICAO approval required · South Pacific ICAO Procedures Development and Approval – NASA briefed the Informal South Pacific ATS Coordination Group (ISPACG) briefing in February 2005 – Very interested in supporting and approving the procedure in the South Pacific · North Atlantic ICAO Procedures Development and Approval – NASA briefed North Atlantic Implementation Management Group (NATIMG) briefing in April 2005 and the North Atlantic Air Traffic Management Working Group (NAT ATMG) in September 2005 – NAT ATMG will use a portion of the OSED developed by the RFG as a starting point for the ICAO procedure development 14

Oceanic ADS-B In-Trail Procedures (ITP) Proposed ADS-B ITP Flight Trials ATSA - ITP · Goal – Enable a 6 month operational flight trial of the proposed Oceanic ADS-B In -Trail Procedures on partner revenue aircraft · Objectives – Assess economic and operational feasibility of ADS-B In-Trail Procedures · Better understand system costs (flight deck, ground automation, etc. ) · Assess predicted benefits of ADS-B ITP · Gain operational experience with ASAS technologies – Establish basis for global ADS-B ITP implementation · Lessons learned and data obtained will be used to aid implementation globally · Participants/Location – Evaluating Oakland/SOPAC flight trial · Held preliminary flight trial meetings with potential partners – Interest level is very high – All participants desire to begin this within the next 18 months – Planning fall workshop 15

Summary ATSA - ITP Airborne Traffic Situational Awareness - In-Trail Procedures – Airborne ADS-B data and an onboard decision support system used to enable climbs and descents that are not possible within today’s separation standards – Addresses limitations of the existing TCAS In-Trail Climb procedure – Aircraft that choose to equip are able to perform these additional in-trail maneuvers and achieve more optimal altitudes – Results in more efficient and predictable flight profiles which translates into fuel savings and greater payload capacity – Design goals · Buy its way into the cockpit (voluntary operator participation) · Global interoperability (where adopted) · Possible growth path · Benefit for first to equip (without disincentive for non-equipped) 16

Back Up Slides ATSA - ITP 17

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed Procedures ATSA - ITP · Procedure description broken up into 4 phases Initiation, Instruction, Execution, and Termination · Definitions and Terms are key to understanding the procedure Other Aircraft Reference Aircraft Other Aircraft ITP Aircraft Standard Longitudinal Separation Requirement Potentially Blocking Aircraft ITP Criteria Standard Longitudinal Separation Requirement Requested Flight Level Intervening Flight Level Current Flight Level 18

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed Procedures – ITP Initiation ATSA - ITP Qualifications/Preconditions for Conducting the ITP – Airline operational specifications permit ITP – Flight crew of ITP aircraft is properly qualified for ITP maneuvers – ITP aircraft must: Ø Have ITP equipment, providing flight crew with flight ID, range and ground speed differential to potentially blocking aircraft Ø Have own-ship position data accuracy meeting requirement for ITP Ø Be on a same track with potentially blocking aircraft – Requested flight level shall be: Ø One same direction flight level above/below one intervening flight level Ø No more than 4000 feet above/below current flight level ITP Initiation Criteria – Range and ground speed differential criteria are met, for example: Ø Range from ITP aircraft to reference aircraft is greater than 15 NM, and Ø Positive ground speed differential is less than +20 knots – Reference aircraft has qualified ADS-B – ITP aircraft’s performance will enable a vertical speed of at least +/-300 fpm at assigned Mach number to requested flight level ITP Request – If ITP qualifications/preconditions and criteria are met, ITP aircraft crew requests ITP, providing the controller with flight ID and range of reference aircraft 19

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed Procedures – ITP Instruction ATSA - ITP Controller ITP Clearance Issuance – If safe longitudinal separation will be maintained, a standard flight level change clearance may be granted, if not – Controller: Ø validates flight ID of Reference Aircraft Ø determines there is no greater than +0. 03 Mach difference Ø verifies Reference Aircraft is not in the process of changing its flight level or direction – Based on the ITP Aircraft’s request and controller’s determination, the controller would grant ITP request ITP Crew Re-Assessment – After ITP clearance is issued, ITP Aircraft crew must again determine that ITP criteria are met immediately before initiating climb or descent 20

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed Procedures – ITP Execution ATSA - ITP During the ITP Maneuver Crew performance – Crew must: Ø initiate ITP without delay after receipt of clearance, (no different than initiating a standard climb or descent clearance) Ø strictly adhere to assigned Mach number during maneuver Ø maintain a minimum +/-300 fpm vertical speed throughout maneuver – ITP aircraft crew is not required to monitor the range to reference aircraft during climb or descent. – ITP flight crew reports established at new flight level Controller performance – After issuance of the ITP clearance, controller will: Ø protect ITP aircraft’s initial flight level until it reports established at new flight level (for non-normal case where ITP aircraft must return to initial flight level) Ø not issue any maneuver clearance to reference aircraft until ITP aircraft reports established at new flight level 21

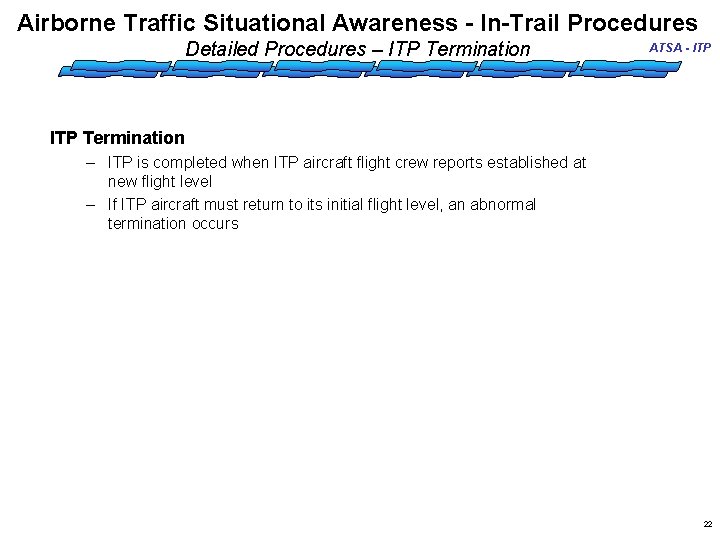

Airborne Traffic Situational Awareness - In-Trail Procedures Detailed Procedures – ITP Termination ATSA - ITP Termination – ITP is completed when ITP aircraft flight crew reports established at new flight level – If ITP aircraft must return to its initial flight level, an abnormal termination occurs 22

TCAS In-Trail Climb/Descent Chronology ATSA - ITP · Trial procedure approved for use in Oakland Anchorage FIRs – Only United and Delta approved for Phase 1 trials (10/94 – 3/96) · Both aircraft (the lead aircraft, and the one performing the ITC) had to be qualified · Phase 1 ITC trials – 68 ITCs requested and 37 ITCs performed in first 18 months of trial (10/943/96) – Limited utility due to · Both aircraft had to be participating (i. e. United and/or Delta) · Limited TCAS range, unreliability of TCAS at longer ranges to reacquire traffic when transponder cycled · Subsequent Actions – Rapidly fell out of favor, partially due to ALPA concerns – Airlines removed ITC procedures from their Aircraft Flight Manuals in 2000 – United has put TCAS ITC back in their manuals in the Pacific, primarily as a tool for turbulence avoidance · Airline Pilots Association (ALPA) expressed concerns over the procedure – Safety system cycled on and off – Lack of flight ID on display 23

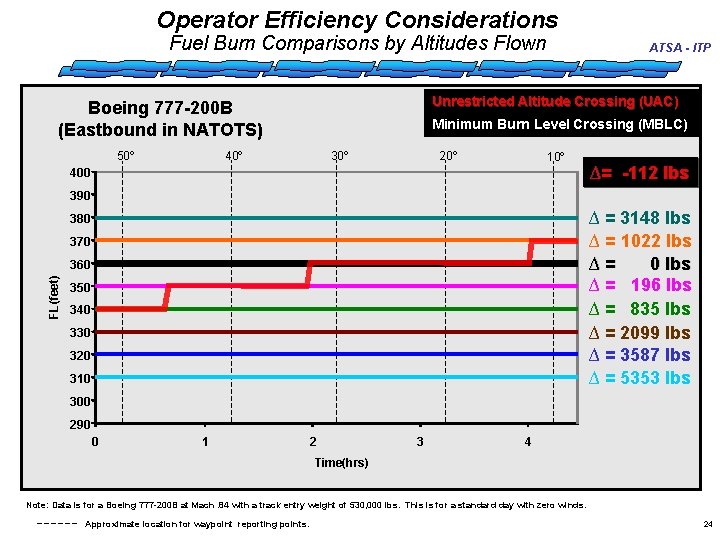

Operator Efficiency Considerations Fuel Burn Comparisons by Altitudes Flown Unrestricted Altitude Crossing (UAC) Boeing 777 -200 B (Eastbound in NATOTS) 50º ATSA - ITP Minimum Burn Level Crossing (MBLC) 40º 30º 20º 10º 400 ∆= -112 lbs 390 ∆ = 3148 lbs ∆ = 1022 lbs ∆= 0 lbs ∆ = 196 lbs ∆ = 835 lbs ∆ = 2099 lbs ∆ = 3587 lbs ∆ = 5353 lbs 380 370 FL(feet) 360 350 340 330 320 310 300 290 0 1 2 3 4 Time(hrs) Note: Data is for a Boeing 777 -200 B at Mach. 84 with a track entry weight of 530, 000 lbs. This is for a standard day with zero winds. Approximate location for waypoint reporting points. 24

Atlantic and Pacific Oceanic Regions and Route Structures · – Fixed routes similar to domestic airway structure – Do not account for changing wind or weather conditions – Reduce complexity for ATC, but are not always most efficient for customers · NATOTS NOPAC Fixed Routes (eg. , CEP) ATSA - ITP EUR-NAM PACOTS CENPAC WATRS EUR-CAR CEP SOPAC Organized Track Systems (eg. , NATOTS, PACOTS) – Flexible track system established by ATSP’s, utilizing forecasted weather conditions to produce the most time/fuel efficient routes for a representative city pair (established daily) · User Preferred Routes (UPRs) – Optimized routes generated by individual operators based on aircraft type, aircraft loading, weather and flight plan requirements – Advantages include optimum cruise trajectories (altitudes, routes), improved fuel efficiency, increased predictability on fuel usage and payload capacity 25
