Oceanic Imaging Consultants, Inc. Professional Seafloor Mapping Software * Services * Systems Manoa Innovation Center 1144 Tenth Avenue, Suite 200, Honolulu, HI 96816 (808) 539 -3706 * info@oicinc. com January, 2005 OIC Background

Earth Hawaiian Islands O`ahu Kaimuki January, 2005 OIC Background

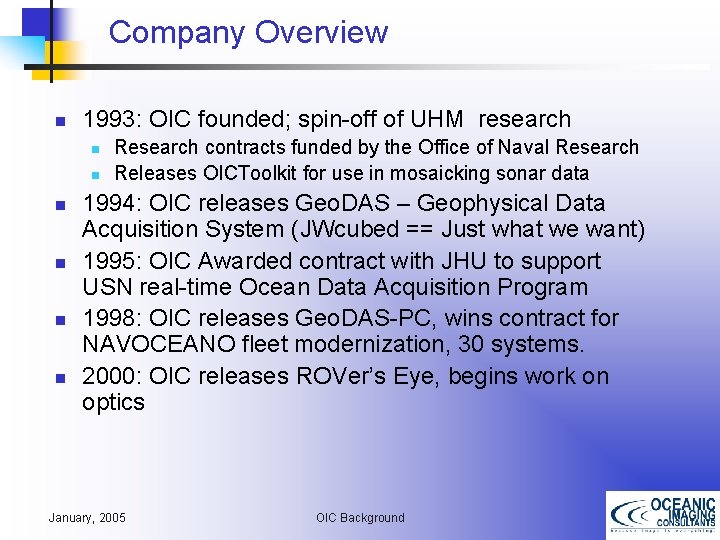

Company Overview n 1993: OIC founded; spin-off of UHM research n n n Research contracts funded by the Office of Naval Research Releases OICToolkit for use in mosaicking sonar data 1994: OIC releases Geo. DAS – Geophysical Data Acquisition System (JWcubed == Just what we want) 1995: OIC Awarded contract with JHU to support USN real-time Ocean Data Acquisition Program 1998: OIC releases Geo. DAS-PC, wins contract for NAVOCEANO fleet modernization, 30 systems. 2000: OIC releases ROVer’s Eye, begins work on optics January, 2005 OIC Background

OIC Client List (abbreviated) USN (via JHU, with Ultra) JHU Ocean Data Acquisition Program (ODAP) 6 systems to be deployed by 2007, SAS on the way NAVOCEANO TAGS-60 Fleet modernization plus HSL’s 30 systems, Klein, Edgetech, Benthos, MSTL Army Corps of Engineers Baltimore, Phili, New Orleans, Jacksonville, Mobile… Largely interfaced to Odom, Reson & Klein sonar Commercial Survey Groups Aero Asahi Survey, Sanyo, SAIC, C&C, Fugro, OSI, etc. Govt. Groups: JAMSTEC, KORDI, Port of London, Aberdeen Harbor, Singapore Navy, COMRA, WHOI, etc. January, 2005 OIC Background

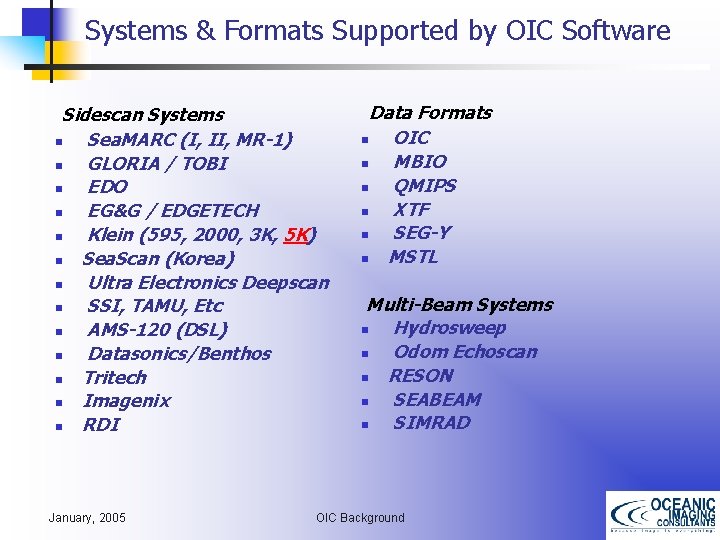

Systems & Formats Supported by OIC Software Sidescan Systems n Sea. MARC (I, II, MR-1) n GLORIA / TOBI n EDO n EG&G / EDGETECH n Klein (595, 2000, 3 K, 5 K) n Sea. Scan (Korea) n Ultra Electronics Deepscan n SSI, TAMU, Etc n AMS-120 (DSL) n Datasonics/Benthos n Tritech n Imagenix n RDI January, 2005 Data Formats n OIC n MBIO n QMIPS n XTF n SEG-Y n MSTL Multi-Beam Systems n Hydrosweep n Odom Echoscan n RESON n SEABEAM n SIMRAD OIC Background

What does OIC make? n Software and Systems for Seafloor Mapping n For Data Acquisition: n n For Post-Acquisition Processing: n Geo. DAS-Desktop - PC-based, playback, edit, mosaic OICToolkit: Full-featured Post-processing n New: PC-Version, OICCleansweep n n For Data Visualization/Analysis: n n n Geo. DAS: Geophysical Data Acquisition System ROVer’s Eye – Real-time 3 -D underwater VR OICClass: seafloor classification For Databasing and Charting: n Grid. Server and ERMapper January, 2005 OIC Background

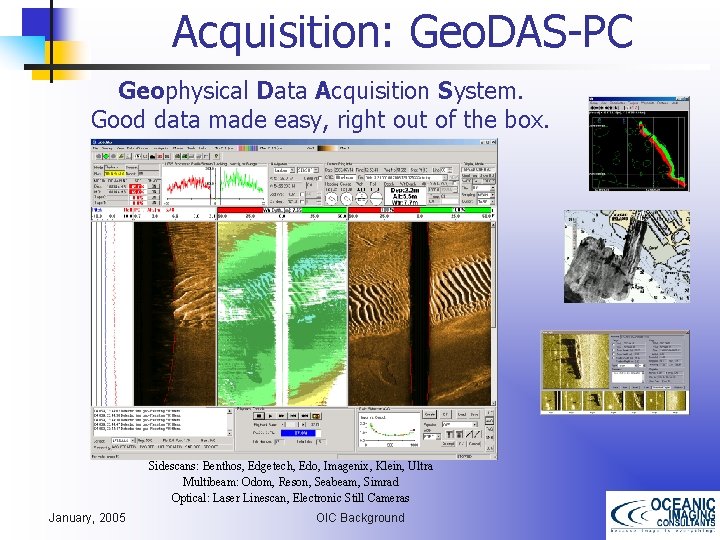

Acquisition: Geo. DAS-PC Geophysical Data Acquisition System. Good data made easy, right out of the box. Sidescans: Benthos, Edgetech, Edo, Imagenix, Klein, Ultra Multibeam: Odom, Reson, Seabeam, Simrad Optical: Laser Linescan, Electronic Still Cameras January, 2005 OIC Background

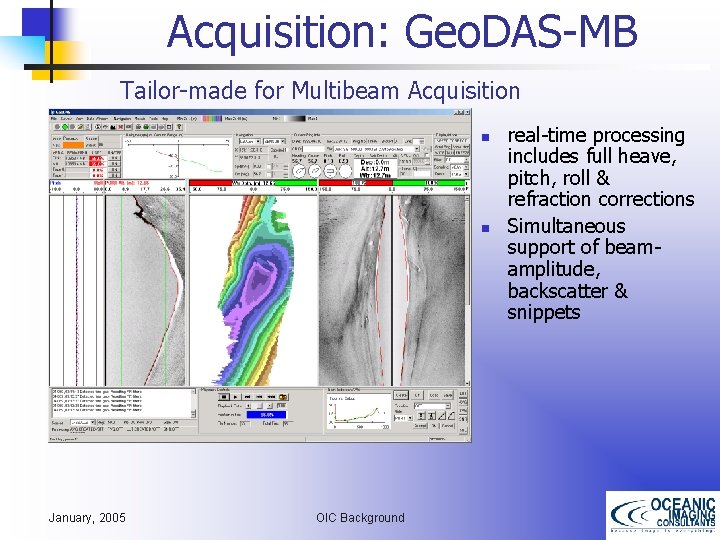

Acquisition: Geo. DAS-MB Tailor-made for Multibeam Acquisition n n January, 2005 OIC Background real-time processing includes full heave, pitch, roll & refraction corrections Simultaneous support of beamamplitude, backscatter & snippets

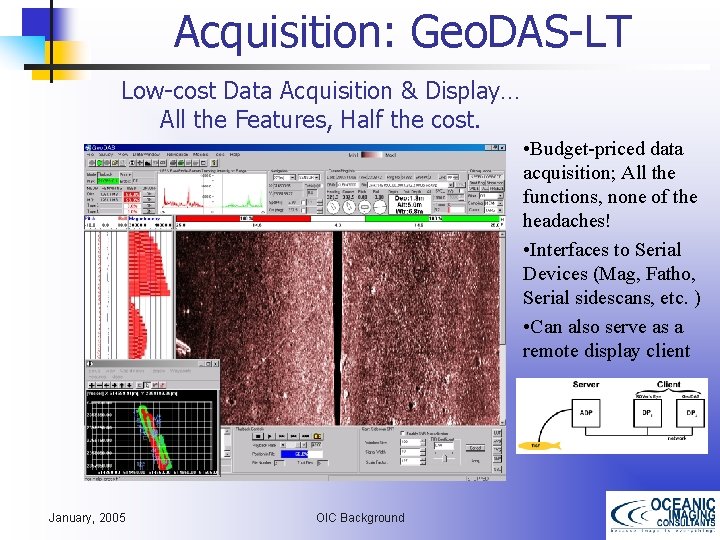

Acquisition: Geo. DAS-LT Low-cost Data Acquisition & Display… All the Features, Half the cost. • Budget-priced data acquisition; All the functions, none of the headaches! • Interfaces to Serial Devices (Mag, Fatho, Serial sidescans, etc. ) • Can also serve as a remote display client January, 2005 OIC Background

Post-Processing: Desktop Cost-effective Sonar Data Processing Software. Systems Supported : OIC, MSTL, C-MAX, QMIPS, XTF, Klein, Tritech & Imagenix January, 2005 OIC Background

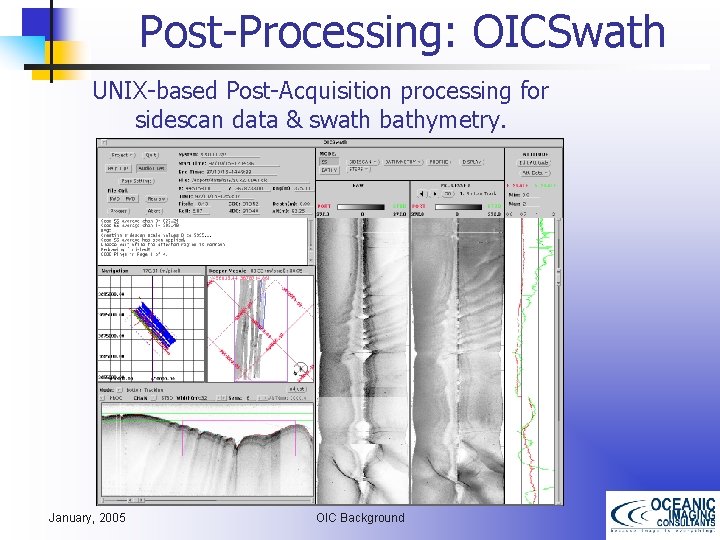

Post-Processing: OICSwath UNIX-based Post-Acquisition processing for sidescan data & swath bathymetry. January, 2005 OIC Background

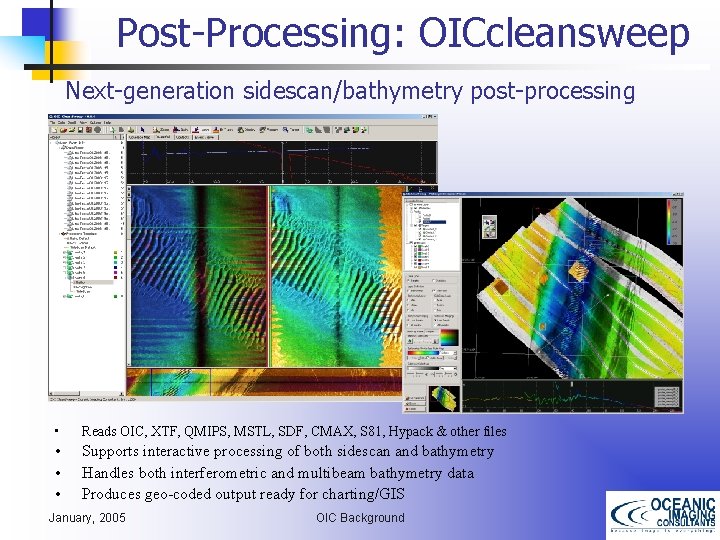

Post-Processing: OICcleansweep Next-generation sidescan/bathymetry post-processing • Reads OIC, XTF, QMIPS, MSTL, SDF, CMAX, S 81, Hypack & other files • • • Supports interactive processing of both sidescan and bathymetry Handles both interferometric and multibeam bathymetry data Produces geo-coded output ready for charting/GIS January, 2005 OIC Background

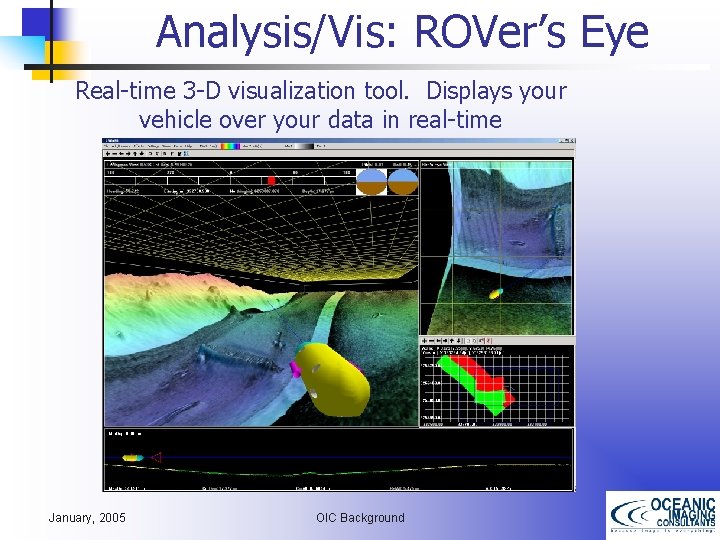

Analysis/Vis: ROVer’s Eye Real-time 3 -D visualization tool. Displays your vehicle over your data in real-time January, 2005 OIC Background

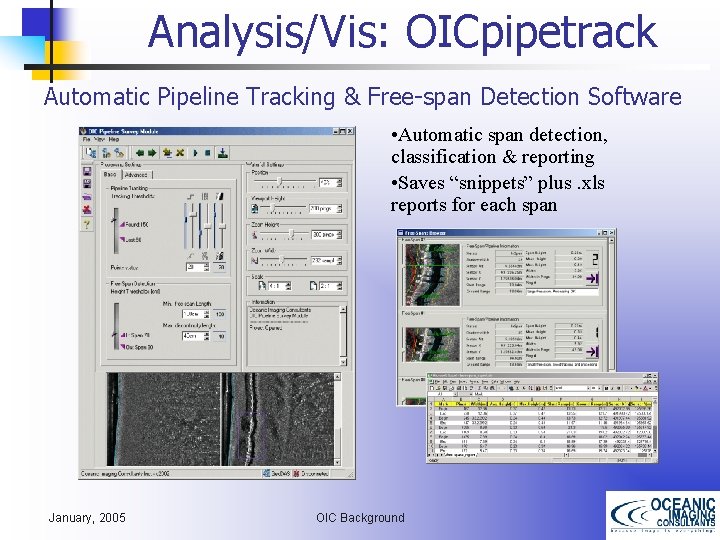

Analysis/Vis: OICpipetrack Automatic Pipeline Tracking & Free-span Detection Software • Automatic span detection, classification & reporting • Saves “snippets” plus. xls reports for each span January, 2005 OIC Background

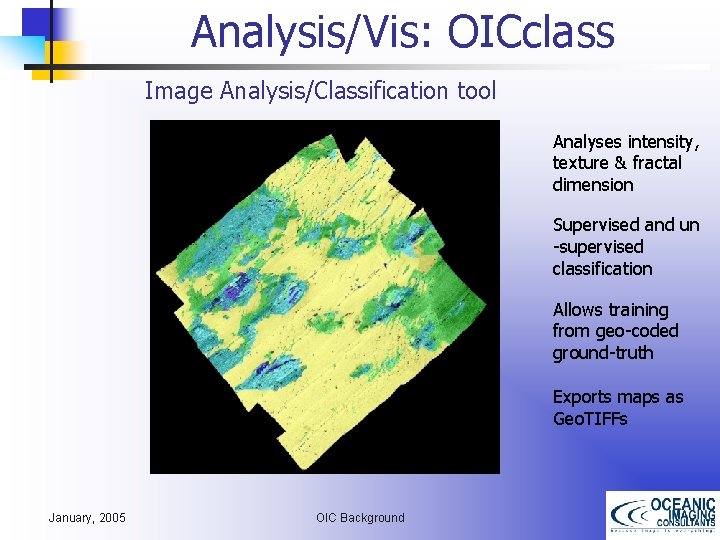

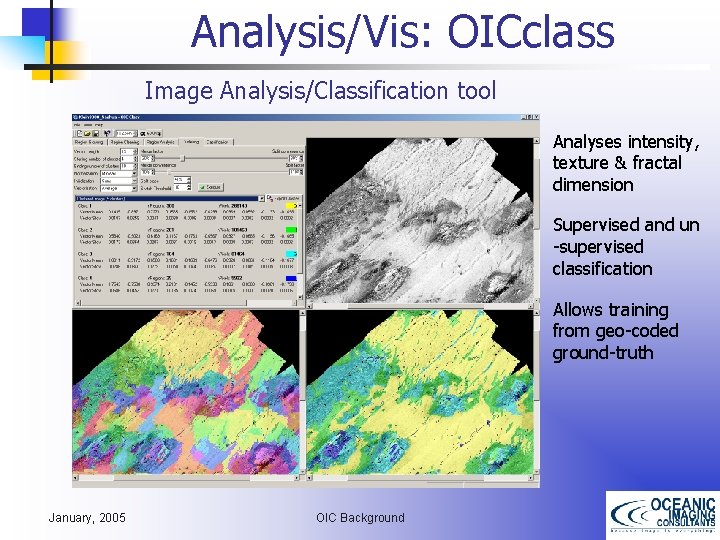

Analysis/Vis: OICclass Image Analysis/Classification tool Analyses intensity, texture & fractal dimension Supervised and un -supervised classification Allows training from geo-coded ground-truth January, 2005 OIC Background

Analysis/Vis: OICclass Image Analysis/Classification tool Analyses intensity, texture & fractal dimension Supervised and un -supervised classification Allows training from geo-coded ground-truth Exports maps as Geo. TIFFs January, 2005 OIC Background
