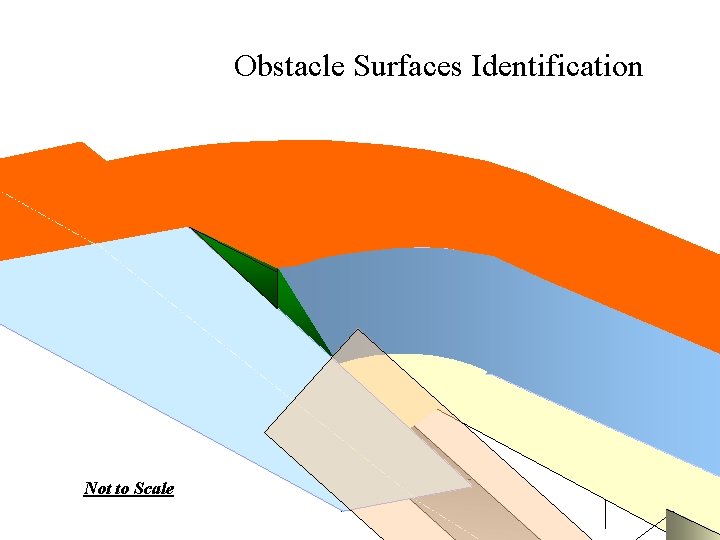

Obstacle Surfaces Identification Not to Scale ICAO Specs

Obstacle Surfaces Identification Not to Scale

ICAO Specs ICAO Annex 14 TO THE CONVENTION ON INTERNATIONAL CIVIL AVIATION, VOLUME I, AERODROME DESIGN AND OPERATIONS,

Lateral Surfaces Not to Scale

Runway Not to Scale

Runway Strip and Runway End Safety Area For the purposes of determining obstacles on the sides of the runway, the Runway Strip is referenced horizontally to the runway ends and vertically to the highest threshold on the facility. It extends 300 m (240 m beyond 60 m strip) from each runway end and 150 m on either side of the centerline. 150 m Not to Scale m 300 150 m

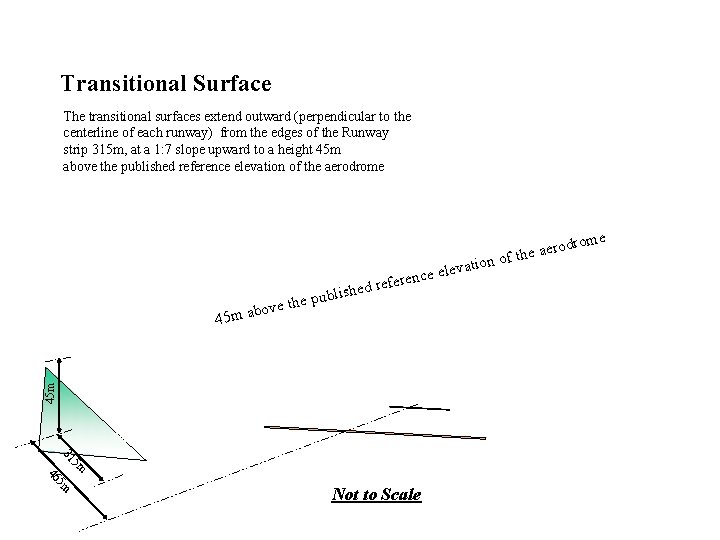

Transitional Surface The transitional surfaces extend outward (perpendicular to the centerline of each runway) from the edges of the Runway strip 315 m, at a 1: 7 slope upward to a height 45 m above the published reference elevation of the aerodrome ove tion o l a n o nsiti Tra 1: 45 m b 45 m a leva e e c n refere d e h s i l b the pu e lop 7 S 5 m 31 5 m 46 Not to Scale drome o r e a f the

Inner Horizontal Surface The inner horizontal surface for each runway is defined by 2 half circles centered on the runway ends and joined by tangents. The radii of the half circles is 4000 m and the tangents are parallel to the runway centerline at a distance of 4000 m. The surface is a constant 45 m above the published reference elevation of the aerodrome ation v e l e e c eren hed ref s i l b u p me ove the aerodro 45 m ab Inner 400 0 m al t n o z i Hor 4000 m CL Not to Scale of the

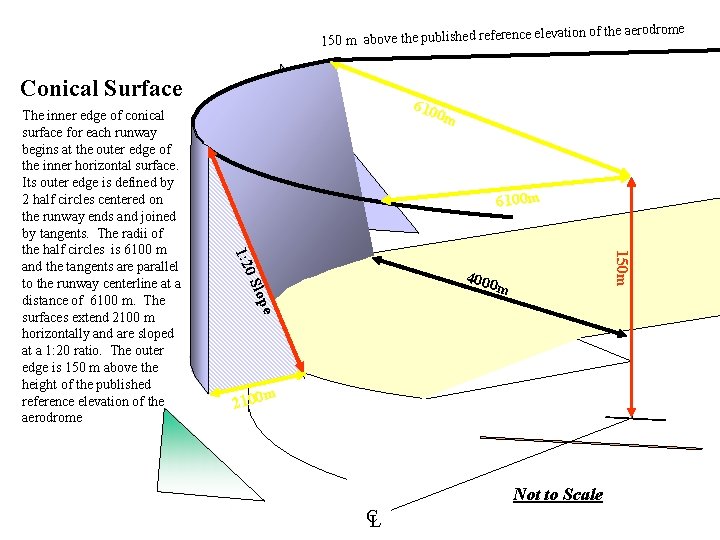

ion of the aerodrome elevat 150 m above the published reference Conical Surface 0 m 6100 m 150 m 0 1: 2 4000 m pe Slo The inner edge of conical surface for each runway begins at the outer edge of the inner horizontal surface. Its outer edge is defined by 2 half circles centered on the runway ends and joined by tangents. The radii of the half circles is 6100 m and the tangents are parallel to the runway centerline at a distance of 6100 m. The surfaces extend 2100 m horizontally and are sloped at a 1: 20 ratio. The outer edge is 150 m above the height of the published reference elevation of the aerodrome Conical 610 m 2100 Not to Scale CL

Outer Horizontal 8000 m 8000 m The Outer Horizontal surface begins at the outer edge of the conical surface and extends outward to a distance of 8000 m from the endpoints and centerline of the runway at a constant height of 150 m above the published reference elevation of the aerodrome 150 m Outer Horizontal Surface CL Not to Scale

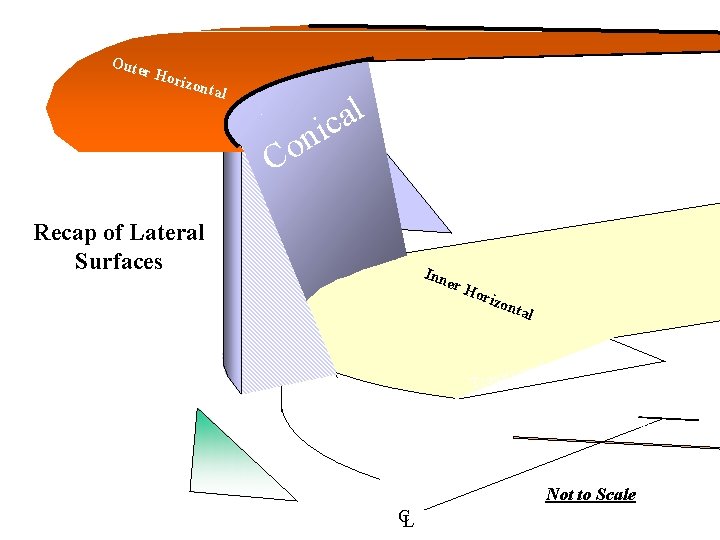

Oute r Ho rizon tal o C l a nic Recap of Lateral Surfaces Inn er H oriz ont a l onal i t i s n Tra Runw ay St rip Not to Scale CL

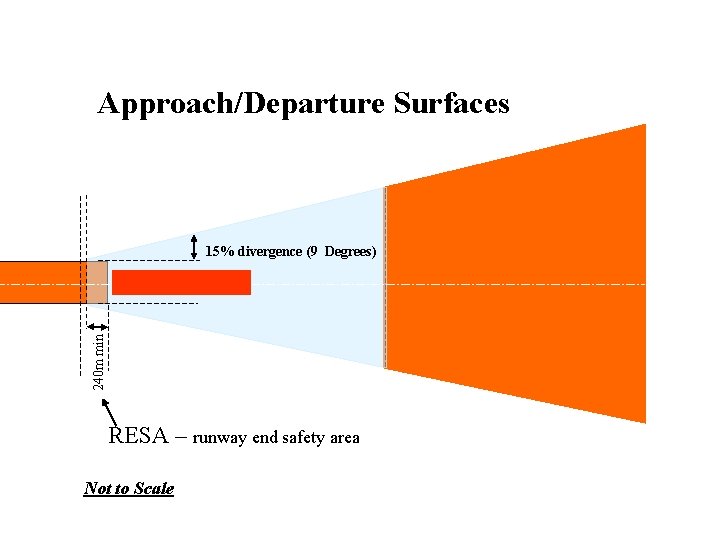

Approach/Departure Surfaces 240 m min 15% divergence (9 Degrees) RESA – runway end safety area Not to Scale

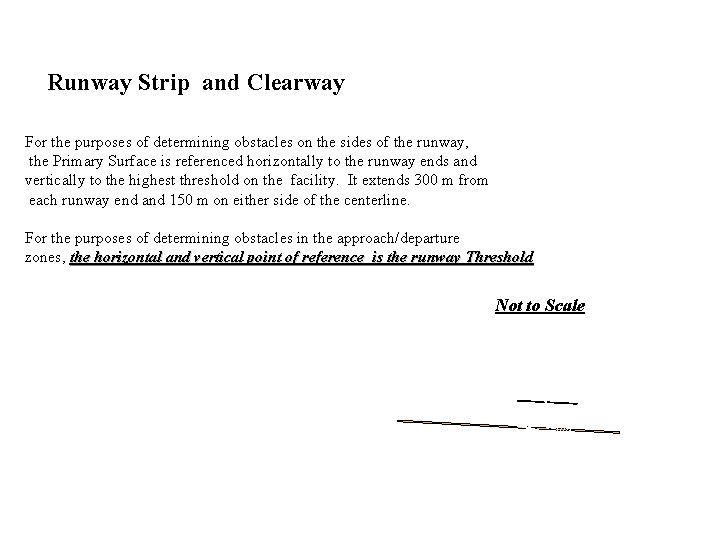

Runway Strip and Clearway For the purposes of determining obstacles on the sides of the runway, the Primary Surface is referenced horizontally to the runway ends and vertically to the highest threshold on the facility. It extends 300 m from each runway end and 150 m on either side of the centerline. For the purposes of determining obstacles in the approach/departure zones, the horizontal and vertical point of reference is the runway Threshold Not to Scale 150 m m 300 150 m

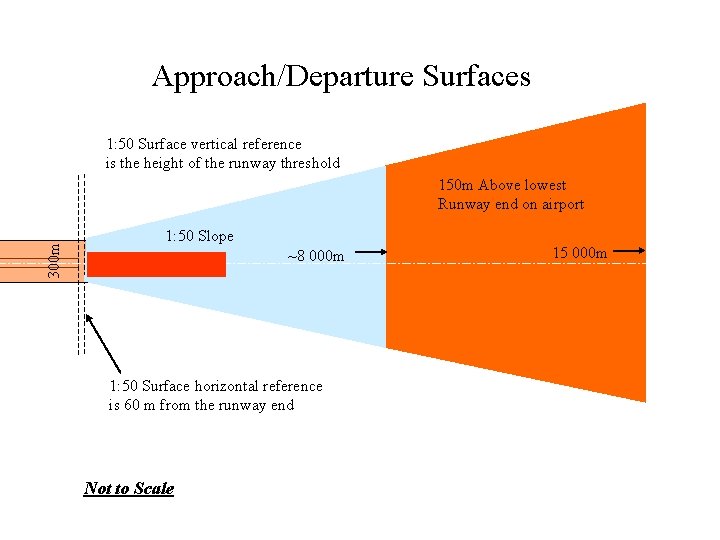

Approach/Departure Surfaces 1: 50 Surface vertical reference is the height of the runway threshold 300 m 150 m Above lowest Runway end on airport 1: 50 Slope ~8 000 m 1: 50 Surface horizontal reference is 60 m from the runway end Not to Scale 15 000 m

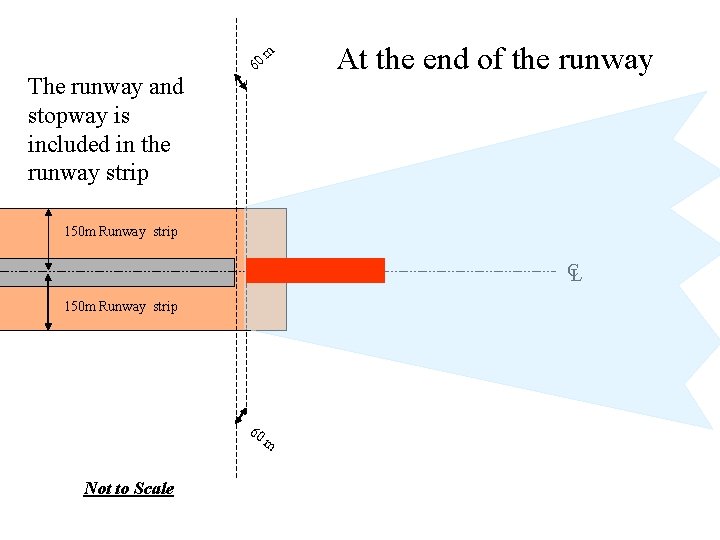

m 60 The runway and stopway is included in the runway strip At the end of the runway 150 m Runway strip CL 150 m Runway strip 60 m Not to Scale

If no object reaches the 2 per cent (1: 50) take-off climb surface, new objects shall be limited to preserve the existing obstacle free surface or a surface down to a slope of 1. 6 per cent (1: 62. 5). st port e low e air e h e t on th v o ab end 0 m ach 5 1 pro p a 1: 50 ( The 1: 50 Sloped surface Side view Fi r st se c tio n ex te n H ds t o 1: 62. 5 ) Slop e 30 eig 00 m ht o fa Threshold pp r oa ch en d ~8 000 m Not to Scale 60 m

At the end of the runway 150 m 300 m 150 m Not to Scale 60 m

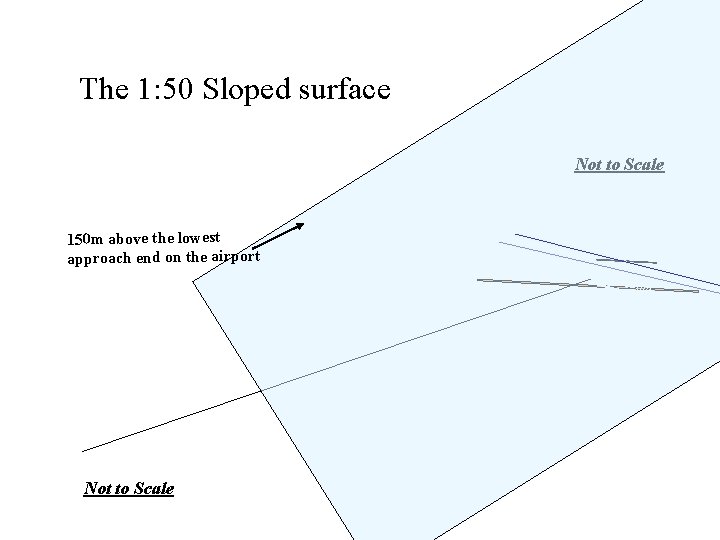

The 1: 50 Sloped surface Not to Scale 150 m above the lowest approach end on the airport Not to Scale 150 m m 300 15 0 m

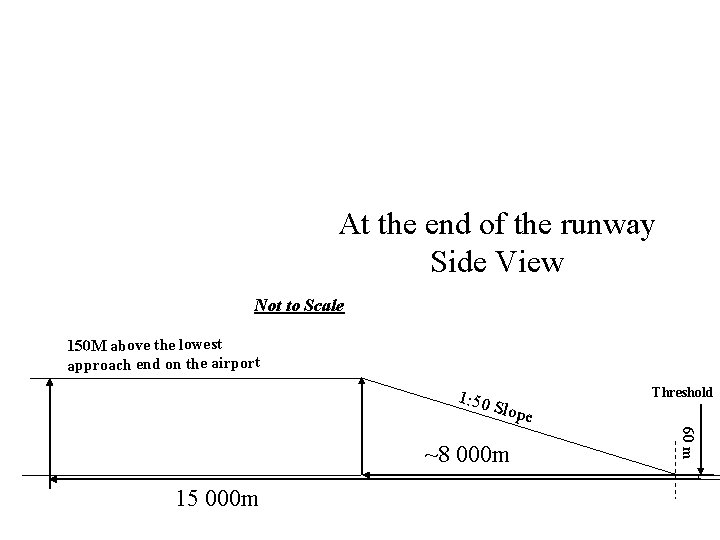

At the end of the runway Side View Not to Scale 150 M above the lowest approach end on the airport 1: 50 Slop e 60 m ~8 000 m 15 000 m Threshold

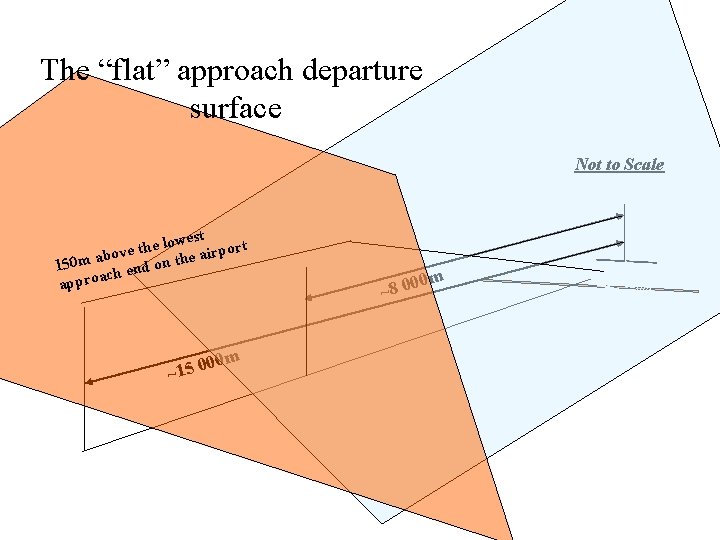

The “flat” approach departure surface Not to Scale lowest port e h t e e air abov 150 m h end on th ac appro 0 m 0 0 5 ~1 0 m 0 0 8 ~ 150 m m 300 15 0 m

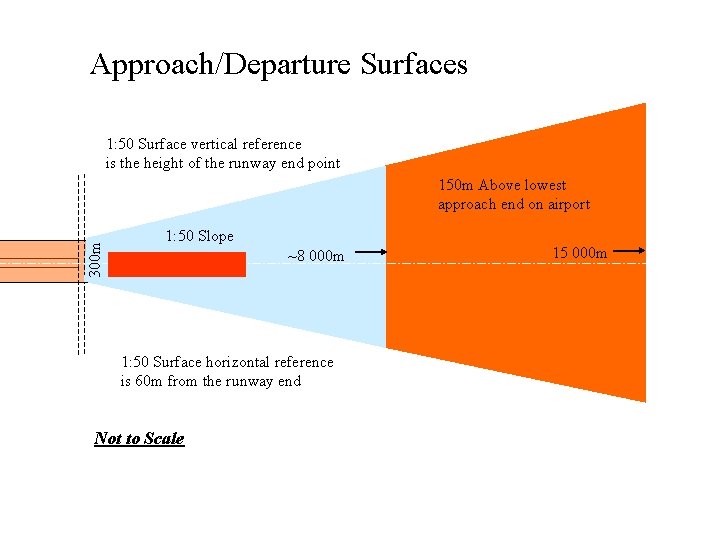

Approach/Departure Surfaces 1: 50 Surface vertical reference is the height of the runway end point 300 m 150 m Above lowest approach end on airport 1: 50 Slope ~8 000 m 1: 50 Surface horizontal reference is 60 m from the runway end Not to Scale 15 000 m

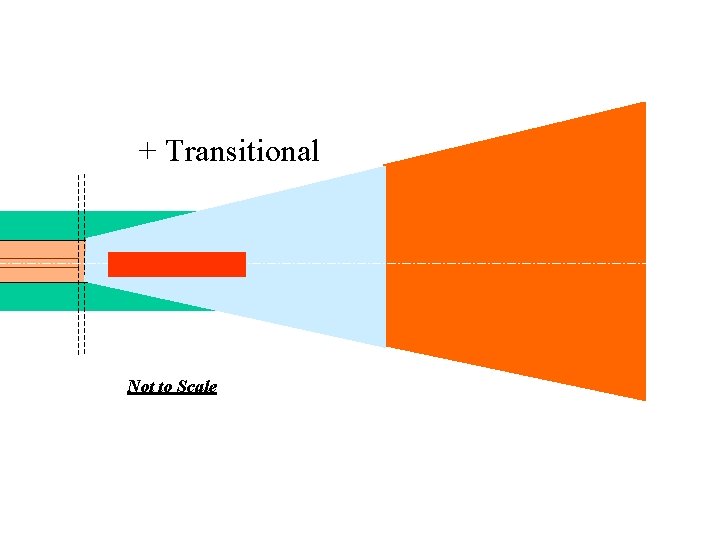

+ Transitional Not to Scale

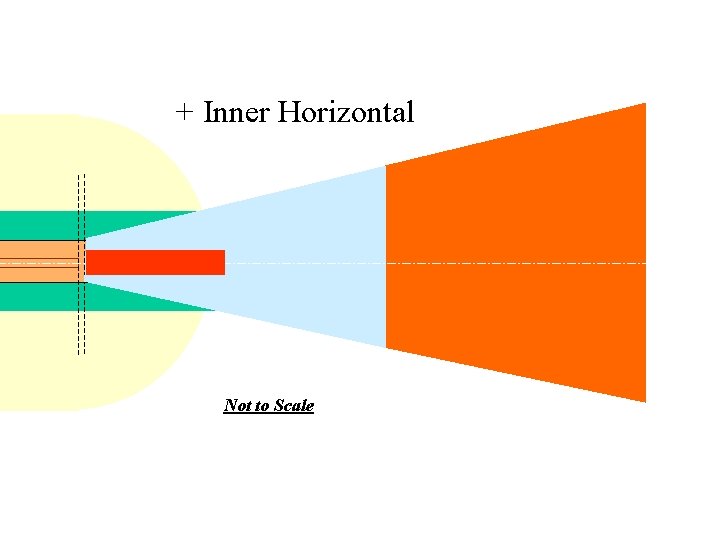

+ Inner Horizontal Not to Scale

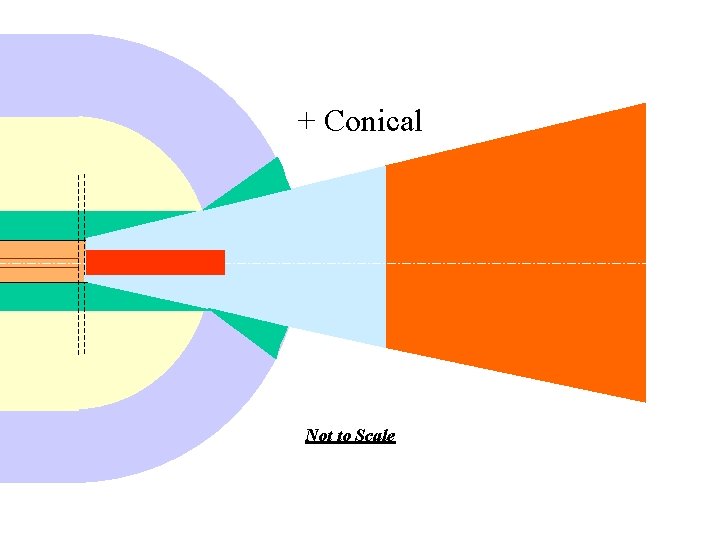

+ Conical Not to Scale

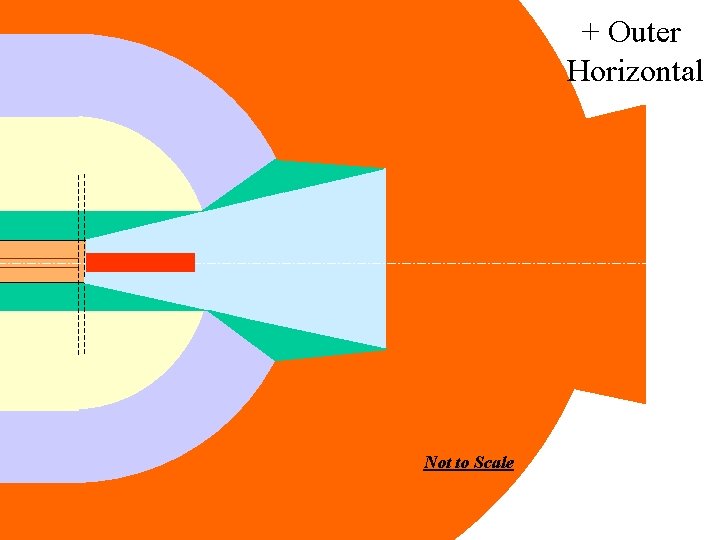

+ Outer Horizontal Not to Scale

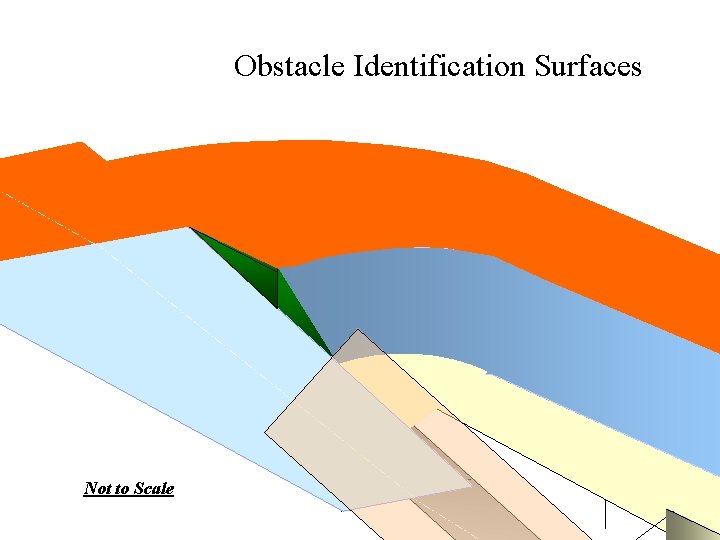

Obstacle Identification Surfaces Not to Scale
