Oblique Triangles l Oblique Triangle a nonright triangle
Oblique Triangles
l Oblique Triangle – a non-right triangle. It may be acute. It may be obtuse.
All triangles have six parts…three sides and three angles. We will label all our triangles the same way.
A c b B a C
How you solve the oblique triangle depends on what you are given. l AAS l ASA l SSS l SAS
Decide whether the following are ASA, AAS, SSA, SSS, or SAS. 82 42 cm 65 cm SAS
Decide whether the following are ASA, AAS, SSA, SSS, or SAS. 54 32 mm 37 ASA
Decide whether the following are ASA, AAS, SSA, SSS, or SAS. 14 AAS 22 19 miles
Decide whether the following are ASA, AAS, SSA, SSS, or SAS. 65 53 yd SSA 87 yd
Law of Sines
Law of Sines a = sin A b = sin B c sin C B c a C b A
Law of Sines l AAS l ASA l SSA
Solve the following triangle: C = 102. 3 , B = 28. 7 , and b = 27. 4 feet Step 1: Determine the Type of Triangle. Step 2: Determine which Law to use. 102. 3 27. 4 AAS 28. 7 b = c sin B sin C Step 3: Determine the missing parts. To find A: A = 180 – B – C A = 180 – 102. 3 – 28. 7 A = 49 To find c: b = c sin B sin C 27. 4 = sin 28. 7 c sin 102. 3 c sin 28. 7 = 27. 4 sin 102. 3 c = 27. 4 sin 102. 3 sin 28. 7 c = 55. 75 feet
C = 102. 3 , B = 28. 7 , and b = 27. 4 feet C 102. 3 27. 4 28. 7 A = 49 B c = 55. 75 feet To find a: A a = b sin A sin B a = 27. 4 sin 49 sin 28. 7 a sin 28. 7 = 27. 4 sin 49 a = 27. 4 sin 49 sin 28. 7 a = 43. 06 feet
A = 25 , B = 35 , a = 3. 5 Solve the Triangle.
A pole tilts away from the sun at an 8 angle from vertical, and it casts a 22 foot shadow. The angle of elevation from the tip of the shadow to the top of the pole is 43. How tall is the pole? Step 1: Determine the Type of Triangle. Step 2: Determine what part of the triangle you need to find. Step 3: Determine which Law to use. 8 Law of Sines x 82 ASA 22 feet 43 Determine the height of the pole…
Summary If the triangle is AAS ASA SSA Use the Law of Sines If the triangle is SAS SSS Coming Tomorrow…. . Law of Cosines
One more thing…. Using SAS To find Area!!
Find the area of the triangle: C = 84 30’, a = 16 , and b = 20 C 84 30’ 20 A Area = 1/2(side) Sin < 16 B
Law of Cosines a 2=b 2+c 2 -2 bc cos. A b 2=a 2+c 2 -2 ac cos. B c 2=a 2+b 2 -2 ab cos. C B c a C b A
Law of Cosines l SSS l SAS
Solve the triangle: A = 40 , b = 3 and c = 4
Solve the triangle: a = 3, b = 5 and c = 7
A ship travels 60 miles due east, then adjust its course northward. After traveling 80 miles in that direction, the ship is 139 miles from the point of departure. Find the bearing from port to it’s new location. The pitcher’s mound on a women’s softball field is 43 feet from home plate and the distance between the bases is 60 feet. How far is the pitcher’s mound from first base?
Summary If the triangle is AAS ASA SSA Use the Law of Sines If the triangle is SAS SSS Use the Law of Cosines
Using SSS To find Area!!

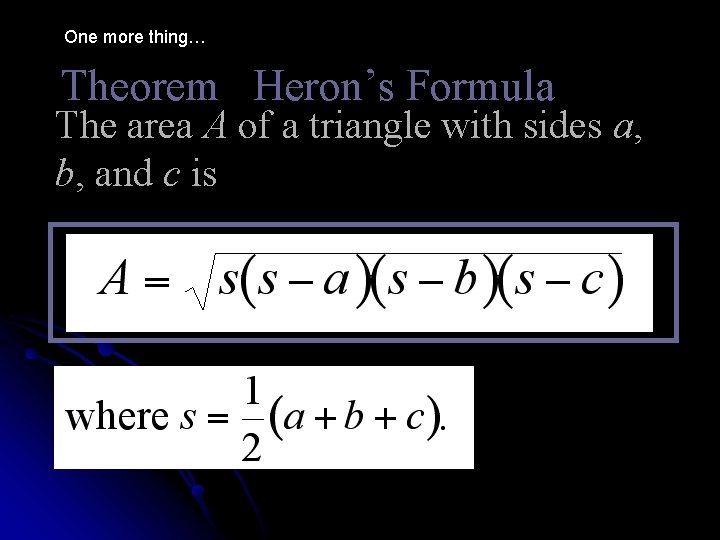

One more thing… Theorem Heron’s Formula The area A of a triangle with sides a, b, and c is
Find the area of a triangle whose sides are 5, 8, and 11.
C 3 B 4 ME
