ObjectOriented Standards OMG OMDG Overview Object Management Group

Object-Oriented Standards OMG OMDG

Overview

Object Management Group (OMG) n n International non profit-making consortium founded in 1989 to address object standards. Primary aims of OMG are: n n n Promotion of object-oriented approach. Development of standards in which location, environment, language, and other characteristics of objects are transparent. Not recognized standards group but aims to develop de facto standards.

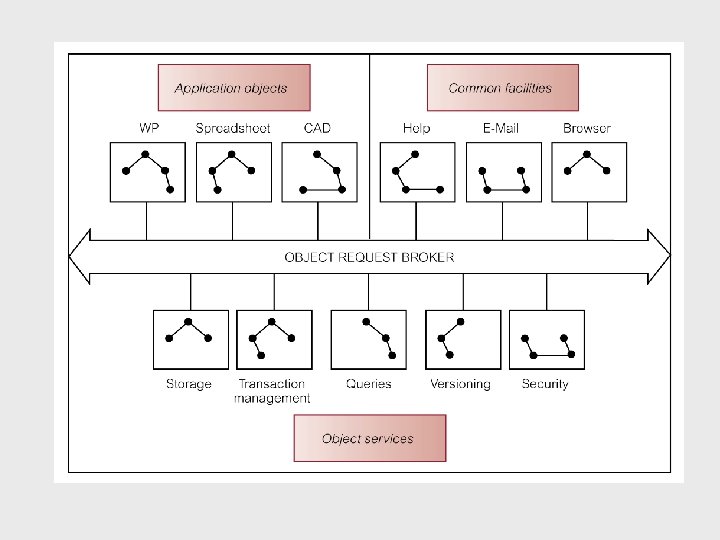

Object Management Architecture Object Model (OM) - Design-portable abstract model for communicating with OMG-compliant object-oriented systems. Object Request Broker (ORB) - Handle distribution of messages between application objects in a highly interoperable manner. Object Services - Provide main functions for realizing basic object functionality. . Common Facilities - Comprise a set of tasks that many applications must perform but are traditionally duplicated within each one.

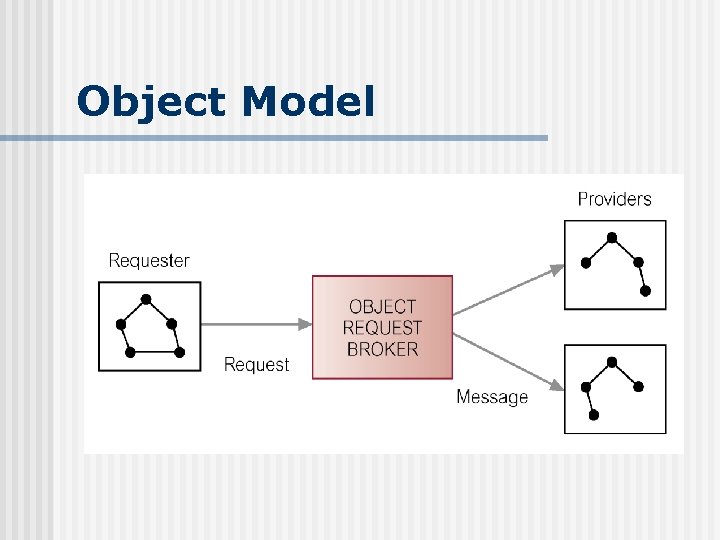

Object Model

Common Object Request Broker Architecture (CORBA) n n Defines architecture of ORB-based environments. Some elements of CORBA are: n n n Interface Definition Language (IDL). Type model. Interface Repository. Methods for getting interfaces/specifications of objects. Provides static and dynamic mechanism for clients to issue request to objects.

CORBA ORB Architecture

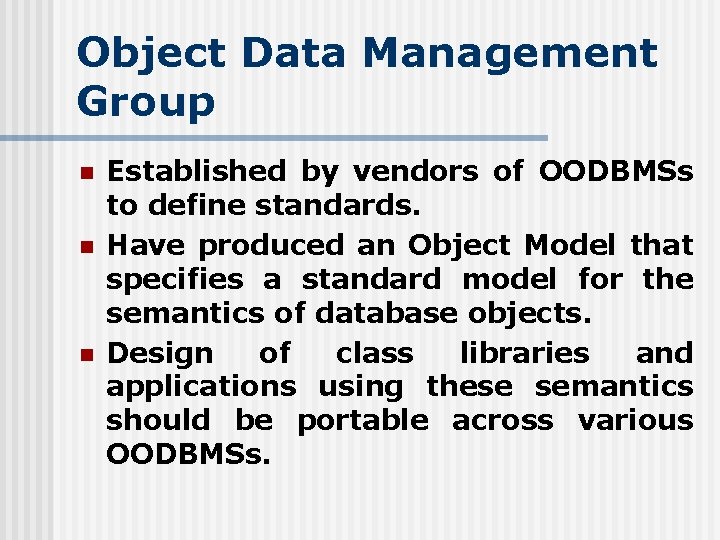

Object Data Management Group n n n Established by vendors of OODBMSs to define standards. Have produced an Object Model that specifies a standard model for the semantics of database objects. Design of class libraries and applications using these semantics should be portable across various OODBMSs.

Object Data Management Group n Major components of ODMG architecture for an OODBMS are: Object Model (OM) n Object Definition Language (ODL) n Object Query Language (OQL) n C++, Smalltalk, and Java Language Binding. n

ODMG OM – Basic Modeling Primitives n n n Basic modeling primitives are object/literal. Objects/literals can be categorized into types. All objects of given type exhibit common behavior and state. A type is itself an object. Behavior defined by set of operations that can be performed on or by object. State defined byvalues objects carry for a set of properties.

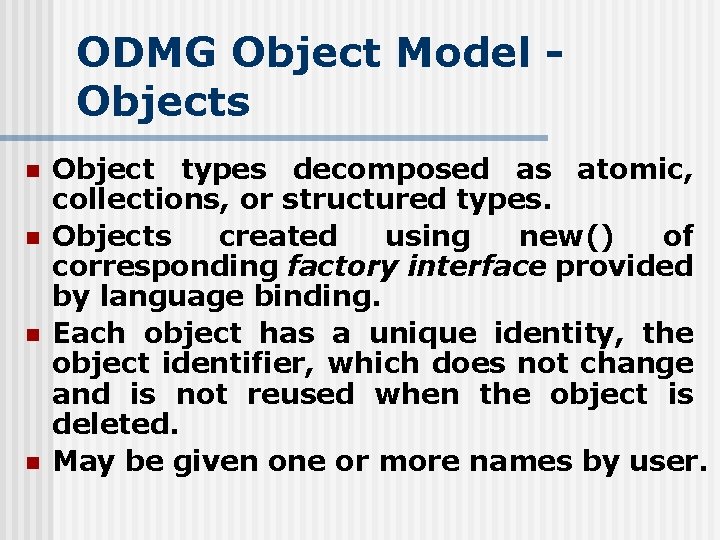

ODMG Object Model Objects n n Object types decomposed as atomic, collections, or structured types. Objects created using new() of corresponding factory interface provided by language binding. Each object has a unique identity, the object identifier, which does not change and is not reused when the object is deleted. May be given one or more names by user.

ODL Interface for Objects

ODMG Object Model – Built -in Collections n n Contains arbitrary number of unnamed homogeneous elements; each can be instance of atomic type, another collection, or a literal type. Only collection objects have identity. Use iterator to iterate over collection. There are ordered and unordered collections: n n ordered collections traversed first to last, or vice versa; unordered collections have no fixed order of iteration.

ODMG Object Model – Built -in Collections Set: unordered collections without duplicates. Bag: unordered collections that do allow duplicates. List: ordered collections that allow duplicates. Array: 1 D array of dynamically varying length. Dictionary: unordered sequence of key-value pairs with no duplicate keys.

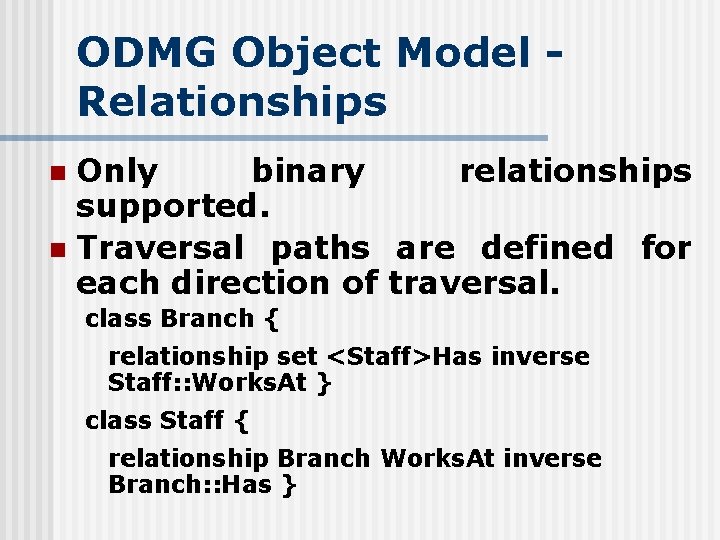

ODMG Object Model Relationships Only binary relationships supported. n Traversal paths are defined for each direction of traversal. n class Branch { relationship set <Staff>Has inverse Staff: : Works. At } class Staff { relationship Branch Works. At inverse Branch: : Has }

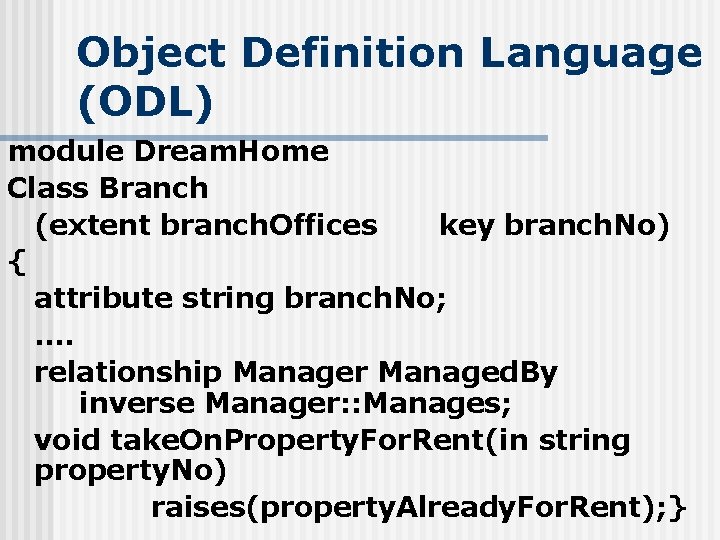

Object Definition Language (ODL) module Dream. Home Class Branch (extent branch. Offices key branch. No) { attribute string branch. No; …. relationship Manager Managed. By inverse Manager: : Manages; void take. On. Property. For. Rent(in string property. No) raises(property. Already. For. Rent); }

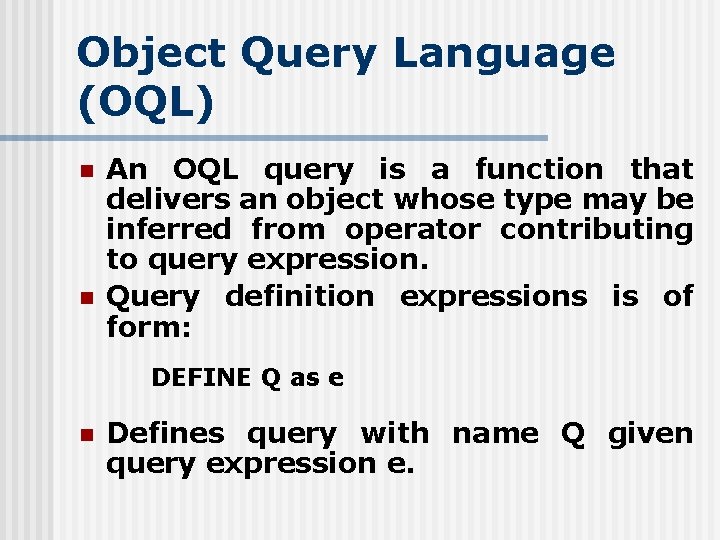

Object Query Language (OQL) n n An OQL query is a function that delivers an object whose type may be inferred from operator contributing to query expression. Query definition expressions is of form: DEFINE Q as e n Defines query with name Q given query expression e.

Example 26. 2 OQL: Extents & Traversal Paths (1) Get set of all staff (with identity): staff (2) Get set of all branch managers (with identity): branch. Offices. Managed. By

Example 26. 2 OQL: Extents & Traversal Paths (3) Find all branches in London: SELECT b. branch. No FROM b IN branch. Offices WHERE b. address. city = "London“; This returns a literal of type bag<string>.

Example 26. 3 – OQL: Use of DEFINE Get set of all staff who work in London (without identity): DEFINE Londoners AS SELECT s FROM s IN sales. Staff WHERE s. Works. At. address. city = "London“; SELECT s. name. l. Name FROM s IN Londoners; This returns set<string>. a literal of type

Example 26. 4 OQL: Use of structures (1) Get structured set (without identity) containing name, sex, and age for all staff who live in London: SELECT struct (l. Name: s. name. l. Name, sex: s. sex, age: s. age) FROM s IN Staff WHERE s. Works. At. address. city = "London” This returns a literal of type set<struct>.

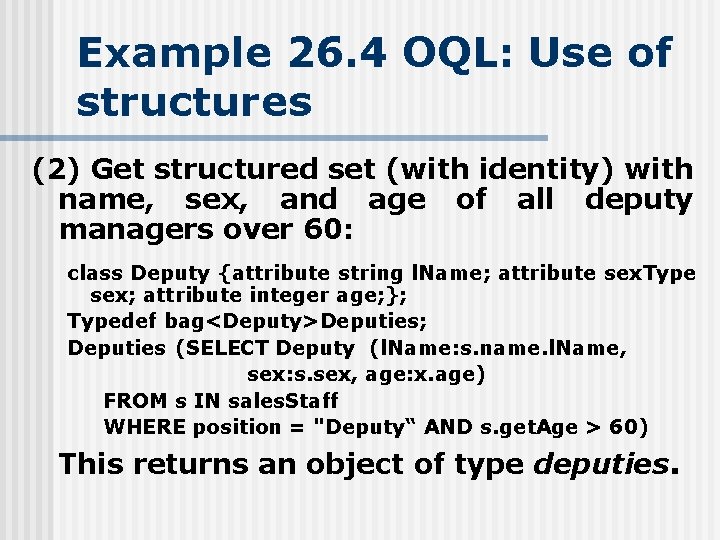

Example 26. 4 OQL: Use of structures (2) Get structured set (with identity) with name, sex, and age of all deputy managers over 60: class Deputy {attribute string l. Name; attribute sex. Type sex; attribute integer age; }; Typedef bag<Deputy>Deputies; Deputies (SELECT Deputy (l. Name: s. name. l. Name, sex: s. sex, age: x. age) FROM s IN sales. Staff WHERE position = "Deputy“ AND s. get. Age > 60) This returns an object of type deputies.
