Object-Oriented Parsing and Transformation Kenneth Baclawski Scott A. De. Loach Mieczyslaw Kokar Jeffrey Smith Northeastern University Air Force Institute of Technology Northeastern University/Sanders

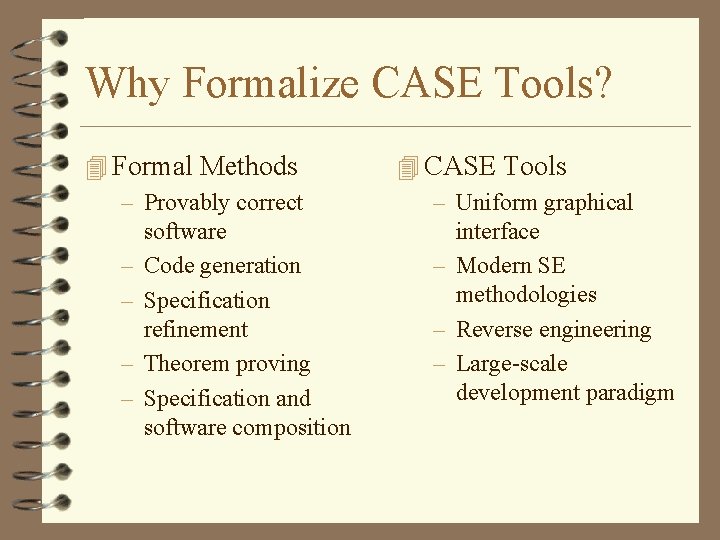

Why Formalize CASE Tools? 4 Formal Methods – Provably correct – – software Code generation Specification refinement Theorem proving Specification and software composition 4 CASE Tools – Uniform graphical interface – Modern SE methodologies – Reverse engineering – Large-scale development paradigm

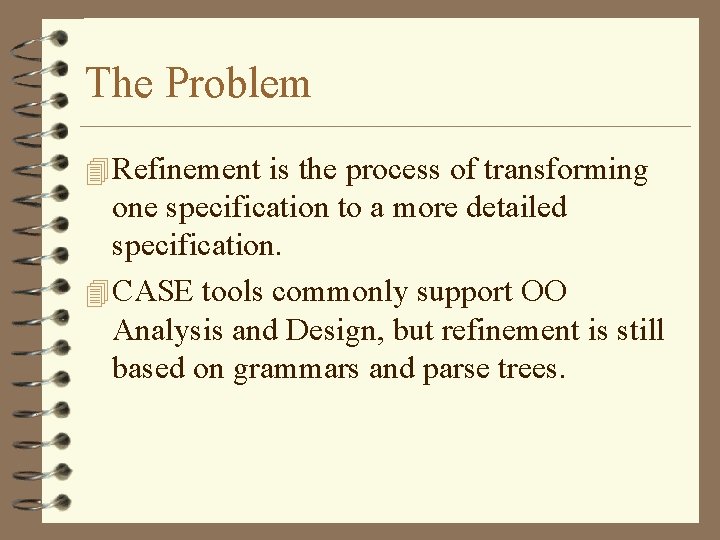

The Problem 4 Refinement is the process of transforming one specification to a more detailed specification. 4 CASE tools commonly support OO Analysis and Design, but refinement is still based on grammars and parse trees.

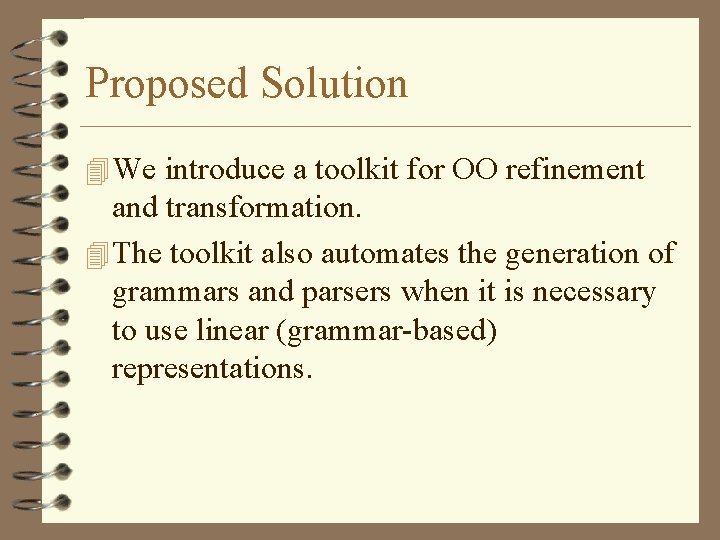

Proposed Solution 4 We introduce a toolkit for OO refinement and transformation. 4 The toolkit also automates the generation of grammars and parsers when it is necessary to use linear (grammar-based) representations.

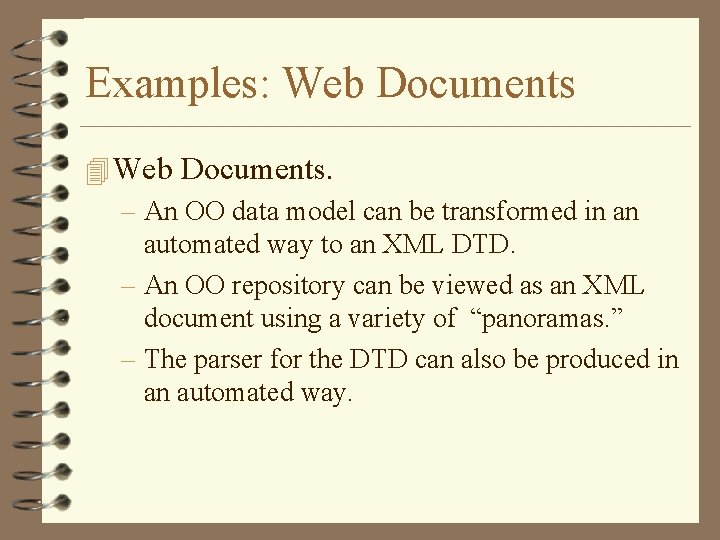

Examples: Web Documents 4 Web Documents. – An OO data model can be transformed in an automated way to an XML DTD. – An OO repository can be viewed as an XML document using a variety of “panoramas. ” – The parser for the DTD can also be produced in an automated way.

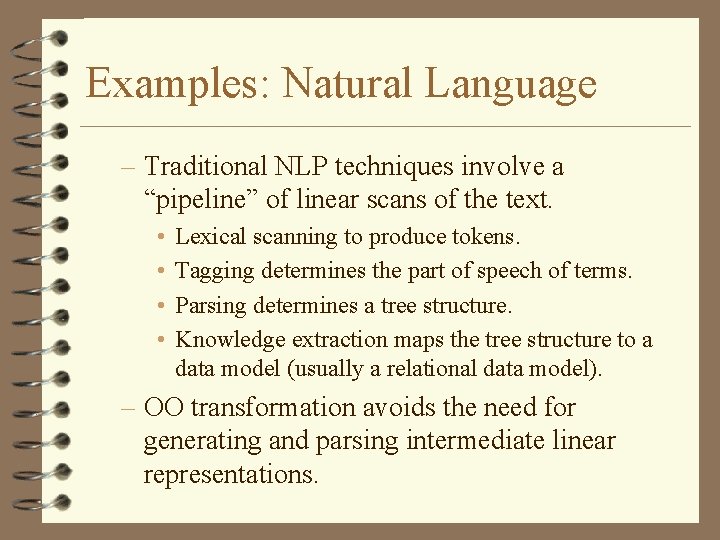

Examples: Natural Language – Traditional NLP techniques involve a “pipeline” of linear scans of the text. • • Lexical scanning to produce tokens. Tagging determines the part of speech of terms. Parsing determines a tree structure. Knowledge extraction maps the tree structure to a data model (usually a relational data model). – OO transformation avoids the need for generating and parsing intermediate linear representations.

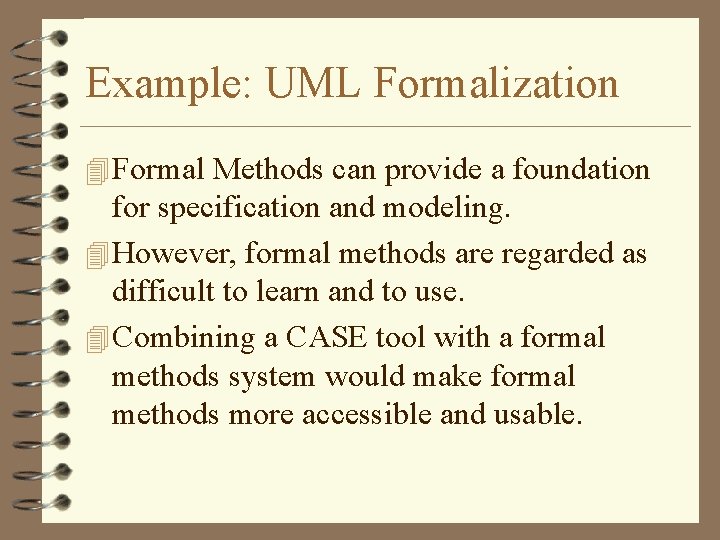

Example: UML Formalization 4 Formal Methods can provide a foundation for specification and modeling. 4 However, formal methods are regarded as difficult to learn and to use. 4 Combining a CASE tool with a formal methods system would make formal methods more accessible and usable.

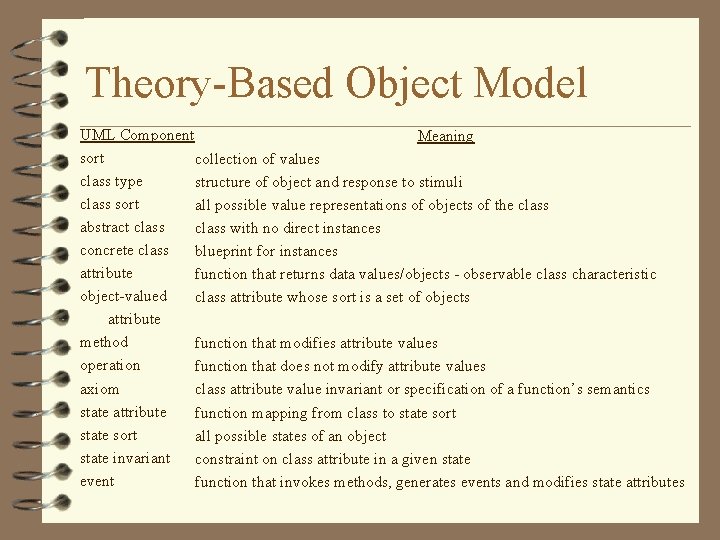

Theory-Based Object Model UML Component Meaning sort collection of values class type structure of object and response to stimuli class sort all possible value representations of objects of the class abstract class with no direct instances concrete class blueprint for instances attribute function that returns data values/objects - observable class characteristic object-valued class attribute whose sort is a set of objects attribute method function that modifies attribute values operation function that does not modify attribute values axiom class attribute value invariant or specification of a function’s semantics state attribute function mapping from class to state sort all possible states of an object state invariant constraint on class attribute in a given state event function that invokes methods, generates events and modifies state attributes

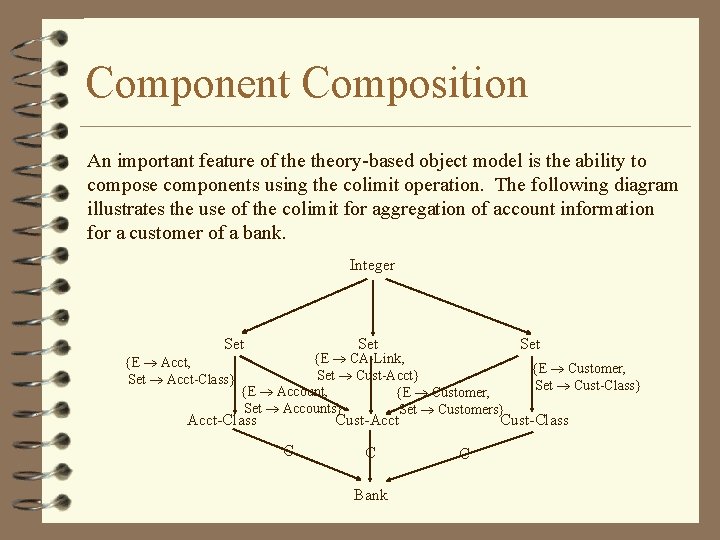

Component Composition An important feature of theory-based object model is the ability to compose components using the colimit operation. The following diagram illustrates the use of the colimit for aggregation of account information for a customer of a bank. Integer Set {E CA-Link, {E Acct, Set Cust-Acct} Set Acct-Class} {E Account, {E Customer, Set Accounts} Set Customers} Acct-Class Cust-Acct C C Bank Set {E Customer, Set Cust-Class} Cust-Class C

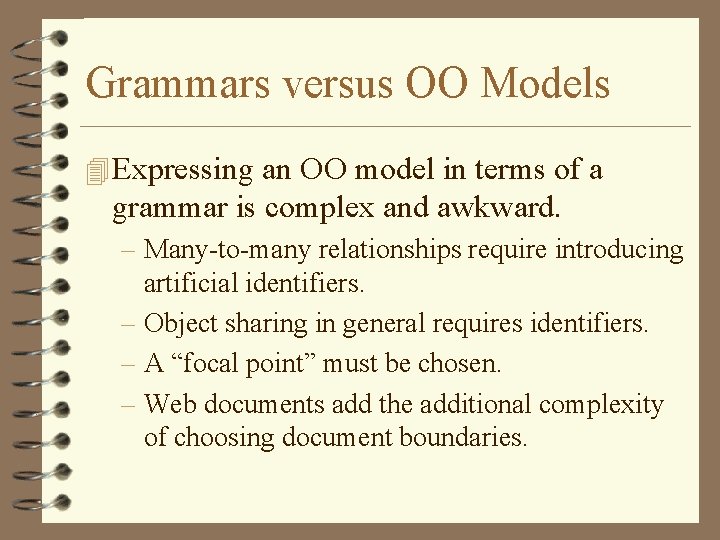

Grammars versus OO Models 4 Expressing an OO model in terms of a grammar is complex and awkward. – Many-to-many relationships require introducing artificial identifiers. – Object sharing in general requires identifiers. – A “focal point” must be chosen. – Web documents add the additional complexity of choosing document boundaries.

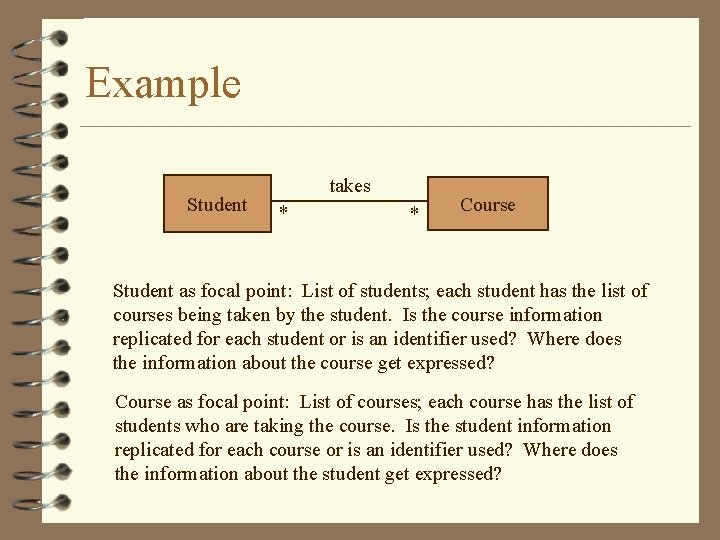

Example Student takes * * Course Student as focal point: List of students; each student has the list of courses being taken by the student. Is the course information replicated for each student or is an identifier used? Where does the information about the course get expressed? Course as focal point: List of courses; each course has the list of students who are taking the course. Is the student information replicated for each course or is an identifier used? Where does the information about the student get expressed?

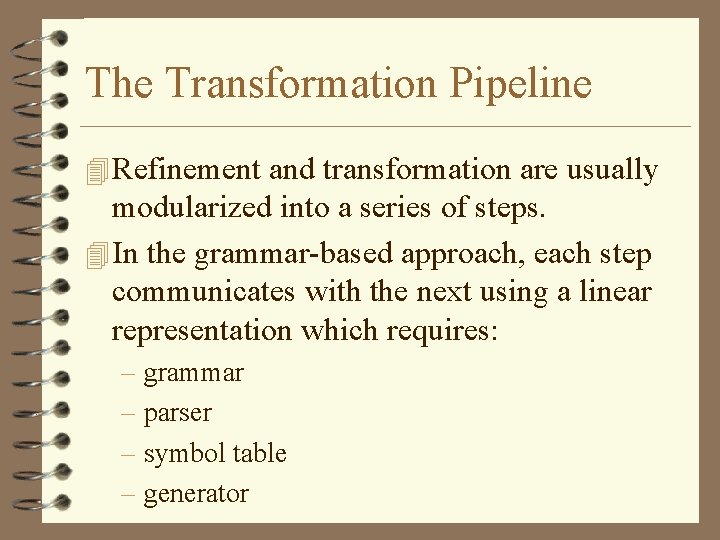

The Transformation Pipeline 4 Refinement and transformation are usually modularized into a series of steps. 4 In the grammar-based approach, each step communicates with the next using a linear representation which requires: – grammar – parser – symbol table – generator

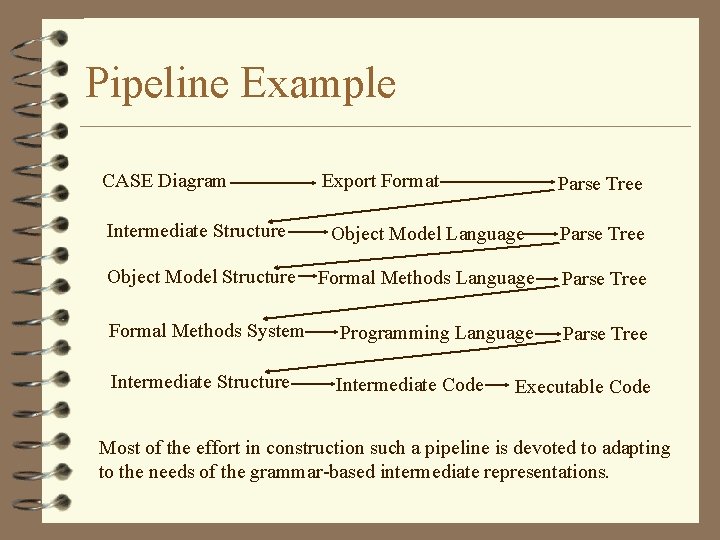

Pipeline Example CASE Diagram Export Format Parse Tree Intermediate Structure Object Model Language Parse Tree Object Model Structure Formal Methods Language Parse Tree Formal Methods System Programming Language Parse Tree Intermediate Structure Intermediate Code Executable Code Most of the effort in construction such a pipeline is devoted to adapting to the needs of the grammar-based intermediate representations.

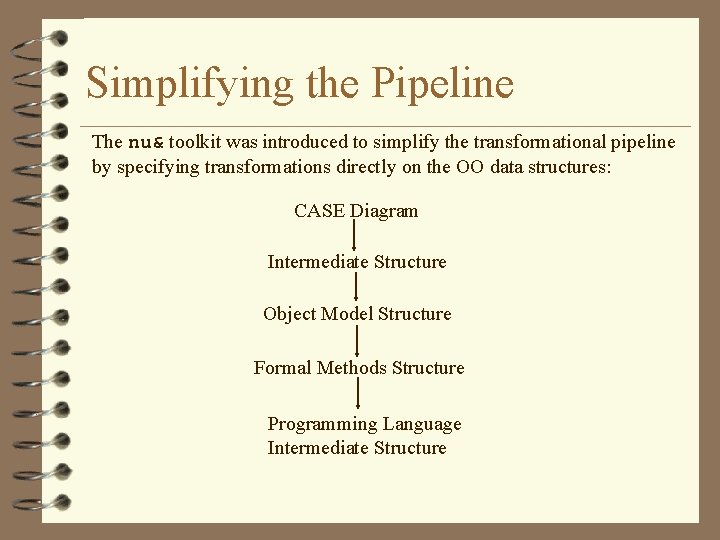

Simplifying the Pipeline The nu& toolkit was introduced to simplify the transformational pipeline by specifying transformations directly on the OO data structures: CASE Diagram Intermediate Structure Object Model Structure Formal Methods Structure Programming Language Intermediate Structure

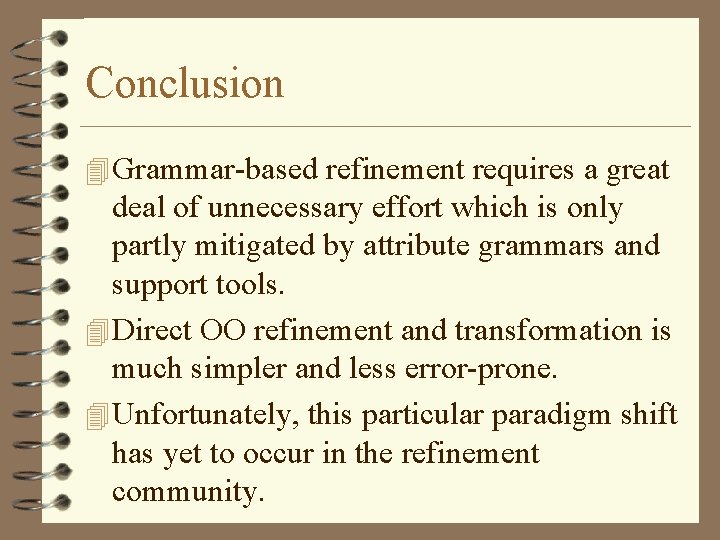

Conclusion 4 Grammar-based refinement requires a great deal of unnecessary effort which is only partly mitigated by attribute grammars and support tools. 4 Direct OO refinement and transformation is much simpler and less error-prone. 4 Unfortunately, this particular paradigm shift has yet to occur in the refinement community.

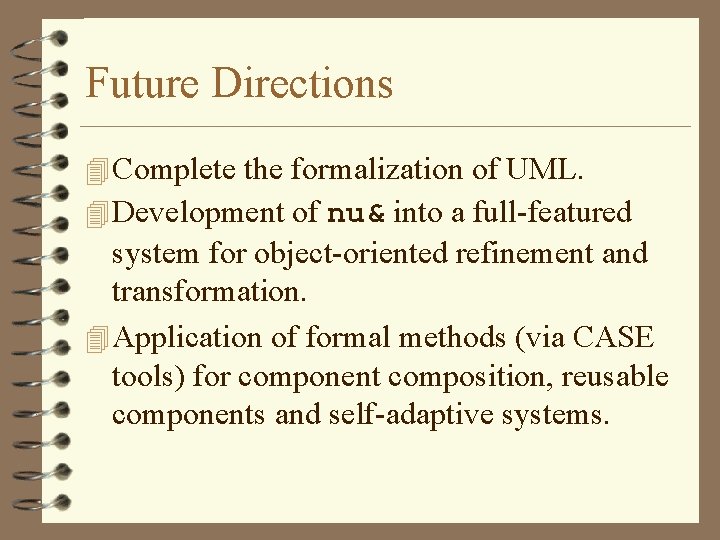

Future Directions 4 Complete the formalization of UML. 4 Development of nu& into a full-featured system for object-oriented refinement and transformation. 4 Application of formal methods (via CASE tools) for component composition, reusable components and self-adaptive systems.
