Object-Oriented Modeling Using Modified Modeling Language (UML) CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML

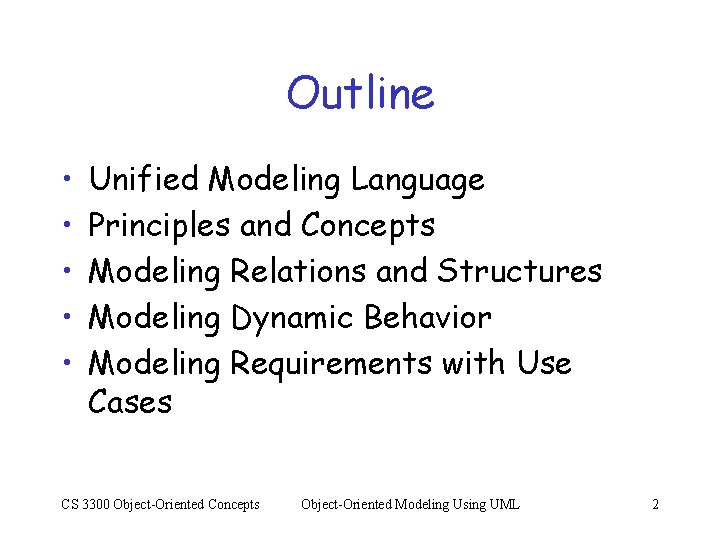

Outline • • • Unified Modeling Language Principles and Concepts Modeling Relations and Structures Modeling Dynamic Behavior Modeling Requirements with Use Cases CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 2

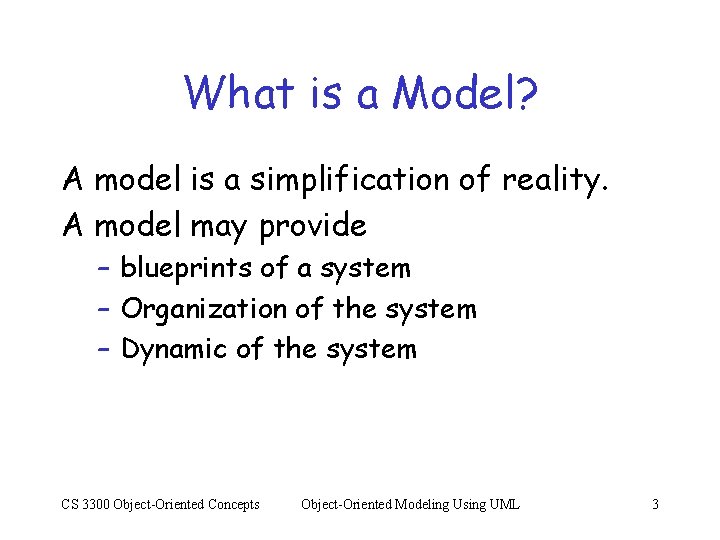

What is a Model? A model is a simplification of reality. A model may provide – blueprints of a system – Organization of the system – Dynamic of the system CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 3

Why We Model “A successful software organization is one that consistently deploys quality software that meets the needs of its users. An organization that can develop such software in a timely and predictable fashion, with an efficient and effective use of resources, both human and material, is one that has sustainable business. ” CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 4

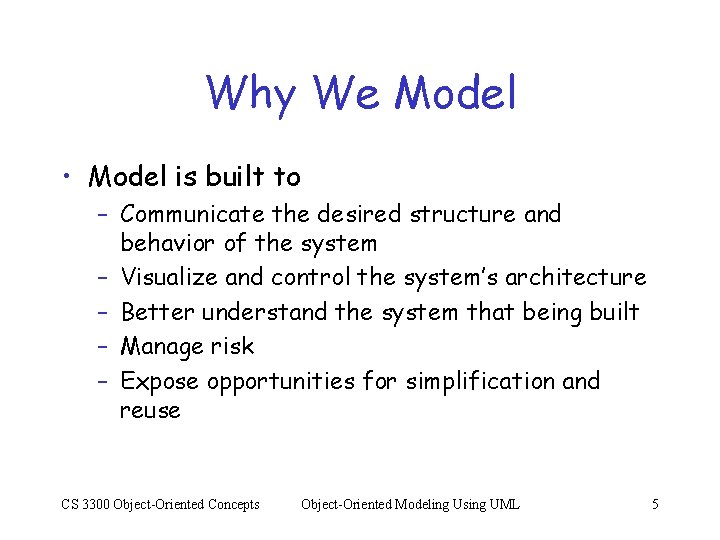

Why We Model • Model is built to – Communicate the desired structure and behavior of the system – Visualize and control the system’s architecture – Better understand the system that being built – Manage risk – Expose opportunities for simplification and reuse CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 5

Why We Model • We build models so that we can see and better understand the system we are developing. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 6

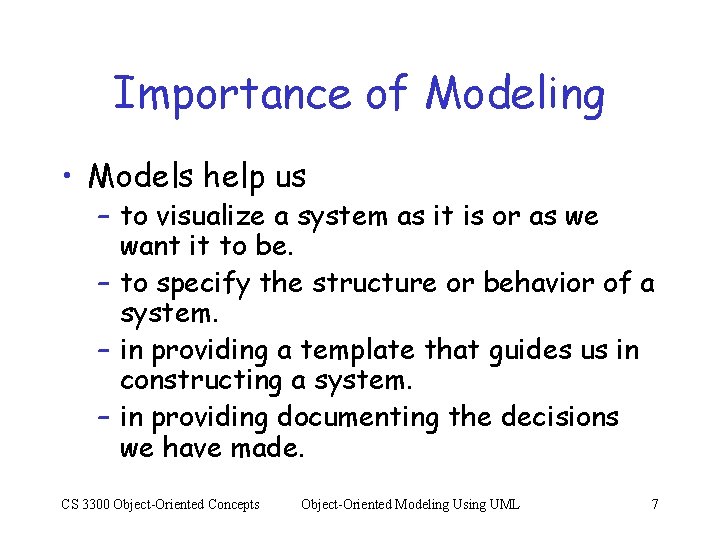

Importance of Modeling • Models help us – to visualize a system as it is or as we want it to be. – to specify the structure or behavior of a system. – in providing a template that guides us in constructing a system. – in providing documenting the decisions we have made. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 7

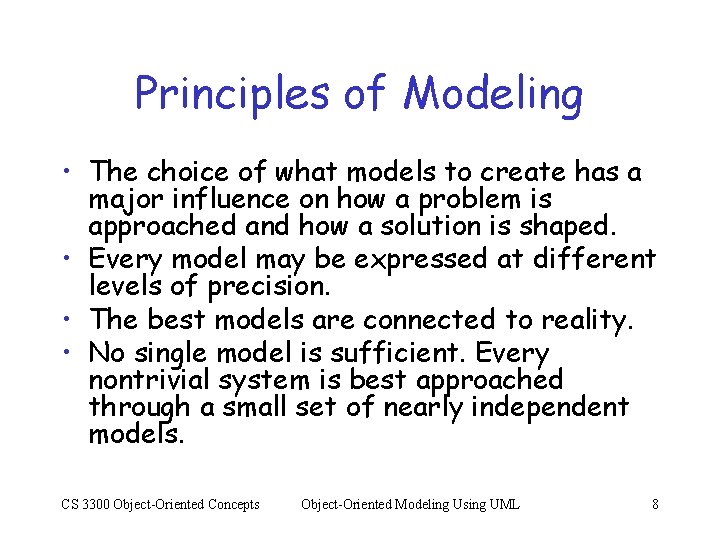

Principles of Modeling • The choice of what models to create has a major influence on how a problem is approached and how a solution is shaped. • Every model may be expressed at different levels of precision. • The best models are connected to reality. • No single model is sufficient. Every nontrivial system is best approached through a small set of nearly independent models. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 8

Objected-Oriented Modeling • Two most common ways in modeling software systems are – Algorithmic • Procedures or functions – Object oriented • Objects or classes CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 9

What is UML? • UML is a language for – – Visualizing Specifying Constructing Documenting CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 10

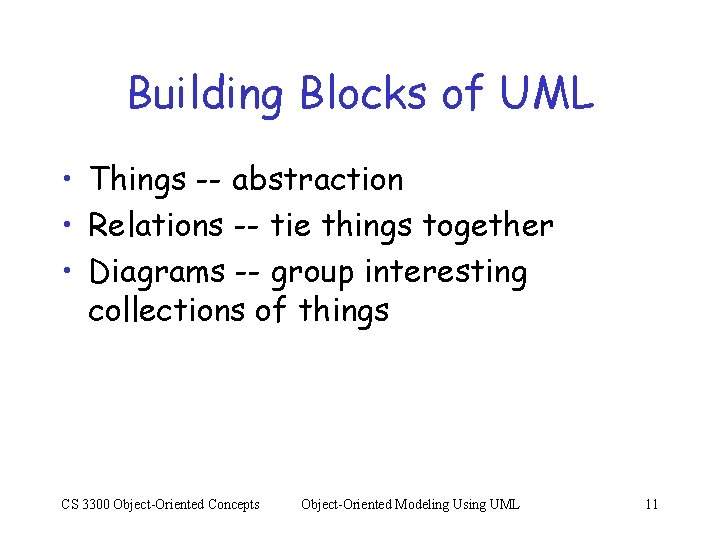

Building Blocks of UML • Things -- abstraction • Relations -- tie things together • Diagrams -- group interesting collections of things CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 11

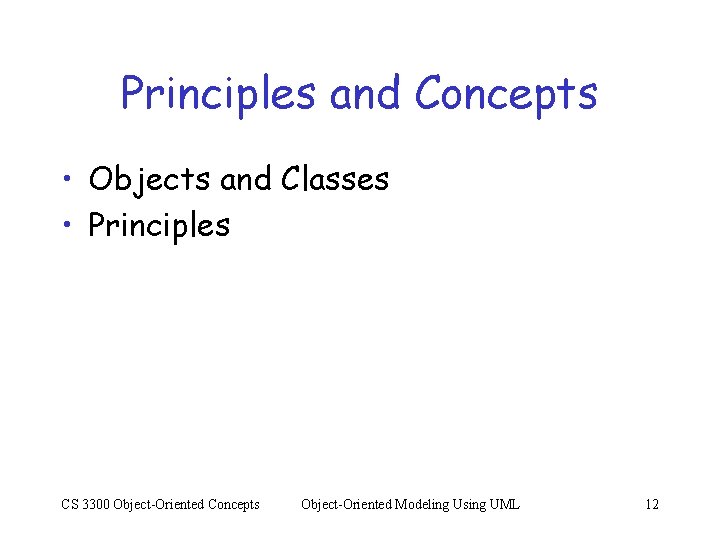

Principles and Concepts • Objects and Classes • Principles CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 12

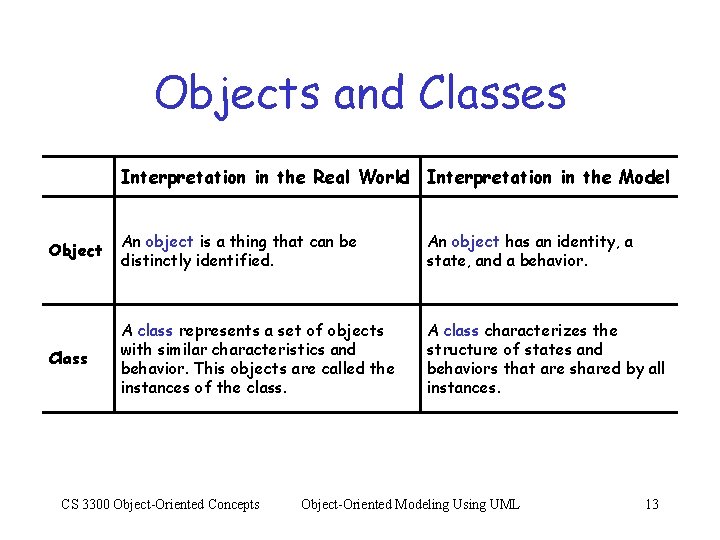

Objects and Classes Interpretation in the Real World Interpretation in the Model Object An object is a thing that can be distinctly identified. An object has an identity, a state, and a behavior. Class A class represents a set of objects with similar characteristics and behavior. This objects are called the instances of the class. A class characterizes the structure of states and behaviors that are shared by all instances. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 13

Objects • Each of object has a unique identity. • The state of an object is composed of a set of fields (data fields), or attributes. • Each field has a name, a type, and a value. • Behaviors are defined by methods. • Each method has a name, a type, and a value. • Each method may or may not return a value. • Features are a combination of the state and the behavior of the object. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 14

Properties of Objects • Two objects are equal if their states are equal. • Two objects are identical if they are the same objects. • The values of the fields are mutable. • Methods that do not modify the state of the object are called accessors. • Methods that modify the state of the object are called mutators. • Objects can be mutable or immutable. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 15

Classes • A class defines a template for creating or instantiating its instances or objects. • A class is a description of a set of objects that share the same attributes, operations, relationships, and semantics. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 16

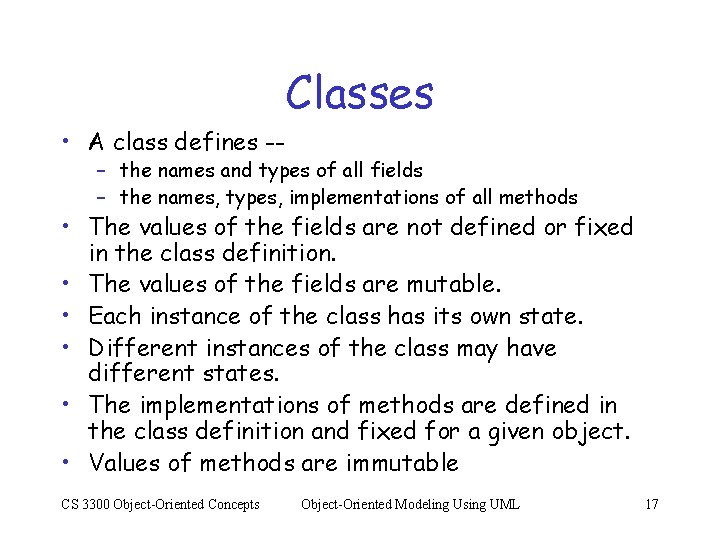

Classes • A class defines -- – the names and types of all fields – the names, types, implementations of all methods • The values of the fields are not defined or fixed in the class definition. • The values of the fields are mutable. • Each instance of the class has its own state. • Different instances of the class may have different states. • The implementations of methods are defined in the class definition and fixed for a given object. • Values of methods are immutable CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 17

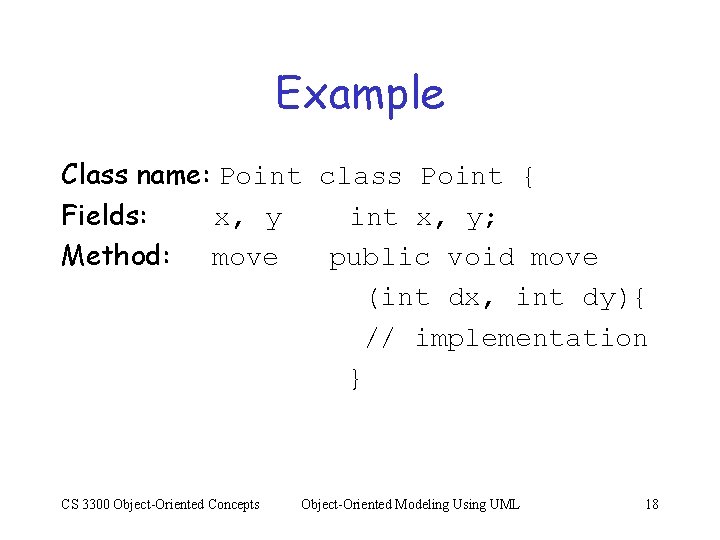

Example Class name: Point class Point { Fields: x, y int x, y; Method: move public void move (int dx, int dy){ // implementation } CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 18

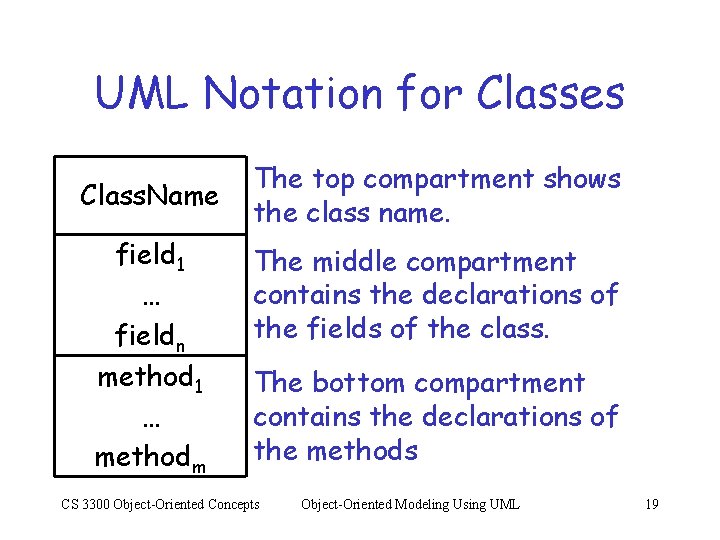

UML Notation for Classes Class. Name field 1 … fieldn method 1 … methodm The top compartment shows the class name. The middle compartment contains the declarations of the fields of the class. The bottom compartment contains the declarations of the methods CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 19

Field Declaration • The name of the field is required in the field declaration. • Field declaration may include: [Visibility][Type]Name[[Multiplicity]][=Initial. Value] [Visibility]Name[[Multiplicity]][: Type][=Initial. Value] • Visibility or accessibility defines the scope: – Public -- the feature is accessible to any class – Protected -- the feature is accessible to the class itself, all the classes in the same package, and all its subclasses. – Package -- the feature is accessible to the class itself and all classes in the same package. – Private -- the feature is only accessible within the class itself. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 20

Visibility syntax in Java and UML Visibilty Java Syntax UML Syntax public + protected # package private ~ private CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 21

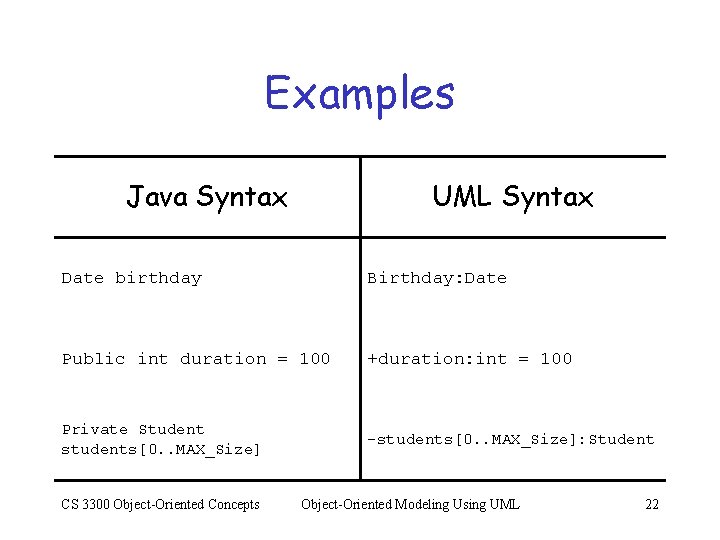

Examples Java Syntax UML Syntax Date birthday Birthday: Date Public int duration = 100 +duration: int = 100 Private Student students[0. . MAX_Size] -students[0. . MAX_Size]: Student CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 22

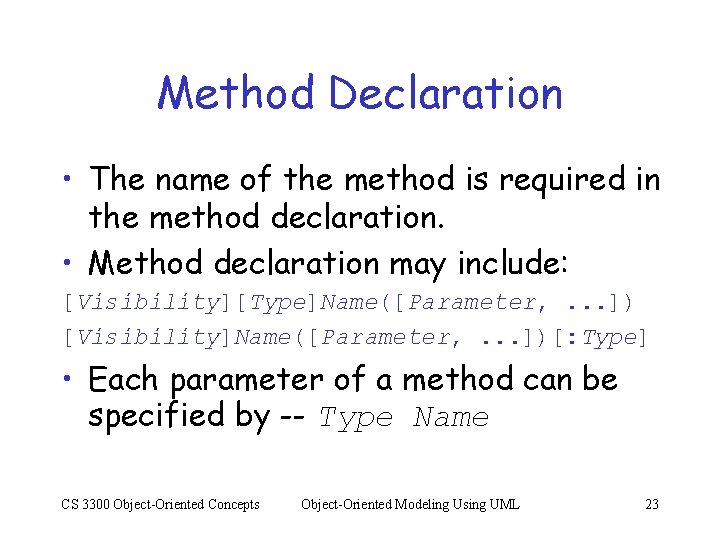

Method Declaration • The name of the method is required in the method declaration. • Method declaration may include: [Visibility][Type]Name([Parameter, . . . ]) [Visibility]Name([Parameter, . . . ])[: Type] • Each parameter of a method can be specified by -- Type Name CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 23

Examples Java Syntax UML Syntax void move(int dx, int dy) ~move(int dx, int dy) public int get. Size() +int get. Size() CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 24

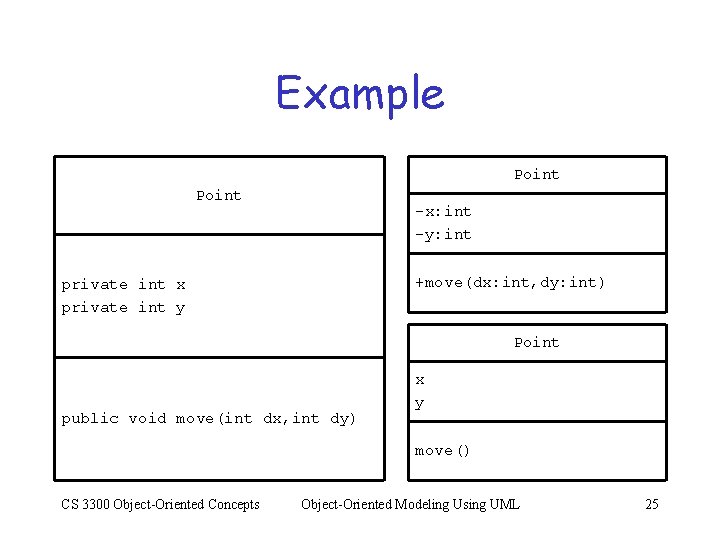

Example Point -x: int -y: int +move(dx: int, dy: int) private int x private int y Point public void move(int dx, int dy) x y move() CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 25

UML Notation for Object. Name : Class. Name field 1 = value 1 … fieldn = valuen The top compartment shows the object name and its class. The bottom compartment contains a list of the fields and their values. object. Name -- object. Name whose class is of no interest : Class. Name -- anonymous object of Class. Name which can be identify only through its relationship with other object. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 26

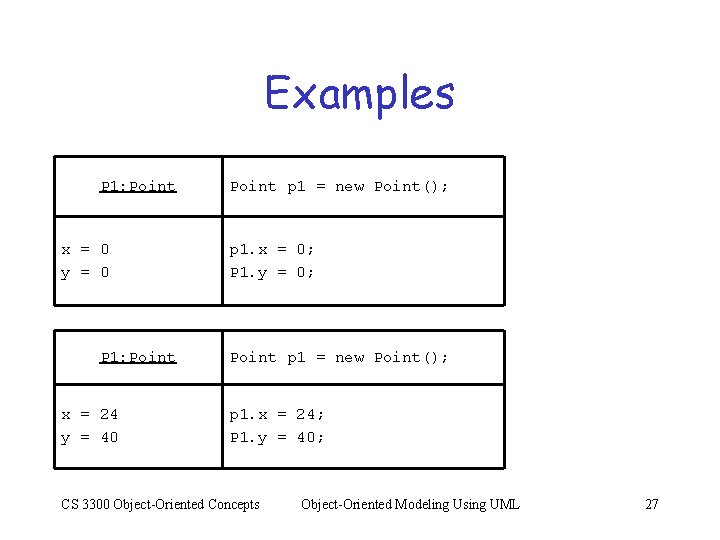

Examples P 1: Point x = 0 y = 0 P 1: Point x = 24 y = 40 Point p 1 = new Point(); p 1. x = 0; P 1. y = 0; Point p 1 = new Point(); p 1. x = 24; P 1. y = 40; CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 27

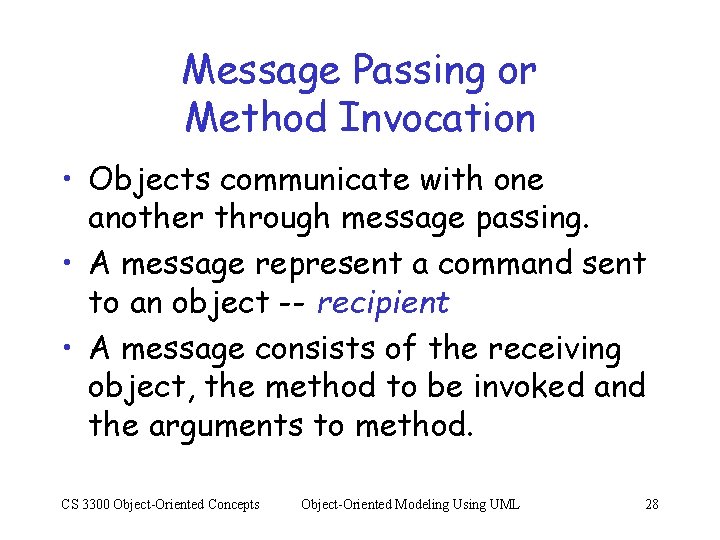

Message Passing or Method Invocation • Objects communicate with one another through message passing. • A message represent a command sent to an object -- recipient • A message consists of the receiving object, the method to be invoked and the arguments to method. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 28

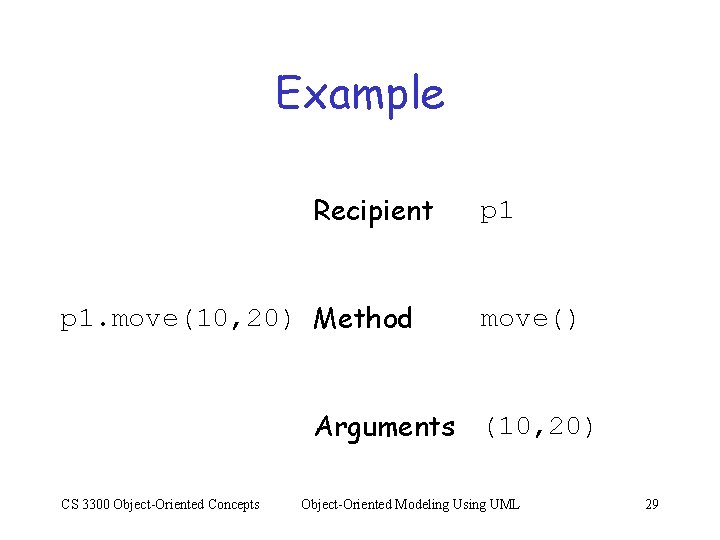

Example Recipient p 1. move(10, 20) Method p 1 move() Arguments (10, 20) CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 29

Packages • Package name are in lower case -Java. awt. event javax. swing. * • Packages that will be widely used should be named as the reverse of the internet domain as the prefix of the package name EDU. emporia. mathbeans. Math. Table EDU. emporia. mathtools. * CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 30

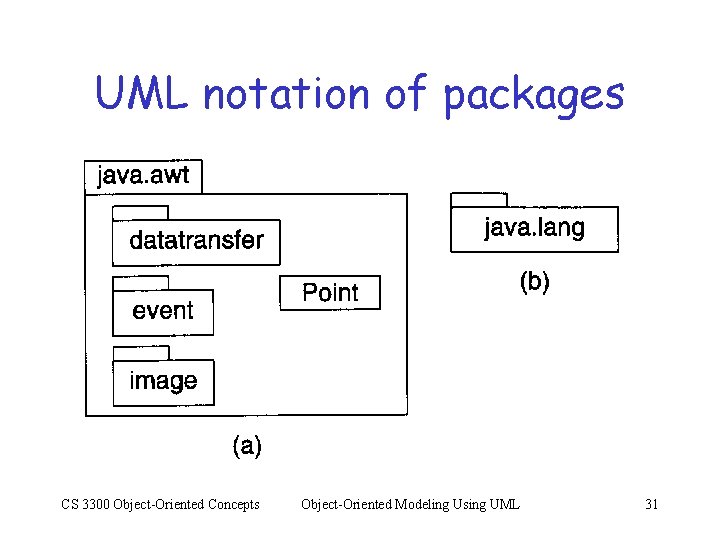

UML notation of packages CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 31

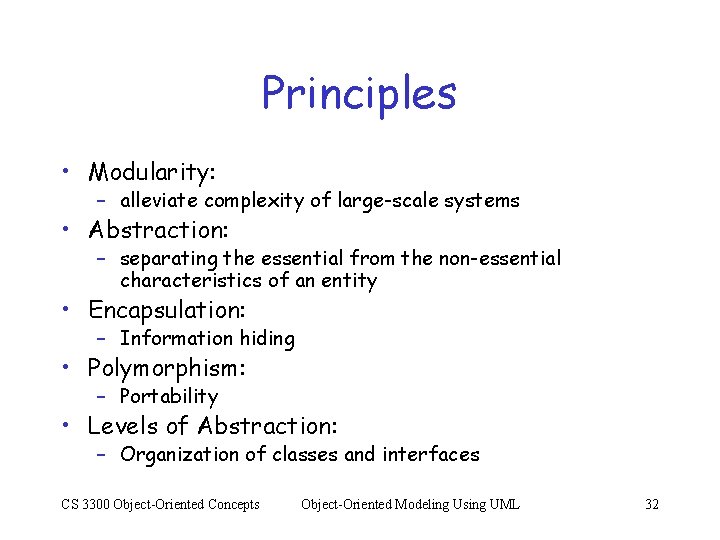

Principles • Modularity: – alleviate complexity of large-scale systems • Abstraction: – separating the essential from the non-essential characteristics of an entity • Encapsulation: – Information hiding • Polymorphism: – Portability • Levels of Abstraction: – Organization of classes and interfaces CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 32

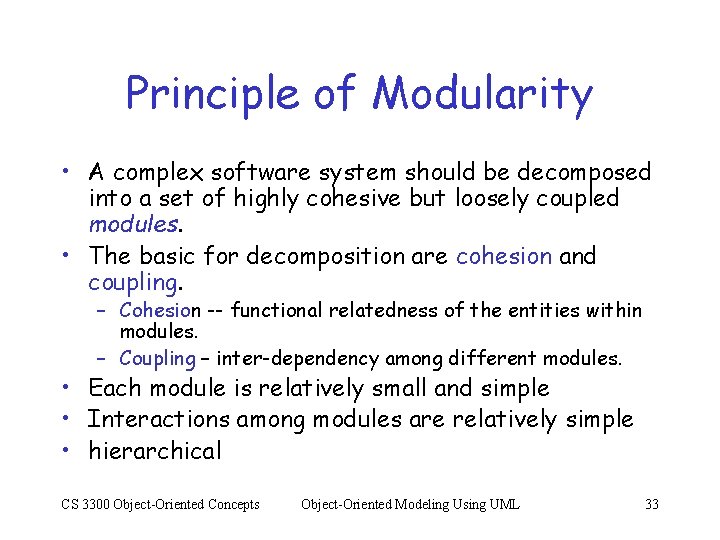

Principle of Modularity • A complex software system should be decomposed into a set of highly cohesive but loosely coupled modules. • The basic for decomposition are cohesion and coupling. – Cohesion -- functional relatedness of the entities within modules. – Coupling – inter-dependency among different modules. • Each module is relatively small and simple • Interactions among modules are relatively simple • hierarchical CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 33

Principle of Abstraction • The behaviors or functionalities should be precisely characterized as contractual interface which captures the essence of the behavior. • The complexity of the module is hidden from the clients. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 34

Principle of Encapsulation • The implementation of a module should be separated from its contractual interface and hidden from the clients of the module. • Information hiding CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 35

Principle of Polymorphism • Ability to interchange modules dynamically without affecting the system. • refers to a contractual interface with multiple interchangeable implementation CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 36

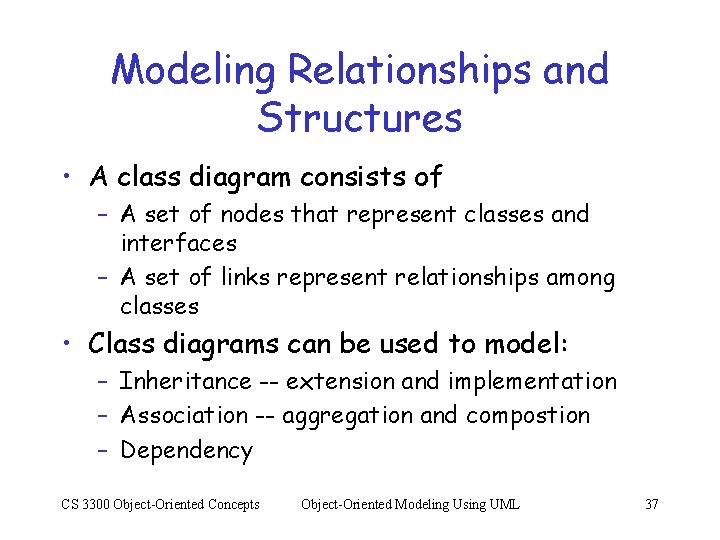

Modeling Relationships and Structures • A class diagram consists of – A set of nodes that represent classes and interfaces – A set of links represent relationships among classes • Class diagrams can be used to model: – Inheritance -- extension and implementation – Association -- aggregation and compostion – Dependency CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 37

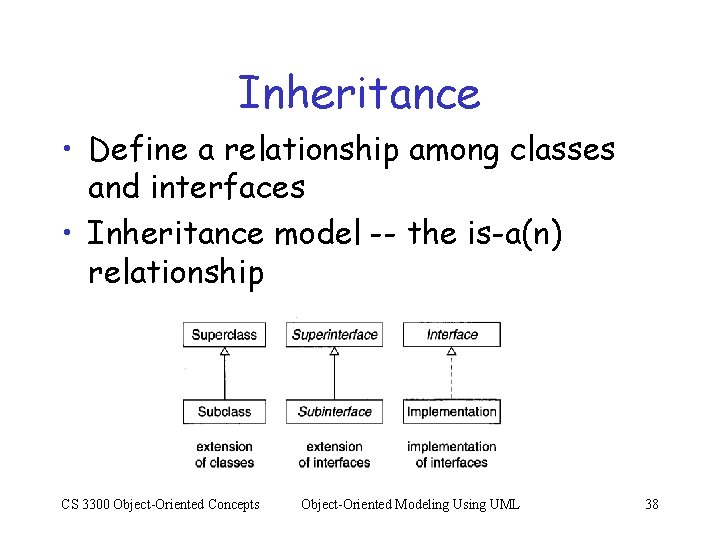

Inheritance • Define a relationship among classes and interfaces • Inheritance model -- the is-a(n) relationship CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 38

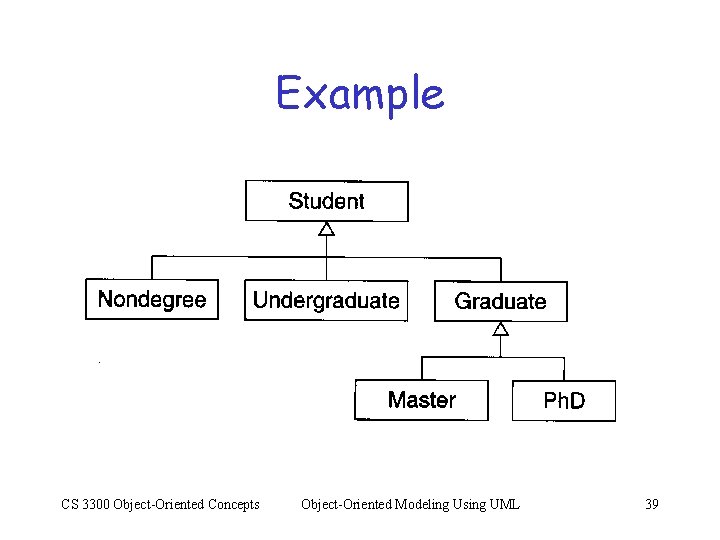

Example CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 39

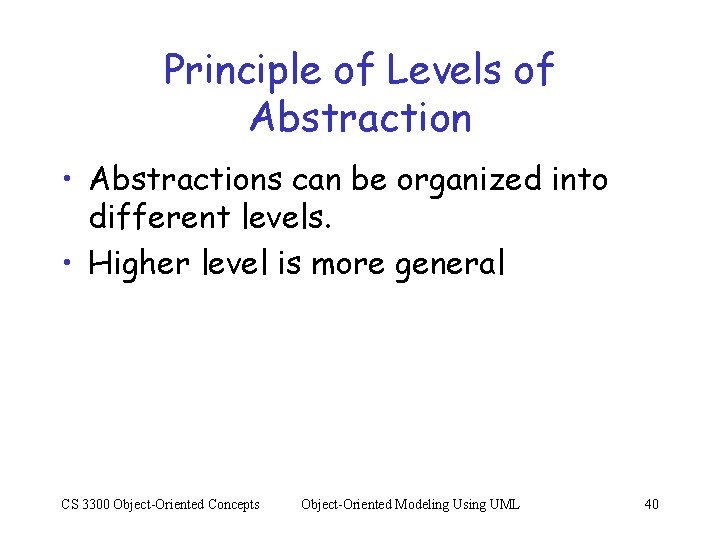

Principle of Levels of Abstraction • Abstractions can be organized into different levels. • Higher level is more general CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 40

Association • Association represents binary relationship between classes Student advisee * * enroll * Course * teach 1 adviser CS 3300 Object-Oriented Concepts 1 Faculty Object-Oriented Modeling Using UML 41

Aggregation and Compositon • Aggregation is a special form of association – Has-a or part-whole relationship • Composition is a stronger form of aggregation CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 42

Example University 1 * College 1 * Department 1 * Student 1 1 1 Member-of 1. . * Chairman-of Faculty CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 43

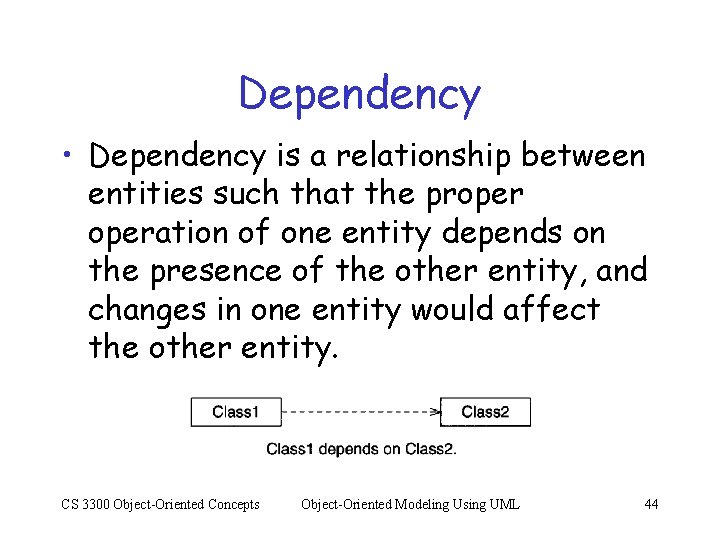

Dependency • Dependency is a relationship between entities such that the properation of one entity depends on the presence of the other entity, and changes in one entity would affect the other entity. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 44

Example Course. Schedule Registrar void add. Course(Course. Schedule a, Course c) void remove. Course(Course. Schedule Course find. Course(String title) void enroll(Course c, Student s) void drop(Course c, Student s CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML Course Student 45

Modeling Dynamic Behavior • Sequence diagram – Depict object interaction by highlighting the time ordering of method invocation CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 46

Example CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 47

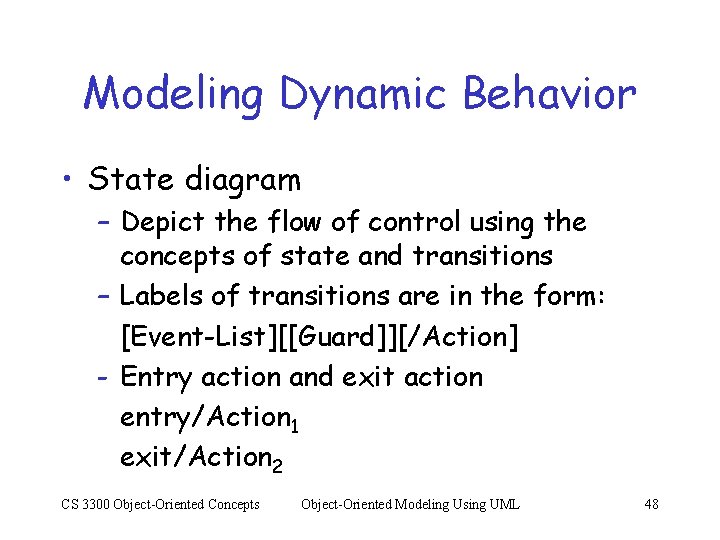

Modeling Dynamic Behavior • State diagram – Depict the flow of control using the concepts of state and transitions – Labels of transitions are in the form: [Event-List][[Guard]][/Action] - Entry action and exit action entry/Action 1 exit/Action 2 CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 48

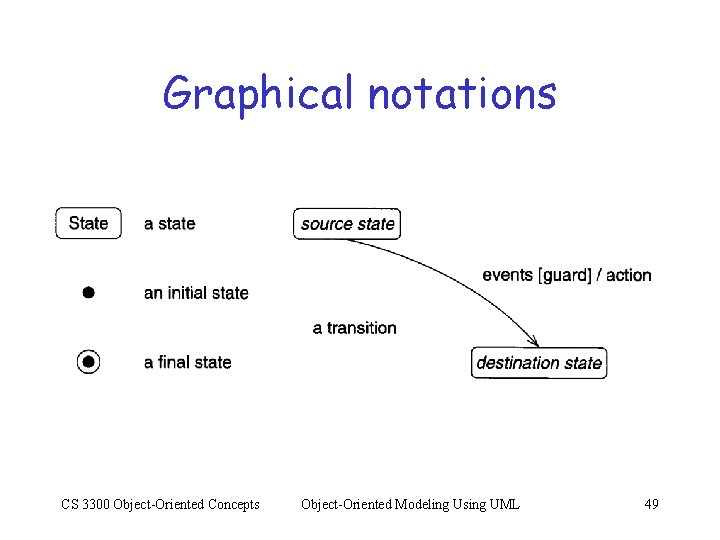

Graphical notations CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 49

Modeling Dynamic Behavior • Nested state diagram – Composite of state diagrams CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 50

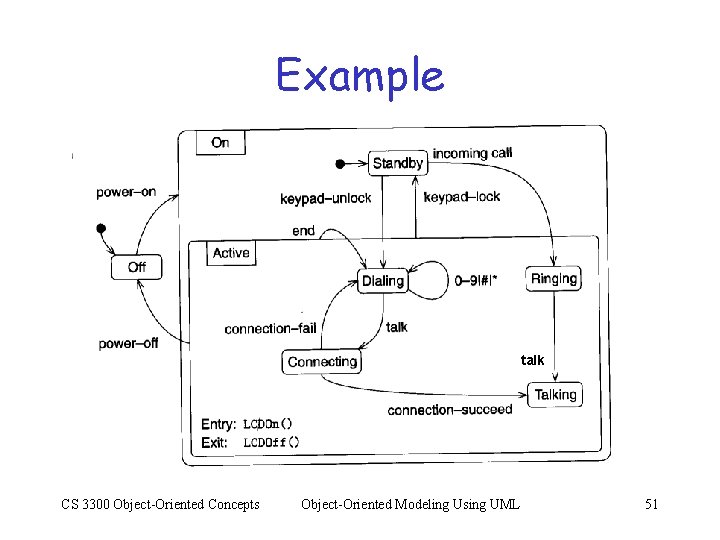

Example talk CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 51

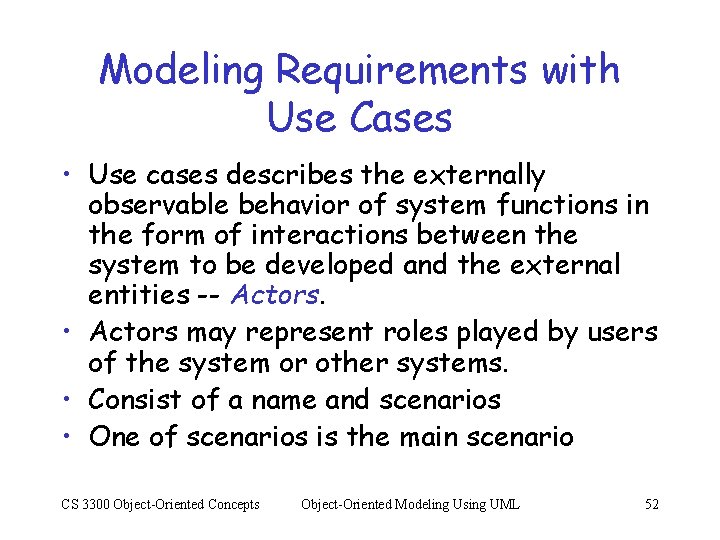

Modeling Requirements with Use Cases • Use cases describes the externally observable behavior of system functions in the form of interactions between the system to be developed and the external entities -- Actors. • Actors may represent roles played by users of the system or other systems. • Consist of a name and scenarios • One of scenarios is the main scenario CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 52

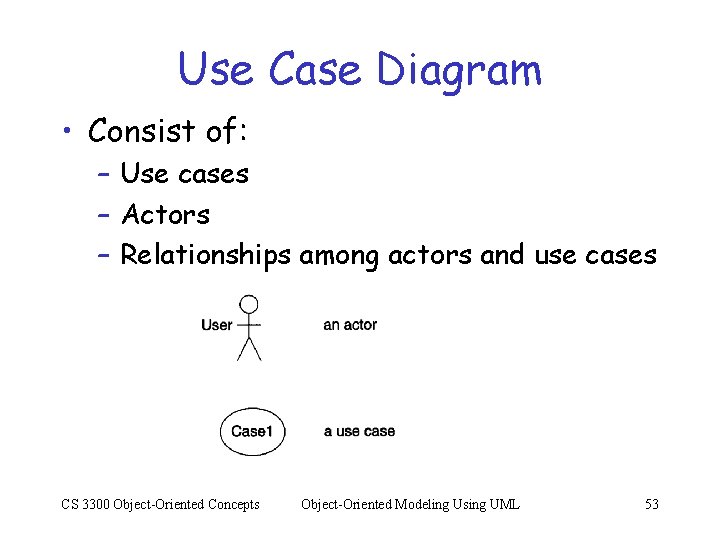

Use Case Diagram • Consist of: – Use cases – Actors – Relationships among actors and use cases CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 53

Extension relationships among actors CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 54

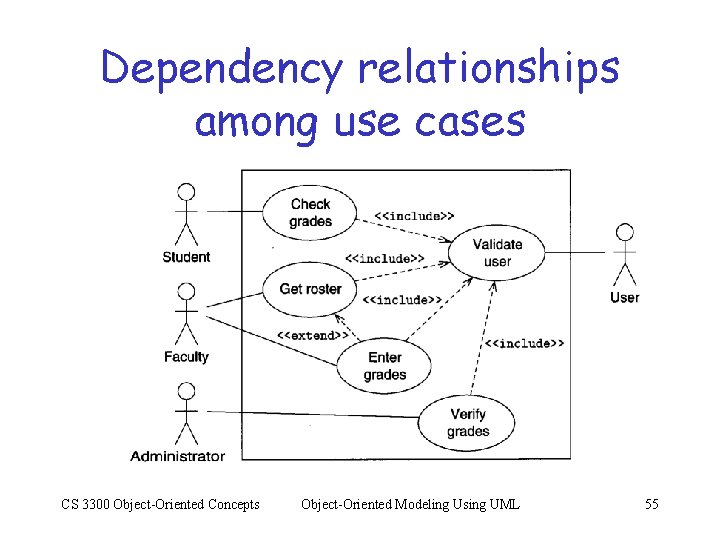

Dependency relationships among use cases CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 55

Case Study: An E-Bookstore • Problem requirements • Program specifications • Object models – Identifying classes – Identifying the features of classes -states and behaviors – Identifying relationships among classes – inheritance and interfaces. CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 56

Requirements • Allow customers to browse and order books, music CDs, and computer software CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 57

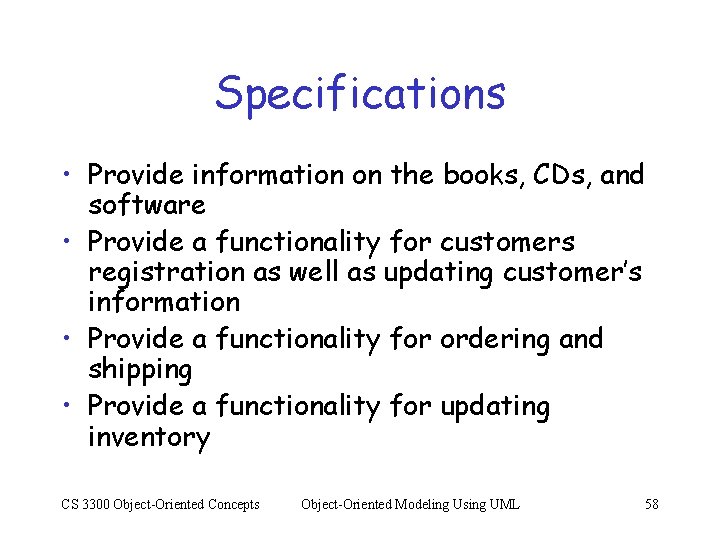

Specifications • Provide information on the books, CDs, and software • Provide a functionality for customers registration as well as updating customer’s information • Provide a functionality for ordering and shipping • Provide a functionality for updating inventory CS 3300 Object-Oriented Concepts Object-Oriented Modeling Using UML 58

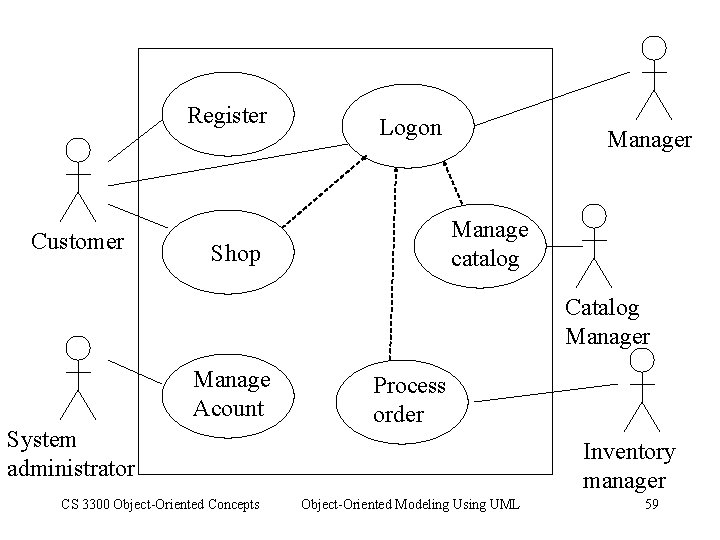

Register Customer Logon Manager Manage catalog Shop Catalog Manager Manage Acount System administrator CS 3300 Object-Oriented Concepts Process order Inventory manager Object-Oriented Modeling Using UML 59
