Object-Oriented Analysis Using CRC Cards and Scenarios to Get Started on a Good Object. Oriented Design Slides from Jochen Rick adapted by Dan Fleck Coming up: Motivation 1

Motivation • It’s all very well understanding what an object is, but it’s much harder to decide what kinds of object you should design in order to implement an application in Smalltalk. Indeed given a set of requirements for an application and a development system like Smalltalk, ‘finding the objects’ is easily the most difficult task an experienced OO developer has to face. —Simon Lewis, The Art and Science of Smalltalk Coming up: Good Object-Oriented Style 2

Good Object-Oriented Style • You can hack in any language, but how do you get reusable, maintainable code? • Just using Objects doesn’t ensure a good design – Many C++ programs have only have a single class – That’s not good object-oriented style • No process can guarantee good results – A good process just makes them more likely Coming up: Design is a Process, not a Waterfall 3

Design is a Process, not a Waterfall • Design is an iterative activity – Start with Object-Oriented Analysis and Design – Move on to OO Programming – Return to OOA/OOD when necessary • When creating new functionality • To solve problems with the code • OO Analysis is just another perspective – Good designers (in any field) shift perspective frequently to create a better design – The boundary between OOA and OOD is fuzzy. Coming up: OOA vs. OOD 4

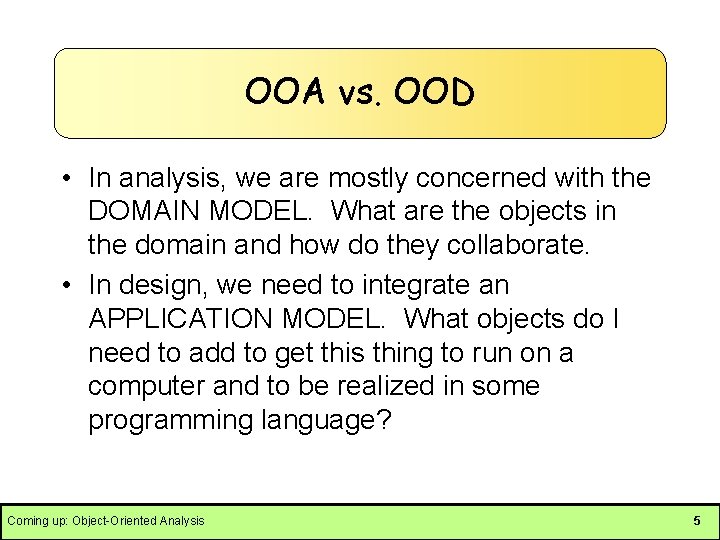

OOA vs. OOD • In analysis, we are mostly concerned with the DOMAIN MODEL. What are the objects in the domain and how do they collaborate. • In design, we need to integrate an APPLICATION MODEL. What objects do I need to add to get this thing to run on a computer and to be realized in some programming language? Coming up: Object-Oriented Analysis 5

Object-Oriented Analysis • • CRC Cards by Ward Cunningham Goal: Understand the Domain as Objects – – • Steps 1. 2. 3. 4. • Object-Oriented Analysis is Language Independent Force Developers to “think” in objects Brainstorm Candidate Classes Create Initial Class-Responsibility-Collaboration Cards Come up with scenarios of use in the domain Use Scenarios and role playing to refine CRC Cards When do we do it? – – Before we begin coding (to get a good start) To add new functionality (update CRC cards and scenarios regularly) Coming up: OOA Step 1 Brainstorming Candidate Classes 6

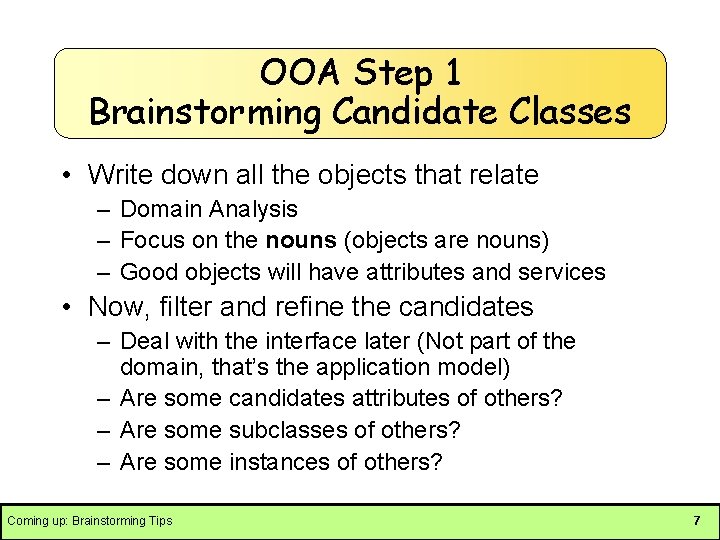

OOA Step 1 Brainstorming Candidate Classes • Write down all the objects that relate – Domain Analysis – Focus on the nouns (objects are nouns) – Good objects will have attributes and services • Now, filter and refine the candidates – Deal with the interface later (Not part of the domain, that’s the application model) – Are some candidates attributes of others? – Are some subclasses of others? – Are some instances of others? Coming up: Brainstorming Tips 7

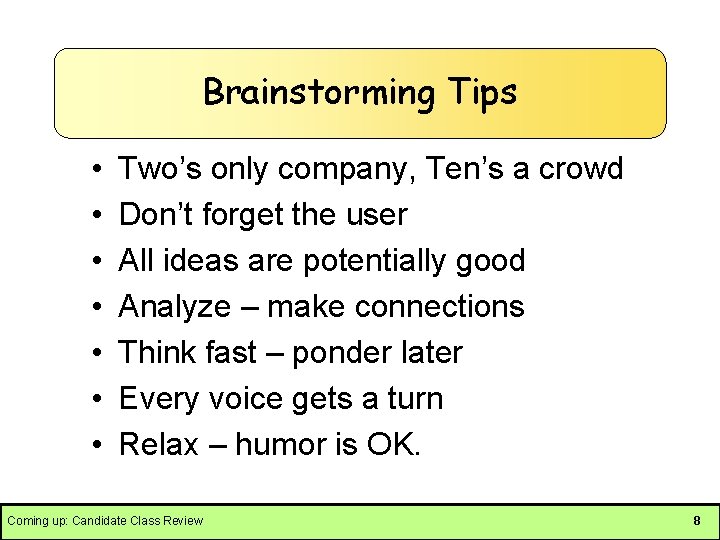

Brainstorming Tips • • Two’s only company, Ten’s a crowd Don’t forget the user All ideas are potentially good Analyze – make connections Think fast – ponder later Every voice gets a turn Relax – humor is OK. Coming up: Candidate Class Review 8

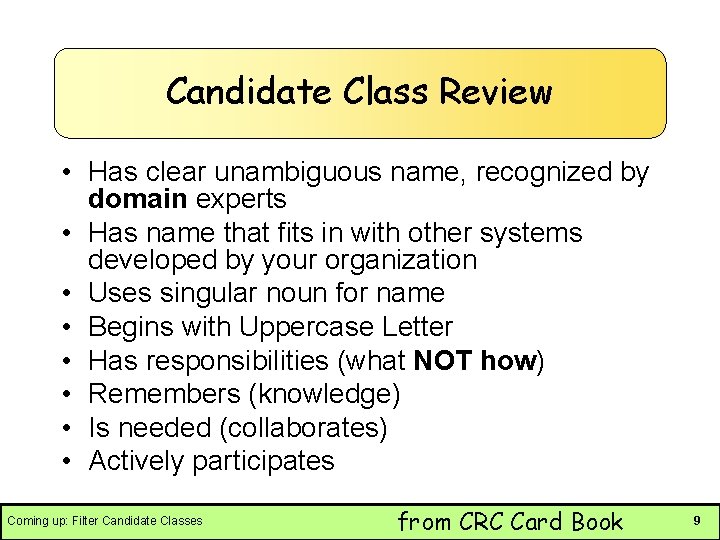

Candidate Class Review • Has clear unambiguous name, recognized by domain experts • Has name that fits in with other systems developed by your organization • Uses singular noun for name • Begins with Uppercase Letter • Has responsibilities (what NOT how) • Remembers (knowledge) • Is needed (collaborates) • Actively participates Coming up: Filter Candidate Classes from CRC Card Book 9

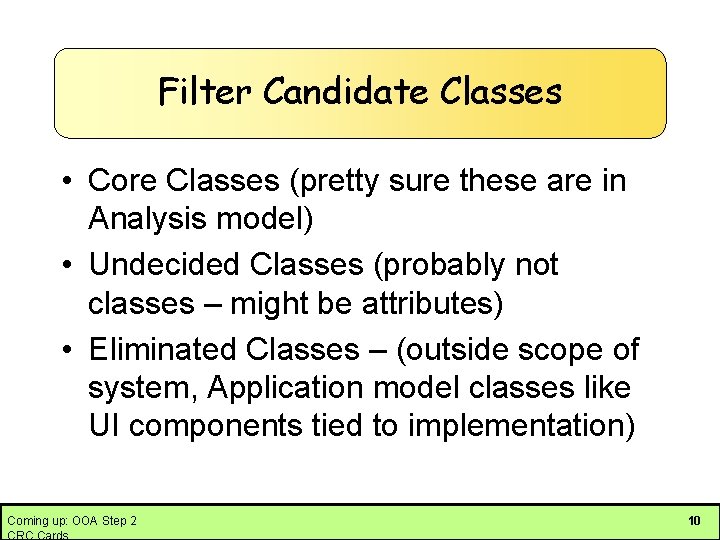

Filter Candidate Classes • Core Classes (pretty sure these are in Analysis model) • Undecided Classes (probably not classes – might be attributes) • Eliminated Classes – (outside scope of system, Application model classes like UI components tied to implementation) Coming up: OOA Step 2 CRC Cards 10

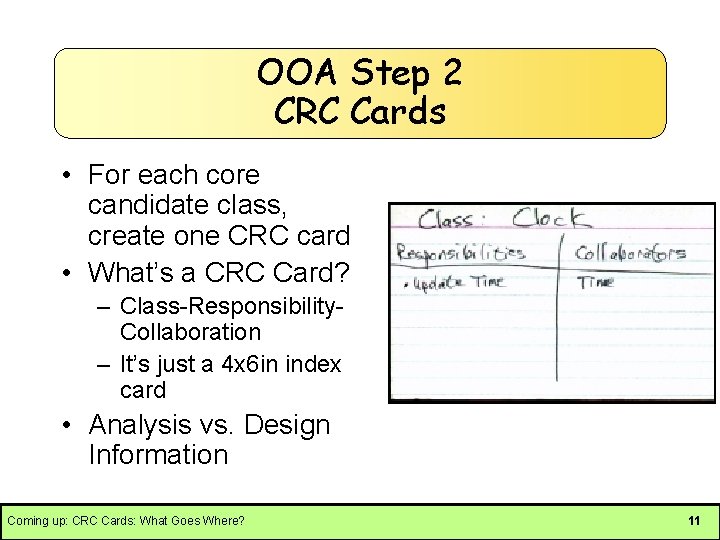

OOA Step 2 CRC Cards • For each core candidate class, create one CRC card • What’s a CRC Card? – Class-Responsibility. Collaboration – It’s just a 4 x 6 in index card • Analysis vs. Design Information Coming up: CRC Cards: What Goes Where? 11

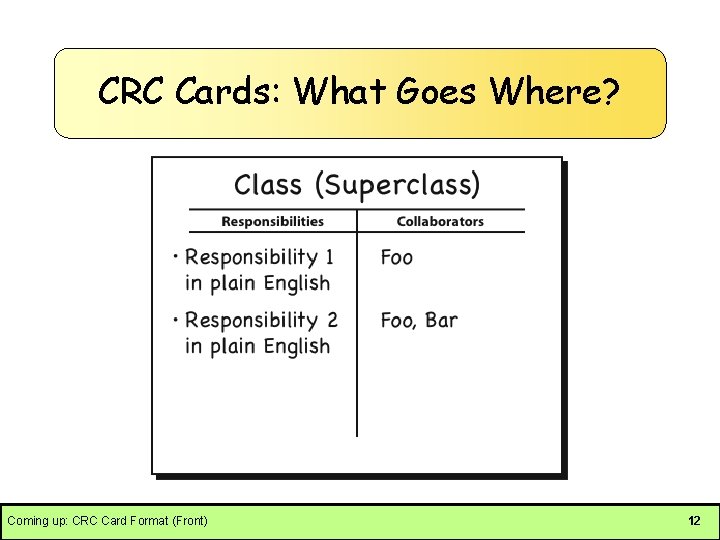

CRC Cards: What Goes Where? Coming up: CRC Card Format (Front) 12

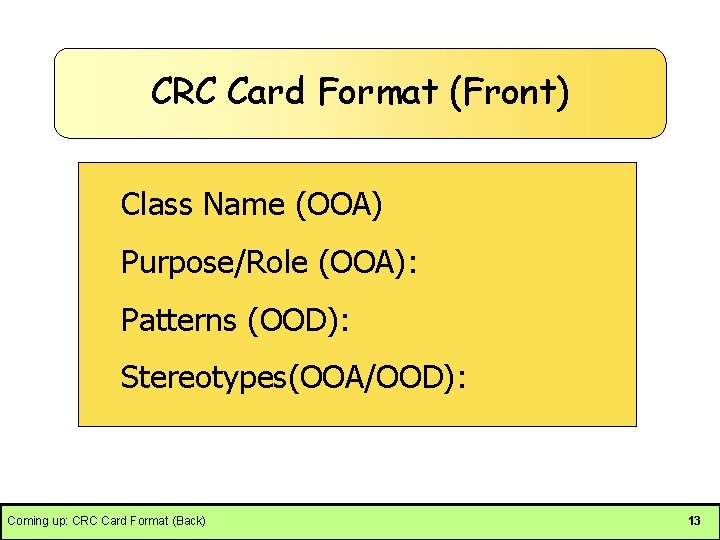

CRC Card Format (Front) Class Name (OOA) Purpose/Role (OOA): Patterns (OOD): Stereotypes(OOA/OOD): Coming up: CRC Card Format (Back) 13

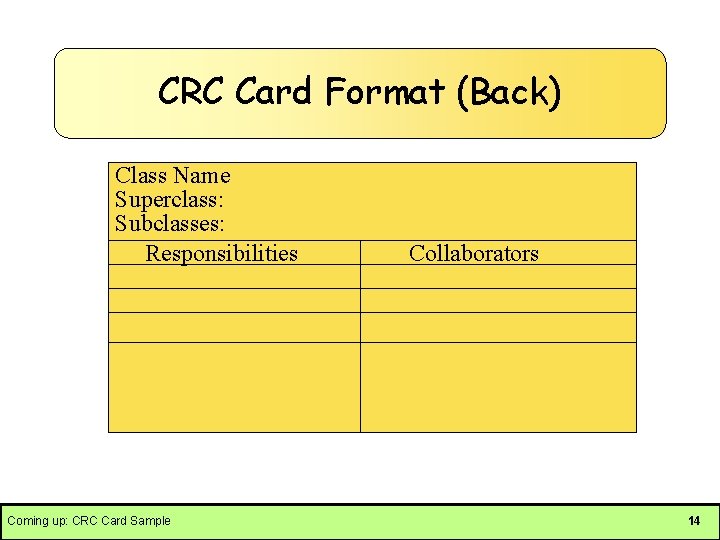

CRC Card Format (Back) Class Name Superclass: Subclasses: Responsibilities Coming up: CRC Card Sample Collaborators 14

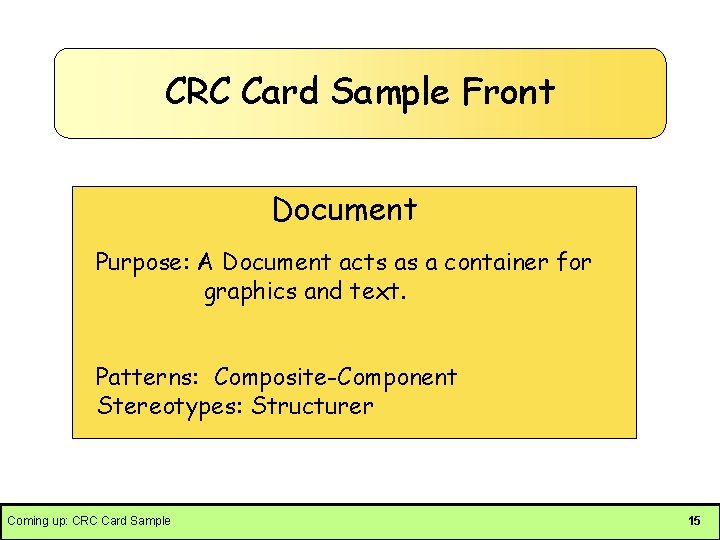

CRC Card Sample Front Document Purpose: A Document acts as a container for graphics and text. Patterns: Composite-Component Stereotypes: Structurer Coming up: CRC Card Sample 15

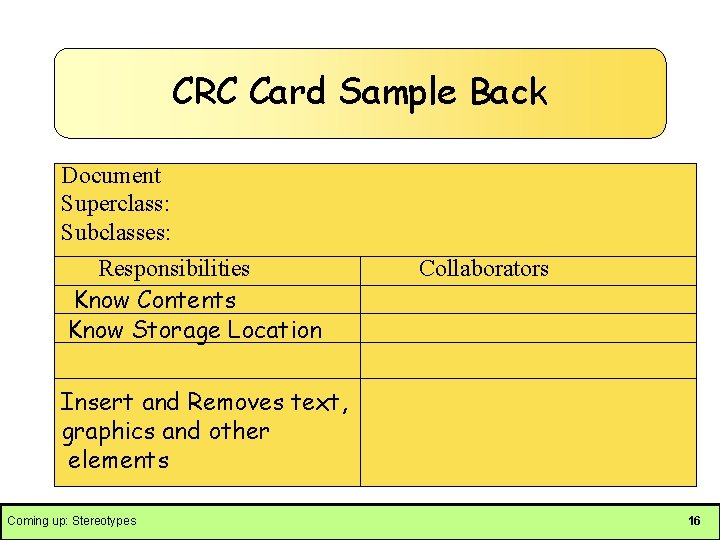

CRC Card Sample Back Document Superclass: Subclasses: Responsibilities Know Contents Know Storage Location Collaborators Insert and Removes text, graphics and other elements Coming up: Stereotypes 16

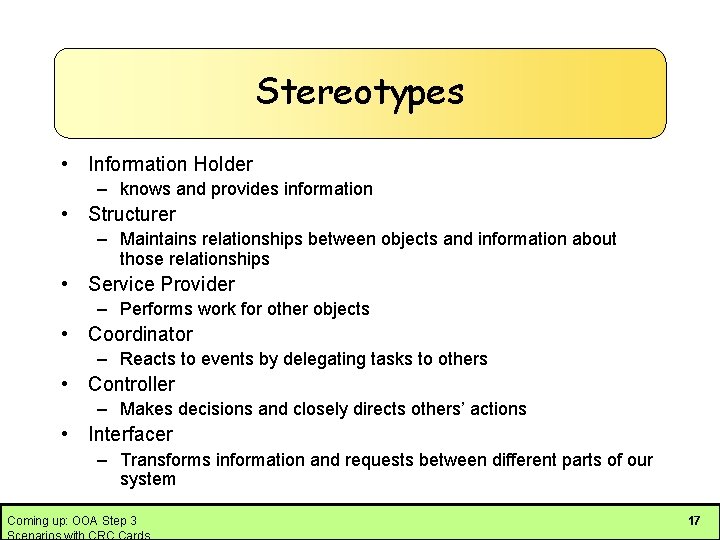

Stereotypes • Information Holder – knows and provides information • Structurer – Maintains relationships between objects and information about those relationships • Service Provider – Performs work for other objects • Coordinator – Reacts to events by delegating tasks to others • Controller – Makes decisions and closely directs others’ actions • Interfacer – Transforms information and requests between different parts of our system Coming up: OOA Step 3 Scenarios with CRC Cards 17

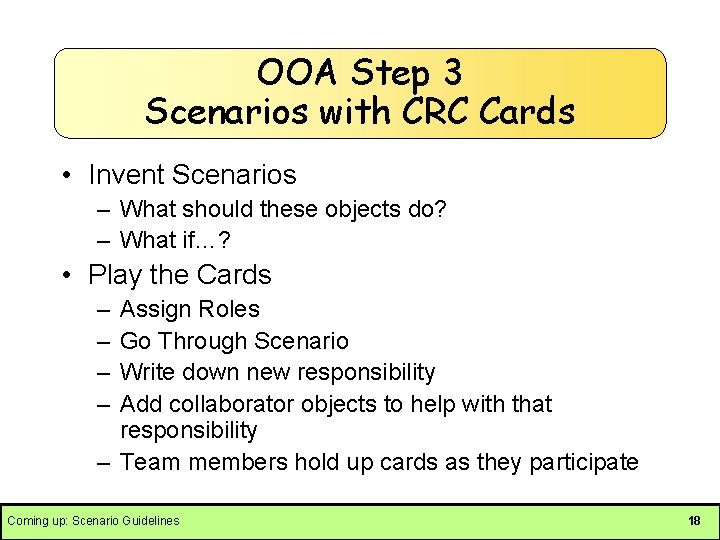

OOA Step 3 Scenarios with CRC Cards • Invent Scenarios – What should these objects do? – What if…? • Play the Cards – – Assign Roles Go Through Scenario Write down new responsibility Add collaborator objects to help with that responsibility – Team members hold up cards as they participate Coming up: Scenario Guidelines 18

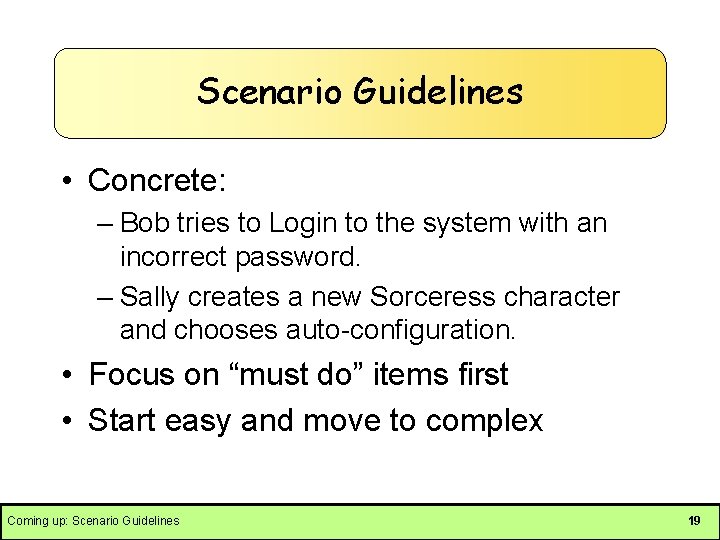

Scenario Guidelines • Concrete: – Bob tries to Login to the system with an incorrect password. – Sally creates a new Sorceress character and chooses auto-configuration. • Focus on “must do” items first • Start easy and move to complex Coming up: Scenario Guidelines 19

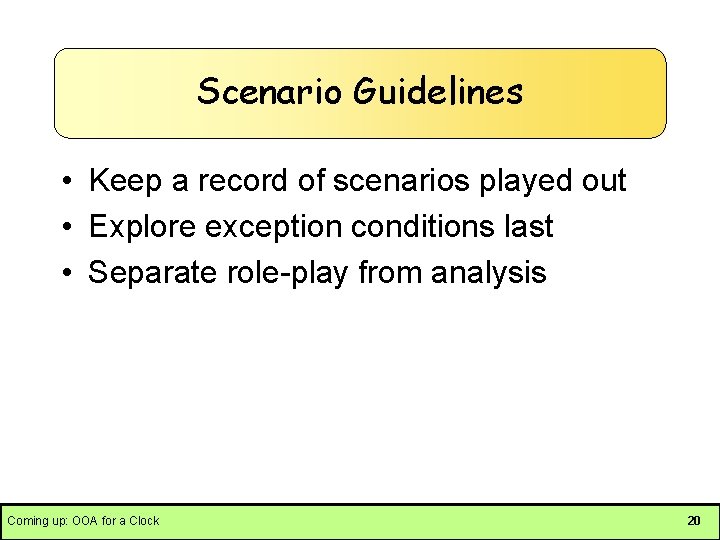

Scenario Guidelines • Keep a record of scenarios played out • Explore exception conditions last • Separate role-play from analysis Coming up: OOA for a Clock 20

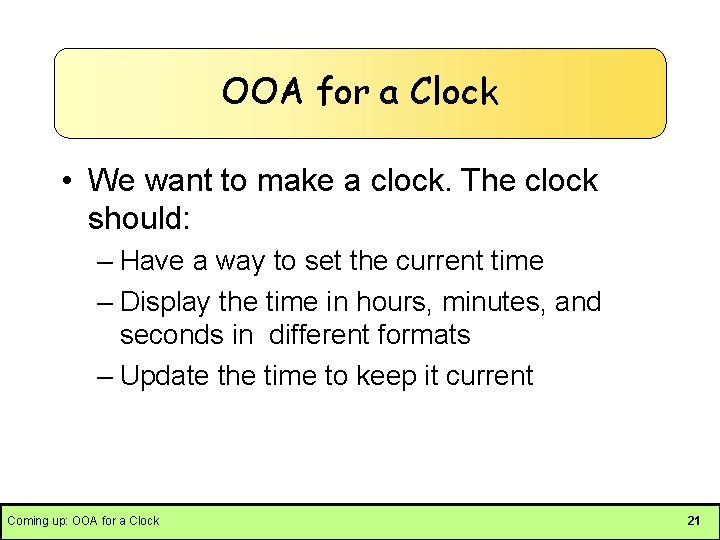

OOA for a Clock • We want to make a clock. The clock should: – Have a way to set the current time – Display the time in hours, minutes, and seconds in different formats – Update the time to keep it current Coming up: OOA for a Clock 21

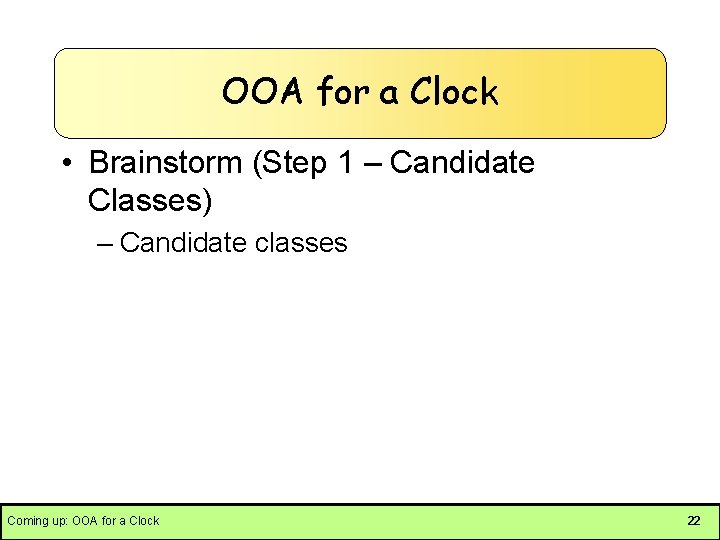

OOA for a Clock • Brainstorm (Step 1 – Candidate Classes) – Candidate classes Coming up: OOA for a Clock 22

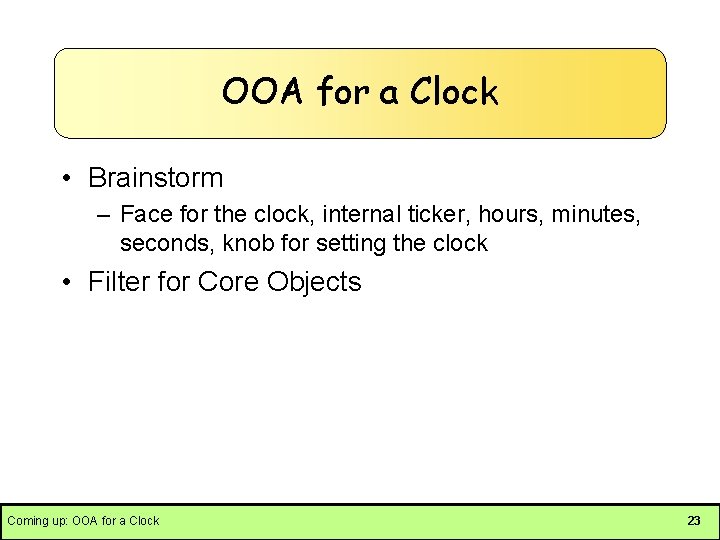

OOA for a Clock • Brainstorm – Face for the clock, internal ticker, hours, minutes, seconds, knob for setting the clock • Filter for Core Objects Coming up: OOA for a Clock 23

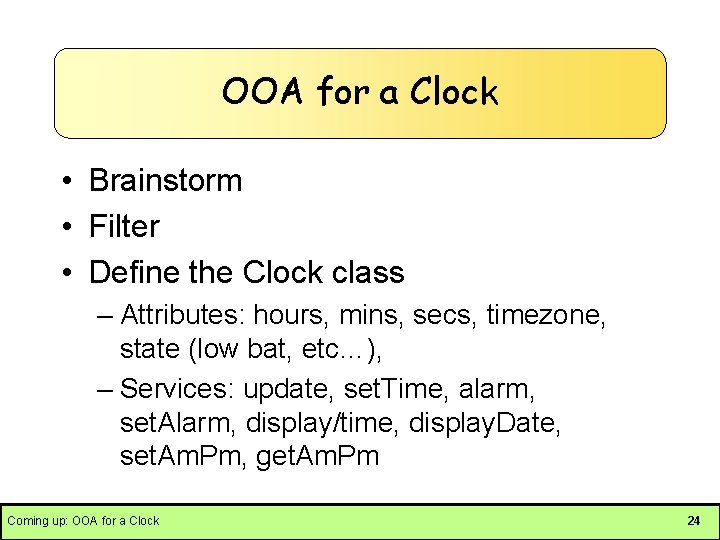

OOA for a Clock • Brainstorm • Filter • Define the Clock class – Attributes: hours, mins, secs, timezone, state (low bat, etc…), – Services: update, set. Time, alarm, set. Alarm, display/time, display. Date, set. Am. Pm, get. Am. Pm Coming up: OOA for a Clock 24

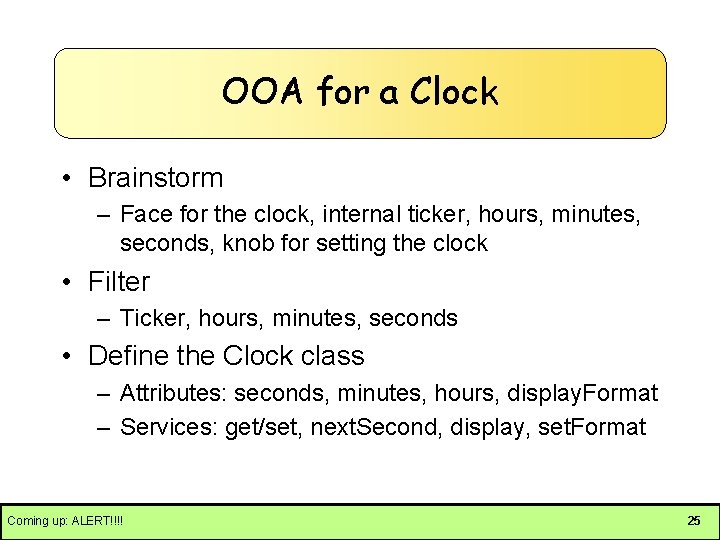

OOA for a Clock • Brainstorm – Face for the clock, internal ticker, hours, minutes, seconds, knob for setting the clock • Filter – Ticker, hours, minutes, seconds • Define the Clock class – Attributes: seconds, minutes, hours, display. Format – Services: get/set, next. Second, display, set. Format Coming up: ALERT!!!! 25

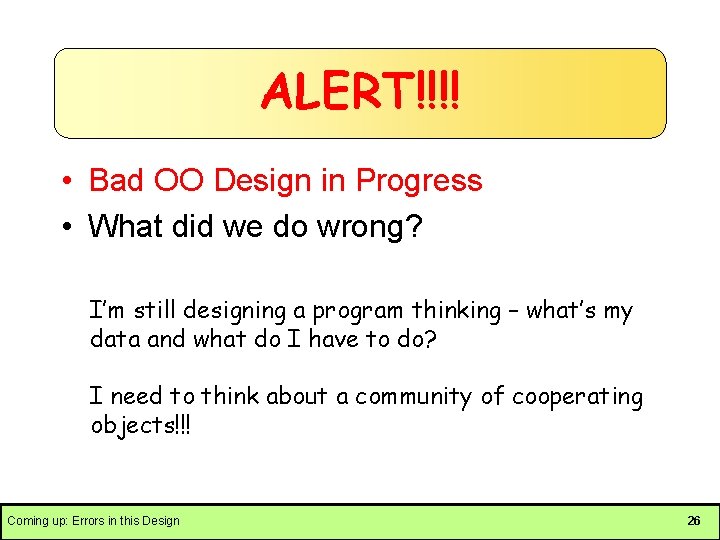

ALERT!!!! • Bad OO Design in Progress • What did we do wrong? I’m still designing a program thinking – what’s my data and what do I have to do? I need to think about a community of cooperating objects!!! Coming up: Errors in this Design 26

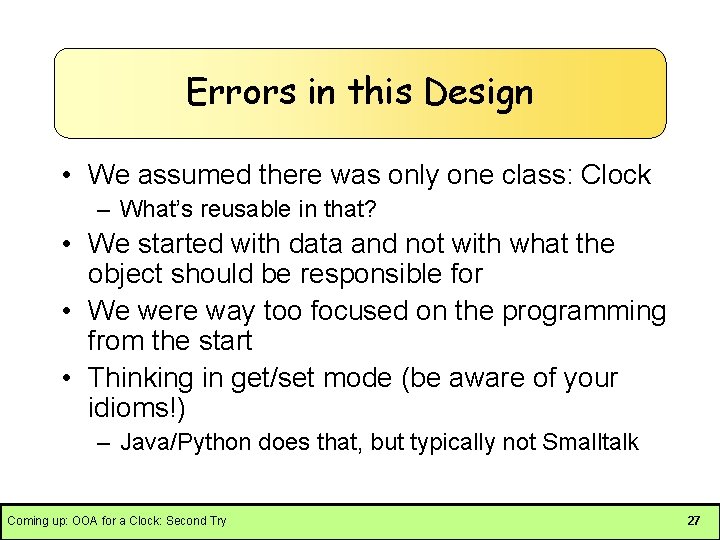

Errors in this Design • We assumed there was only one class: Clock – What’s reusable in that? • We started with data and not with what the object should be responsible for • We were way too focused on the programming from the start • Thinking in get/set mode (be aware of your idioms!) – Java/Python does that, but typically not Smalltalk Coming up: OOA for a Clock: Second Try 27

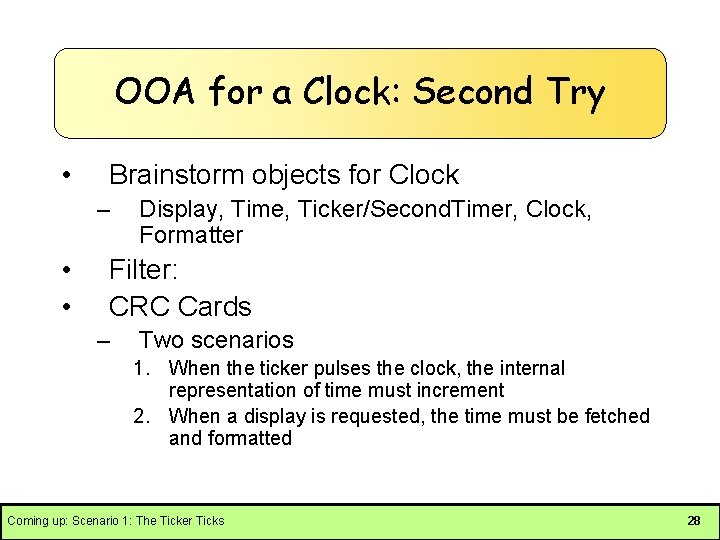

OOA for a Clock: Second Try • Brainstorm objects for Clock – • • Display, Time, Ticker/Second. Timer, Clock, Formatter Filter: CRC Cards – Two scenarios 1. When the ticker pulses the clock, the internal representation of time must increment 2. When a display is requested, the time must be fetched and formatted Coming up: Scenario 1: The Ticker Ticks 28

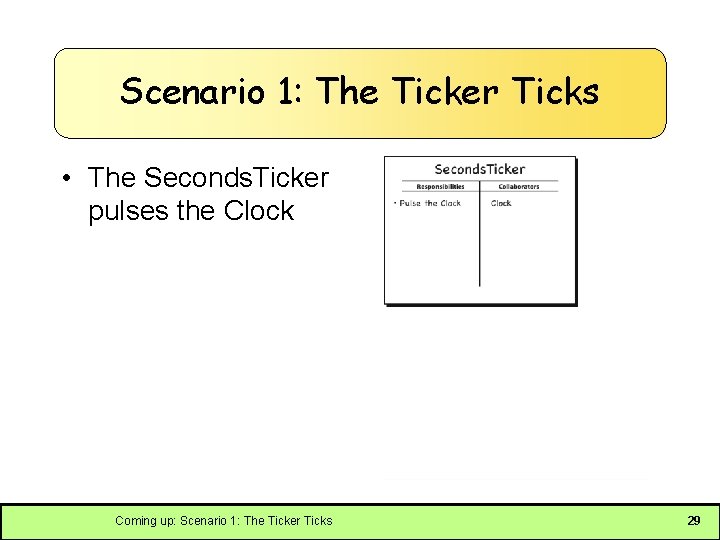

Scenario 1: The Ticker Ticks • The Seconds. Ticker pulses the Clock Coming up: Scenario 1: The Ticker Ticks 29

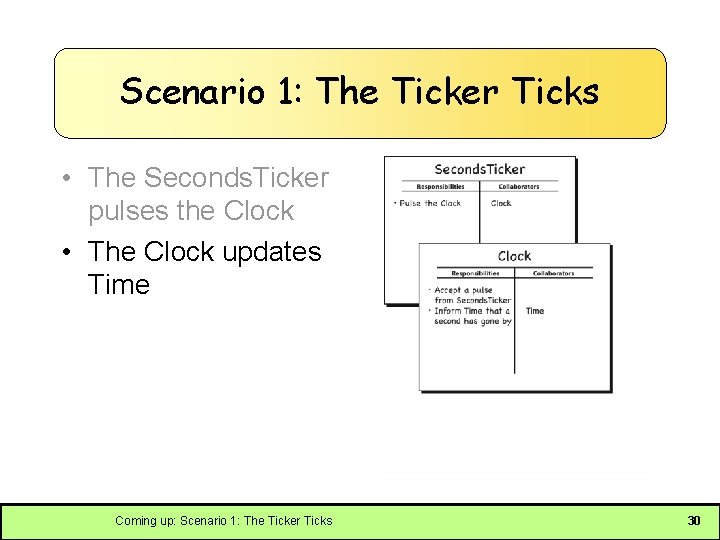

Scenario 1: The Ticker Ticks • The Seconds. Ticker pulses the Clock • The Clock updates Time Coming up: Scenario 1: The Ticker Ticks 30

Scenario 1: The Ticker Ticks • The Seconds. Ticker pulses the Clock • The Clock updates Time • Time updates itself Coming up: Scenario 1: The Ticker Ticks 31

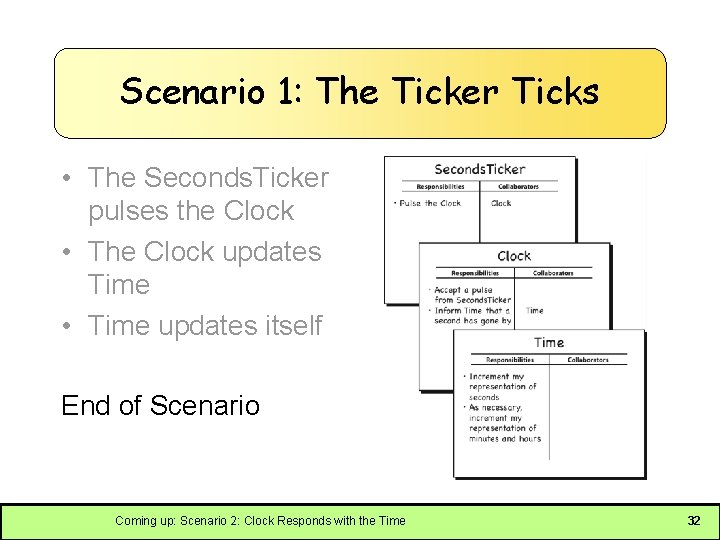

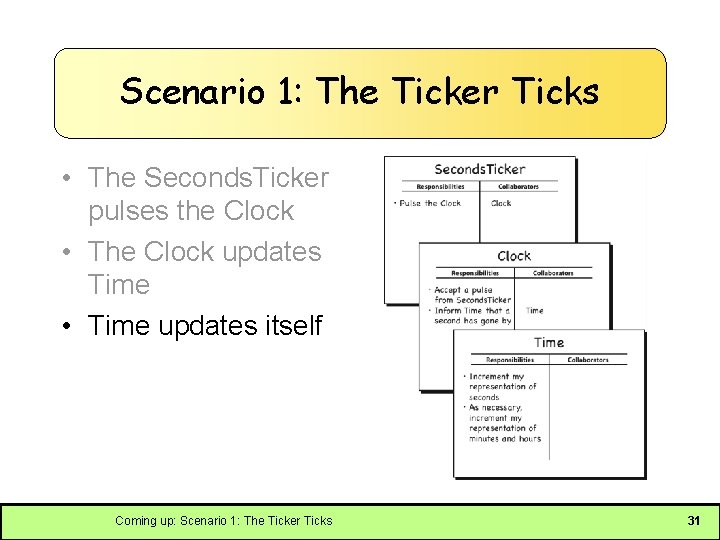

Scenario 1: The Ticker Ticks • The Seconds. Ticker pulses the Clock • The Clock updates Time • Time updates itself End of Scenario Coming up: Scenario 2: Clock Responds with the Time 32

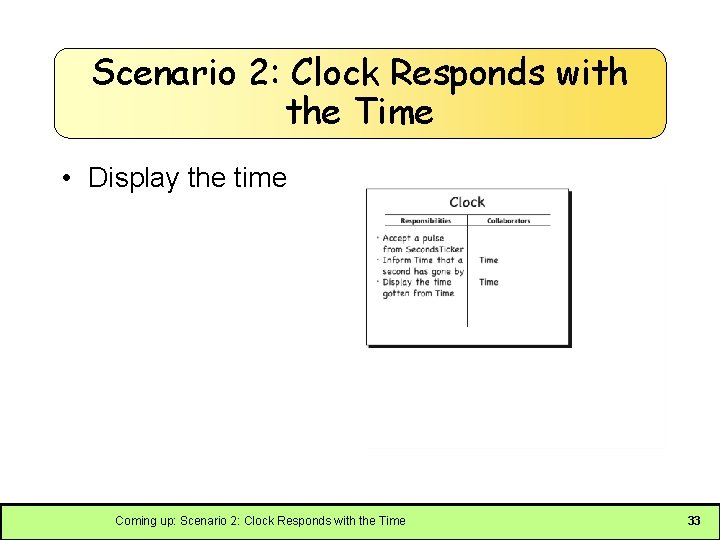

Scenario 2: Clock Responds with the Time • Display the time Coming up: Scenario 2: Clock Responds with the Time 33

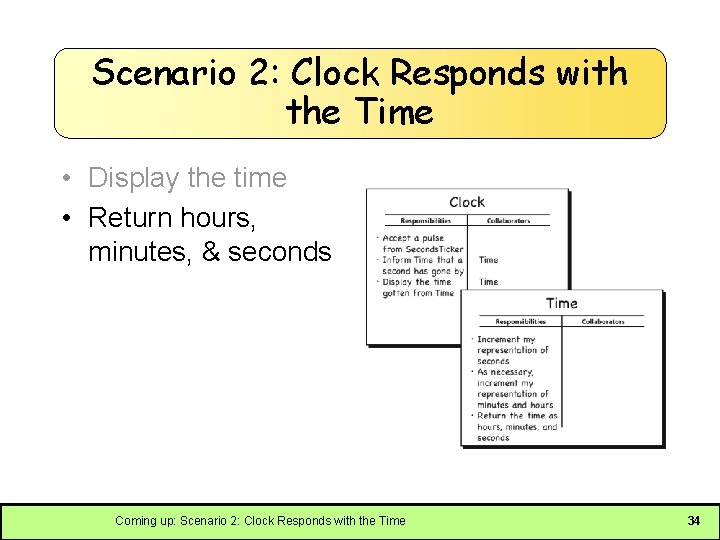

Scenario 2: Clock Responds with the Time • Display the time • Return hours, minutes, & seconds Coming up: Scenario 2: Clock Responds with the Time 34

Scenario 2: Clock Responds with the Time • Display the time • Return hours, minutes, & seconds • Translate the time into the display format Coming up: Scenario 2: Clock Responds with the Time 35

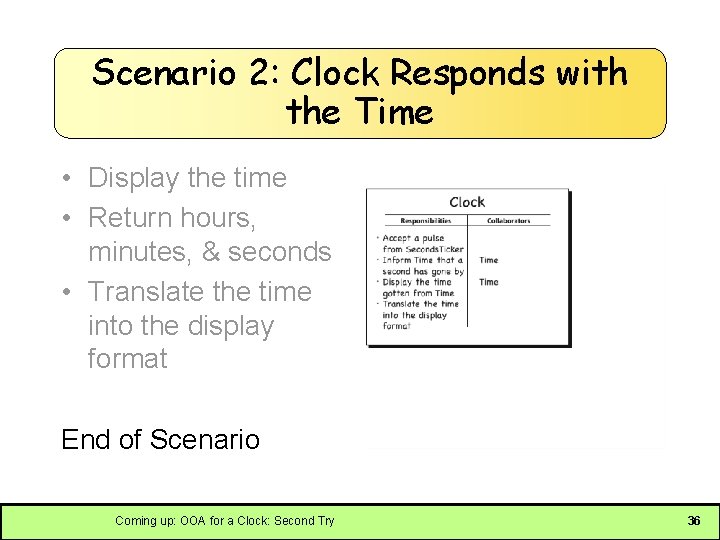

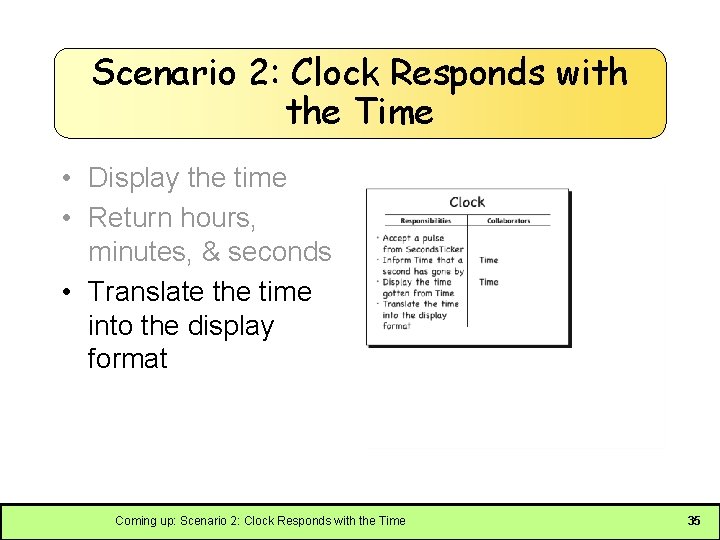

Scenario 2: Clock Responds with the Time • Display the time • Return hours, minutes, & seconds • Translate the time into the display format End of Scenario Coming up: OOA for a Clock: Second Try 36

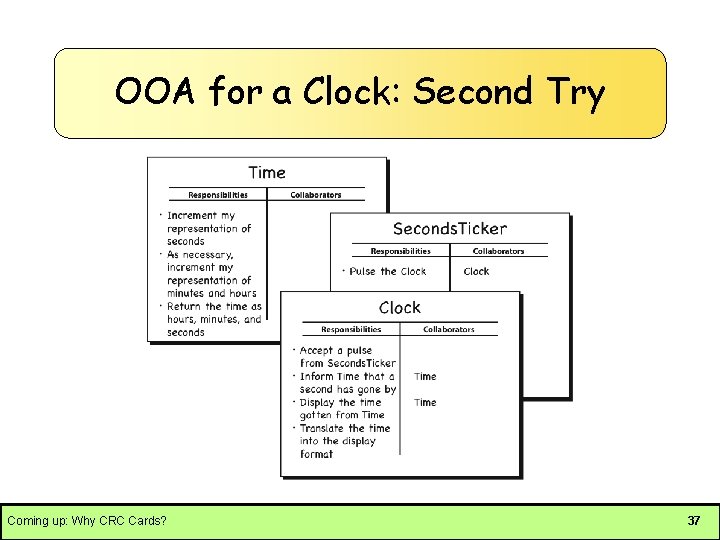

OOA for a Clock: Second Try Coming up: Why CRC Cards? 37

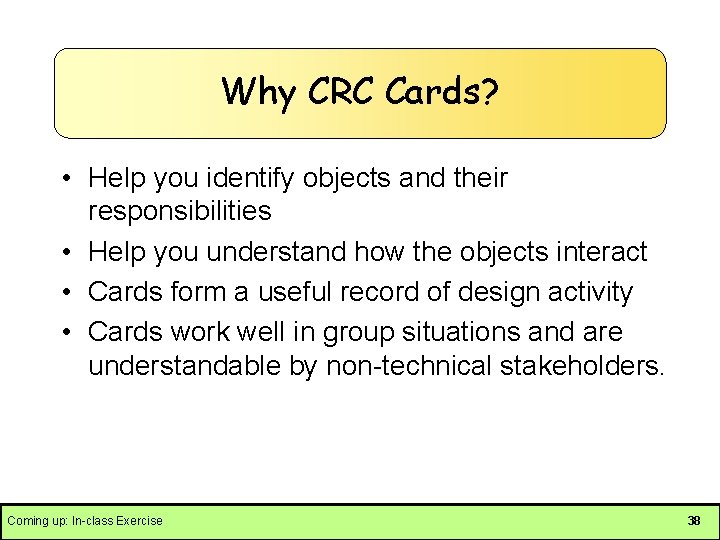

Why CRC Cards? • Help you identify objects and their responsibilities • Help you understand how the objects interact • Cards form a useful record of design activity • Cards work well in group situations and are understandable by non-technical stakeholders. Coming up: In-class Exercise 38

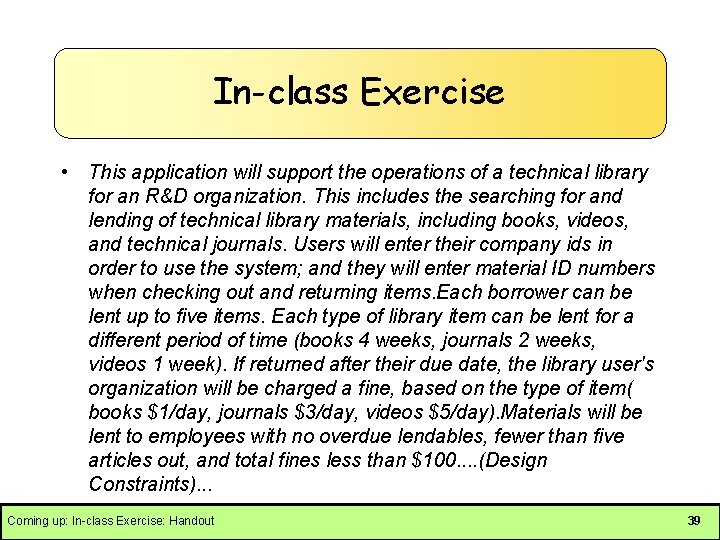

In-class Exercise • This application will support the operations of a technical library for an R&D organization. This includes the searching for and lending of technical library materials, including books, videos, and technical journals. Users will enter their company ids in order to use the system; and they will enter material ID numbers when checking out and returning items. Each borrower can be lent up to five items. Each type of library item can be lent for a different period of time (books 4 weeks, journals 2 weeks, videos 1 week). If returned after their due date, the library user's organization will be charged a fine, based on the type of item( books $1/day, journals $3/day, videos $5/day). Materials will be lent to employees with no overdue lendables, fewer than five articles out, and total fines less than $100. . (Design Constraints). . . Coming up: In-class Exercise: Handout 39

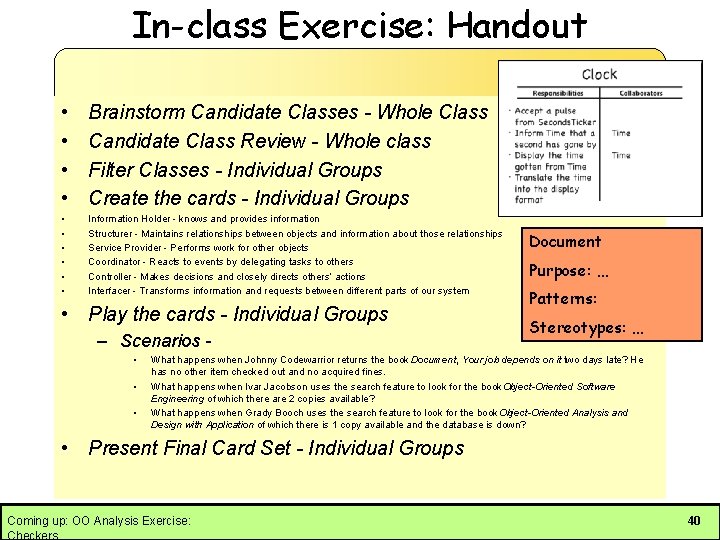

In-class Exercise: Handout • • Brainstorm Candidate Classes - Whole Class Candidate Class Review - Whole class Filter Classes - Individual Groups Create the cards - Individual Groups • • • Information Holder - knows and provides information Structurer - Maintains relationships between objects and information about those relationships Service Provider - Performs work for other objects Coordinator - Reacts to events by delegating tasks to others Controller - Makes decisions and closely directs others’ actions Interfacer - Transforms information and requests between different parts of our system • Play the cards - Individual Groups – Scenarios • • • Document Purpose: … Patterns: Stereotypes: … What happens when Johnny Codewarrior returns the book Document, Your job depends on it two days late? He has no other item checked out and no acquired fines. What happens when Ivar Jacobson uses the search feature to look for the book Object-Oriented Software Engineering of which there are 2 copies available? What happens when Grady Booch uses the search feature to look for the book Object-Oriented Analysis and Design with Application of which there is 1 copy available and the database is down? • Present Final Card Set - Individual Groups Coming up: OO Analysis Exercise: Checkers 40
