Objectives You should be able to describe Operator

Objectives You should be able to describe: • Operator Functions • Two Useful Alternatives – operator() and operator[] • Data Type Conversions • Class Inheritance and Polymorphism • Common Programming Errors 2

Operator Functions • C++ operators listed in Table 14. 1 can be redefined for class use, subject to certain restrictions – Symbols not in Table 14. 1 cannot be redefined • . , : : , and ? : symbols cannot be redefined – New operator symbols cannot be created – Neither the precedence nor the associativity of C++’s operators can be modified 3

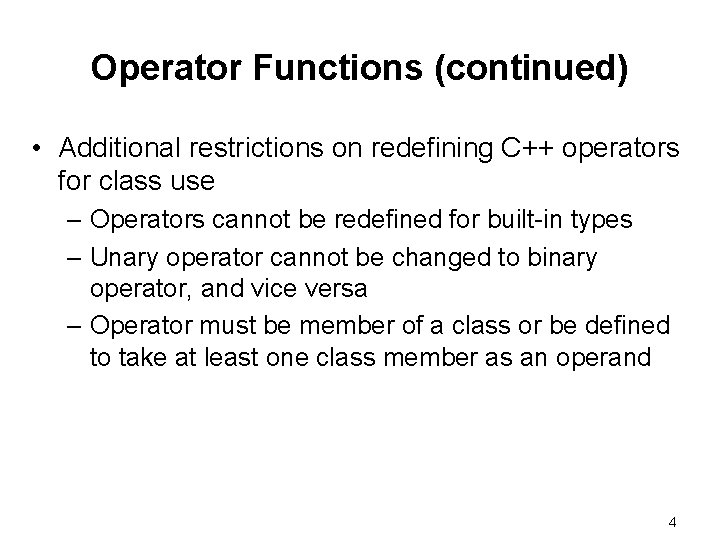

Operator Functions (continued) • Additional restrictions on redefining C++ operators for class use – Operators cannot be redefined for built-in types – Unary operator cannot be changed to binary operator, and vice versa – Operator must be member of a class or be defined to take at least one class member as an operand 4

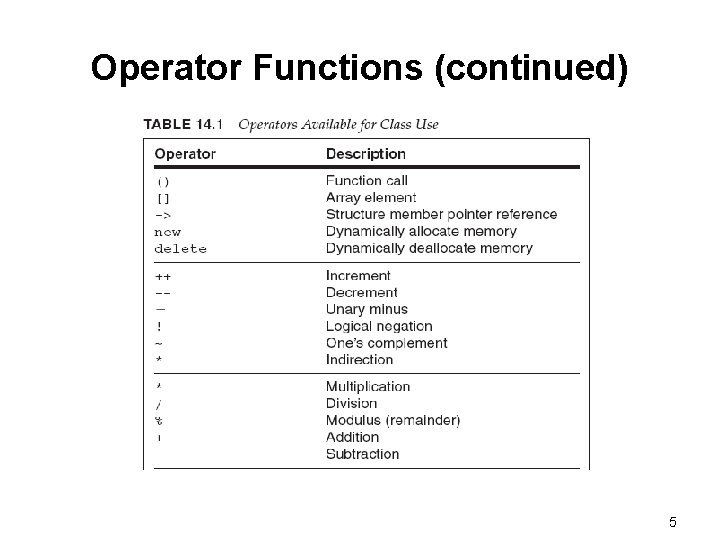

Operator Functions (continued) 5

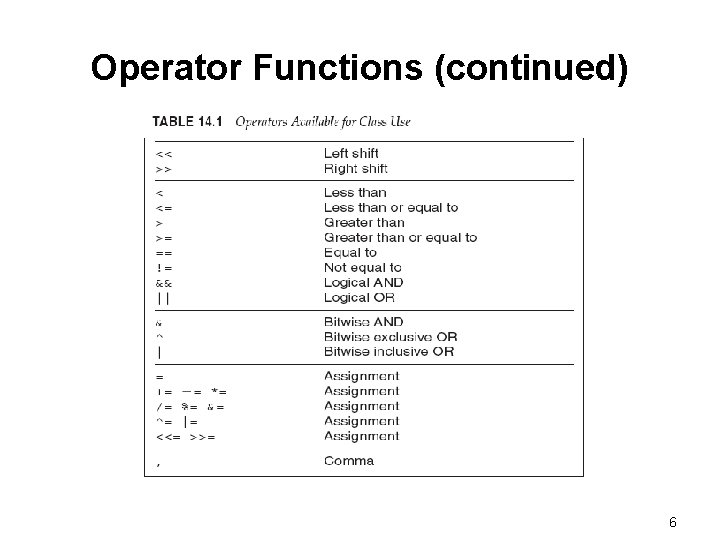

Operator Functions (continued) 6

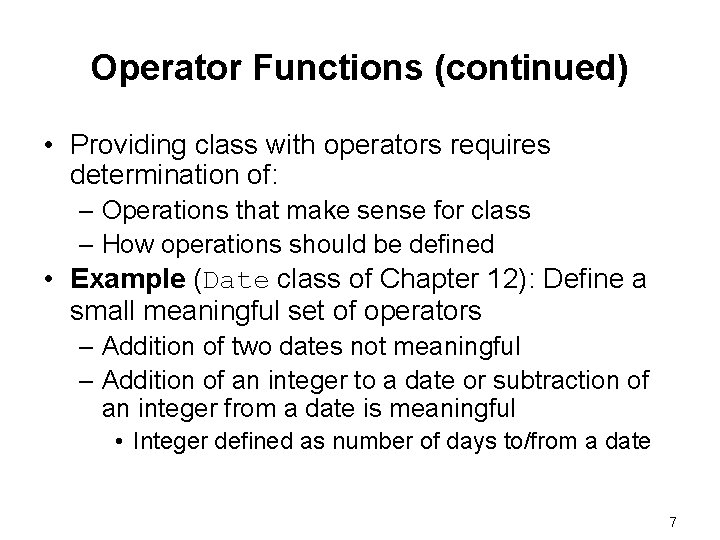

Operator Functions (continued) • Providing class with operators requires determination of: – Operations that make sense for class – How operations should be defined • Example (Date class of Chapter 12): Define a small meaningful set of operators – Addition of two dates not meaningful – Addition of an integer to a date or subtraction of an integer from a date is meaningful • Integer defined as number of days to/from a date 7

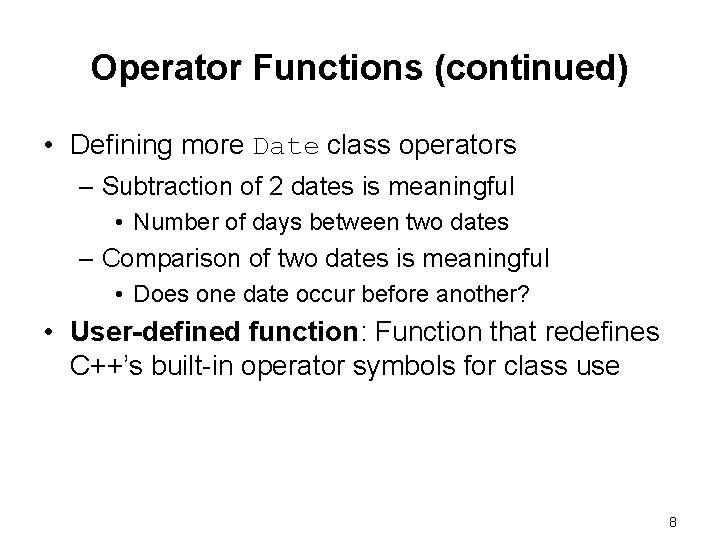

Operator Functions (continued) • Defining more Date class operators – Subtraction of 2 dates is meaningful • Number of days between two dates – Comparison of two dates is meaningful • Does one date occur before another? • User-defined function: Function that redefines C++’s built-in operator symbols for class use 8

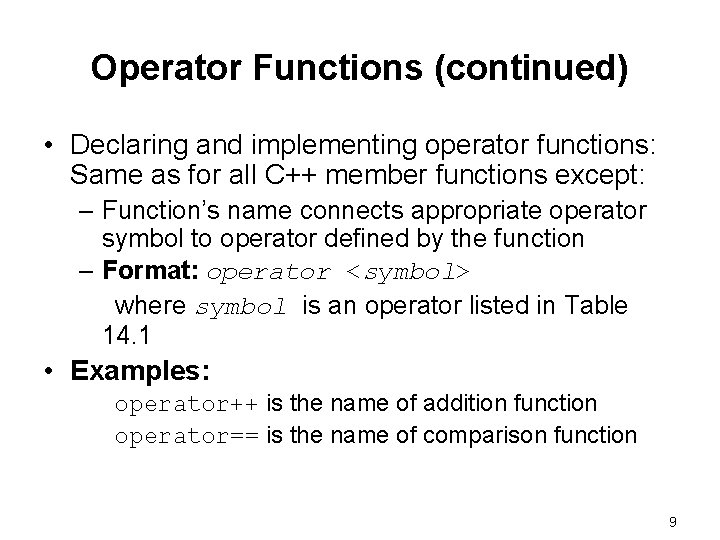

Operator Functions (continued) • Declaring and implementing operator functions: Same as for all C++ member functions except: – Function’s name connects appropriate operator symbol to operator defined by the function – Format: operator <symbol> where symbol is an operator listed in Table 14. 1 • Examples: operator++ is the name of addition function operator== is the name of comparison function 9

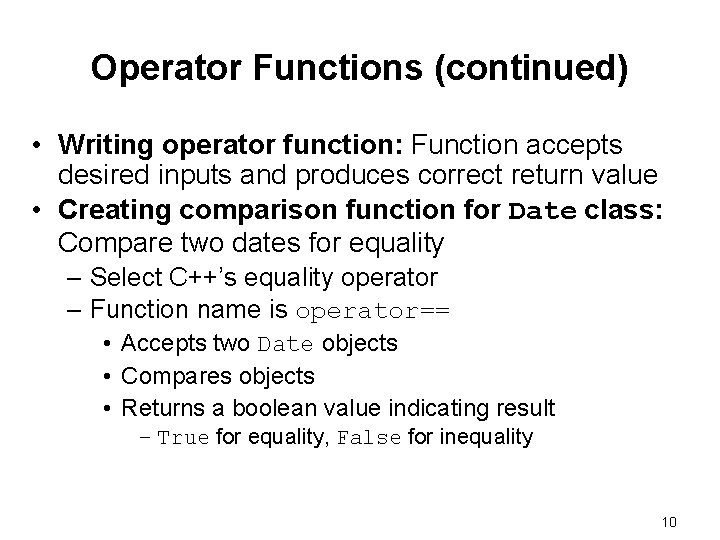

Operator Functions (continued) • Writing operator function: Function accepts desired inputs and produces correct return value • Creating comparison function for Date class: Compare two dates for equality – Select C++’s equality operator – Function name is operator== • Accepts two Date objects • Compares objects • Returns a boolean value indicating result – True for equality, False for inequality 10

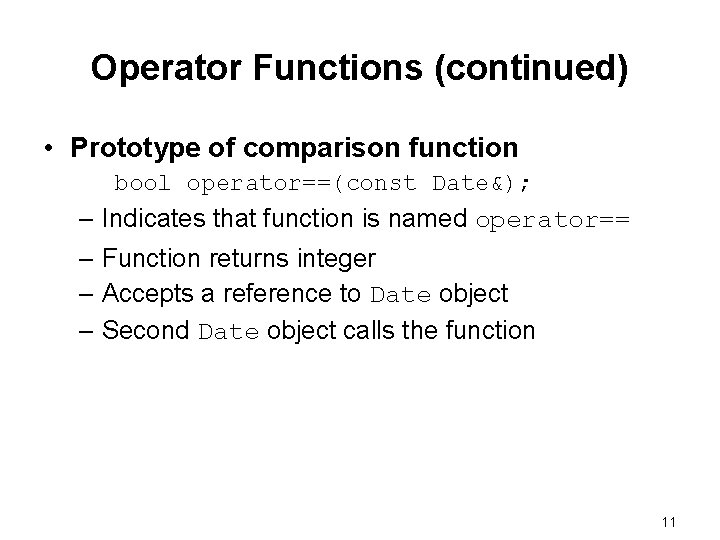

Operator Functions (continued) • Prototype of comparison function bool operator==(const Date&); – Indicates that function is named operator== – Function returns integer – Accepts a reference to Date object – Second Date object calls the function 11

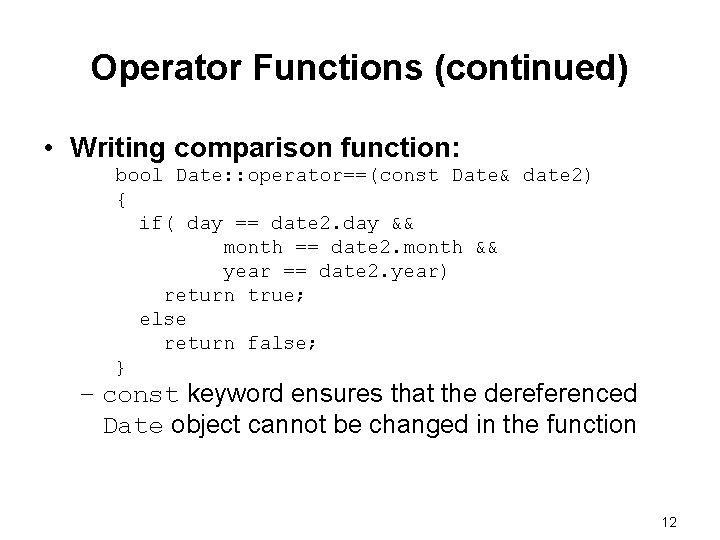

Operator Functions (continued) • Writing comparison function: bool Date: : operator==(const Date& date 2) { if( day == date 2. day && month == date 2. month && year == date 2. year) return true; else return false; } – const keyword ensures that the dereferenced Date object cannot be changed in the function 12

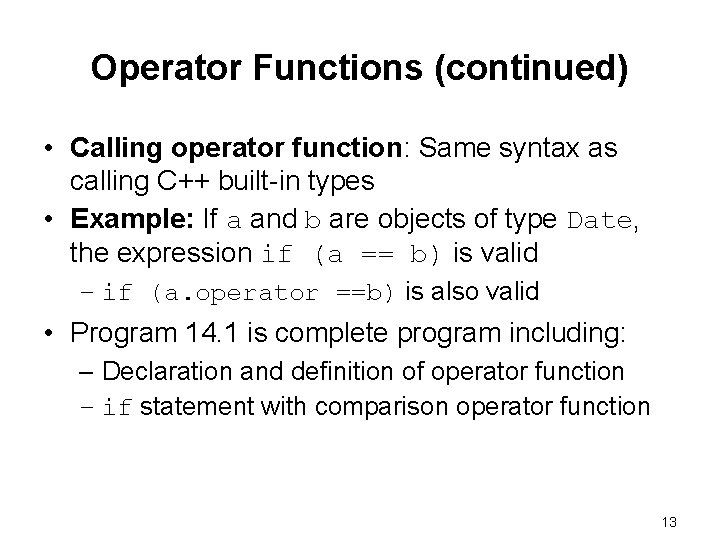

Operator Functions (continued) • Calling operator function: Same syntax as calling C++ built-in types • Example: If a and b are objects of type Date, the expression if (a == b) is valid – if (a. operator ==b) is also valid • Program 14. 1 is complete program including: – Declaration and definition of operator function – if statement with comparison operator function 13

Operator Functions (continued) 14

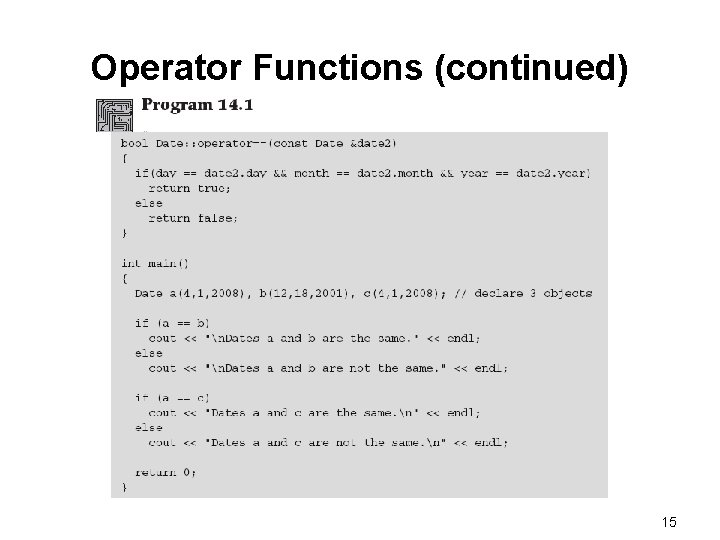

Operator Functions (continued) 15

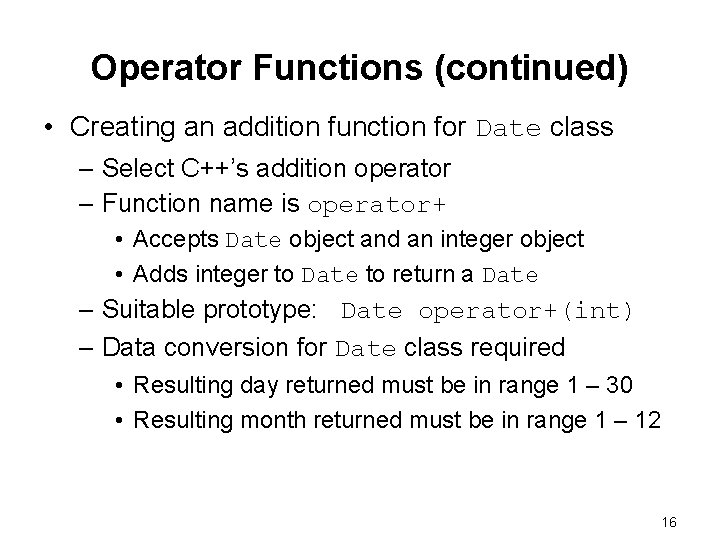

Operator Functions (continued) • Creating an addition function for Date class – Select C++’s addition operator – Function name is operator+ • Accepts Date object and an integer object • Adds integer to Date to return a Date – Suitable prototype: Date operator+(int) – Data conversion for Date class required • Resulting day returned must be in range 1 – 30 • Resulting month returned must be in range 1 – 12 16

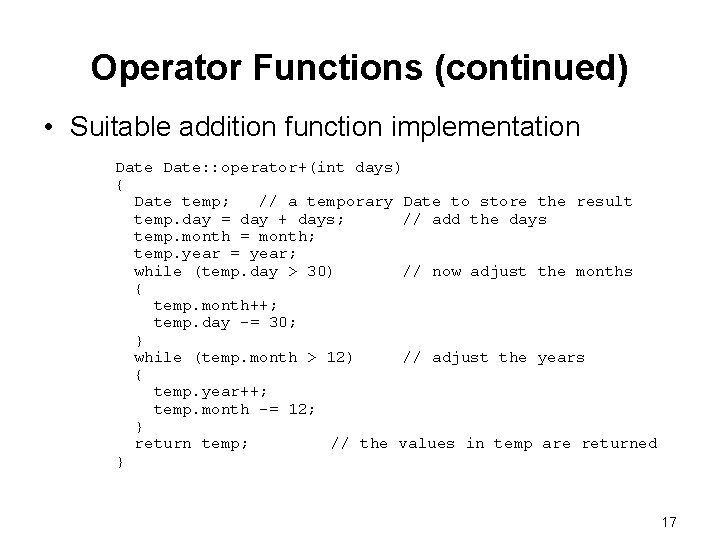

Operator Functions (continued) • Suitable addition function implementation Date: : operator+(int days) { Date temp; // a temporary Date to store the result temp. day = day + days; // add the days temp. month = month; temp. year = year; while (temp. day > 30) // now adjust the months { temp. month++; temp. day -= 30; } while (temp. month > 12) // adjust the years { temp. year++; temp. month -= 12; } return temp; // the values in temp are returned } 17

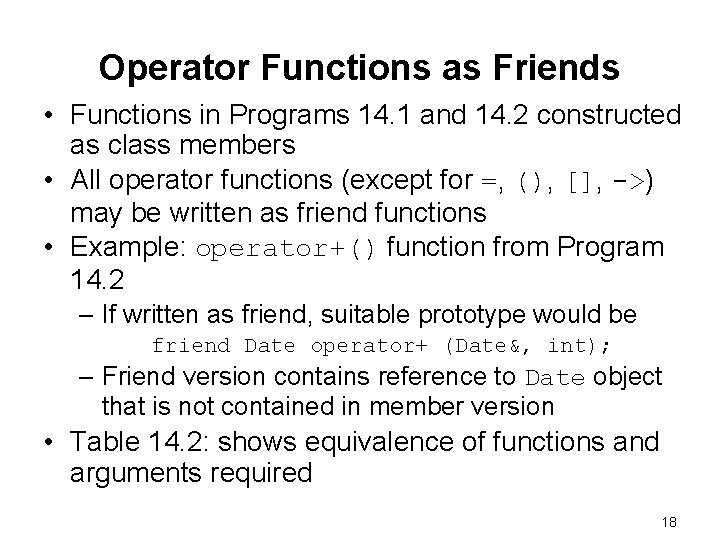

Operator Functions as Friends • Functions in Programs 14. 1 and 14. 2 constructed as class members • All operator functions (except for =, (), [], ->) may be written as friend functions • Example: operator+() function from Program 14. 2 – If written as friend, suitable prototype would be friend Date operator+ (Date&, int); – Friend version contains reference to Date object that is not contained in member version • Table 14. 2: shows equivalence of functions and arguments required 18

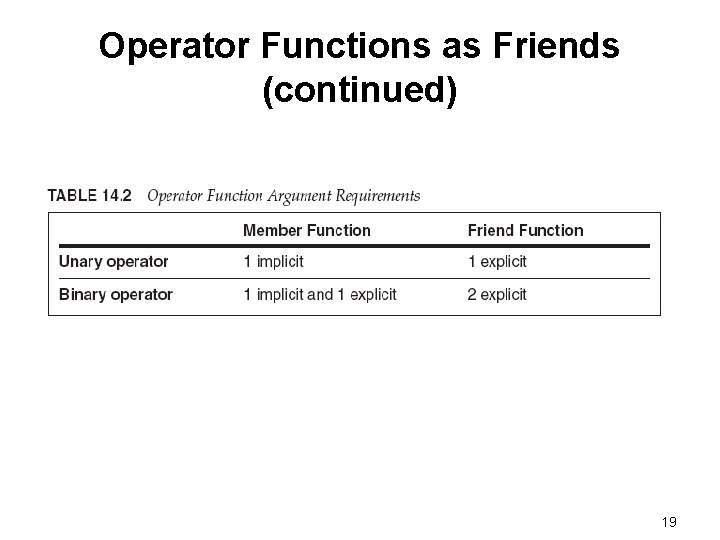

Operator Functions as Friends (continued) 19

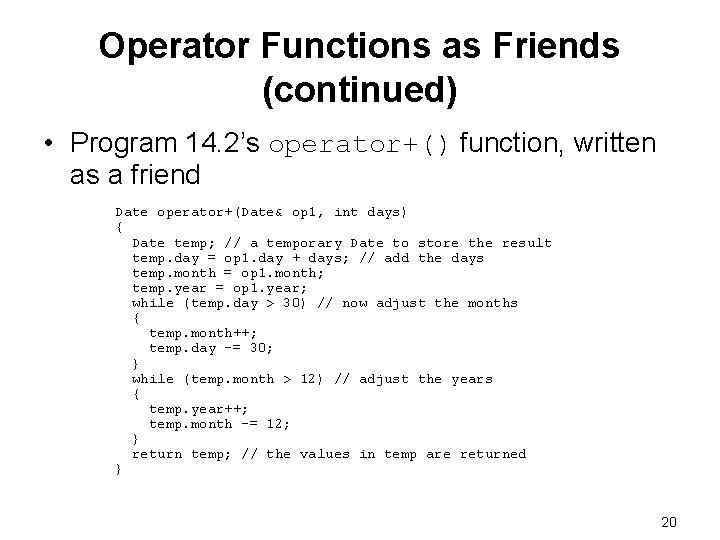

Operator Functions as Friends (continued) • Program 14. 2’s operator+() function, written as a friend Date operator+(Date& op 1, int days) { Date temp; // a temporary Date to store the result temp. day = op 1. day + days; // add the days temp. month = op 1. month; temp. year = op 1. year; while (temp. day > 30) // now adjust the months { temp. month++; temp. day -= 30; } while (temp. month > 12) // adjust the years { temp. year++; temp. month -= 12; } return temp; // the values in temp are returned } 20

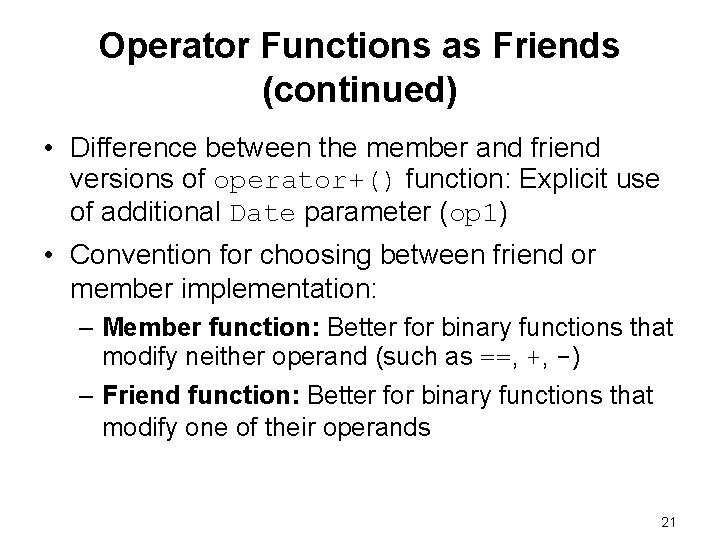

Operator Functions as Friends (continued) • Difference between the member and friend versions of operator+() function: Explicit use of additional Date parameter (op 1) • Convention for choosing between friend or member implementation: – Member function: Better for binary functions that modify neither operand (such as ==, +, -) – Friend function: Better for binary functions that modify one of their operands 21

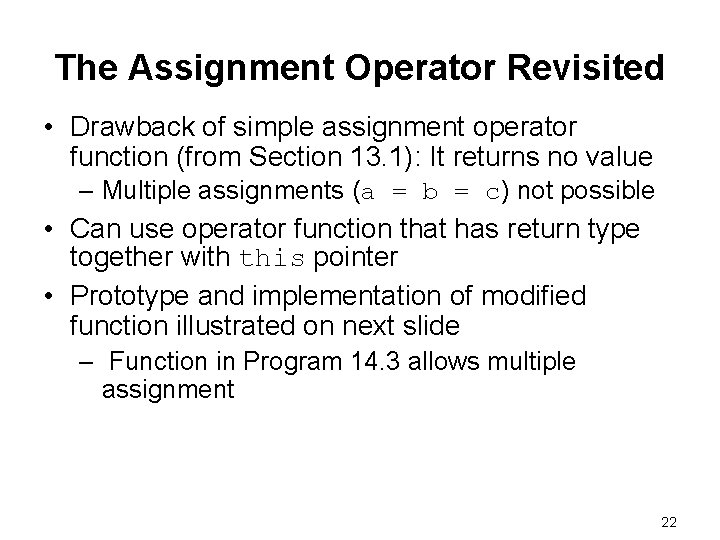

The Assignment Operator Revisited • Drawback of simple assignment operator function (from Section 13. 1): It returns no value – Multiple assignments (a = b = c) not possible • Can use operator function that has return type together with this pointer • Prototype and implementation of modified function illustrated on next slide – Function in Program 14. 3 allows multiple assignment 22

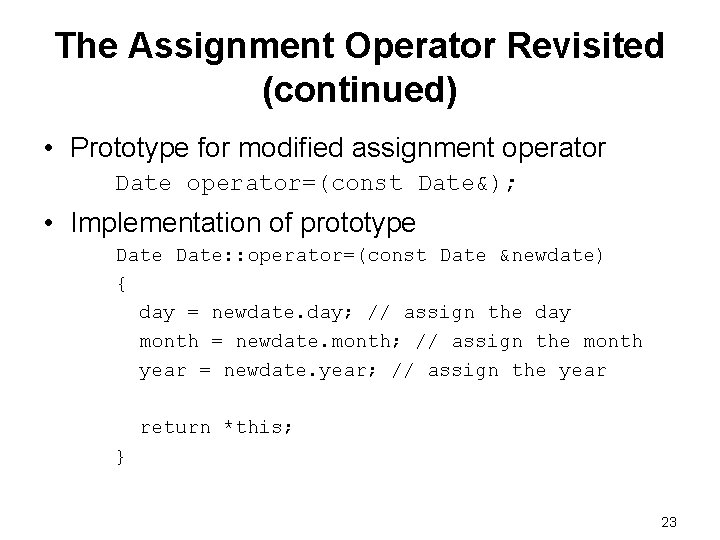

The Assignment Operator Revisited (continued) • Prototype for modified assignment operator Date operator=(const Date&); • Implementation of prototype Date: : operator=(const Date &newdate) { day = newdate. day; // assign the day month = newdate. month; // assign the month year = newdate. year; // assign the year return *this; } 23

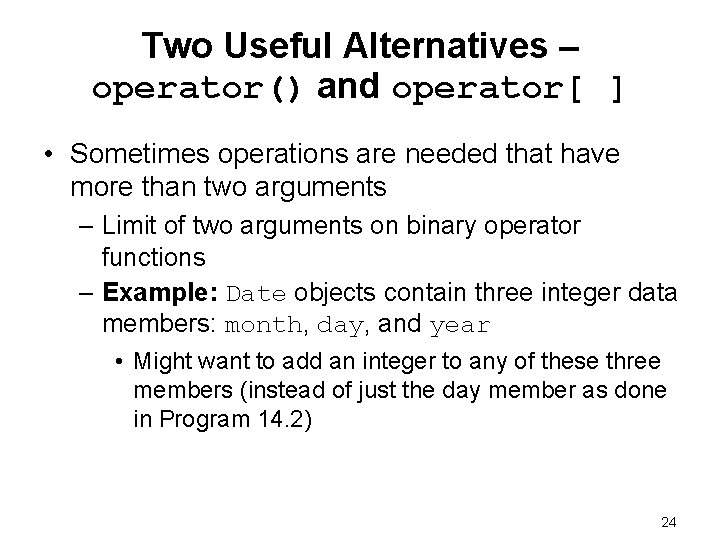

Two Useful Alternatives – operator() and operator[ ] • Sometimes operations are needed that have more than two arguments – Limit of two arguments on binary operator functions – Example: Date objects contain three integer data members: month, day, and year • Might want to add an integer to any of these three members (instead of just the day member as done in Program 14. 2) 24

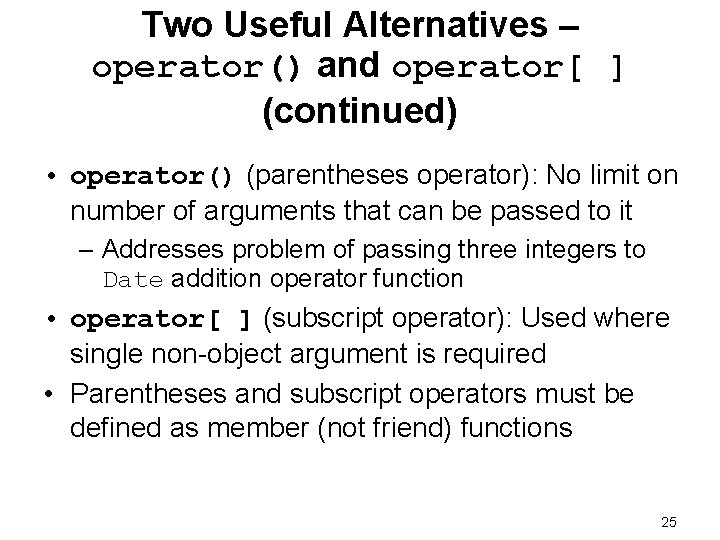

Two Useful Alternatives – operator() and operator[ ] (continued) • operator() (parentheses operator): No limit on number of arguments that can be passed to it – Addresses problem of passing three integers to Date addition operator function • operator[ ] (subscript operator): Used where single non-object argument is required • Parentheses and subscript operators must be defined as member (not friend) functions 25

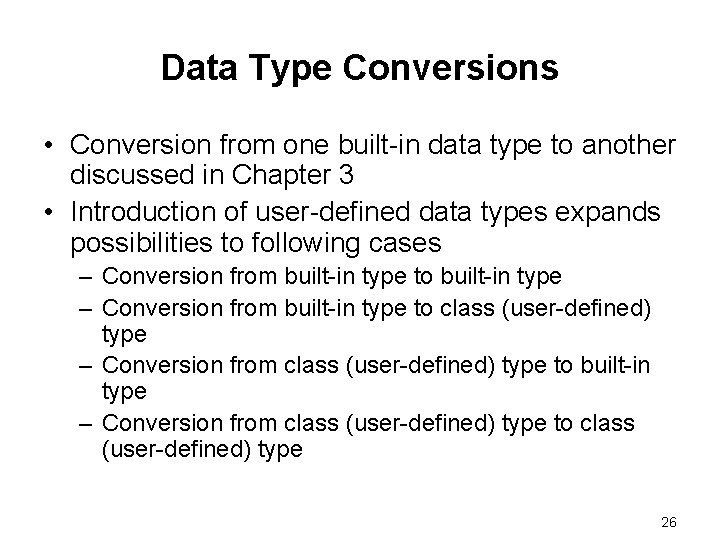

Data Type Conversions • Conversion from one built-in data type to another discussed in Chapter 3 • Introduction of user-defined data types expands possibilities to following cases – Conversion from built-in type to built-in type – Conversion from built-in type to class (user-defined) type – Conversion from class (user-defined) type to built-in type – Conversion from class (user-defined) type to class (user-defined) type 26

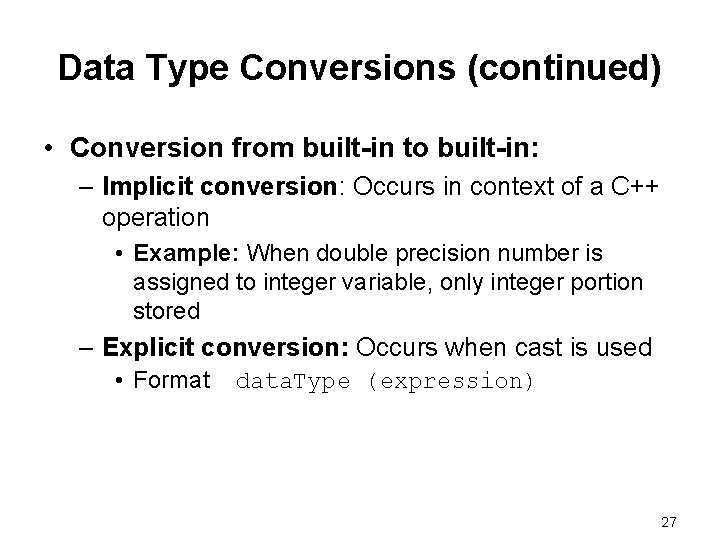

Data Type Conversions (continued) • Conversion from built-in to built-in: – Implicit conversion: Occurs in context of a C++ operation • Example: When double precision number is assigned to integer variable, only integer portion stored – Explicit conversion: Occurs when cast is used • Format data. Type (expression) 27

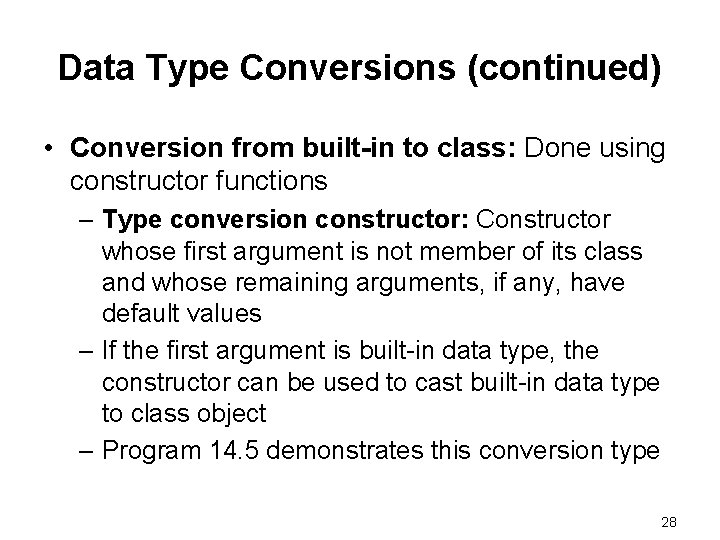

Data Type Conversions (continued) • Conversion from built-in to class: Done using constructor functions – Type conversion constructor: Constructor whose first argument is not member of its class and whose remaining arguments, if any, have default values – If the first argument is built-in data type, the constructor can be used to cast built-in data type to class object – Program 14. 5 demonstrates this conversion type 28

Data Type Conversions (continued) • Conversion from class to built-in: Done by using: – Conversion operator function: Member operator function that has name of built-in data type or class – When operator function has built-in data type name, it is used to convert from class to built-in data type – Usage of this type of function demonstrated in Program 14. 6 29

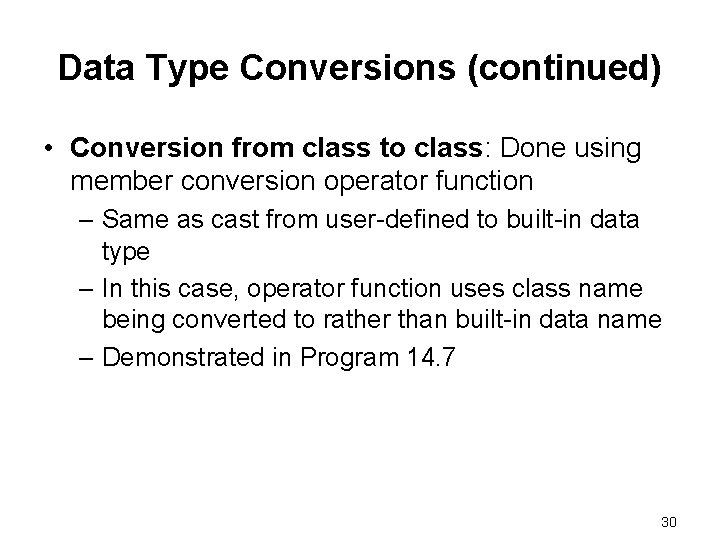

Data Type Conversions (continued) • Conversion from class to class: Done using member conversion operator function – Same as cast from user-defined to built-in data type – In this case, operator function uses class name being converted to rather than built-in data name – Demonstrated in Program 14. 7 30

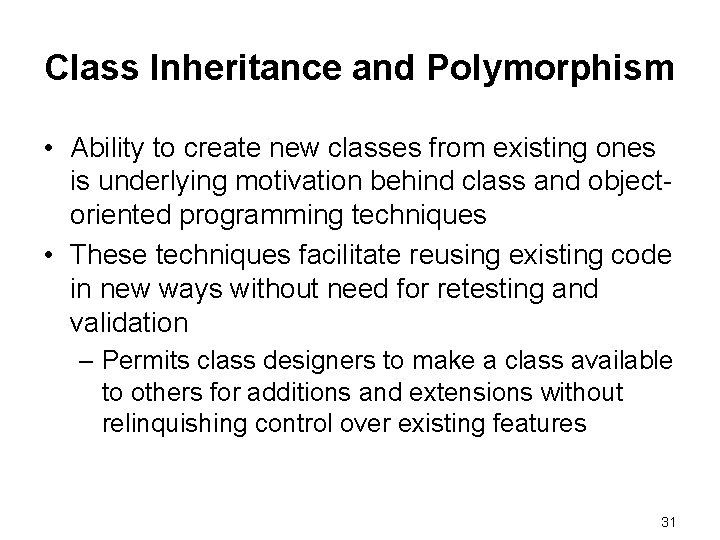

Class Inheritance and Polymorphism • Ability to create new classes from existing ones is underlying motivation behind class and objectoriented programming techniques • These techniques facilitate reusing existing code in new ways without need for retesting and validation – Permits class designers to make a class available to others for additions and extensions without relinquishing control over existing features 31

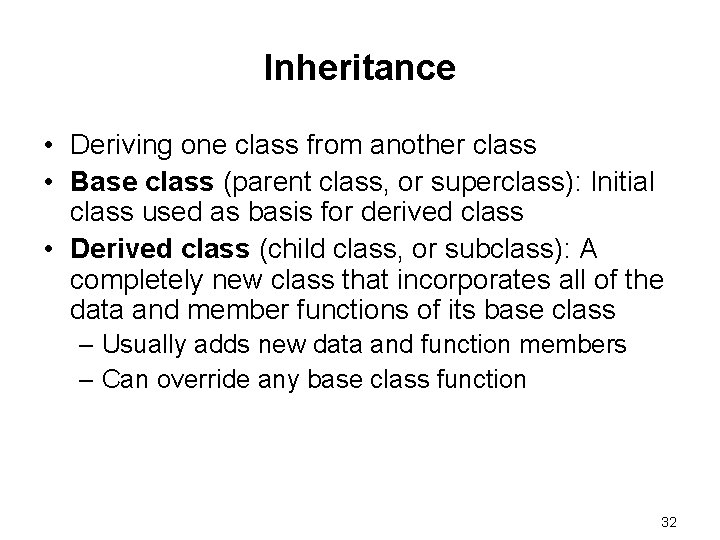

Inheritance • Deriving one class from another class • Base class (parent class, or superclass): Initial class used as basis for derived class • Derived class (child class, or subclass): A completely new class that incorporates all of the data and member functions of its base class – Usually adds new data and function members – Can override any base class function 32

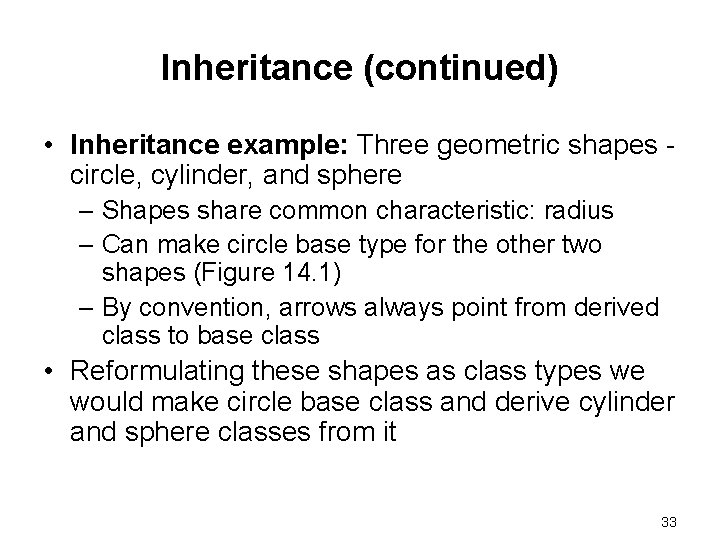

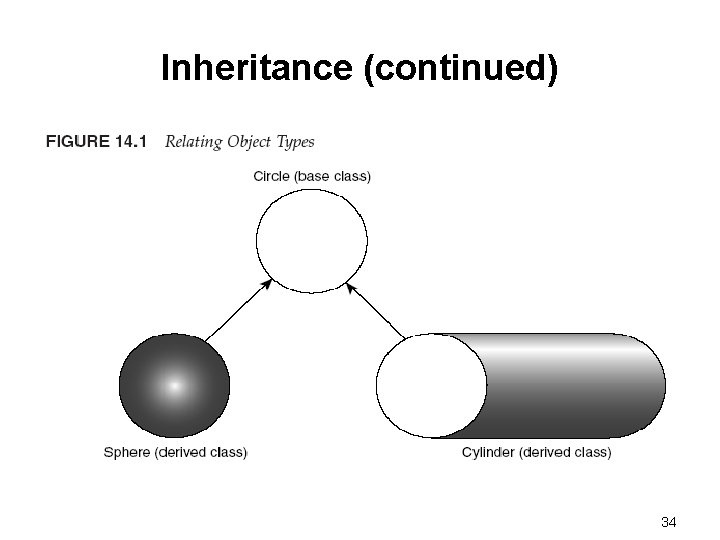

Inheritance (continued) • Inheritance example: Three geometric shapes circle, cylinder, and sphere – Shapes share common characteristic: radius – Can make circle base type for the other two shapes (Figure 14. 1) – By convention, arrows always point from derived class to base class • Reformulating these shapes as class types we would make circle base class and derive cylinder and sphere classes from it 33

Inheritance (continued) 34

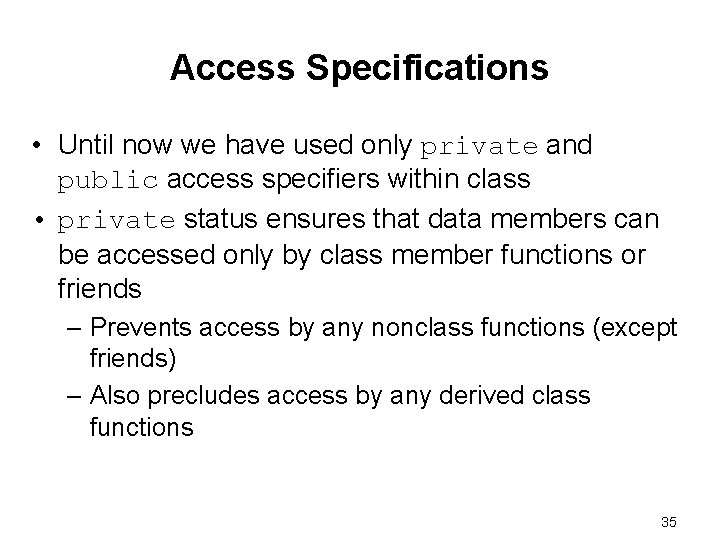

Access Specifications • Until now we have used only private and public access specifiers within class • private status ensures that data members can be accessed only by class member functions or friends – Prevents access by any nonclass functions (except friends) – Also precludes access by any derived class functions 35

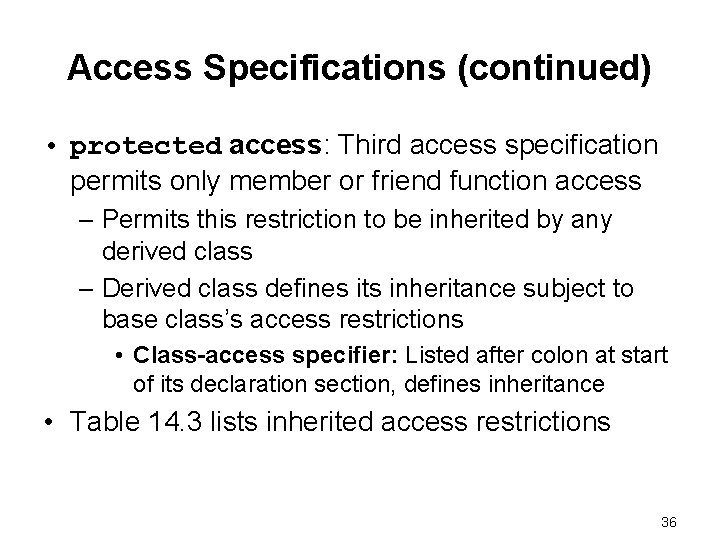

Access Specifications (continued) • protected access: Third access specification permits only member or friend function access – Permits this restriction to be inherited by any derived class – Derived class defines its inheritance subject to base class’s access restrictions • Class-access specifier: Listed after colon at start of its declaration section, defines inheritance • Table 14. 3 lists inherited access restrictions 36

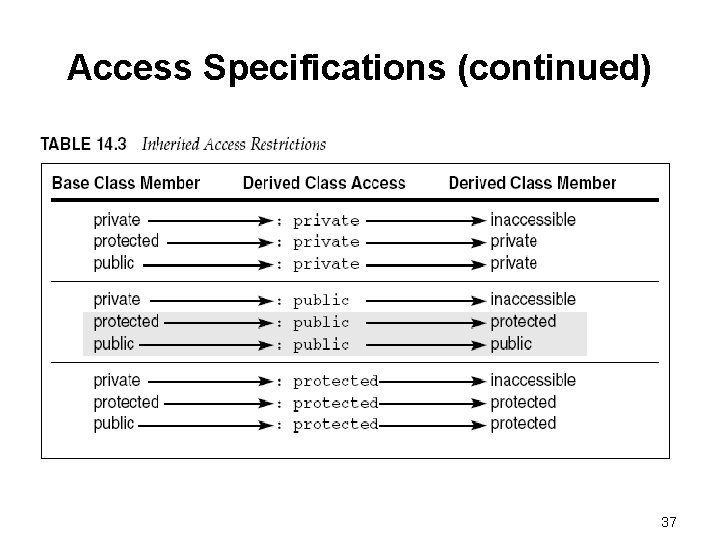

Access Specifications (continued) 37

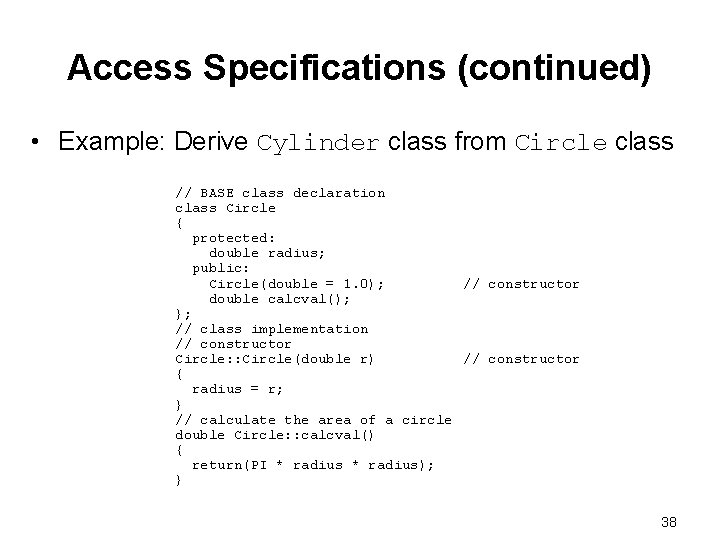

Access Specifications (continued) • Example: Derive Cylinder class from Circle class // BASE class declaration class Circle { protected: double radius; public: Circle(double = 1. 0); // constructor double calcval(); }; // class implementation // constructor Circle: : Circle(double r) // constructor { radius = r; } // calculate the area of a circle double Circle: : calcval() { return(PI * radius); } 38

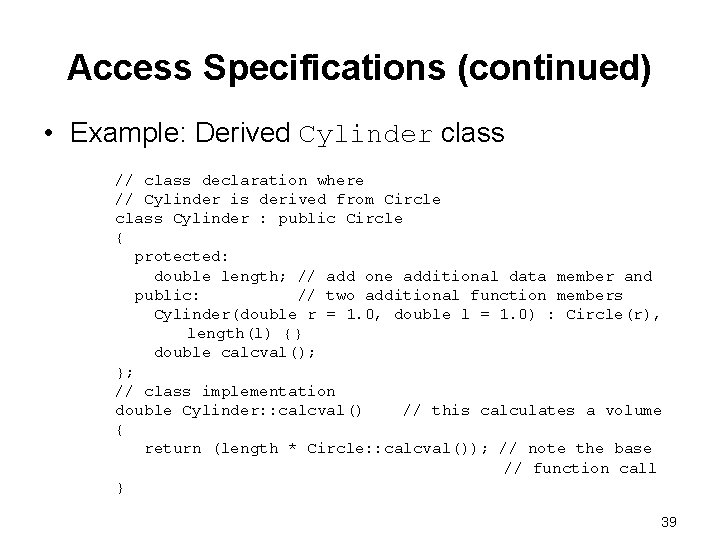

Access Specifications (continued) • Example: Derived Cylinder class // class declaration where // Cylinder is derived from Circle class Cylinder : public Circle { protected: double length; // add one additional data member and public: // two additional function members Cylinder(double r = 1. 0, double l = 1. 0) : Circle(r), length(l) {} double calcval(); }; // class implementation double Cylinder: : calcval() // this calculates a volume { return (length * Circle: : calcval()); // note the base // function call } 39

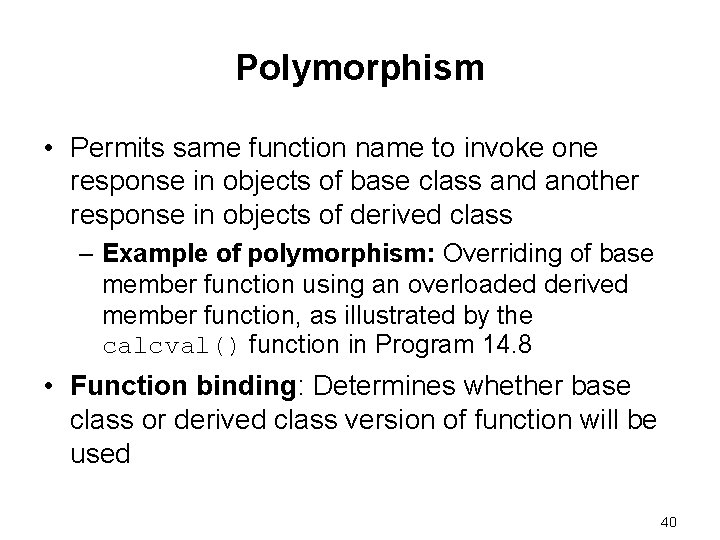

Polymorphism • Permits same function name to invoke one response in objects of base class and another response in objects of derived class – Example of polymorphism: Overriding of base member function using an overloaded derived member function, as illustrated by the calcval() function in Program 14. 8 • Function binding: Determines whether base class or derived class version of function will be used 40

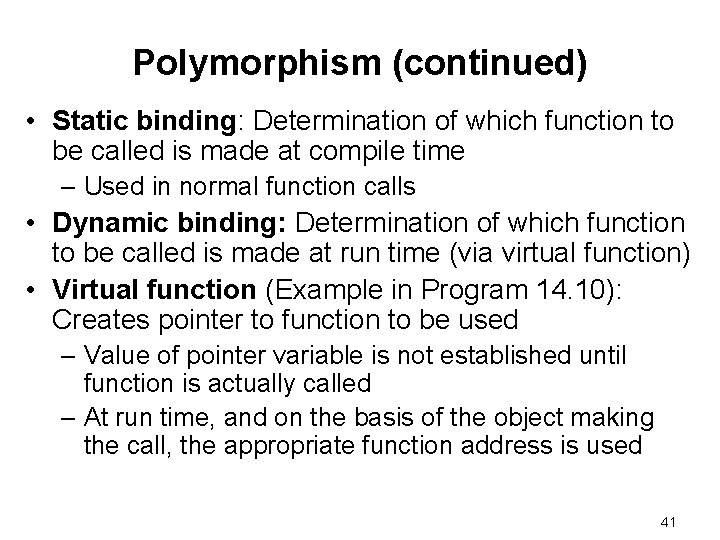

Polymorphism (continued) • Static binding: Determination of which function to be called is made at compile time – Used in normal function calls • Dynamic binding: Determination of which function to be called is made at run time (via virtual function) • Virtual function (Example in Program 14. 10): Creates pointer to function to be used – Value of pointer variable is not established until function is actually called – At run time, and on the basis of the object making the call, the appropriate function address is used 41

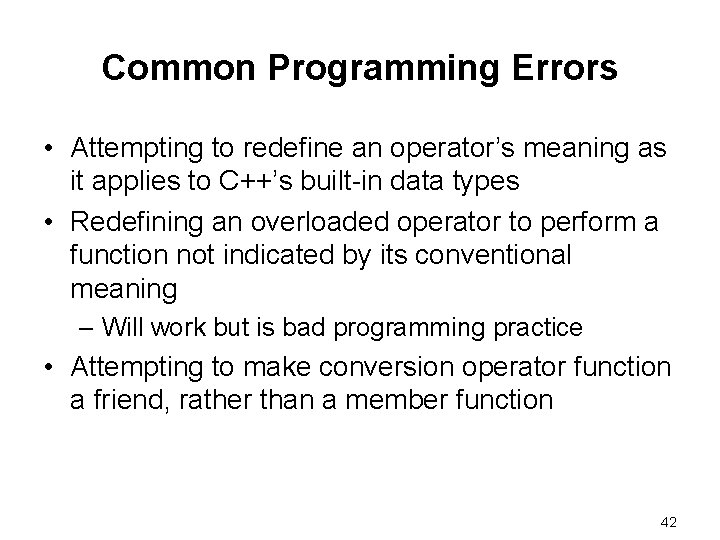

Common Programming Errors • Attempting to redefine an operator’s meaning as it applies to C++’s built-in data types • Redefining an overloaded operator to perform a function not indicated by its conventional meaning – Will work but is bad programming practice • Attempting to make conversion operator function a friend, rather than a member function 42

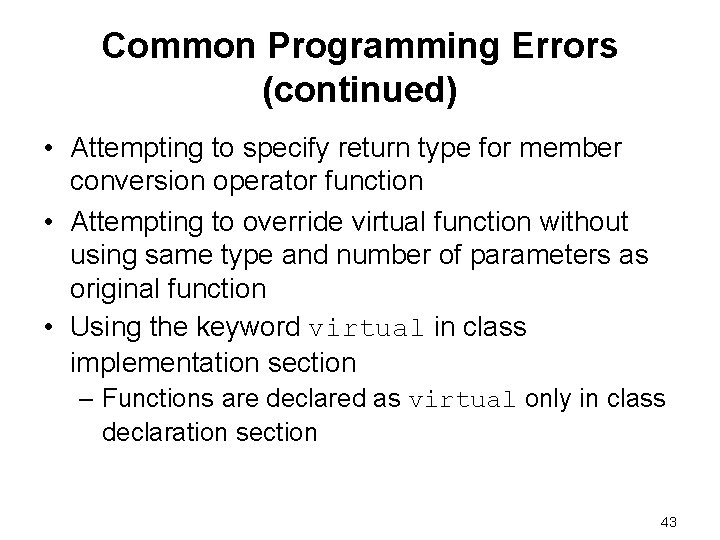

Common Programming Errors (continued) • Attempting to specify return type for member conversion operator function • Attempting to override virtual function without using same type and number of parameters as original function • Using the keyword virtual in class implementation section – Functions are declared as virtual only in class declaration section 43

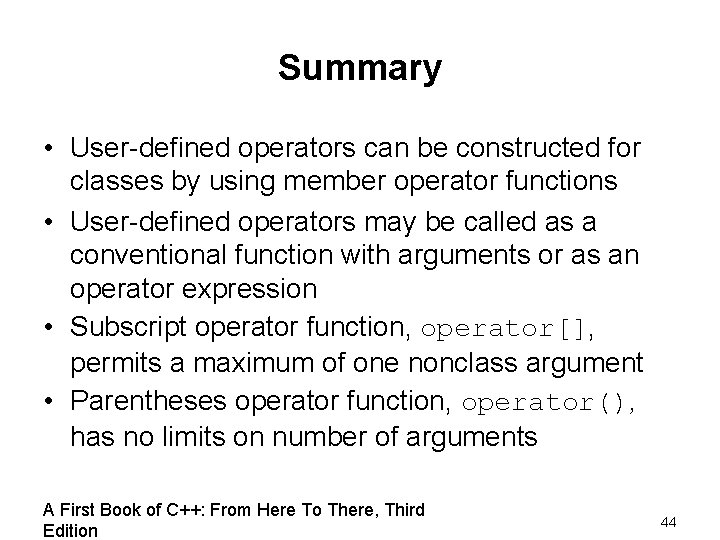

Summary • User-defined operators can be constructed for classes by using member operator functions • User-defined operators may be called as a conventional function with arguments or as an operator expression • Subscript operator function, operator[], permits a maximum of one nonclass argument • Parentheses operator function, operator(), has no limits on number of arguments A First Book of C++: From Here To There, Third Edition 44

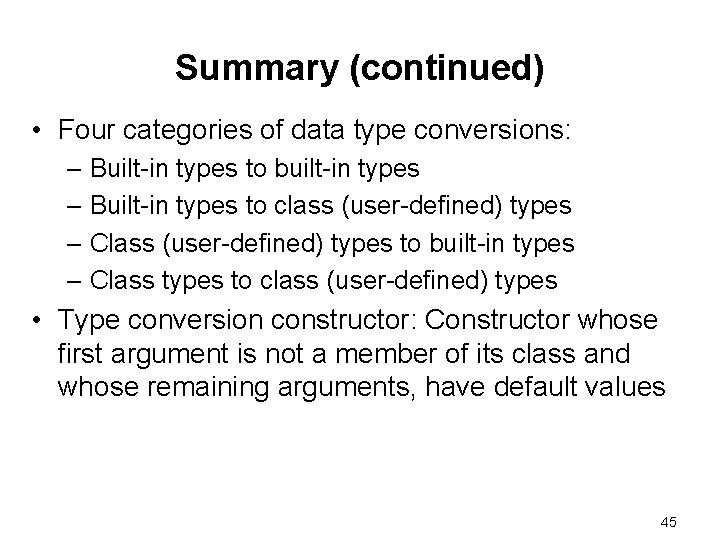

Summary (continued) • Four categories of data type conversions: – Built-in types to built-in types – Built-in types to class (user-defined) types – Class (user-defined) types to built-in types – Class types to class (user-defined) types • Type conversion constructor: Constructor whose first argument is not a member of its class and whose remaining arguments, have default values 45

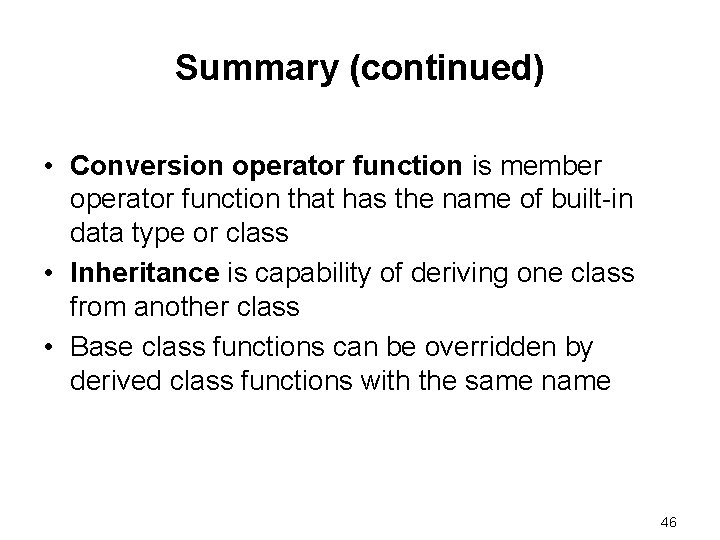

Summary (continued) • Conversion operator function is member operator function that has the name of built-in data type or class • Inheritance is capability of deriving one class from another class • Base class functions can be overridden by derived class functions with the same name 46

Summary (continued) • Polymorphism: Having same function name invoke different responses on basis of the object making function call • Static binding: Determination of which function is invoked is made at compile time • Dynamic binding: Determination made at run time • Virtual function specification designates that dynamic binding should take place 47
