# Objectives The Law of Sines The Ambiguous Case

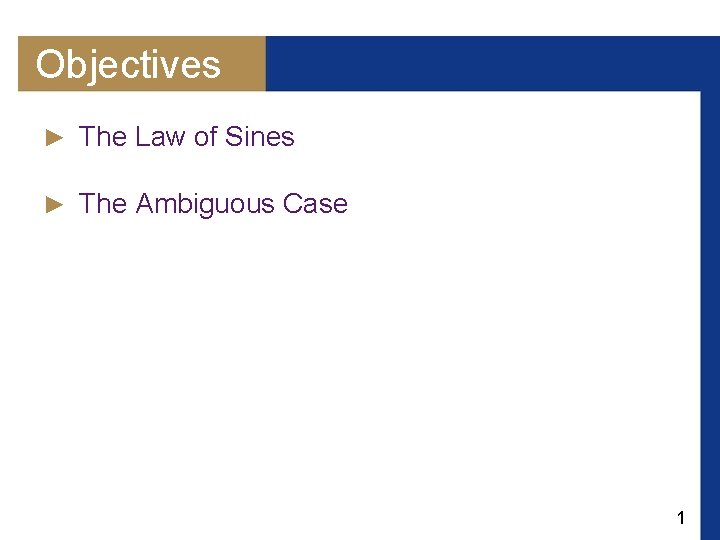

Objectives ► The Law of Sines ► The Ambiguous Case 1

The Law of Sines The trigonometric functions can also be used to solve oblique triangles, that is, triangles with no right angles. For instance, if we are given two angles and the included side, then it’s clear that one and only one triangle can be formed (see Figure 2(a)). ASA or SAA Figure 2(a) 2

The Law of Sines Similarly, if two sides and the included angle are known, then a unique triangle is determined (Figure 2(c)). SAS Figure 2 (c) But if we know all three angles and no sides, we cannot uniquely determine the triangle because many triangles can have the same three angles. 3

The Law of Sines In general, a triangle is determined by three of its six parts (angles and sides) as long as at least one of these three parts is a side. So the possibilities, illustrated in Figure 2, are as follows. (a) ASA or SAA (c) SAS (b) SSA (d) SSS Figure 2 Case 1 One side and two angles (ASA or SAA) Case 2 Two sides and the angle opposite one of those sides (SSA) 4

The Law of Sines Case 3 Two sides and the included angle (SAS) Case 4 Three sides (SSS) Cases 1 and 2 are solved by using the Law of Sines; Cases 3 and 4 require the Law of Cosines. 5

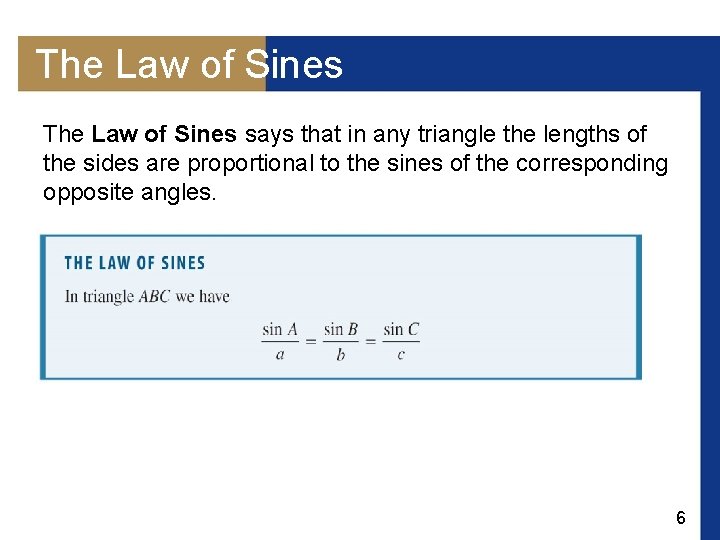

The Law of Sines says that in any triangle the lengths of the sides are proportional to the sines of the corresponding opposite angles. 6

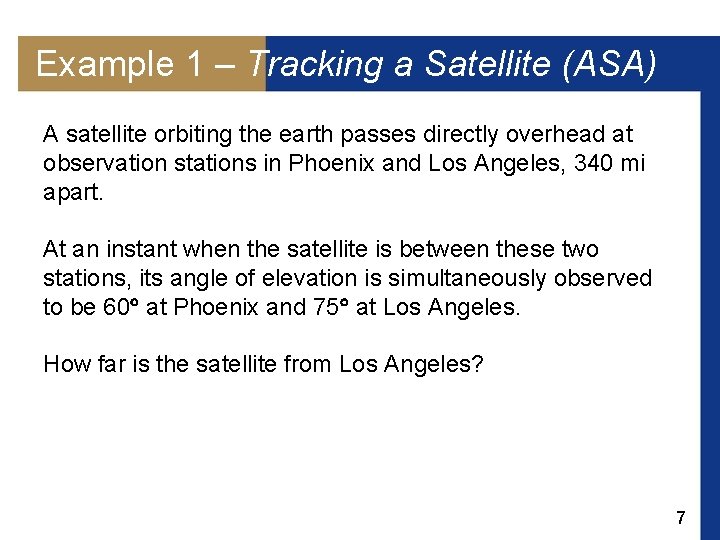

Example 1 – Tracking a Satellite (ASA) A satellite orbiting the earth passes directly overhead at observation stations in Phoenix and Los Angeles, 340 mi apart. At an instant when the satellite is between these two stations, its angle of elevation is simultaneously observed to be 60 at Phoenix and 75 at Los Angeles. How far is the satellite from Los Angeles? 7

The Ambiguous Case In Example 1 a unique triangle was determined by the information given. This is always true of Case 1 (ASA or SAA). But in Case 2 (SSA) there may be two triangles, one triangle, or no triangle with the given properties. For this reason, Case 2 is sometimes b called the ambiguous case. 8

The Ambiguous Case To see why this is so, we show in Figure 6 the possibilities when angle A and sides a and b are given. In part (a) no solution is possible, since side a is too short to complete the triangle. In part (b) the solution is a right triangle. In part (c) two solutions are possible, and in part (d) there is a unique triangle with the given properties. (a) (b) (c) (d) The ambiguous case Figure 6 9

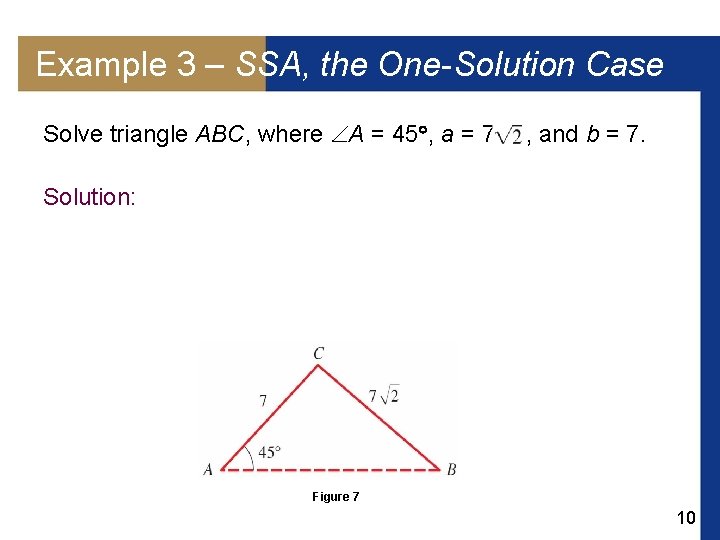

Example 3 – SSA, the One-Solution Case Solve triangle ABC, where A = 45 , a = 7 , and b = 7. Solution: Figure 7 10

The Ambiguous Case In Example 3 there were two possibilities for angle B, and one of these was not compatible with the rest of the information. In general, if sin A < 1, we must check the angle and its supplement as possibilities, because any angle smaller than 180 can be in the triangle. To decide whether either possibility works, we check to see whether the resulting sum of the angles exceeds 180. 11

The Ambiguous Case It can happen, as in Figure 6(c), that both possibilities are compatible with the given information. In that case, two different triangles are solutions to the problem. The ambiguous case Figure 6(c) 12

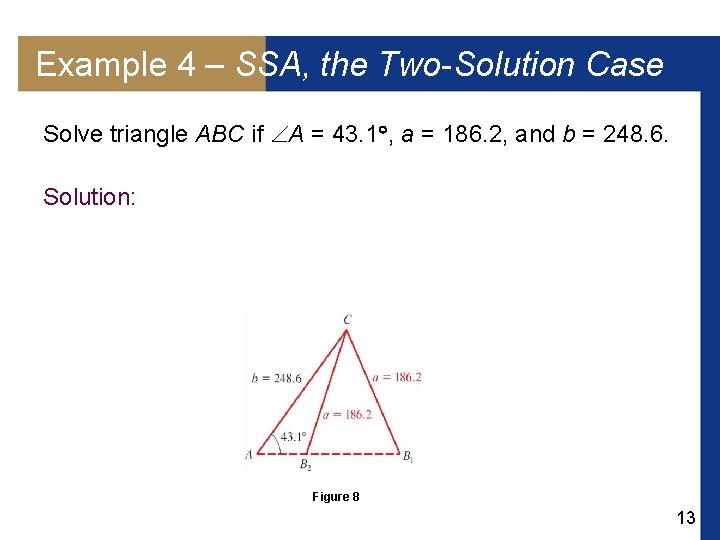

Example 4 – SSA, the Two-Solution Case Solve triangle ABC if A = 43. 1 , a = 186. 2, and b = 248. 6. Solution: Figure 8 13

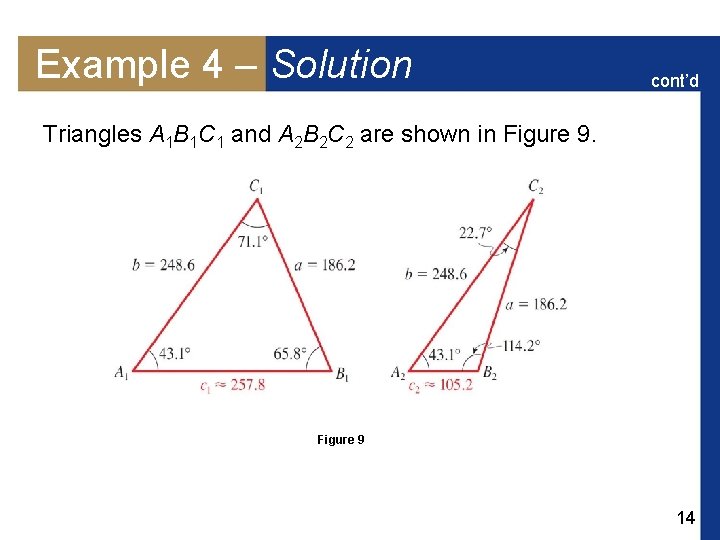

Example 4 – Solution cont’d Triangles A 1 B 1 C 1 and A 2 B 2 C 2 are shown in Figure 9 14

Example 5 – SSA, the No-Solution Case Solve triangle ABC, where A = 42 , a = 70, and b = 122. Solution: Figure 10 15
