Objectives Finish with Duct Design Review the design
Objectives • Finish with Duct Design • Review the design procedure and explain theoretical background • Diffuser Selection
Frictional Losses

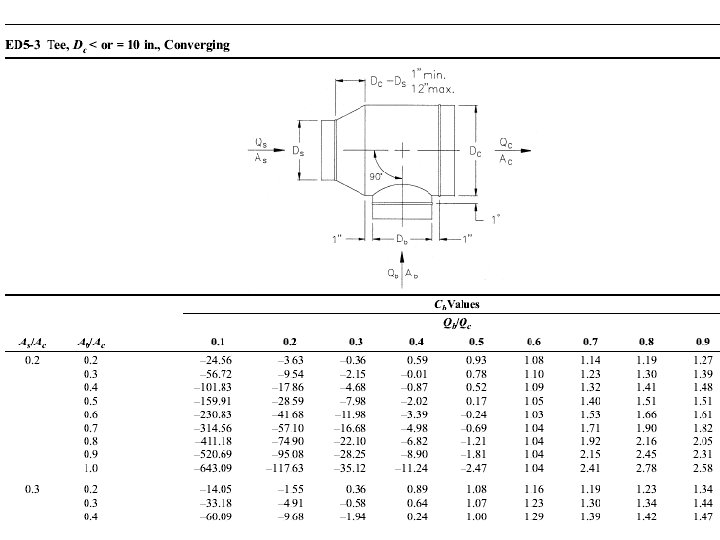

Dynamic losses • Losses associated with • • Changes in velocity Obstructions Bends Fittings and transitions
Air Distribution System Design • Describe room distribution basics • Select diffusers • Supply and return duct sizing
Forced driven air flow Diffusers » Linear diffusers » Vertical » Horizontal one side » Grill (side wall) » diffusers
Diffusers types » Valve diffuser » swirl diffusers » wall or ceiling » floor » ceiling diffuser
Diffusers » Perforated ceiling diffuser » Wall diffuser unit » Linear slot diffuser » Jet nozzle diffuser » Swirl diffuser » DV diffuser » Round conical ceiling diffuser » Floor diffuser » External louvre » http: //www. titus-hvac. com/techzone/ » http: //www. halton. com/halton/cms. nsf/www/diffusers » Square conical ceiling diffuser » Auditorium diffuser » Smoke damper
Low mixing Diffusers Displacement ventilation
Diffuser Selection Procedure V = maximum volumetric flow rate (m 3/s, ft 3/min) Qtot = total design load (W, BTU/hr) Qsen = sensible design load (W, BTU/hr) ρ = air density (kg/m 3, lbm/ft 3) Δt = temperature difference between supply and return air (°C, °F) Δh = enthalpy difference between supply and return air (J/kg, BTU/lbm) • Select and locate diffusers, divide airflow amongst diffusers
Find Characteristic Length (L)
Indicator of Air Distribution Quality • ADPI = air distribution performance index • Fraction of locations that meet criteria: • -3 °F < EDT < 2 °F or -1. 5 °C < EDT < 1 °C • Where, EDT = effective draft temperature • Function of V and Δt (Eqn 18. 1) • EDT=(tlocal-taverage)-M(Vlocal-Vaverage) , M=7 °C/(m/s) ADPI considers ONLY thermal comfort (not IAQ)

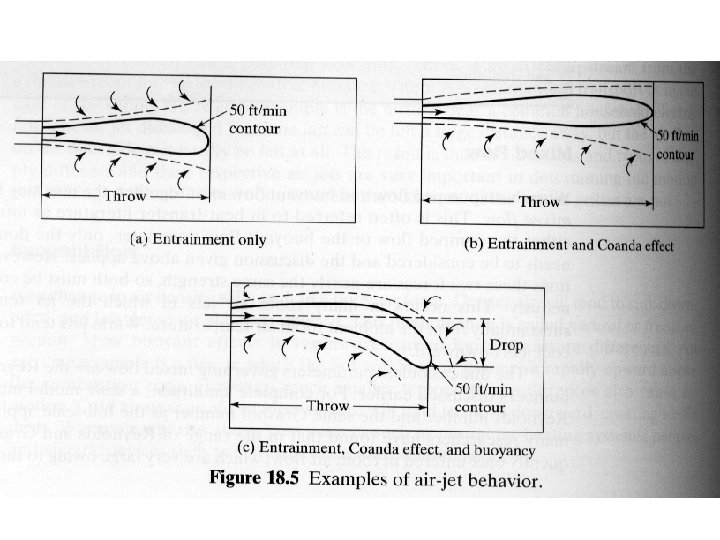

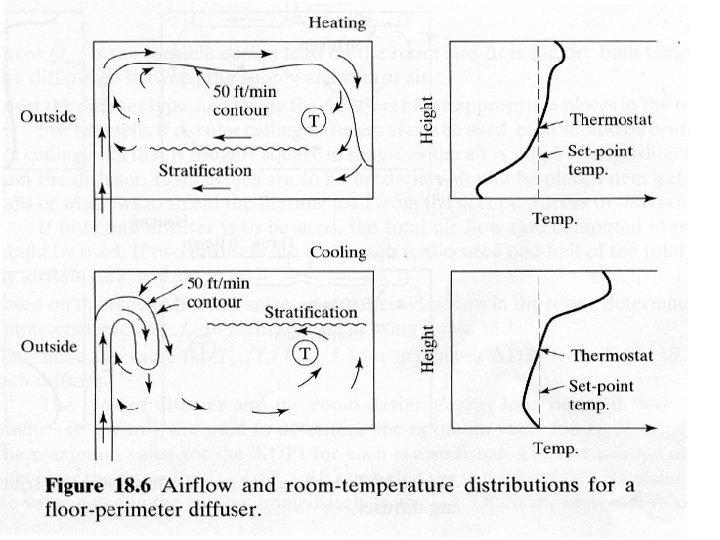

Ideal and Reasonable Throws
Diffuser testing
ADPI
Select Register • Pick throw, volumetric flow from register catalog • Check noise, pressure drop http: //www. titus-hvac. com/ecatalog/subcategory. aspx? refid=186 http: //www. nailor. com/ http: //www. price-hvac. com/
Summary of Diffuser Design Procedure 1) 2) 3) 4) 5) Find Q sensible total for the space Select type and number of diffusers Find V for each diffuser Find characteristic length Select the diffuser from the manufacturer data
Fans • Driving force to move air in buildings • Raise pressure and produce flow • Two main types: • Centrifugal • Axial
Relevant Fan Parameters • • Total pressure rise Static pressure rise Power requirement Efficiency • Note ηtot does not account for motor efficiency
Balance Point

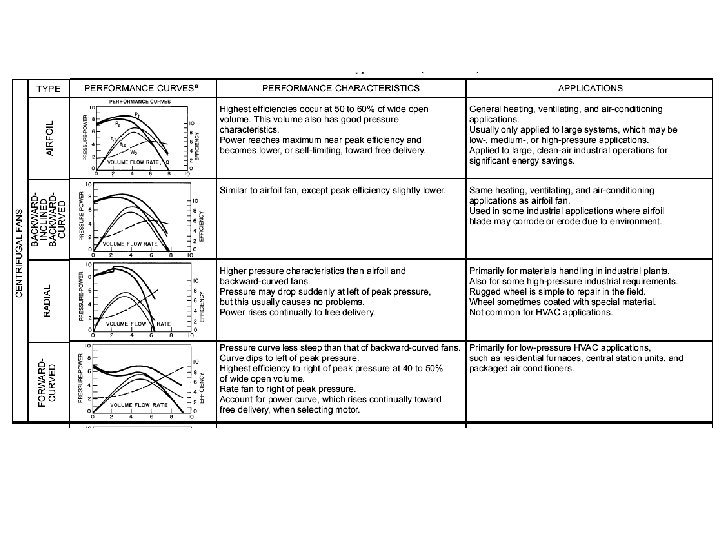

Fan Performance

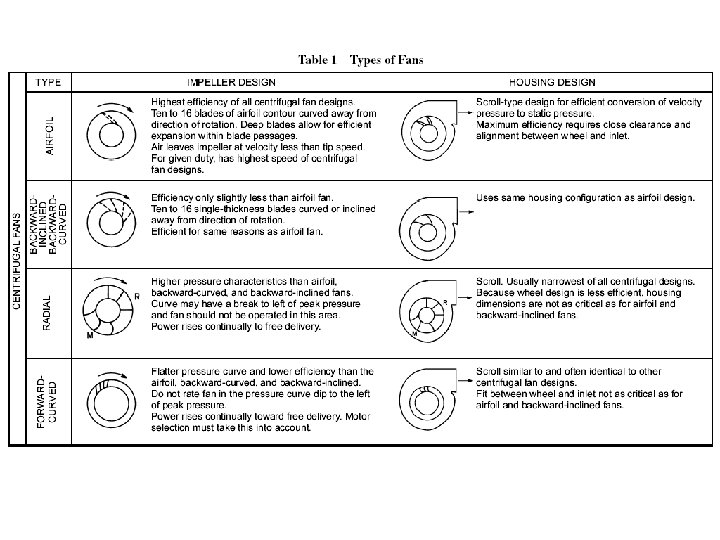

Centrifugal fans

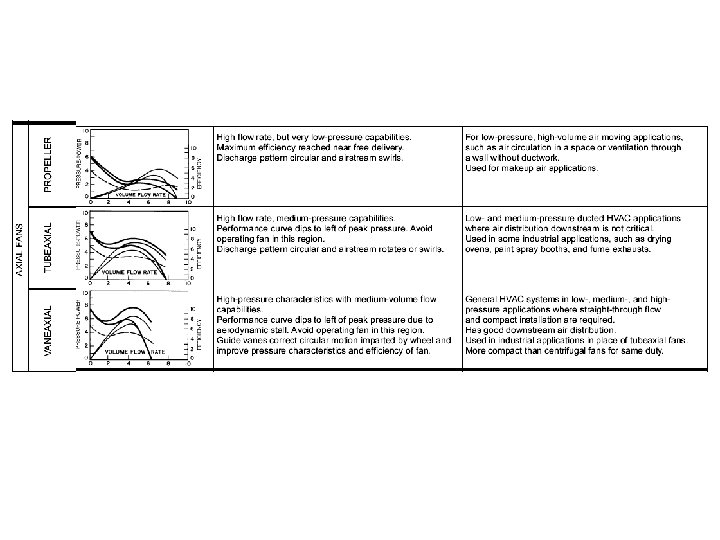

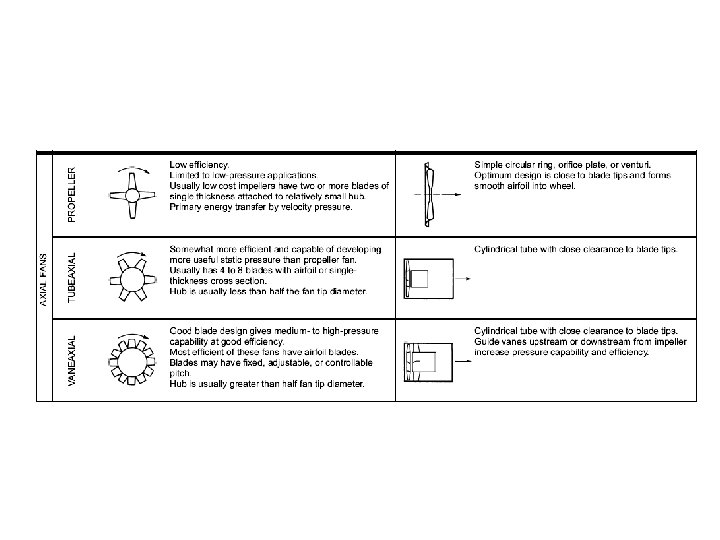

Axial Fans
Fan Laws • “Approximate relationships” • Given two aerodynamically similar fans, can extrapolate performance data • Be very careful
