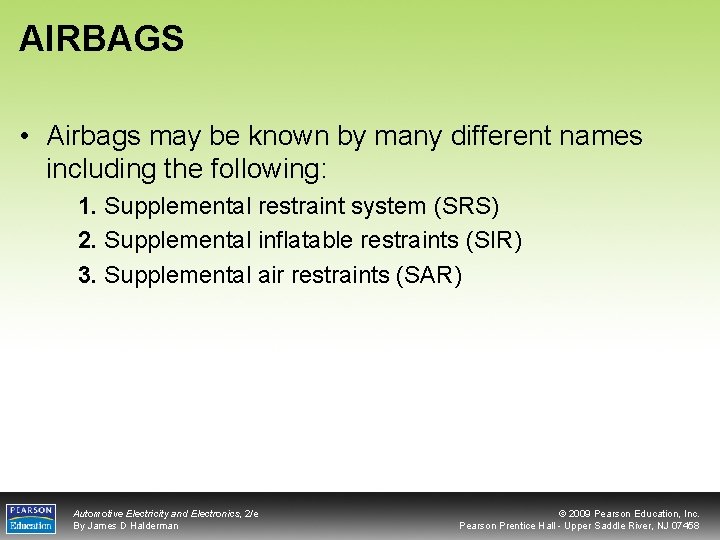

AIRBAGS • Airbags may be known by many different names including the following: 1. Supplemental restraint system (SRS) 2. Supplemental inflatable restraints (SIR) 3. Supplemental air restraints (SAR) Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

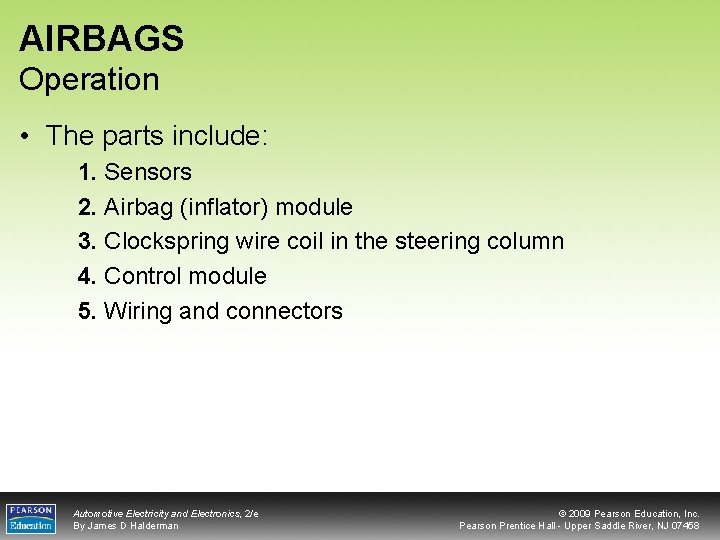

AIRBAGS Operation • The parts include: 1. Sensors 2. Airbag (inflator) module 3. Clockspring wire coil in the steering column 4. Control module 5. Wiring and connectors Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

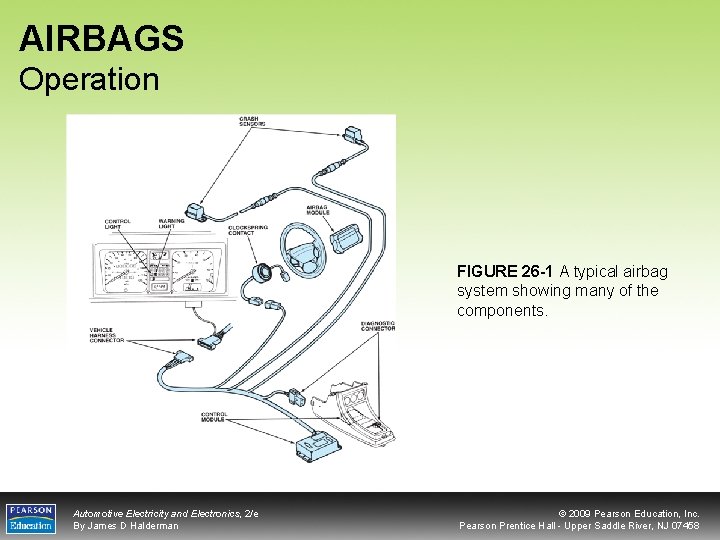

AIRBAGS Operation FIGURE 26 -1 A typical airbag system showing many of the components. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Operation • To cause inflation, the closing of the arming sensor is required to provide the power-side voltage to the inflator module. • In other words, two sensors must be triggered at the same time before the airbag FIGURE 26 -2 A simplified airbag deployment circuit. will be deployed. Note that both the arming sensor and at least one of the discriminating sensors must be activated at the same time. The arming sensor provides the power and either one of the discriminating sensors can provide the ground for the circuit. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

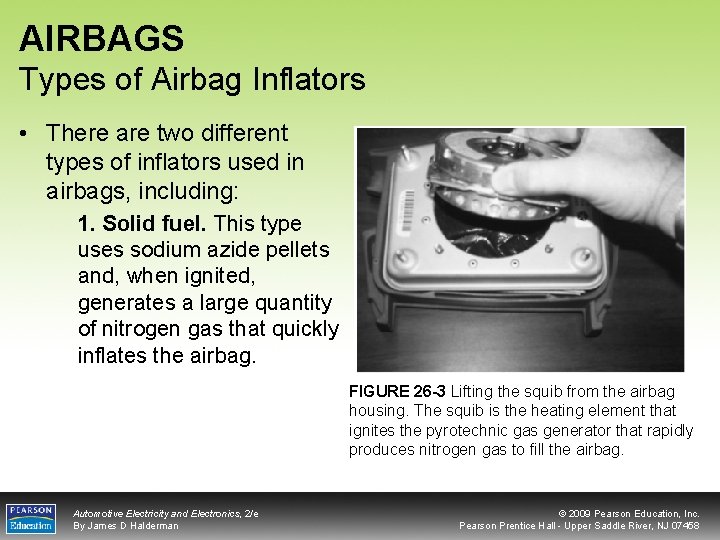

AIRBAGS Types of Airbag Inflators • There are two different types of inflators used in airbags, including: 1. Solid fuel. This type uses sodium azide pellets and, when ignited, generates a large quantity of nitrogen gas that quickly inflates the airbag. FIGURE 26 -3 Lifting the squib from the airbag housing. The squib is the heating element that ignites the pyrotechnic gas generator that rapidly produces nitrogen gas to fill the airbag. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Types of Airbag Inflators 2. Compressed gas. Commonly used in passenger side airbags and roof-mounted systems, this system uses a canister filled with argon gas, plus a small percentage of helium at 3, 000 psi (435 k. Pa). FIGURE 26 -4 A deployed side-curtain airbag on a training vehicle. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

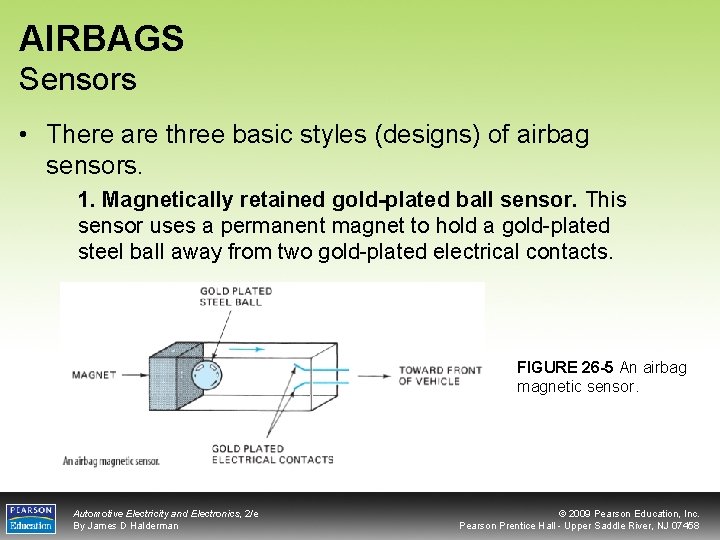

AIRBAGS Sensors • There are three basic styles (designs) of airbag sensors. 1. Magnetically retained gold-plated ball sensor. This sensor uses a permanent magnet to hold a gold-plated steel ball away from two gold-plated electrical contacts. FIGURE 26 -5 An airbag magnetic sensor. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Sensors 2. Rolled up stainlesssteel ribbon-type sensor. This sensor is housed in an airtight package with nitrogen gas inside to prevent harmful corrosion of the sensor parts. Automotive Electricity and Electronics, 2/e By James D Halderman FIGURE 26 -6 Some vehicles use a ribbon-type crash sensor. © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

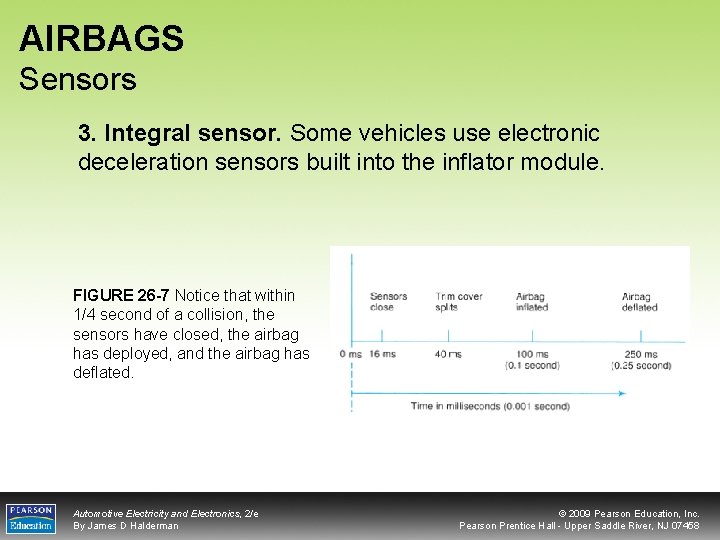

AIRBAGS Sensors 3. Integral sensor. Some vehicles use electronic deceleration sensors built into the inflator module. FIGURE 26 -7 Notice that within 1/4 second of a collision, the sensors have closed, the airbag has deployed, and the airbag has deflated. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Wiring • To ensure proper electrical connection to the inflator module in the steering wheel, a coil assembly is used in the steering column. • This coil, usually called a clockspring, prevents the lack of continuity between the sensors and the inflator assembly that might result from a horn-ring type of sliding conductor. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Wiring FIGURE 26 -8 The airbag control module is linked to the powertrain control module (PCM) and the body control module (BCM) on this Chrysler system. Notice the airbag wire connecting the module to the airbag through the clockspring. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Wiring • Most airbag systems also contain a diagnostic unit that often includes an auxiliary power supply, which is used to provide the current to inflate the airbag if the battery is disconnected from the vehicle during a collision. • This auxiliary power supply normally uses capacitors that are discharged through the squib of the inflation module. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

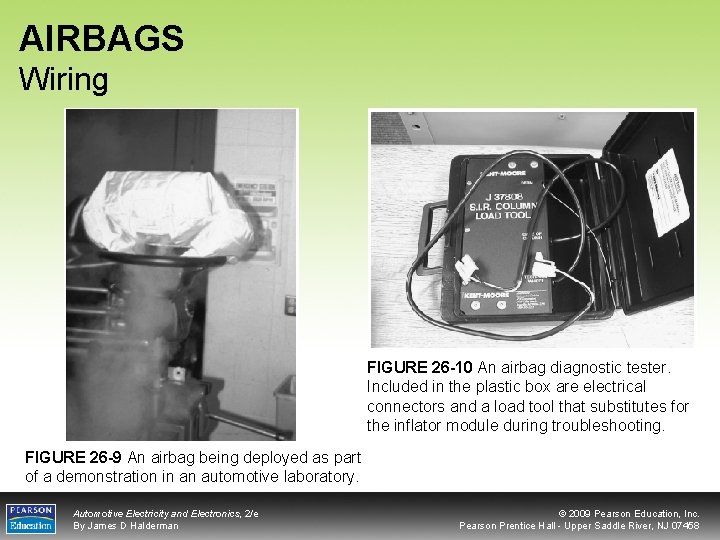

AIRBAGS Wiring FIGURE 26 -10 An airbag diagnostic tester. Included in the plastic box are electrical connectors and a load tool that substitutes for the inflator module during troubleshooting. FIGURE 26 -9 An airbag being deployed as part of a demonstration in an automotive laboratory. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAGS Troubleshooting • The electrical portion of most airbag systems is constantly checked by the circuits within the airbagenergizing power unit or through the vehicle’s computer system. • Follow exact manufacturer’s recommended procedures for accessing and erasing airbag diagnostic trouble codes. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAG DIAGNOSIS TOOLS AND EQUIPMENT • Diagnosis and service of airbag systems usually require some or all of the following items. – – – – Digital multimeter (DMM) Airbag simulator, often called a load tool Scan tool Shorting bar or shorting connector(s) Airbag system tester Vehicle-specific test harness Special wire repair tools or connectors, such as crimp-and seal weatherproof connectors Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

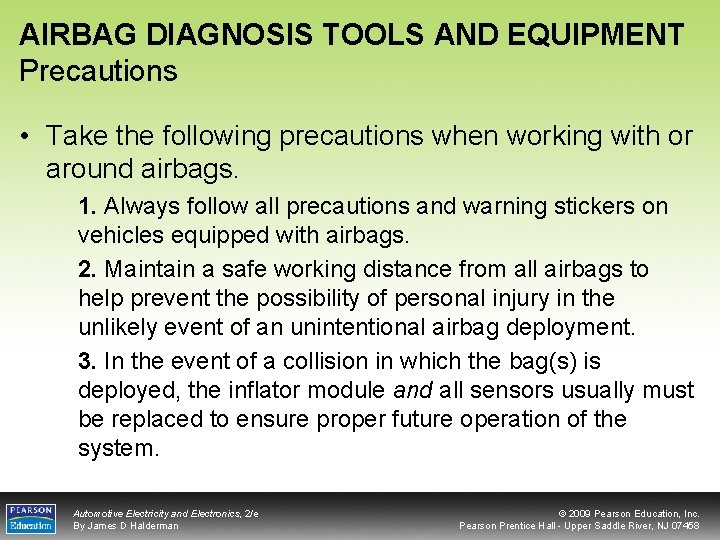

AIRBAG DIAGNOSIS TOOLS AND EQUIPMENT Precautions • Take the following precautions when working with or around airbags. 1. Always follow all precautions and warning stickers on vehicles equipped with airbags. 2. Maintain a safe working distance from all airbags to help prevent the possibility of personal injury in the unlikely event of an unintentional airbag deployment. 3. In the event of a collision in which the bag(s) is deployed, the inflator module and all sensors usually must be replaced to ensure proper future operation of the system. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

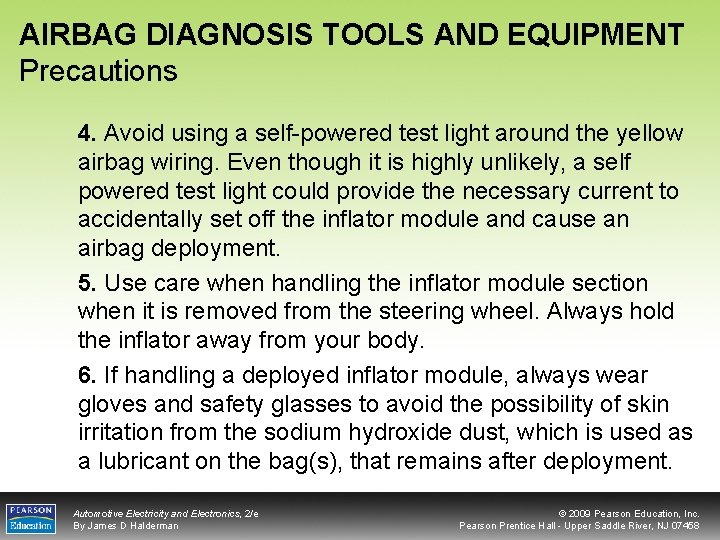

AIRBAG DIAGNOSIS TOOLS AND EQUIPMENT Precautions 4. Avoid using a self-powered test light around the yellow airbag wiring. Even though it is highly unlikely, a self powered test light could provide the necessary current to accidentally set off the inflator module and cause an airbag deployment. 5. Use care when handling the inflator module section when it is removed from the steering wheel. Always hold the inflator away from your body. 6. If handling a deployed inflator module, always wear gloves and safety glasses to avoid the possibility of skin irritation from the sodium hydroxide dust, which is used as a lubricant on the bag(s), that remains after deployment. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

AIRBAG DIAGNOSIS TOOLS AND EQUIPMENT Precautions 7. Never jar or strike a sensor. The contacts inside the sensor may be damaged, preventing the properation of the airbag system in the event of a collision. 8. When mounting a sensor in a vehicle, make certain that the arrow on the sensor is pointing toward the front of the vehicle. Also be certain that the sensor is securely mounted. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

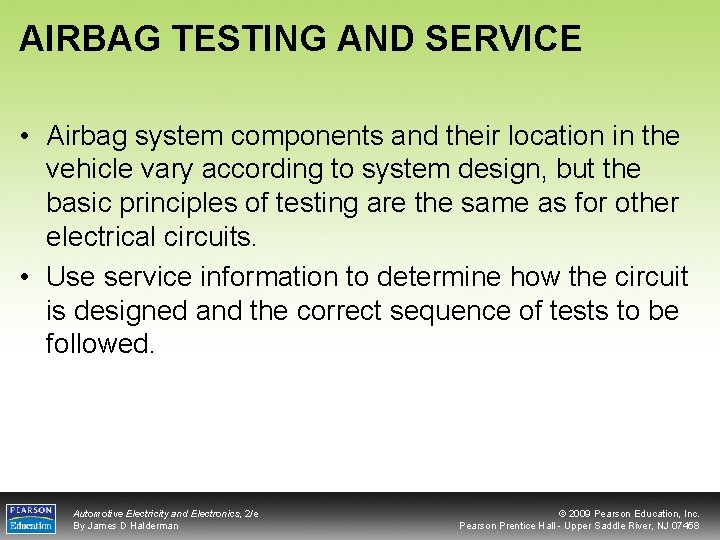

AIRBAG TESTING AND SERVICE • Airbag system components and their location in the vehicle vary according to system design, but the basic principles of testing are the same as for other electrical circuits. • Use service information to determine how the circuit is designed and the correct sequence of tests to be followed. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

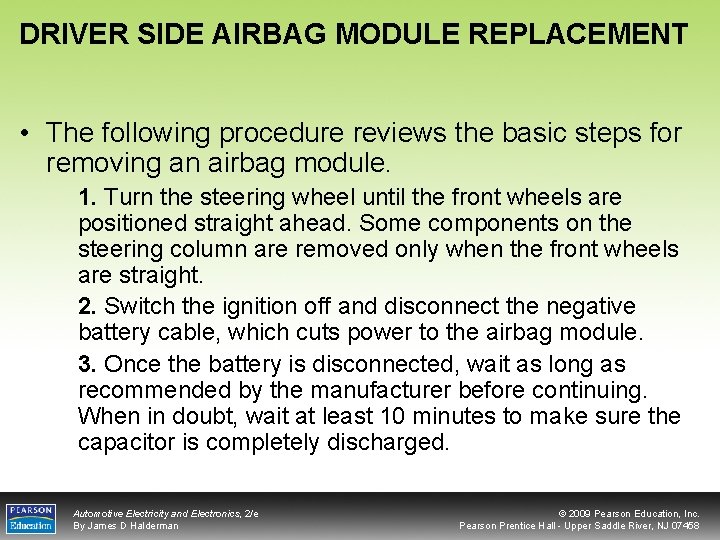

DRIVER SIDE AIRBAG MODULE REPLACEMENT • The following procedure reviews the basic steps for removing an airbag module. 1. Turn the steering wheel until the front wheels are positioned straight ahead. Some components on the steering column are removed only when the front wheels are straight. 2. Switch the ignition off and disconnect the negative battery cable, which cuts power to the airbag module. 3. Once the battery is disconnected, wait as long as recommended by the manufacturer before continuing. When in doubt, wait at least 10 minutes to make sure the capacitor is completely discharged. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

DRIVER SIDE AIRBAG MODULE REPLACEMENT 4. Loosen and remove the nuts or screws that hold the airbag module in place. On some vehicles, these fasteners are located on the back of the steering wheel. On other vehicles, they are located on each side of the steering wheel. The fasteners may be concealed with plastic finishing covers that must be pried off with a small screwdriver to access them. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

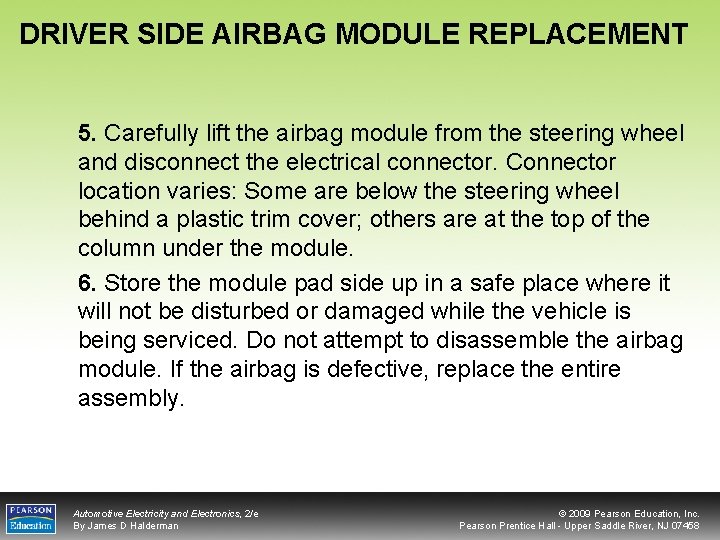

DRIVER SIDE AIRBAG MODULE REPLACEMENT 5. Carefully lift the airbag module from the steering wheel and disconnect the electrical connector. Connector location varies: Some are below the steering wheel behind a plastic trim cover; others are at the top of the column under the module. 6. Store the module pad side up in a safe place where it will not be disturbed or damaged while the vehicle is being serviced. Do not attempt to disassemble the airbag module. If the airbag is defective, replace the entire assembly. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

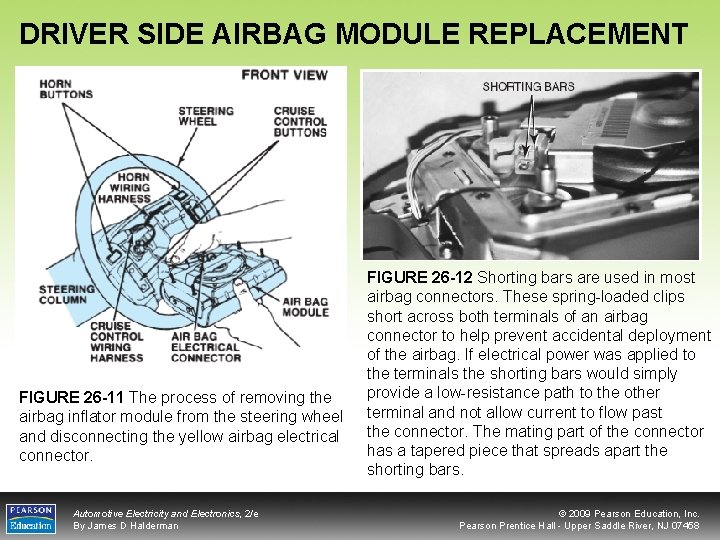

DRIVER SIDE AIRBAG MODULE REPLACEMENT FIGURE 26 -11 The process of removing the airbag inflator module from the steering wheel and disconnecting the yellow airbag electrical connector. Automotive Electricity and Electronics, 2/e By James D Halderman FIGURE 26 -12 Shorting bars are used in most airbag connectors. These spring-loaded clips short across both terminals of an airbag connector to help prevent accidental deployment of the airbag. If electrical power was applied to the terminals the shorting bars would simply provide a low-resistance path to the other terminal and not allow current to flow past the connector. The mating part of the connector has a tapered piece that spreads apart the shorting bars. © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

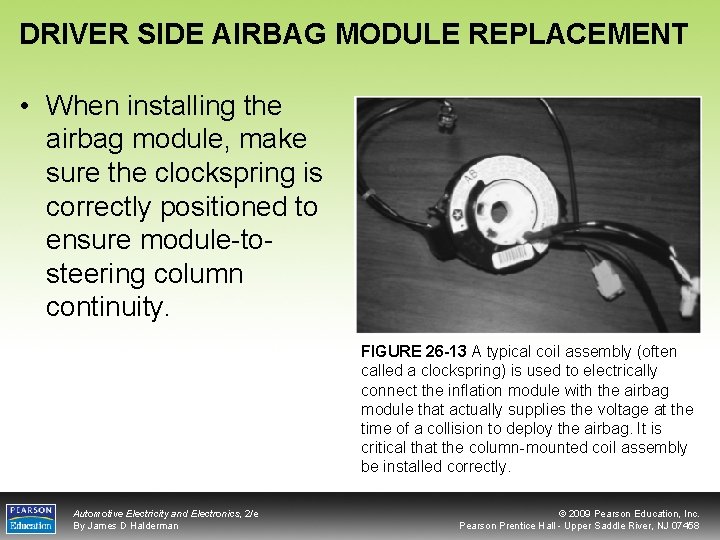

DRIVER SIDE AIRBAG MODULE REPLACEMENT • When installing the airbag module, make sure the clockspring is correctly positioned to ensure module-tosteering column continuity. FIGURE 26 -13 A typical coil assembly (often called a clockspring) is used to electrically connect the inflation module with the airbag module that actually supplies the voltage at the time of a collision to deploy the airbag. It is critical that the column-mounted coil assembly be installed correctly. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

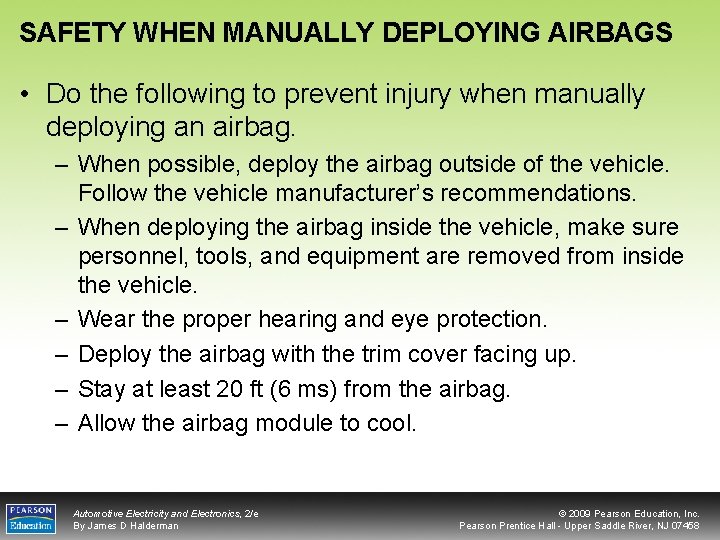

SAFETY WHEN MANUALLY DEPLOYING AIRBAGS • Do the following to prevent injury when manually deploying an airbag. – When possible, deploy the airbag outside of the vehicle. Follow the vehicle manufacturer’s recommendations. – When deploying the airbag inside the vehicle, make sure personnel, tools, and equipment are removed from inside the vehicle. – Wear the proper hearing and eye protection. – Deploy the airbag with the trim cover facing up. – Stay at least 20 ft (6 ms) from the airbag. – Allow the airbag module to cool. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

PRETENSIONERS • The purpose of the pretensioning device is to force the occupant back into position against the seat back and to remove any slack in the seat belt. FIGURE 26 -14 A small explosive charge forces the end of the seat belt down the tube, which removes any slack in the seat belt. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

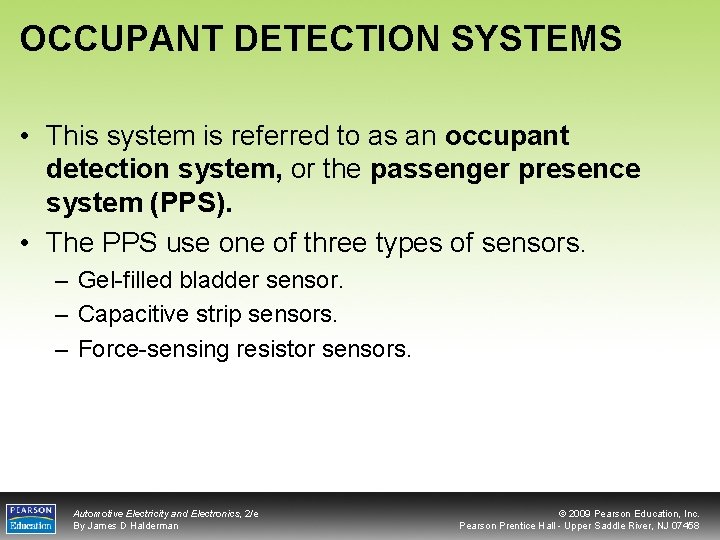

OCCUPANT DETECTION SYSTEMS • This system is referred to as an occupant detection system, or the passenger presence system (PPS). • The PPS use one of three types of sensors. – Gel-filled bladder sensor. – Capacitive strip sensors. – Force-sensing resistor sensors. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

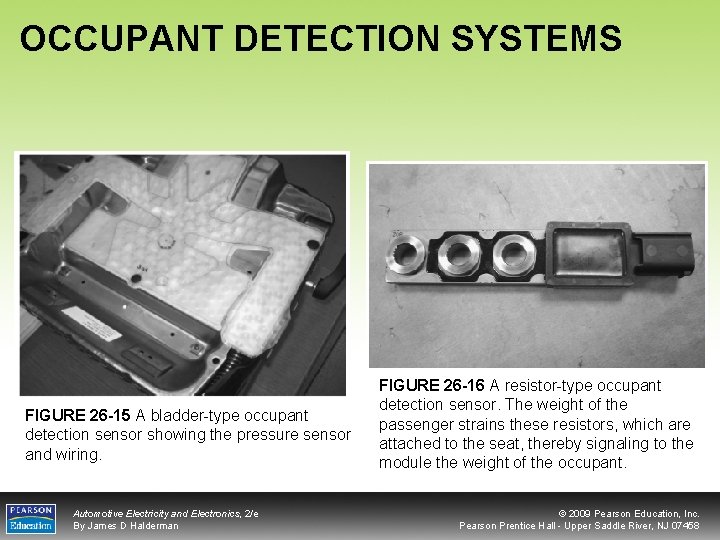

OCCUPANT DETECTION SYSTEMS FIGURE 26 -15 A bladder-type occupant detection sensor showing the pressure sensor and wiring. Automotive Electricity and Electronics, 2/e By James D Halderman FIGURE 26 -16 A resistor-type occupant detection sensor. The weight of the passenger strains these resistors, which are attached to the seat, thereby signaling to the module the weight of the occupant. © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

OCCUPANT DETECTION SYSTEMS Diagnosing Occupant Detection Systems • Some systems, such as those used on Chrysler vehicles, use a unit that has various weights along with a scan tool to calibrate and diagnose the occupant detection system. FIGURE 26 -17 A test weight is used to calibrate the occupant detection system on a Chrysler vehicle. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

SEAT AND SIDE CURTAIN AIRBAGS • Side and/or curtain airbags use a variety of sensors to determine if they need to be deployed. • Side airbags are mounted in one of two general locations. – In the side bolster of the seat – In the door panel FIGURE 26 -18 A typical seat (side) airbag that deploys from the side of the seat. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

EVENT DATA RECORDERS Parts and Operation • The purpose of the event data recorder (EDR) is to record parameters just before and slightly after an airbag deployment. • The parameters recorded include: – – Vehicle speed Brake on/off Seat belt fastened G-forces as measured by the accelerometer Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

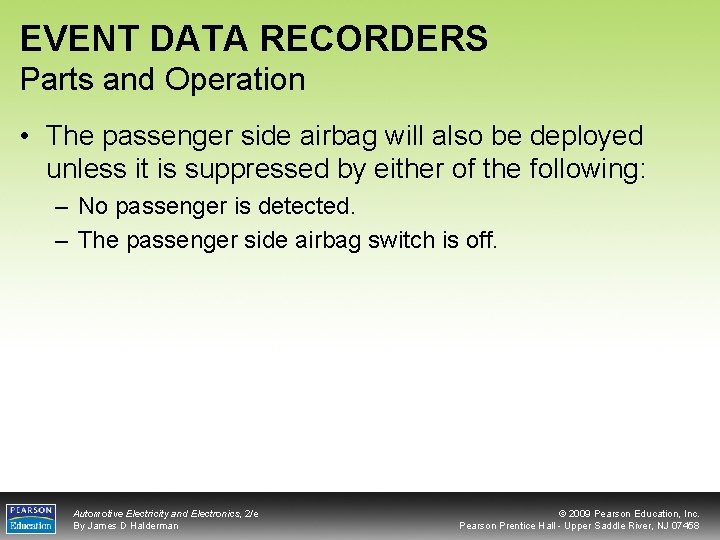

EVENT DATA RECORDERS Parts and Operation • The passenger side airbag will also be deployed unless it is suppressed by either of the following: – No passenger is detected. – The passenger side airbag switch is off. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

EVENT DATA RECORDERS Data Extraction • Data extraction from the event data recorder in the airbag controller can only be achieved using a piece of equipment known as the Crash Data Retrieval System, manufactured by Vetronics Corporation. • This is the only authorized method for retrieving event files and only certain organizations are allowed access to the data. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

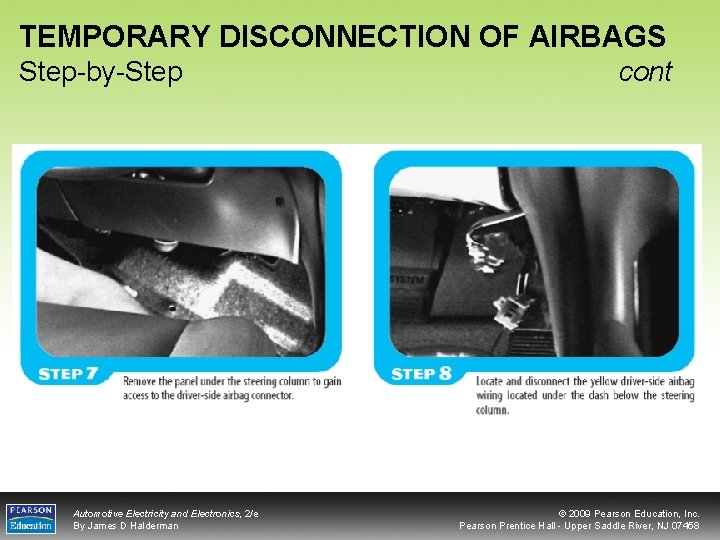

TEMPORARY DISCONNECTION OF AIRBAGS Step-by-Step Automotive Electricity and Electronics, 2/e By James D Halderman cont © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

SUMMARY 1. Airbags use a sensor(s) to determine if the rate of deceleration is enough to cause bodily harm. All airbag wiring is yellow. When working around an airbag, disconnect the wiring connectors to help prevent accidental deployment. 2. Frontal airbags only operate within 30 degrees from center and do not deploy in the event of a rollover, side, or rear collision. 3. Two sensors must be triggered at the same time for an airbag deployment to occur. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

SUMMARY 4. All electrical terminals are gold plated to protect against corrosion. 5. Pretensioners are explosive (pyrotechnic) devices which remove the slack from the seat belt and help position the occupant. 6. Occupant detection systems use sensors in the seat to determine whether the airbag will be deployed and with full or reduced force. Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

REVIEW QUESTIONS 1. What are the safety precautions to follow when working around an airbag? 2. What sensor(s) must be triggered for an airbag deployment? 3. How should deployed inflation modules be handled? 4. What is the purpose of pretensioners? Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

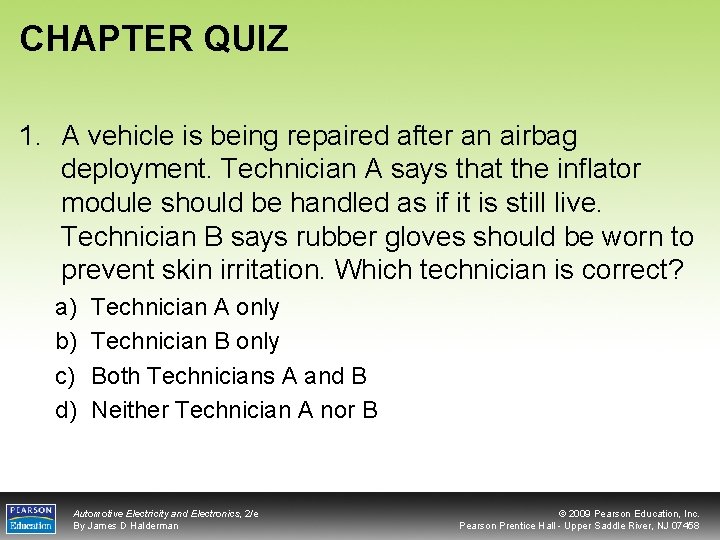

CHAPTER QUIZ 1. A vehicle is being repaired after an airbag deployment. Technician A says that the inflator module should be handled as if it is still live. Technician B says rubber gloves should be worn to prevent skin irritation. Which technician is correct? a) b) c) d) Technician A only Technician B only Both Technicians A and B Neither Technician A nor B Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

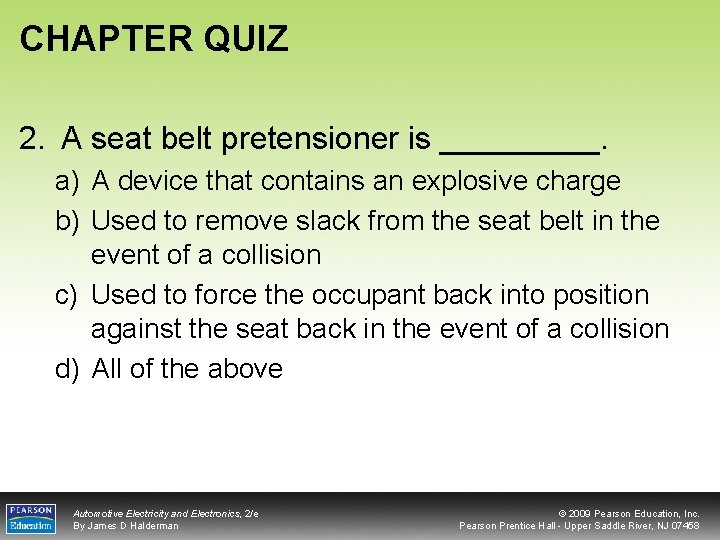

CHAPTER QUIZ 2. A seat belt pretensioner is _____. a) A device that contains an explosive charge b) Used to remove slack from the seat belt in the event of a collision c) Used to force the occupant back into position against the seat back in the event of a collision d) All of the above Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

CHAPTER QUIZ 3. What conducts power and ground to the driver’s side airbag? a) Twisted-pair wires b) Clockspring c) Carbon contact and brass surface plate on the steering column d) Magnetic reed switch Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

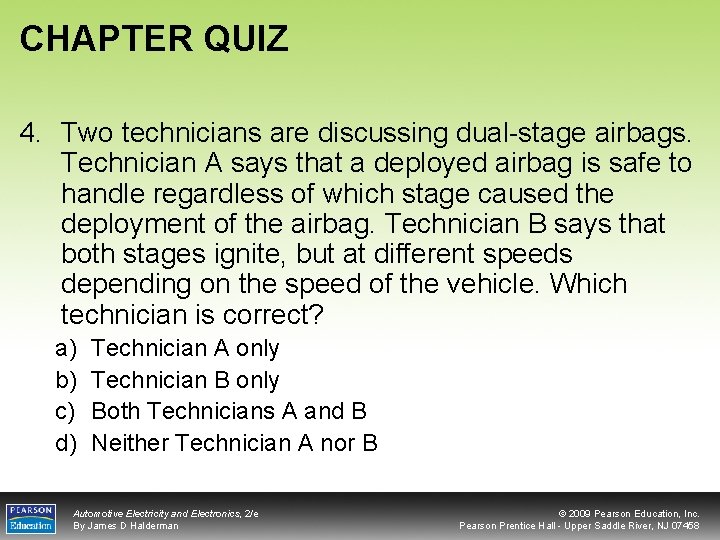

CHAPTER QUIZ 4. Two technicians are discussing dual-stage airbags. Technician A says that a deployed airbag is safe to handle regardless of which stage caused the deployment of the airbag. Technician B says that both stages ignite, but at different speeds depending on the speed of the vehicle. Which technician is correct? a) b) c) d) Technician A only Technician B only Both Technicians A and B Neither Technician A nor B Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

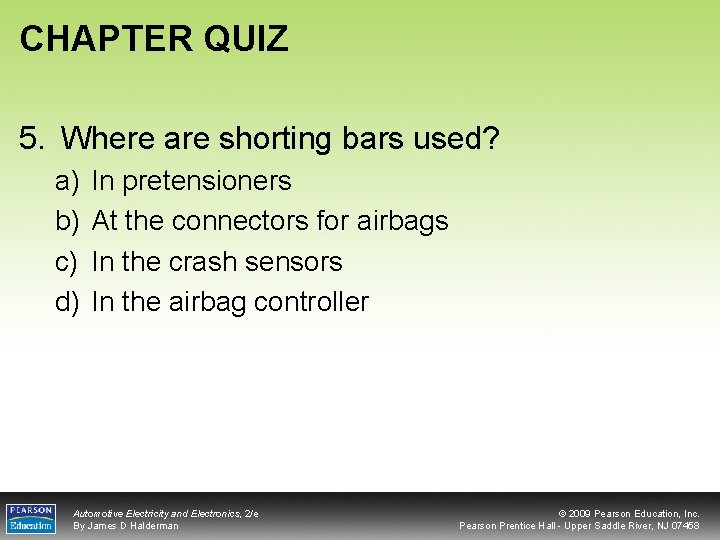

CHAPTER QUIZ 5. Where are shorting bars used? a) b) c) d) In pretensioners At the connectors for airbags In the crash sensors In the airbag controller Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

CHAPTER QUIZ 6. Technician A says that a deployed airbag can be repacked, reused, and reinstalled in the vehicle. Technician B says that a deployed airbag should be discarded and replaced with an entire new assembly. Which technician is correct? a) b) c) d) Technician A only Technician B only Both Technicians A and B Neither Technician A nor B Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458

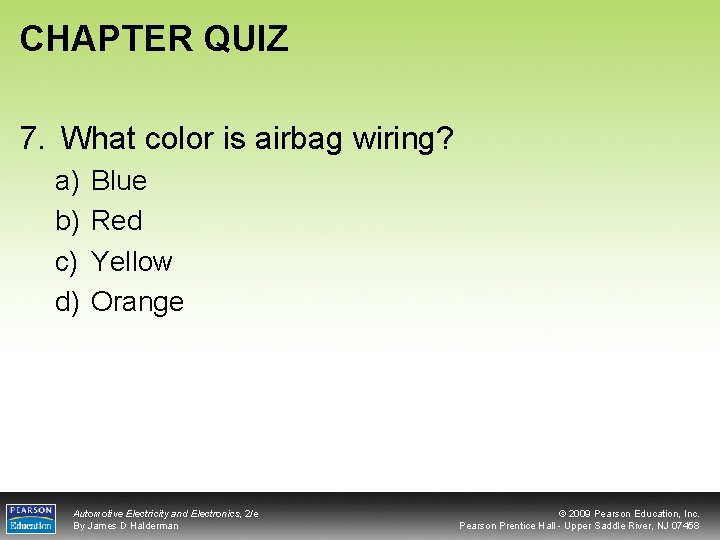

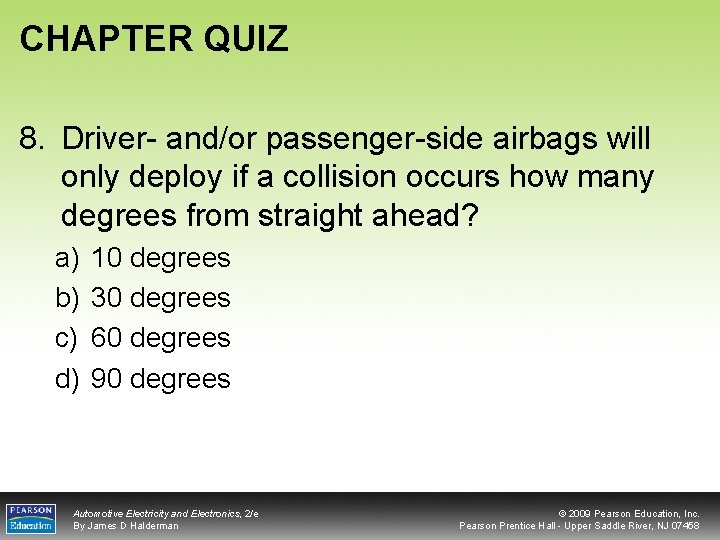

CHAPTER QUIZ 7. What color is airbag wiring? a) b) c) d) Blue Red Yellow Orange Automotive Electricity and Electronics, 2/e By James D Halderman © 2009 Pearson Education, Inc. Pearson Prentice Hall - Upper Saddle River, NJ 07458
