Objective Diagram a magnetic field These two magnets

Objective: Diagram a magnetic field These two magnets will… a) Repel each other b) Attract each other c) Refract each other d) Not interact with each other q. Magnets q. Magnetic fields

This is magnet.

A Magnet is… metal that attracts iron.

Interesting facts about magnets: 1)All magnets have 2 poles S is for South Pole N is for North Pole

Interesting facts about magnets: 2) Break a magnet, each part will still have 2 poles.

Interesting facts about magnets: . 3) Like poles (South and North) repel each other (push each other away)

Interesting facts about magnets: 4) Unlike Poles (South and North) attract each other (pull each other together)

These two magnets will…. a) b) c) d) S N Attract and pull each other together Repel and pull each other together Attract and push each other away Repel and push each other away

These two magnets pull towards each other. These two magnets push away from one another. Why?

These are all the things you can see.

This is what you can’t see. Magnetic Fields

How to Draw Magnetic Fields • 1) Draw a magnet.

How to Draw Magnetic Fields • 2) Draw a loop circling from north to south. Don’t forget the arrow.

How to Draw Magnetic Fields • 3) Mirror the first loop on the bottom.

How to Draw Magnetic Fields • 4) Add another loop on each side

How to Draw Magnetic Fields • 5) Draw arrows leaving the north side

How to Draw Magnetic Fields • 6) Draw Arrows Entering the South Side

Check: Which drawing of a magnetic field is incorrect? B A C S N

The power of magnets more lines close together = more magnetic force

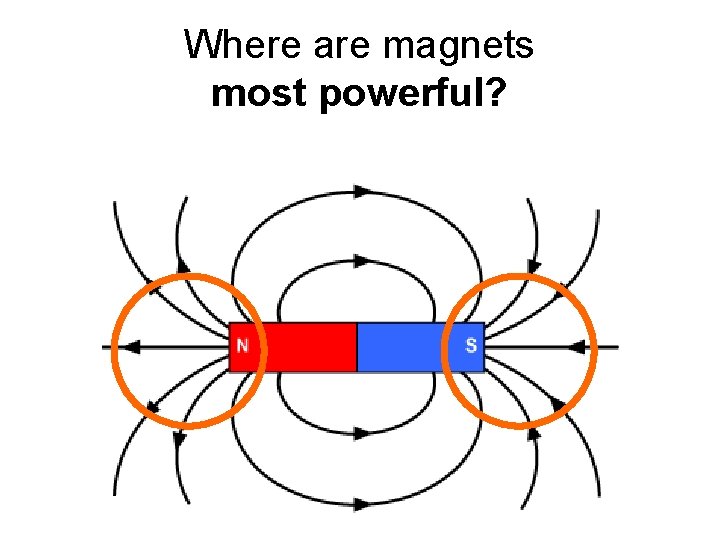

Where are magnets most powerful?

Where are magnets most powerful?

Where are magnets least powerful?

Where are magnets least powerful?

Magnetic Fields

Quiz Check: What can we say about Area Delta and Area Chi? a) Area Delta and Area Chi experience no magnetic force. b) Area Delta experiences more magnetic force than Area Chi. c) Area Delta experiences less magnetic force than area Chi. d) Area Delta experience the same amount of magnetic force as Area Chi. Delta Chi

Quiz Check: Why are magnetic fields important?

Quiz Check: Match the drawing of the magnetic fields with the arrangement of magnets. B S A N N S N S S N D S C N S S N N

Quiz Check THINK CRITICALLY! • How does a compass work?
