Object Persistence Data Base Design Chapter 13 Key

Object Persistence (Data Base) Design Chapter 13

Key Definitions • Object persistence involves the selection of a storage format and optimization for performance. • Four basic formats used for object persistence are: files, OO databases, and relational databases.

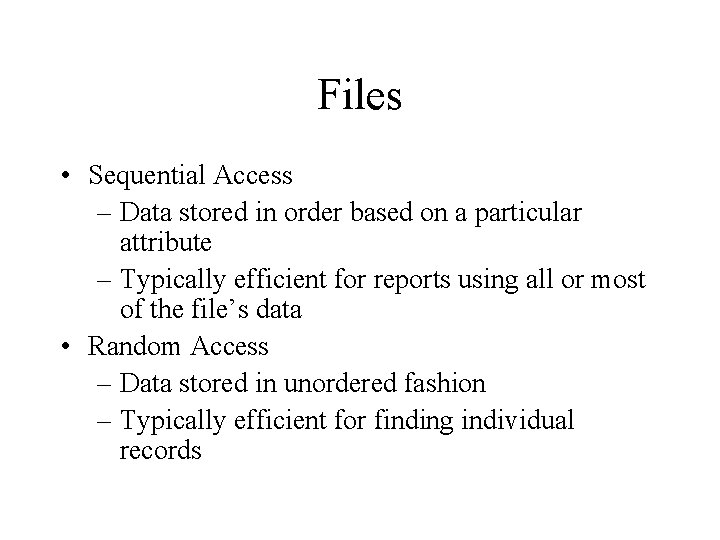

Files • Sequential Access – Data stored in order based on a particular attribute – Typically efficient for reports using all or most of the file’s data • Random Access – Data stored in unordered fashion – Typically efficient for finding individual records

Relational Databases • • Primary key Foreign key Referential integrity Structured Query Language (SQL) Tables Joining tables Objects must be converted so they can be stored in a table

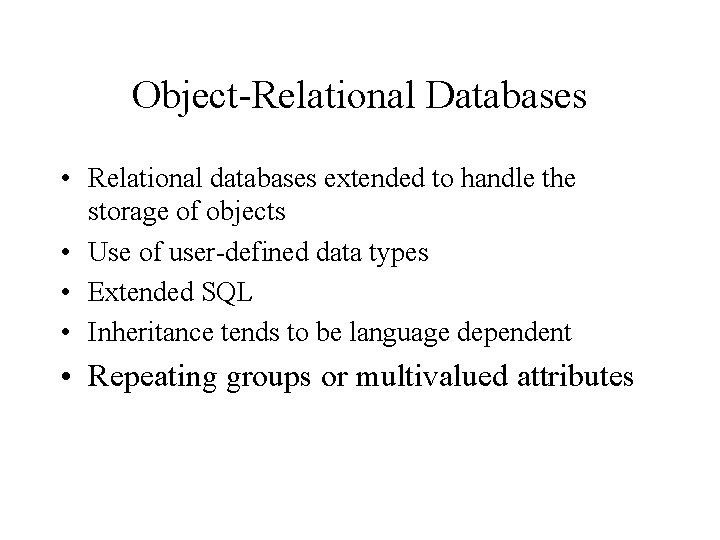

Object-Relational Databases • Relational databases extended to handle the storage of objects • Use of user-defined data types • Extended SQL • Inheritance tends to be language dependent • Repeating groups or multivalued attributes

Object-Oriented Databases • Two approaches – Adding persistence extensions to OO languages – Separate database management systems • Extents (tables) • Object ID assigned • Some inheritance • Repeating groups or multivalued attributes • Sharp learning curve

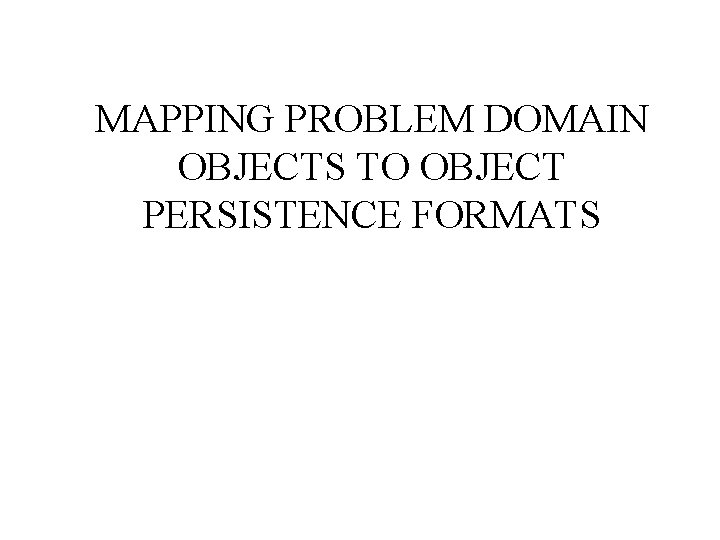

MAPPING PROBLEM DOMAIN OBJECTS TO OBJECT PERSISTENCE FORMATS

Mapping Problem Domain Objects to RDBMS Schema -- Rules

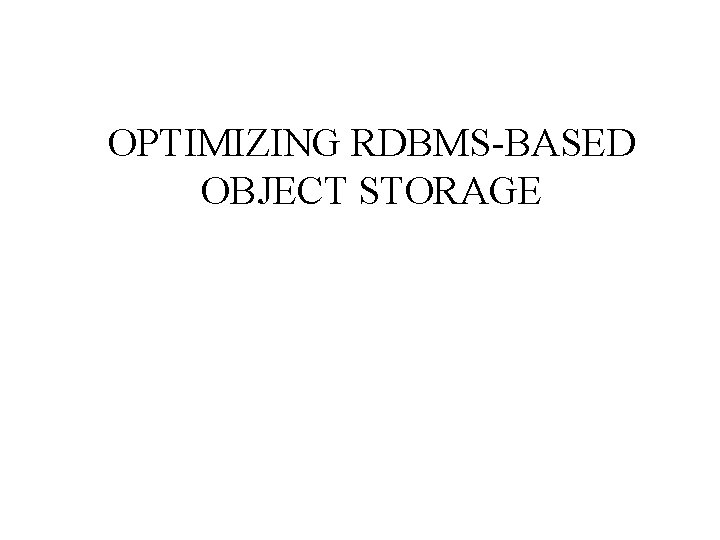

OPTIMIZING RDBMS-BASED OBJECT STORAGE

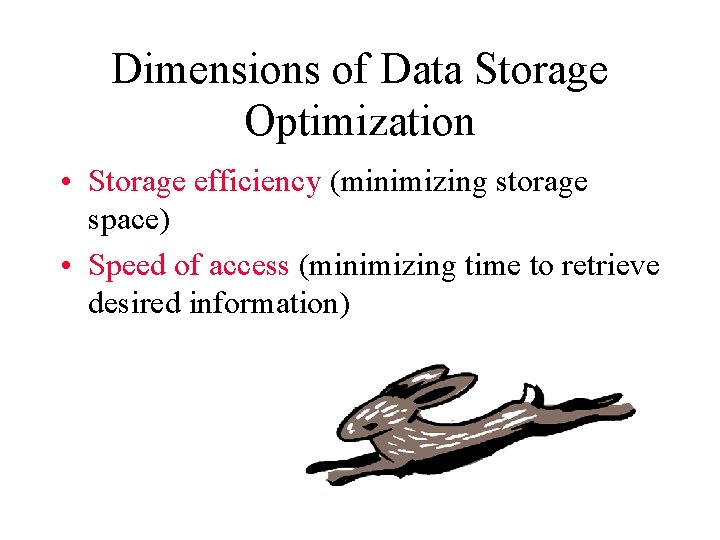

Dimensions of Data Storage Optimization • Storage efficiency (minimizing storage space) • Speed of access (minimizing time to retrieve desired information)

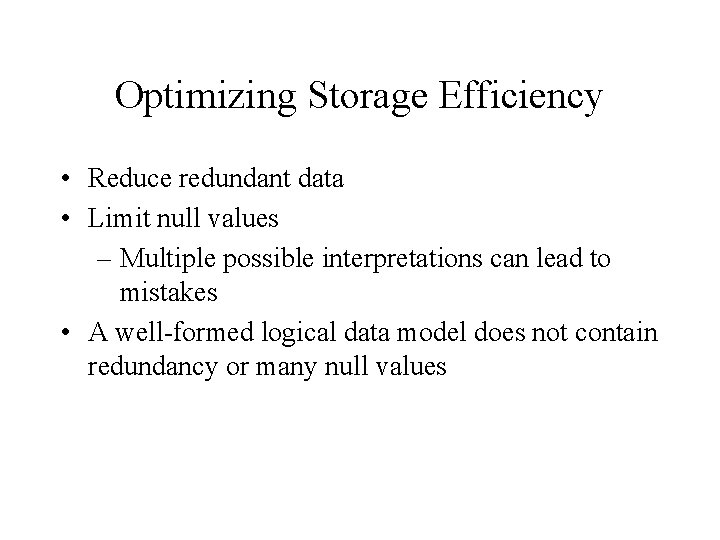

Optimizing Storage Efficiency • Reduce redundant data • Limit null values – Multiple possible interpretations can lead to mistakes • A well-formed logical data model does not contain redundancy or many null values

The Steps of Normalization

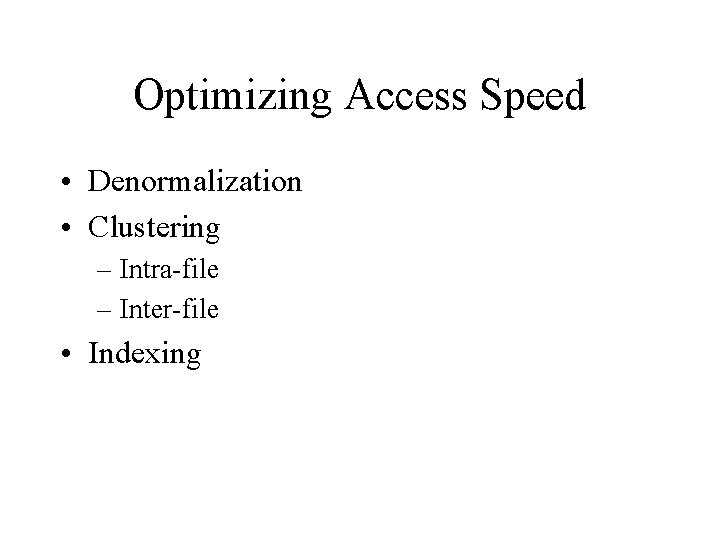

Optimizing Access Speed • Denormalization • Clustering – Intra-file – Inter-file • Indexing

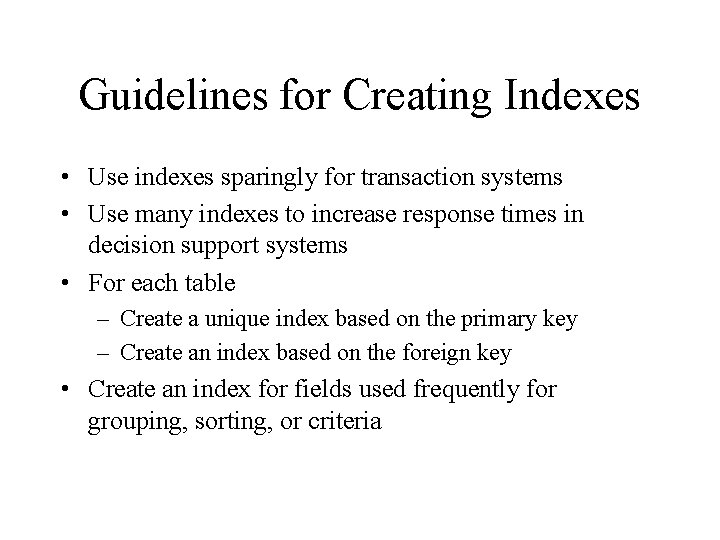

Guidelines for Creating Indexes • Use indexes sparingly for transaction systems • Use many indexes to increase response times in decision support systems • For each table – Create a unique index based on the primary key – Create an index based on the foreign key • Create an index for fields used frequently for grouping, sorting, or criteria

Estimating Data Storage Size Field Average Size (Characters) Order number Date Cust ID Last name First name State Amount Tax rate Record Size Overhead (30%) Total Record Size 8 7 4 13 9 2 49 14. 7 63. 7 Initial Table Size Initial Table Volume Growth/Month Table volume @ 3 years 50, 000 3, 185, 000 1, 000 5, 478, 200
