Object Oriented Design Principles Arnon RotemGalOz Product Line

Object Oriented Design Principles Arnon Rotem-Gal-Oz Product Line Architect

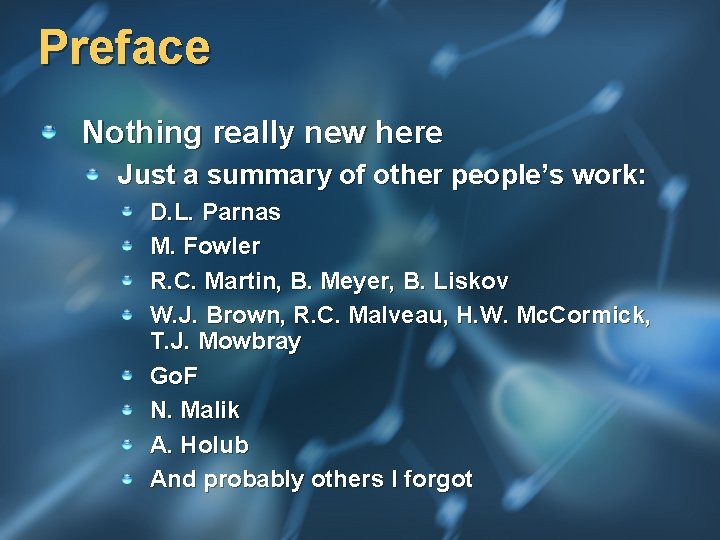

Preface Nothing really new here Just a summary of other people’s work: D. L. Parnas M. Fowler R. C. Martin, B. Meyer, B. Liskov W. J. Brown, R. C. Malveau, H. W. Mc. Cormick, T. J. Mowbray Go. F N. Malik A. Holub And probably others I forgot

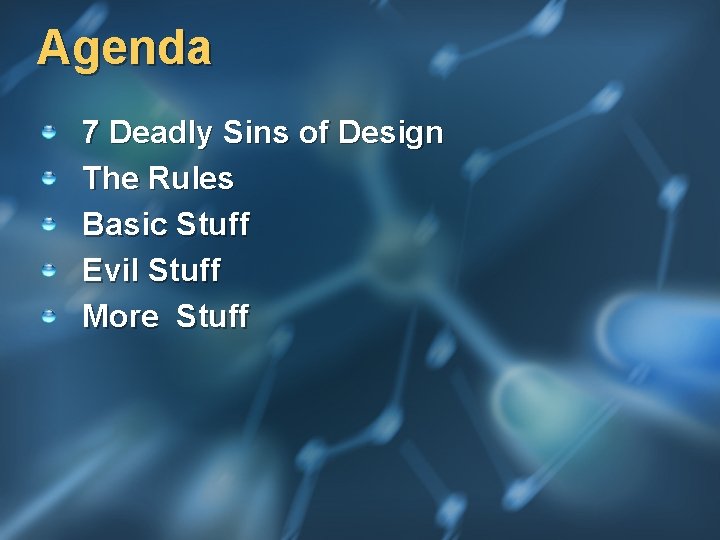

Agenda 7 Deadly Sins of Design The Rules Basic Stuff Evil Stuff More Stuff

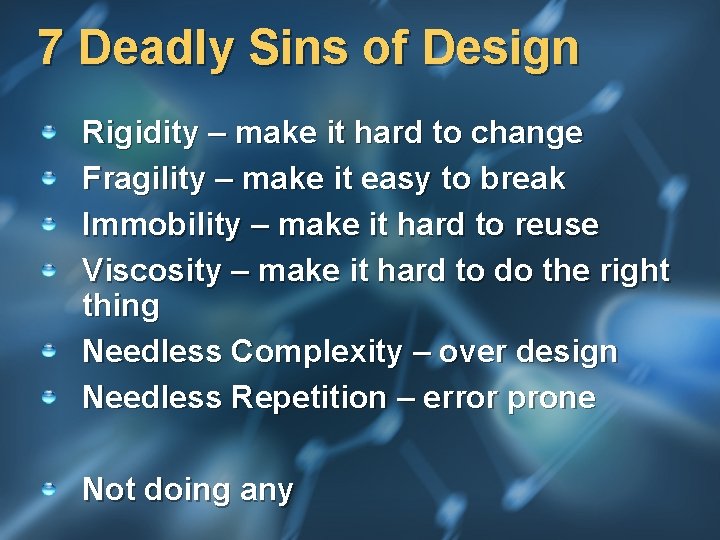

7 Deadly Sins of Design Rigidity – make it hard to change Fragility – make it easy to break Immobility – make it hard to reuse Viscosity – make it hard to do the right thing Needless Complexity – over design Needless Repetition – error prone Not doing any

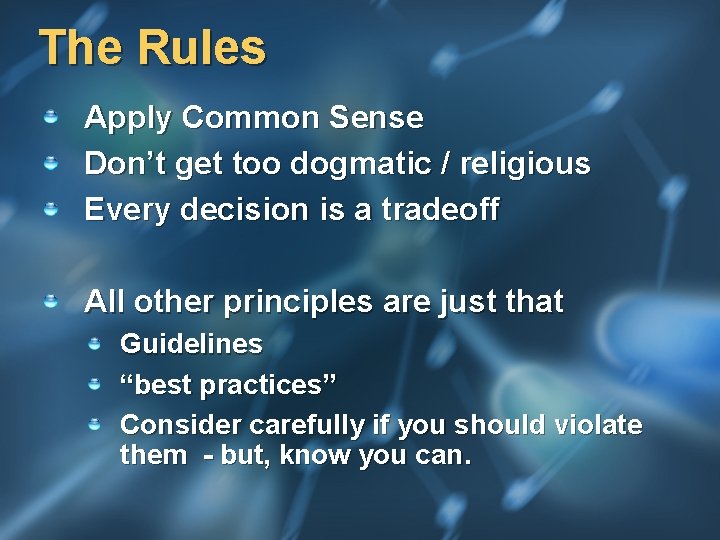

The Rules Apply Common Sense Don’t get too dogmatic / religious Every decision is a tradeoff All other principles are just that Guidelines “best practices” Consider carefully if you should violate them - but, know you can.

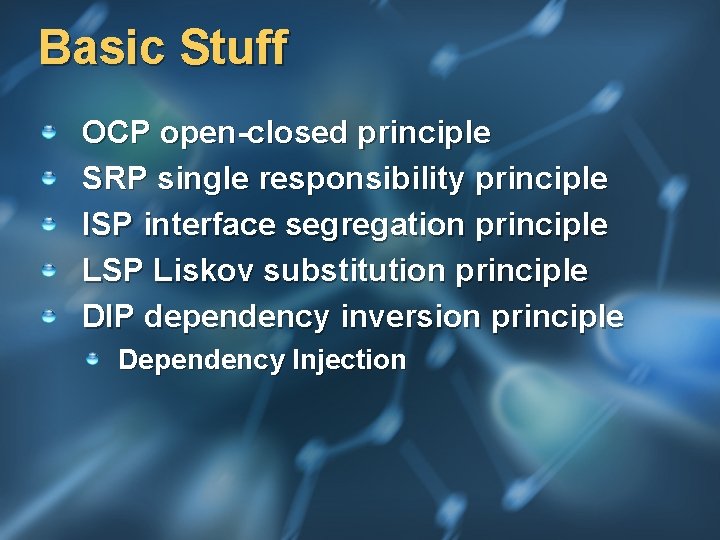

Basic Stuff OCP open-closed principle SRP single responsibility principle ISP interface segregation principle LSP Liskov substitution principle DIP dependency inversion principle Dependency Injection

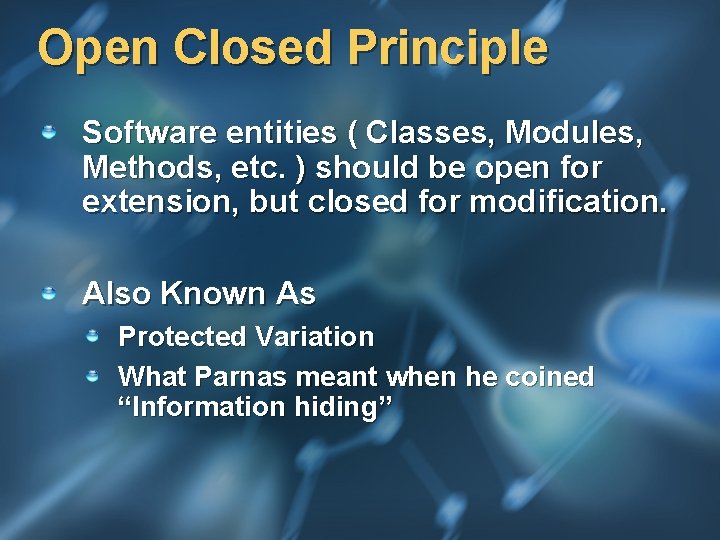

Open Closed Principle Software entities ( Classes, Modules, Methods, etc. ) should be open for extension, but closed for modification. Also Known As Protected Variation What Parnas meant when he coined “Information hiding”

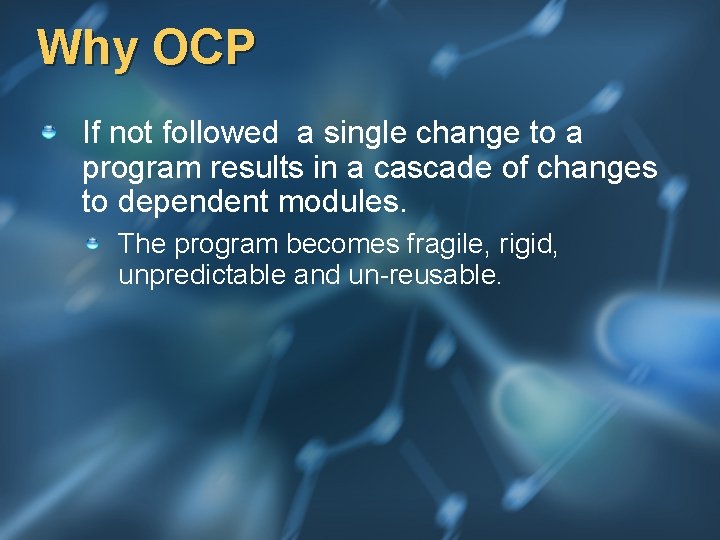

Why OCP If not followed a single change to a program results in a cascade of changes to dependent modules. The program becomes fragile, rigid, unpredictable and un-reusable.

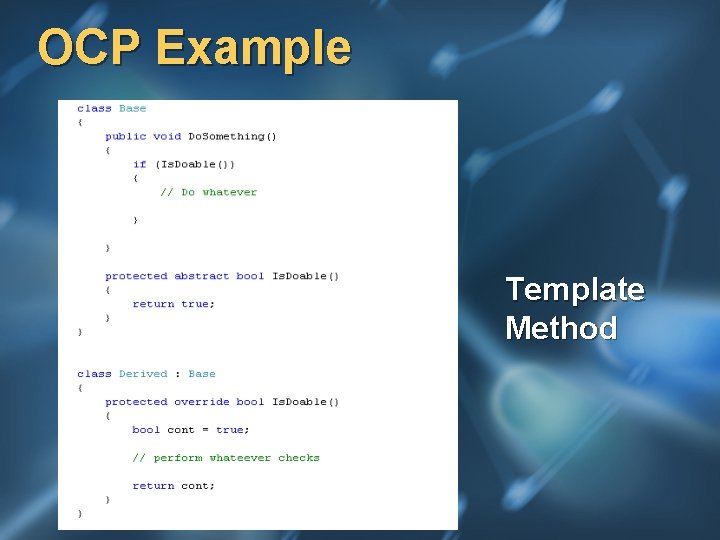

OCP Example Template Method

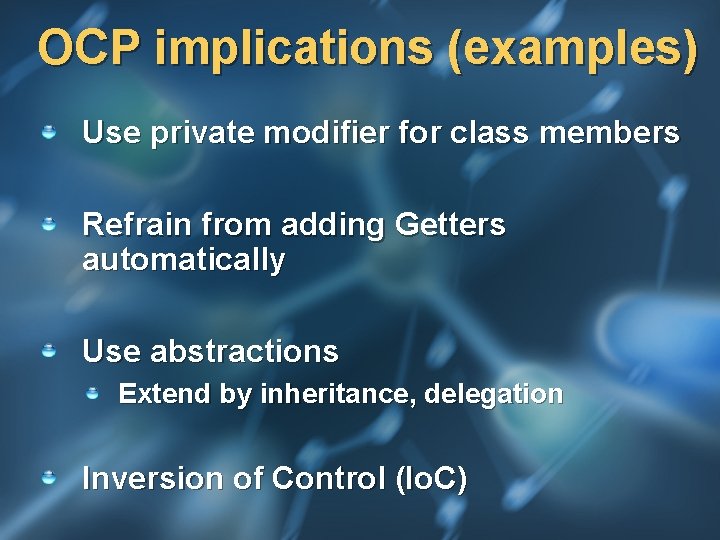

OCP implications (examples) Use private modifier for class members Refrain from adding Getters automatically Use abstractions Extend by inheritance, delegation Inversion of Control (Io. C)

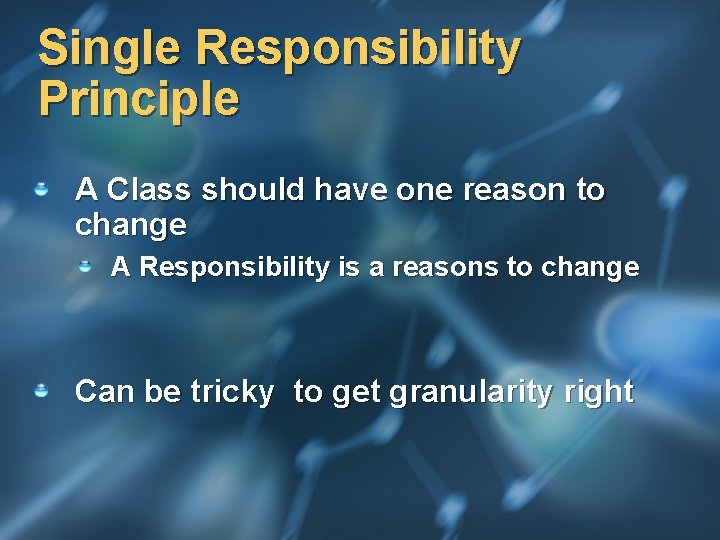

Single Responsibility Principle A Class should have one reason to change A Responsibility is a reasons to change Can be tricky to get granularity right

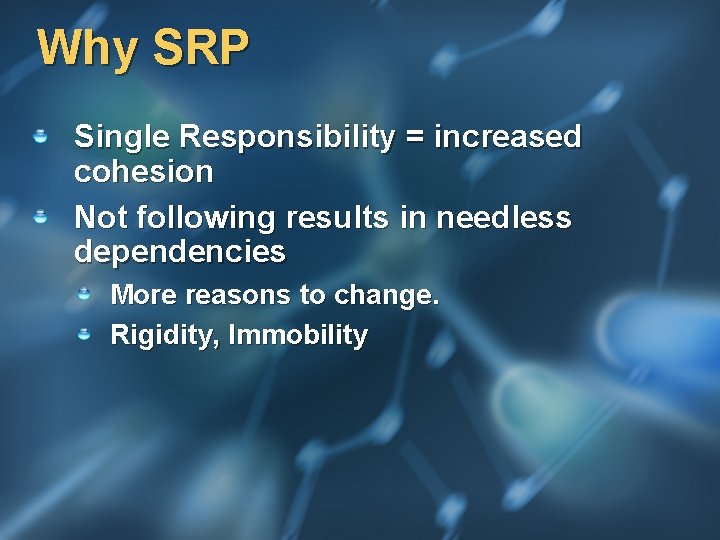

Why SRP Single Responsibility = increased cohesion Not following results in needless dependencies More reasons to change. Rigidity, Immobility

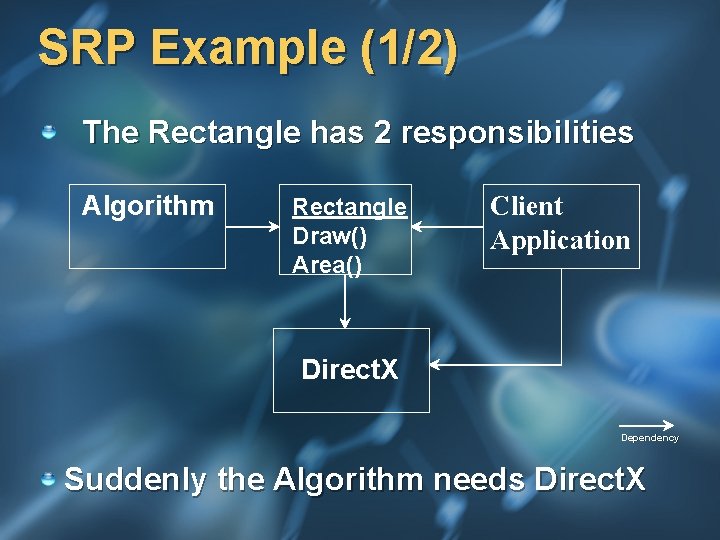

SRP Example (1/2) The Rectangle has 2 responsibilities Algorithm Rectangle Draw() Area() Client Application Direct. X Dependency Suddenly the Algorithm needs Direct. X

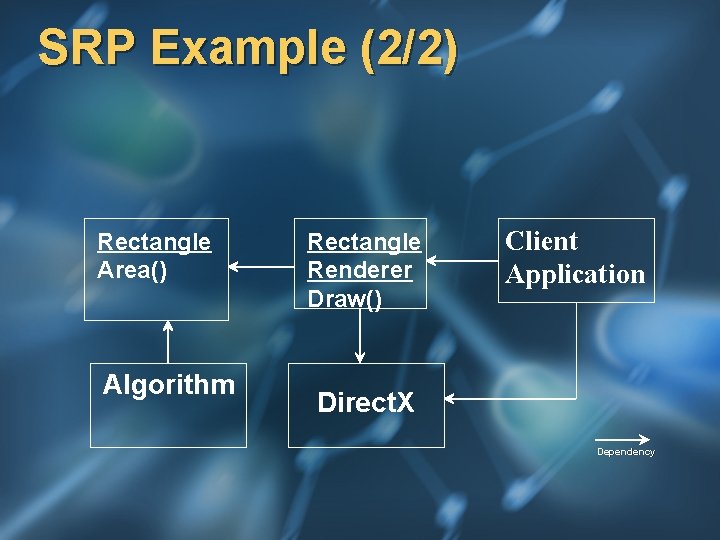

SRP Example (2/2) Rectangle Area() Algorithm Rectangle Renderer Draw() Client Application Direct. X Dependency

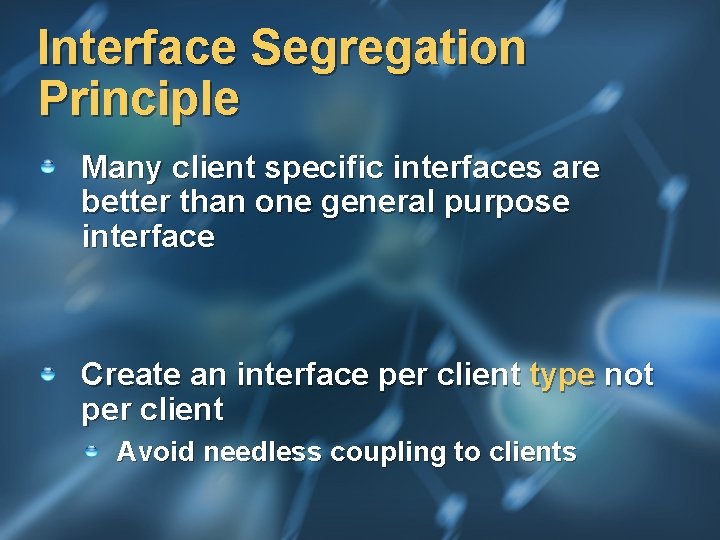

Interface Segregation Principle Many client specific interfaces are better than one general purpose interface Create an interface per client type not per client Avoid needless coupling to clients

Why ISP Otherwise – increased coupling between different clients Basically a variation on SRP

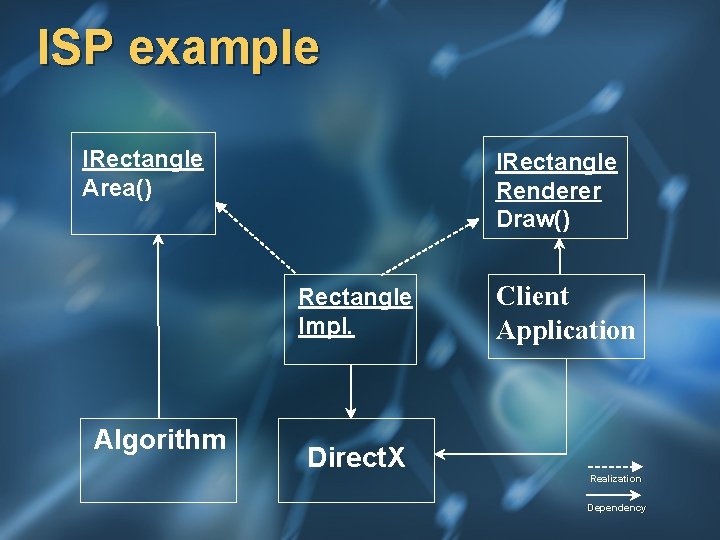

ISP example IRectangle Area() IRectangle Renderer Draw() Rectangle Impl. Algorithm Direct. X Client Application Realization Dependency

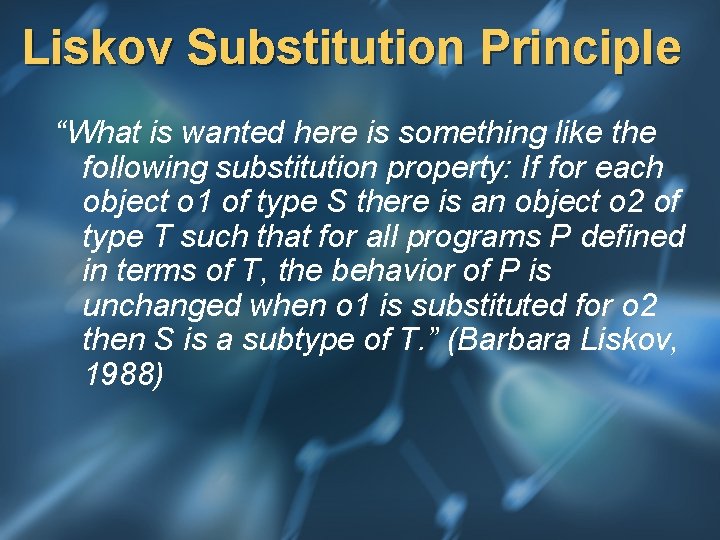

Liskov Substitution Principle “What is wanted here is something like the following substitution property: If for each object o 1 of type S there is an object o 2 of type T such that for all programs P defined in terms of T, the behavior of P is unchanged when o 1 is substituted for o 2 then S is a subtype of T. ” (Barbara Liskov, 1988)

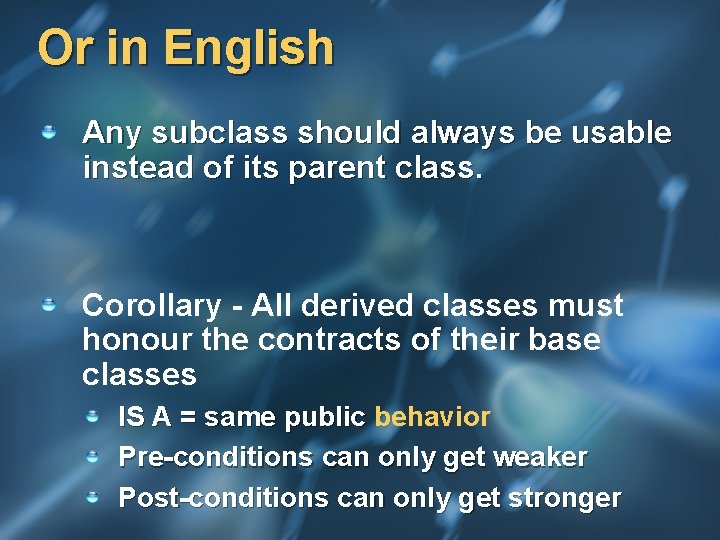

Or in English Any subclass should always be usable instead of its parent class. Corollary - All derived classes must honour the contracts of their base classes IS A = same public behavior Pre-conditions can only get weaker Post-conditions can only get stronger

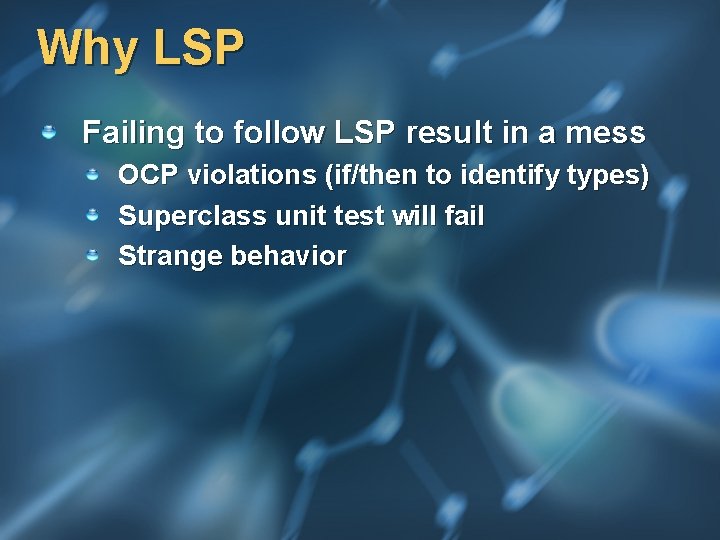

Why LSP Failing to follow LSP result in a mess OCP violations (if/then to identify types) Superclass unit test will fail Strange behavior

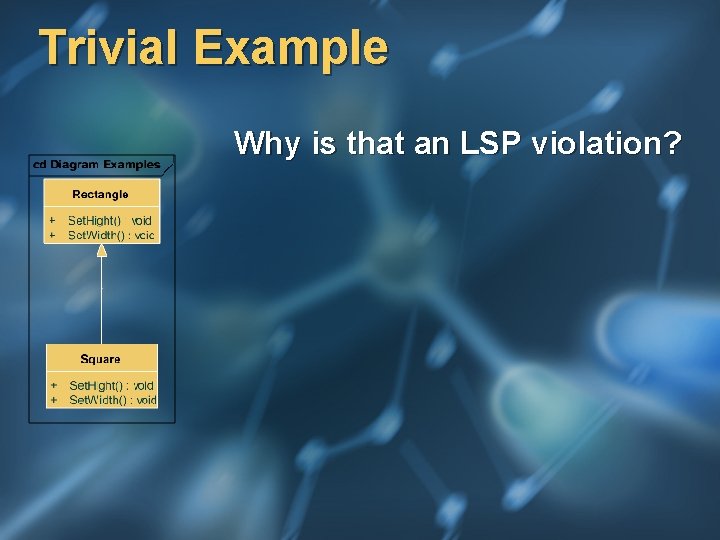

Trivial Example Why is that an LSP violation?

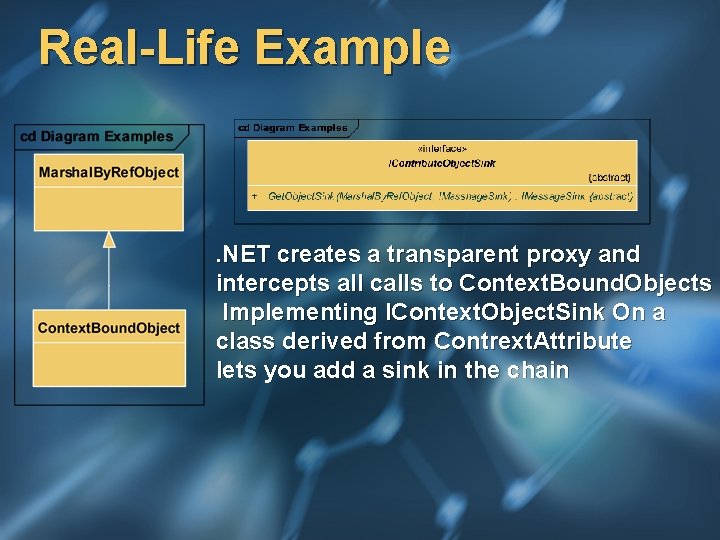

Real-Life Example . NET creates a transparent proxy and intercepts all calls to Context. Bound. Objects Implementing IContext. Object. Sink On a class derived from Contrext. Attribute lets you add a sink in the chain

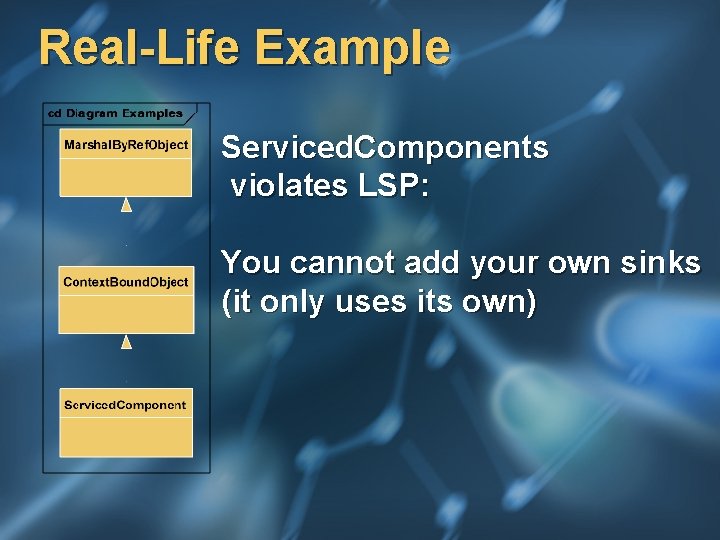

Real-Life Example Serviced. Components violates LSP: You cannot add your own sinks (it only uses its own)

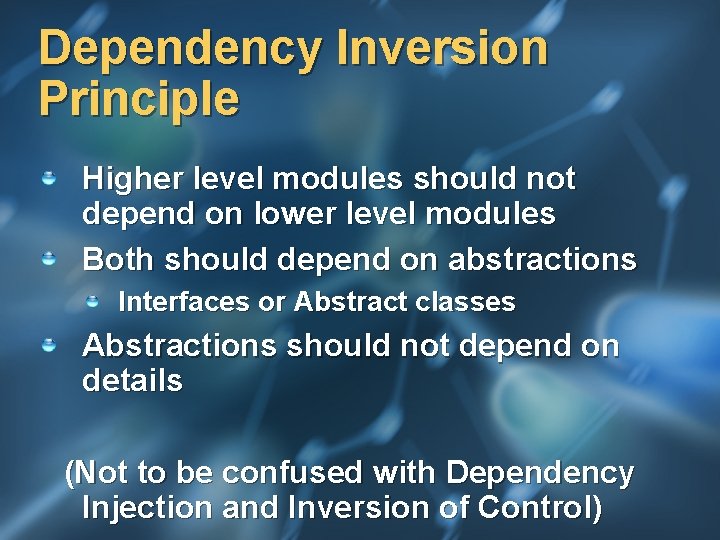

Dependency Inversion Principle Higher level modules should not depend on lower level modules Both should depend on abstractions Interfaces or Abstract classes Abstractions should not depend on details (Not to be confused with Dependency Injection and Inversion of Control)

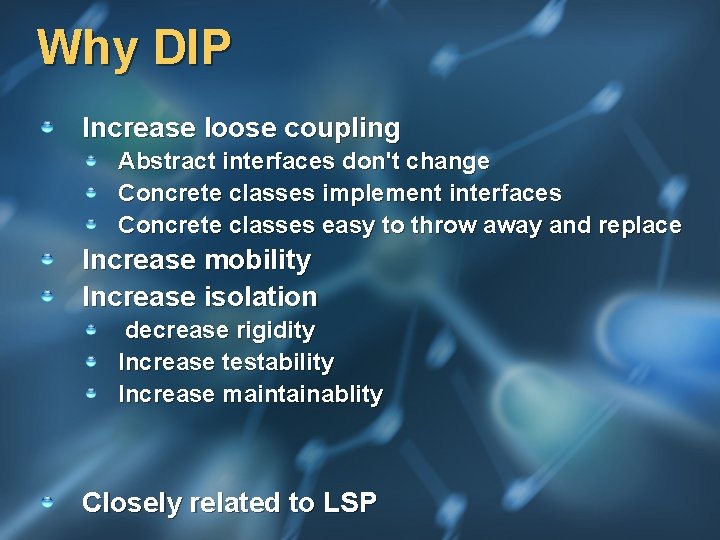

Why DIP Increase loose coupling Abstract interfaces don't change Concrete classes implement interfaces Concrete classes easy to throw away and replace Increase mobility Increase isolation decrease rigidity Increase testability Increase maintainablity Closely related to LSP

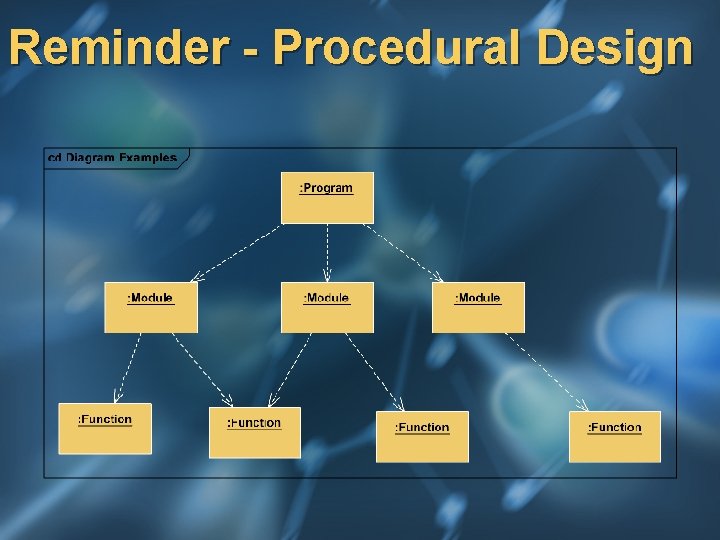

Reminder - Procedural Design

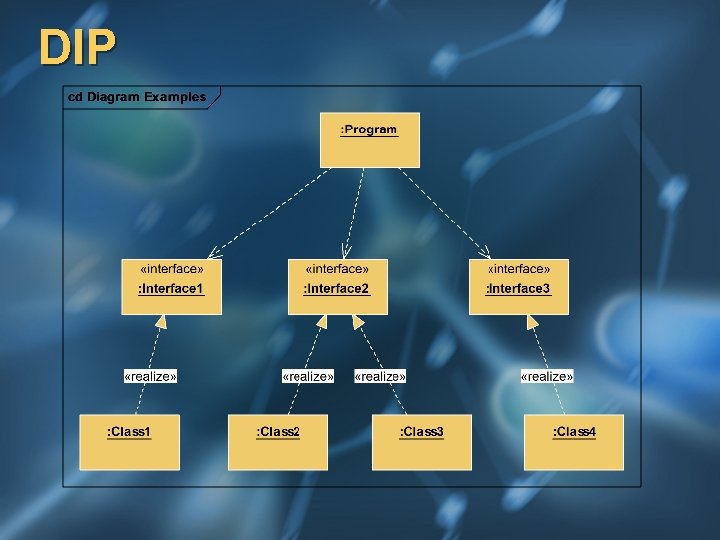

DIP

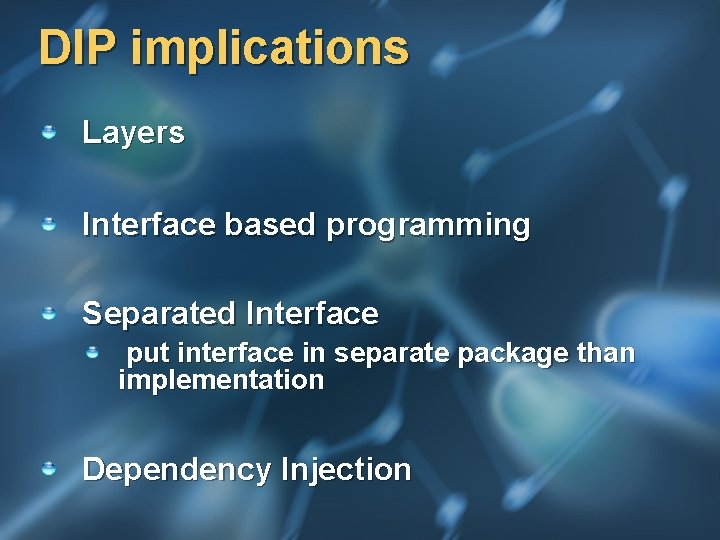

DIP implications Layers Interface based programming Separated Interface put interface in separate package than implementation Dependency Injection

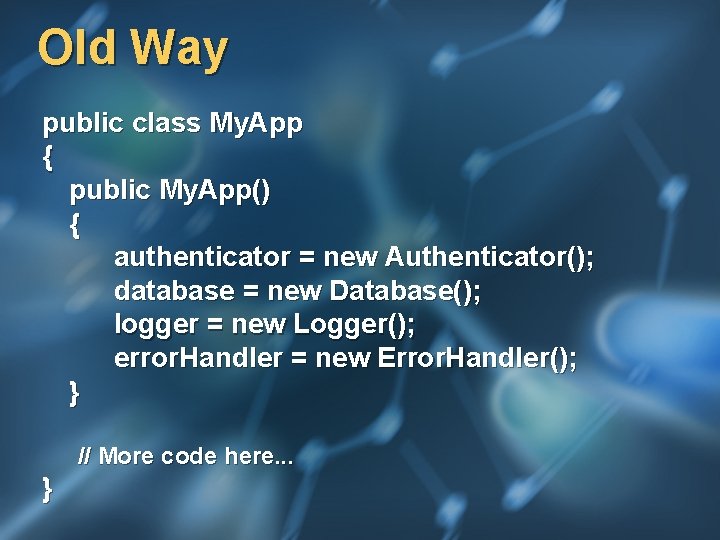

Old Way public class My. App { public My. App() { authenticator = new Authenticator(); database = new Database(); logger = new Logger(); error. Handler = new Error. Handler(); } // More code here. . . }

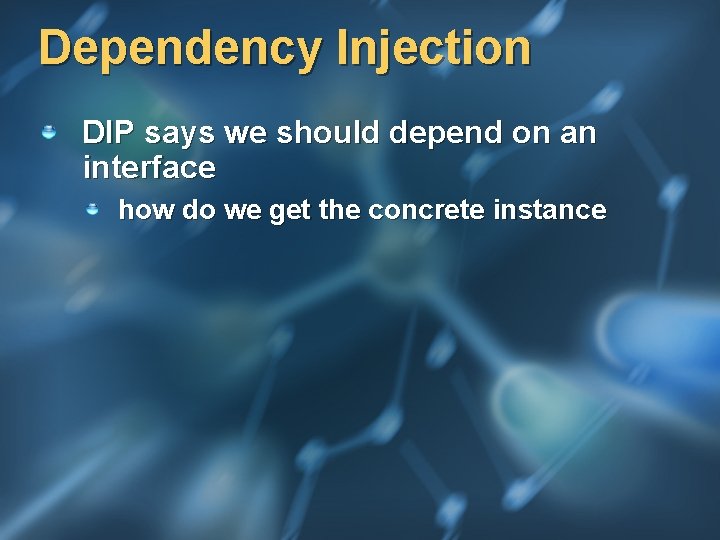

Dependency Injection DIP says we should depend on an interface how do we get the concrete instance

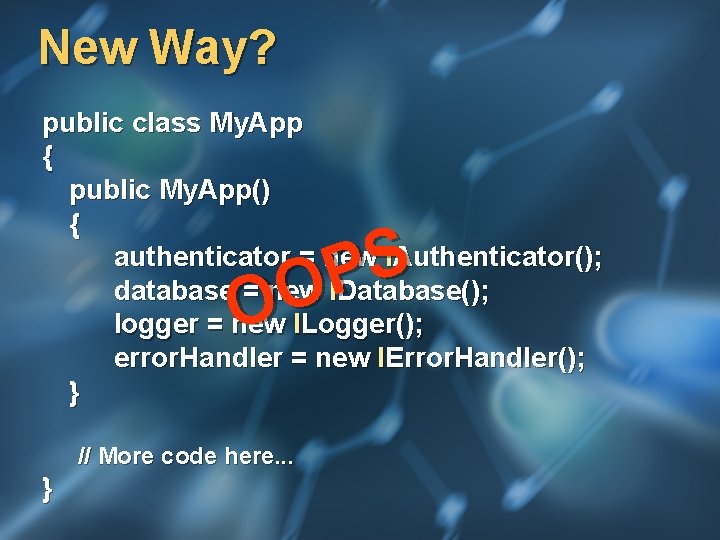

New Way? public class My. App { public My. App() { authenticator = new IAuthenticator(); database = new IDatabase(); logger = new ILogger(); error. Handler = new IError. Handler(); } S P O O // More code here. . . }

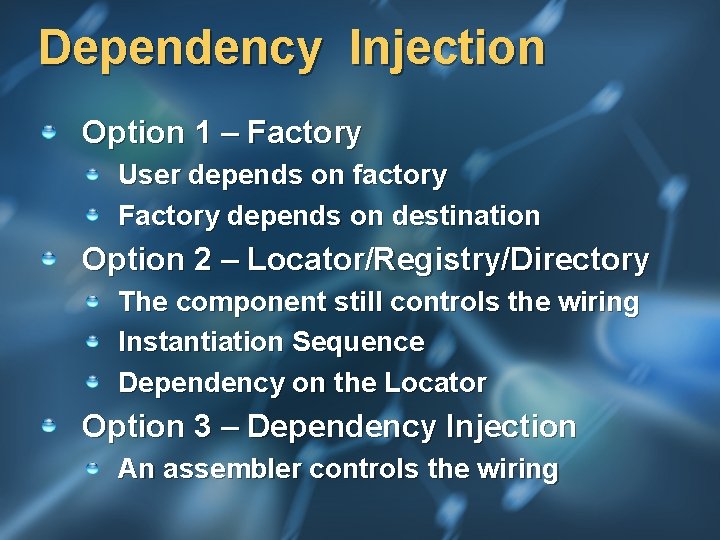

Dependency Injection Option 1 – Factory User depends on factory Factory depends on destination Option 2 – Locator/Registry/Directory The component still controls the wiring Instantiation Sequence Dependency on the Locator Option 3 – Dependency Injection An assembler controls the wiring

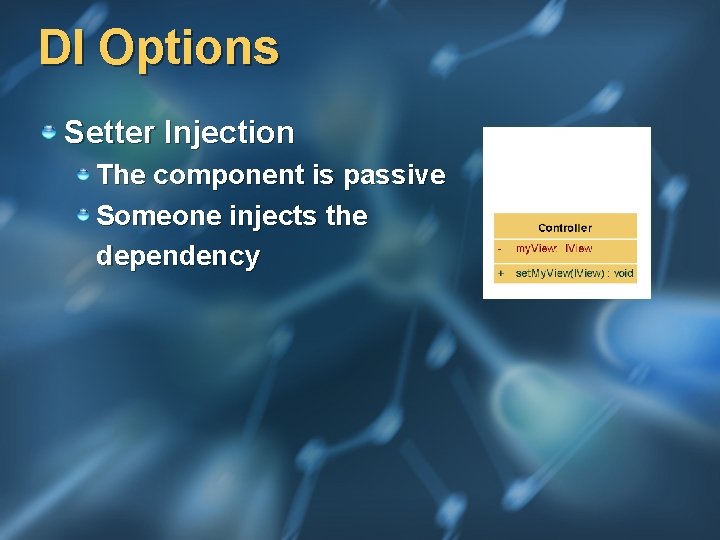

DI Options Setter Injection The component is passive Someone injects the dependency

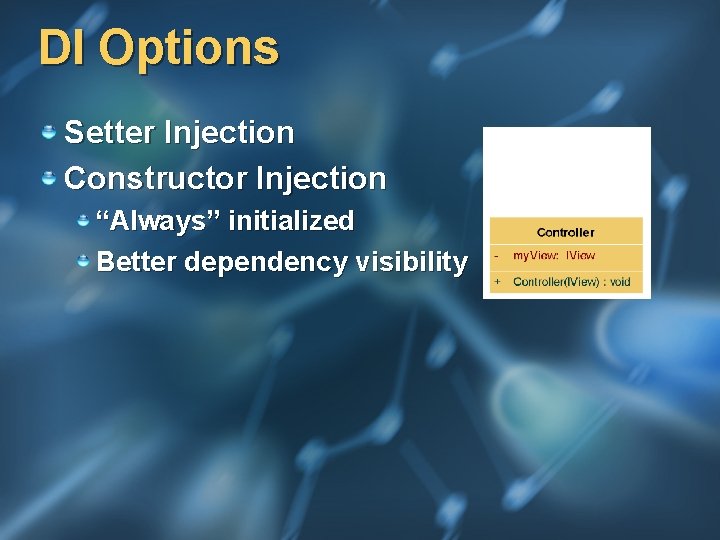

DI Options Setter Injection Constructor Injection “Always” initialized Better dependency visibility

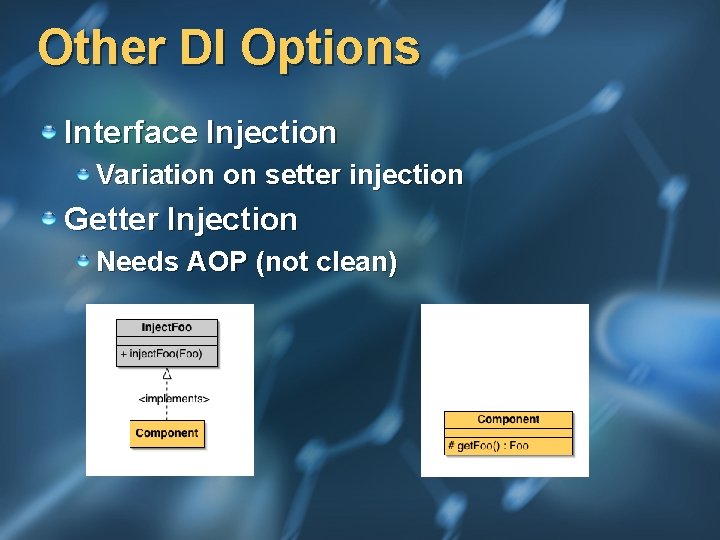

Other DI Options Interface Injection Variation on setter injection Getter Injection Needs AOP (not clean)

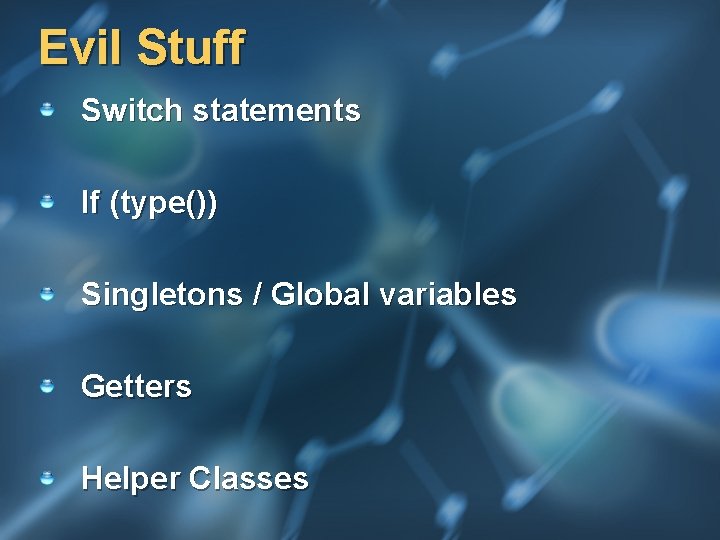

Evil Stuff Switch statements If (type()) Singletons / Global variables Getters Helper Classes

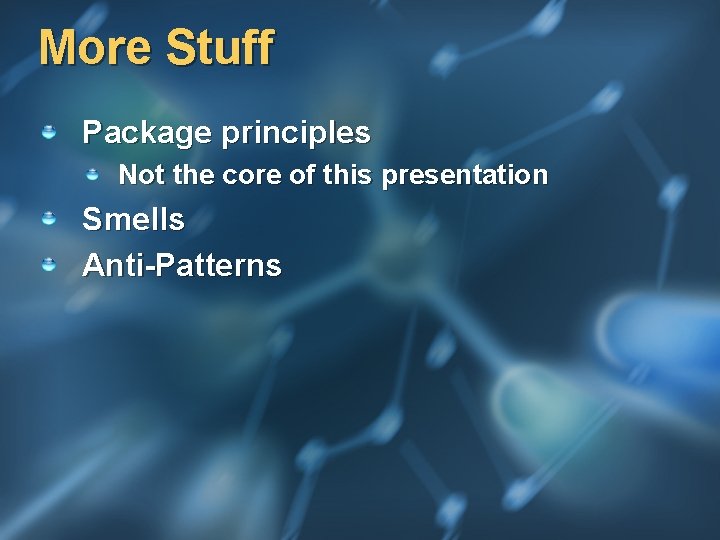

More Stuff Package principles Not the core of this presentation Smells Anti-Patterns

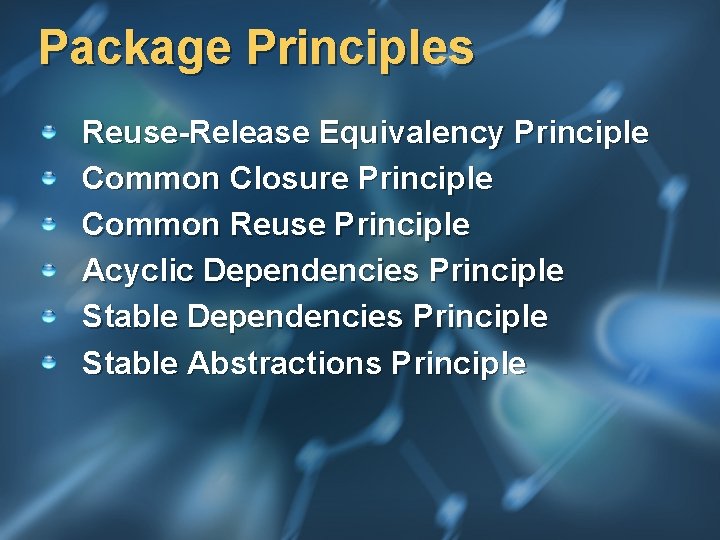

Package Principles Reuse-Release Equivalency Principle Common Closure Principle Common Reuse Principle Acyclic Dependencies Principle Stable Abstractions Principle

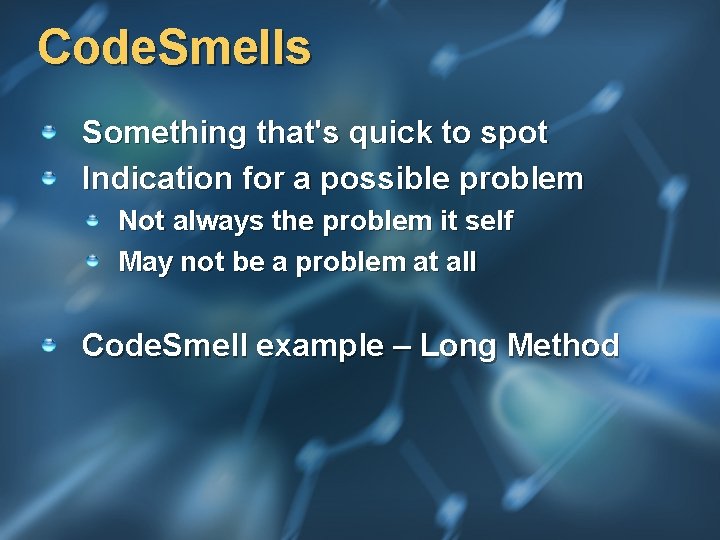

Code. Smells Something that's quick to spot Indication for a possible problem Not always the problem it self May not be a problem at all Code. Smell example – Long Method

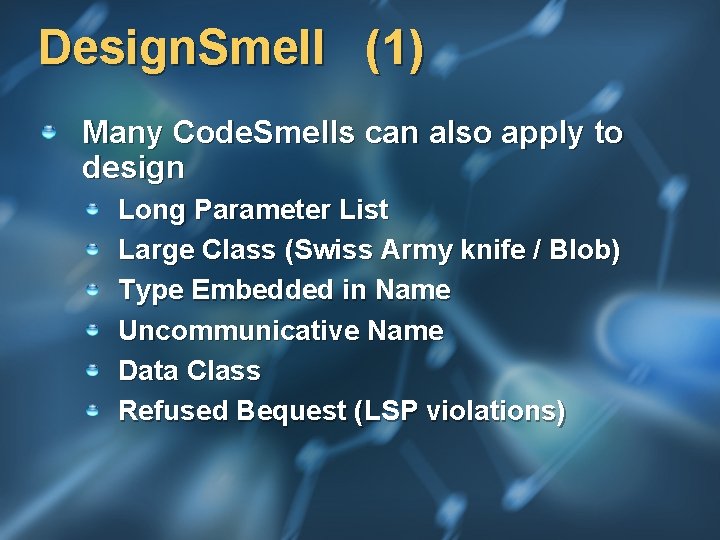

Design. Smell (1) Many Code. Smells can also apply to design Long Parameter List Large Class (Swiss Army knife / Blob) Type Embedded in Name Uncommunicative Name Data Class Refused Bequest (LSP violations)

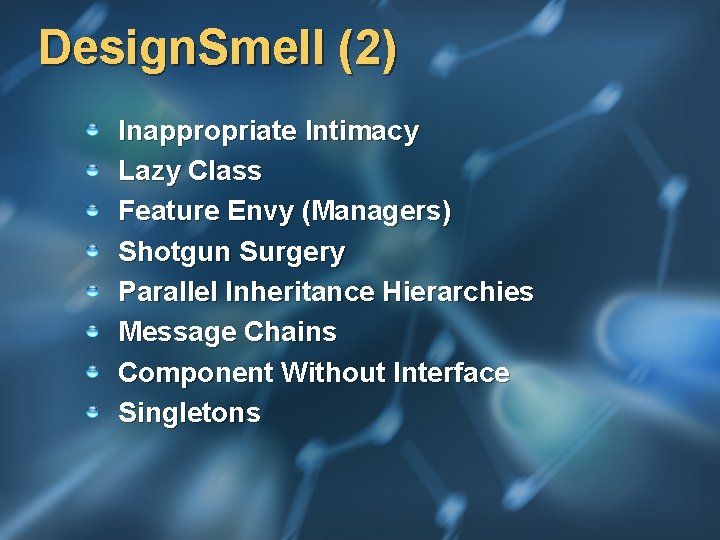

Design. Smell (2) Inappropriate Intimacy Lazy Class Feature Envy (Managers) Shotgun Surgery Parallel Inheritance Hierarchies Message Chains Component Without Interface Singletons

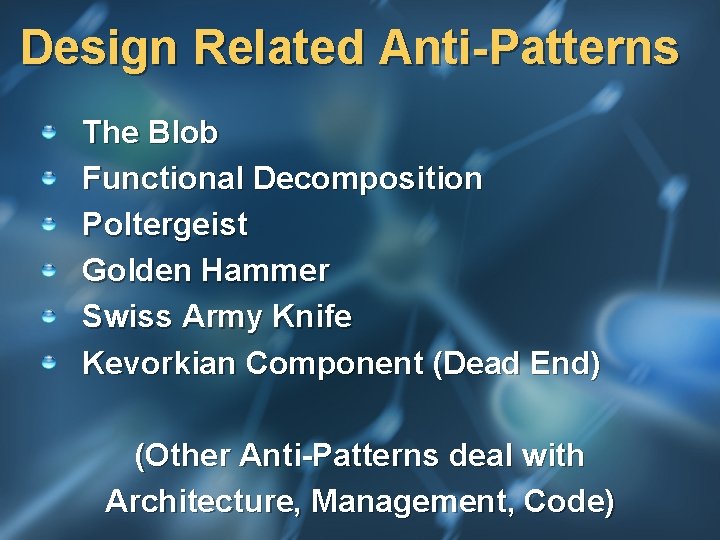

Design Related Anti-Patterns The Blob Functional Decomposition Poltergeist Golden Hammer Swiss Army Knife Kevorkian Component (Dead End) (Other Anti-Patterns deal with Architecture, Management, Code)

Thank you… Arnon Rotem-Gal-Oz arnon@rgoarchitects. com
