Object Orientated Data Topic 5 Multimedia Technology Object

Object Orientated Data Topic 5: Multimedia Technology

Object Orientated Data Types • Created on a computer not by sampling real world information • Details are stored on the attributes (properties) of each object that is stored in the file. • Each object can be altered by changing its attributes…

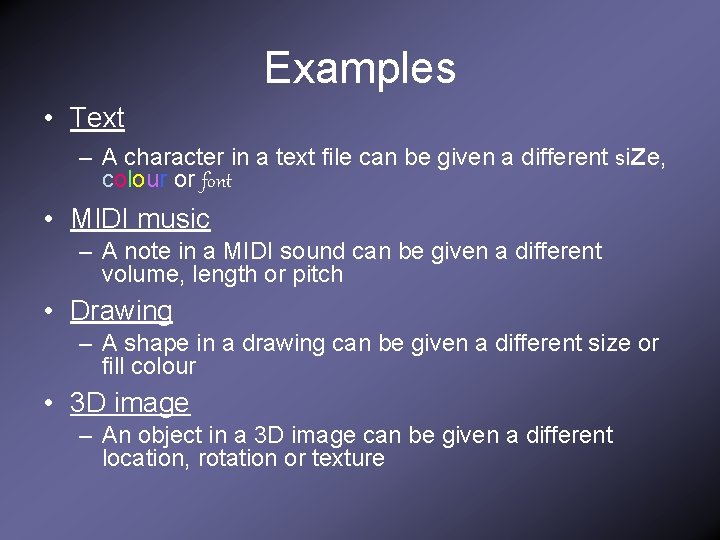

Examples • Text – A character in a text file can be given a different size, colour or font • MIDI music – A note in a MIDI sound can be given a different volume, length or pitch • Drawing – A shape in a drawing can be given a different size or fill colour • 3 D image – An object in a 3 D image can be given a different location, rotation or texture

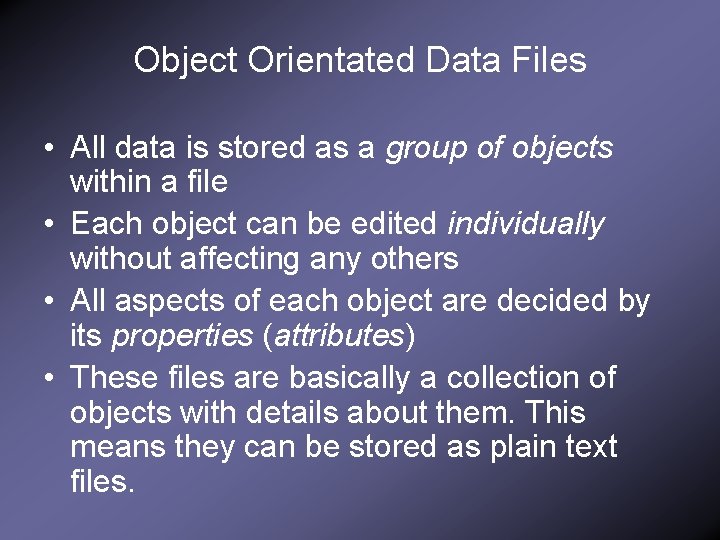

Object Orientated Data Files • All data is stored as a group of objects within a file • Each object can be edited individually without affecting any others • All aspects of each object are decided by its properties (attributes) • These files are basically a collection of objects with details about them. This means they can be stored as plain text files.

Input of Object Orientated Data Although OOD can be created using nothing but a simple text editor there are specialised input devices to help users create and edit them • You are already familiar with a keyboard for entering text

Specialised Input Devices • To create drawings or 3 D images a graphics tablet – More accurate than using a mouse • To enter musical notes a MIDI keyboard – Easier than using a computer keyboard • 3 D digitisers can measure points on an object and generate a 3 D object from data

Output / Display of OOD • The quality of object orientated data is very dependant on the hardware & software used to output it. • For example: – Web browser setting can cause the same text to be displayed in different ways on different computers – Different graphics cards for rendering 3 D images on screen may produce different quality and support different features

Converting from OOD 2 D drawing How it can be converted Often in ‘Save As’ or ‘Export’ menu of drawing program Discrete data Bitmap Image 3 D Image Called ‘rendering’. Generates a flat (2 D) Bitmap Image image from a given point of view. Text Scanning printed text or doing a ‘screen shot’ and pasting it into bitmap Bitmap Image image software Midi music Often using ‘Save As’ or ‘Export’ function but can also be recorded internally Digitised Sound file

Object Orientated Data Topic 5: Multimedia Technology

Recap • Object Orientated Data – All data is stored as a group of objects within a file – Details are stored on the attributes (properties) of each object that is stored in the file. – Each object can be edited individually without affecting any others – These files are basically a collection of objects with details about them. This means they can be stored as plain text files.

Vector Graphics data • A vector is a mathematical term for a line with a specific length and direction. • A monitor creates the image by drawing rows of dots • Vector displays use the electron beam to draw out the shapes (no colour)

Vector Vs Bitmap Can be scaled to large sizes, keeping original quality. Scaling causes pixellation. Individual objects can be edited. Only the image as a whole can be edited. Are easily converted to bitmap formats. Are very difficult to convert to vector formats File sizes are relatively small. File sizes can be large. Difficult to create realistic images Images can be very realistic (e. g digital photograph).

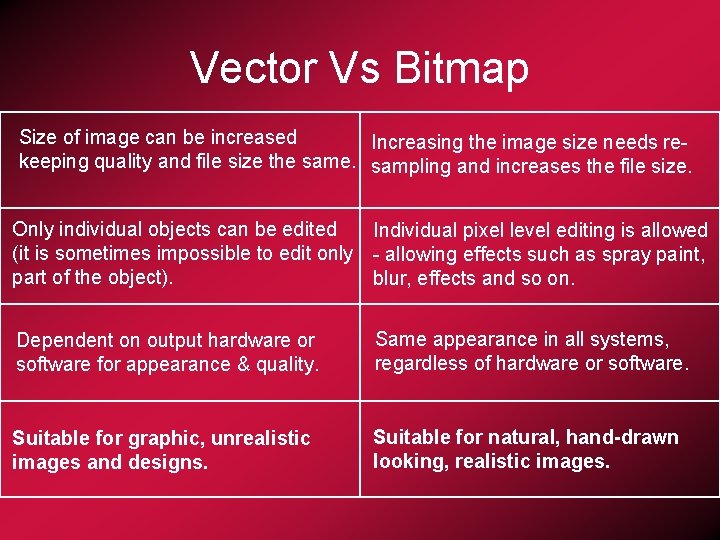

Vector Vs Bitmap Size of image can be increased Increasing the image size needs rekeeping quality and file size the same. sampling and increases the file size. Only individual objects can be edited Individual pixel level editing is allowed (it is sometimes impossible to edit only - allowing effects such as spray paint, part of the object). blur, effects and so on. Dependent on output hardware or software for appearance & quality. Same appearance in all systems, regardless of hardware or software. Suitable for graphic, unrealistic images and designs. Suitable for natural, hand-drawn looking, realistic images.

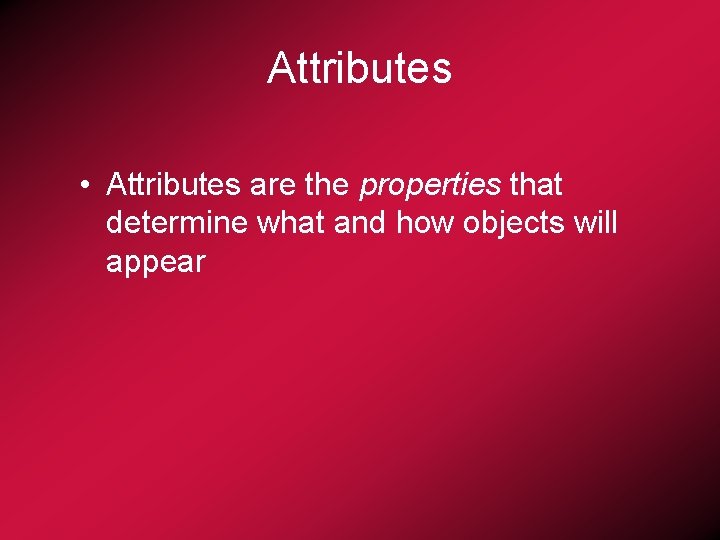

Attributes • Attributes are the properties that determine what and how objects will appear

Attributes Object 2 Object 5 Object 3 Object 4 Object 1 Object 6 Object 7

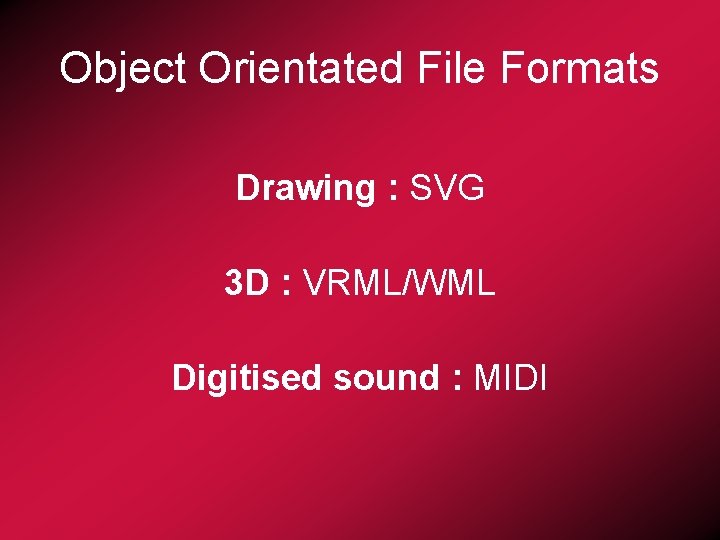

Object Orientated File Formats Drawing : SVG 3 D : VRML/WML Digitised sound : MIDI

Drawing File Formats Scalable Vector Graphics (SVG) • A format for encoding vector graphics in XML (e. Xtensible Markup Language) • Designed to provide vector graphic content in Web pages. • Viewing: – You must have an SVG capable Browser, a plug-in for your browser or a stand-alone SVG viewer.

3 D Image File Formats Virtual Reality Modelling Language/ World Representation Language (VRML/WRL) • Standard for describing interactive 3 D objects and worlds • Capable of representing static and animated 3 D & multimedia objects with hyperlinks to other media such as text, sounds, movies and images

Synthesised Sound Data (MIDI) • MIDI is a standard that was created to allow musical instruments to be able to communicate with each other • A MIDI file consists of Channels (up to 16) • Each channel consists of a sequence of messages including: – – – Start of a note Channel to use Pitch of the note Volume to play it at End of note

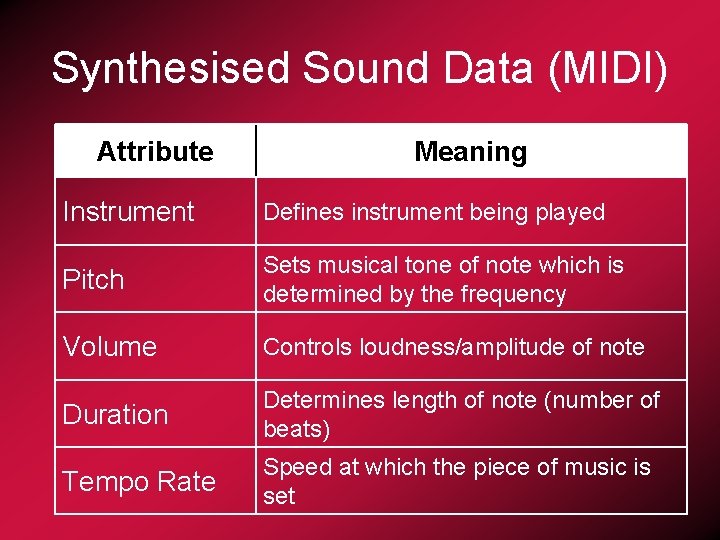

Synthesised Sound Data (MIDI) Attribute Meaning Instrument Defines instrument being played Pitch Sets musical tone of note which is determined by the frequency Volume Controls loudness/amplitude of note Duration Determines length of note (number of beats) Tempo Rate Speed at which the piece of music is set

Synthesised Sound Data (MIDI) • • Advantages Smaller file size All aspects of music can be edited Effects can be applied to individual instruments There is no interference from the recording • • Disadvantages Never sounds as realistic as digitised sound Dependent on soundcard for quality Does not contain vocals Fewer effects can be applied to sound
