Object Orie’d Data Analysis, Last Time • PCA Redistribution of Energy - ANOVA • PCA Data Representation • PCA Simulation • Alternate PCA Computation • Primal – Dual PCA vs. SVD (centering by means is key)
Primal - Dual PCA Toy Example 1: Random Curves, all in Primal Space: • * Constant Shift • * Linear • * Quadratic • Cubic (chosen to be orthonormal) • Plus (small) i. i. d. Gaussian noise • d = 40, n = 20
Primal - Dual PCA Toy Example 1: Raw Data
Primal - Dual PCA Toy Example 1: Raw Data • Primal (Col. ) curves similar to before • Data mat’x asymmetric (but same curves) • Dual (Row) curves much rougher (showing Gaussian randomness) • How data were generated • Color map useful? (same as mesh view) • See richer structure than before • Is it useful?
Primal - Dual PCA Toy Example 1: Primal PCA Column Curves as Data
Primal - Dual PCA Toy Example 1: Primal PCA • Expected to recover increasing poly’s • But didn’t happen • Although can see the poly’s (order? ? ? ) • Mean has quad’ic (since only n = 20? ? ? ) • Scores (proj’ns) very random • Power Spectrum shows 4 components (not affected by subtracting Primal Mean)
Primal - Dual PCA Toy Example 1: Dual PCA Row Curves as Data
Primal - Dual PCA Toy Example 1: Dual PCA • Curves all very wiggly (random noise) • Mean much bigger, 54% of Total Var! • Scores have strong smooth structure (reflecting ordered primal e. v. ’s) (recall primal e. v. dual scores) • Power Spectrum shows 3 components (Driven by subtraction Dual Mean) • Primal – Dual mean difference is critical

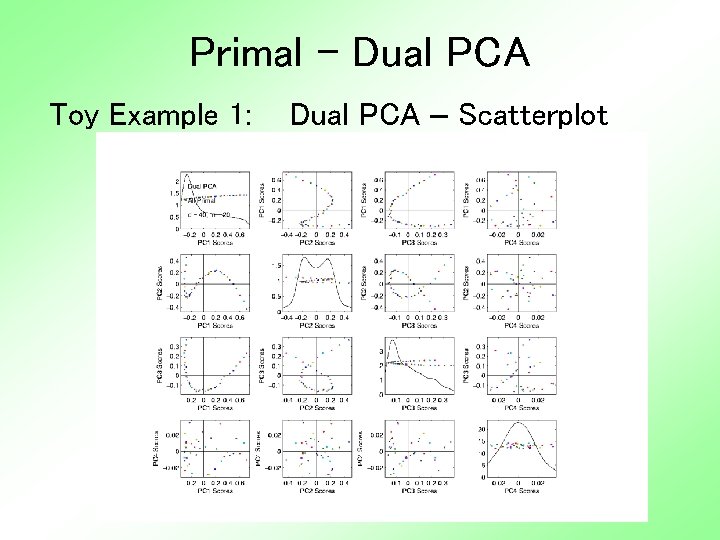

Primal - Dual PCA Toy Example 1: Dual PCA – Scatterplot
Primal - Dual PCA Toy Example 1: Dual PCA - Scatterplot • Smooth Curve Structure • But not usual curves (Since 1 -d curves not quite poly’s) • And only in 1 st 3 components – Recall only 3 non-noise components – Since constant curve went into mean (dual) • Remainder is pure noise • Suggests wrong rotation of axes? ? ?
Primal - Dual PCA A 3 rd Type of Analysis: • Called “SVD decomposition” • Main point: subtract neither mean • Viewed as a serious competitor • Advantage: gives best Mean Square Approximation of Data Matrix • Vs. Primal PCA: best about col. Mean • Vs. Dual PCA: best about row Mean Difference in means is critical!

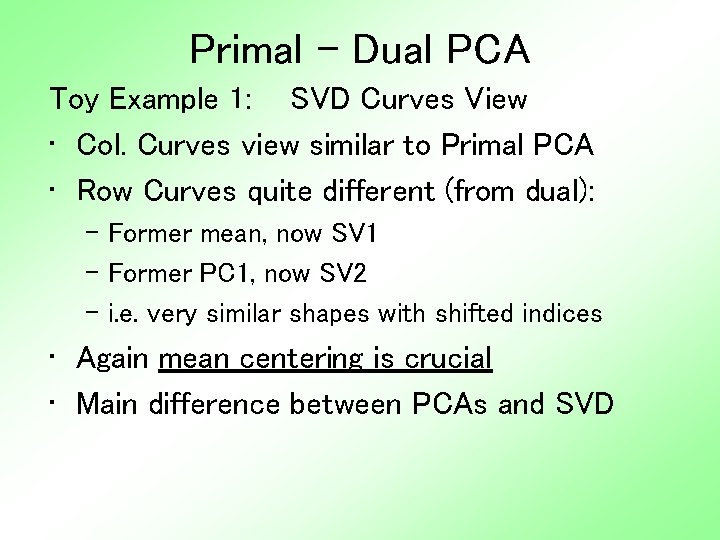

Primal - Dual PCA Toy Example 1: SVD – Curves view
Primal - Dual PCA Toy Example 1: SVD Curves View • Col. Curves view similar to Primal PCA • Row Curves quite different (from dual): – Former mean, now SV 1 – Former PC 1, now SV 2 – i. e. very similar shapes with shifted indices • Again mean centering is crucial • Main difference between PCAs and SVD
Primal - Dual PCA Toy Example 1: SVD – Mesh-Image View
Primal - Dual PCA Toy Example 1: SVD Mesh-Image View • Think about decomposition into modes of variation – Constant x Gaussian – Linear x Gaussian – Cubic by Gaussian – Quadratic • Shows up best in image view? • Why is ordering “wrong”? ? ?
Primal - Dual PCA Toy Example 1: All Primal • Why is SVD mode ordering “wrong”? ? ? • Well, not expected… • Key is need orthogonality • Present in space of column curves • But only approximate in row Gaussians • The implicit orthogonalization of SVD (both rows and columns) gave mixture of the poly’s.
Primal - Dual PCA Toy Example 2: All Primal, GS Noise • Started with same column space • Generated i. i. d. Gaussians for row cols • Then did Graham-Schmidt Orthonormalization (in row space) Visual impression: Amazingly similar to original data (used same seeds of random # generators)
Primal - Dual PCA Toy Example 2: Raw Data
Primal - Dual PCA Compare with Earlier Toy Example 1

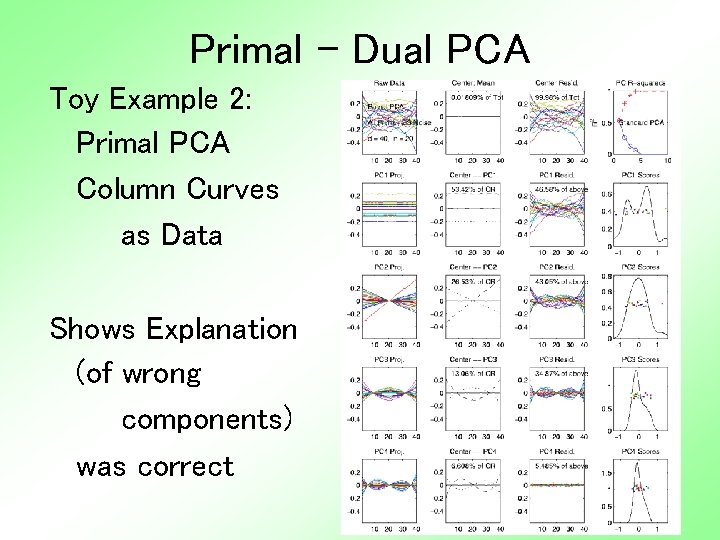

Primal - Dual PCA Toy Example 2: Primal PCA Column Curves as Data Shows Explanation (of wrong components) was correct
Primal - Dual PCA Toy Example 2: Dual PCA Row Curves as Data Still have big mean But Scores look much better
Primal - Dual PCA Toy Example 2: Dual PCA – Scatterplot
Primal - Dual PCA Toy Example 2: Dual PCA - Scatterplot • Now poly’s look beautifully symmetric • Much like chemo spectrum examples • But still only 3 – Same reason, dual mean ~ primal constants • Last one is pure noise
Primal - Dual PCA Toy Example 2: SVD – Matrix-Image
Primal - Dual PCA Toy Example 2: SVD - Matrix-Image • Similar Good Effects • Again have all 4 components • So “better” to not subtract mean? ? ?
Primal - Dual PCA Toy Example 3: Random Curves, all in Dual Space: • 1 * Constant Shift • 2 * Linear • 4 * Quadratic • 8 * Cubic (chosen to be orthonormal) • Plus (small) i. i. d. Gaussian noise • d = 40, n = 20
Primal - Dual PCA Toy Example 3: Raw Data
Primal - Dual PCA Toy Example 3: Raw Data • Similar Structure to e. g. 1 • But Rows and Columns trade places • And now cubics visually dominant (as expected)
Primal - Dual PCA Toy Example 3: Primal PCA Column Curves as Data Gaussian Noise Only 3 components Poly Scores (as expected)
Primal - Dual PCA Toy Example 3: Dual PCA Row Curves as Data Components as expected No Gram-Schmidt (since stronger signal)
Primal - Dual PCA Toy Example 3: SVD – Matrix-Image
Primal - Dual PCA Toy Example 4: Mystery #1
Primal - Dual PCA Toy Example 4: SVD – Curves View
Primal - Dual PCA Toy Example 4: SVD – Matrix-Image
Primal - Dual PCA Toy Example 4: Mystery #1 Structure: Primal Constant Gaussian Parabola Gaussian Dual Gaussian Linear Gaussian Cubic • Nicely revealed by Full Matrix decomposition and views

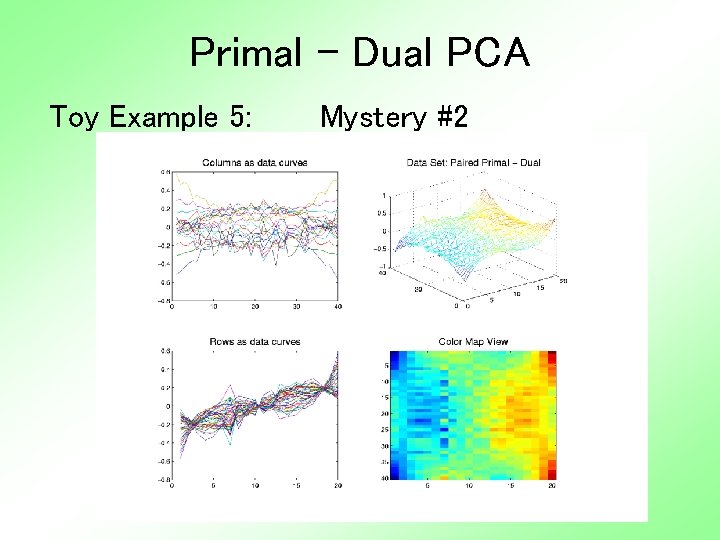

Primal - Dual PCA Toy Example 5: Mystery #2
Primal - Dual PCA Toy Example 5: SVD – Curves View
Primal - Dual PCA Toy Example 5: SVD – Matrix-Image
Primal - Dual PCA Toy Example 5: Mystery #2 Structure: Primal Constant Parabola Gaussian Dual Linear Cubic Gaussian • Visible via either curves, or matrices…

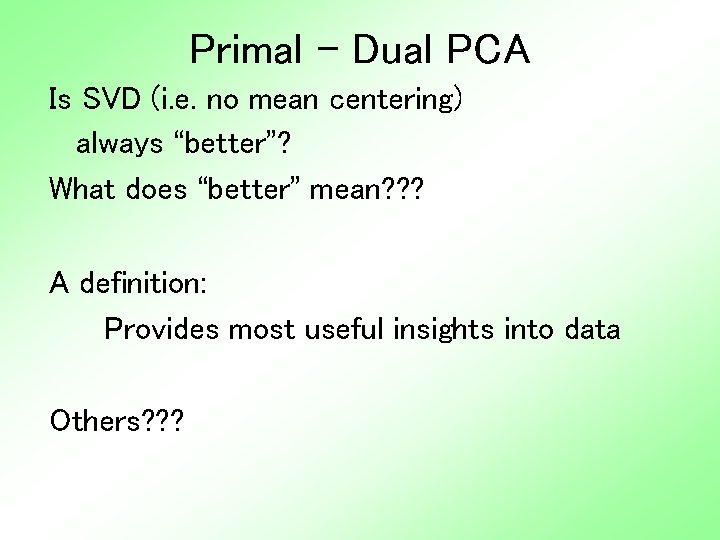

Primal - Dual PCA Is SVD (i. e. no mean centering) always “better”? What does “better” mean? ? ? A definition: Provides most useful insights into data Others? ? ?

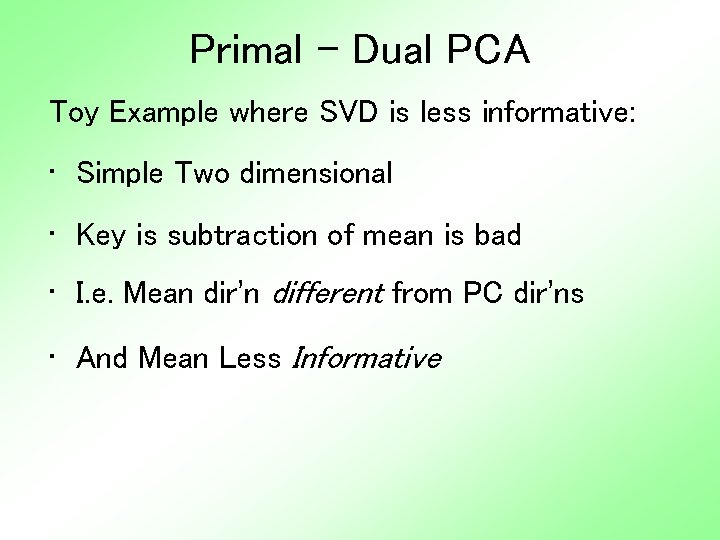

Primal - Dual PCA Toy Example where SVD is less informative: • Simple Two dimensional • Key is subtraction of mean is bad • I. e. Mean dir’n different from PC dir’ns • And Mean Less Informative
Primal - Dual PCA Toy Example where SVD is less informative: Raw Data

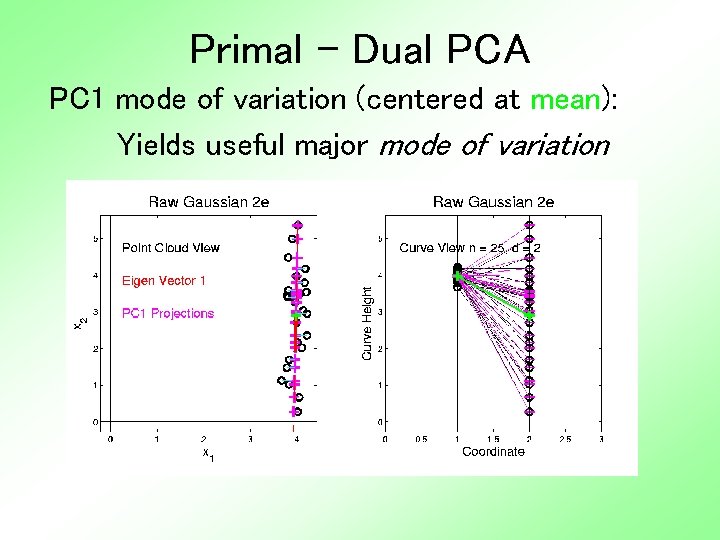

Primal - Dual PCA PC 1 mode of variation (centered at mean): Yields useful major mode of variation
Primal - Dual PCA PC 2 mode of variation (centered at mean): Informative second mode of variation
Primal - Dual PCA SV 1 mode of variation (centered at 0): Unintuitive major mode of variation
Primal - Dual PCA SV 2 mode of variation (centered at 0): Unintuitive second mode of variation
Primal - Dual PCA Summary of SVD: • Does give a decomposition • I. e. sum of two pieces is data • But not good insights about data structure • Since center point of analysis is far from center point of data • So mean strongly influences the impression of variation • Maybe better to keep these separate? ? ?
Primal - Dual PCA Bottom line on: Primal PCA vs. SVD vs. Dual PCA These are not comparable: • Each has situations where it is “best” • And where it is “worst” • Generally should consider all • And choose on basis of insights See work of Lingsong Zhang on this…

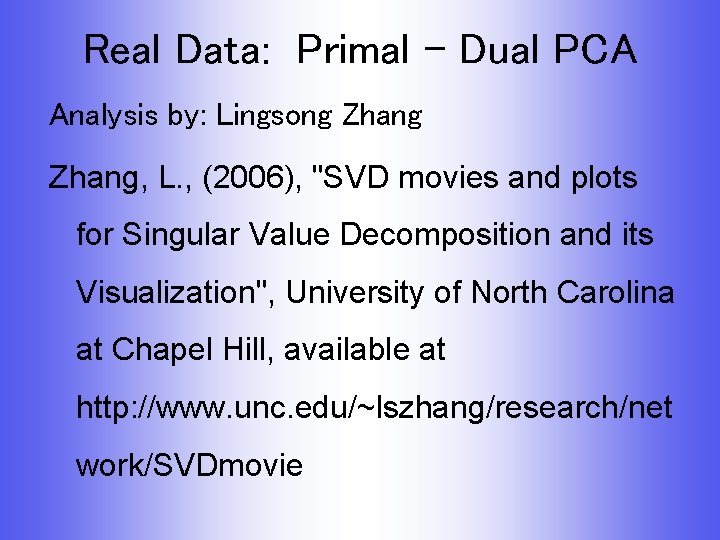

Real Data: Primal - Dual PCA Analysis by: Lingsong Zhang, L. , (2006), "SVD movies and plots for Singular Value Decomposition and its Visualization", University of North Carolina at Chapel Hill, available at http: //www. unc. edu/~lszhang/research/net work/SVDmovie
Real Data: Primal - Dual PCA Use slides from a talk: Lingsong. Zhang. Functional. SVD. pdf Main Points: • Different approaches all can be “best” • Show different aspects of data • Generalized SCREE ploy • “outliers” are interesting

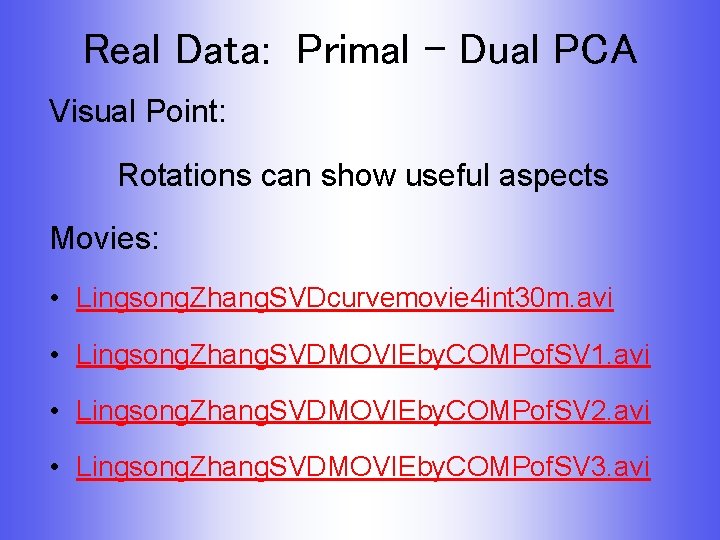

Real Data: Primal - Dual PCA Visual Point: Rotations can show useful aspects Movies: • Lingsong. Zhang. SVDcurvemovie 4 int 30 m. avi • Lingsong. Zhang. SVDMOVIEby. COMPof. SV 1. avi • Lingsong. Zhang. SVDMOVIEby. COMPof. SV 2. avi • Lingsong. Zhang. SVDMOVIEby. COMPof. SV 3. avi
Vectors vs. Functions Recall overall structure: Object Space Feature Space Curves (functions) Vectors Connection 1: Digitization Parallel Coordinates Connection 2: Basis Representation
Vectors vs. Functions Connection 1: Digitization: Given a function , define vector Where e. g. equally spaced: is a suitable grid,
Vectors vs. Functions Connection 1: Given a vector Parallel Coordinates: , define a function where And linearly interpolate to “connect the dots” Proposed as High Dimensional Visualization Method by Inselberg (1985)
Vectors vs. Functions Parallel Coordinates: Given , define Now can “rescale argument” To get function on [0, 1], evaluated at equally spaced grid

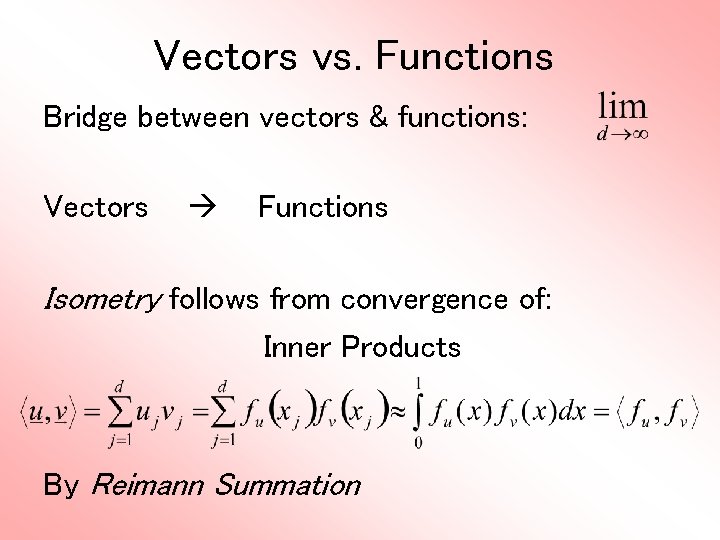

Vectors vs. Functions Bridge between vectors & functions: Vectors Functions Isometry follows from convergence of: Inner Products By Reimann Summation
Vectors vs. Functions Main lesson: - OK to think about functions - But actually work with vectors For me, there is little difference But there is a statistical theory, and mathematical statistical literature on this Start with Ramsay & Silverman (2005)
Vectors vs. Functions Recall overall structure: Object Space Feature Space Curves (functions) Vectors Connection 1: Digitization Parallel Coordinates Connection 2: Basis Representation
Vectors vs. Functions Connection 2: Basis Representations: Given an orthonormal basis (in function space) E. g. – Fourier – B-spline – Wavelet Represent functions as:

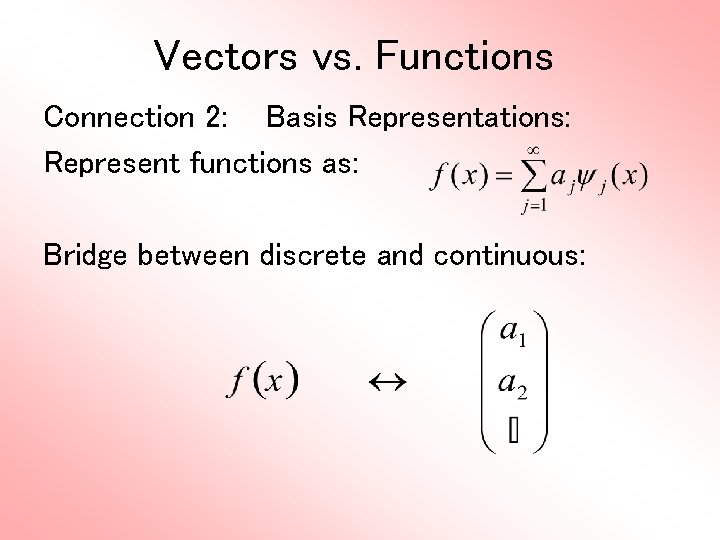

Vectors vs. Functions Connection 2: Basis Representations: Represent functions as: Bridge between discrete and continuous:
Vectors vs. Functions Connection 2: Basis Representations: Represent functions as: Finite dimensional approximation: Again there is mathematical statistical theory, based on (same ref. )
Vectors vs. Functions Repeat Main lesson: - OK to think about functions - But actually work with vectors For me, there is little difference (but only personal taste)
