OBD II Emission Monitoring Chapter 43 Lesson 5
OBD II Emission Monitoring Chapter 43 Lesson 5

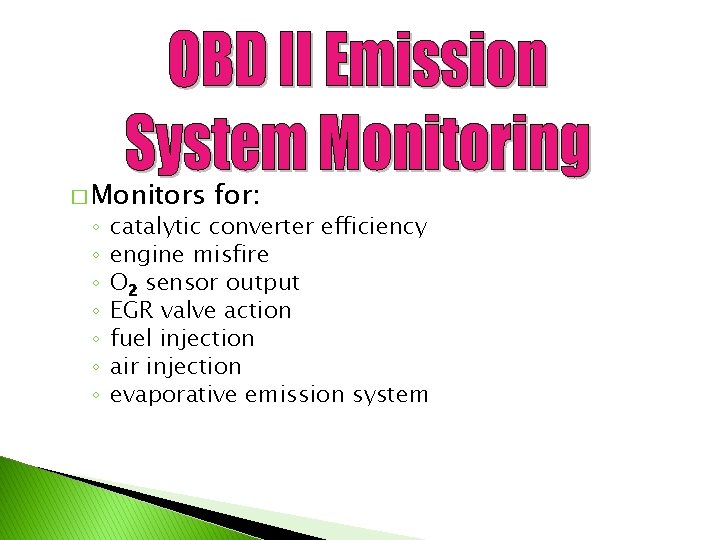

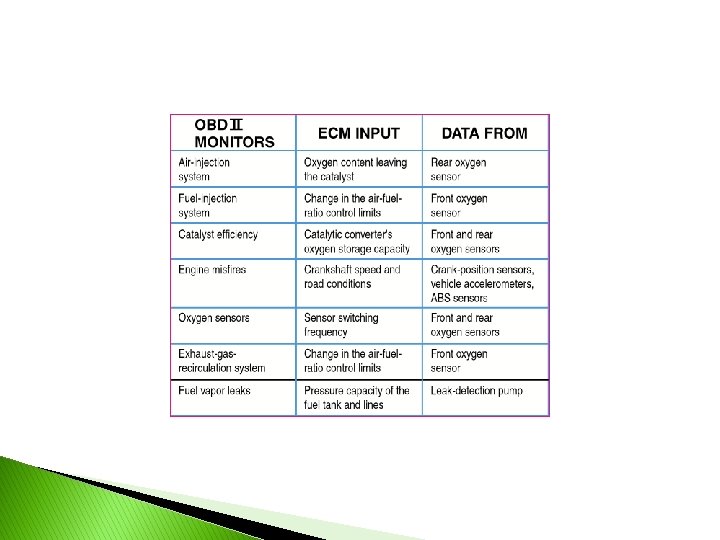

� Monitors ◦ ◦ ◦ ◦ for: catalytic converter efficiency engine misfire O 2 sensor output EGR valve action fuel injection air injection evaporative emission system

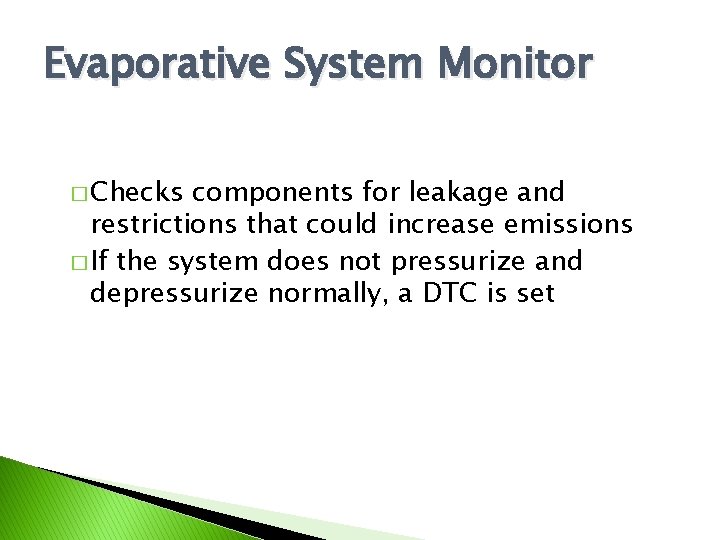

Evaporative System Monitor � Checks components for leakage and restrictions that could increase emissions � If the system does not pressurize and depressurize normally, a DTC is set

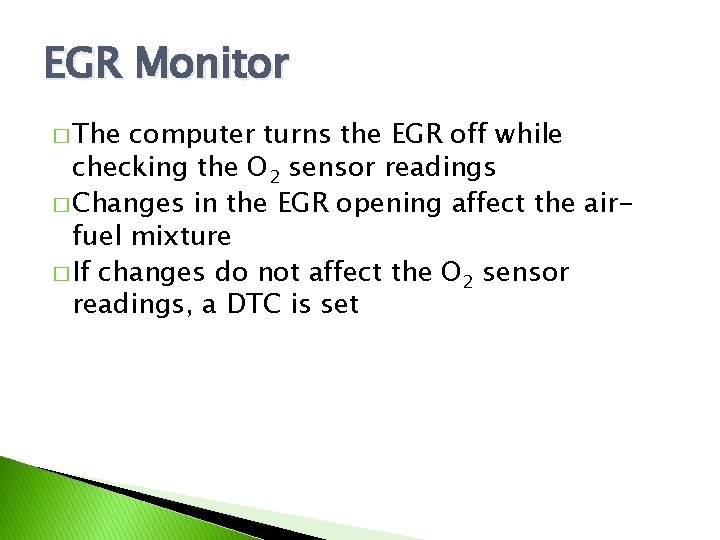

EGR Monitor � The computer turns the EGR off while checking the O 2 sensor readings � Changes in the EGR opening affect the airfuel mixture � If changes do not affect the O 2 sensor readings, a DTC is set
Catalyst Monitor � Uses at least two O 2 sensors ◦ one before the converter and one behind it � If the signal from the rear O 2 sensor becomes too similar to the enginemounted sensor signal, the converter is not working properly ◦ a DTC is set, and the MIL is illuminated

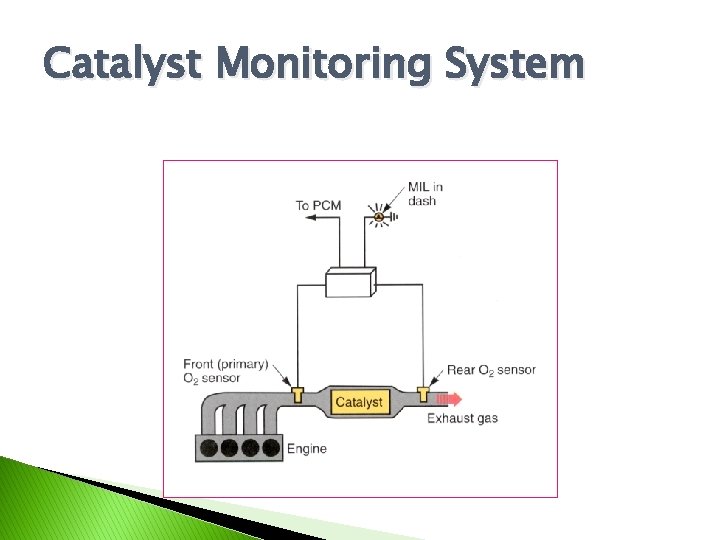

Catalyst Monitoring System
Catalyst Monitor

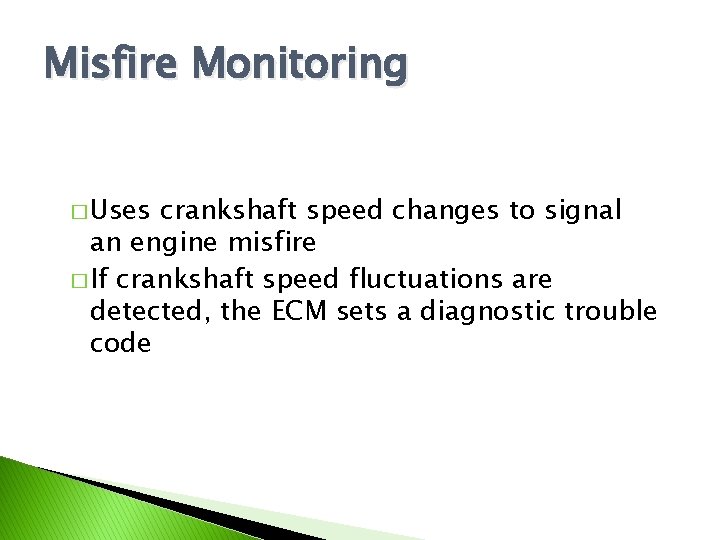

Misfire Monitoring � Uses crankshaft speed changes to signal an engine misfire � If crankshaft speed fluctuations are detected, the ECM sets a diagnostic trouble code

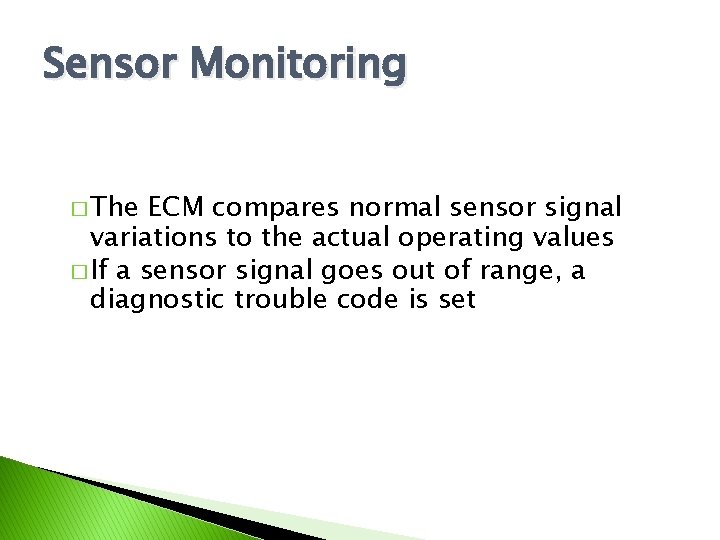

Sensor Monitoring � The ECM compares normal sensor signal variations to the actual operating values � If a sensor signal goes out of range, a diagnostic trouble code is set

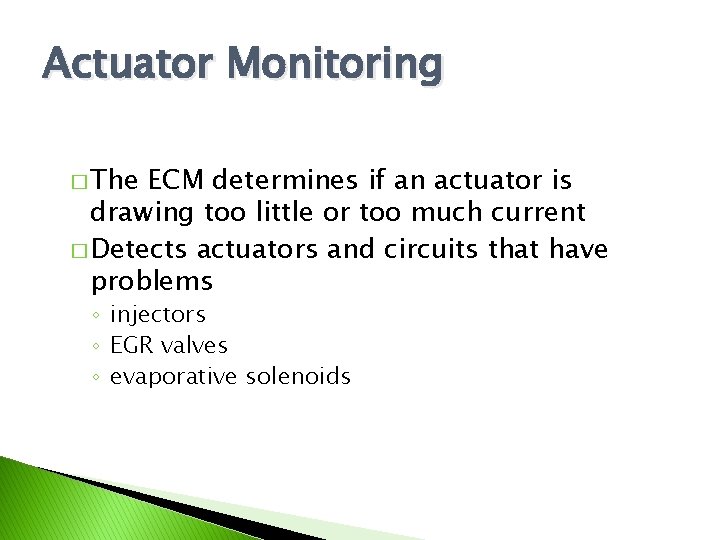

Actuator Monitoring � The ECM determines if an actuator is drawing too little or too much current � Detects actuators and circuits that have problems ◦ injectors ◦ EGR valves ◦ evaporative solenoids
