O cu visto do cho O cu parece
- Slides: 45
O céu visto do chão O céu parece uma grande “cúpula”. Zênite e horizonte são definidos localmente.
A Esfera Celeste É impossível dizer quão distante os objetos estão. Ou seja, não há a noção de profundidade!
Equador Celeste e Pólos Celestes

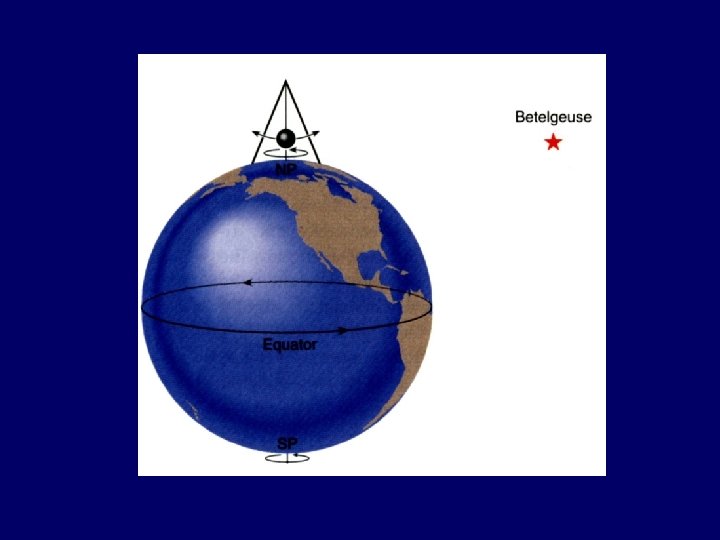

Nós projetamos a Terra no céu, e sua rotação aparece refletida pelo movimento da Esfera Celeste. O movimento “diurno” é apenas o resultado da rotação da Terra. Visão no Hemisfério Norte
Visão no Hemisfério Sul
Altitude e Altura do Pólo

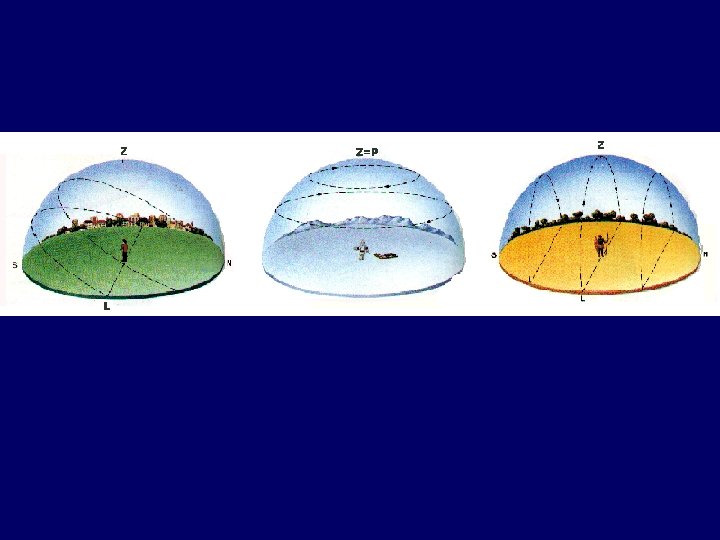

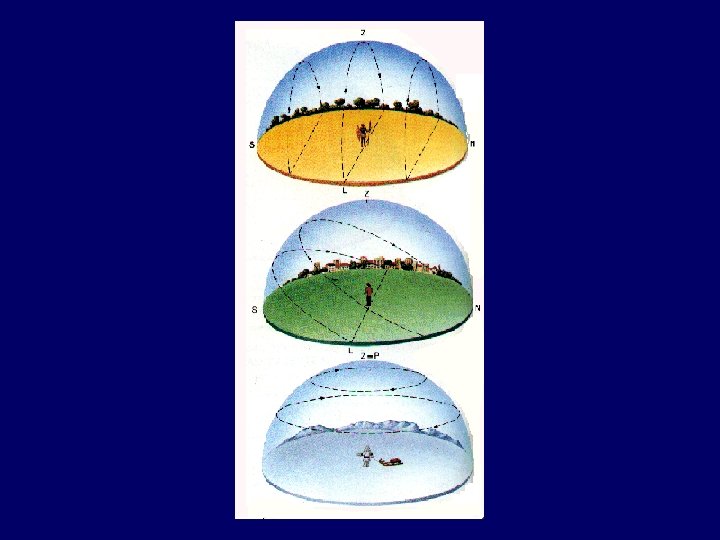

Nascer e Ocaso em Função da Latitude
Nascer e Ocaso em Função da Latitude
Localizações Especiais

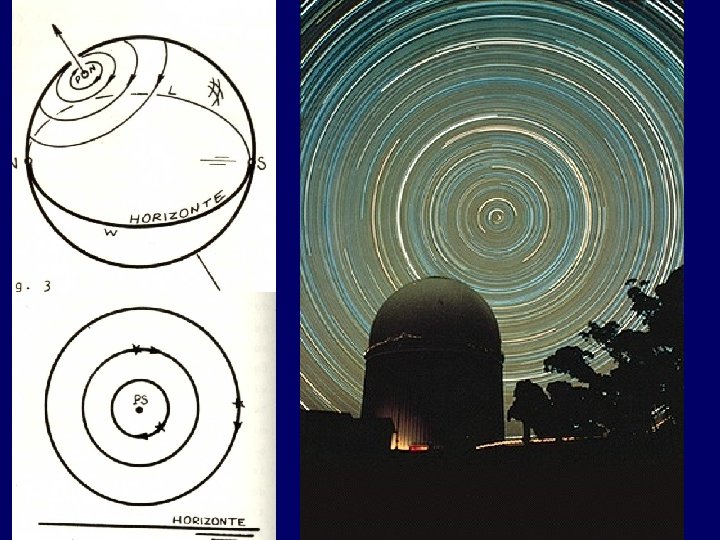

Estrelas Circumpolares

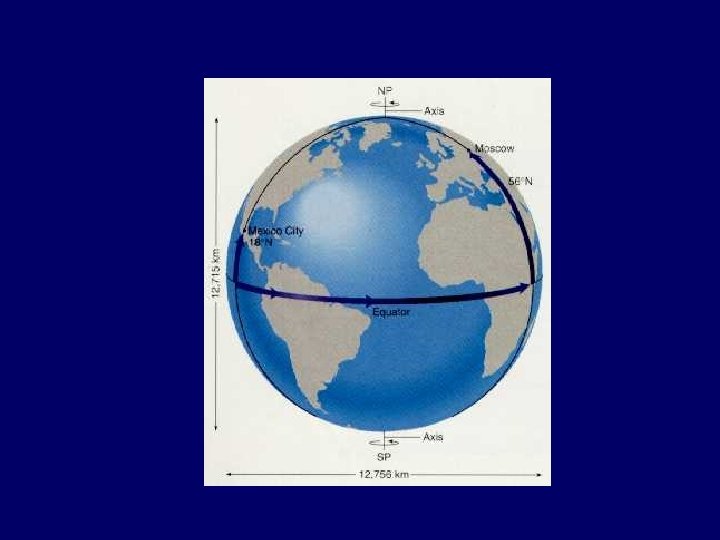

Latitude e Longitude (Orientação na Terra)
Coordenadas Celestes Horizontais altitude e azimuth Equatoriais ascenção reta (longitude) e declinação (latitude) origem roda junto com as estrelas
Ascenção Reta e Declinação

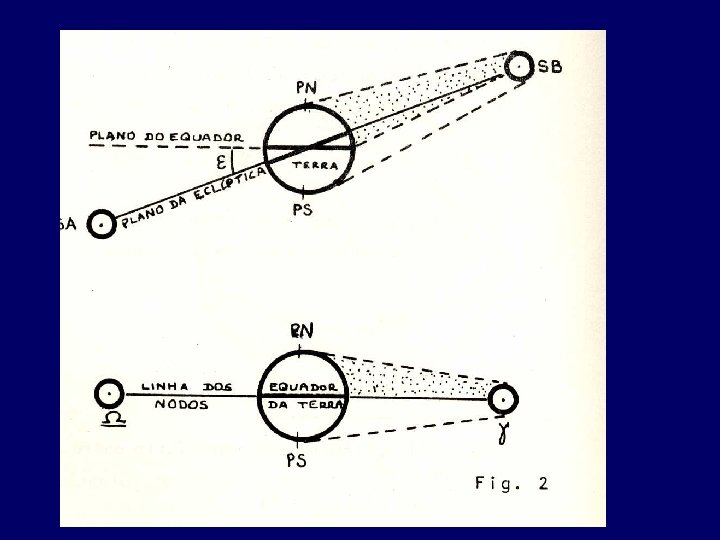

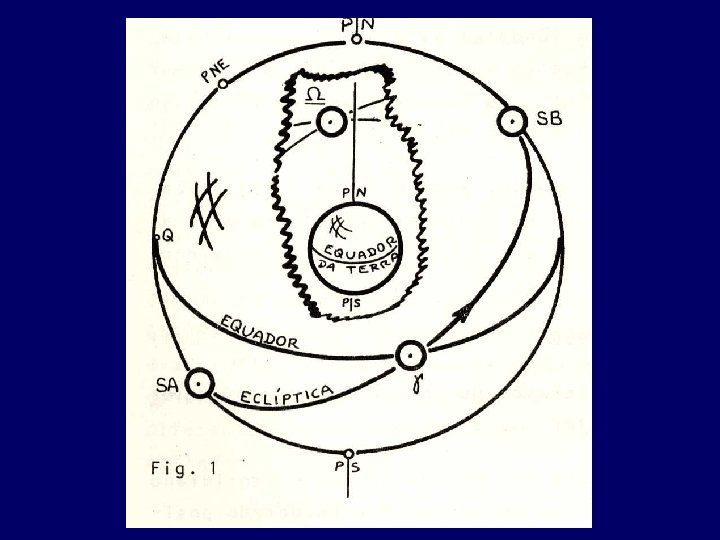

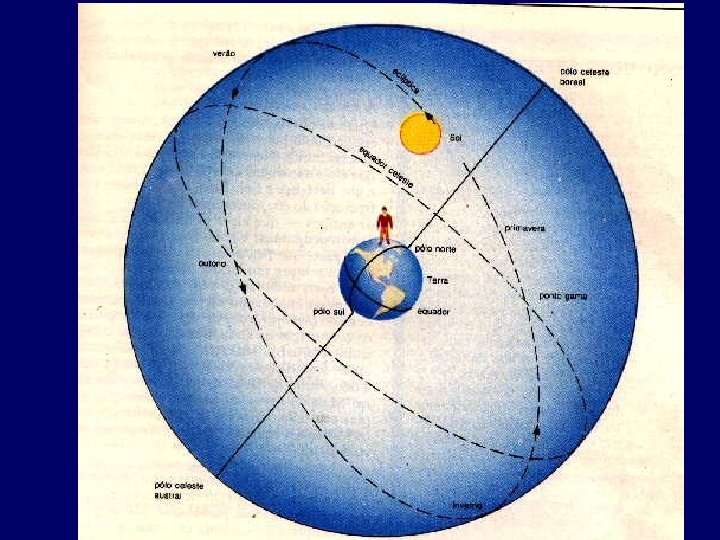

O Plano da Eclíptica A projeção do caminho do Sol na esfera celeste, ou equivalentemente, a projeção do plano da órbita da Terra. A inclinação é de 23, 5 graus.
Ponto Vernal (Zero da Ascenção Reta)
Estrelas Matutinas e Vespertinas Nós vemos Mercúrio e Vênus seguirem o Sol no céu. Eles podem se pôr depois do Sol ou nascer antes dele. Se eles se põem depois do Sol nós os vemos ao entardecer. Isto é resultado de suas órbitas serem internas à nossa. Ou seja, eles podem ser vistos apenas em certos ângulos máximos em relação ao Sol.
Constelações do Zodiaco
Constelações do Zodiaco Constela, cões ao longo da Eclíptica são chamadas de “Zodíaco”. As constelações visíveis mudam ao longo do ano porque a Terra orbita em torno do Sol. Lembre-se que ambos se movem, mas o Sol é muito mais massivo que a Terra e sua aceleração é essencialmente zero. As estrelas visíveis no verão, estarão “ofuscadas”, no inverno, pelo Sol.
A Terra anda cerca de 1 grau a cada dia de sua órbita como um resultado as constelações andam 1 grau para oeste
Variações do Caminho do Sol no Céu e a duração da noite e do dia
Caminho do Sol
Estações do Ano
A razão das estações
Por quê o inverno é frio, apesar do Sol estar alto? Os dias são mais curtos, mas o Sol também é menos efetivo no aquecimento da Terra. Isto é porque a luz do Sol cai numa área efetivamente menor.
Inverno, Verão e os Trópicos Sun on Cancer on the summer solstice (Northern Hemisphere), and overhead at the Equator on the equinoxes. From a “pole-up” point of view, it shines down from the North during the summer, and up from the South in winter. The Poles are only illuminated one at a time.
O Sol da Meia Noite Acima do Círculo Ártico/Antártico o Sol nunca se põe durante o verão. Ele viaja num círculo inclinado em torno do céu.
Diferentes pontos de visão You can choose to make the Ecliptic “horizontal” or you can make the Equator “horizontal”. You could also replace the Sun with the Earth in this picture (going “geocentric”) and then it would be clear why the Sun shines “down” or “up” on either pole during the solstices.
Astro Quiz Suppose the Earth’s rotation axis was perpendicular to its orbital plane (so the celestial equator was on the ecliptic). Which statement below would be FALSE? 1) There would not be any real seasons. 2) All stars would be circumpolar. 3) The length of the day would not vary by month or latitude.
NOT the ellipticity of the Earth’s orbit: Our ellipticity is very small, and we are closest to the Sun in January. You can most easily see this by remembering that at the same time it is Winter here, it is Summer in the Southern Hemisphere. NOT the fact that one pole is closer to the Sun because the Earth’s axis is tilted: The size of the Earth is miniscule compared with its distance to the Sun, so it doesn’t matter how things are oriented, they are all about the same distance from the Sun. Note: Summer is not warmest at the solstice (June) because it takes a while for the seasonal effects to really kick in, so we tend to be hottest a couple of months later (and coldest a couple of months after the winter solstice).
Retrograde Motion The outer planets appear to make strange reversals in their motion against the stars. This is due to the fact that the Earth moves around the Sun faster than they do, causing us to overtake them periodically, during which time they appear to move “backwards” in the sky. This caused a lot of headaches for those trying to explain the apparent motion of the planets. The “S” shape is due to the fact that the orbital planes aren’t quite aligned.
Mapa Celeste Note how the Sun appears to go North and South as the year progresses. The zero point of Right Ascencsion occurs at the Spring crossing of the Equator (vernal equinox). The solstices occur at the maximum N/S excursions.
