NWEUG 2015 ELLUCIAN MOBILE PLATFORM EWU Danny Messina

NWEUG 2015 ELLUCIAN MOBILE PLATFORM @ EWU Danny Messina Dana Simmelink Eastern Washington University July 30, 2015 Information Technology Coeur d’Alene, Idaho

SESSION RULES OF ETIQUETTE Please turn off you cell phone/pager If you must leave the session early, please do so as discreetly as possible Please avoid side conversation during the session Thank you for your cooperation! Coeur d’Alene, Idaho NWEUG 2015

INTRODUCTION This presentation documents the EWU experience launching and running the Ellucian Mobile Platform. We will cover the six months we spent deploying the application and the one year of production support afterwards, including challenges, successes, and recommendations. Benefits Learn about the Ellucian Mobile Platform Learn about the EWU configuration and deployment Provides technical and functional point of views Coeur d’Alene, Idaho NWEUG 2015

SESSION AGENDA 1. Purchase 2. Design 3. Build 4. Run 5. Challenges Coeur d’Alene, Idaho NWEUG 2015

PURCHASE EWU leadership came back from an Ellucian conference with this product. No real RFP was performed. The product was free when included in the Ellucian support contract. Currently starting year two of a three year support contract PRO: Supports Hybrid model apps PRO: Didn't have to hire i. OS & Android developers $$$$ CON: Integration with other systems could be better (esp. Ellucian ones) Coeur d’Alene, Idaho NWEUG 2015

DESIGN Infrastructure Look & Feel Content Coeur d’Alene, Idaho NWEUG 2015

DESIGN: INFRASTRUCTURE COMPONENTS: Cloud Configuration Server (ellucian. okta. com) Mobile Application Server (3. 8. 1. 1305) Configuration Database (Oracle) Mobile Clients (i. OS, Google, Amazon) DEV Mobile Application Server running on Tomcat PRO: Full Control for development PRO: Not as challenging to learn as Web. Logic CON: Access locked to on-campus & cloud config often breaks PPRD & PROD Mobile Application Servers are running on Web. Logic Coeur d’Alene, Idaho NWEUG 2015

INFRASTRUCTURE Coeur d’Alene, Idaho NWEUG 2015

INFRASTRUCTURE: CLOUD CONFIG Coeur d’Alene, Idaho NWEUG 2015

DESIGN: MOBILE-CONFIG. GROOVY /* Required configuration settings */ grails. server. URL = https: //apps. ewu. edu/mobile ellucian. configuration. api. Key = '****‘ /* Directory Configuration (Get your Active Directory Guys to Help) */ ellucian. directory. types. faculty. search. Filter = "(|(member. Of=CN=Eastern. Faculty, OU=Generated, OU=Groups, DC=eastern, DC=ewu, DC=edu)(member. Of=CN=Eastern-Staff, OU=Generated, OU=Groups, DC=eastern, DC=ewu, DC=edu)) “ ellucian. directory. types. faculty. source = "ldap“ ellucian. directory. max. Results = 100 /* CAS Configuration */ mobile. Server. Using. Web. CAS=true cas. Server. Url. Prefix = https: //login. ewu. edu/cas cas. Server. Login. Uri = "/login“ mobile. Server. Using. SAML = false Coeur d’Alene, Idaho NWEUG 2015

LOCAL CONFIGURATION DB SETTINGS /* Configuration DB setup information */ data. Source. driver. Class. Name = "oracle. jdbc. Oracle. Driver“ data. Source. url = "jdbc: oracle: thin: @<oracle_server>: <port>: <sid>“ data. Source. username = "mobilecfg“ data. Source. password = "****“ data. Source. properties. max. Active = 15 data. Source. properties. min. Idle = 1 data. Source. properties. max. Wait = 10000 data. Source. properties. min. Evictable. Idle. Time. Millis=60000 data. Source. properties. time. Between. Eviction. Runs. Millis=60000 data. Source. properties. test. While. Idle=true data. Source. properties. validation. Query = 'select 1 from dual‘ grails. plugin. databasemigration. update. On. Start. File. Names = ['changelog-oracle. groovy'] Coeur d’Alene, Idaho NWEUG 2015

LOCAL BANNER DB SETTINGS /* BANNER DB setup information */ ellucian. security. user. Id. Service. Name = “banner“ ellucian. security. role. Service. Name = "banner“ ellucian. datasource. sis. host = "<banner_db>“ ellucian. datasource. sis. port = "<banner_db_port>“ ellucian. datasource. sis. sid = "<banner_sid>“ ellucian. datasource. sis. username = "mobilebnr“ ellucian. datasource. sis. password = “****" Coeur d’Alene, Idaho NWEUG 2015

INFRASTRUCTURE: CLIENTS onelink. to/ewuapp Platforms we don't support fallback to the main EWU mobile app page i. OS Android http: //ewu. edu/ios http: //ewu. edu/android Coeur d’Alene, Idaho Amazon http: //ewu. edu/amazon NWEUG 2015

DESIGN: LOOK & FEEL EWU Branding Important New Splash Images each quarter to match website Customized via: Back-end build tools: Eclipse for Android / (now Android Studio) Xcode for i. OS Front-end Mobile Cloud Configuration Tool Coeur d’Alene, Idaho NWEUG 2015

DESIGN: OUT OF THE BOX CONTENT Built-In Features: News Feeds Important Numbers Maps Course Schedule Grades Faculty/Staff Search (Directory) Web module Coeur d’Alene, Idaho NWEUG 2015

BUILD SSO Configuration Customized Content Deploying Mobile Clients Testing with Ellucian Go Maps App Stores & Approvals Numbers i. OS LMS Integration Android Web Module Org Sync Directory Coeur d’Alene, Idaho NWEUG 2015

BUILD: SSO CONFIGURATION The 3. 5 version introduced CAS Browser Based Authentication PRO: Easy configuration CON: Students complain about having to login all the time PRO/CON: Our SSO Login wasn't responsive at launch Our configuration is below // From our mobile-config. groovy file mobile. Server. Using. Web. CAS=true cas. Server. Url. Prefix = "https: //login. ewu. edu/cas" cas. Server. Login. Uri = "/login" Coeur d’Alene, Idaho NWEUG 2015

BUILD: CUSTOMIZED CONTENT Maps Important Numbers LMS Integration Org Sync Faculty/Staff Search (Directory) Coeur d’Alene, Idaho NWEUG 2015

BUILD: DEPLOYING MOBILE CLIENTS i. OS Very cautious when submitting Took two plus weeks for approval Certificates caused confusion Android Well Documented Overnight Approval Amazon Use the same package as Android Accidentally used personal Account 1 st Time Coeur d’Alene, Idaho NWEUG 2015

BUILD: TESTING Don't build DEV and TEST Clients Use Ellucian Go! Use the testing links in PUBLICATION Ellucian GO knows how to open these links! Coeur d’Alene, Idaho NWEUG 2015

BUILD: APP STORES Apple: App Store ($99 + Tax ) / Year Very Scary Approval Process Be conservative w/ your submission Google: Play Store $25 (1 x Charge) Less Strict Approval Process Amazon: App Store $0 Simple to do after the Android build is complete We did it (is it worth your time? ) VERY low download numbers Coeur d’Alene, Idaho NWEUG 2015

RUN Analytics Distinguishing Web Module Traffic w/ &mobile=true Google Dashboards: App Overview Trouble tracking external web links Traffic Trends / Spikes Summary Current/Total Installs Top Screens Content Bus Schedule Order Food Online with Tapingo Events Coeur d’Alene, Idaho NWEUG 2015

RUN: ANALYTICS Google Dashboards: App Overview {New Users, Active Users, Country, Top Device Models, Country, User Engagement} Distinguishing Web Module Traffic w/ &mobile=true Trouble tracking external web links App Overview Tracking External Links? Traffic Trends / Spikes Start/End of Quarter Spike (Schedule/Grades) Coeur d’Alene, Idaho NWEUG 2015

RUN: SUMMARY Current/Total Installs: Android: Amazon: 711 Current / 1, 070 Total 63 Total Installs i. OS 872 Total Installs through Dec 31 st 312 Total Installs April 1 - Current Coeur d’Alene, Idaho Top Screenviews for June 1. Home Screen - 4, 442 2. Schedule (full view) - 1, 152 3. Schedule (daily view) - 911 4. Sign In Page - 855 5. Grades list - 821 6. Notifications Detail - 454 7. Course Overview - 345 8. Term List - 273 9. Map of Campus - 234 10. News List - 170 NWEUG 2015

RUN: CONTENT Bus Schedule Tapingo Online Food Ordering Events Lynda. Campus (training) Coeur d’Alene, Idaho NWEUG 2015

CHALLENGES Registration Still not Available Security Vulnerability Failed Dining App (Integration & Deployment) Surveys (lack of response) Poor Integration w/ Portal and Banner SSB Videos? ? ? Images? ? ? You. Tube? ? ? Coeur d’Alene, Idaho NWEUG 2015

SESSION SUMMARY Summarize the key points you want your learners to remember Coeur d’Alene, Idaho NWEUG 2015

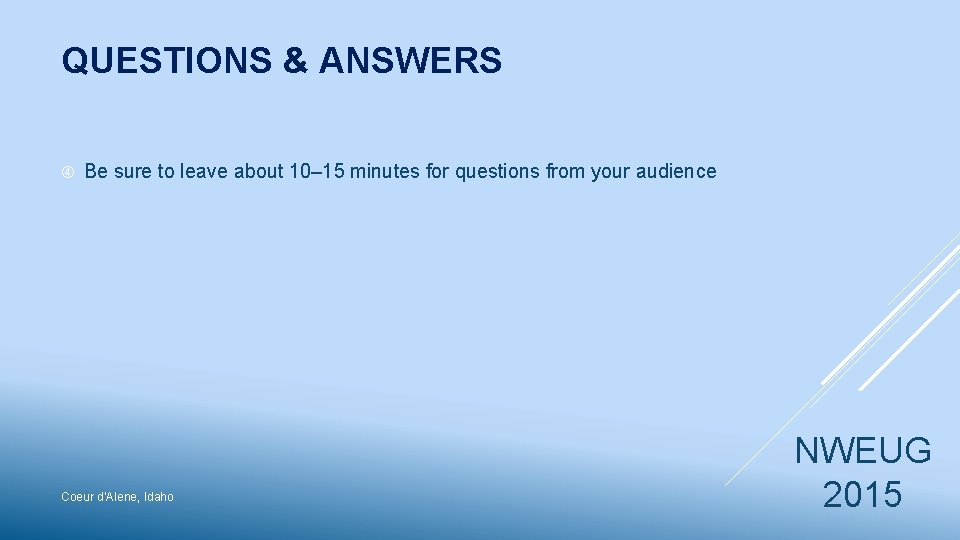

QUESTIONS & ANSWERS Be sure to leave about 10– 15 minutes for questions from your audience Coeur d’Alene, Idaho NWEUG 2015

THANK YOU! Danny Messina Senior Manager Application Development &Web Design Phone: 509. 359. 2830 Email: dmessina@ewu. edu Dana Simmelink Web Developer Application Development & Web Design Phone: 509. 359. 4356 Email: dsimmelink@ewu. edu Coeur d’Alene, Idaho NWEUG 2015

EXTRA STUFF! DEVL REFRESH Our DBAs "Refresh" our DEV & PPROD Database with production data which conveniently 'breaks' the moblile app server This script fixes it and the DBAs execute it after a Refresh Server may still need a restart UPDATE CONFIGURATION_DOMAIN SET CLOUD_ID = <DEV CLOUD ID>, DISPLAY_NAME = ‘Development’, MOBILE_SERVER_URL = ‘<DEV URL>’, NAME=’Development’ WHERE ID=1; Coeur d’Alene, Idaho NWEUG 2015

ADDING A MAP WINDOW In Banner, the map window map to rows mapped in the campus table We had to add a building mapped to the campus as well for the mobile application to recognize the campus Coeur d’Alene, Idaho insert into stvcamp (STVCAMP_CODE, STVCAMP_DESC, STVCAMP_ACTIVITY_DATE) VALUES ('DIN', 'On Campus Dining Locations', '25 MAY-14'); INSERT INTO STVBLDG (STVBLDG_CODE, STVBLDG_DESC, STVBLDG_ACTIVITY_DATE) VALUES ('AAB', 'The Garage 2', '25 -MAY-14') ; INSERT INTO SLBBLDG (SLBBLDG_USER_ID, SLBBLDG_DATA_ORIGIN, SLBBLDG_ACTIVITY_DATE, SLBBLDG_MAXIMUM_CAPACITY, SLBBLDG_CAMP_CODE, SLBBLDG_CODE) VALUES ('DSIMMELINK', 'mobile', '25 -MAY-14', '2', 'DIN', 'AAB') ; NWEUG 2015
