NVIDIA Quadro FX Mobile Workstation Solutions Intel Core
NVIDIA® Quadro® FX Mobile Workstation Solutions Intel® Core i 5 and i 7 “Calpella” Based Platforms
NVIDIA® Quadro® with CUDA™ CUDA Parallel Computing Architecture for NVIDIA GPUs Standard languages: C, C++, FORTRAN Standard compute APIs: Open. CL and Direct. Compute Standard OSs: Windows, Mac. OS, Linux Professional Application of CUDA Image Processing – CUDA based pipelines Raytracing – photorealistic and “photon correct” lighting Physics – dynamic simulation Quadro with CUDA Combines Visualization with Compute GPU Affinity - explicitly assign an Open. GL context to a GPU Interoperability - fast data transfer between Graphics and Computing NVIDIA Confidential
Quadro FX Mobile Workstation ISV Certification Leadership NVIDIA Confidential
NVIDIA® Verde™ Notebook Driver Program • The NVIDIA® Verde™ Notebook Driver Program provides current, easy to download drivers for notebooks with NVIDIA® Ge. Force®, ION™, Quadro® FX, and NVS GPUs • Take advantage of the latest technologies and features made available for your GPU, such as NVIDIA® CUDA™ technology for accelerated video editing and conversion and Phys. X® technology • NVIDIA® Verde™ Notebook Driver Program - exclusively from NVIDIA and available only on NVIDIA. com NVIDIA Confidential
NVIDIA® Quadro® FX Mobile Feature Comparison Segment Entry Quadro FX Product NVIDIA Quadro FX 380 M NVIDIA Quadro FX 880 M NVIDIA Quadro FX 1800 M NVIDIA Quadro FX 2800 M NVIDIA Quadro FX 3800 M CUDA Cores 16 48 72 96 128 Memory Size 512 MB DDR 3 1 GB DDR 3/GDDR 5 1 GB GDDR 3 64 -bit 128 -bit 256 -bit 12. 8 GB/sec 25. 6 -35. 2 GB/sec 64 GB/sec 14. 1” 15. 6” 17” Up to 25 W Up to 35 W Up to 50 W Up to 75 W Up to 100 W Shader Model 4. 0 4. 0 OGL / Direct. X 3. 2 /10. 1 3. 2 /10 9. 0 9. 0 Memory Interface Memory Bandwidth Platform Factor Max Power Consumption (Graphics Sub System) Power. Mizer™ Power Management NVIDIA Confidential Mid Range Quadro FX High End Quadro FX
NVIDIA® Quadro® FX 3800 M Highest Performance 17” Mobile Workstation Graphics Solution Certified for the most demanding CAD, DCC, Medical, Oil & Gas Scientific Visualization professional applications Unprecedented levels of performance Visualization of the most extensive datasets Best Video encoding performance Available as a fully qualified Quadro Mobile Workstation graphics board 128 CUDA cores Optimized for Open. GL 3. 2 / Shader Model 4. 0 / Direct. X 10 / Direct Compute / Open. CL professional applications 256 -bit memory interface 1 GB G-DDR 3 graphics memory LVDS, VGA, DVI-SL/DL, HDMI, Display Port HP Elite. Book 8740 w 17” Power. Mizer 9. 0 power management NVIDIA Confidential

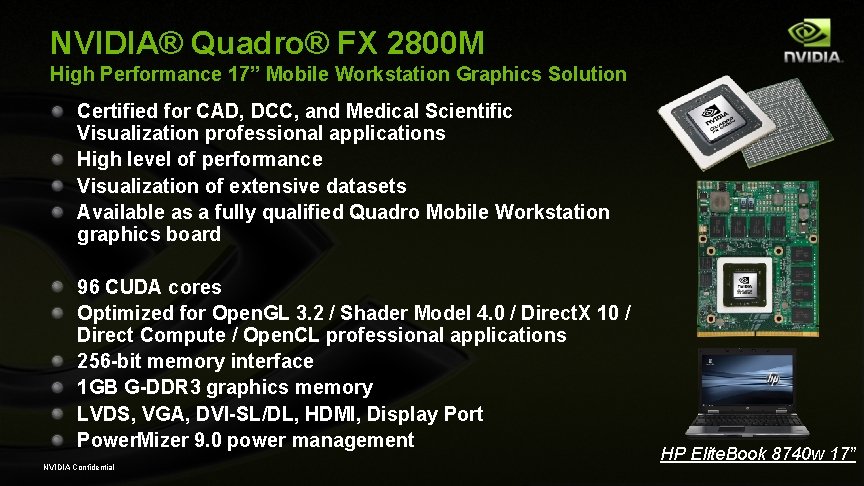

NVIDIA® Quadro® FX 2800 M High Performance 17” Mobile Workstation Graphics Solution Certified for CAD, DCC, and Medical Scientific Visualization professional applications High level of performance Visualization of extensive datasets Available as a fully qualified Quadro Mobile Workstation graphics board 96 CUDA cores Optimized for Open. GL 3. 2 / Shader Model 4. 0 / Direct. X 10 / Direct Compute / Open. CL professional applications 256 -bit memory interface 1 GB G-DDR 3 graphics memory LVDS, VGA, DVI-SL/DL, HDMI, Display Port Power. Mizer 9. 0 power management NVIDIA Confidential HP Elite. Book 8740 w 17”
NVIDIA® Quadro® FX 1800 M Highest Performance 15. 6” Mobile Workstation Graphics Solution Certified for demanding CAD and DCC professional applications High level of performance Visualization of large datasets 72 CUDA cores Optimized for Open. GL 3. 2 / Shader Model 4. 0 / Direct. X 10. 1 / Direct Compute / Open. CL applications 128 -bit memory interface 1 GB DDR 3 or G-DDR 5 graphics memory LVDS, VGA, DVI-SL/DL, HDMI, Display Port Power. Mizer 9. 0 power management NVIDIA Confidential HP Elite. Book 8540 w
NVIDIA® Quadro® FX 880 M High Performance 15. 6” Mobile Workstation Graphics Solution Ideal for volume CAD and DCC professional applications High level of performance Visualization of large datasets ISV Certified drivers 48 CUDA cores Optimized for Open. GL 3. 2 / Shader Model 4. 0 / Direct. X 10. 1 / Direct Compute / Open. CL applications 128 -bit memory interface 1 GB DDR 3 graphics memory LVDS, VGA, DVI-SL/DL, HDMI, Display Port Power. Mizer 9. 0 power management NVIDIA Confidential HP Elite. Book 8540 w
NVIDIA® Quadro® FX 380 M Cost-Effective 14. 1” Mobile Workstation Graphics Solution Ideal for volume CAD and DCC applications Stable, compatible, and proven performance Enables thin and light form factor Visualization of large datasets ISV Certified drivers 16 CUDA cores Optimized for Open. GL 3. 2 / Shader Model 4. 0 / Direct. X 10. 1 / Direct Compute / Open. CL applications 64 -bit memory interface 512 MB DDR 3 graphics memory LVDS, VGA, DVI-SL/DL, HDMI, Display Port Power. Mizer 9. 0 power management NVIDIA Confidential HP Elite. Book 8440 w
HP Mobile Platforms w/Quadro FX HP Elite. Book 8740 w 17” • Quadro FX 3800 M -- 1 GB • Quadro FX 2800 M – 1 GB HP Elite. Book 8540 w 15. 6” • Quadro FX 1800 M – 1 GB • Quadro FX 880 M – 1 GB HP Elite. Book 8440 w 14. 1” • Quadro FX 380 M -- 512 MB NVIDIA Confidential

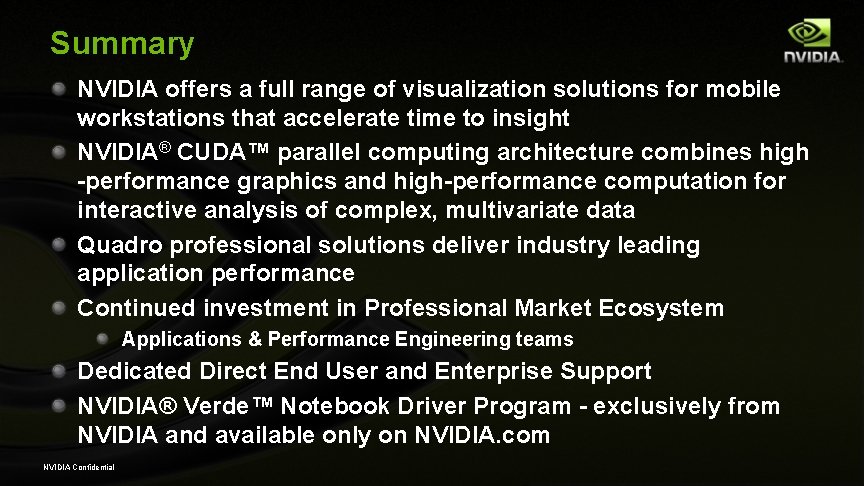

Summary NVIDIA offers a full range of visualization solutions for mobile workstations that accelerate time to insight NVIDIA® CUDA™ parallel computing architecture combines high -performance graphics and high-performance computation for interactive analysis of complex, multivariate data Quadro professional solutions deliver industry leading application performance Continued investment in Professional Market Ecosystem Applications & Performance Engineering teams Dedicated Direct End User and Enterprise Support NVIDIA® Verde™ Notebook Driver Program - exclusively from NVIDIA and available only on NVIDIA. com NVIDIA Confidential
