NUUO Nuface v 1 0 Train a trainer

NUUO Nuface v 1. 0 Train a trainer 2015 October Trusted Video Management www. nuuo. com

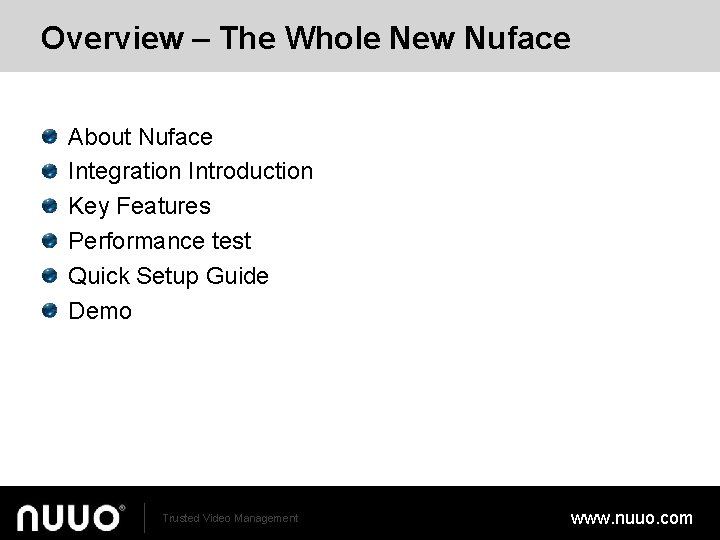

Overview – The Whole New Nuface About Nuface Integration Introduction Key Features Performance test Quick Setup Guide Demo Trusted Video Management www. nuuo. com

About Nuface Trusted Video Management www. nuuo. com

About Nuface Portable software No need to install Integration : Metadata plugin Max 16 channels (Depends on CPU) Compatible Server : Crystal / Mainconsole Simple Software licencing Put license in License. ini and online activate. License change enable Trusted Video Management www. nuuo. com

Nuface interface http: //www. tcit-tw. com/ Trusted Video Management www. nuuo. com

Integration Introduction Trusted Video Management www. nuuo. com

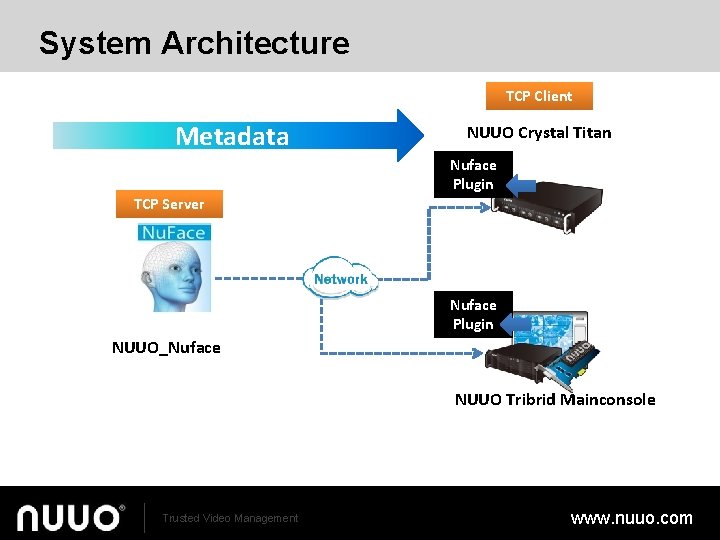

System Architecture TCP Client Metadata NUUO Crystal Titan Nuface Plugin TCP Server Nuface Plugin NUUO_Nuface NUUO Tribrid Mainconsole Trusted Video Management www. nuuo. com

What do I need to connect Nuface? Item Compatible Server NUUO Nu. Face plugin - Mainconsole v 6. 1 and above - Crystal Titan v 3. 1 and above - Nu. Face-P 01 / 04 / 08 / 16 Nu. Face Package license - License including Nu-connection and Nu. Face NUUO Nu-connection license - Nu-connection 01 / 04 / 08 / 16 Nu. Face software license - Nu. Face-S 01 / 04 /08 / 16 Trusted Video Management www. nuuo. com

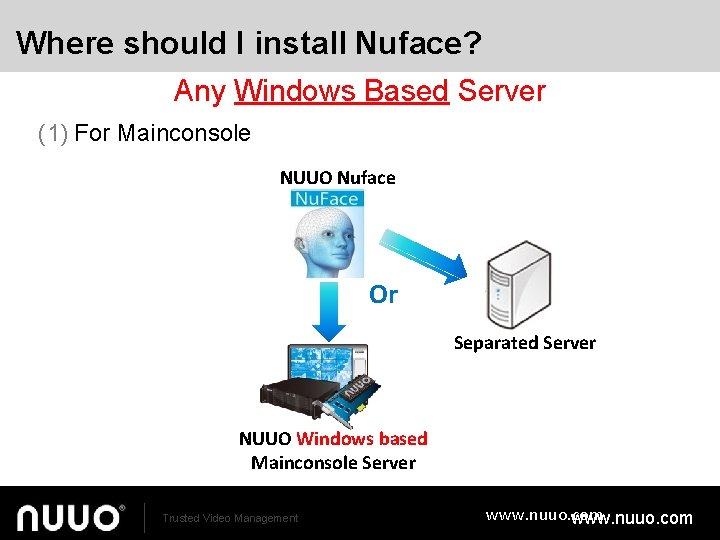

Where should I install Nuface? Any Windows Based Server (1) For Mainconsole NUUO Nuface Or Separated Server NUUO Windows based Mainconsole Server Trusted Video Management www. nuuo. com

Where should I install Nu-face? (2) For Crystal Titan NUUO Nu. Face Or Separated Server Nu. Face Plugin NUUO Linux based Crystal Titan Trusted Video Management www. nuuo. com

Installation Scenarios If one NUUO server would receive metadata from multiple Nu. Face servers… NUUO Nu. Face Trusted Video Management NUUO Nu. Face www. nuuo. com

Key Features Trusted Video Management www. nuuo. com

Feature list Video Device License Activate Face Recognition Registration Customize Detection Setting Nuface metadata with surveillance video Face Recognition and Counting Attention Time Calculation Gender Estimation Age Estimation Viewer Distance Face Scramble Trusted Video Management www. nuuo. com

Video Device There are 2 Devices source at the list for User to select : Webcam IP cam Connect to IP cam through RTSP or HTTP Recommended Codec for analysis : MJEPG ( not recommend H. 264) FPS > 10 Trusted Video Management www. nuuo. com

License Activate a. Open License. ini b. Type in license serial number (42 digits) in License. ini c. Close license. ini d. Open Nu. Face. exe e. File Tab – Click Activate License Trusted Video Management www. nuuo. com

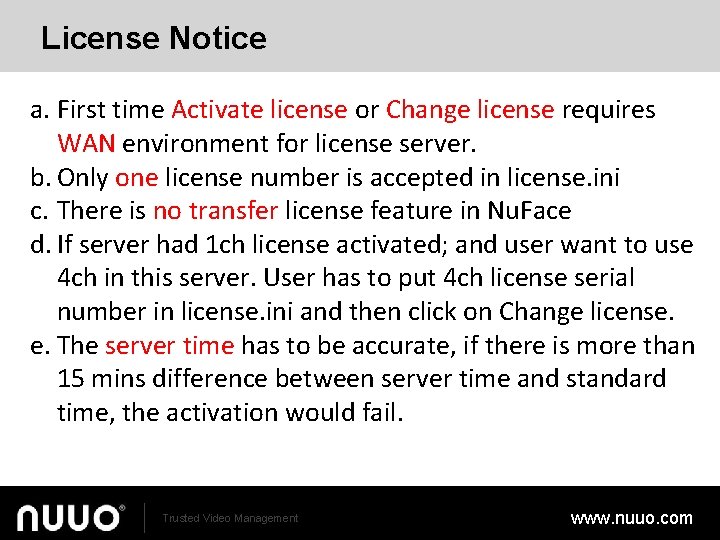

License Notice a. First time Activate license or Change license requires WAN environment for license server. b. Only one license number is accepted in license. ini c. There is no transfer license feature in Nu. Face d. If server had 1 ch license activated; and user want to use 4 ch in this server. User has to put 4 ch license serial number in license. ini and then click on Change license. e. The server time has to be accurate, if there is more than 15 mins difference between server time and standard time, the activation would fail. Trusted Video Management www. nuuo. com

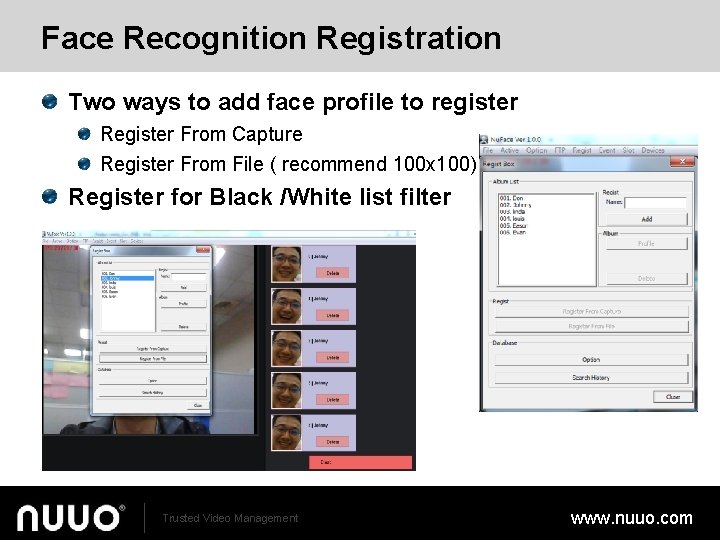

Face Recognition Registration Two ways to add face profile to register Register From Capture Register From File ( recommend 100 x 100) Register for Black /White list filter Trusted Video Management www. nuuo. com

Customize Detection Setting User may change the detection criteria they want Face detection Setting Face Size Face Interval Frame Detect Interval Time detection Setting OTS Count (People) Viewer Count (Face) Attention Discard Loading : FPS up, CPU loading high, recognition rate high FPS down, CPU loading low , recognition rate low Trusted Video Management www. nuuo. com

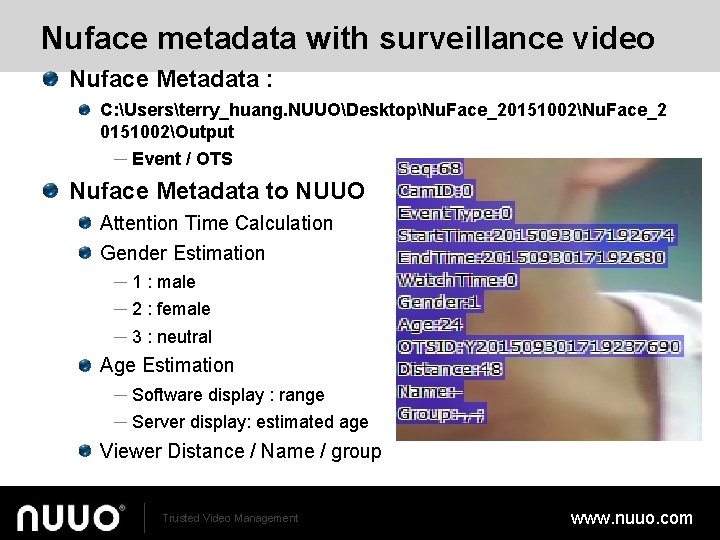

Nuface metadata with surveillance video Nuface Metadata : C: Usersterry_huang. NUUODesktopNu. Face_20151002Nu. Face_2 0151002Output ─ Event / OTS Nuface Metadata to NUUO Attention Time Calculation Gender Estimation ─ 1 : male ─ 2 : female ─ 3 : neutral Age Estimation ─ Software display : range ─ Server display: estimated age Viewer Distance / Name / group Trusted Video Management www. nuuo. com

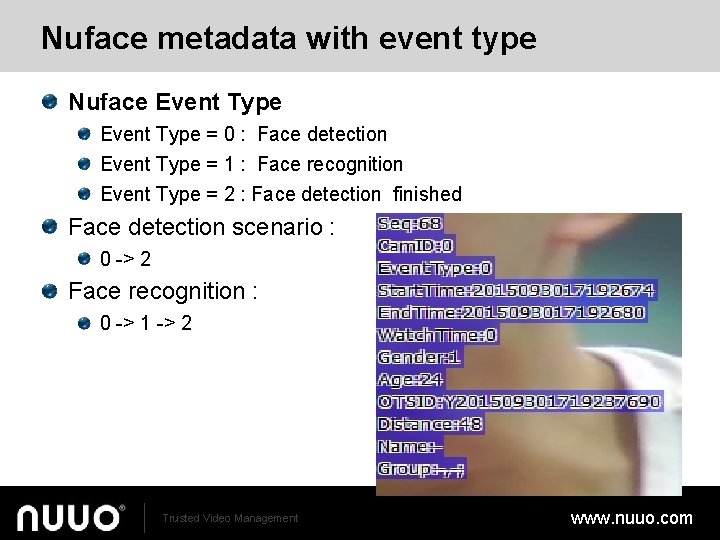

Nuface metadata with event type Nuface Event Type = 0 : Face detection Event Type = 1 : Face recognition Event Type = 2 : Face detection finished Face detection scenario : 0 -> 2 Face recognition : 0 -> 1 -> 2 Trusted Video Management www. nuuo. com

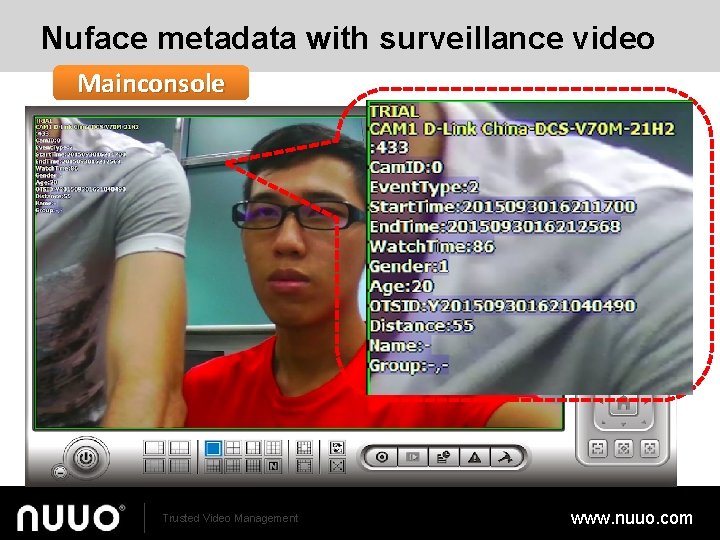

Nuface metadata with surveillance video Mainconsole Trusted Video Management www. nuuo. com

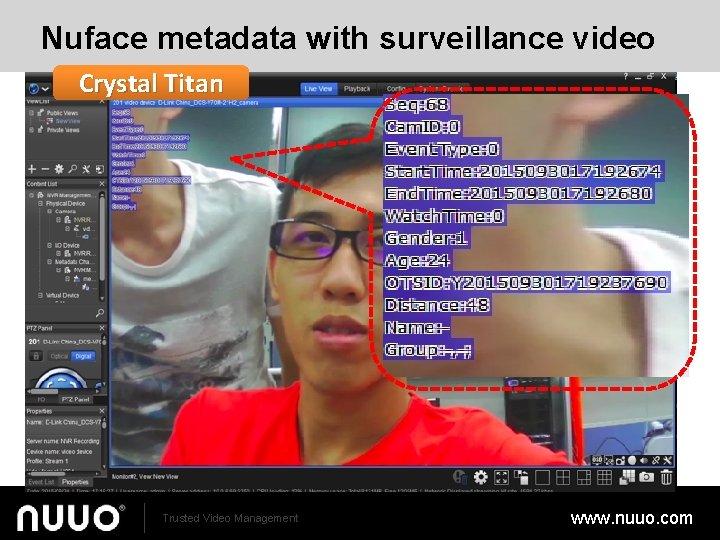

Nuface metadata with surveillance video Crystal Titan Trusted Video Management www. nuuo. com

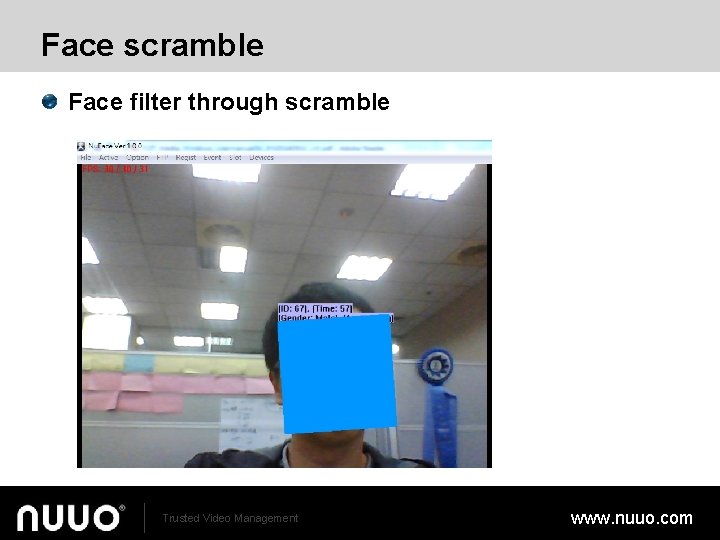

Face scramble Face filter through scramble Trusted Video Management www. nuuo. com

Performance test Trusted Video Management www. nuuo. com

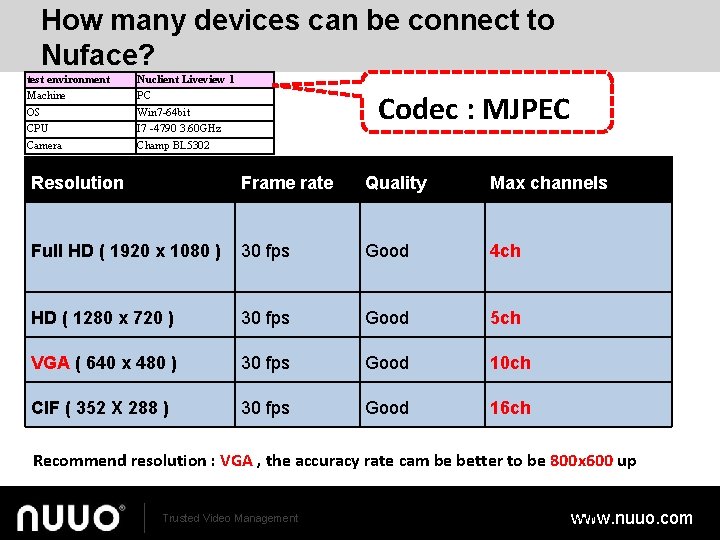

How many devices can be connect to Nuface? test environment Machine OS CPU Camera Nuclient Liveview 1 PC Win 7 -64 bit I 7 -4790 3. 60 GHz Champ BL 5302 Codec : MJPEC Resolution Frame rate Quality Max channels Full HD ( 1920 x 1080 ) 30 fps Good 4 ch HD ( 1280 x 720 ) 30 fps Good 5 ch VGA ( 640 x 480 ) 30 fps Good 10 ch CIF ( 352 X 288 ) 30 fps Good 16 ch Recommend resolution : VGA , the accuracy rate cam be better to be 800 x 600 up Trusted Video Management www. nuuo. com

Quick Setup Guide (Optional) Trusted Video Management www. nuuo. com

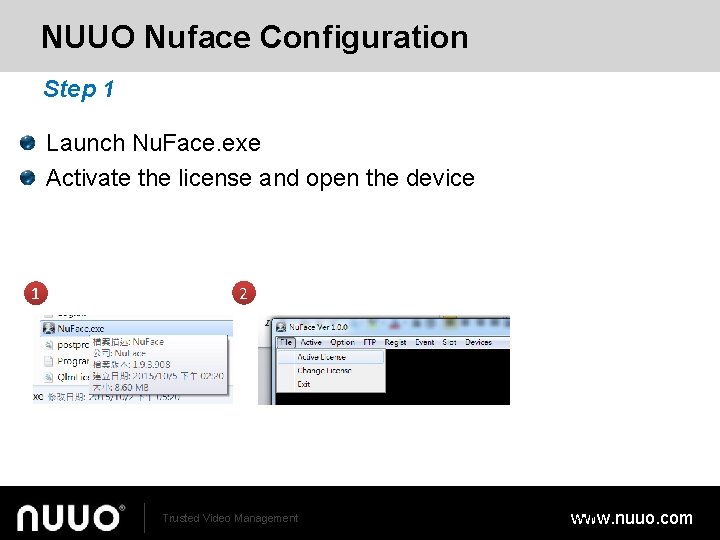

NUUO Nuface Configuration Step 1 Launch Nu. Face. exe Activate the license and open the device 1 2 Trusted Video Management www. nuuo. com

Nuface Configuration Step 2 Enter the address through Webcam or IP camera through RTSP or HTTP 1 2 Trusted Video Management www. nuuo. com

NUUO Crystal Configuration Step 1 l Download plugin from website l Upload plugin to Crystal Titan metadata server Trusted Video Management www. nuuo. com

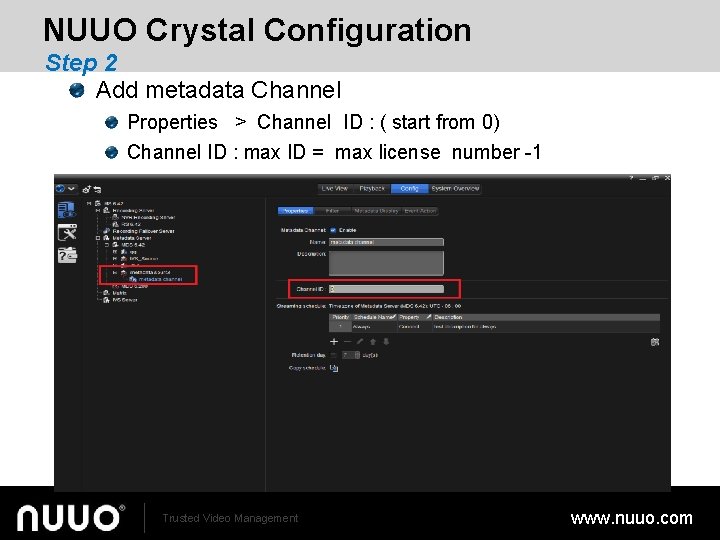

NUUO Crystal Configuration Step 2 Add metadata Channel Properties > Channel ID : ( start from 0) Channel ID : max ID = max license number -1 Trusted Video Management www. nuuo. com

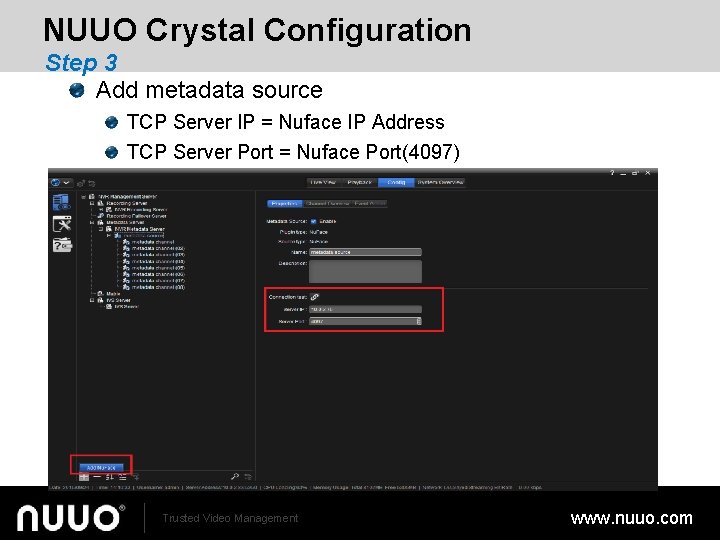

NUUO Crystal Configuration Step 3 Add metadata source TCP Server IP = Nuface IP Address TCP Server Port = Nuface Port(4097) Trusted Video Management www. nuuo. com

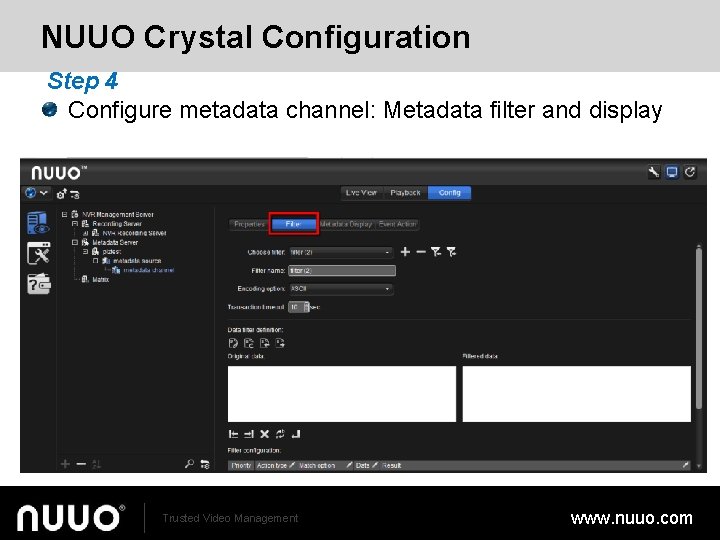

NUUO Crystal Configuration Step 4 Configure metadata channel: Metadata filter and display Trusted Video Management www. nuuo. com

NUUO Crystal Configuration Step 4 Configure event action of metadata server, source, and channel Event Server - Fail to write to drive - Server disconnect Action - Email to multiple - Play alert sound Source - Connection lost - Channel - - Transaction started Transaction stopped Not enough space for retention days 10 user-defined Trusted Video Management Email to multiple DO turn on Go to Preset Play alert sound Video edge display www. nuuo. com

NUUO Mainconsole Configuration Step 1 Add metadata source TCP Server IP = Nuface IP TCP Server Port = Nuface Port (4097) Trusted Video Management www. nuuo. com

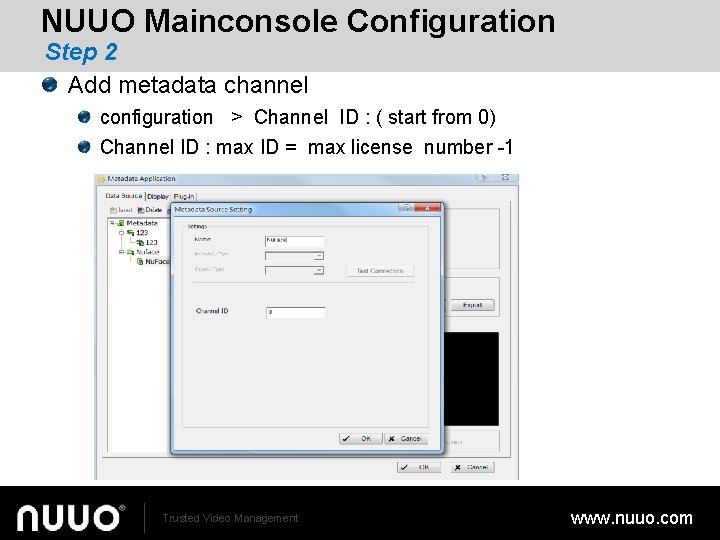

NUUO Mainconsole Configuration Step 2 Add metadata channel configuration > Channel ID : ( start from 0) Channel ID : max ID = max license number -1 Trusted Video Management www. nuuo. com

NUUO Mainconsole Configuration Step 3 Configure filter, display format and associated camera in metadata application Configure event action in Smart Guard 2 1 Trusted Video Management www. nuuo. com

NUUO Mainconsole Configuration Step 4 Configure metadata channel: Metadata filter and display Trusted Video Management www. nuuo. com

Demo Trusted Video Management www. nuuo. com

Demo Overview Activate License Face Detection Face Recognition Matadata on Server’s OSD Trusted Video Management www. nuuo. com

Document location Related document (inside) : \10. 0. 0. 10SalesProductNu. Facev 1. 0 Related document (outside) : ftp: //ftp. nuuo. com Sales/nuuosales Trusted Video Management www. nuuo. com
