NUUO License Advantages of NUUO License l Stackable
NUUO License
Advantages of NUUO License l Stackable l Upgradable l Online and offline activation l Transferable www. nuuo. com
NVRmini 2 www. nuuo. com NVRsolo
Optional Hardware NE-2020/2040 NE-4080/4160 NS-2040/2080/2160 NS-8060/8065 NS-8160/8165 NP-8320 www. nuuo. com Camera license NE-MINI-UP NS-SOLO-UP 3 rd party device connection SCB-IP-P-POS CMS NCS-Base 48 -8 -0 NCS-Connection CA NCS-Connection IO NCS-Connection POS
Mainconsole www. nuuo. com
Optional Hardware CT-8000 IP-25 CT-8000 IP-32 CT-8000 IP-36 PC server www. nuuo. com Camera license SCB-IP-P 01 Adding features SCB-IP-P-F IVS COUNTING IVS PRESENCE IVS SURVEILLANCE IVS ADVANCED Nu. Face 3 rd party device connection SCB-IP-P-AC SCB-IP-P-POS SCB-IP-P-LPR VIT LPR Parking / Traffic CMS NCS-Base 48 -8 -0 NCS-Connection CA NCS-Connection IO NCS-Connection POS NCS-Connection AC NCS-Connection LPR
Hardware CT-8000 IP-25 CT-8000 IP-32 CT-8000 IP-36 PC server Camera license SCB-IP-P 01 www. nuuo. com Adding features 1. SCB-IP-P-F *Failover Server Connection License for 1 Mainconsole Server(n+1) 2. 3. 4. 5. 6. IVS COUNTING IVS PRESENCE IVS SURVEILLANCE IVS ADVANCED Nu. Face
Hardware CT-8000 IP-25 CT-8000 IP-32 CT-8000 IP-36 PC server Camera license SCB-IP-P 01 www. nuuo. com 3 rd party device connection 1. SCB-IP-P-AC 2. SCB-IP-P-POS 3. SCB-C 31 A-US POS C 31 A converter w/ SCB-IP-P-POS 1. VIT LPR Parking / Traffic 3 rd party LPR license *Need to combine with SCB-IP-P-LPR
POSLicense 1. POS connect thru RS 232 Product required: SCB-C 31 A-US POS 01/04 *including C 31 A converter box and SCB-IP-P-POS 01/04 2. POS connect thru TCP/IP *integration needed Product required: SCB-IP-P-POS www. nuuo. com
Hardware CT-8000 IP-25 CT-8000 IP-32 CT-8000 IP-36 PC server Camera license SCB-IP-P 01 www. nuuo. com 3 rd party device connection 1. SCB-IP-P-AC 01 2. SCB-IP-P-POS 01 3. SCB-C 31 A-US POS 01 C 31 A converter w/ SCB-IP-P-POS 1. VIT LPR Parking / Traffic *3 rd party LPR license *Need to combine with SCB-IP-P-LPR
Titan NVR www. nuuo. com
Hardware TR-0404 NT R 1 -0404 NT NT-8040 R www. nuuo. com Camera license NT-TITAN-UP 01

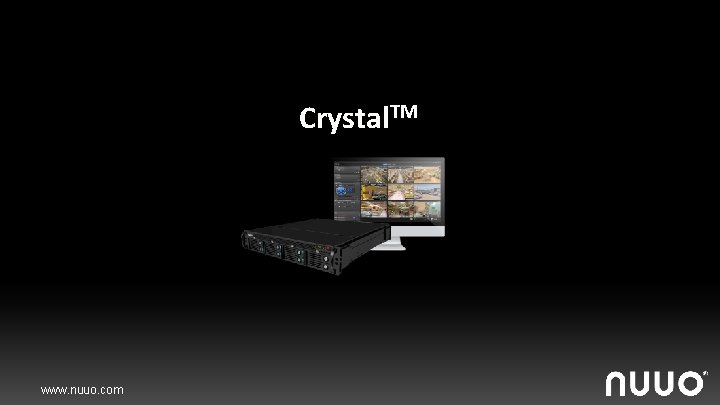

Crystal. TM www. nuuo. com
Optional Hardware Camera license TR-0400 CT R 1 -0400 CT CT-8000 RP CT-CAM-Pro CT-CAM-ENT CT-CAM-ULT VM server CV-CAM-ENT CV-CAM-ULT www. nuuo. com Adding features IVS COUNTING IVS PRESENCE IVS SURVEILLANCE IVS ADVANCED Nu. Face 3 rd party device connection CT-ACC-GENERIC CT-POS-GENERIC VIT LPR Parking / Traffic CMS NCS-Base 48 -8 -0 NCS-Connection CA NCS-Connection IO NCS-Connection POS NCS-Connection AC NCS-Connection LPR
Hardware TR-0400 CT R 1 -0400 CT CT-8000 RP VM server Camera license 1. CT-CAM-Pro Standard feature 2. CT-CAM-ENT Standard feature plus video wall - Nu. Matrix 3. CT-CAM-ULT Standard feature plus video wall , recording server failover (M+N) 4. CV-CAM-ENT Standard feature plus video wall for VM version 5. CV-CAM-ULT Standard feature plus video wall , recording server failover for VM version www. nuuo. com *Different license type can’t mix in one management server
Adding features Hardware TR-0400 CT R 1 -0400 CT CT-8000 RP 1. 2. 3. 4. IVS Counting IVS Presence IVS Surveillance IVS Advanced IVS Presence IVS Counting IVS Surveillance IVS Advanced V (not support Crystal) 3 D calibration V V V People counting V V Vehicle counting V V CT-CAM-Pro CT-CAM-ENT CT-CAM-ULT Stabilizer V V Tamper Detection V CV-CAM-ENT CV-CAM-ULT VM server Camera license www. nuuo. com Function 5. Nu. Face Mainconsole. Report Client /Heatmap V V Enter and exit V V Appear and disappear V V Dwell V V Tailgating V V Stopping V V Direction V V Presence V
3 rd party device connection Hardware TR-0400 CT R 1 -0400 CT CT-8000 RP VM server Camera license CT-CAM-Pro CT-CAM-ENT CT-CAM-ULT CV-CAM-ENT CV-CAM-ULT www. nuuo. com 1. CT-ACC-GENERIC Supporting access Control’s metadata overlay on NUUO *integration needed 2. CT-POS-GENERIC Supporting POS’s metadata overlay on NUUO *integration needed 3. VIT LPR Parking / Traffic 3 rd party LPR licenseon Windows server *Need to combine with CT-LPR-GENERIC
Access Control License NUUO software receives the metadata from 3 rd party access control interface receives NUUO recorder’s video License needed: CT-ACC-GENERIC SCB-IP-P-AC License needed: Provided by 3 rd partydepend on each company’s policy www. nuuo. com
CMS www. nuuo. com
CMS 1. NCS-Base 48 -8 -0 (*MUST) CMS Base includes 1 x base license + 48 x camera connections + 8 x I/O connections * Must combine with NVRmini 2, NVRSolo, Titan NVR, Mainconsoleand Crystal 2. NCS-Connection CA 3. NCS-Connection IO 4. NCS-Connection POS 5. NCS-Connection AC 6. NCS-Connection LPR *Addtional connection for camera, IO , POS , access control and LPR to display on CMS www. nuuo. com
Practice www. nuuo. com

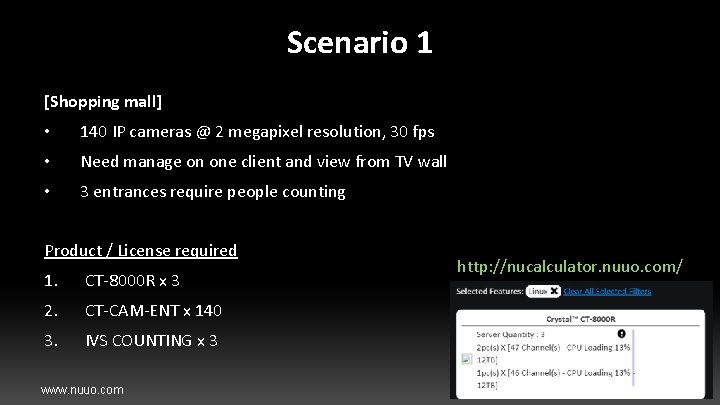

Scenario 1 [Shopping mall] • 140 IP cameras @ 2 megapixel resolution, 30 fps • Need manage on one client and view from TV wall • 3 entrances require people counting Product / License required 1. CT-8000 R x 3 2. CT-CAM-ENT x 140 3. IVS COUNTING x 3 www. nuuo. com http: //nucalculator. nuuo. com/
Scenario 2 [Chained Retail Stores ] • 4 camera for each shop and connect with a local display. Total 100 stores. • Customer wants to have the ability to add more cameras in each shop in the future. • Headquarter needs to monitor all of the sites Product / License required 1. NS-2040 x 100 2. NCS-Base 48 -8 -0 x 1 3. NCS-Connection CA x 352 4. NS-SOLO-UP (optional) www. nuuo. com
Trial Version www. nuuo. com
Trial Version l Valid for 30 days after software installation l Mainconsole trial : 96 x camera, 1 x POS, 1 x access control connection with full features l CMS trial : 1 x base license + 48 x camera connection + 8 x I/O connection l IVS trial: IVS ADVANCED for Main Console and Crystal (trial license needed) l NVRmini 2, NVRSolo, Titan NVR and Crystal : No trial version www. nuuo. com
Thank You © 2016 NUUO Inc. All rights reserved. THIS DOCUMENT IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY AND IS NOT INTENDED AS ADVERTISING. ALL WARRANTIES RELATING TO THE INFORMATION IN THIS DOCUMENT, EITHER EXPRESS OR IMPLIED, ARE DISCLAIMED TO THE MAXIMUM EXTENT ALLOWED BY LAW. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. ALL MENTIONED BRAND NAMES ARE REGISTERED TRADEMARKS AND PROPERTY OF THEIR OWNERS.
