NUMERICAL SIMULATION OF WIND TURBINE AERODYNAMICS JeanJacques Chattot

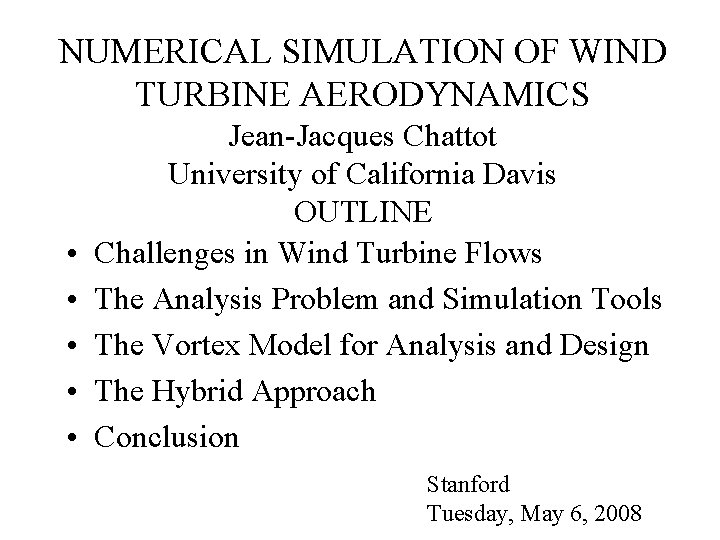

NUMERICAL SIMULATION OF WIND TURBINE AERODYNAMICS • • • Jean-Jacques Chattot University of California Davis OUTLINE Challenges in Wind Turbine Flows The Analysis Problem and Simulation Tools The Vortex Model for Analysis and Design The Hybrid Approach Conclusion Stanford Tuesday, May 6, 2008

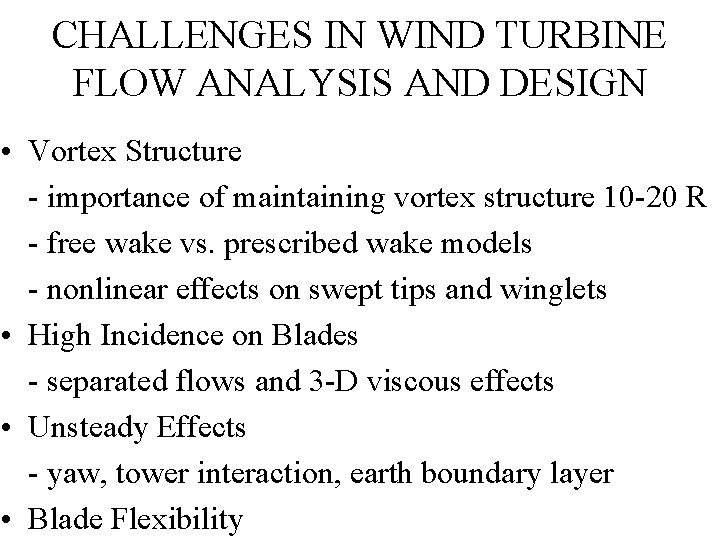

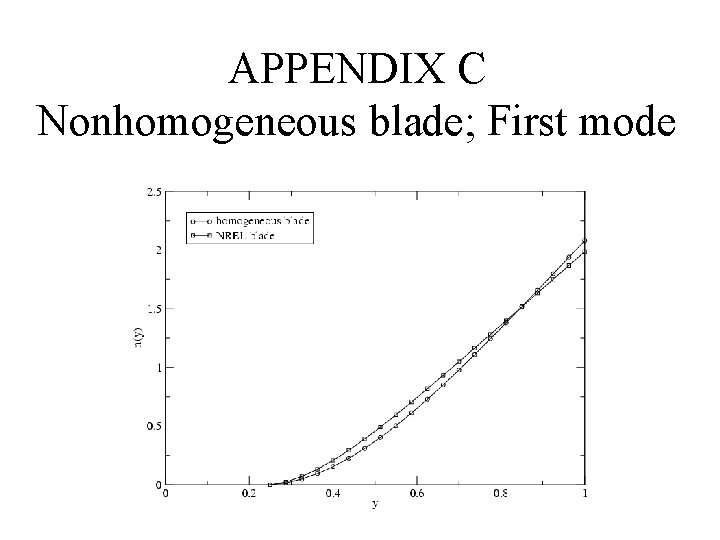

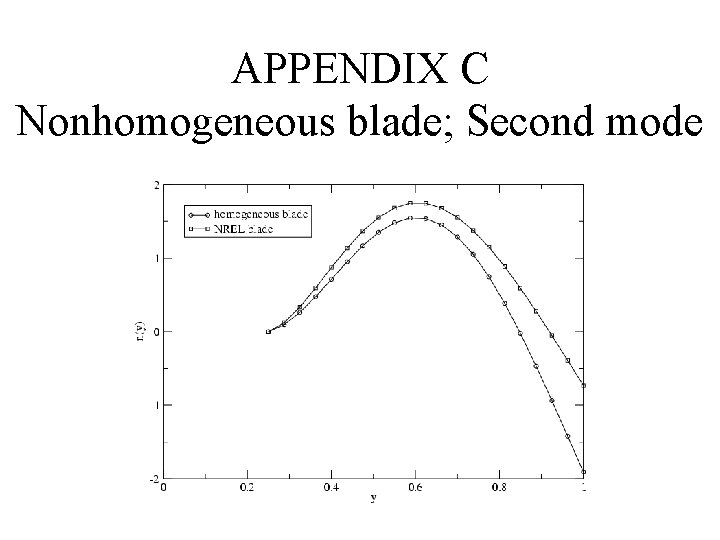

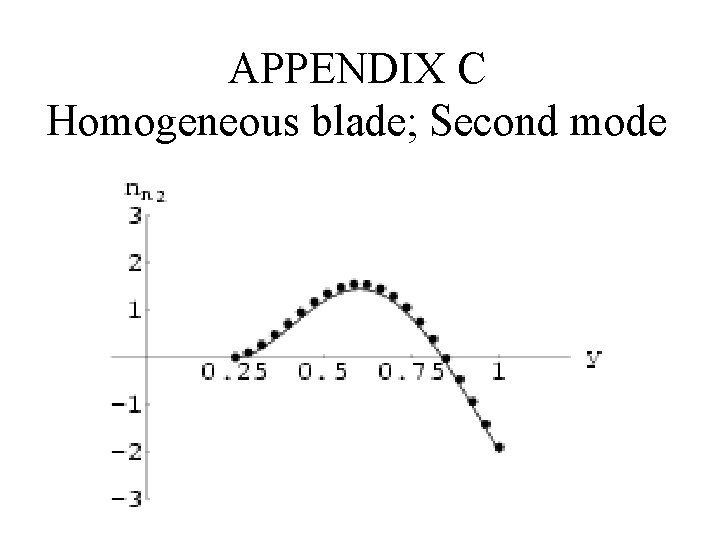

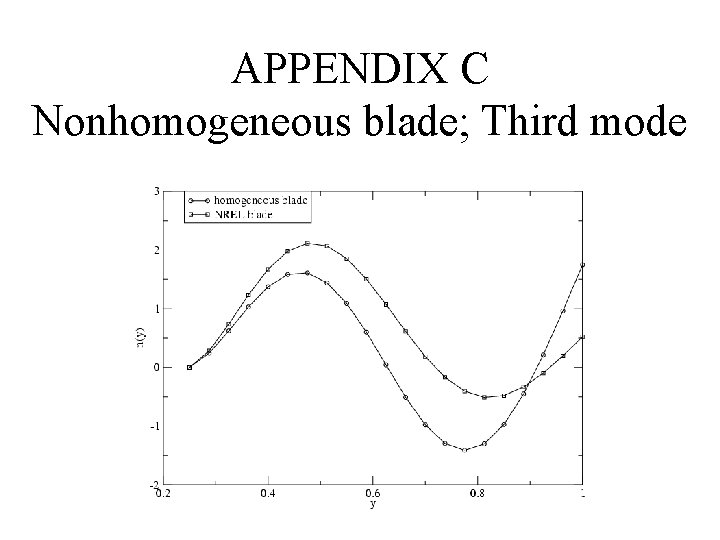

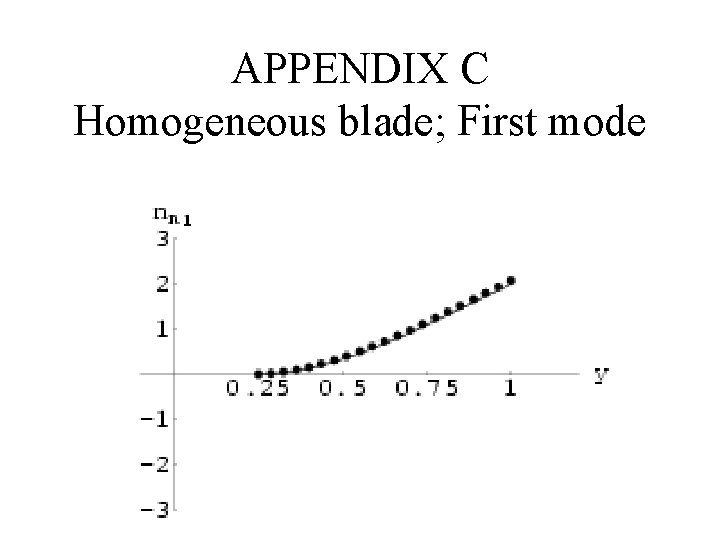

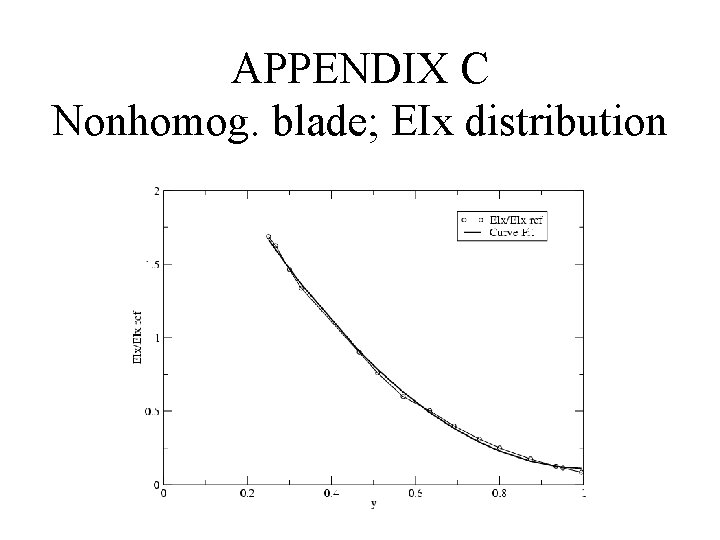

CHALLENGES IN WIND TURBINE FLOW ANALYSIS AND DESIGN • Vortex Structure - importance of maintaining vortex structure 10 -20 R - free wake vs. prescribed wake models - nonlinear effects on swept tips and winglets • High Incidence on Blades - separated flows and 3 -D viscous effects • Unsteady Effects - yaw, tower interaction, earth boundary layer • Blade Flexibility

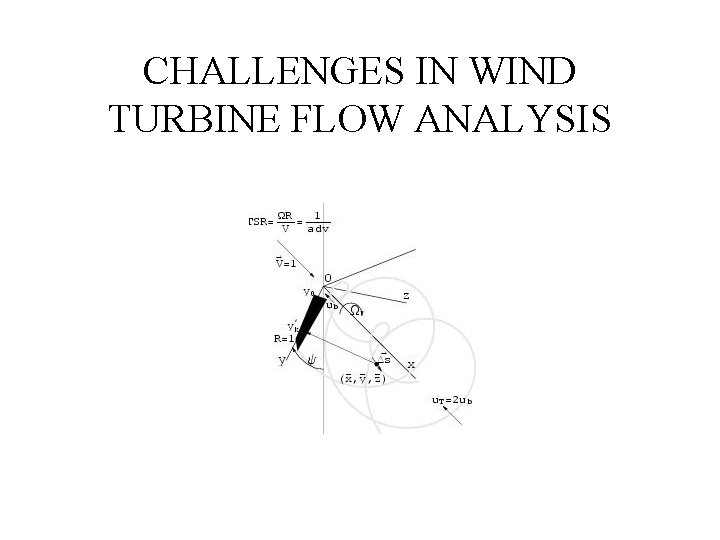

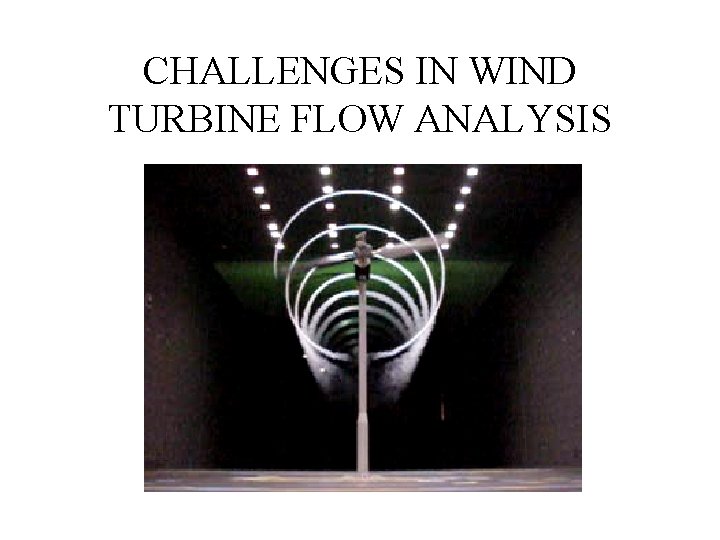

CHALLENGES IN WIND TURBINE FLOW ANALYSIS

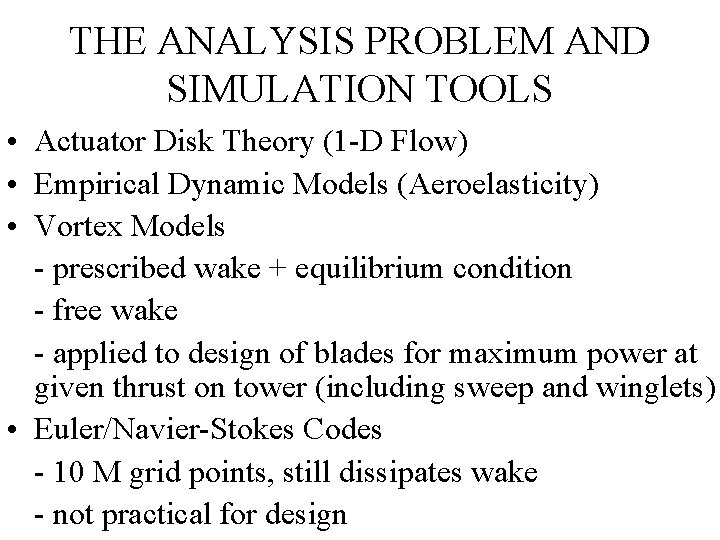

THE ANALYSIS PROBLEM AND SIMULATION TOOLS • Actuator Disk Theory (1 -D Flow) • Empirical Dynamic Models (Aeroelasticity) • Vortex Models - prescribed wake + equilibrium condition - free wake - applied to design of blades for maximum power at given thrust on tower (including sweep and winglets) • Euler/Navier-Stokes Codes - 10 M grid points, still dissipates wake - not practical for design

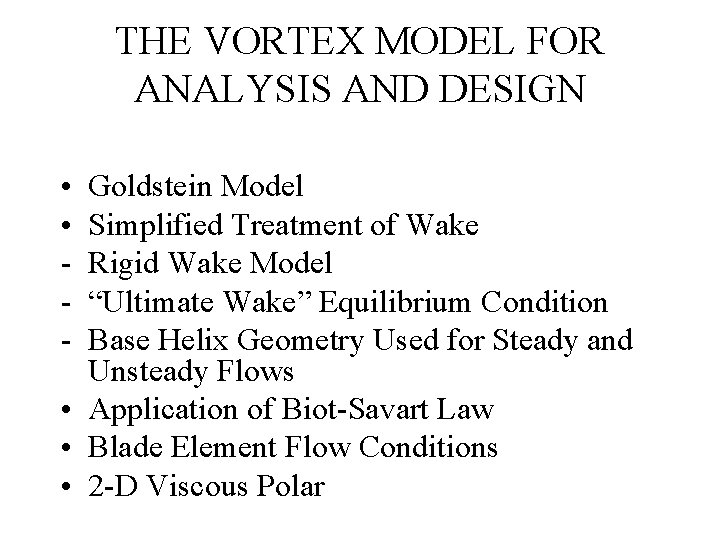

THE VORTEX MODEL FOR ANALYSIS AND DESIGN • • - Goldstein Model Simplified Treatment of Wake Rigid Wake Model “Ultimate Wake” Equilibrium Condition Base Helix Geometry Used for Steady and Unsteady Flows • Application of Biot-Savart Law • Blade Element Flow Conditions • 2 -D Viscous Polar

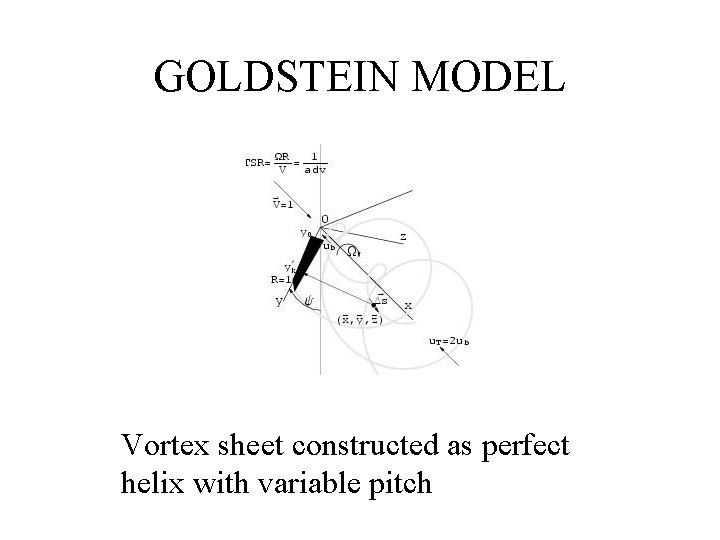

GOLDSTEIN MODEL Vortex sheet constructed as perfect helix with variable pitch

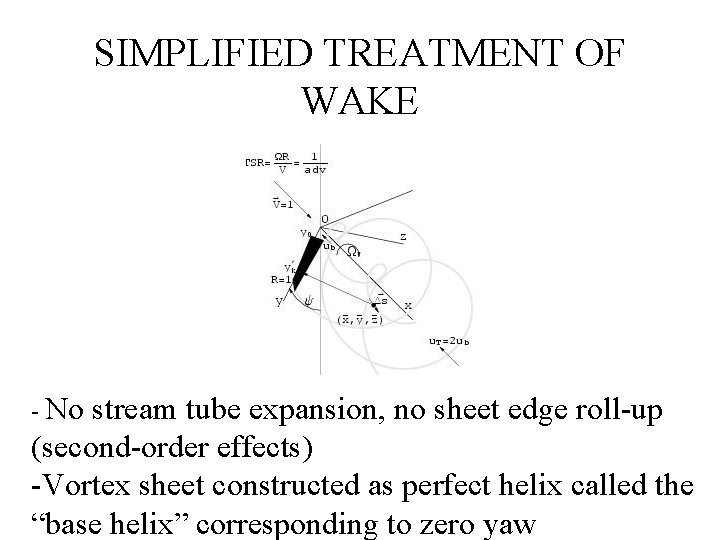

SIMPLIFIED TREATMENT OF WAKE - No stream tube expansion, no sheet edge roll-up (second-order effects) -Vortex sheet constructed as perfect helix called the “base helix” corresponding to zero yaw

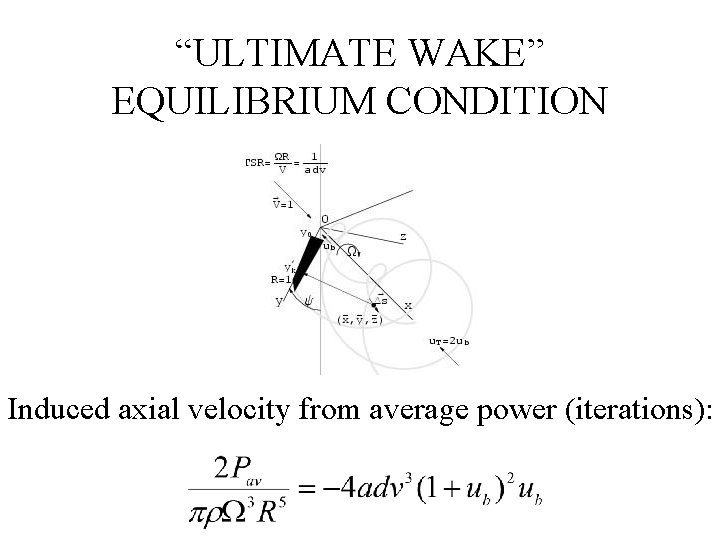

“ULTIMATE WAKE” EQUILIBRIUM CONDITION Induced axial velocity from average power (iterations):

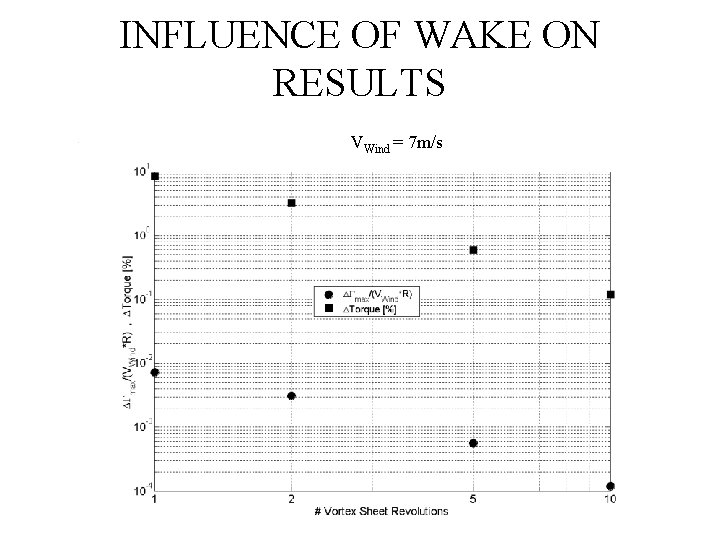

INFLUENCE OF WAKE ON RESULTS VWind = 7 m/s

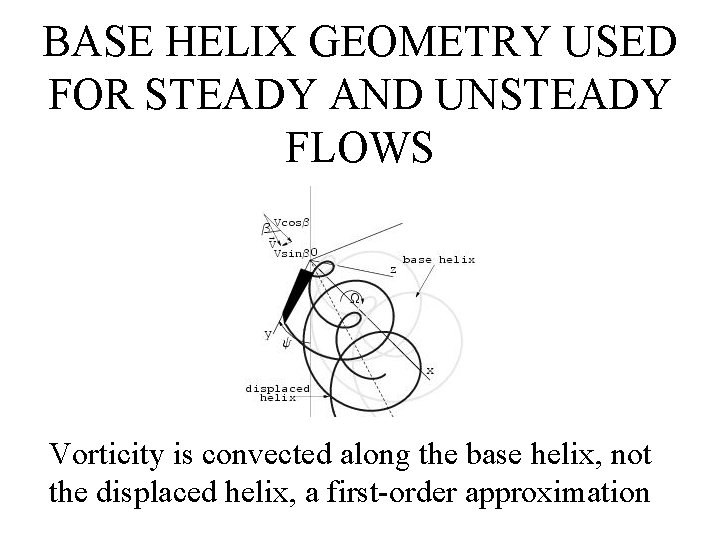

BASE HELIX GEOMETRY USED FOR STEADY AND UNSTEADY FLOWS Vorticity is convected along the base helix, not the displaced helix, a first-order approximation

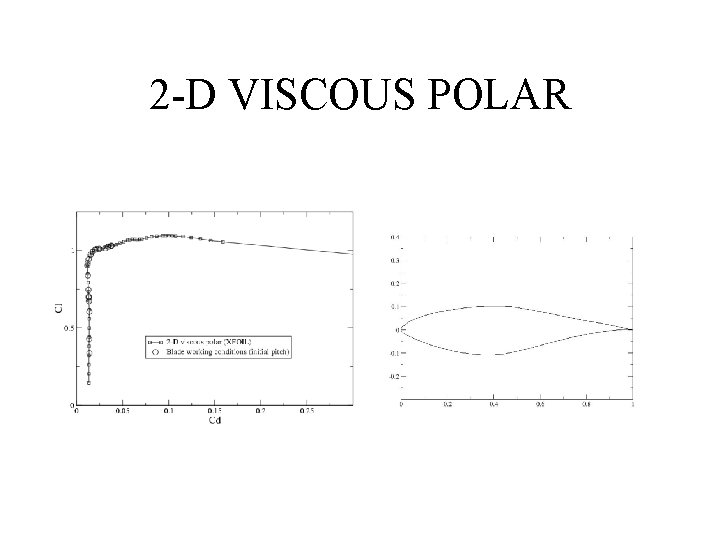

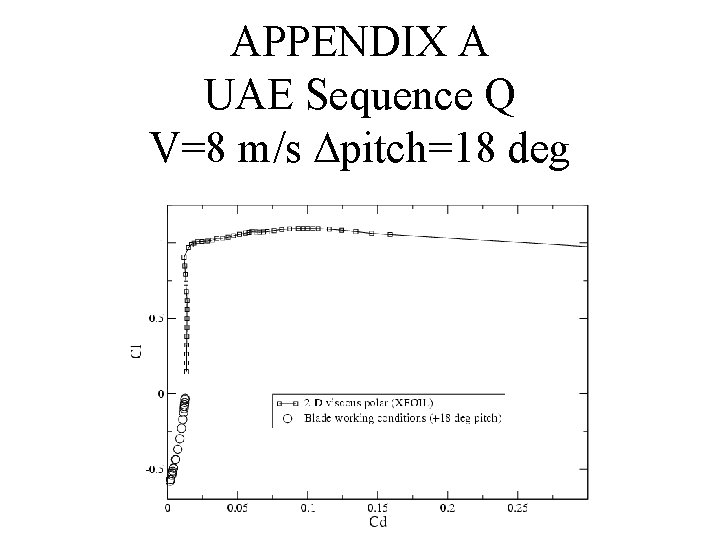

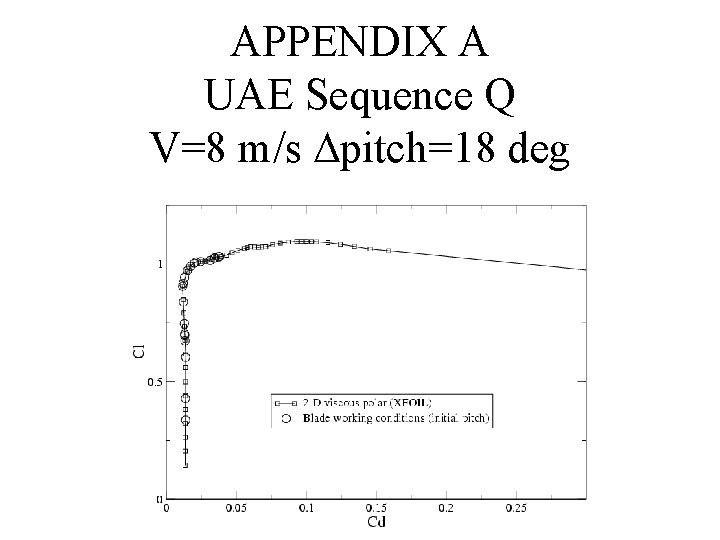

2 -D VISCOUS POLAR

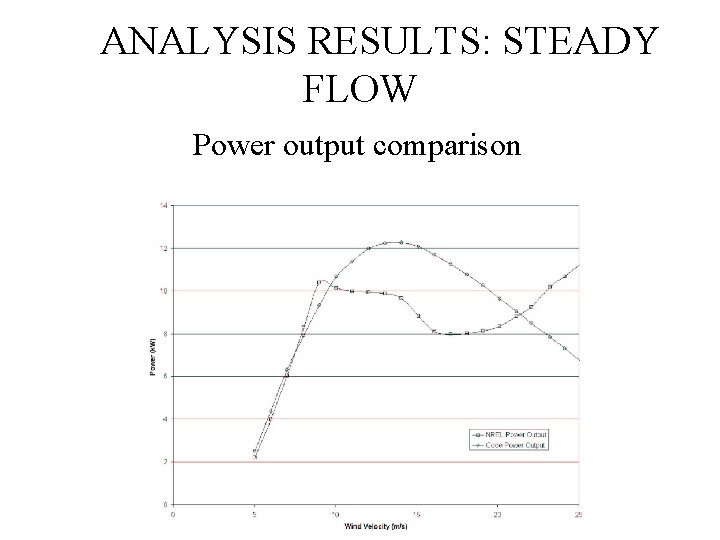

ANALYSIS RESULTS: STEADY FLOW Power output comparison

YAWED FLOW Time-averaged power versus velocity at different yaw angles =5 deg =10 deg =20 deg =30 deg

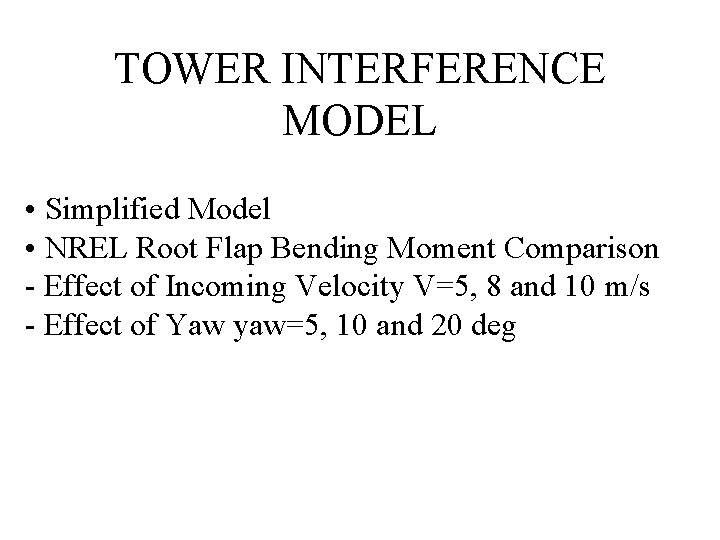

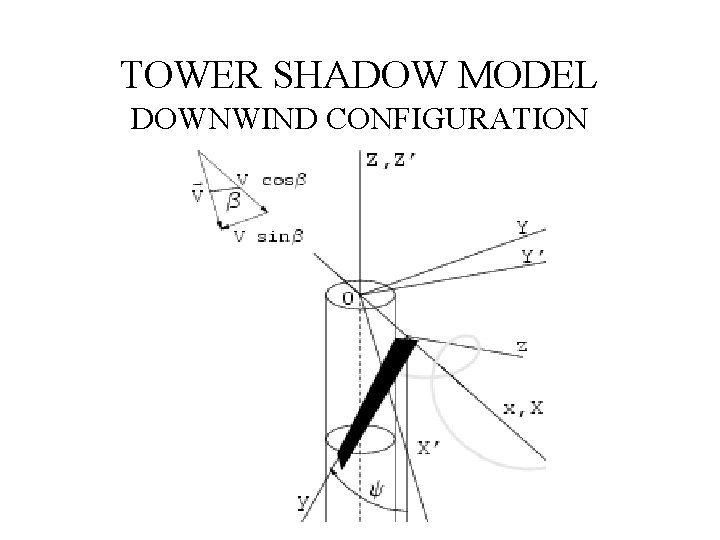

TOWER INTERFERENCE MODEL • Simplified Model • NREL Root Flap Bending Moment Comparison - Effect of Incoming Velocity V=5, 8 and 10 m/s - Effect of Yaw yaw=5, 10 and 20 deg

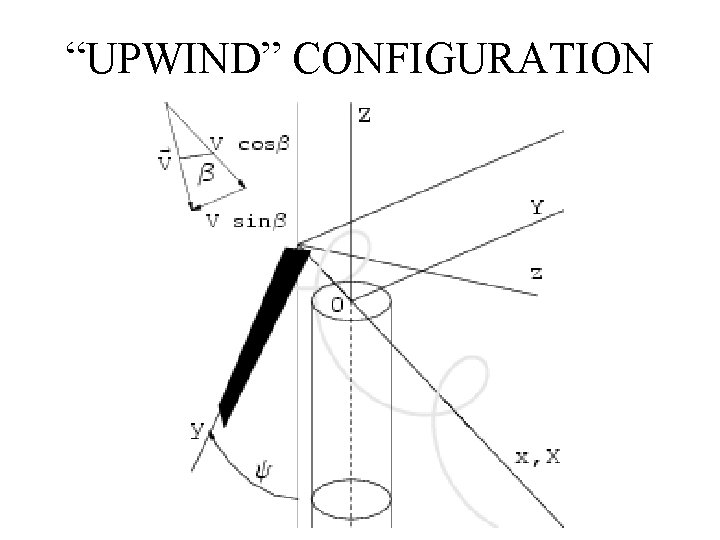

“UPWIND” CONFIGURATION

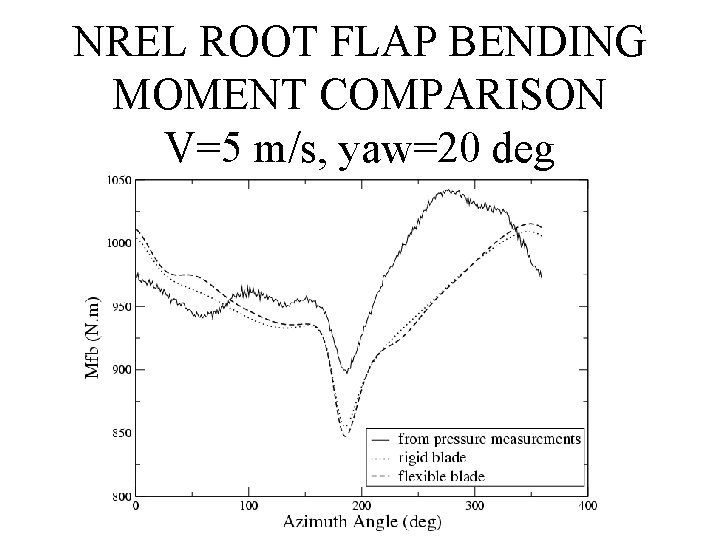

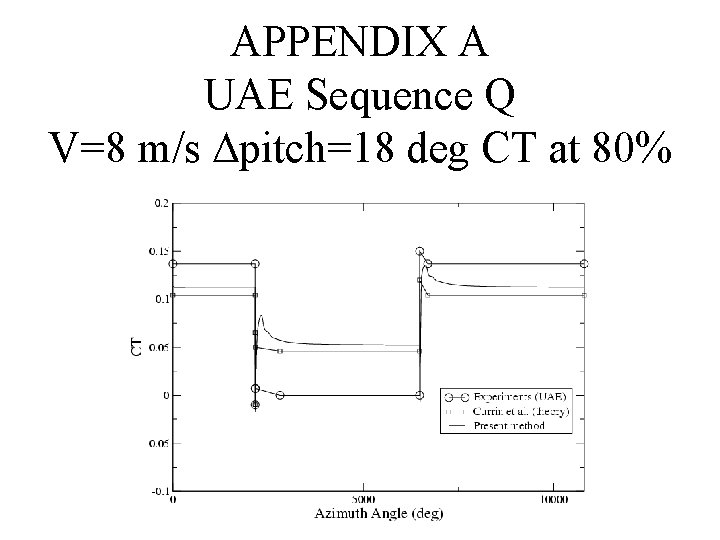

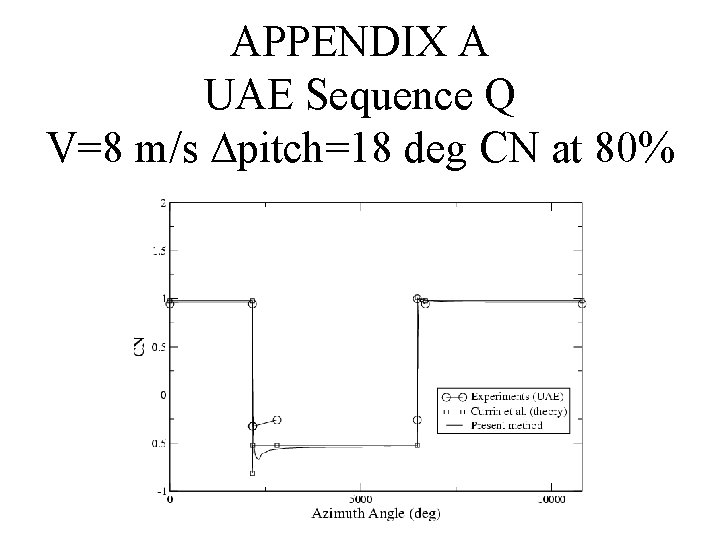

NREL ROOT FLAP BENDING MOMENT COMPARISON V=5 m/s, yaw=20 deg

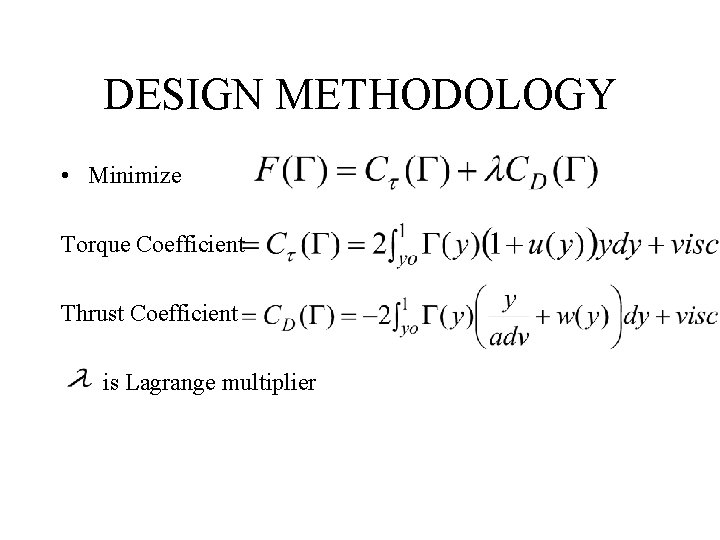

DESIGN METHODOLOGY • Minimize Torque Coefficient Thrust Coefficient is Lagrange multiplier

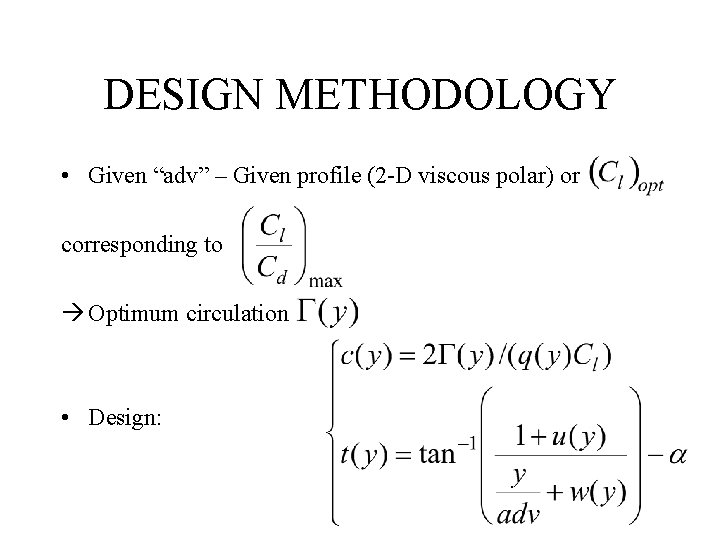

DESIGN METHODOLOGY • Given “adv” – Given profile (2 -D viscous polar) or corresponding to à Optimum circulation • Design:

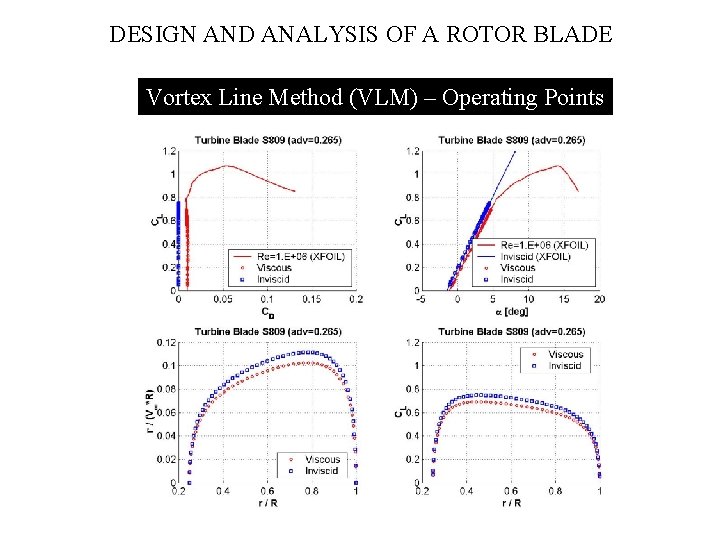

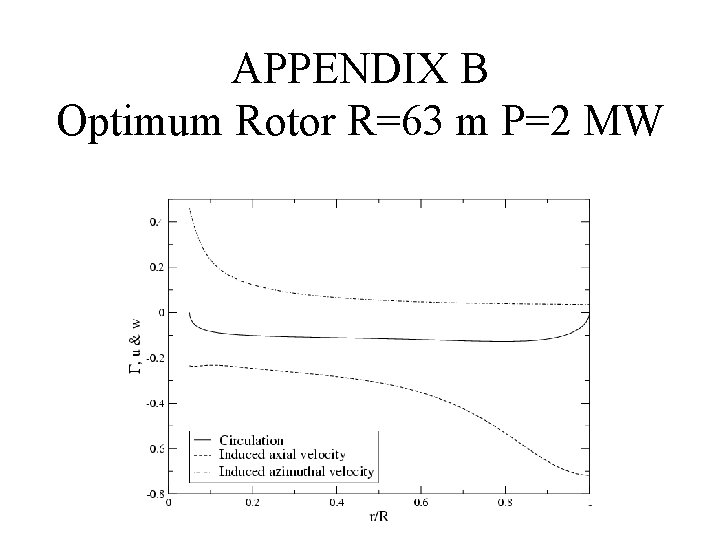

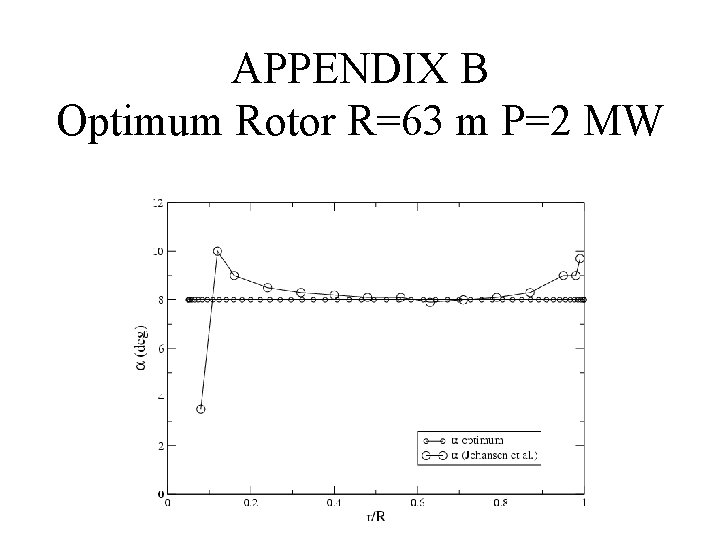

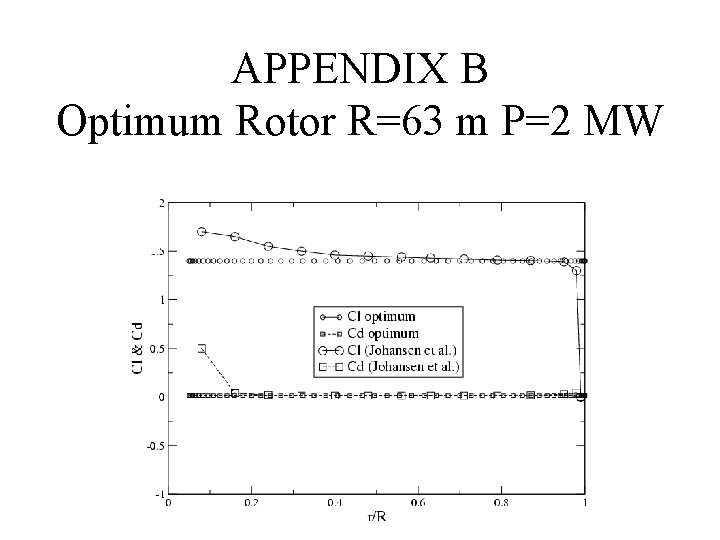

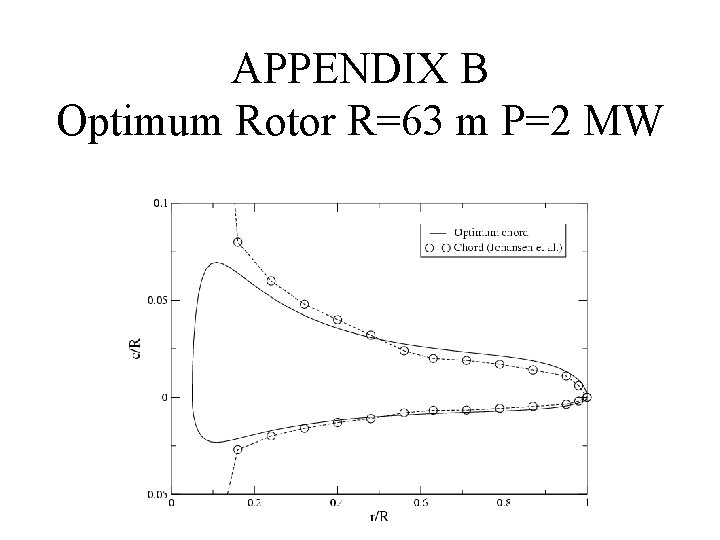

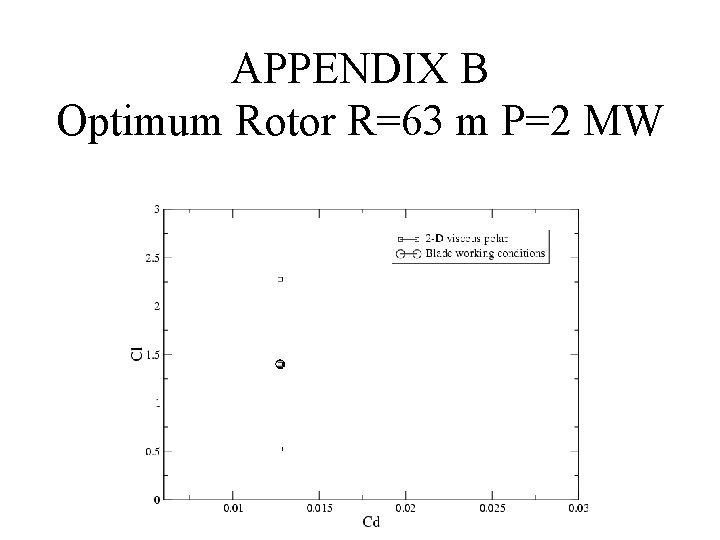

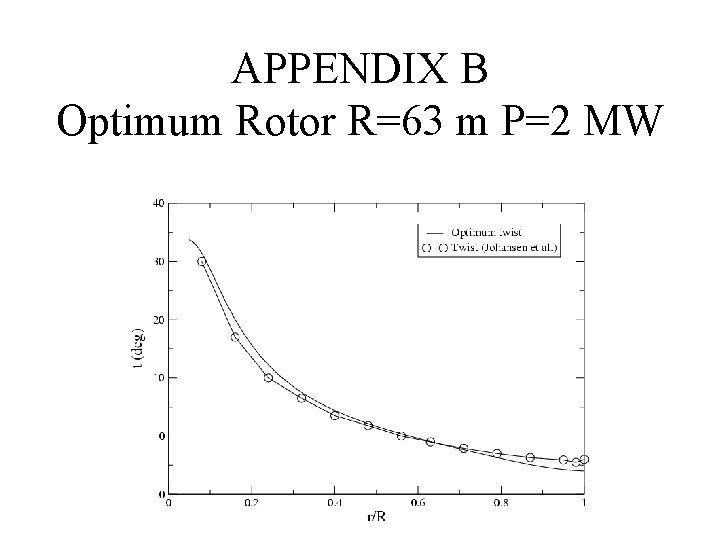

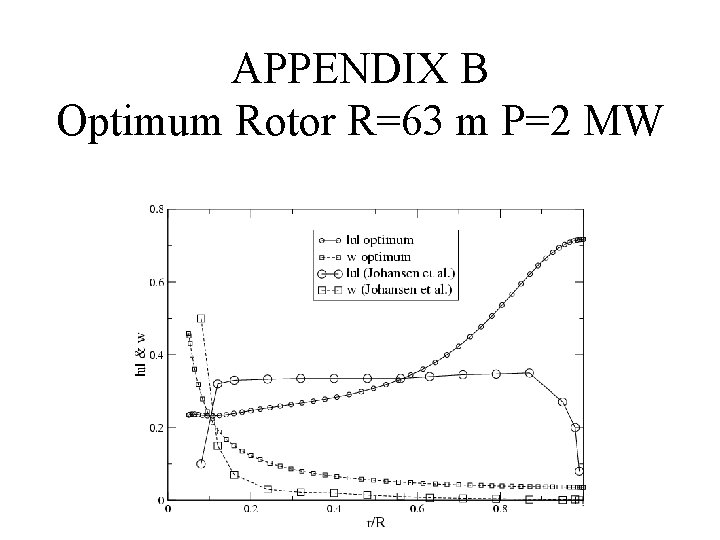

DESIGN AND ANALYSIS OF A ROTOR BLADE DESIGN TEST CASE Vortex Line Method (VLM) – Operating Points

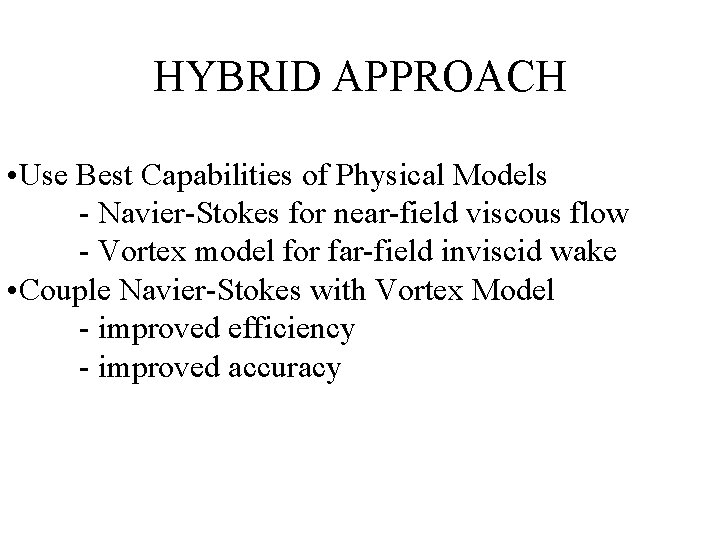

HYBRID APPROACH • Use Best Capabilities of Physical Models - Navier-Stokes for near-field viscous flow - Vortex model for far-field inviscid wake • Couple Navier-Stokes with Vortex Model - improved efficiency - improved accuracy

HYBRID METHODOLOGY Navier-Stokes Biot-Savart Law (discrete) Boundary of Navier-Stokes Zone Vortex Method Bound Vortex Converged for … Vortex Filament Coupling Methodology

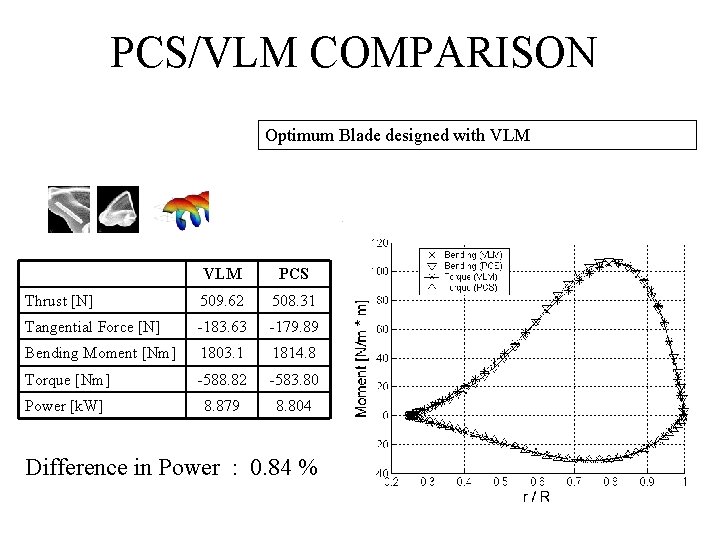

PCS/VLM COMPARISON Optimum Blade designed with VLM PCS Thrust [N] 509. 62 508. 31 Tangential Force [N] -183. 63 -179. 89 Bending Moment [Nm] 1803. 1 1814. 8 Torque [Nm] -588. 82 -583. 80 Power [k. W] 8. 879 8. 804 Difference in Power : 0. 84 %

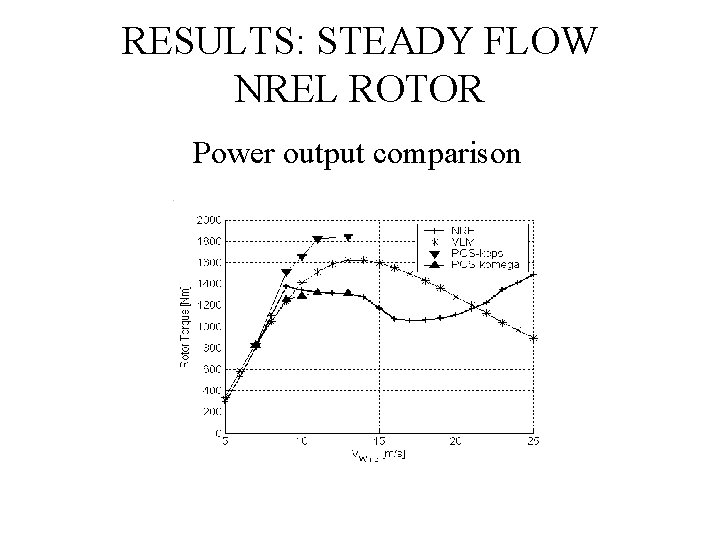

RESULTS: STEADY FLOW NREL ROTOR Power output comparison

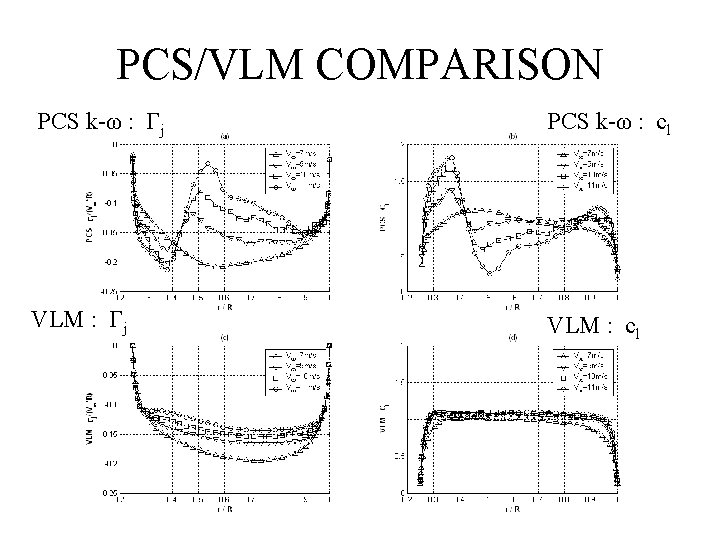

PCS/VLM COMPARISON PCS k-ω : Γj PCS k-ω : cl VLM : Γj VLM : cl

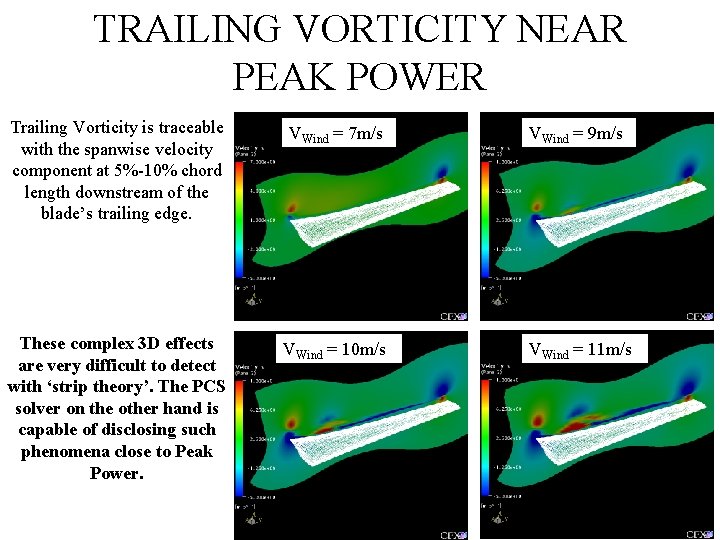

TRAILING VORTICITY NEAR PEAK POWER Trailing Vorticity is traceable with the spanwise velocity component at 5%-10% chord length downstream of the blade’s trailing edge. VWind = 7 m/s VWind = 9 m/s These complex 3 D effects are very difficult to detect with ‘strip theory’. The PCS solver on the other hand is capable of disclosing such phenomena close to Peak Power. VWind = 10 m/s VWind = 11 m/s

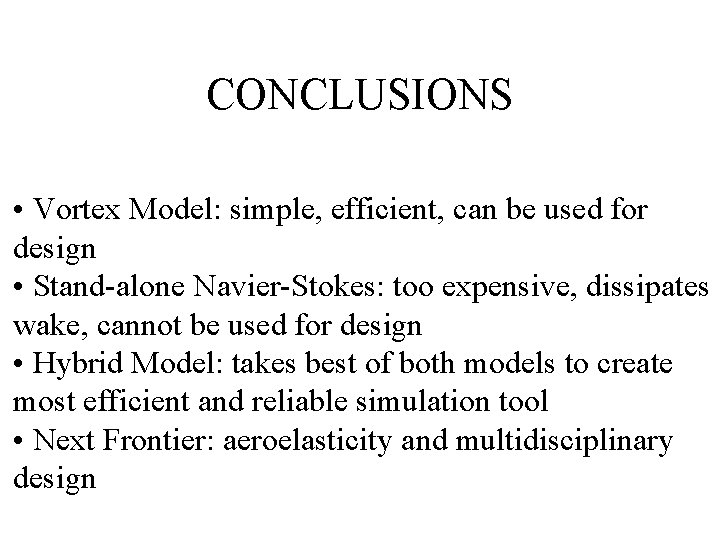

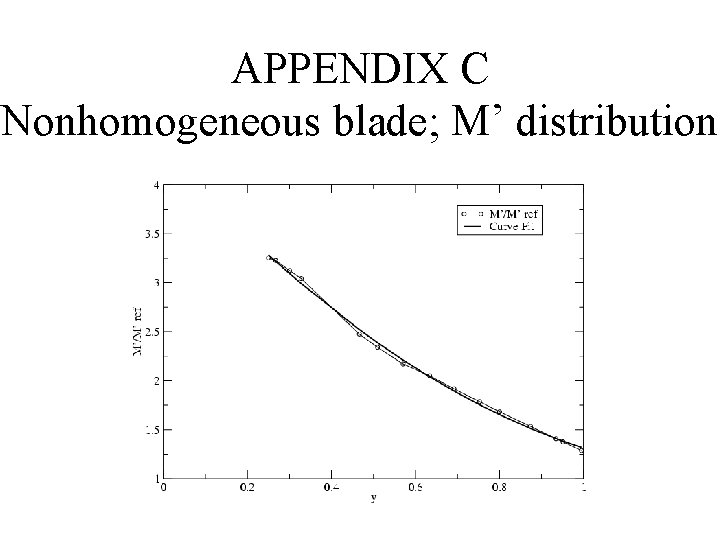

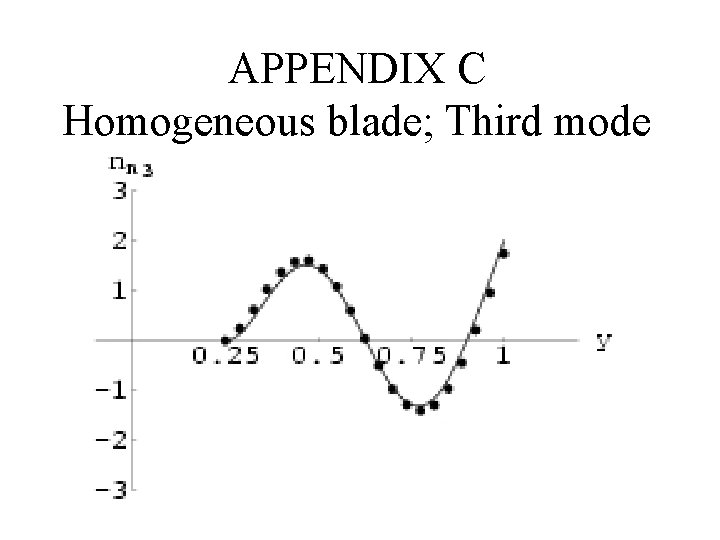

CONCLUSIONS • Vortex Model: simple, efficient, can be used for design • Stand-alone Navier-Stokes: too expensive, dissipates wake, cannot be used for design • Hybrid Model: takes best of both models to create most efficient and reliable simulation tool • Next Frontier: aeroelasticity and multidisciplinary design

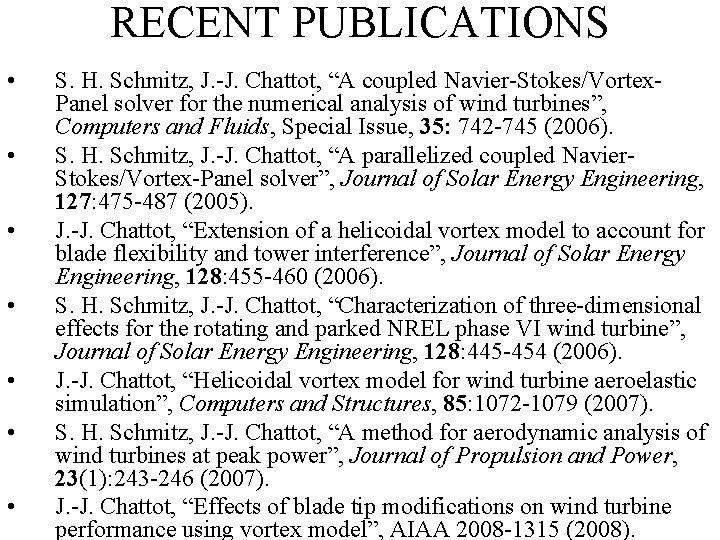

RECENT PUBLICATIONS • • S. H. Schmitz, J. -J. Chattot, “A coupled Navier-Stokes/Vortex. Panel solver for the numerical analysis of wind turbines”, Computers and Fluids, Special Issue, 35: 742 -745 (2006). S. H. Schmitz, J. -J. Chattot, “A parallelized coupled Navier. Stokes/Vortex-Panel solver”, Journal of Solar Energy Engineering, 127: 475 -487 (2005). J. -J. Chattot, “Extension of a helicoidal vortex model to account for blade flexibility and tower interference”, Journal of Solar Energy Engineering, 128: 455 -460 (2006). S. H. Schmitz, J. -J. Chattot, “Characterization of three-dimensional effects for the rotating and parked NREL phase VI wind turbine”, Journal of Solar Energy Engineering, 128: 445 -454 (2006). J. -J. Chattot, “Helicoidal vortex model for wind turbine aeroelastic simulation”, Computers and Structures, 85: 1072 -1079 (2007). S. H. Schmitz, J. -J. Chattot, “A method for aerodynamic analysis of wind turbines at peak power”, Journal of Propulsion and Power, 23(1): 243 -246 (2007). J. -J. Chattot, “Effects of blade tip modifications on wind turbine performance using vortex model”, AIAA 2008 -1315 (2008).
