Numerical Measures Numerical Measures Measures of Central Tendency
![Numerical Measures Numerical Measures](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-1.jpg)

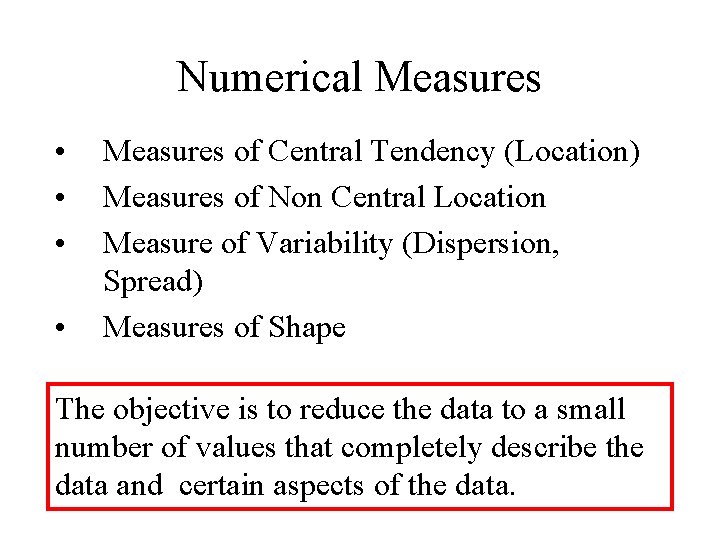

![Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-2.jpg)
![Measures of Central Tendency (Location) • Mean • Median • Mode Central Location Measures of Central Tendency (Location) • Mean • Median • Mode Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-3.jpg)

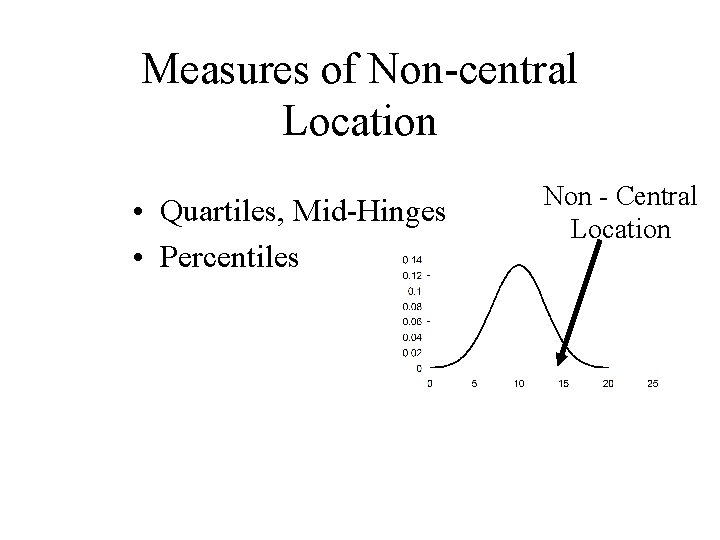

![Measures of Non-central Location • Quartiles, Mid-Hinges • Percentiles Non - Central Location Measures of Non-central Location • Quartiles, Mid-Hinges • Percentiles Non - Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-4.jpg)
![Measure of Variability (Dispersion, Spread) • Variance, standard deviation • Range • Inter-Quartile Range Measure of Variability (Dispersion, Spread) • Variance, standard deviation • Range • Inter-Quartile Range](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-5.jpg)
![Measures of Shape • Skewness • Kurtosis Measures of Shape • Skewness • Kurtosis](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-6.jpg)
![Summation Notation Summation Notation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-7.jpg)
![Summation Notation Let x 1, x 2, x 3, … xn denote a set Summation Notation Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-8.jpg)
![Example Let x 1, x 2, x 3, x 4, x 5 denote a Example Let x 1, x 2, x 3, x 4, x 5 denote a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-9.jpg)
![Then the symbol denotes the sum of these 5 numbers x 1 + x Then the symbol denotes the sum of these 5 numbers x 1 + x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-10.jpg)
![Meaning of parts of summation notation Final value for i each term of the Meaning of parts of summation notation Final value for i each term of the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-11.jpg)
![Example Again let x 1, x 2, x 3, x 4, x 5 denote Example Again let x 1, x 2, x 3, x 4, x 5 denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-12.jpg)
![Then the symbol denotes the sum of these 3 numbers = 153 + 213 Then the symbol denotes the sum of these 3 numbers = 153 + 213](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-13.jpg)
![Measures of Central Location (Mean) Measures of Central Location (Mean)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-14.jpg)
![Mean Let x 1, x 2, x 3, … xn denote a set of Mean Let x 1, x 2, x 3, … xn denote a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-15.jpg)
![Example Again let x 1, x 2, x 3, x 4, x 5 denote Example Again let x 1, x 2, x 3, x 4, x 5 denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-16.jpg)
![Then the mean of the 5 numbers is: Then the mean of the 5 numbers is:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-17.jpg)
![Interpretation of the Mean Let x 1, x 2, x 3, … xn denote Interpretation of the Mean Let x 1, x 2, x 3, … xn denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-18.jpg)
![x 1 x 3 x 4 x 2 xn x 1 x 3 x 4 x 2 xn](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-19.jpg)
![In the Example 7 0 10 10 13 21 15 20 In the Example 7 0 10 10 13 21 15 20](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-20.jpg)
![The mean, , is also approximately the center of gravity of a histogram The mean, , is also approximately the center of gravity of a histogram](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-21.jpg)
![Measures of Central Location (Median) Measures of Central Location (Median)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-22.jpg)
![The Median Let x 1, x 2, x 3, … xn denote a set The Median Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-23.jpg)
![If the number of observations is odd there will be one observation in the If the number of observations is odd there will be one observation in the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-24.jpg)
![Example Again let x 1, x 2, x 3 , x 4, x 5 Example Again let x 1, x 2, x 3 , x 4, x 5](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-25.jpg)
![The numbers arranged in order are: 7 10 13 15 21 Unique “Middle” observation The numbers arranged in order are: 7 10 13 15 21 Unique “Middle” observation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-26.jpg)
![Example 2 Let x 1, x 2, x 3 , x 4, x 5 Example 2 Let x 1, x 2, x 3 , x 4, x 5](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-27.jpg)
![Median = average of two “middle” observations = Median = average of two “middle” observations =](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-28.jpg)

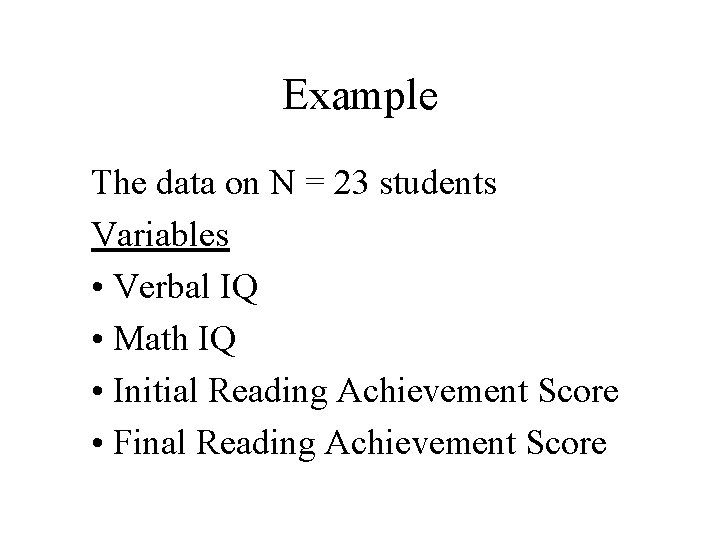

![Example The data on N = 23 students Variables • Verbal IQ • Math Example The data on N = 23 students Variables • Verbal IQ • Math](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-29.jpg)

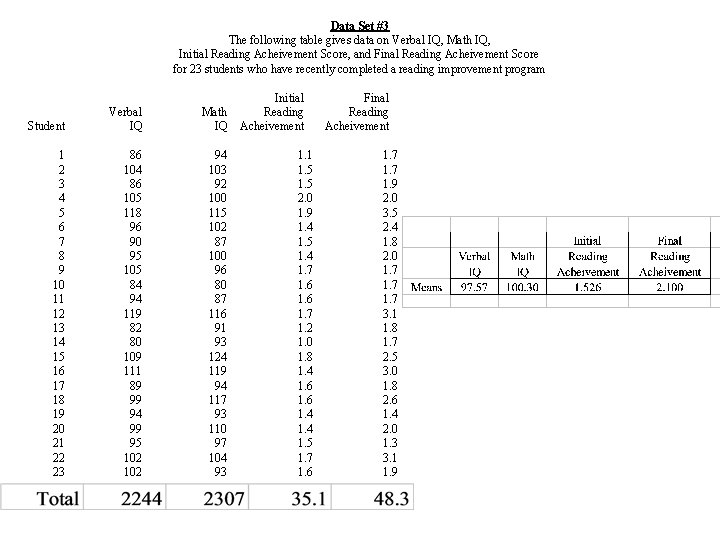

![Student Verbal IQ 1 2 3 4 5 6 7 8 9 10 Student Verbal IQ 1 2 3 4 5 6 7 8 9 10](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-30.jpg)

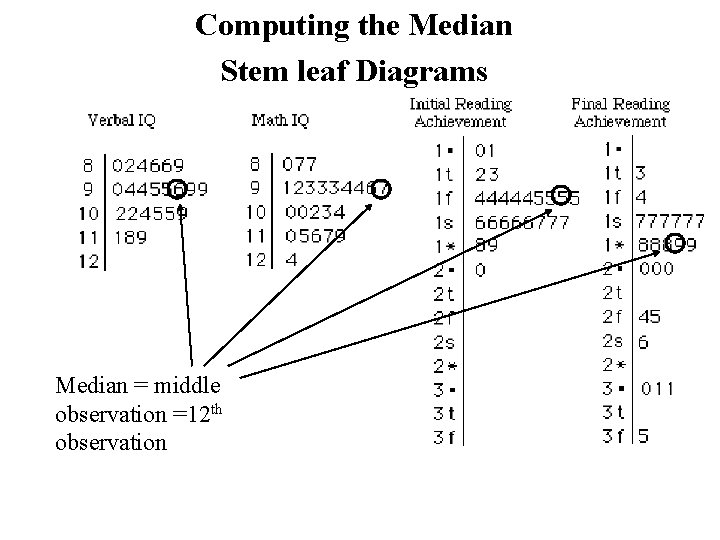

![Computing the Median Stem leaf Diagrams Median = middle observation =12 th observation Computing the Median Stem leaf Diagrams Median = middle observation =12 th observation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-31.jpg)

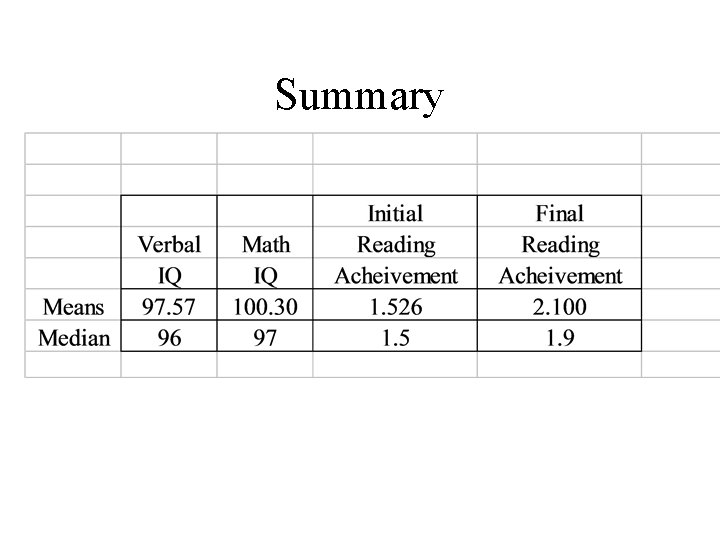

![Summary Summary](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-32.jpg)

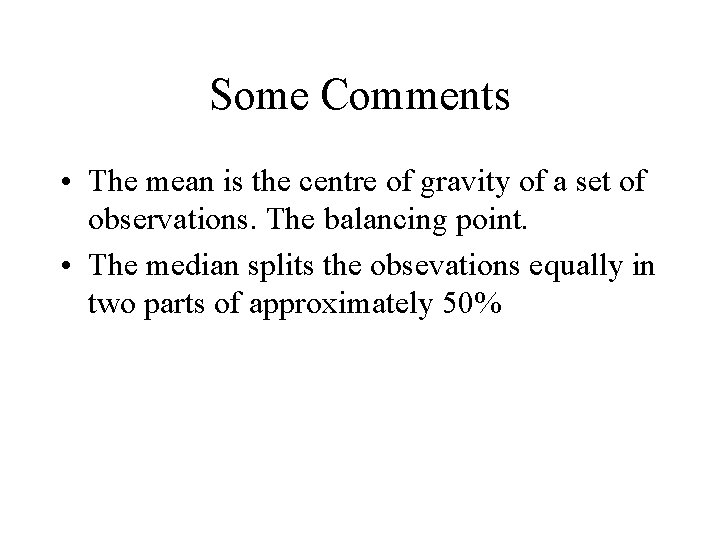

![Some Comments • The mean is the centre of gravity of a set of Some Comments • The mean is the centre of gravity of a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-33.jpg)

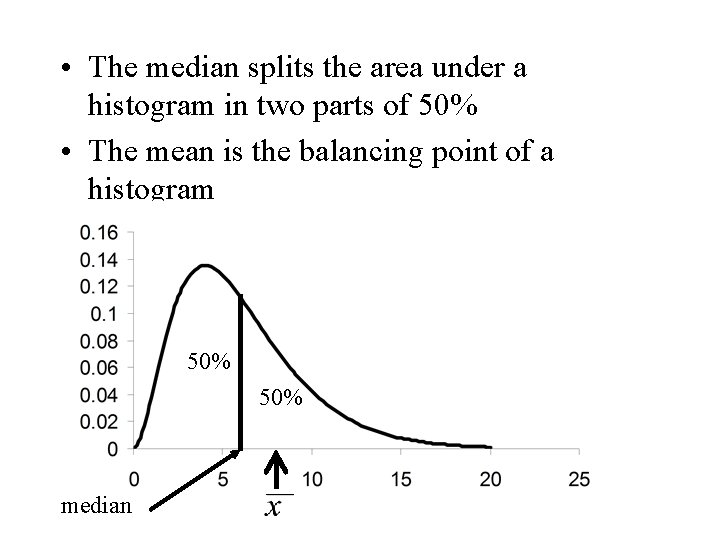

![• The median splits the area under a histogram in two parts of • The median splits the area under a histogram in two parts of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-34.jpg)

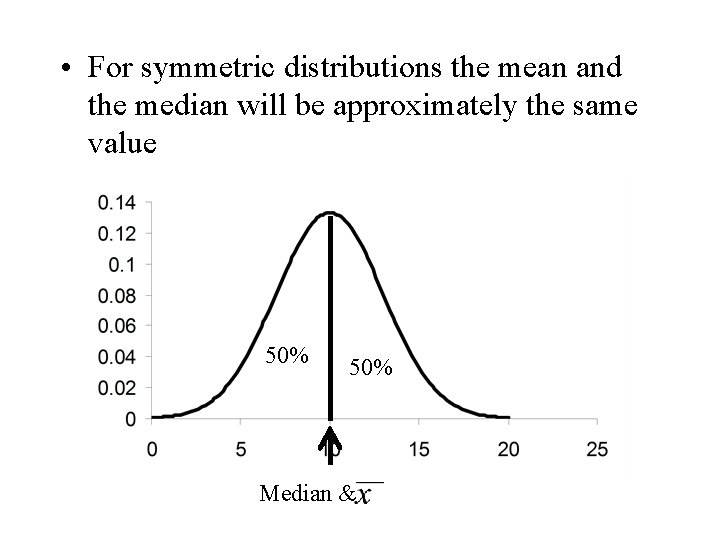

![• For symmetric distributions the mean and the median will be approximately the • For symmetric distributions the mean and the median will be approximately the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-35.jpg)

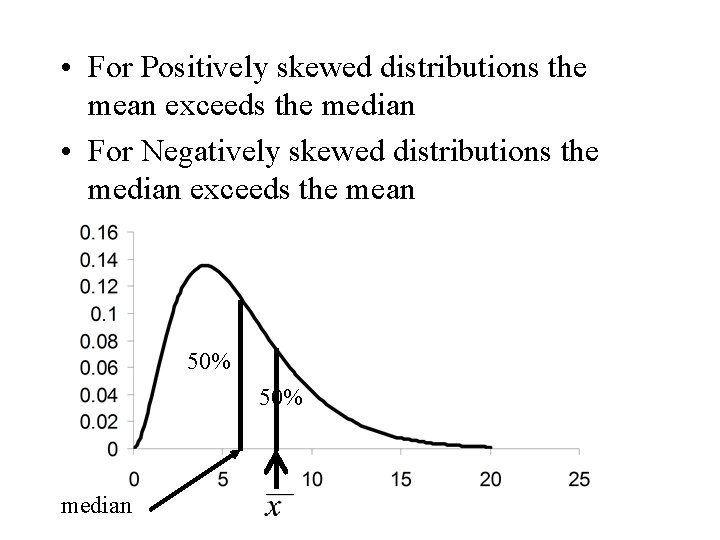

![• For Positively skewed distributions the mean exceeds the median • For Negatively • For Positively skewed distributions the mean exceeds the median • For Negatively](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-36.jpg)
![• An outlier is a “wild” observation in the data • Outliers occur • An outlier is a “wild” observation in the data • Outliers occur](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-37.jpg)

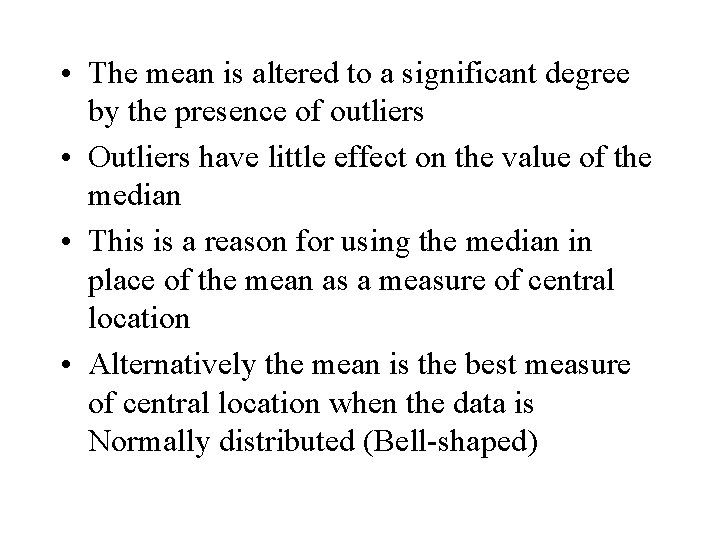

![• The mean is altered to a significant degree by the presence of • The mean is altered to a significant degree by the presence of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-38.jpg)
![Review Review](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-39.jpg)

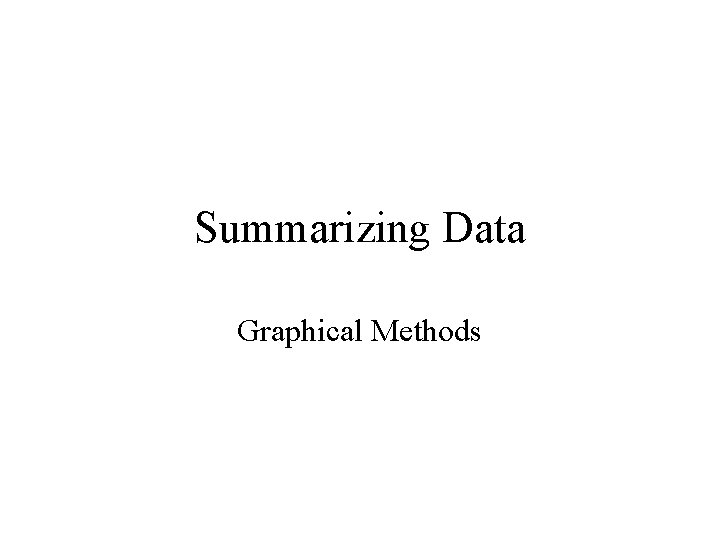

![Summarizing Data Graphical Methods Summarizing Data Graphical Methods](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-40.jpg)

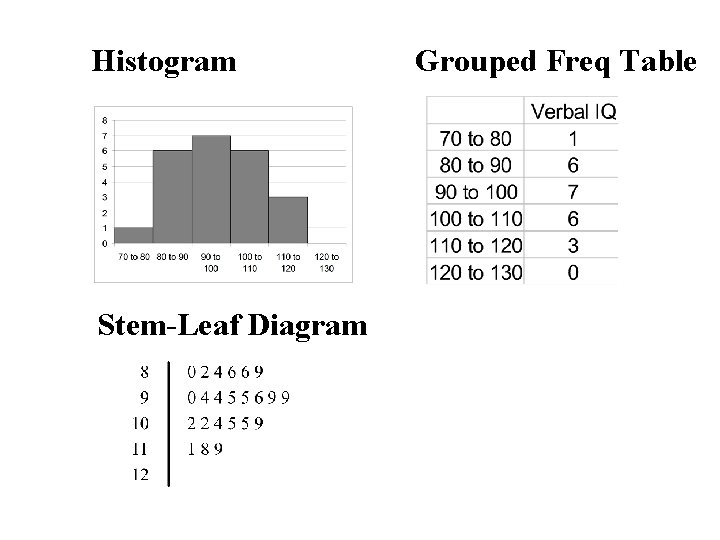

![Histogram Stem-Leaf Diagram Grouped Freq Table Histogram Stem-Leaf Diagram Grouped Freq Table](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-41.jpg)
![Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-42.jpg)
![Measures of Central Location (Mean) Measures of Central Location (Mean)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-43.jpg)
![Mean Let x 1, x 2, x 3, … xn denote a set of Mean Let x 1, x 2, x 3, … xn denote a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-44.jpg)
![Interpretation of the Mean Let x 1, x 2, x 3, … xn denote Interpretation of the Mean Let x 1, x 2, x 3, … xn denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-45.jpg)
![x 1 x 3 x 4 x 2 xn x 1 x 3 x 4 x 2 xn](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-46.jpg)
![The mean, , is also approximately the center of gravity of a histogram The mean, , is also approximately the center of gravity of a histogram](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-47.jpg)
![The Median Let x 1, x 2, x 3, … xn denote a set The Median Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-48.jpg)
![If the number of observations is odd there will be one observation in the If the number of observations is odd there will be one observation in the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-49.jpg)

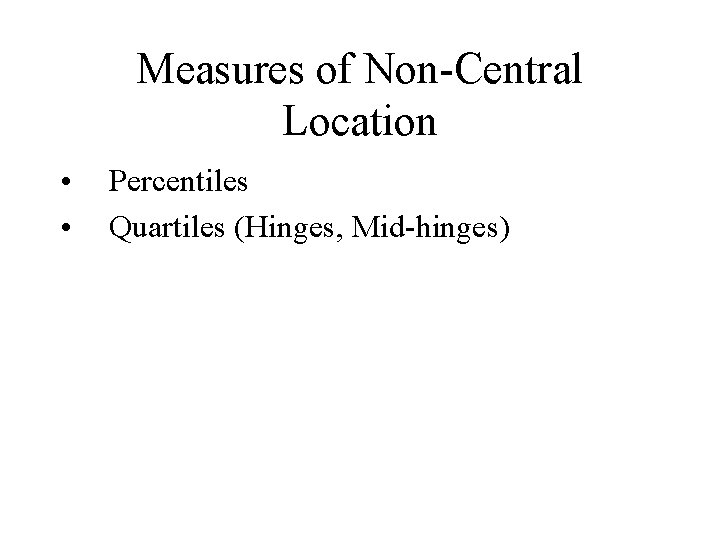

![Measures of Non-Central Location • • Percentiles Quartiles (Hinges, Mid-hinges) Measures of Non-Central Location • • Percentiles Quartiles (Hinges, Mid-hinges)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-50.jpg)
![Definition The P× 100 Percentile is a point , x. P , underneath a Definition The P× 100 Percentile is a point , x. P , underneath a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-51.jpg)

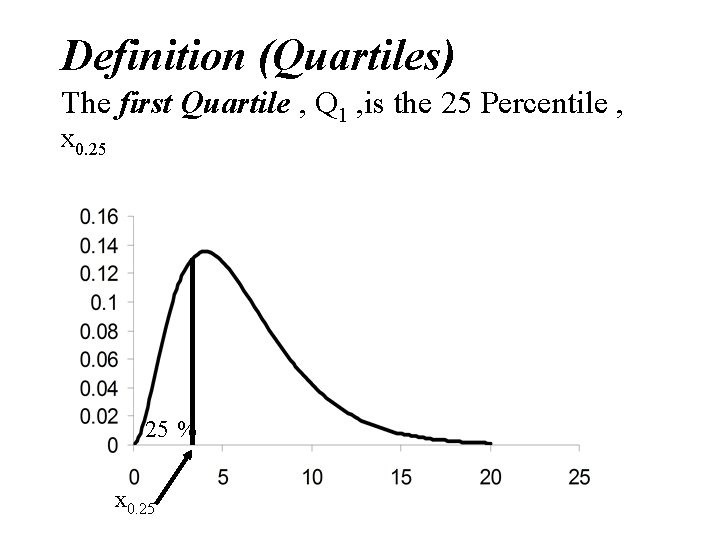

![Definition (Quartiles) The first Quartile , Q 1 , is the 25 Percentile , Definition (Quartiles) The first Quartile , Q 1 , is the 25 Percentile ,](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-52.jpg)

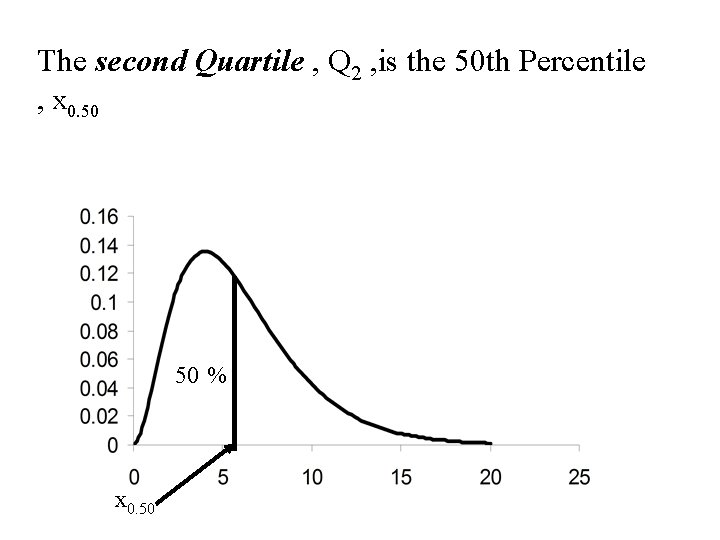

![The second Quartile , Q 2 , is the 50 th Percentile , x The second Quartile , Q 2 , is the 50 th Percentile , x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-53.jpg)
![• The second Quartile , Q 2 , is also the median and • The second Quartile , Q 2 , is also the median and](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-54.jpg)

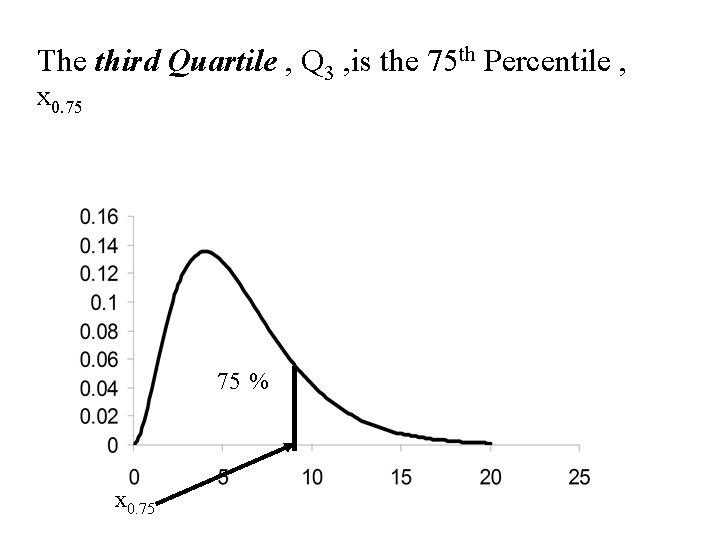

![The third Quartile , Q 3 , is the 75 th Percentile , x The third Quartile , Q 3 , is the 75 th Percentile , x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-55.jpg)

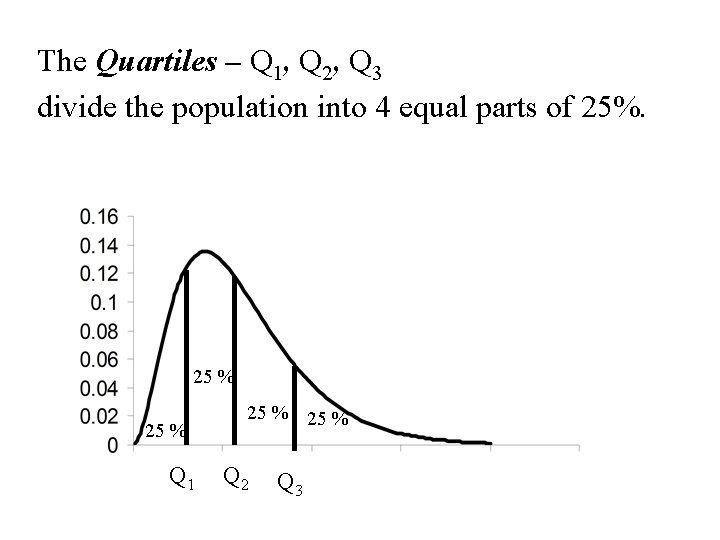

![The Quartiles – Q 1, Q 2, Q 3 divide the population into 4 The Quartiles – Q 1, Q 2, Q 3 divide the population into 4](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-56.jpg)

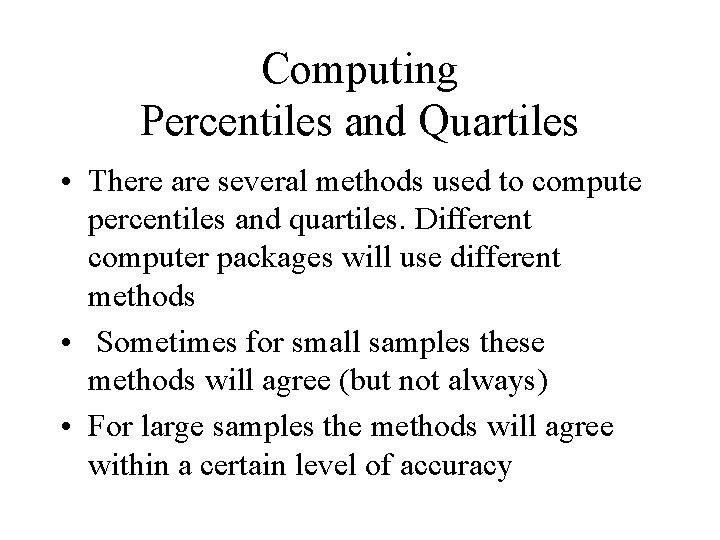

![Computing Percentiles and Quartiles • There are several methods used to compute percentiles and Computing Percentiles and Quartiles • There are several methods used to compute percentiles and](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-57.jpg)

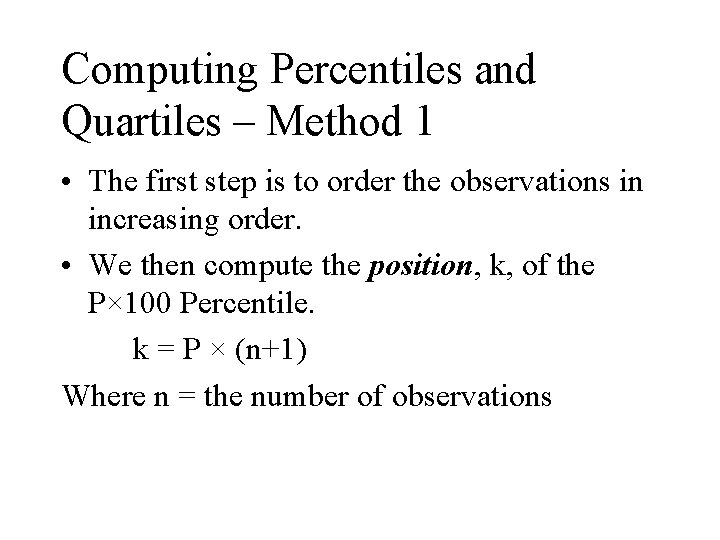

![Computing Percentiles and Quartiles – Method 1 • The first step is to order Computing Percentiles and Quartiles – Method 1 • The first step is to order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-58.jpg)

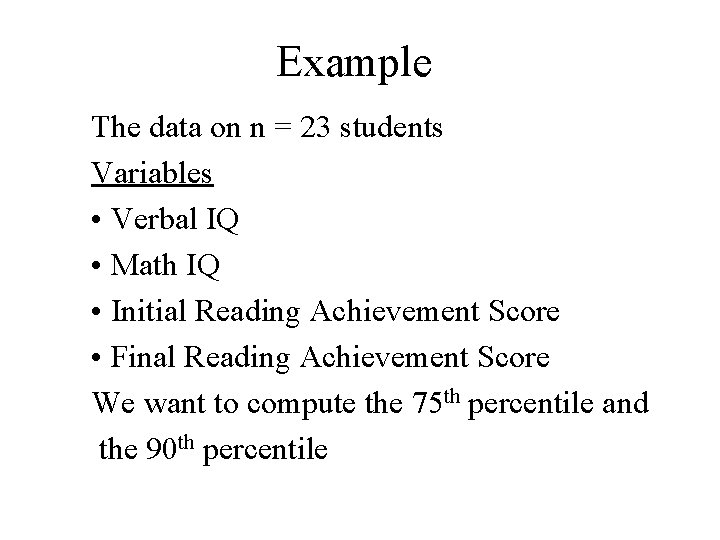

![Example The data on n = 23 students Variables • Verbal IQ • Math Example The data on n = 23 students Variables • Verbal IQ • Math](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-59.jpg)

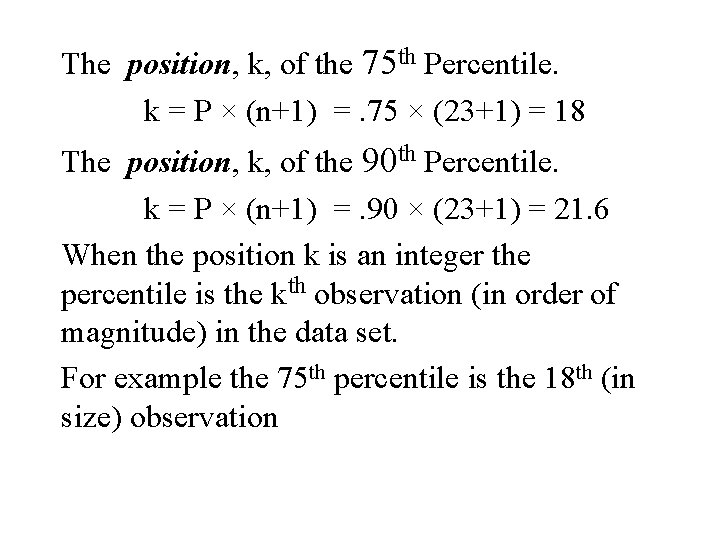

![The position, k, of the 75 th Percentile. k = P × (n+1) =. The position, k, of the 75 th Percentile. k = P × (n+1) =.](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-60.jpg)

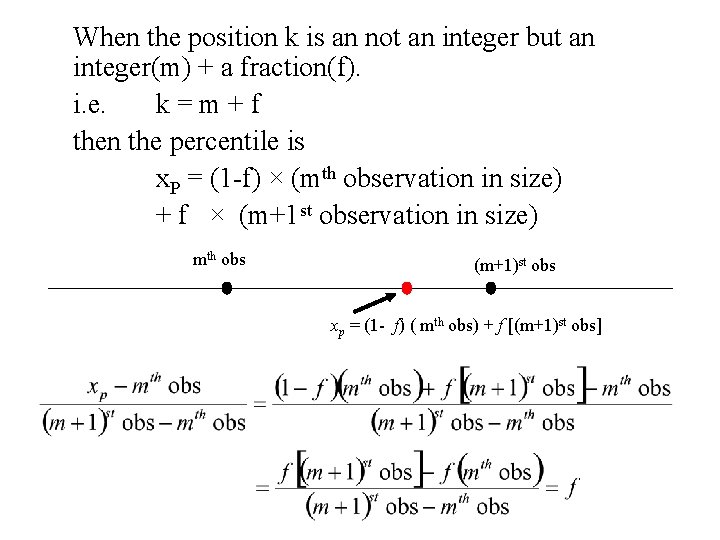

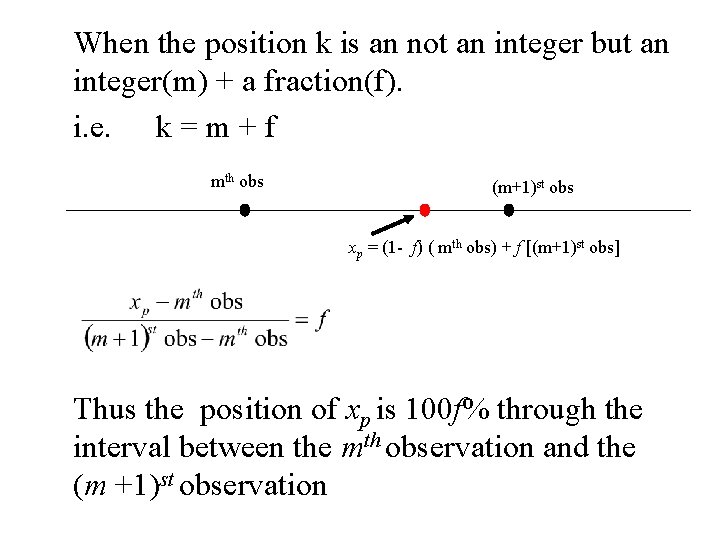

![When the position k is an not an integer but an integer(m) + a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-61.jpg)
![When the position k is an not an integer but an integer(m) + a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-62.jpg)
![When the position k is an not an integer but an integer(m) + a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-63.jpg)
![Example The data Verbal IQ on n = 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-64.jpg)
![x 0. 75 = 75 th percentile = 18 th observation in size =105 x 0. 75 = 75 th percentile = 18 th observation in size =105](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-65.jpg)

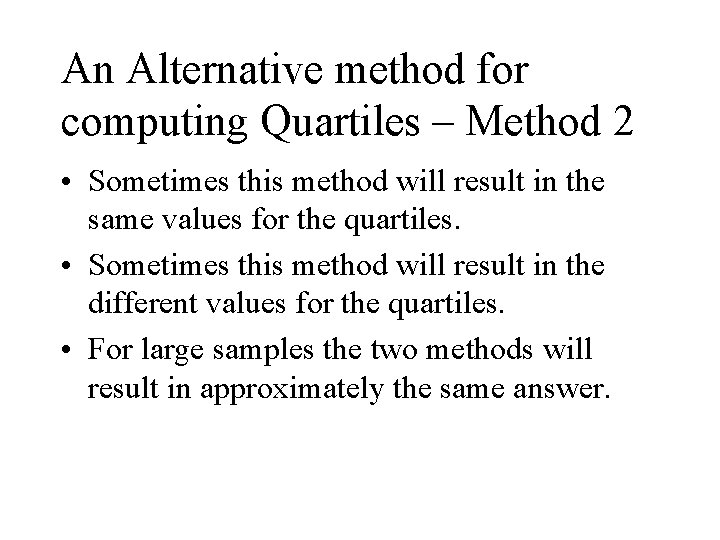

![An Alternative method for computing Quartiles – Method 2 • Sometimes this method will An Alternative method for computing Quartiles – Method 2 • Sometimes this method will](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-66.jpg)

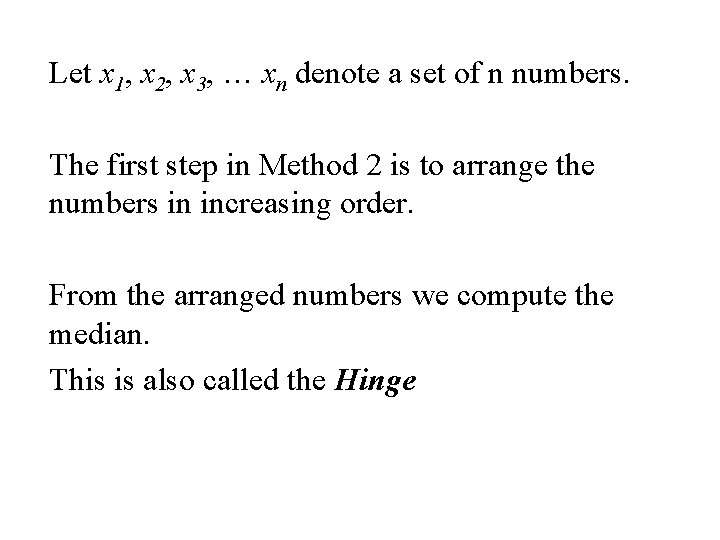

![Let x 1, x 2, x 3, … xn denote a set of n Let x 1, x 2, x 3, … xn denote a set of n](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-67.jpg)

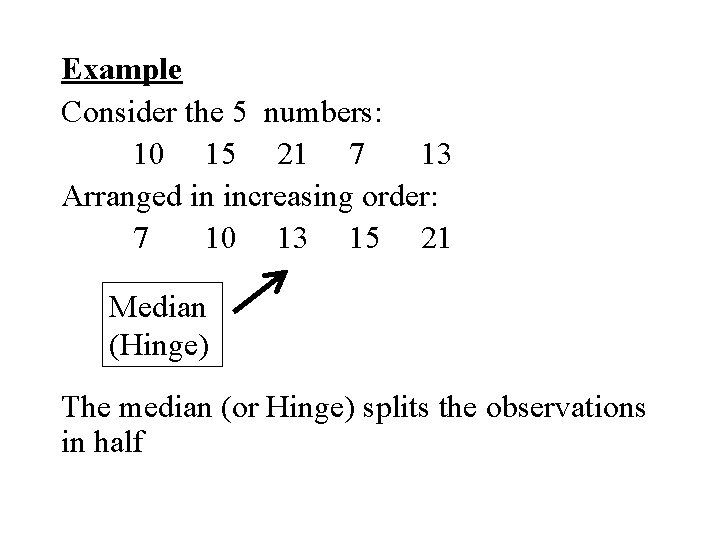

![Example Consider the 5 numbers: 10 15 21 7 13 Arranged in increasing order: Example Consider the 5 numbers: 10 15 21 7 13 Arranged in increasing order:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-68.jpg)

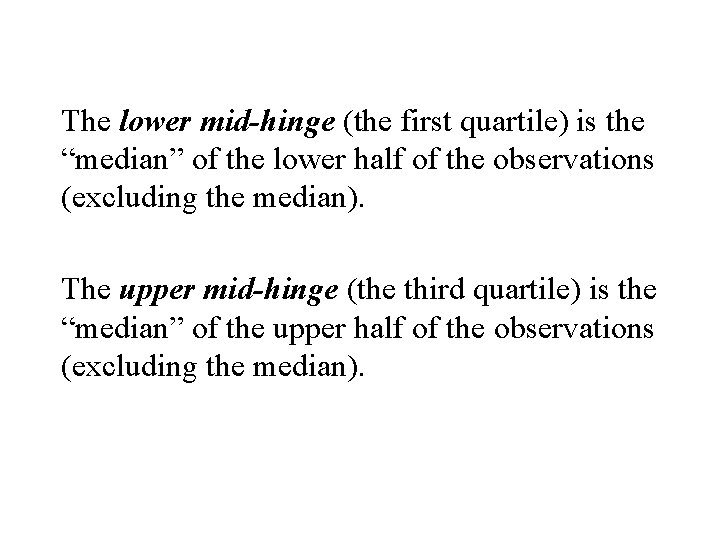

![The lower mid-hinge (the first quartile) is the “median” of the lower half of The lower mid-hinge (the first quartile) is the “median” of the lower half of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-69.jpg)

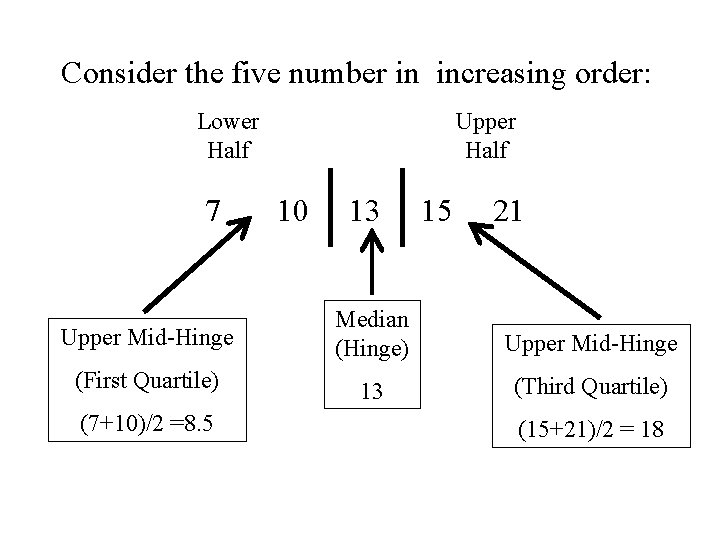

![Consider the five number in increasing order: Lower Upper Half 7 Half 10 13 Consider the five number in increasing order: Lower Upper Half 7 Half 10 13](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-70.jpg)

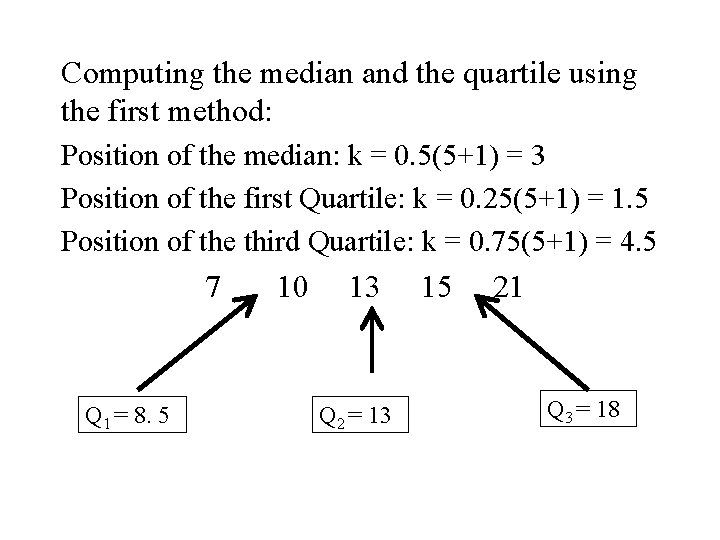

![Computing the median and the quartile using the first method: Position of the median: Computing the median and the quartile using the first method: Position of the median:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-71.jpg)

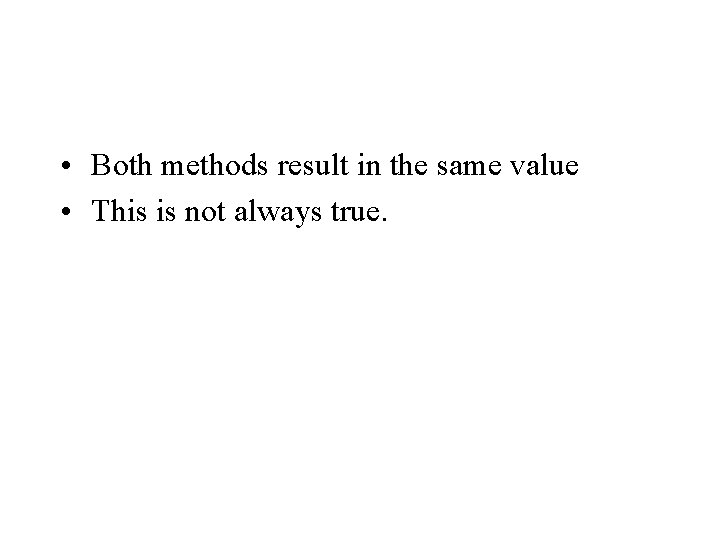

![• Both methods result in the same value • This is not always • Both methods result in the same value • This is not always](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-72.jpg)

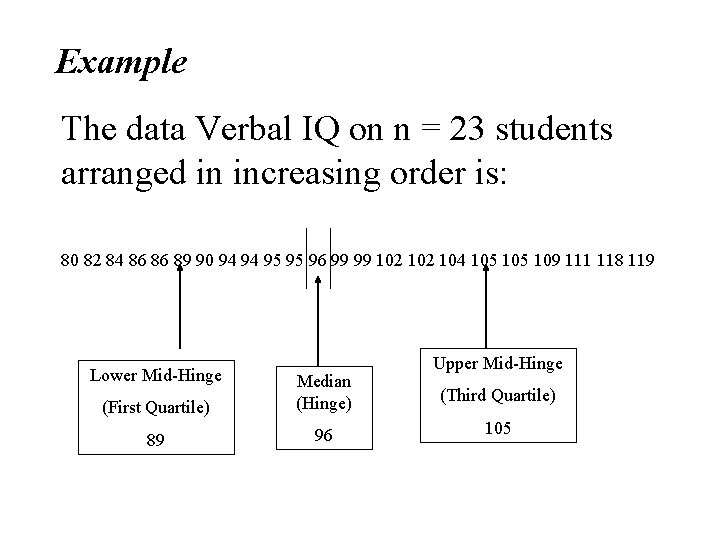

![Example The data Verbal IQ on n = 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-73.jpg)

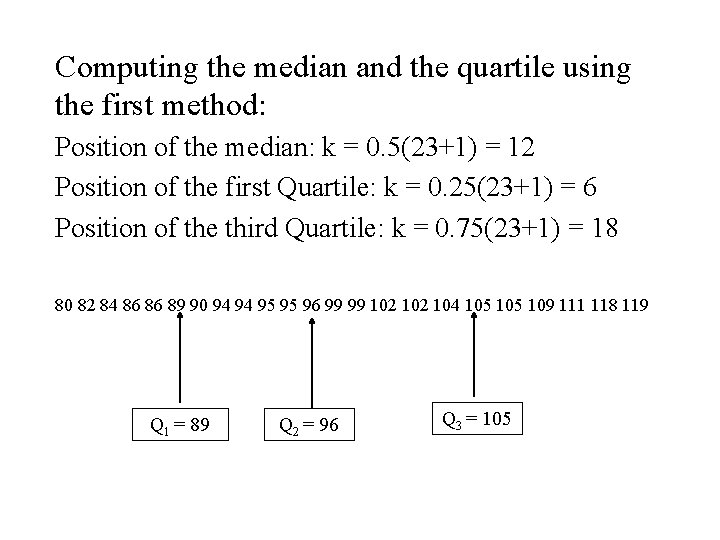

![Computing the median and the quartile using the first method: Position of the median: Computing the median and the quartile using the first method: Position of the median:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-74.jpg)

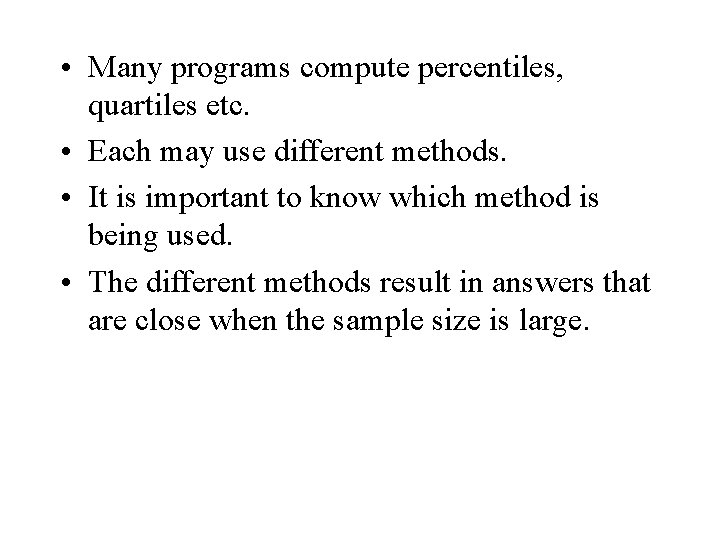

![• Many programs compute percentiles, quartiles etc. • Each may use different methods. • Many programs compute percentiles, quartiles etc. • Each may use different methods.](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-75.jpg)

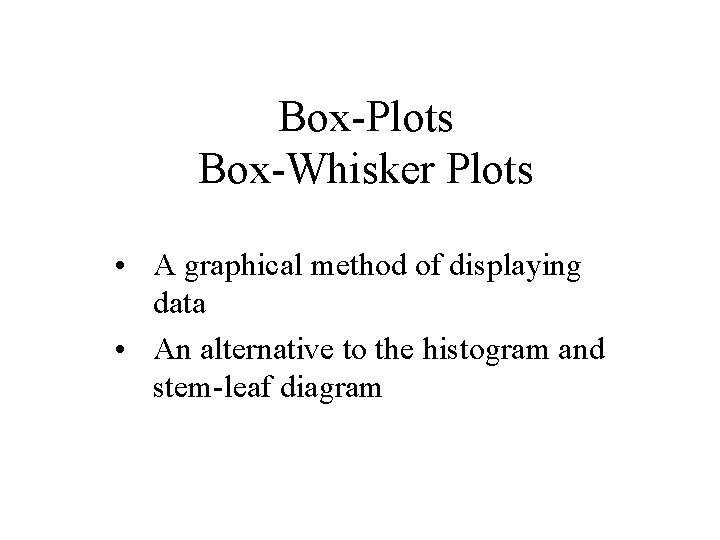

![Box-Plots Box-Whisker Plots • A graphical method of displaying data • An alternative to Box-Plots Box-Whisker Plots • A graphical method of displaying data • An alternative to](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-76.jpg)

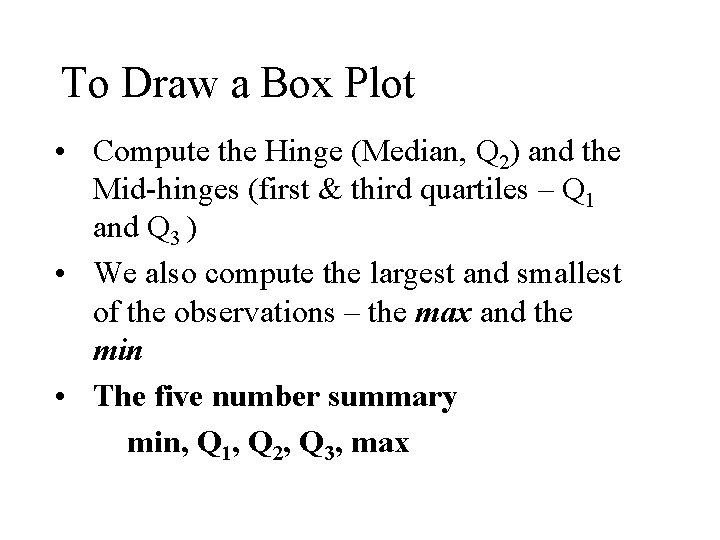

![To Draw a Box Plot • Compute the Hinge (Median, Q 2) and the To Draw a Box Plot • Compute the Hinge (Median, Q 2) and the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-77.jpg)

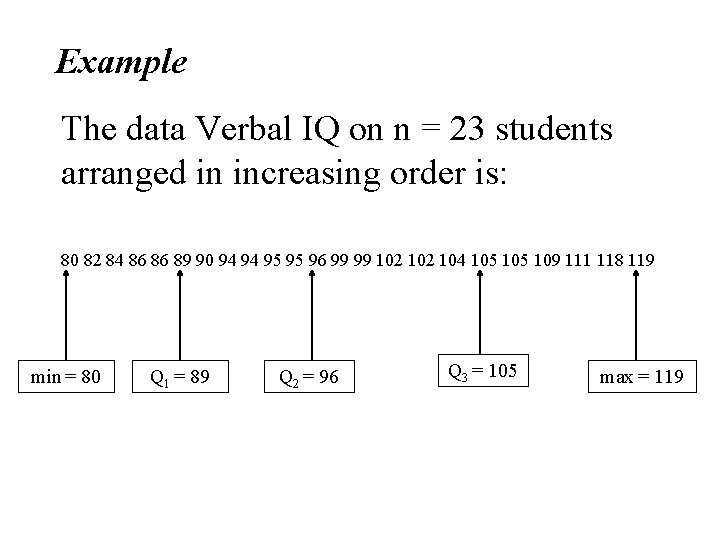

![Example The data Verbal IQ on n = 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-78.jpg)

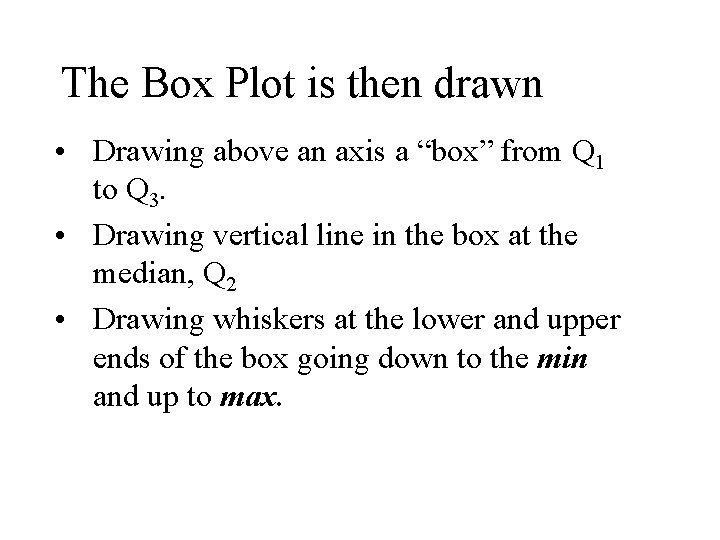

![The Box Plot is then drawn • Drawing above an axis a “box” from The Box Plot is then drawn • Drawing above an axis a “box” from](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-79.jpg)
![Lower Whisker min Upper Whisker Box Q 1 Q 2 Q 3 max Lower Whisker min Upper Whisker Box Q 1 Q 2 Q 3 max](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-80.jpg)
![Example The data Verbal IQ on n = 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-81.jpg)

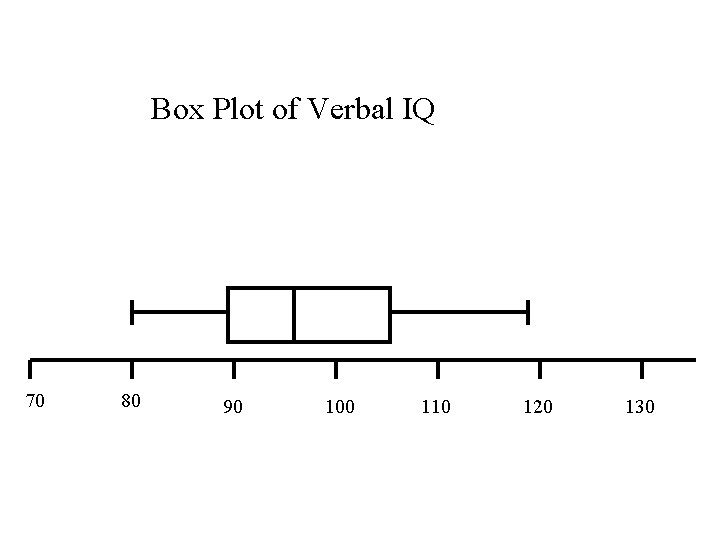

![Box Plot of Verbal IQ 70 80 90 100 110 120 130 Box Plot of Verbal IQ 70 80 90 100 110 120 130](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-82.jpg)

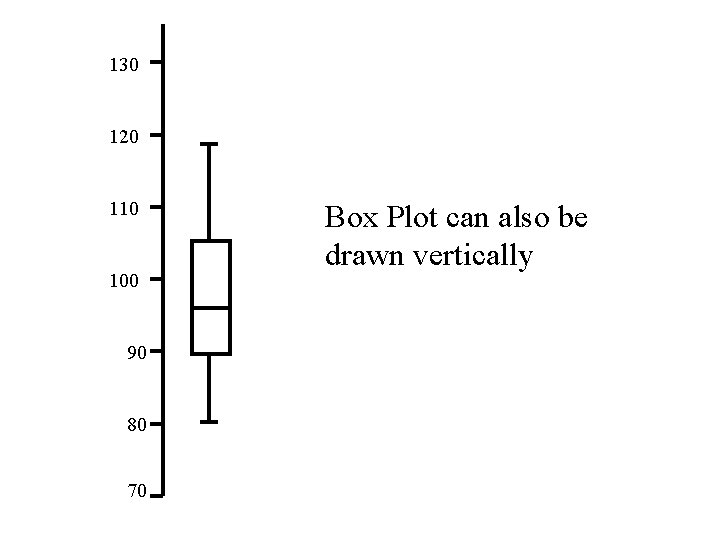

![130 120 110 100 90 80 70 Box Plot can also be drawn vertically 130 120 110 100 90 80 70 Box Plot can also be drawn vertically](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-83.jpg)

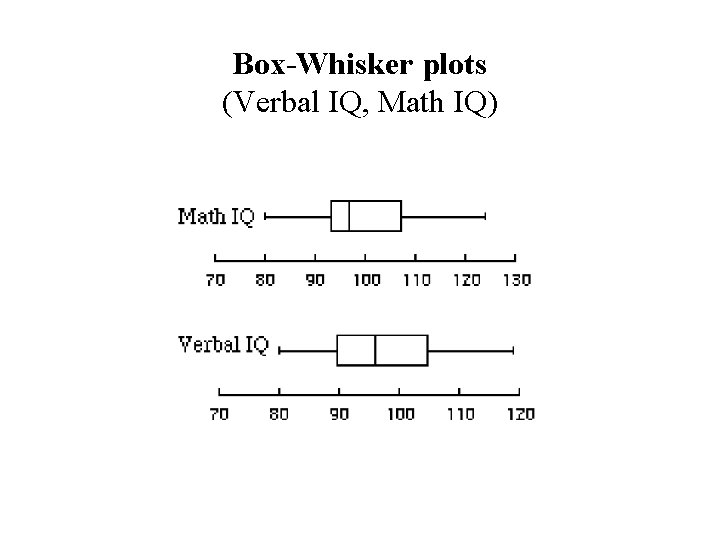

![Box-Whisker plots (Verbal IQ, Math IQ) Box-Whisker plots (Verbal IQ, Math IQ)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-84.jpg)

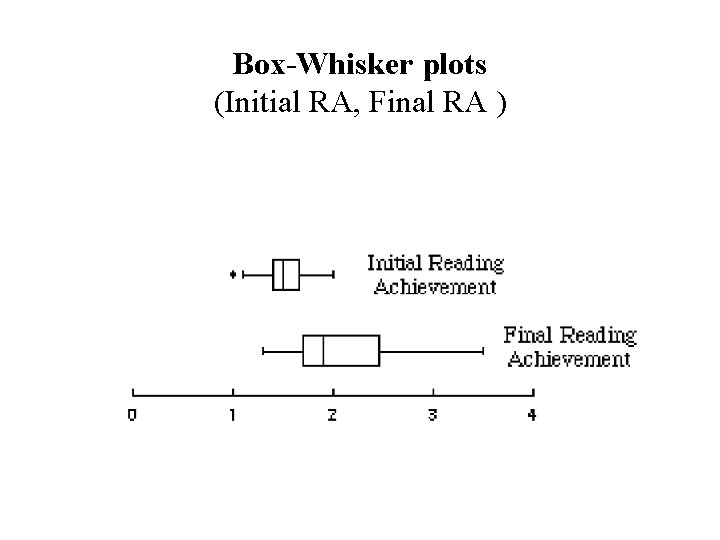

![Box-Whisker plots (Initial RA, Final RA ) Box-Whisker plots (Initial RA, Final RA )](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-85.jpg)

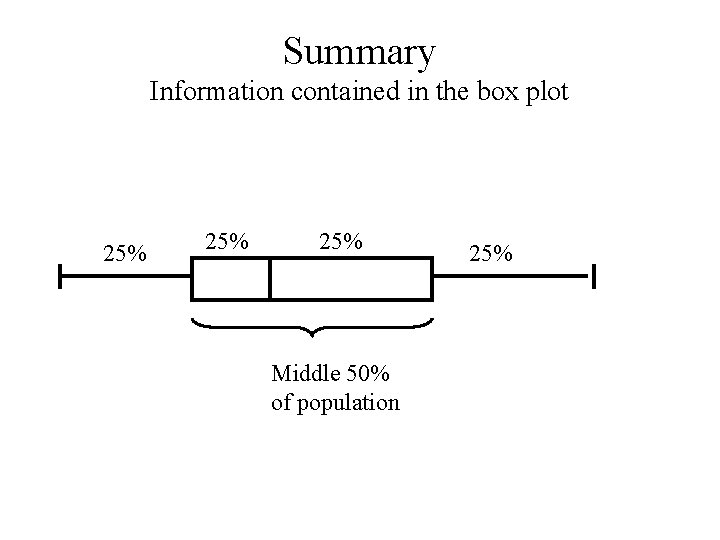

![Summary Information contained in the box plot 25% 25% Middle 50% of population 25% Summary Information contained in the box plot 25% 25% Middle 50% of population 25%](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-86.jpg)
![Advance Box Plots Advance Box Plots](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-87.jpg)

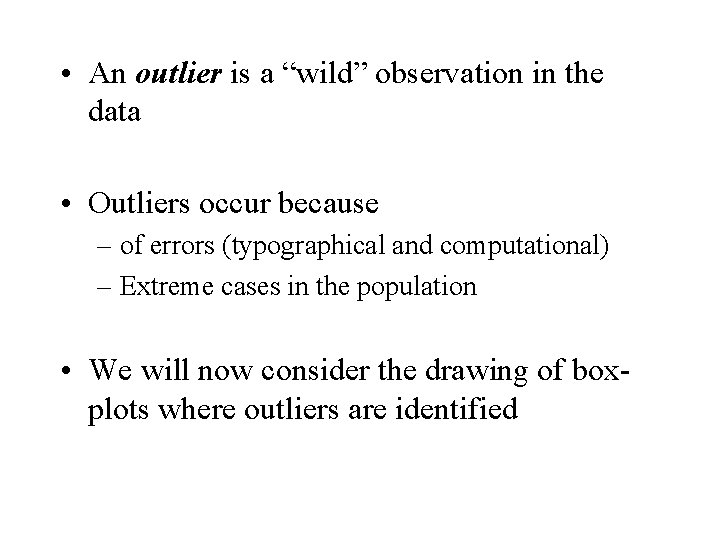

![• An outlier is a “wild” observation in the data • Outliers occur • An outlier is a “wild” observation in the data • Outliers occur](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-88.jpg)

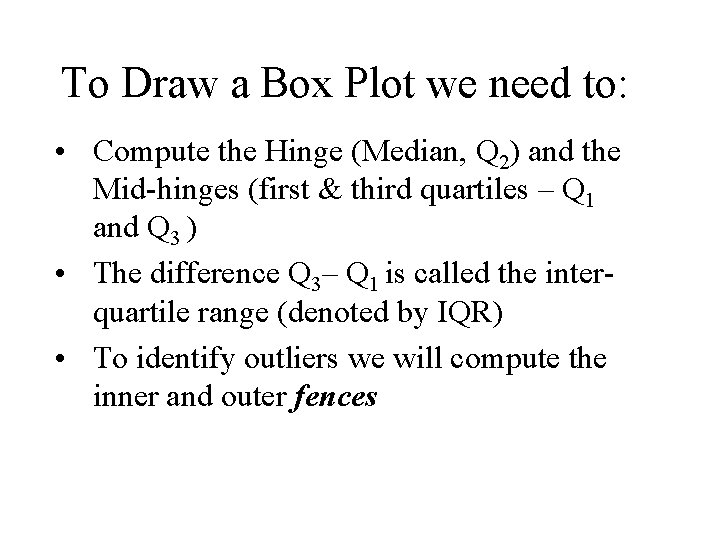

![To Draw a Box Plot we need to: • Compute the Hinge (Median, Q To Draw a Box Plot we need to: • Compute the Hinge (Median, Q](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-89.jpg)

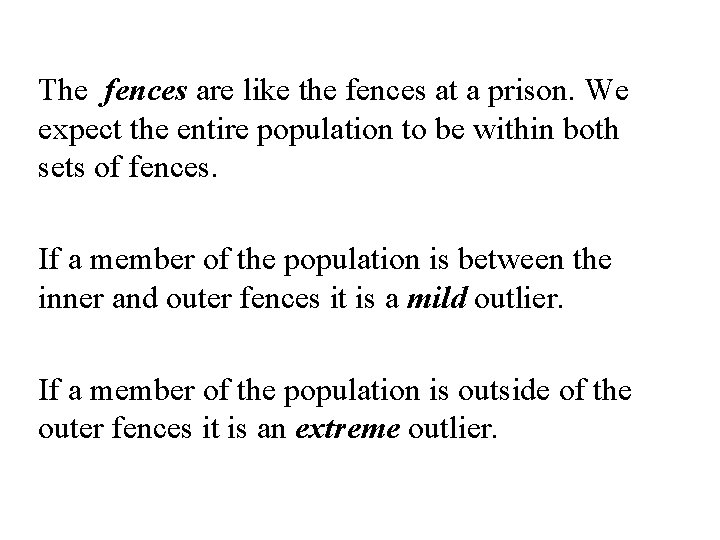

![The fences are like the fences at a prison. We expect the entire population The fences are like the fences at a prison. We expect the entire population](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-90.jpg)

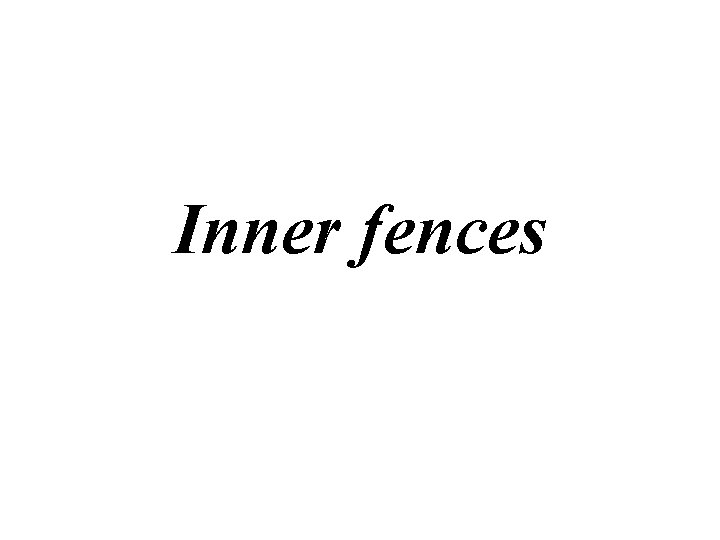

![Inner fences Inner fences](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-91.jpg)

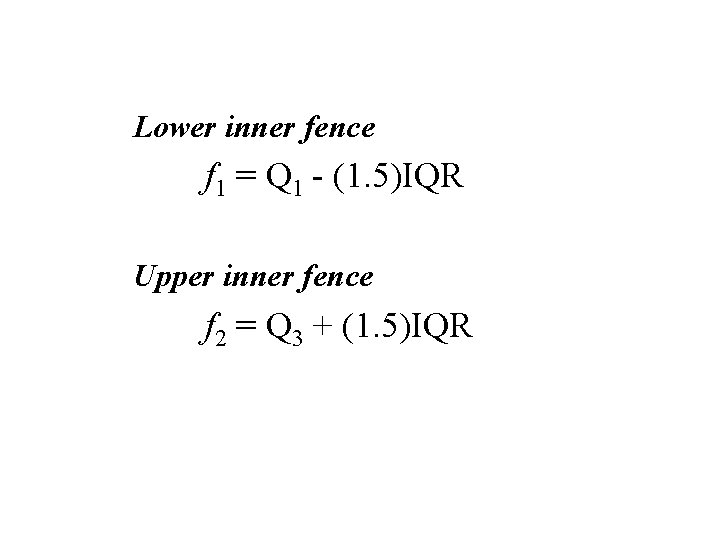

![Lower inner fence f 1 = Q 1 - (1. 5)IQR Upper inner fence Lower inner fence f 1 = Q 1 - (1. 5)IQR Upper inner fence](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-92.jpg)

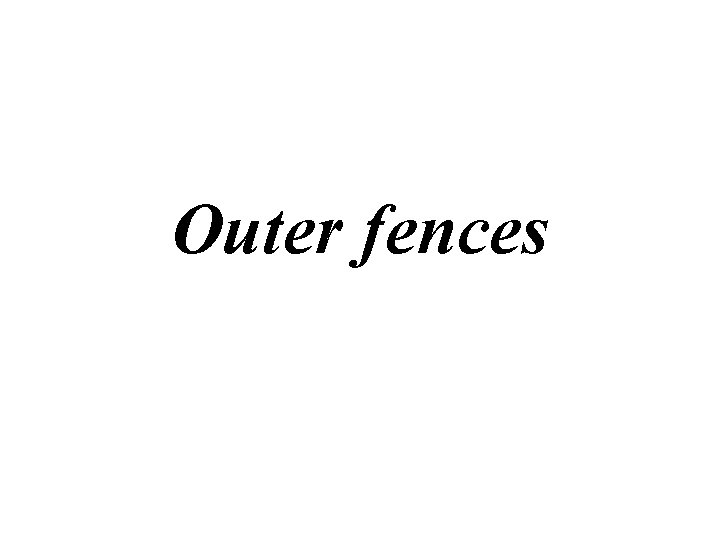

![Outer fences Outer fences](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-93.jpg)

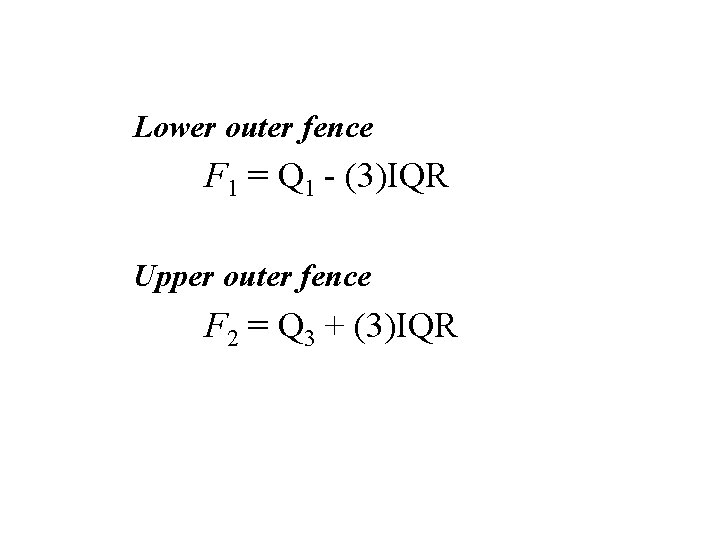

![Lower outer fence F 1 = Q 1 - (3)IQR Upper outer fence F Lower outer fence F 1 = Q 1 - (3)IQR Upper outer fence F](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-94.jpg)

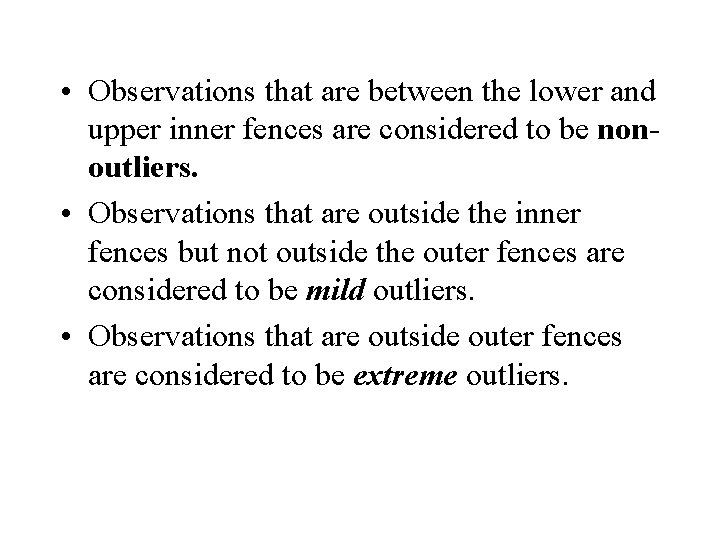

![• Observations that are between the lower and upper inner fences are considered • Observations that are between the lower and upper inner fences are considered](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-95.jpg)

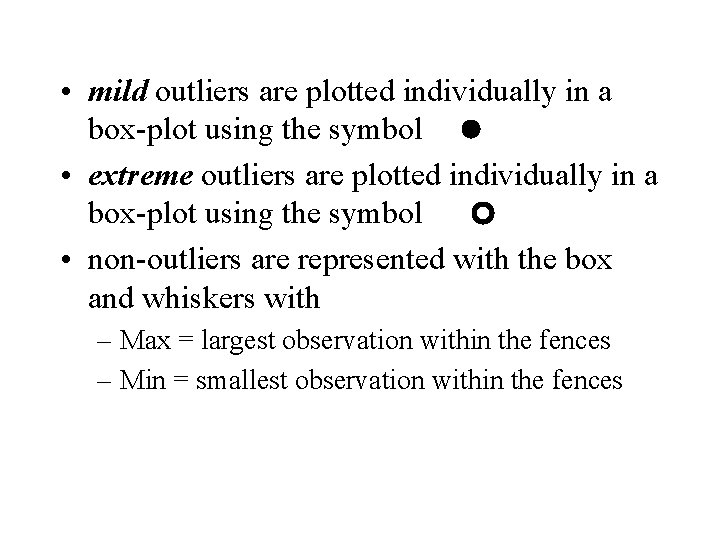

![• mild outliers are plotted individually in a box-plot using the symbol • • mild outliers are plotted individually in a box-plot using the symbol •](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-96.jpg)

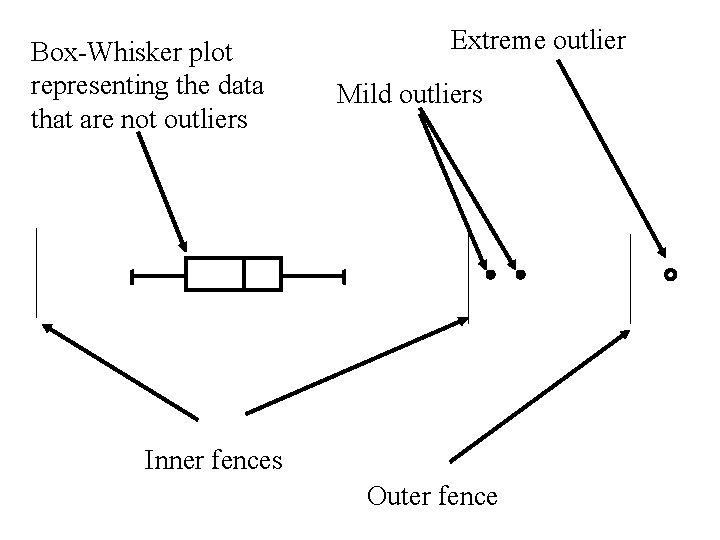

![Box-Whisker plot representing the data that are not outliers Extreme outlier Mild outliers Inner Box-Whisker plot representing the data that are not outliers Extreme outlier Mild outliers Inner](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-97.jpg)

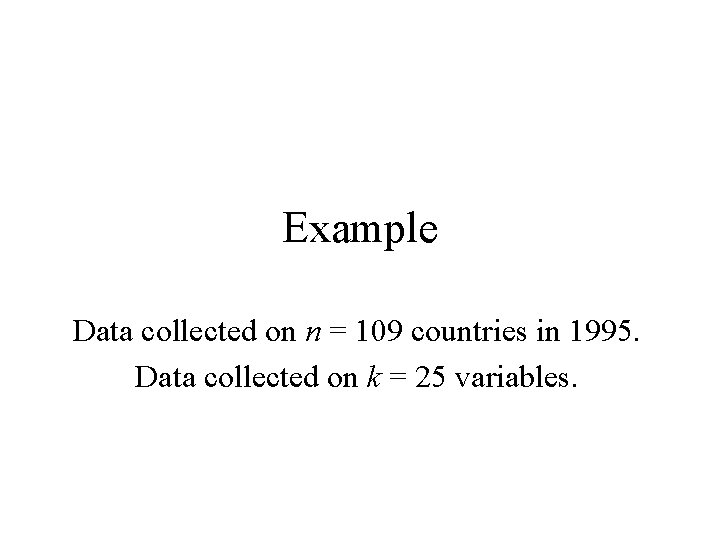

![Example Data collected on n = 109 countries in 1995. Data collected on k Example Data collected on n = 109 countries in 1995. Data collected on k](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-98.jpg)

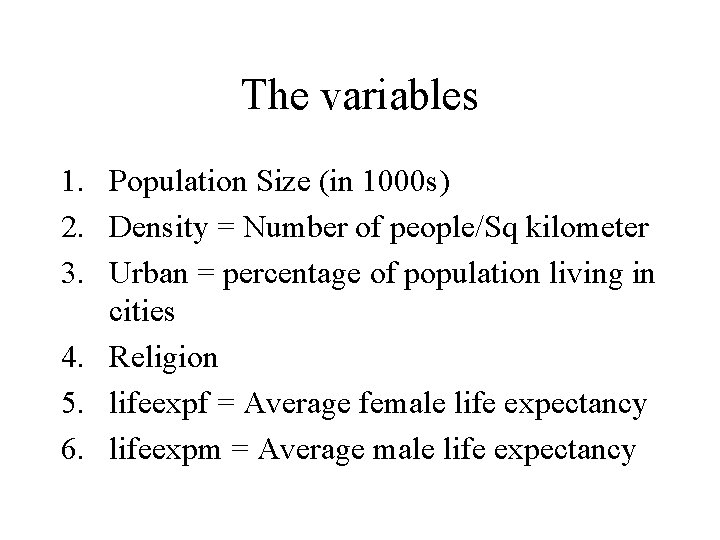

![The variables 1. Population Size (in 1000 s) 2. Density = Number of people/Sq The variables 1. Population Size (in 1000 s) 2. Density = Number of people/Sq](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-99.jpg)
![7. literacy = % of population who read 8. pop_inc = % increase in 7. literacy = % of population who read 8. pop_inc = % increase in](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-100.jpg)
![15. death_rt = death rate per 1000 people 16. aids_rt = Number of aids 15. death_rt = death rate per 1000 people 16. aids_rt = Number of aids](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-101.jpg)

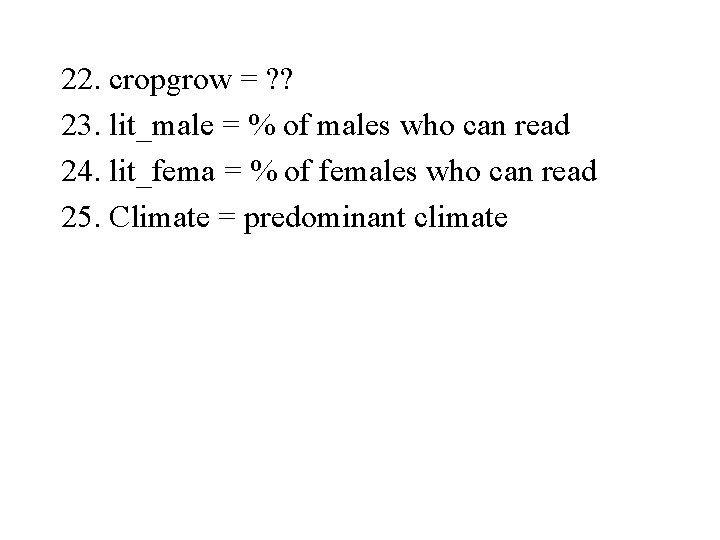

![22. cropgrow = ? ? 23. lit_male = % of males who can read 22. cropgrow = ? ? 23. lit_male = % of males who can read](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-102.jpg)

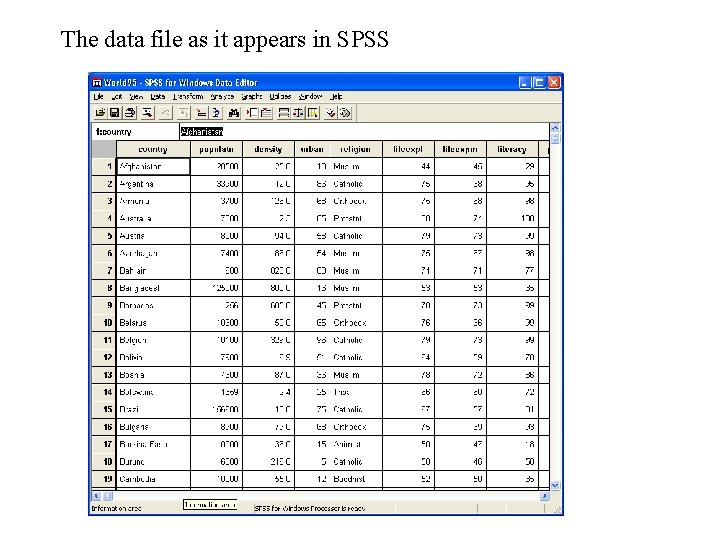

![The data file as it appears in SPSS The data file as it appears in SPSS](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-103.jpg)

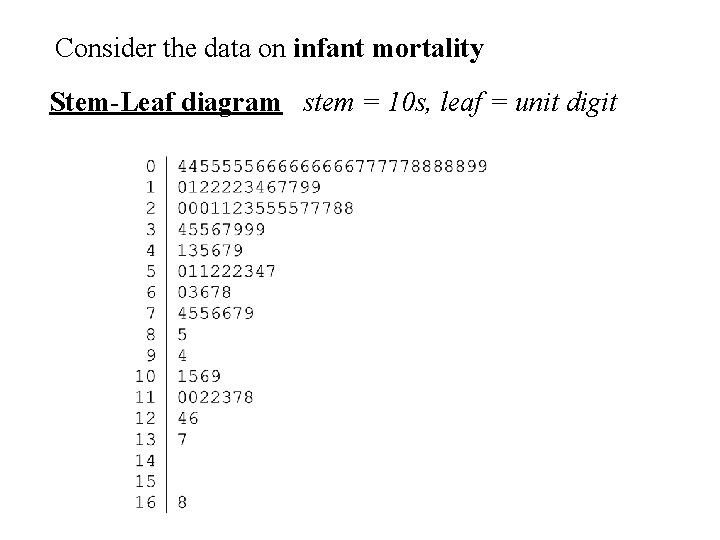

![Consider the data on infant mortality Stem-Leaf diagram stem = 10 s, leaf = Consider the data on infant mortality Stem-Leaf diagram stem = 10 s, leaf =](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-104.jpg)

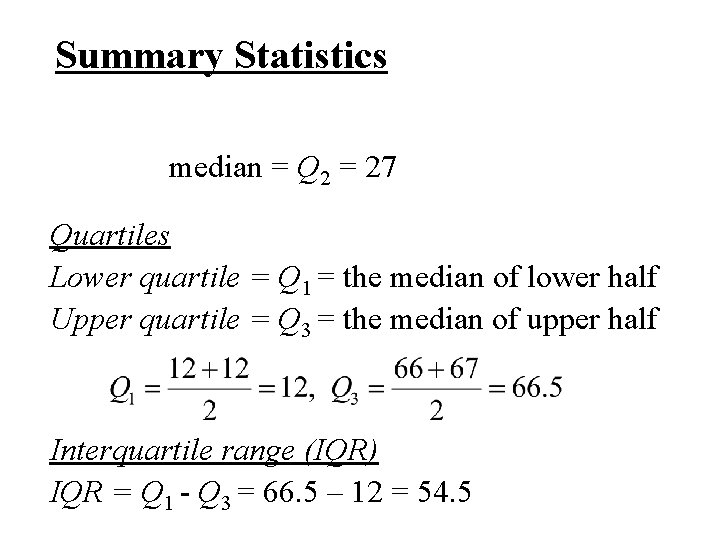

![Summary Statistics median = Q 2 = 27 Quartiles Lower quartile = Q 1 Summary Statistics median = Q 2 = 27 Quartiles Lower quartile = Q 1](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-105.jpg)

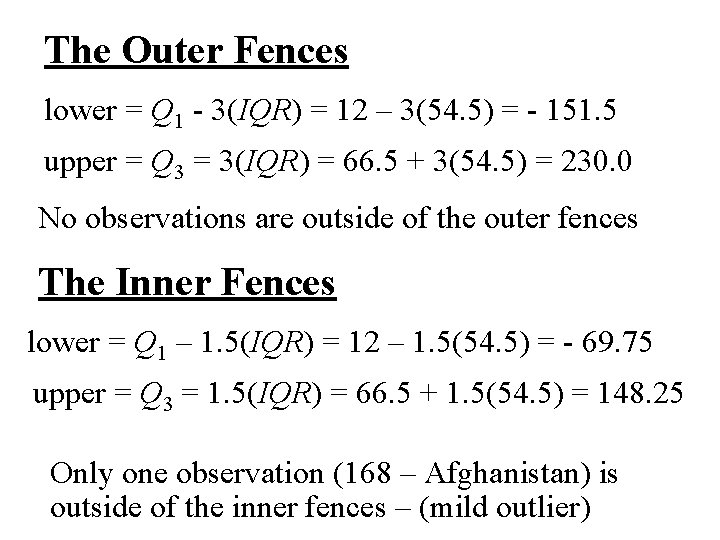

![The Outer Fences lower = Q 1 - 3(IQR) = 12 – 3(54. 5) The Outer Fences lower = Q 1 - 3(IQR) = 12 – 3(54. 5)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-106.jpg)

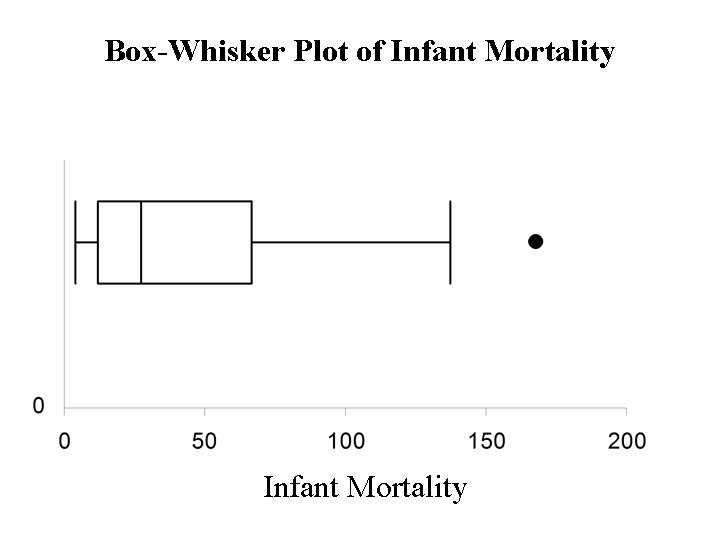

![Box-Whisker Plot of Infant Mortality Box-Whisker Plot of Infant Mortality](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-107.jpg)

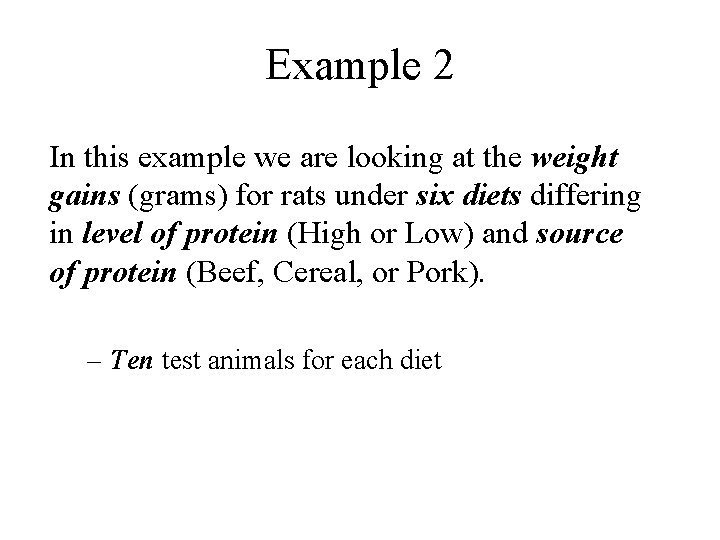

![Example 2 In this example we are looking at the weight gains (grams) for Example 2 In this example we are looking at the weight gains (grams) for](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-108.jpg)

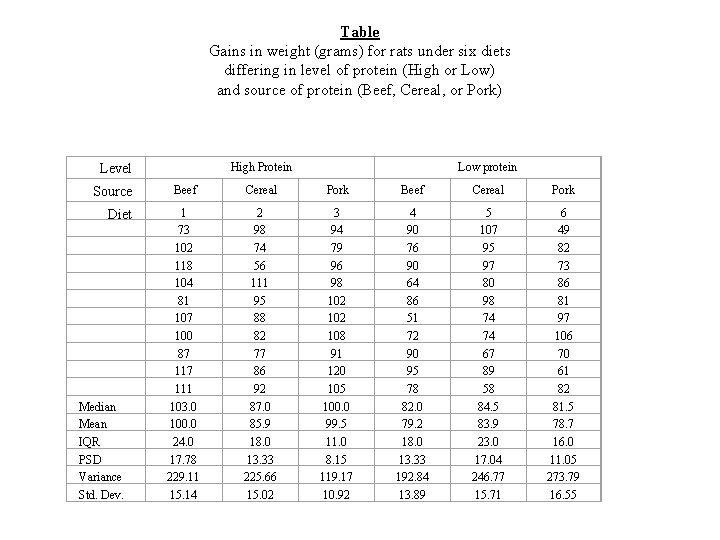

![Table Gains in weight (grams) for rats under six diets differing in level of Table Gains in weight (grams) for rats under six diets differing in level of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-109.jpg)

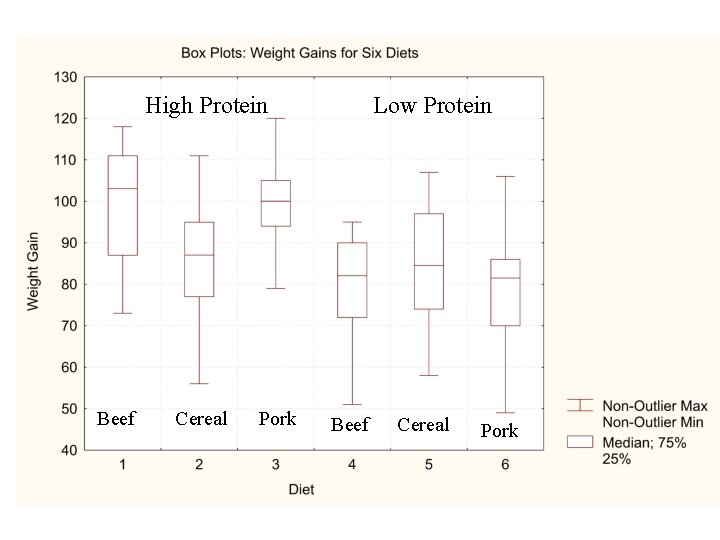

![High Protein Beef Cereal Pork Low Protein Beef Cereal Pork High Protein Beef Cereal Pork Low Protein Beef Cereal Pork](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-110.jpg)

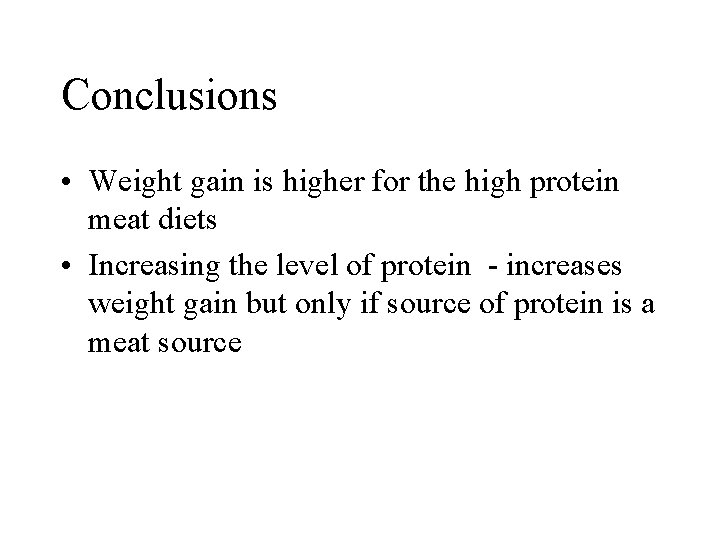

![Conclusions • Weight gain is higher for the high protein meat diets • Increasing Conclusions • Weight gain is higher for the high protein meat diets • Increasing](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-111.jpg)
![Next topic: Numerical Measures of Variability Next topic: Numerical Measures of Variability](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-112.jpg)
- Slides: 112
![Numerical Measures Numerical Measures](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-1.jpg)
Numerical Measures
![Numerical Measures Measures of Central Tendency Location Measures of Non Central Location Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-2.jpg)
Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location Measure of Variability (Dispersion, Spread) Measures of Shape
![Measures of Central Tendency Location Mean Median Mode Central Location Measures of Central Tendency (Location) • Mean • Median • Mode Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-3.jpg)
Measures of Central Tendency (Location) • Mean • Median • Mode Central Location
![Measures of Noncentral Location Quartiles MidHinges Percentiles Non Central Location Measures of Non-central Location • Quartiles, Mid-Hinges • Percentiles Non - Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-4.jpg)
Measures of Non-central Location • Quartiles, Mid-Hinges • Percentiles Non - Central Location
![Measure of Variability Dispersion Spread Variance standard deviation Range InterQuartile Range Measure of Variability (Dispersion, Spread) • Variance, standard deviation • Range • Inter-Quartile Range](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-5.jpg)

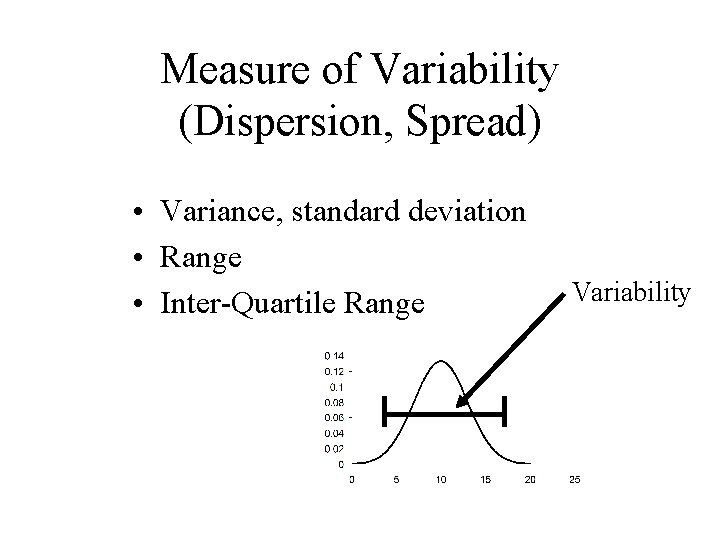

Measure of Variability (Dispersion, Spread) • Variance, standard deviation • Range • Inter-Quartile Range Variability

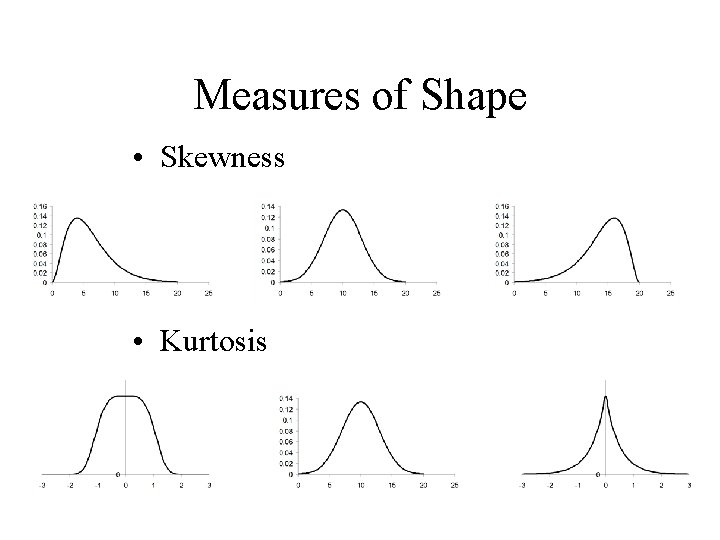

![Measures of Shape Skewness Kurtosis Measures of Shape • Skewness • Kurtosis](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-6.jpg)
Measures of Shape • Skewness • Kurtosis
![Summation Notation Summation Notation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-7.jpg)
Summation Notation

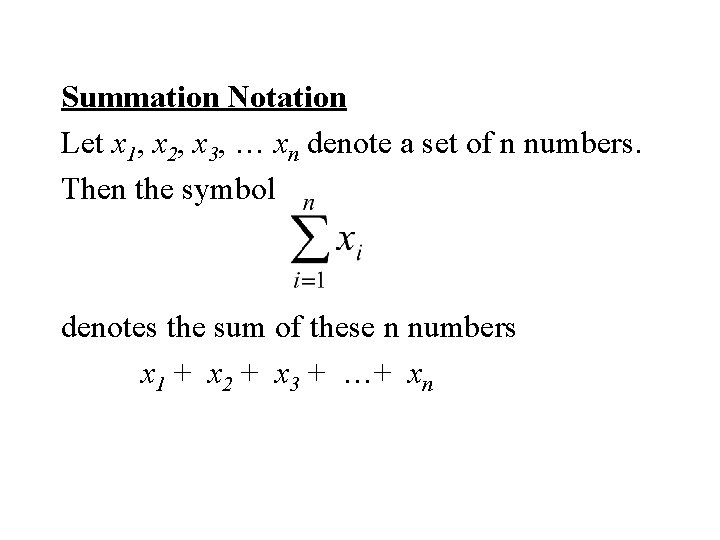

![Summation Notation Let x 1 x 2 x 3 xn denote a set Summation Notation Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-8.jpg)
Summation Notation Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the symbol denotes the sum of these n numbers x 1 + x 2 + x 3 + …+ xn
![Example Let x 1 x 2 x 3 x 4 x 5 denote a Example Let x 1, x 2, x 3, x 4, x 5 denote a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-9.jpg)

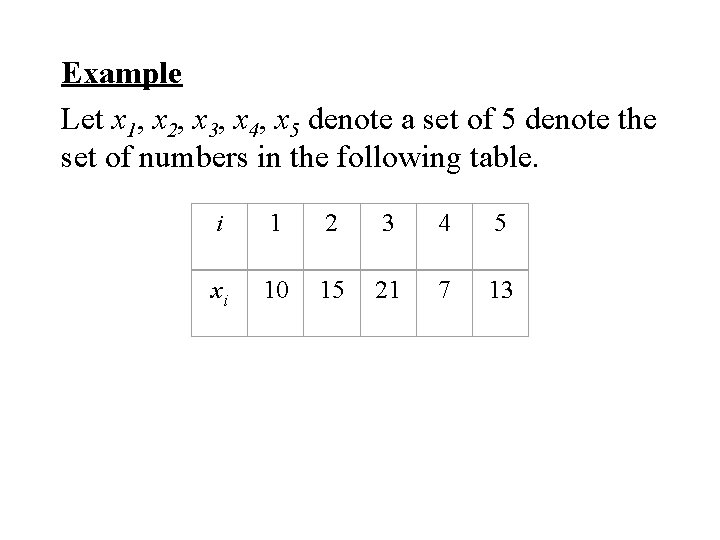

Example Let x 1, x 2, x 3, x 4, x 5 denote a set of 5 denote the set of numbers in the following table. i 1 2 3 4 5 xi 10 15 21 7 13
![Then the symbol denotes the sum of these 5 numbers x 1 x Then the symbol denotes the sum of these 5 numbers x 1 + x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-10.jpg)

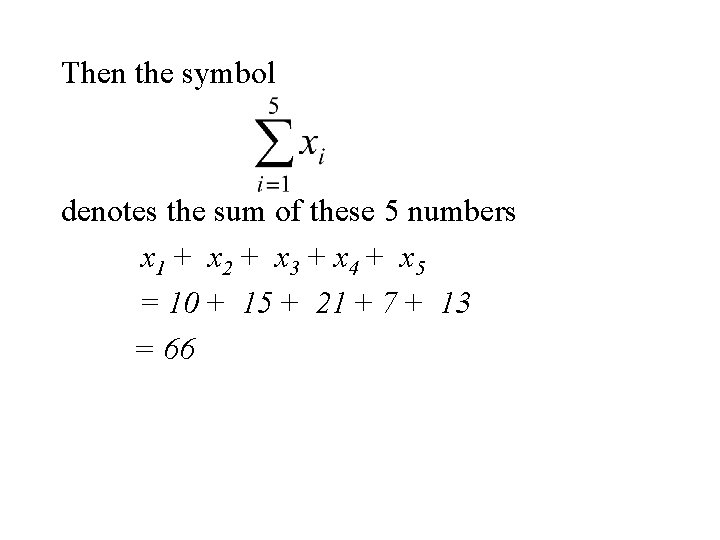

Then the symbol denotes the sum of these 5 numbers x 1 + x 2 + x 3 + x 4 + x 5 = 10 + 15 + 21 + 7 + 13 = 66
![Meaning of parts of summation notation Final value for i each term of the Meaning of parts of summation notation Final value for i each term of the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-11.jpg)

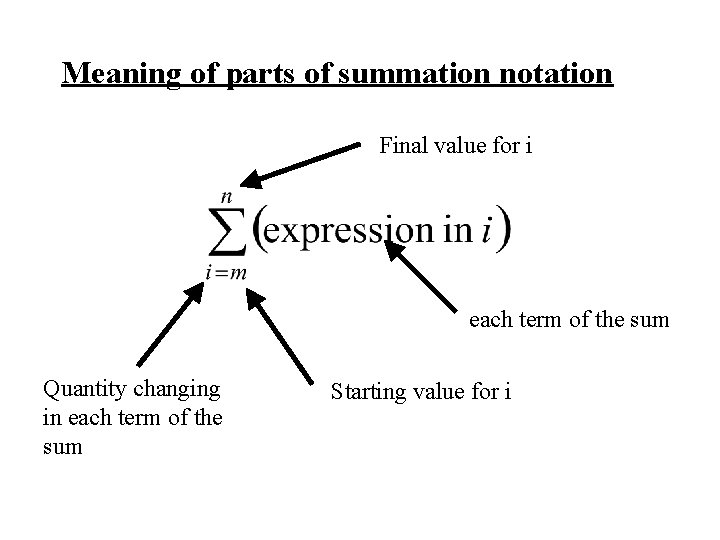

Meaning of parts of summation notation Final value for i each term of the sum Quantity changing in each term of the sum Starting value for i
![Example Again let x 1 x 2 x 3 x 4 x 5 denote Example Again let x 1, x 2, x 3, x 4, x 5 denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-12.jpg)

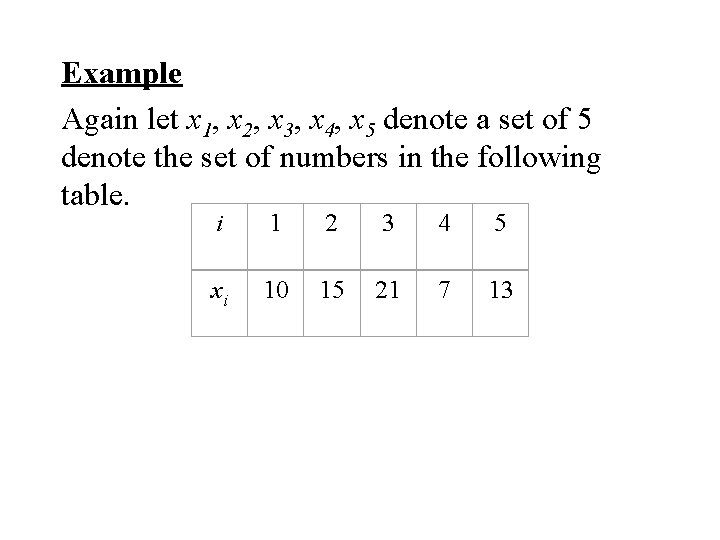

Example Again let x 1, x 2, x 3, x 4, x 5 denote a set of 5 denote the set of numbers in the following table. i 1 2 3 4 5 xi 10 15 21 7 13

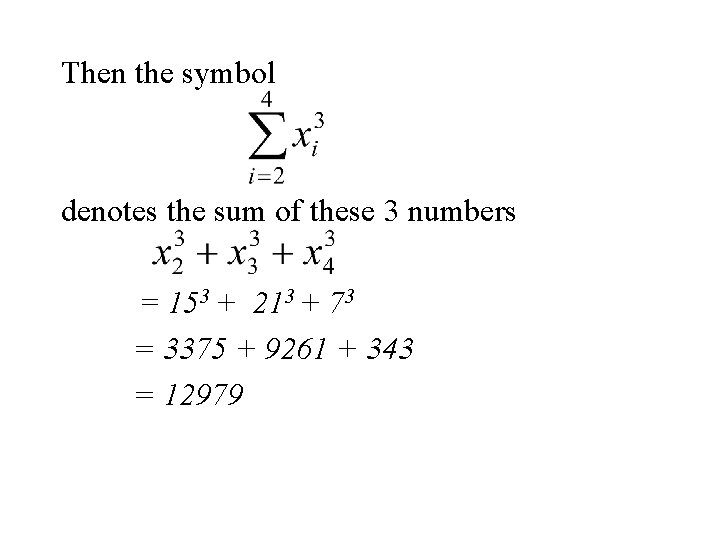

![Then the symbol denotes the sum of these 3 numbers 153 213 Then the symbol denotes the sum of these 3 numbers = 153 + 213](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-13.jpg)
Then the symbol denotes the sum of these 3 numbers = 153 + 213 + 73 = 3375 + 9261 + 343 = 12979

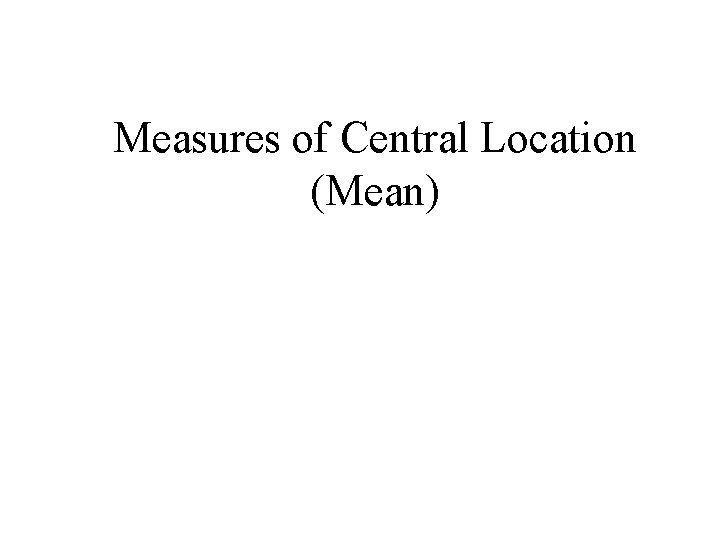

![Measures of Central Location Mean Measures of Central Location (Mean)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-14.jpg)
Measures of Central Location (Mean)
![Mean Let x 1 x 2 x 3 xn denote a set of Mean Let x 1, x 2, x 3, … xn denote a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-15.jpg)

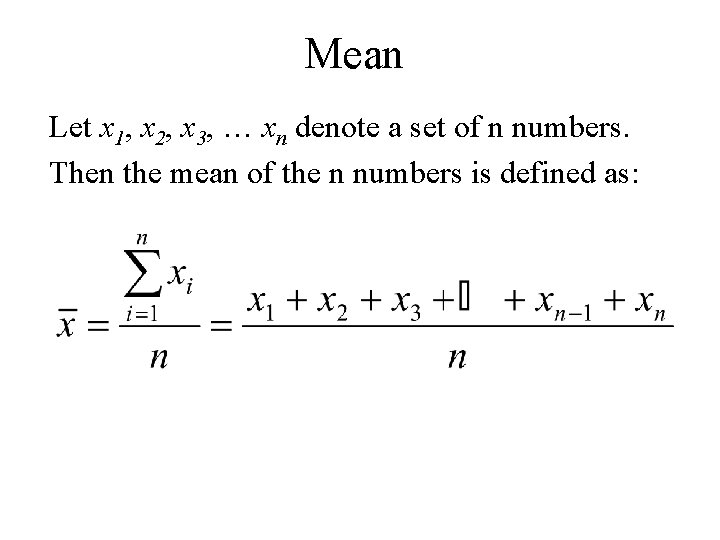

Mean Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the mean of the n numbers is defined as:
![Example Again let x 1 x 2 x 3 x 4 x 5 denote Example Again let x 1, x 2, x 3, x 4, x 5 denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-16.jpg)
Example Again let x 1, x 2, x 3, x 4, x 5 denote a set of 5 denote the set of numbers in the following table. i 1 2 3 4 5 xi 10 15 21 7 13

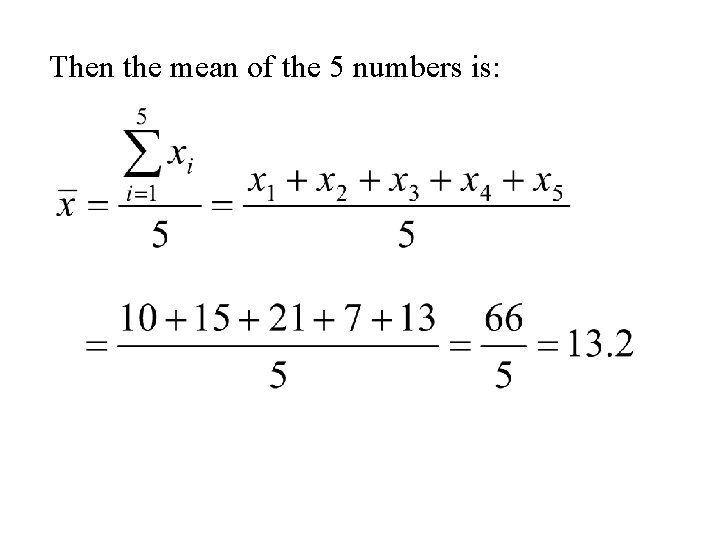

![Then the mean of the 5 numbers is Then the mean of the 5 numbers is:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-17.jpg)
Then the mean of the 5 numbers is:

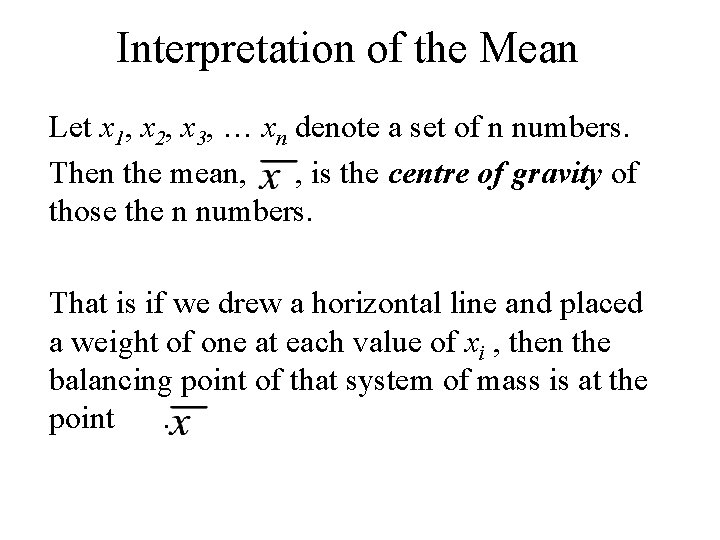

![Interpretation of the Mean Let x 1 x 2 x 3 xn denote Interpretation of the Mean Let x 1, x 2, x 3, … xn denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-18.jpg)
Interpretation of the Mean Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the mean, , is the centre of gravity of those the n numbers. That is if we drew a horizontal line and placed a weight of one at each value of xi , then the balancing point of that system of mass is at the point .

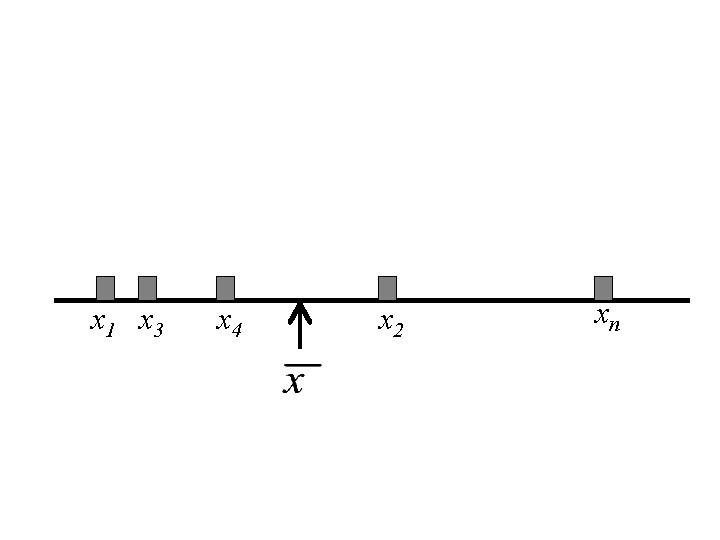

![x 1 x 3 x 4 x 2 xn x 1 x 3 x 4 x 2 xn](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-19.jpg)
x 1 x 3 x 4 x 2 xn
![In the Example 7 0 10 10 13 21 15 20 In the Example 7 0 10 10 13 21 15 20](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-20.jpg)
In the Example 7 0 10 10 13 21 15 20

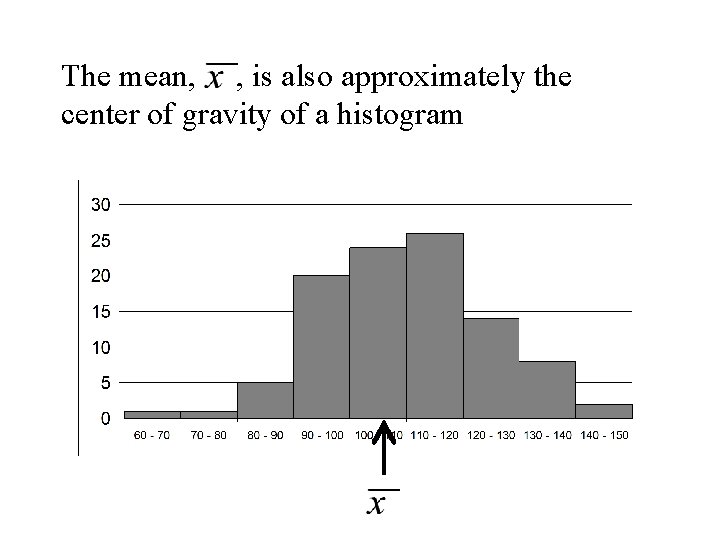

![The mean is also approximately the center of gravity of a histogram The mean, , is also approximately the center of gravity of a histogram](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-21.jpg)
The mean, , is also approximately the center of gravity of a histogram

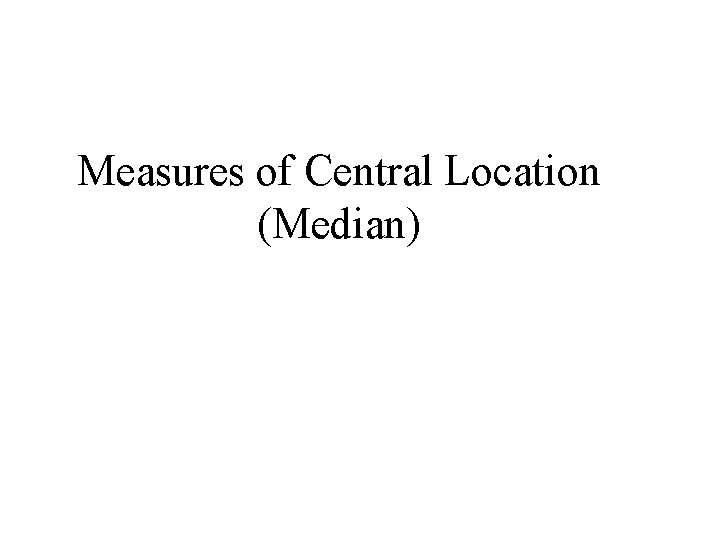

![Measures of Central Location Median Measures of Central Location (Median)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-22.jpg)
Measures of Central Location (Median)
![The Median Let x 1 x 2 x 3 xn denote a set The Median Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-23.jpg)

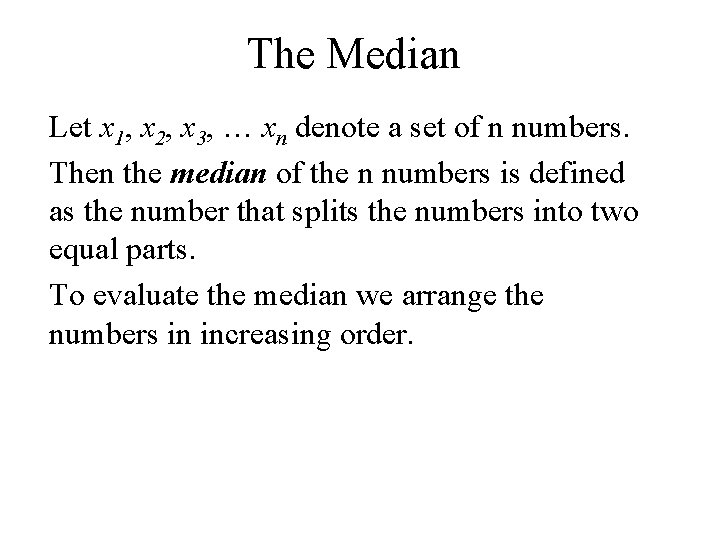

The Median Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the median of the n numbers is defined as the number that splits the numbers into two equal parts. To evaluate the median we arrange the numbers in increasing order.

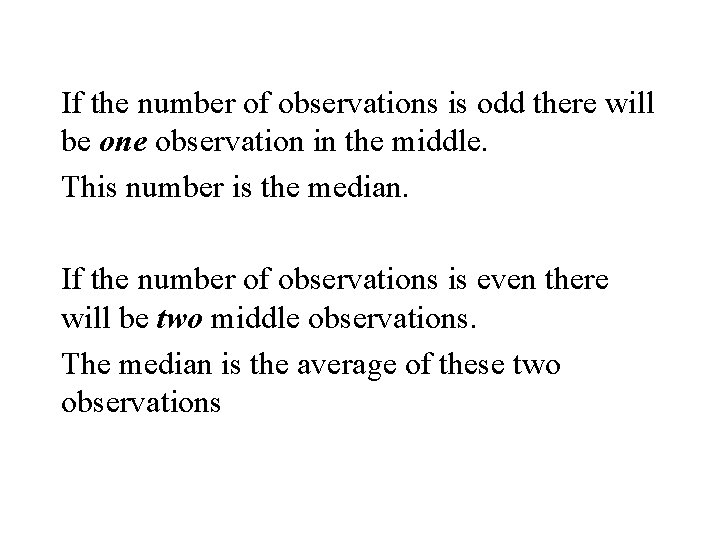

![If the number of observations is odd there will be one observation in the If the number of observations is odd there will be one observation in the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-24.jpg)
If the number of observations is odd there will be one observation in the middle. This number is the median. If the number of observations is even there will be two middle observations. The median is the average of these two observations
![Example Again let x 1 x 2 x 3 x 4 x 5 Example Again let x 1, x 2, x 3 , x 4, x 5](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-25.jpg)

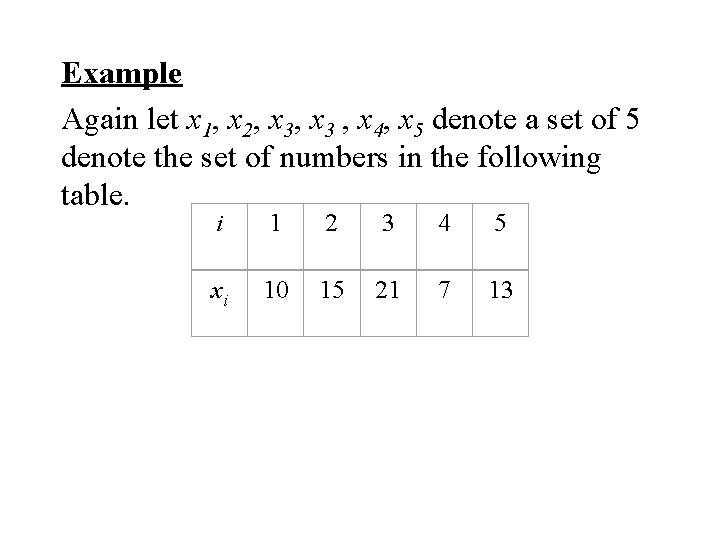

Example Again let x 1, x 2, x 3 , x 4, x 5 denote a set of 5 denote the set of numbers in the following table. i 1 2 3 4 5 xi 10 15 21 7 13
![The numbers arranged in order are 7 10 13 15 21 Unique Middle observation The numbers arranged in order are: 7 10 13 15 21 Unique “Middle” observation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-26.jpg)

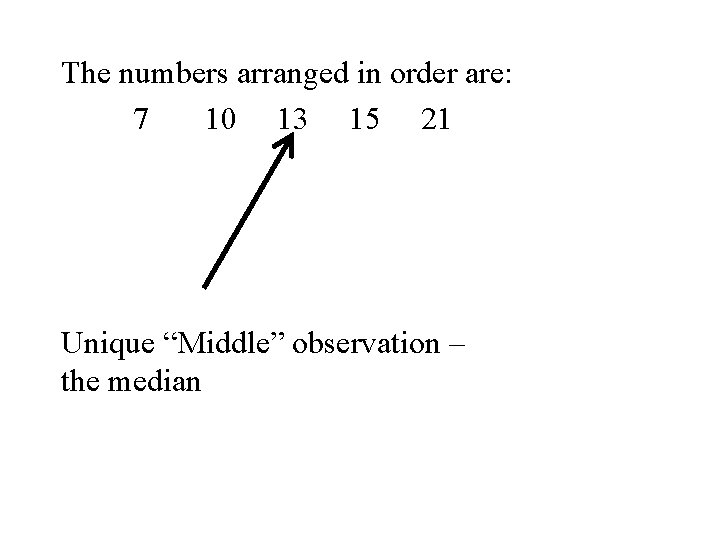

The numbers arranged in order are: 7 10 13 15 21 Unique “Middle” observation – the median
![Example 2 Let x 1 x 2 x 3 x 4 x 5 Example 2 Let x 1, x 2, x 3 , x 4, x 5](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-27.jpg)
Example 2 Let x 1, x 2, x 3 , x 4, x 5 , x 6 denote the 6 denote numbers: 23 41 12 19 64 8 Arranged in increasing order these observations would be: 8 12 19 23 41 64 Two “Middle” observations
![Median average of two middle observations Median = average of two “middle” observations =](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-28.jpg)
Median = average of two “middle” observations =
![Example The data on N 23 students Variables Verbal IQ Math Example The data on N = 23 students Variables • Verbal IQ • Math](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-29.jpg)
Example The data on N = 23 students Variables • Verbal IQ • Math IQ • Initial Reading Achievement Score • Final Reading Achievement Score
![Student Verbal IQ 1 2 3 4 5 6 7 8 9 10 Student Verbal IQ 1 2 3 4 5 6 7 8 9 10](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-30.jpg)
Student Verbal IQ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 86 104 86 105 118 96 90 95 105 84 94 119 82 80 109 111 89 99 94 99 95 102 Data Set #3 The following table gives data on Verbal IQ, Math IQ, Initial Reading Acheivement Score, and Final Reading Acheivement Score for 23 students who have recently completed a reading improvement program Initial Final Math Reading IQ Acheivement 94 103 92 100 115 102 87 100 96 80 87 116 91 93 124 119 94 117 93 110 97 104 93 1. 1 1. 5 2. 0 1. 9 1. 4 1. 5 1. 4 1. 7 1. 6 1. 7 1. 2 1. 0 1. 8 1. 4 1. 6 1. 4 1. 5 1. 7 1. 6 1. 7 1. 9 2. 0 3. 5 2. 4 1. 8 2. 0 1. 7 3. 1 1. 8 1. 7 2. 5 3. 0 1. 8 2. 6 1. 4 2. 0 1. 3 3. 1 1. 9
![Computing the Median Stem leaf Diagrams Median middle observation 12 th observation Computing the Median Stem leaf Diagrams Median = middle observation =12 th observation](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-31.jpg)
Computing the Median Stem leaf Diagrams Median = middle observation =12 th observation
![Summary Summary](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-32.jpg)
Summary
![Some Comments The mean is the centre of gravity of a set of Some Comments • The mean is the centre of gravity of a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-33.jpg)
Some Comments • The mean is the centre of gravity of a set of observations. The balancing point. • The median splits the obsevations equally in two parts of approximately 50%
![The median splits the area under a histogram in two parts of • The median splits the area under a histogram in two parts of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-34.jpg)
• The median splits the area under a histogram in two parts of 50% • The mean is the balancing point of a histogram 50% median
![For symmetric distributions the mean and the median will be approximately the • For symmetric distributions the mean and the median will be approximately the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-35.jpg)
• For symmetric distributions the mean and the median will be approximately the same value 50% Median &
![For Positively skewed distributions the mean exceeds the median For Negatively • For Positively skewed distributions the mean exceeds the median • For Negatively](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-36.jpg)
• For Positively skewed distributions the mean exceeds the median • For Negatively skewed distributions the median exceeds the mean 50% median
![An outlier is a wild observation in the data Outliers occur • An outlier is a “wild” observation in the data • Outliers occur](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-37.jpg)
• An outlier is a “wild” observation in the data • Outliers occur because – of errors (typographical and computational) – Extreme cases in the population
![The mean is altered to a significant degree by the presence of • The mean is altered to a significant degree by the presence of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-38.jpg)
• The mean is altered to a significant degree by the presence of outliers • Outliers have little effect on the value of the median • This is a reason for using the median in place of the mean as a measure of central location • Alternatively the mean is the best measure of central location when the data is Normally distributed (Bell-shaped)
![Review Review](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-39.jpg)
Review
![Summarizing Data Graphical Methods Summarizing Data Graphical Methods](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-40.jpg)
Summarizing Data Graphical Methods
![Histogram StemLeaf Diagram Grouped Freq Table Histogram Stem-Leaf Diagram Grouped Freq Table](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-41.jpg)
Histogram Stem-Leaf Diagram Grouped Freq Table
![Numerical Measures Measures of Central Tendency Location Measures of Non Central Location Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-42.jpg)
Numerical Measures • • Measures of Central Tendency (Location) Measures of Non Central Location Measure of Variability (Dispersion, Spread) Measures of Shape The objective is to reduce the data to a small number of values that completely describe the data and certain aspects of the data.
![Measures of Central Location Mean Measures of Central Location (Mean)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-43.jpg)
Measures of Central Location (Mean)
![Mean Let x 1 x 2 x 3 xn denote a set of Mean Let x 1, x 2, x 3, … xn denote a set of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-44.jpg)
Mean Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the mean of the n numbers is defined as:
![Interpretation of the Mean Let x 1 x 2 x 3 xn denote Interpretation of the Mean Let x 1, x 2, x 3, … xn denote](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-45.jpg)
Interpretation of the Mean Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the mean, , is the centre of gravity of those the n numbers. That is if we drew a horizontal line and placed a weight of one at each value of xi , then the balancing point of that system of mass is at the point .
![x 1 x 3 x 4 x 2 xn x 1 x 3 x 4 x 2 xn](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-46.jpg)
x 1 x 3 x 4 x 2 xn
![The mean is also approximately the center of gravity of a histogram The mean, , is also approximately the center of gravity of a histogram](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-47.jpg)
The mean, , is also approximately the center of gravity of a histogram
![The Median Let x 1 x 2 x 3 xn denote a set The Median Let x 1, x 2, x 3, … xn denote a set](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-48.jpg)
The Median Let x 1, x 2, x 3, … xn denote a set of n numbers. Then the median of the n numbers is defined as the number that splits the numbers into two equal parts. To evaluate the median we arrange the numbers in increasing order.
![If the number of observations is odd there will be one observation in the If the number of observations is odd there will be one observation in the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-49.jpg)
If the number of observations is odd there will be one observation in the middle. This number is the median. If the number of observations is even there will be two middle observations. The median is the average of these two observations
![Measures of NonCentral Location Percentiles Quartiles Hinges Midhinges Measures of Non-Central Location • • Percentiles Quartiles (Hinges, Mid-hinges)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-50.jpg)
Measures of Non-Central Location • • Percentiles Quartiles (Hinges, Mid-hinges)
![Definition The P 100 Percentile is a point x P underneath a Definition The P× 100 Percentile is a point , x. P , underneath a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-51.jpg)
Definition The P× 100 Percentile is a point , x. P , underneath a distribution that has a fixed proportion P of the population (or sample) below that value P× 100 % x. P
![Definition Quartiles The first Quartile Q 1 is the 25 Percentile Definition (Quartiles) The first Quartile , Q 1 , is the 25 Percentile ,](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-52.jpg)
Definition (Quartiles) The first Quartile , Q 1 , is the 25 Percentile , x 0. 25 25 % x 0. 25
![The second Quartile Q 2 is the 50 th Percentile x The second Quartile , Q 2 , is the 50 th Percentile , x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-53.jpg)
The second Quartile , Q 2 , is the 50 th Percentile , x 0. 50 50 % x 0. 50
![The second Quartile Q 2 is also the median and • The second Quartile , Q 2 , is also the median and](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-54.jpg)
• The second Quartile , Q 2 , is also the median and the 50 th percentile
![The third Quartile Q 3 is the 75 th Percentile x The third Quartile , Q 3 , is the 75 th Percentile , x](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-55.jpg)
The third Quartile , Q 3 , is the 75 th Percentile , x 0. 75 75 % x 0. 75
![The Quartiles Q 1 Q 2 Q 3 divide the population into 4 The Quartiles – Q 1, Q 2, Q 3 divide the population into 4](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-56.jpg)
The Quartiles – Q 1, Q 2, Q 3 divide the population into 4 equal parts of 25%. 25 % Q 1 25 % Q 2 Q 3
![Computing Percentiles and Quartiles There are several methods used to compute percentiles and Computing Percentiles and Quartiles • There are several methods used to compute percentiles and](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-57.jpg)
Computing Percentiles and Quartiles • There are several methods used to compute percentiles and quartiles. Different computer packages will use different methods • Sometimes for small samples these methods will agree (but not always) • For large samples the methods will agree within a certain level of accuracy
![Computing Percentiles and Quartiles Method 1 The first step is to order Computing Percentiles and Quartiles – Method 1 • The first step is to order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-58.jpg)
Computing Percentiles and Quartiles – Method 1 • The first step is to order the observations in increasing order. • We then compute the position, k, of the P× 100 Percentile. k = P × (n+1) Where n = the number of observations
![Example The data on n 23 students Variables Verbal IQ Math Example The data on n = 23 students Variables • Verbal IQ • Math](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-59.jpg)
Example The data on n = 23 students Variables • Verbal IQ • Math IQ • Initial Reading Achievement Score • Final Reading Achievement Score We want to compute the 75 th percentile and the 90 th percentile
![The position k of the 75 th Percentile k P n1 The position, k, of the 75 th Percentile. k = P × (n+1) =.](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-60.jpg)
The position, k, of the 75 th Percentile. k = P × (n+1) =. 75 × (23+1) = 18 The position, k, of the 90 th Percentile. k = P × (n+1) =. 90 × (23+1) = 21. 6 When the position k is an integer the percentile is the kth observation (in order of magnitude) in the data set. For example the 75 th percentile is the 18 th (in size) observation
![When the position k is an not an integer but an integerm a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-61.jpg)
When the position k is an not an integer but an integer(m) + a fraction(f). i. e. k = m + f then the percentile is x. P = (1 -f) × (mth observation in size) + f × (m+1 st observation in size) In the example the position of the 90 th percentile is: k = 21. 6 Then x. 90 = 0. 4(21 st observation in size) + 0. 6(22 nd observation in size)
![When the position k is an not an integer but an integerm a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-62.jpg)
When the position k is an not an integer but an integer(m) + a fraction(f). i. e. k = m + f then the percentile is x. P = (1 -f) × (mth observation in size) + f × (m+1 st observation in size) mth obs (m+1)st obs xp = (1 - f) ( mth obs) + f [(m+1)st obs]
![When the position k is an not an integer but an integerm a When the position k is an not an integer but an integer(m) + a](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-63.jpg)
When the position k is an not an integer but an integer(m) + a fraction(f). i. e. k = m + f mth obs (m+1)st obs xp = (1 - f) ( mth obs) + f [(m+1)st obs] Thus the position of xp is 100 f% through the interval between the mth observation and the (m +1)st observation
![Example The data Verbal IQ on n 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-64.jpg)
Example The data Verbal IQ on n = 23 students arranged in increasing order is: 80 82 84 86 86 89 90 94 94 95 95 96 99 99 102 104 105 109 111 118 119
![x 0 75 75 th percentile 18 th observation in size 105 x 0. 75 = 75 th percentile = 18 th observation in size =105](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-65.jpg)
x 0. 75 = 75 th percentile = 18 th observation in size =105 (position k = 18) x 0. 90 = 90 th percentile = 0. 4(21 st observation in size) + 0. 6(22 nd observation in size) = 0. 4(111)+ 0. 6(118) = 115. 2 (position k = 21. 6)
![An Alternative method for computing Quartiles Method 2 Sometimes this method will An Alternative method for computing Quartiles – Method 2 • Sometimes this method will](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-66.jpg)
An Alternative method for computing Quartiles – Method 2 • Sometimes this method will result in the same values for the quartiles. • Sometimes this method will result in the different values for the quartiles. • For large samples the two methods will result in approximately the same answer.
![Let x 1 x 2 x 3 xn denote a set of n Let x 1, x 2, x 3, … xn denote a set of n](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-67.jpg)
Let x 1, x 2, x 3, … xn denote a set of n numbers. The first step in Method 2 is to arrange the numbers in increasing order. From the arranged numbers we compute the median. This is also called the Hinge
![Example Consider the 5 numbers 10 15 21 7 13 Arranged in increasing order Example Consider the 5 numbers: 10 15 21 7 13 Arranged in increasing order:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-68.jpg)
Example Consider the 5 numbers: 10 15 21 7 13 Arranged in increasing order: 7 10 13 15 21 Median (Hinge) The median (or Hinge) splits the observations in half
![The lower midhinge the first quartile is the median of the lower half of The lower mid-hinge (the first quartile) is the “median” of the lower half of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-69.jpg)
The lower mid-hinge (the first quartile) is the “median” of the lower half of the observations (excluding the median). The upper mid-hinge (the third quartile) is the “median” of the upper half of the observations (excluding the median).
![Consider the five number in increasing order Lower Upper Half 7 Half 10 13 Consider the five number in increasing order: Lower Upper Half 7 Half 10 13](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-70.jpg)
Consider the five number in increasing order: Lower Upper Half 7 Half 10 13 15 21 Upper Mid-Hinge Median (Hinge) Upper Mid-Hinge (First Quartile) 13 (Third Quartile) (7+10)/2 =8. 5 (15+21)/2 = 18
![Computing the median and the quartile using the first method Position of the median Computing the median and the quartile using the first method: Position of the median:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-71.jpg)
Computing the median and the quartile using the first method: Position of the median: k = 0. 5(5+1) = 3 Position of the first Quartile: k = 0. 25(5+1) = 1. 5 Position of the third Quartile: k = 0. 75(5+1) = 4. 5 7 Q 1 = 8. 5 10 13 Q 2 = 13 15 21 Q 3 = 18
![Both methods result in the same value This is not always • Both methods result in the same value • This is not always](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-72.jpg)
• Both methods result in the same value • This is not always true.
![Example The data Verbal IQ on n 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-73.jpg)
Example The data Verbal IQ on n = 23 students arranged in increasing order is: 80 82 84 86 86 89 90 94 94 95 95 96 99 99 102 104 105 109 111 118 119 Lower Mid-Hinge (First Quartile) Median (Hinge) 89 96 Upper Mid-Hinge (Third Quartile) 105
![Computing the median and the quartile using the first method Position of the median Computing the median and the quartile using the first method: Position of the median:](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-74.jpg)
Computing the median and the quartile using the first method: Position of the median: k = 0. 5(23+1) = 12 Position of the first Quartile: k = 0. 25(23+1) = 6 Position of the third Quartile: k = 0. 75(23+1) = 18 80 82 84 86 86 89 90 94 94 95 95 96 99 99 102 104 105 109 111 118 119 Q 1 = 89 Q 2 = 96 Q 3 = 105
![Many programs compute percentiles quartiles etc Each may use different methods • Many programs compute percentiles, quartiles etc. • Each may use different methods.](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-75.jpg)
• Many programs compute percentiles, quartiles etc. • Each may use different methods. • It is important to know which method is being used. • The different methods result in answers that are close when the sample size is large.
![BoxPlots BoxWhisker Plots A graphical method of displaying data An alternative to Box-Plots Box-Whisker Plots • A graphical method of displaying data • An alternative to](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-76.jpg)
Box-Plots Box-Whisker Plots • A graphical method of displaying data • An alternative to the histogram and stem-leaf diagram
![To Draw a Box Plot Compute the Hinge Median Q 2 and the To Draw a Box Plot • Compute the Hinge (Median, Q 2) and the](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-77.jpg)
To Draw a Box Plot • Compute the Hinge (Median, Q 2) and the Mid-hinges (first & third quartiles – Q 1 and Q 3 ) • We also compute the largest and smallest of the observations – the max and the min • The five number summary min, Q 1, Q 2, Q 3, max
![Example The data Verbal IQ on n 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-78.jpg)
Example The data Verbal IQ on n = 23 students arranged in increasing order is: 80 82 84 86 86 89 90 94 94 95 95 96 99 99 102 104 105 109 111 118 119 min = 80 Q 1 = 89 Q 2 = 96 Q 3 = 105 max = 119
![The Box Plot is then drawn Drawing above an axis a box from The Box Plot is then drawn • Drawing above an axis a “box” from](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-79.jpg)
The Box Plot is then drawn • Drawing above an axis a “box” from Q 1 to Q 3. • Drawing vertical line in the box at the median, Q 2 • Drawing whiskers at the lower and upper ends of the box going down to the min and up to max.
![Lower Whisker min Upper Whisker Box Q 1 Q 2 Q 3 max Lower Whisker min Upper Whisker Box Q 1 Q 2 Q 3 max](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-80.jpg)
Lower Whisker min Upper Whisker Box Q 1 Q 2 Q 3 max
![Example The data Verbal IQ on n 23 students arranged in increasing order Example The data Verbal IQ on n = 23 students arranged in increasing order](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-81.jpg)
Example The data Verbal IQ on n = 23 students arranged in increasing order is: min = 80 Q 1 = 89 This is sometimes called Q 2 = 96 the five-number summary Q 3 = 105 max = 119
![Box Plot of Verbal IQ 70 80 90 100 110 120 130 Box Plot of Verbal IQ 70 80 90 100 110 120 130](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-82.jpg)
Box Plot of Verbal IQ 70 80 90 100 110 120 130
![130 120 110 100 90 80 70 Box Plot can also be drawn vertically 130 120 110 100 90 80 70 Box Plot can also be drawn vertically](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-83.jpg)
130 120 110 100 90 80 70 Box Plot can also be drawn vertically
![BoxWhisker plots Verbal IQ Math IQ Box-Whisker plots (Verbal IQ, Math IQ)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-84.jpg)
Box-Whisker plots (Verbal IQ, Math IQ)
![BoxWhisker plots Initial RA Final RA Box-Whisker plots (Initial RA, Final RA )](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-85.jpg)
Box-Whisker plots (Initial RA, Final RA )
![Summary Information contained in the box plot 25 25 Middle 50 of population 25 Summary Information contained in the box plot 25% 25% Middle 50% of population 25%](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-86.jpg)
Summary Information contained in the box plot 25% 25% Middle 50% of population 25%
![Advance Box Plots Advance Box Plots](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-87.jpg)
Advance Box Plots
![An outlier is a wild observation in the data Outliers occur • An outlier is a “wild” observation in the data • Outliers occur](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-88.jpg)
• An outlier is a “wild” observation in the data • Outliers occur because – of errors (typographical and computational) – Extreme cases in the population • We will now consider the drawing of boxplots where outliers are identified
![To Draw a Box Plot we need to Compute the Hinge Median Q To Draw a Box Plot we need to: • Compute the Hinge (Median, Q](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-89.jpg)
To Draw a Box Plot we need to: • Compute the Hinge (Median, Q 2) and the Mid-hinges (first & third quartiles – Q 1 and Q 3 ) • The difference Q 3– Q 1 is called the interquartile range (denoted by IQR) • To identify outliers we will compute the inner and outer fences
![The fences are like the fences at a prison We expect the entire population The fences are like the fences at a prison. We expect the entire population](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-90.jpg)
The fences are like the fences at a prison. We expect the entire population to be within both sets of fences. If a member of the population is between the inner and outer fences it is a mild outlier. If a member of the population is outside of the outer fences it is an extreme outlier.
![Inner fences Inner fences](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-91.jpg)
Inner fences
![Lower inner fence f 1 Q 1 1 5IQR Upper inner fence Lower inner fence f 1 = Q 1 - (1. 5)IQR Upper inner fence](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-92.jpg)
Lower inner fence f 1 = Q 1 - (1. 5)IQR Upper inner fence f 2 = Q 3 + (1. 5)IQR
![Outer fences Outer fences](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-93.jpg)
Outer fences
![Lower outer fence F 1 Q 1 3IQR Upper outer fence F Lower outer fence F 1 = Q 1 - (3)IQR Upper outer fence F](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-94.jpg)
Lower outer fence F 1 = Q 1 - (3)IQR Upper outer fence F 2 = Q 3 + (3)IQR
![Observations that are between the lower and upper inner fences are considered • Observations that are between the lower and upper inner fences are considered](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-95.jpg)
• Observations that are between the lower and upper inner fences are considered to be nonoutliers. • Observations that are outside the inner fences but not outside the outer fences are considered to be mild outliers. • Observations that are outside outer fences are considered to be extreme outliers.
![mild outliers are plotted individually in a boxplot using the symbol • mild outliers are plotted individually in a box-plot using the symbol •](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-96.jpg)
• mild outliers are plotted individually in a box-plot using the symbol • extreme outliers are plotted individually in a box-plot using the symbol • non-outliers are represented with the box and whiskers with – Max = largest observation within the fences – Min = smallest observation within the fences
![BoxWhisker plot representing the data that are not outliers Extreme outlier Mild outliers Inner Box-Whisker plot representing the data that are not outliers Extreme outlier Mild outliers Inner](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-97.jpg)
Box-Whisker plot representing the data that are not outliers Extreme outlier Mild outliers Inner fences Outer fence
![Example Data collected on n 109 countries in 1995 Data collected on k Example Data collected on n = 109 countries in 1995. Data collected on k](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-98.jpg)
Example Data collected on n = 109 countries in 1995. Data collected on k = 25 variables.
![The variables 1 Population Size in 1000 s 2 Density Number of peopleSq The variables 1. Population Size (in 1000 s) 2. Density = Number of people/Sq](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-99.jpg)
The variables 1. Population Size (in 1000 s) 2. Density = Number of people/Sq kilometer 3. Urban = percentage of population living in cities 4. Religion 5. lifeexpf = Average female life expectancy 6. lifeexpm = Average male life expectancy
![7 literacy of population who read 8 popinc increase in 7. literacy = % of population who read 8. pop_inc = % increase in](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-100.jpg)
7. literacy = % of population who read 8. pop_inc = % increase in popn size (1995) 9. babymort = Infant motality (deaths per 1000) 10. gdp_cap = Gross domestic product/capita 11. Region = Region or economic group 12. calories = Daily calorie intake. 13. aids = Number of aids cases 14. birth_rt = Birth rate per 1000 people
![15 deathrt death rate per 1000 people 16 aidsrt Number of aids 15. death_rt = death rate per 1000 people 16. aids_rt = Number of aids](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-101.jpg)
15. death_rt = death rate per 1000 people 16. aids_rt = Number of aids cases/100000 people 17. log_gdp = log 10(gdp_cap) 18. log_aidsr = log 10(aids_rt) 19. b_to_d =birth to death ratio 20. fertility = average number of children in family 21. log_pop = log 10(population)
![22 cropgrow 23 litmale of males who can read 22. cropgrow = ? ? 23. lit_male = % of males who can read](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-102.jpg)
22. cropgrow = ? ? 23. lit_male = % of males who can read 24. lit_fema = % of females who can read 25. Climate = predominant climate
![The data file as it appears in SPSS The data file as it appears in SPSS](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-103.jpg)
The data file as it appears in SPSS
![Consider the data on infant mortality StemLeaf diagram stem 10 s leaf Consider the data on infant mortality Stem-Leaf diagram stem = 10 s, leaf =](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-104.jpg)
Consider the data on infant mortality Stem-Leaf diagram stem = 10 s, leaf = unit digit
![Summary Statistics median Q 2 27 Quartiles Lower quartile Q 1 Summary Statistics median = Q 2 = 27 Quartiles Lower quartile = Q 1](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-105.jpg)
Summary Statistics median = Q 2 = 27 Quartiles Lower quartile = Q 1 = the median of lower half Upper quartile = Q 3 = the median of upper half Interquartile range (IQR) IQR = Q 1 - Q 3 = 66. 5 – 12 = 54. 5
![The Outer Fences lower Q 1 3IQR 12 354 5 The Outer Fences lower = Q 1 - 3(IQR) = 12 – 3(54. 5)](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-106.jpg)
The Outer Fences lower = Q 1 - 3(IQR) = 12 – 3(54. 5) = - 151. 5 upper = Q 3 = 3(IQR) = 66. 5 + 3(54. 5) = 230. 0 No observations are outside of the outer fences The Inner Fences lower = Q 1 – 1. 5(IQR) = 12 – 1. 5(54. 5) = - 69. 75 upper = Q 3 = 1. 5(IQR) = 66. 5 + 1. 5(54. 5) = 148. 25 Only one observation (168 – Afghanistan) is outside of the inner fences – (mild outlier)
![BoxWhisker Plot of Infant Mortality Box-Whisker Plot of Infant Mortality](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-107.jpg)
Box-Whisker Plot of Infant Mortality
![Example 2 In this example we are looking at the weight gains grams for Example 2 In this example we are looking at the weight gains (grams) for](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-108.jpg)
Example 2 In this example we are looking at the weight gains (grams) for rats under six diets differing in level of protein (High or Low) and source of protein (Beef, Cereal, or Pork). – Ten test animals for each diet
![Table Gains in weight grams for rats under six diets differing in level of Table Gains in weight (grams) for rats under six diets differing in level of](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-109.jpg)
Table Gains in weight (grams) for rats under six diets differing in level of protein (High or Low) and source of protein (Beef, Cereal, or Pork) High Protein Level Source Diet Median Mean IQR PSD Variance Std. Dev. Low protein Beef Cereal Pork Beef Cereal Pork 1 73 102 118 104 81 107 100 87 111 103. 0 100. 0 24. 0 17. 78 229. 11 15. 14 2 98 74 56 111 95 88 82 77 86 92 87. 0 85. 9 18. 0 13. 33 225. 66 15. 02 3 94 79 96 98 102 108 91 120 105 100. 0 99. 5 11. 0 8. 15 119. 17 10. 92 4 90 76 90 64 86 51 72 90 95 78 82. 0 79. 2 18. 0 13. 33 192. 84 13. 89 5 107 95 97 80 98 74 74 67 89 58 84. 5 83. 9 23. 0 17. 04 246. 77 15. 71 6 49 82 73 86 81 97 106 70 61 82 81. 5 78. 7 16. 0 11. 05 273. 79 16. 55
![High Protein Beef Cereal Pork Low Protein Beef Cereal Pork High Protein Beef Cereal Pork Low Protein Beef Cereal Pork](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-110.jpg)
High Protein Beef Cereal Pork Low Protein Beef Cereal Pork
![Conclusions Weight gain is higher for the high protein meat diets Increasing Conclusions • Weight gain is higher for the high protein meat diets • Increasing](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-111.jpg)
Conclusions • Weight gain is higher for the high protein meat diets • Increasing the level of protein - increases weight gain but only if source of protein is a meat source
![Next topic Numerical Measures of Variability Next topic: Numerical Measures of Variability](https://slidetodoc.com/presentation_image_h/9209b506f24cc334904f1d70cecf9804/image-112.jpg)
Next topic: Numerical Measures of Variability
Measures of central tendency for ungrouped data
Unit 6 review #2 - measures of central tendency
Measures of central tendency
Mean ka formula
Central tendency of grouped data
Measures of central tendency for grouped data
Objectives of measures of central tendency
Central tendency symbols
Measure of central tendency and dispersion
Objectives of measures of central tendency
Purpose of measures of central tendency
Measures of central tendency
Measures of central tendency notes
Central tendency worksheet
Range in central tendency
Statistics chapter 3 measures of central tendency
Measures of central tendency and variation
Central tendency grouped data
Measures of central tendency median
Measures of central tendency
Measures of central tendency symbols
Use of central tendency
Median for even numbers
Importance of central tendency
Is range part of central tendency
Objective of central tendency
Central tendency
How to get frequency distribution
Median
Fraktil adalah
Central tendancy bias
Central tendency spss
Finding mean median and mode
Central tendency symbols
Central tendency symbols
Central tendency and variability
Central tendency and spread homework
Verbal iq
Contoh soal ukuran nilai sentral
Central tendencies statistics
Jack in
Numerical methods of descriptive statistics
Numerical descriptive measures exercises
Numerical descriptive measures
Numerical descriptive measures
Mean for ungrouped data
Numerical
Numerical descriptive measures
Standard deviation formula for ungrouped data
Ringkasan numerik adalah
Repeated measures design
Projected cognitive similarity
Distingushe
Conformity compliance and obedience
What is the conflict in animal farm
Voluntrapreneur
Pressure tendency
Filter blocking tendency test
Bleeding tendency
Terminal values and instrumental values
Diffraction is the tendency of light to:
Buoyancy is a tendency
Actinide contraction
Emotions and moods
Weathervaning tendency is greatest when taxiing
Selfserving bias
The actualising tendency
The perceptual tendency to group together stimuli
The societal tendency toward class stratification
Qg height tendency equation
Comparative advantage numerical example
Bankers algorithm numerical
Numerical method
Pde project topics
Numerical expression
Numerical methods for describing data
Birge vieta method uses formula of
Numerical calculations
Numerical geometry of non-rigid shapes
Numerical summary
Medical
Errors in numerical methods
Graphical method numerical analysis
A parameter is a numerical description of a
Numerical optimization techniques for engineering design
Asu
Numerical model
Representing numerical data
Numerical pattern
General solutions of differential equations
What is a numerical summary of a sample
What is numerical discrete
Coefficient
Flux
Linear monomial
Numerical derivation
Numerical descriptive techniques
Shl numerical reasoning test
Numerical
Romberg integration calculator
Statistical average crossword
Trapezoidal rule formula
Abdul won the second prize adjective
Sketching as a tool for numerical linear algebra
Sketching as a tool for numerical linear algebra
Common features of application software
Beda kategorik dan numerik
Light numerical
Numerical expression definition
Numerical analysis
Geometry
Numerical analysis formula
Programs that organize analyze and graph numerical data
