Numerical analysis of Concrete Face Rockfill Dams based on Lade’s model and gradient plasticity P. Dakoulas, E. Stavrotheodorou, A. Giannakopoulos University of Thessaly Volos, Greece

Motivation: Realistic prediction of slab performance during impoundment, creep and dynamic settlements Campos Novos Dam Zipingpu Dam

Topics • Behavior and modelling of rockfill • Lade’s constitutive model • A simple gradient plasticity approach • Numerical model • Concrete slab performance: o effect of dam height o effect of rockfill stiffness • Conclusions

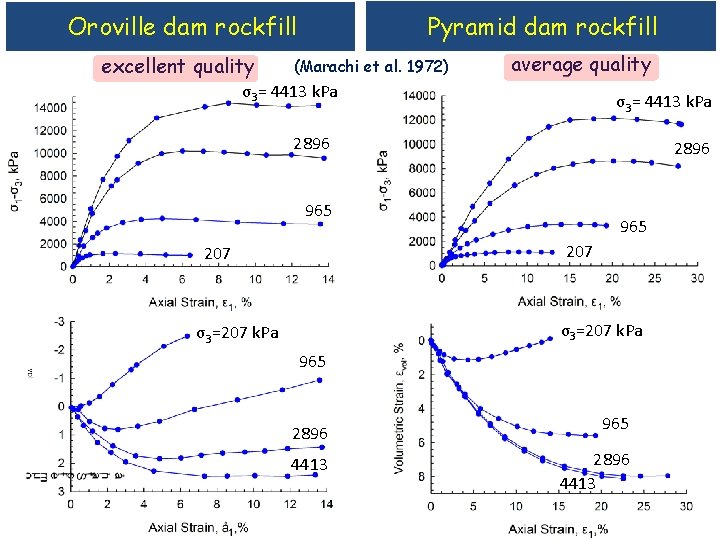

Pyramid dam rockfill Oroville dam rockfill excellent quality (Marachi et al. 1972) average quality σ3= 4413 k. Pa 2896 965 207 σ3=207 k. Pa 965 2896 4413

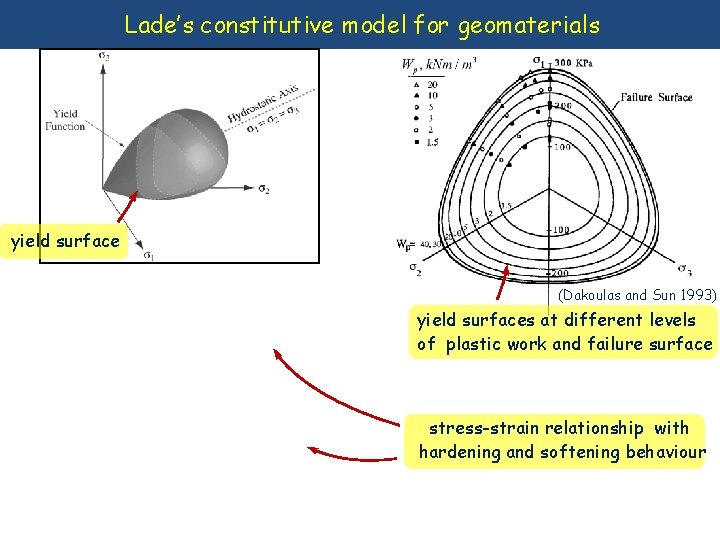

Lade’s constitutive model for geomaterials yield surface (Dakoulas and Sun 1993) yield surfaces at different levels of plastic work and failure surface stress-strain relationship with hardening and softening behaviour

Lade’s constitutive model for geomaterials The model offers the following advantages: • Continuous variation of the tangent Young’s modulus based on the stress state during the analysis • Realistic description of volumetric strains due to shearing • Realistic handling of the softening behaviour

Simulation of rockfill behavior: isotropic compression (using Lade’s model implemented in ABAQUS as a user material) Oroville rockfill Pyramid rockfill

Oroville rockfill behavior: triaxial compression

Pyramid rockfill behavior: triaxial compression

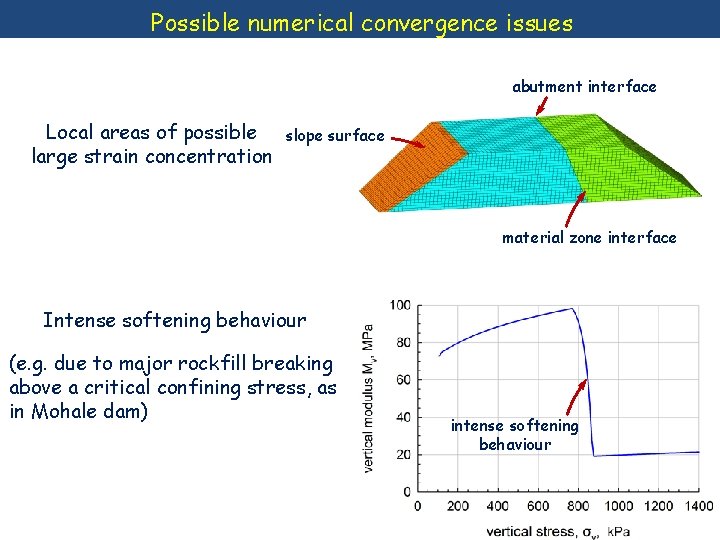

Possible numerical convergence issues abutment interface Local areas of possible large strain concentration slope surface material zone interface Intense softening behaviour (e. g. due to major rockfill breaking above a critical confining stress, as in Mohale dam) intense softening behaviour

A simple gradient plasticity approach deviatoric plastic strain: gradient coefficient: where: = gradient of = intrinsic length (rockfill size) (Bassani 2001) = reference strain (limit of elastic range)

A simple gradient plasticity approach

Numerical models of three dams material zones Dam A 100 m Dam B concrete panels Aspect ratio: 200 m L/H = 2 Shape factor: As/H 2 = 2. 1

Numerical models of three dams material zones Dam C Aspect ratio: 300 m L/H = 2 Shape factor: As/H 2 = 2. 1

Numerical modelling of concrete slab panels Geometry: slab width = 15 m slab thickness = 0. 30+0. 003 h (h = depth of overlying water) Material: Fiber reinforced concrete based on mixing plain concrete with f c= 37 MPa and steel fiber (Reinforcing Index = 2. 5%) Uniaxial tension Uniaxial compression

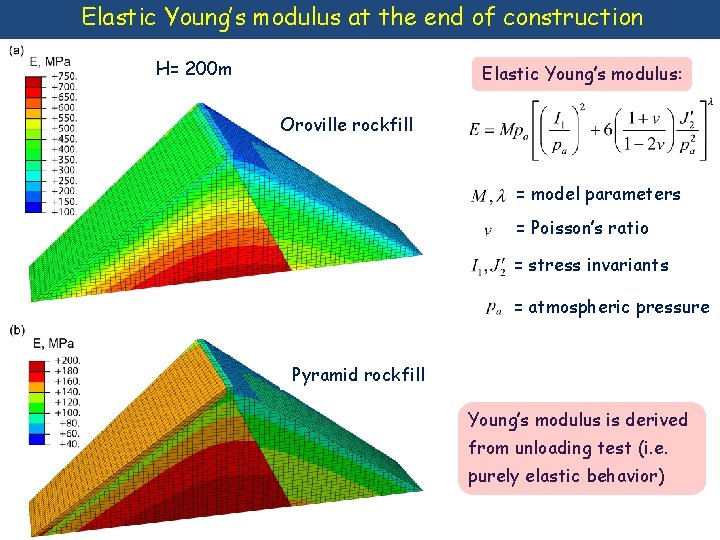

Elastic Young’s modulus at the end of construction H= 200 m Elastic Young’s modulus: Oroville rockfill = model parameters = Poisson’s ratio = stress invariants = atmospheric pressure Pyramid rockfill Young’s modulus is derived from unloading test (i. e. purely elastic behavior)

Distribution of settlements at midsection H = 300 m -> S/H = 0. 40% H = 200 m -> S/H = 0. 30% (measured on Oroville dam S/H=0. 31%) H = 300 m -> S/H = 1. 47%

Construction settlements narrow canyons

Concrete slab deflection after impoundment H = 200 m Oroville rockfill Pyramid rockfill

Slab deflection after impoundment after long-term creep and dynamic settlements Assumption: Max long-term settlements at crest is 50% of max. construction settlement

Tensile plastic strains in the concrete slab H= 300 m

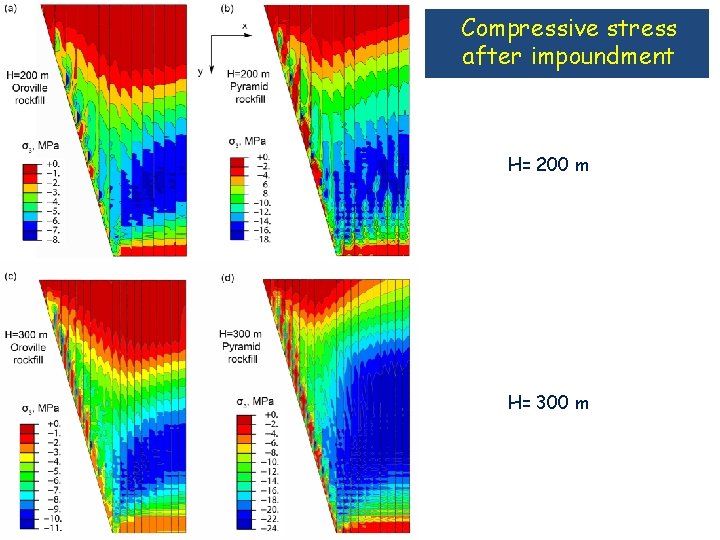

Compressive stress after impoundment H= 200 m H= 300 m

Compressive stresses after impoundment x y H= 200 m H= 300 m

Compressive stress after long-term settlements H= 200 m H= 300 m

Compressive stresses after long-term settlements x y 3 D strength: 57 MPa

Maximum compressive stress vs dam height after impoundment after long-term settlements

Horizontal movement of slab panels after impoundment Oroville rockfill

Horiz. movement of slab panels after long-term settlements Oroville rockfill

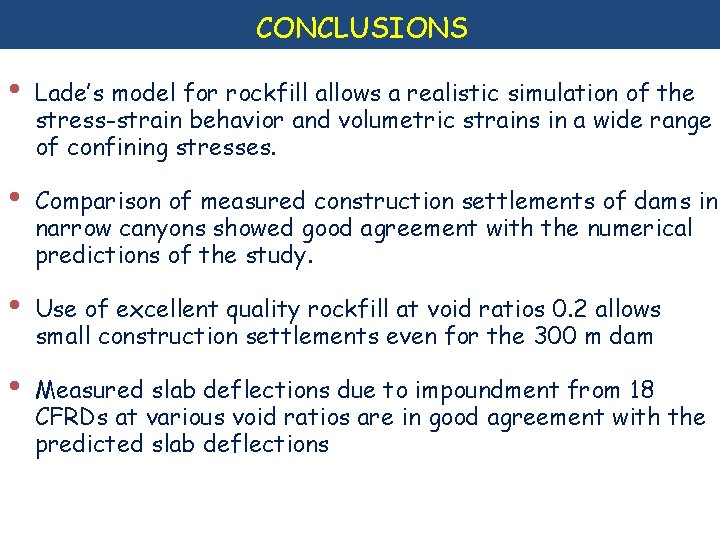

CONCLUSIONS • Lade’s model for rockfill allows a realistic simulation of the stress-strain behavior and volumetric strains in a wide range of confining stresses. • Comparison of measured construction settlements of dams in narrow canyons showed good agreement with the numerical predictions of the study. • Use of excellent quality rockfill at void ratios 0. 2 allows small construction settlements even for the 300 m dam • Measured slab deflections due to impoundment from 18 CFRDs at various void ratios are in good agreement with the predicted slab deflections

CONCLUSIONS • The use of excellent quality rockfill at void ratios of 0. 2 yields small slab deflections even for the 300 m dam during impoundment and long-term settlements • Compressive stresses in the slab reach a maximum at about 40% of the height during impoundment, but may reach a larger value near the crest due to long-term settlements • For the excellent quality rockfill, compressive stresses remain at low levels compared to the strength of concrete • For the average quality rockfill, compressive stresses become very high, especially after long-term settlements Thank you for your attention!
