In the previous slide n Special matrices – strictly diagonally dominant matrix – symmetric positive definite matrix • Cholesky decomposition – tridiagonal matrix n Iterative techniques – Jacobi, Gauss-Seidel and SOR methods – conjugate gradient method n n Nonlinear systems of equations (Exercise 3) 2
In this slide n Eigenvalues and eigenvectors n The power method – locate the dominant eigenvalue n Inverse power method n Deflation 3
Chapter 4 Eigenvalues and eigenvectors 4
Eigenvalues and eigenvectors n 5
In Chapter 4 n Determine the dominant eigenvalue n Determine a specific eigenvalue n Remove a eigenvalue n Determine all eigenvalues 6
4. 1 The power method 7

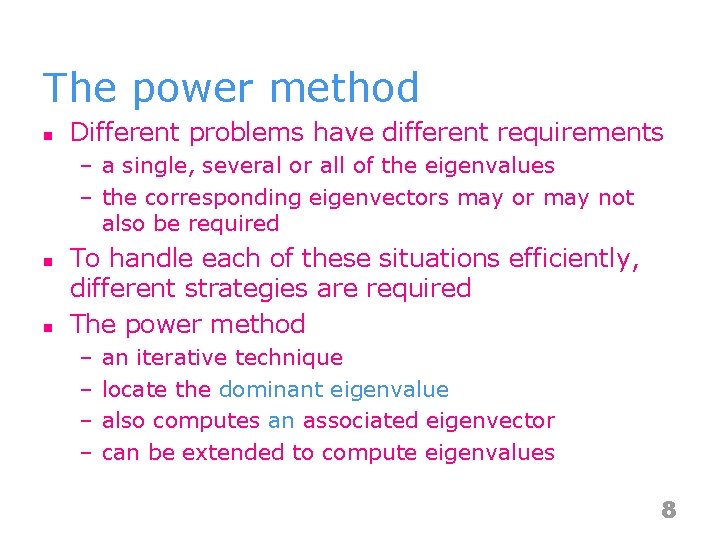

The power method n Different problems have different requirements – a single, several or all of the eigenvalues – the corresponding eigenvectors may or may not also be required n n To handle each of these situations efficiently, different strategies are required The power method – – an iterative technique locate the dominant eigenvalue also computes an associated eigenvector can be extended to compute eigenvalues 8
The power method Basics 9
10
11
The power method Approximated eigenvalue 12
Any Questions? 13

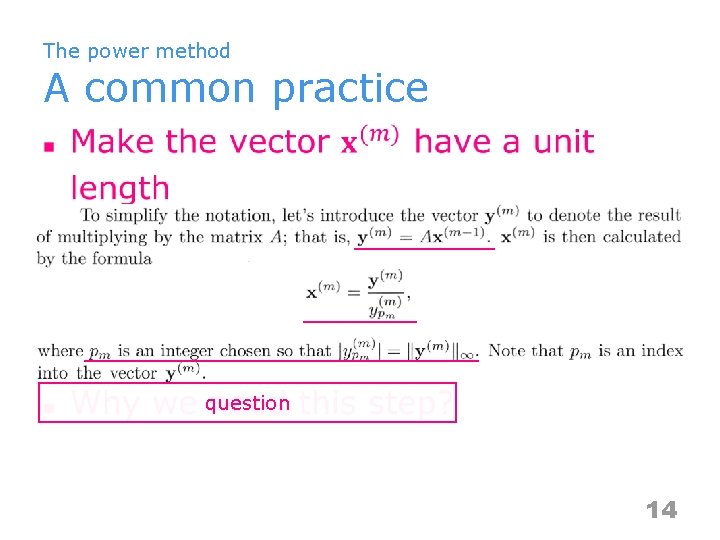

The power method A common practice n question 14
The power method A common practice n 15
n 16
The power method Complete procedure 17
Any Questions? 18
http: //thomashawk. com/hello/209/1017/1024/Jackson%20 Running. jpg In action 19
what is the first estimate? 20
21
22
23
Any Questions? The power method for generic matrices 24
The power method for symmetric matrices 25
n 26
The power method variation 27
28
The power method Approximated eigenvalue Recall that http: //www. dianadepasquale. com/Thinking. Monkey. jpg 29
Any Questions? The power method for symmetric matrices 30
Why to Require the matrix to be symmetric? 31
Any Questions? 4. 1 The power method 32
An application of eigenvalue 33
34
35
Undirected graph Relation to eigenvalue n Proper coloring – how to color the geographic regions on a map regions that share a common border receive different colors n Chromatic number – the minimum number of colors that can be used in a proper coloring of a graph 36
Undirected graph The dominant eigenvalue 37
Undirected graph The corresponding eigenvector 38
Any Questions? 39
4. 2 The inverse power method 40
The inverse power method n later 41
42

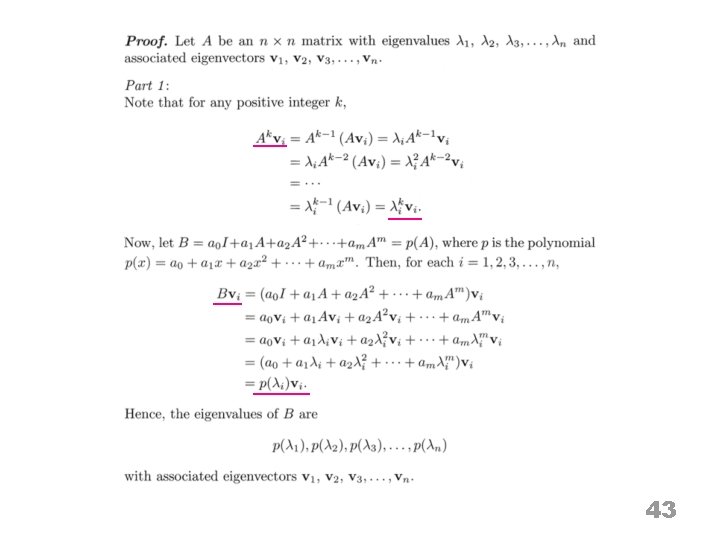

43
44
The inverse power method n 45
46
Any Questions? 47
How to Find the eigenvalue smallest in magnitude 48
Any Questions? 4. 2 The inverse power method 49
4. 3 Deflation 50
Deflation n So far, we can approximate – the dominant eigenvalue of a matrix – the one smallest in magnitude – the one closest to a specific value n n What if we need several of the largest/smallest eigenvalues? Deflation – to remove an already determined solution, while leaving the remainder solutions unchanged 51
n 52
53

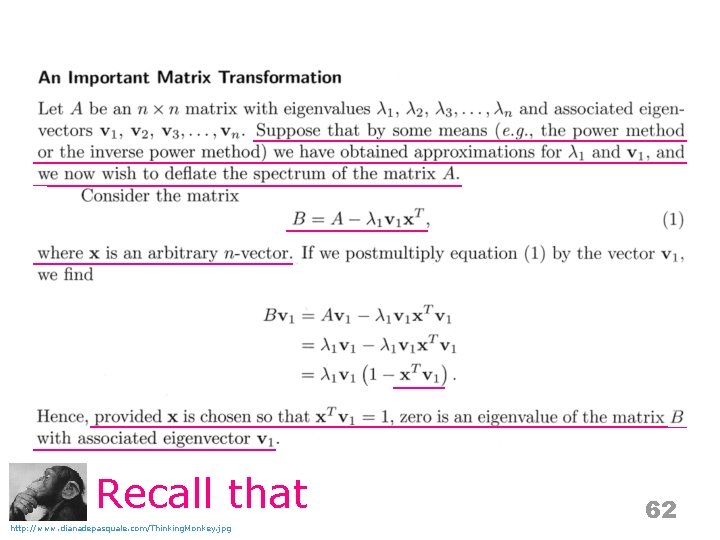

Recall that http: //www. dianadepasquale. com/Thinking. Monkey. jpg 54
Deflation Shift an eigenvalue to zero 55
While leaving the remaining eigenvalues unchanged 56
57
58
Deflation Summary 59
Any Questions? 60
Do we Miss something? 61
Recall that http: //www. dianadepasquale. com/Thinking. Monkey. jpg 62
63
Wielandt deflation 64
65
Wielandt deflation Bonus 66
http: //thomashawk. com/hello/209/1017/1024/Jackson%20 Running. jpg In action 67
68
69
Hotelling deflation n 70
71
Any Questions? 4. 3 Deflation 72
