Numerical Analysis EE NCKU TienHao Chang Darby Chang
Numerical Analysis EE, NCKU Tien-Hao Chang (Darby Chang) 1
In the previous slide n Fixed point iteration scheme – what is a fixed point? – iteration function – convergence n Newton’s method – tangent line approximation – convergence n Secant method 2
In this slide n Accelerating convergence – linearly convergent – Newton’s method on a root of multiplicity >1 – (exercises) n Proceed to systems of equations – linear algebra review – pivoting strategies 3
2. 6 Accelerating Convergence 4
Accelerating convergence n Having spent so much time discussing convergence – is it possible to accelerate the convergence? n n How to speed up the convergence of a linearly convergent sequence? How to restore quadratic convergence to Newton’s method? – on a root of multiplicity > 1 5
Accelerating convergence Linearly convergence n Thus far, the only truly linearly convergent sequence – false position – fixed point iteration n Bisection method is not according to the definition 6
7
Aitken’s Δ 2 -method n Substituting Eq. (2) into Eq. (1) n Substituting Eq. (4) into Eq. (3) n The above formulation should be a better approximation to p than pn 8
9
Aitken’s Δ 2 -method Accelerated? which implies superanswer linearly convergence later 10
11
Any Questions? About Aitken’s Δ 2 -method 12
Accelerating convergence Anything to further enhance? 13
Why not use p-head instead of p? 14

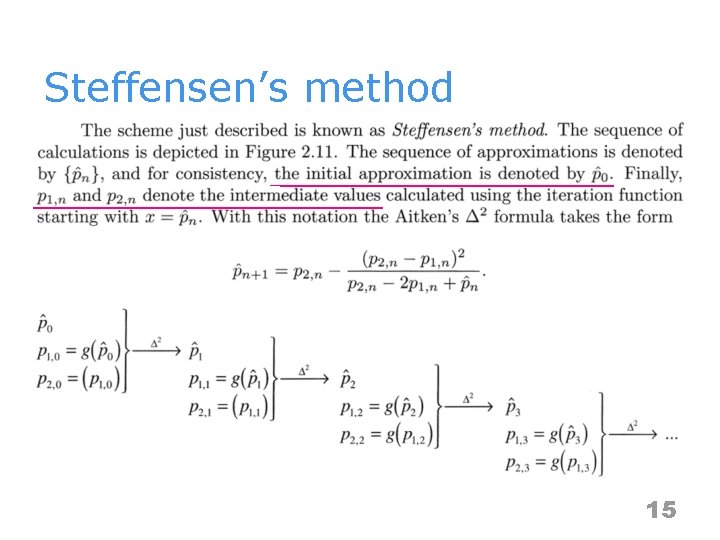

Steffensen’s method 15
Restoring quadratic convergence to Newton’s method 16
17
18
Any Questions? 19
Two disadvantages n Both the first and the second derivatives of f are needed answer n Each iteration requires one more function evaluations 20
Any Questions? Chapter 2 Rootfinding (2. 7 is skipped) 21
Exercise 2010/4/21 9: 00 am Email to darby@ee. ncku. edu. tw or hand over in class. You may arbitrarily pick one problem among the first three, which means this exercise contains only five problems. 22

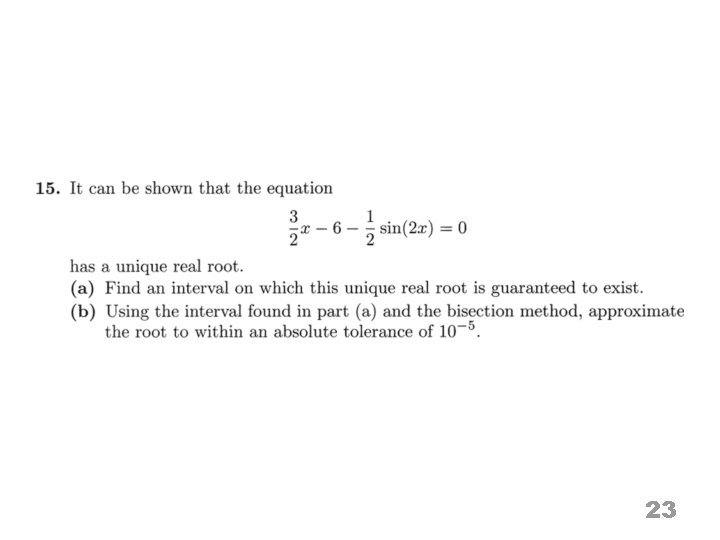

23
24

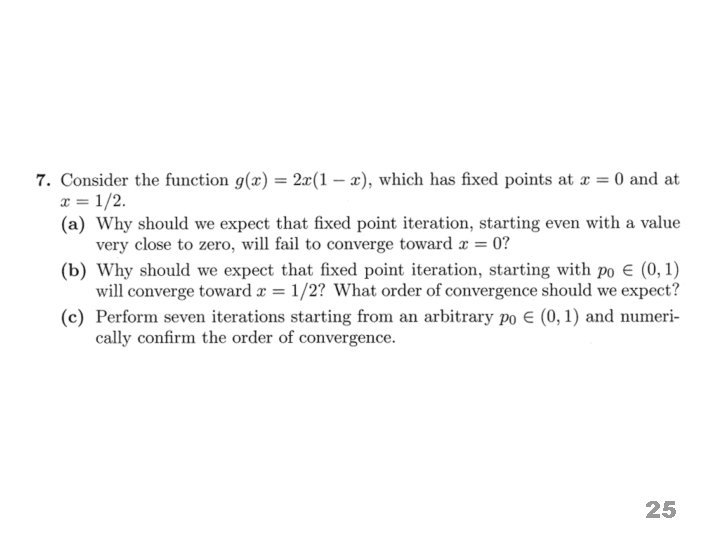

25
26
(Programming) 27
Chapter 3 Systems of Equations 28
Systems of Equations Definition 29
3. 0 Linear Algebra Review (vectors and matrices) 30
Matrix Definitions 31
Any Questions? m, n, m, i, j, EQUAL, SUM, SCALAR MULTIPLICATION, PRODUCT… 32
The Inverse Matrix (cannot be skipped) 33

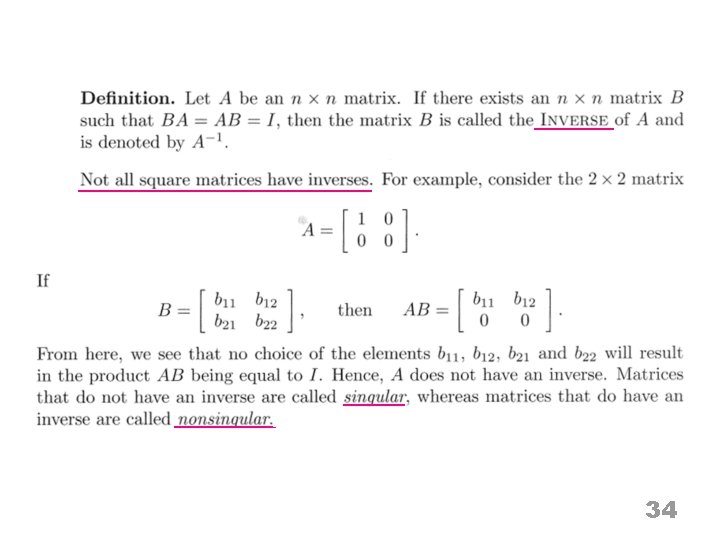

34
Any questions? question answer 35
The Determinant (cannot be skipped, too) 36
cofactor 37
38

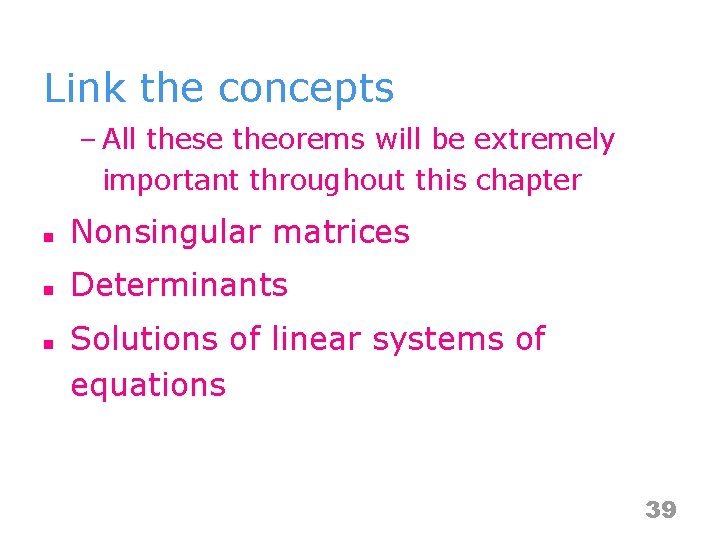

Link the concepts – All these theorems will be extremely important throughout this chapter n Nonsingular matrices n Determinants n Solutions of linear systems of equations 39

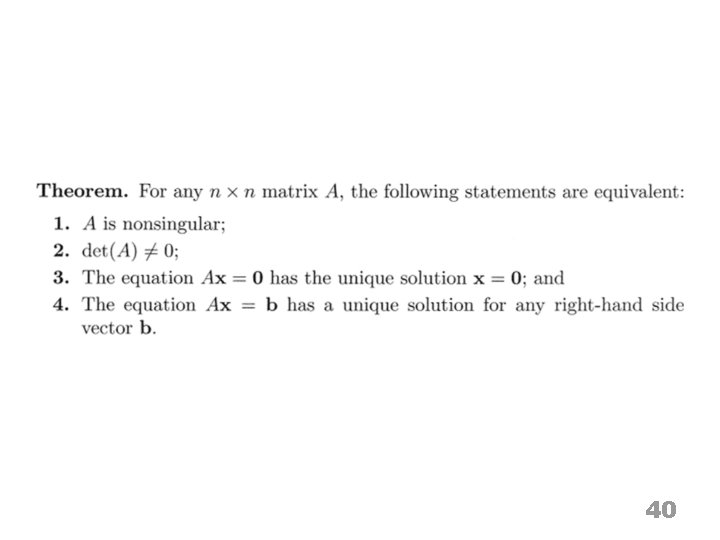

40
(Hard to prove) 41
Any Questions? 3. 0 Linear Algebra Review 42
3. 1 Gaussian Elimination (I suppose you have already known it) 43
An application problem 44

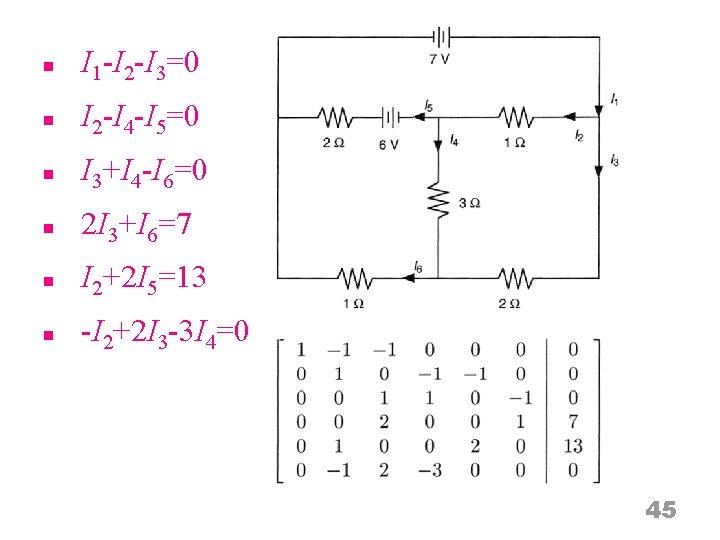

n I 1 -I 2 -I 3=0 n I 2 -I 4 -I 5=0 n I 3+I 4 -I 6=0 n 2 I 3+I 6=7 n I 2+2 I 5=13 n -I 2+2 I 3 -3 I 4=0 45
Following Gaussian elimination 46
Any Questions? Gaussian elimination 47
Gaussian elimination Operation Counts 48
Operation Counts Comparison n Gaussian elimination – forward elimination – back substitution n Gauss-Jordan elimination n Compute the inverse matrix 49
3. 2 Pivoting Strategy 50
51
52
Compare to x 1=1, x 2=7, x 3=1 53
Pivoting strategy n n n To avoid small pivot elements A scheme for interchanging the rows (interchanging the pivot element) Partial pivoting 54
http: //thomashawk. com/hello/209/1017/1024/Jackson%20 Running. jpg In action 55
56

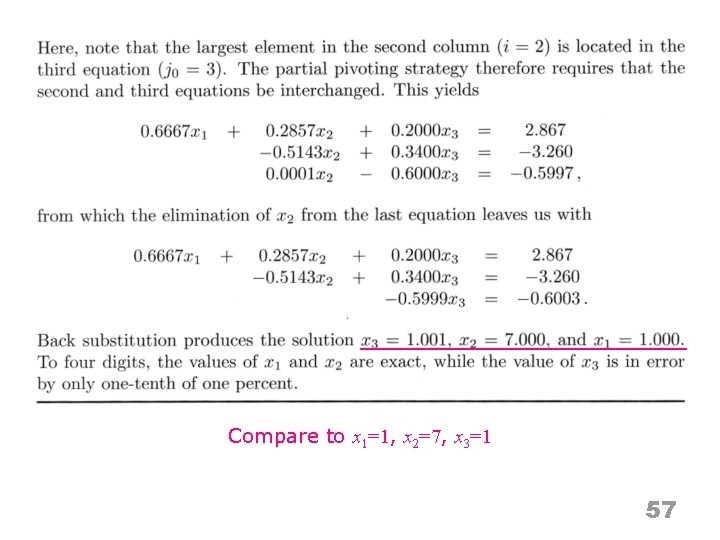

Compare to x 1=1, x 2=7, x 3=1 57
Any Questions? 58
From the algorithm view n How to implement the interchanging operation? – changehint implicitly n Introduce a row vector r – each time a row interchange is required, answer we need only swap the corresponding elements of the vector – number of operations from 3 n to 3 59
http: //thomashawk. com/hello/209/1017/1024/Jackson%20 Running. jpg In action 60
Without pivoting 61
62
63
n x = [1. 000, -0. 9985, 0. 9990, -1. 000]T – exact solution x = [1, -1, 1, -1]T – no r x = [1. 131, -0. 7928, 0. 8500, -0. 9987]T 64
Scaled Partial Pivoting 65
Scaled partial pivoting An example 66
Any Questions? 67
Scaled partial pivoting A blind spot of partial pivoting answer 68
Scaled partial pivoting 69
70
http: //thomashawk. com/hello/209/1017/1024/Jackson%20 Running. jpg In action 71
72
73
n x = [1. 000, -1. 000]T – exact solution x = [1, -1, 1, -1]T – no s x = [1. 000, -0. 9985, 0. 9990, -1. 000]T – no r x = [1. 131, -0. 7928, 0. 8500, -0. 9987]T 74
Any Questions? 3. 2 Pivoting Strategy 75
