Outline • • • Market data Pre-processing Software components Extreme events Example: wavelet analysis of FX spot prices • Implications for software design 2

Market data • Tick – as transactions occur, high frequency, irregular in time quote/price with time stamp • Sample tick data at regular times – minute, hour, day, … – low-high price • Bid-ask pairs – FX spot market • Time series – construct from sampled and processed data 3

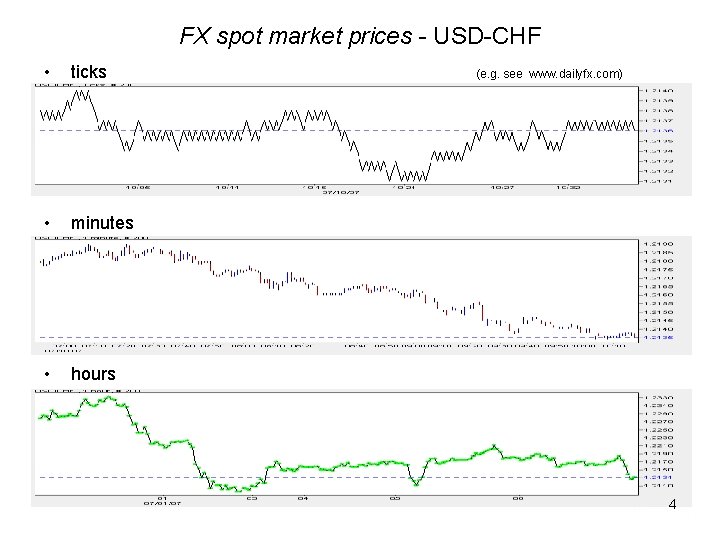

FX spot market prices - USD-CHF • ticks • minutes • hours (e. g. see www. dailyfx. com) 4

Data cleaning Required to remove errors in data – • • • inputting errors test ticks to check system response repeated ticks copying and re-sending of ticks scaling errors How can false values be reliably identified and rejected ? • what assumptions must be imposed? • elimination of outliers based on an assumed probability distribution 5

Pre-processing • Tick data irregular in time – construct homogeneous time series by interpolation: linear, repeated value • Bid-ask spread – use relative spread • Remove seasonality • Account for holidays Ø Must not introduce spurious structures to data 6

Software components Mathematical models Software components Data cleaning filtering Pre-processing interpolation transformation Analysis wavelets 7

Implementation issues Algorithm design – – – – Stability Accuracy Exception handling Portability Error indicators Documentation These are independent of the problem being solved 8

Extreme events • Weather – storm • Warfare – explosion • Markets – crash Software – How should it respond to the unpredictable? What is the role of software when its modelling assumptions break down? 9

An illustration – another type of bubble Underwater explosions are used to destroy ships – the initial shock is expected and often not as damaging as the later gas bubble collapse. Left: raw data from sensitive, but un-calibrated pressure gauge Right: calibrated gauge uses averaging to produce smooth curve Use of averaging obscures critical event in this case. 10

Example: wavelet analysis of FX spot prices • Wavelet transforms provide localisation in time and frequency for analysis of financial time series. • This is achieved by scaling and translation of wavelet basis. • Decompose time series, by convolution with dilated and translated mother wavelet, or filter, • Discrete (DWT) Orthogonal Filter pair: H – high pass, G – low pass followed by down-sampling 11

Wavelet filters Family of filters by scaling Daubechies D(4) wavelet filters result from sampling a continuous function 12

Multi-Resolution Analysis Discrete Wavelet Transform (DWT) x(t) Hx | 2 Gx | 2 d 1 Hs 1 | 2 Gs 1 | 2 d 2 Hs 2 | 2 Gs 2 | 2 13

DWT implementation Orthogonal wavelet transform uses • filters defined by sequences: • satisfying: , , , • This allows for a number of variants in implementation numerical output from different software providers is not identical 14

Discrete Wavelet Transform – Multi-Resolution Analysis For input data , length , produces representation in terms of ‘detail’ and ‘smooth’ wavelet coefficients of length Uses • Data compression – discard coefficients • De-noising Disadvantages • Difficult to relate coefficients to position in original input • Not translation invariant – shifting starting position produces different coefficients 15

Maximal Overlap Wavelet Transform (MODWT) (Stationary Wavelet Transform) • • • Convolution: wavelet filters as in DWT No down-sampling MRA produces N coefficients at each level Requires more storage and computation Not orthonormal Advantages • Translation invariant • Can relate to time scale of original data • Does not require length(x) = 16

Choice of wavelet filter • Short can introduce ‘blocking’ or other features which obscure analysis of data • Long increases number of coefficients affected by ends of data set • Basis Pursuit seeks to optimise choice of wavelet at each level but requires more computation 17

FX: USD, GBP, EUR – NZD 12 noon buying rates, Jan – Jul 2007 18

FX: JPY, USD, GBP, EUR – NZD 12 noon buying rates, Jan – Jul 2007 (from www. x-rates. com) 19

JPY-NZD, LA(8), MODWT (includes boundary effects) x(t) d 1 d 2 d 3 d 4 20

JPY-NZD, LA(8) MODWT (includes boundary effects) x(t) d 5 d 6 s 6 21

Boundary conditions – end extension • Wavelet transform applies circular convolution to data • What happens at the ends of the data set? • End extension techniques – periodic reflection – whole/half-point pad with zeros • Boundary effects contaminate wavelet coefficients software should indicate where output is influenced by end extension 22

End extension Periodic Whole-point reflection 23

USD-NZD, Haar, MODWT Periodic end extension Level 1 detail coefficients Level 2 detail coefficients 24

USD-NZD, Haar, MODWT (end effects removed) x(t) d 1 d 2 d 3 25

USD-NZD, Haar MODWT (end effects removed) x(t) d 4 d 5 d 6 s 6 26

Wavelet analysis for prediction • Extrapolation from present to near future is useful • Apply wavelet filters to for avoiding boundary effect • Select wavelet scales to identify trend and stochastic parts of data set • Use wavelet coefficients to compute prediction (see Renaud et al. , 2002) 27

Implications for software development • Reproducibility is desirable – algorithms precisely defined to allow independent implementations to produce identical results • Edge effects – contaminate ends of transform for finite signals – software must indicate coefficients affected • Smoothing/averaging – software should indicate when underlying assumptions likely to be invalid • Pre-processing – ensure that structure is not introduced by interpolation to give homogeneous data set 28

Implications for software development • For extreme events – must not obscure or remove data relevant to critical events by averaging, smoothing, filtering. 29
